Overview
Key Features
Up to 10 Gbps Data Transfer: Efficiently handles high-bandwidth tasks such as video conferencing, file transfers, and more.
Backward Compatibility: Automatically adjusts to the lowest common USB speed, ensuring flawless communication with any USB device.
Lifetime Warranty: Provides peace of mind with a no-hassle guarantee covering you and your clients.
Passive USB 3.2 Gen 2 Type-A to Type-C Cables (1–3 Meters)
Braided Outer Jacket: Adds durability to withstand regular plugging and unplugging.
99.99% Oxygen-Free Copper Conductors: Ensures low attenuation, high conductivity, and minimal signal loss.
Precision-Machined Connectors: Maintains secure connections through repeated insertion and removal cycles.
Use Cases: Ideal for short-range device connections, everyday office peripherals, mobile devices, and charging setups.

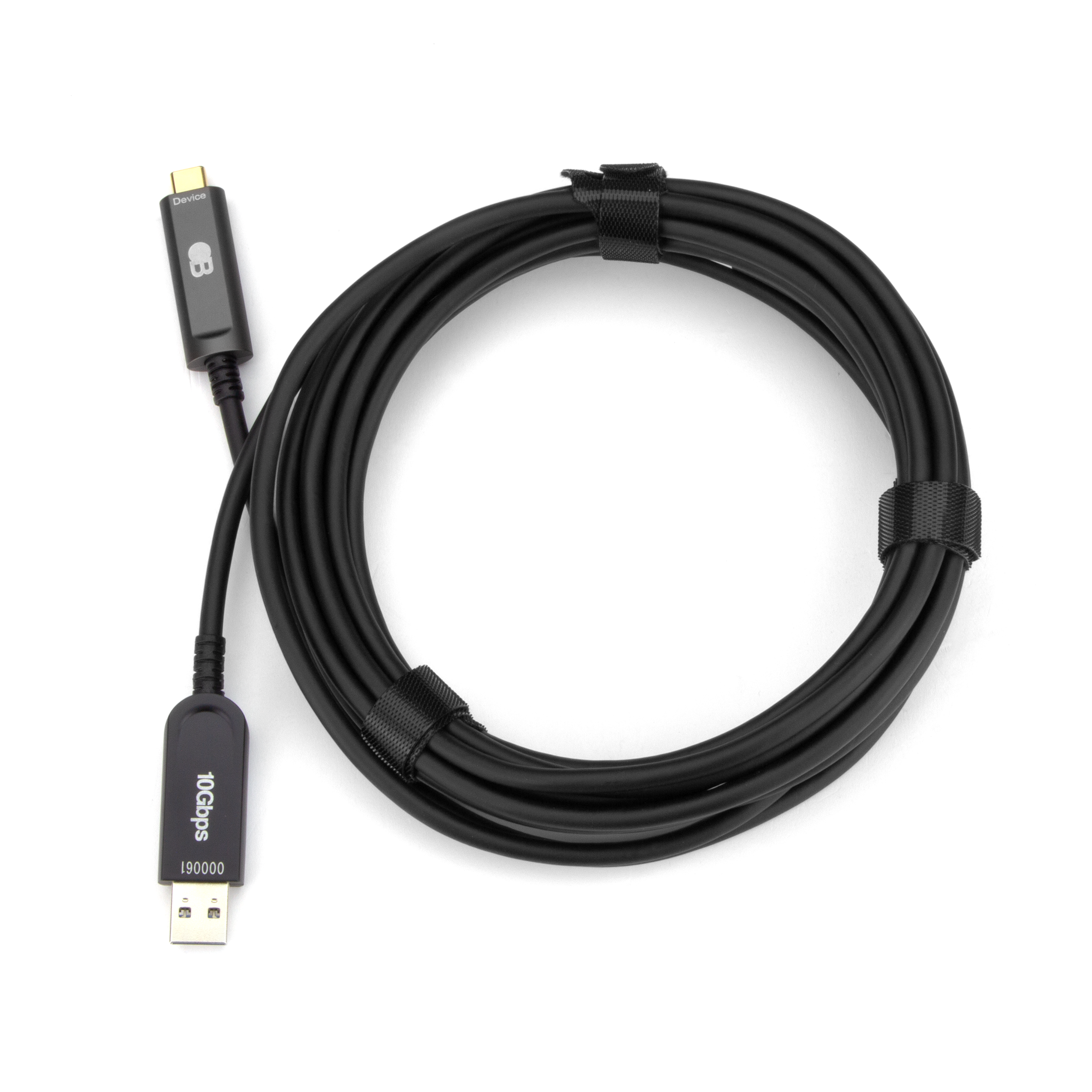

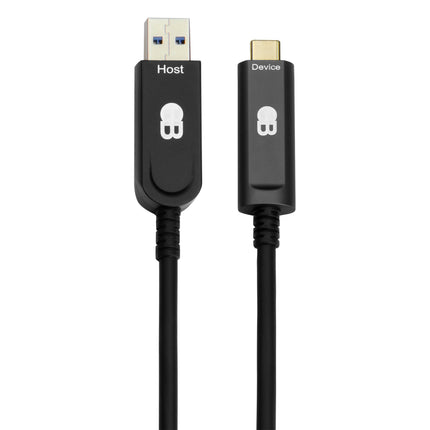

Active Optical USB 3.2 Gen 2 Type-A to Type-C Cables (5–15 Meters)
OM3 High-Bandwidth Fiber: Eliminates signal dropouts and blackouts over extended distances.
Data-Grade AOC Transceivers: Provides improved EMI resistance, low latency, and sustained high data rates with lower power consumption.
Flexible TPE Jacket: Resists bending damage, ensuring reliable installations in challenging or high-traffic environments.
Use Cases: Perfect for long-distance runs in conference rooms, classrooms, or mission-critical applications requiring stable, high-speed signals.
Description
Bullet Train professional-grade USB cables guarantee connectivity and full functionality with each designated length. Worry-free, multiuse, best-in-class cables support USB Version 1, 2, and 3 devices for synchronization and charging while enabling communication and also providing power.
Drawing from a broad testing analysis of USB cables in the marketplace, Bullet Train set out to design a series of professional-grade USB cables that addressed the common issues that plague generic, internet-sourced USB cables, such as insertion fatigue, poor shielding, sporadic signal transfer, and unpredictable device interoperability.
Bullet Train professional-grade USB cables eliminate application guesswork and expertly equip commercial integrators with reliable, backward-compatible, one- to three-meter passive and five- to 15-meter extended-distance active optical-based USB connectivity options. Specifying Bullet Train USB cables into heavy-use markets such as Collaboration/Office, Educational, and Hospitality, or mission-critical spaces like First-responder, Governmental, and Medical enables integrators to provide demanding clients performance-oriented cabling from a benchmark-setting manufacturer in the world of high-bandwidth signal transfer.
Exhaustively tested and interoperability-verified on over 80 leading-brand devices, Bullet Train passive and active cables define the new standard in USB cable construction quality and long-term reliability, supported by a lifetime warranty.
Specs
Passive Cables (1-3 Meters)
USB Type
USB 3.2 Gen 2 (2x1)
Connector Type
USB Type-A Male to USB Type-C Male
Available Lengths

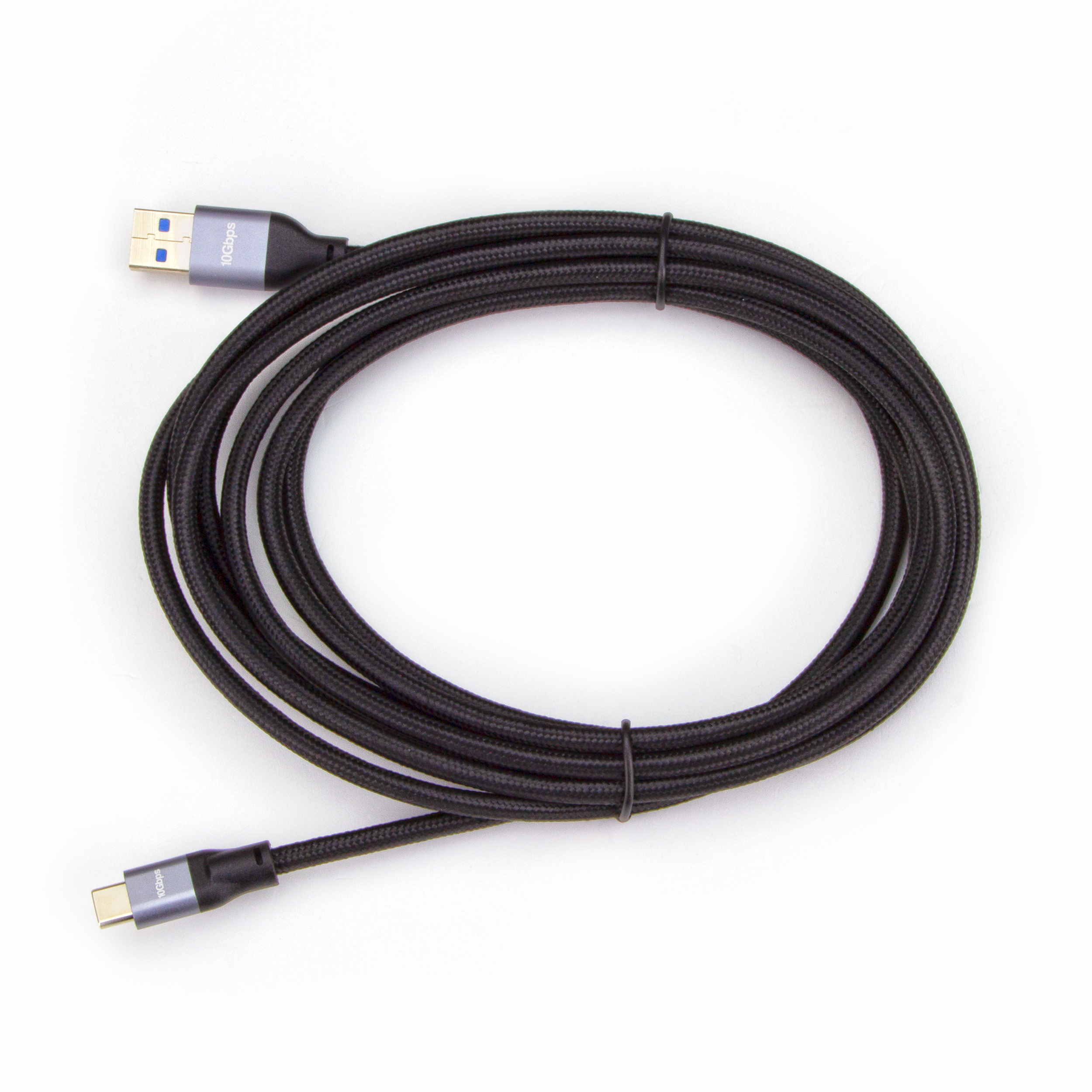

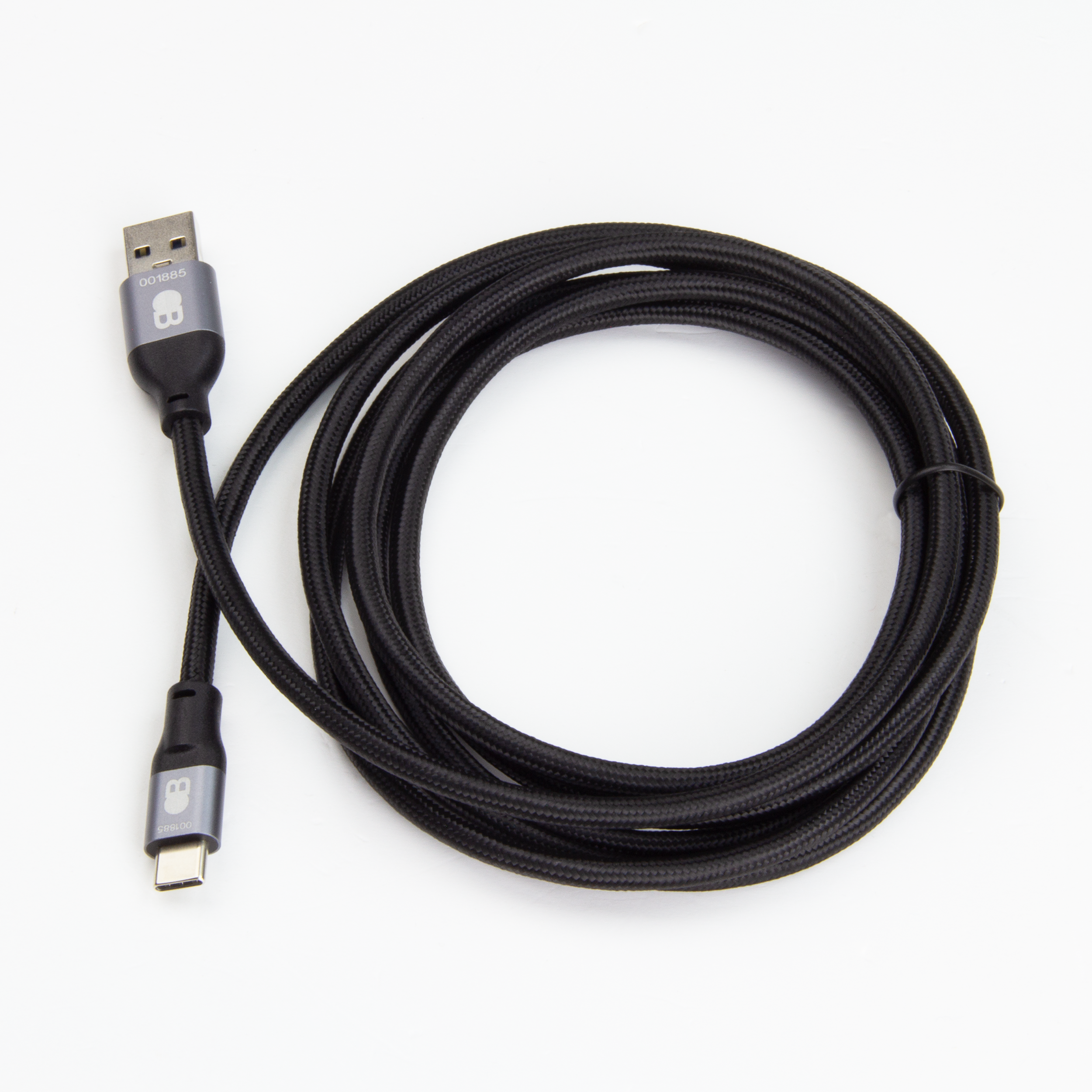

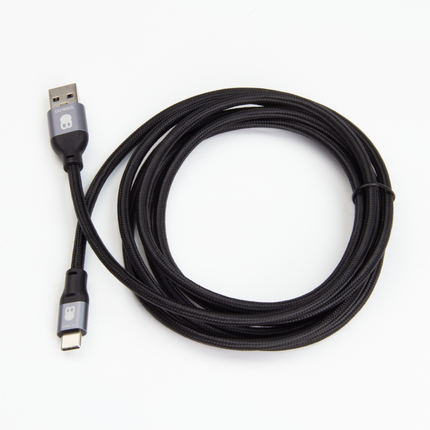

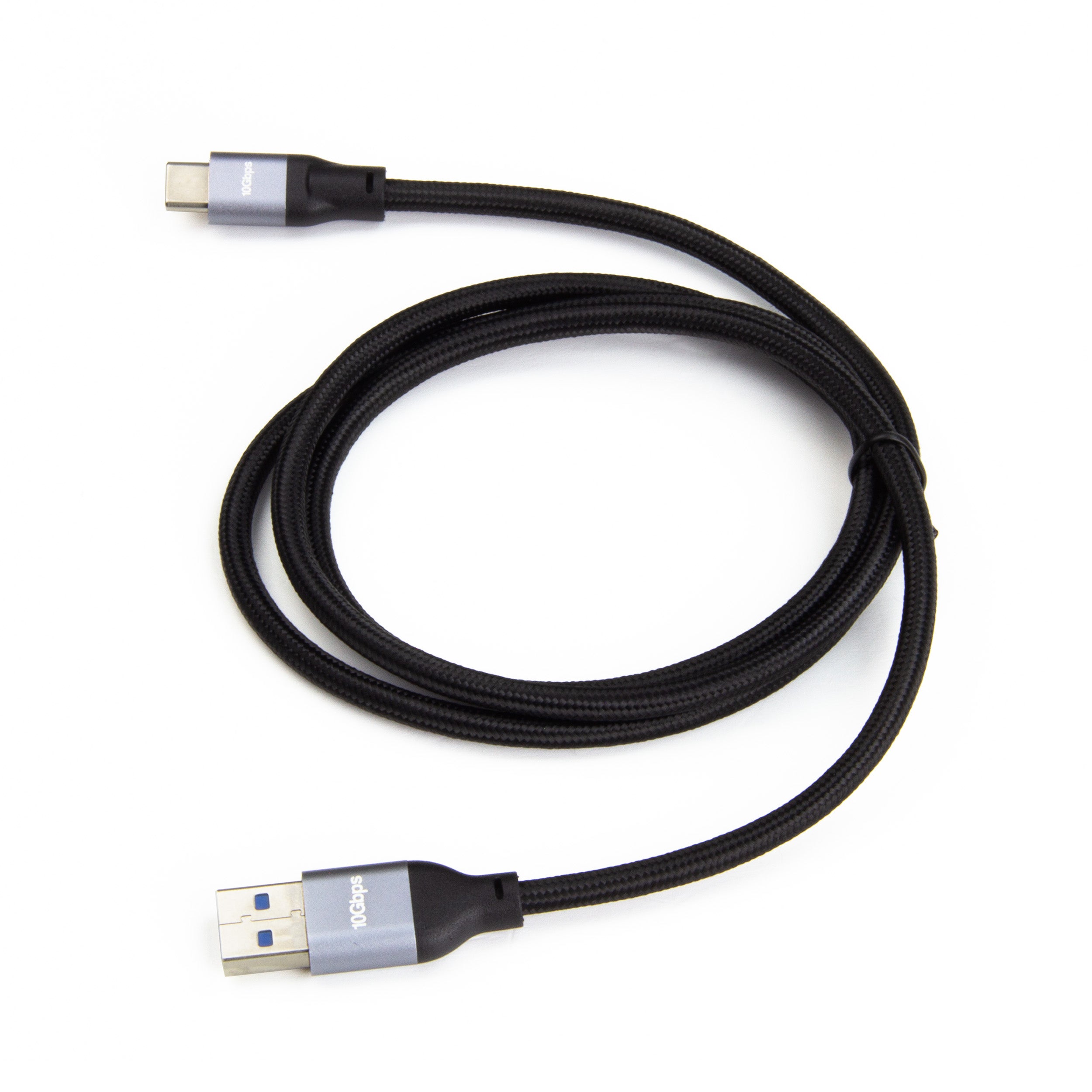

BT-USB-A2C-01 - 1 m (3.2 ft.) BT-USB-A2C-02 - 2 m (6.5 ft.) BT-USB-A2C-03 - 3 m (9.8 ft.)
Max Bandwidth
10 Gbps
Retention Force
4 kg / 8.8 lbs.
Wire Gauge
30 AWG x 24 AWG
Internal Wire Construction
4C (2 x Differential signal pairs)
Cable Impedance
95 Ohms ± 5 Ohms
Cable Outer Diameter
4.8 mm (.188 inches)
Plug Dimensions (L x W x D)
USB Type-A - mm: 4.5 x 12 x 20.4 inches: .177 x .472 x .803 USB Type-C - mm: 17.8 x 8.55 x 2.4 inches: .700 x .336 x .094
Plug Material
Nickel-plated
Casing Material
Aluminum
Outer Shielding Material
PVC Jacket (UL VW-1)
Bend Radius
30 mm
EMI/EMC/Safety Certifications
UL
Environmental
RoHS
Lead-free (Pb-free)
Yes
AOC Cables (5-15 Meters)
USB Type
USB 3.2 Gen 2 (2x1)
Connector Type
USB Type-A Male to USB Type-C Male
Available Lengths

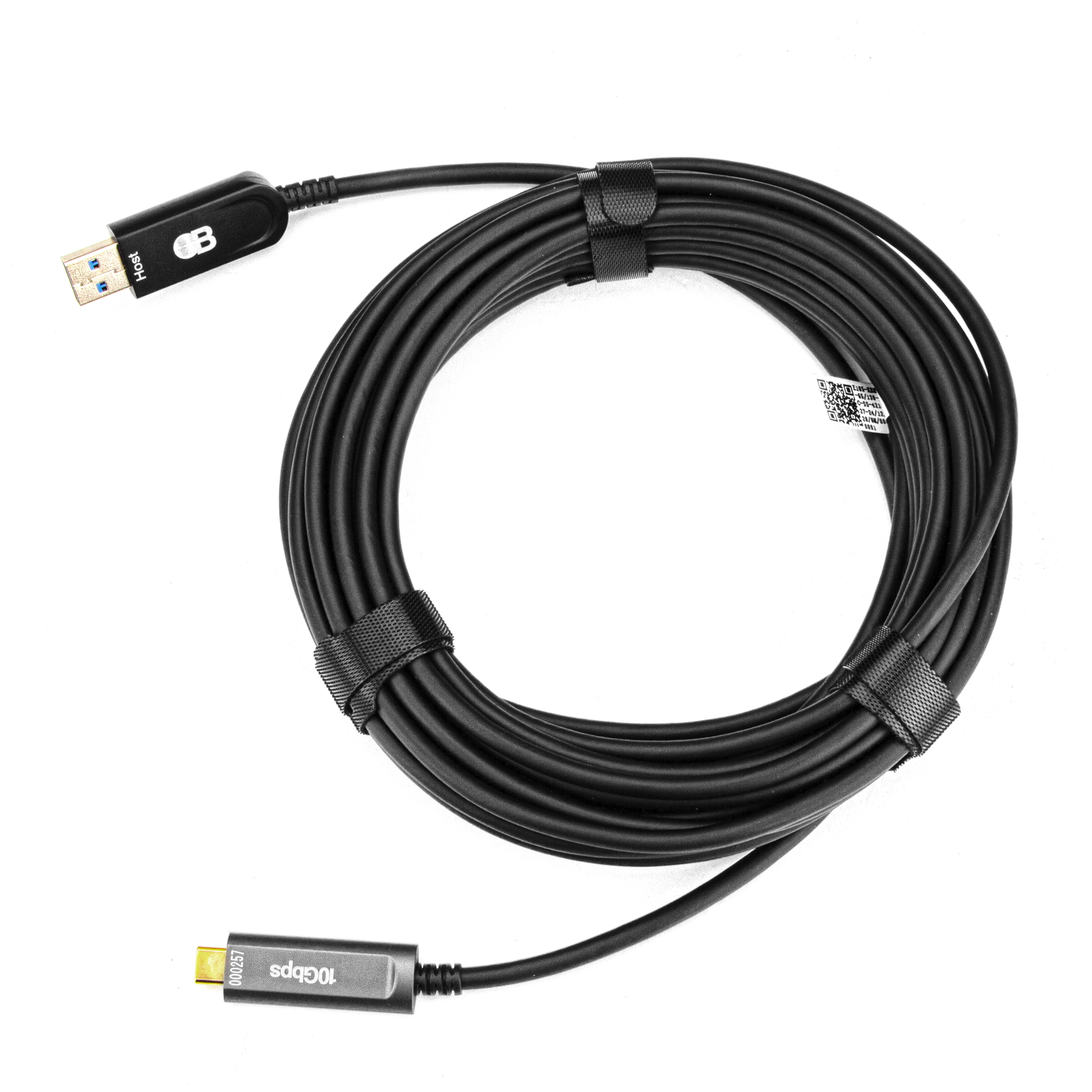

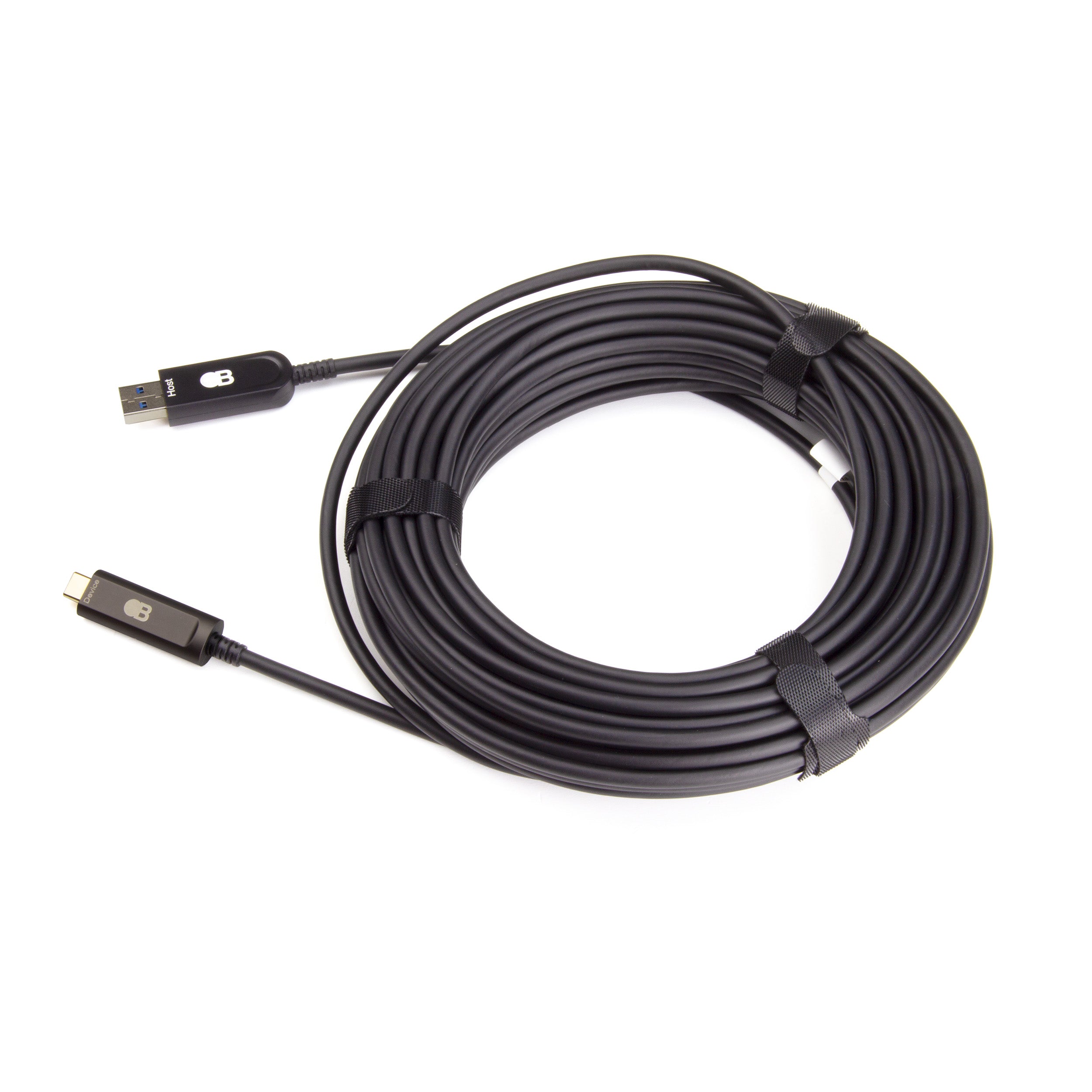

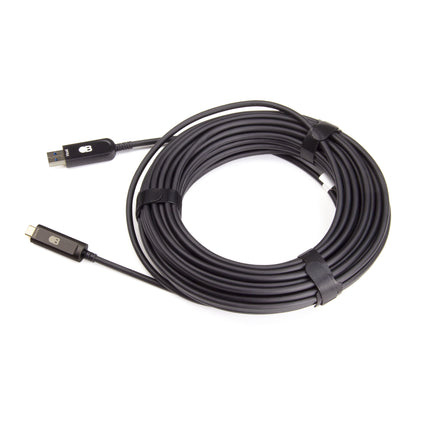

BT-USB-A2C-05 - 5 m (16.4 ft.) BT-USB-A2C-08 - 8 m (26.2 ft.) BT-USB-A2C-15 - 15 m (49.2 ft.)
Max Bandwidth
10 Gbps
Retention Force
3 kg / 6.6 lbs.
Wire Gauge
28 AWG x 26 AWG x 21 AWG
Internal Wire Construction
Fiber + 2x conductors for SuperSpeed RX/TX 1x conductor for CC 1x pair for VBUS/GND 1x pair for D+/D-
Cable Impedance
90 Ohms ± 10%
Cable Outer Diameter
4.8 mm (.188 inches)
Plug Dimensions (L x W x D)

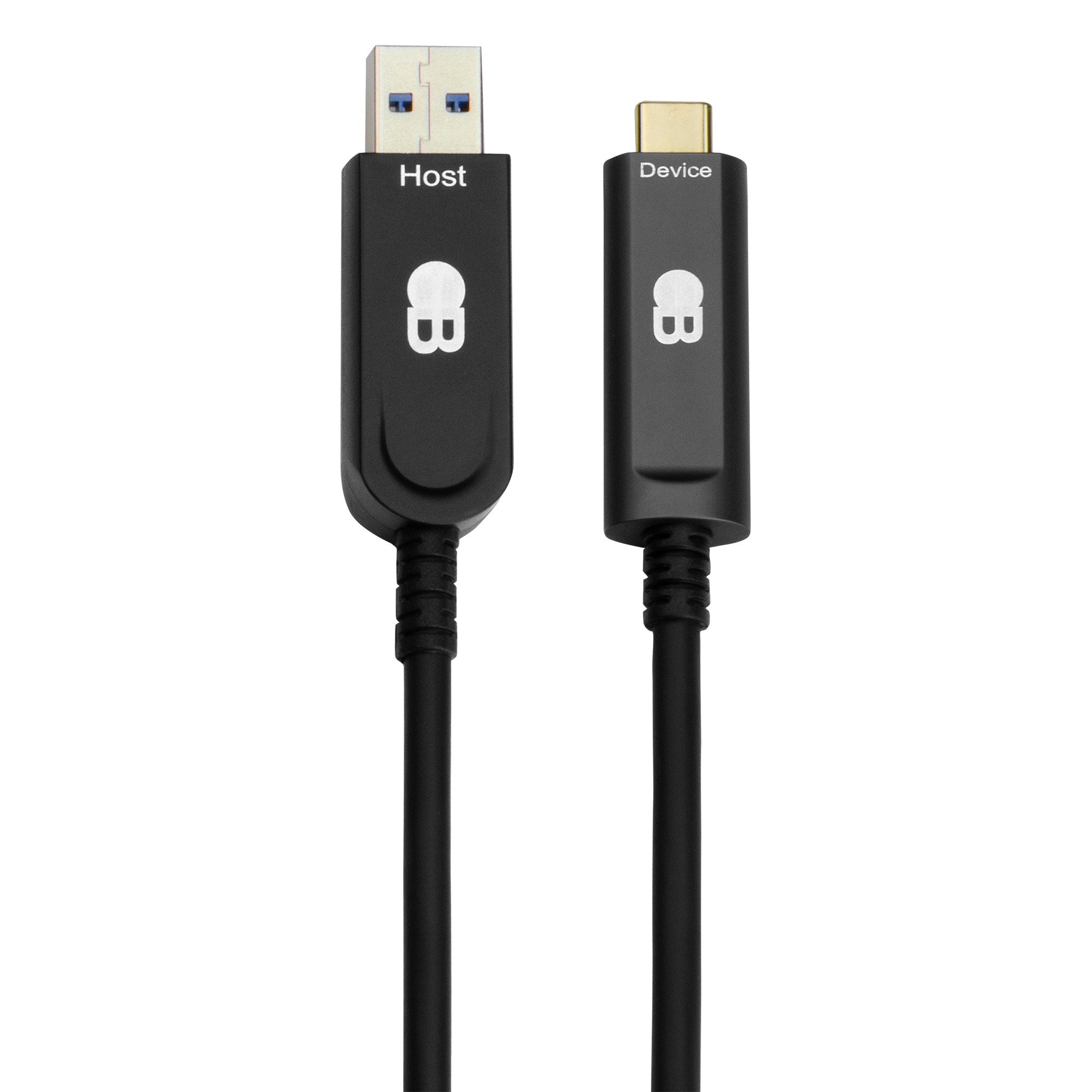

USB Type-A - mm: 40 x 18 x 9 inches: 1.57 x .708 x .354 USB Type-C - mm: 41 x 15 x 7.5 inches: 1.61 x .590 x .295
