Pro.ircb.4 IR Emitter Connecting Block
- VendorPro Control

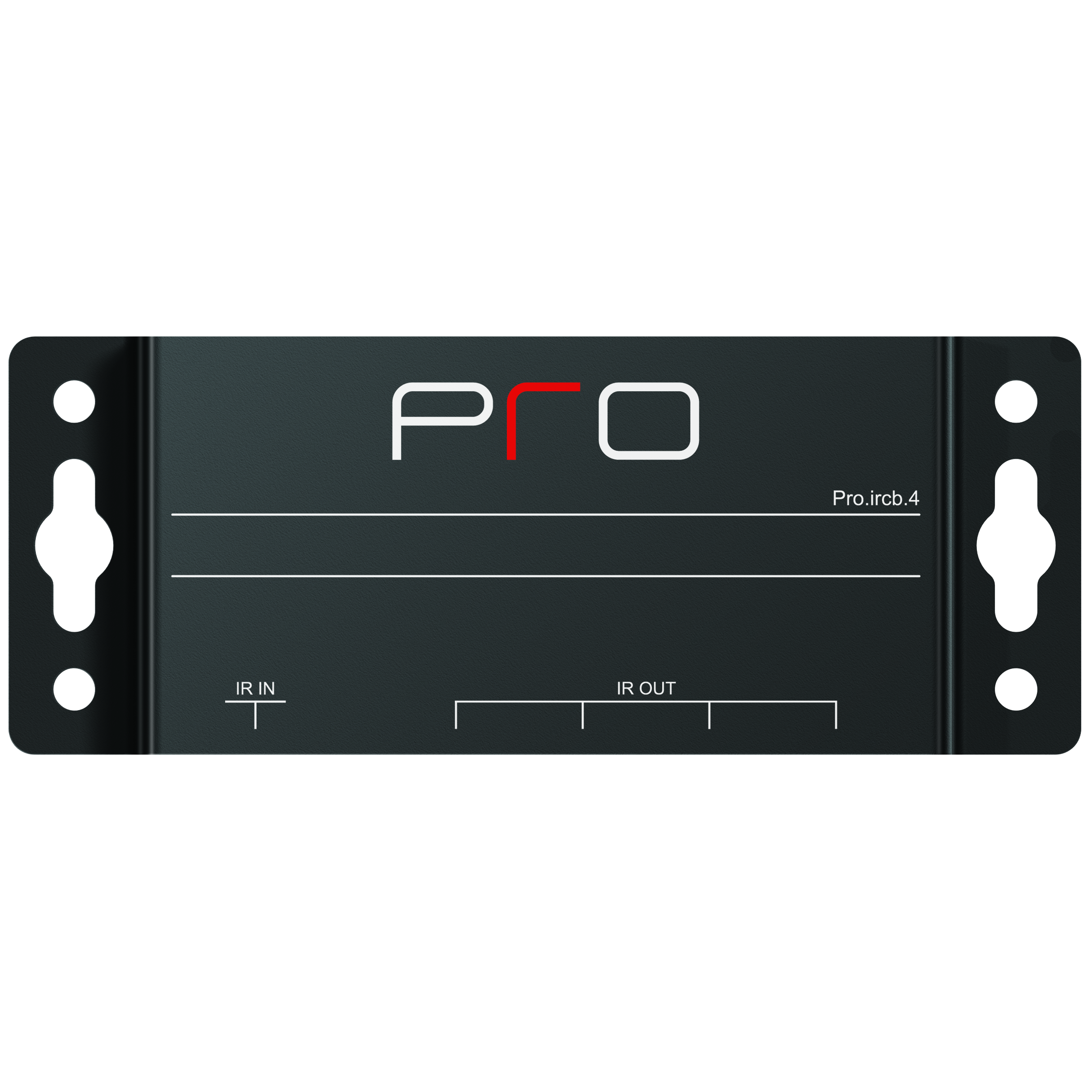

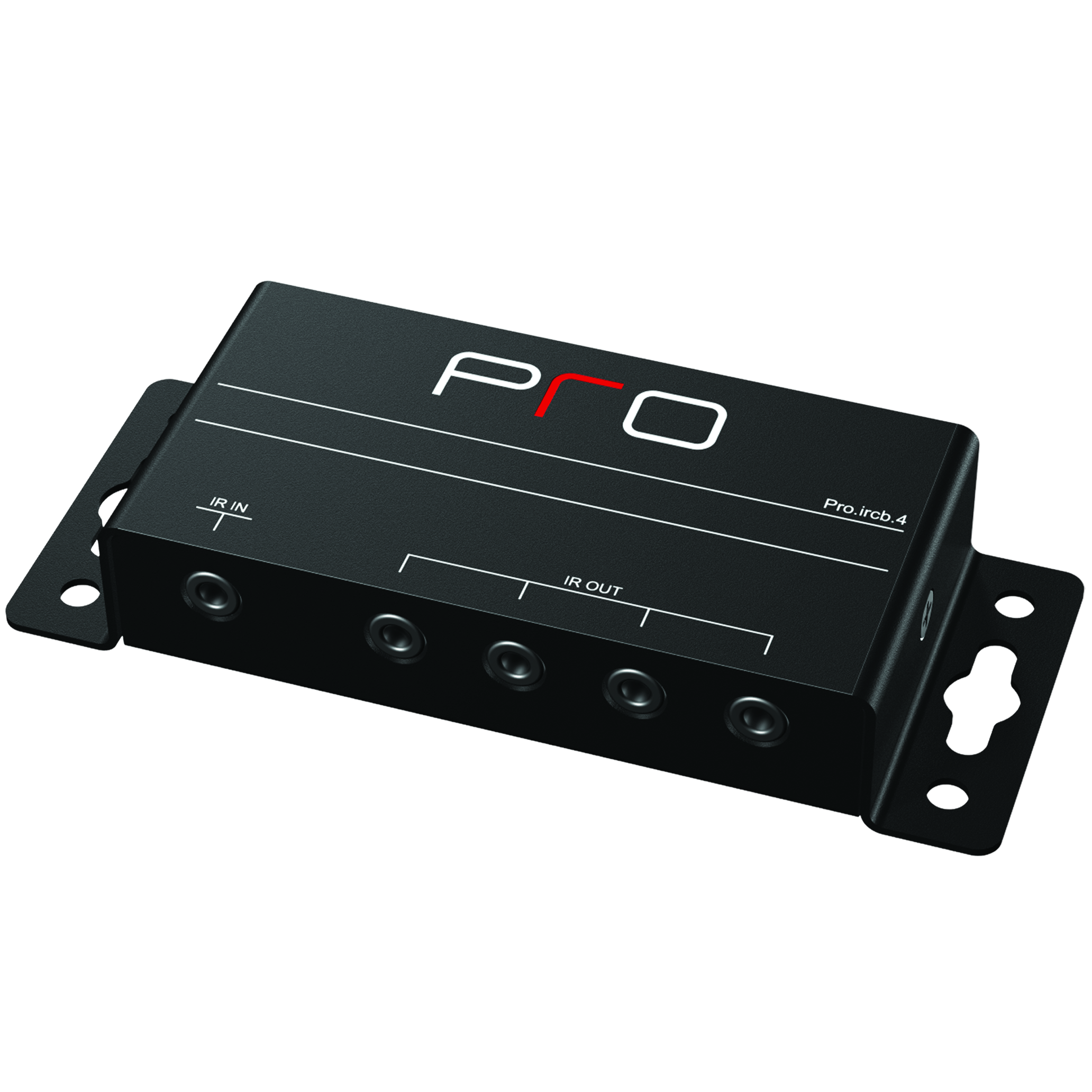

Pro.ircb.4 IR Emitter Connecting Block
- VendorPro Control
- Key Features
- Resources & Specs
- In the Box
- Compatible with most industry standard single IR emitters.
- Four IR emitter output ports.
- Sturdy steel construction.
- A power supply is NOT required for the Pro.ircb.4 to function.
- A 3’ mono cable with 3.5 mm plugs is provided for connection to ProLink processors.
- Surface mount or free standing.
- Dimensions: 5.25 x 1 x 2.
| Power | No additional power option |
| Number of IR outputs | Four 3.5mm jacks for industry-standard IR emitters |
| Enclosure | Formed steel, black powder coating |
| Infared input | Compatible w/ industry-standard repeaters/receivers |
| Infared frequency transmission range | 15 kHz – 460 kHz |
| Mounting | Surface-mount or free standing |
| Dimensions W x H x D | 5.25” x 1.0“ x 2.0” (133.3mm x 25.4mm x 50.8mm) |
| Warranty | 1 Year (parts & labor) |
| Specifications subject to change without notice. Mass & dimensions are approximate. | |
- Pro.ircb.4 assembly
- A 3’ mono cable with 3.5 plugs
- Pro-ircb.4 Quick Usage Guide
