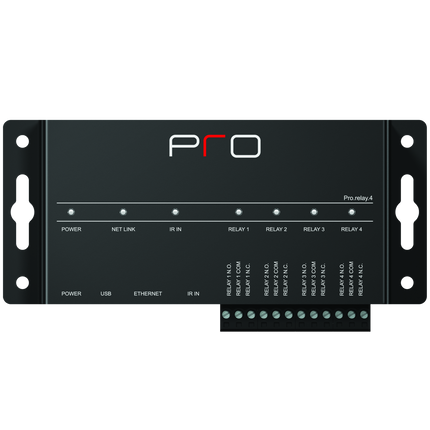

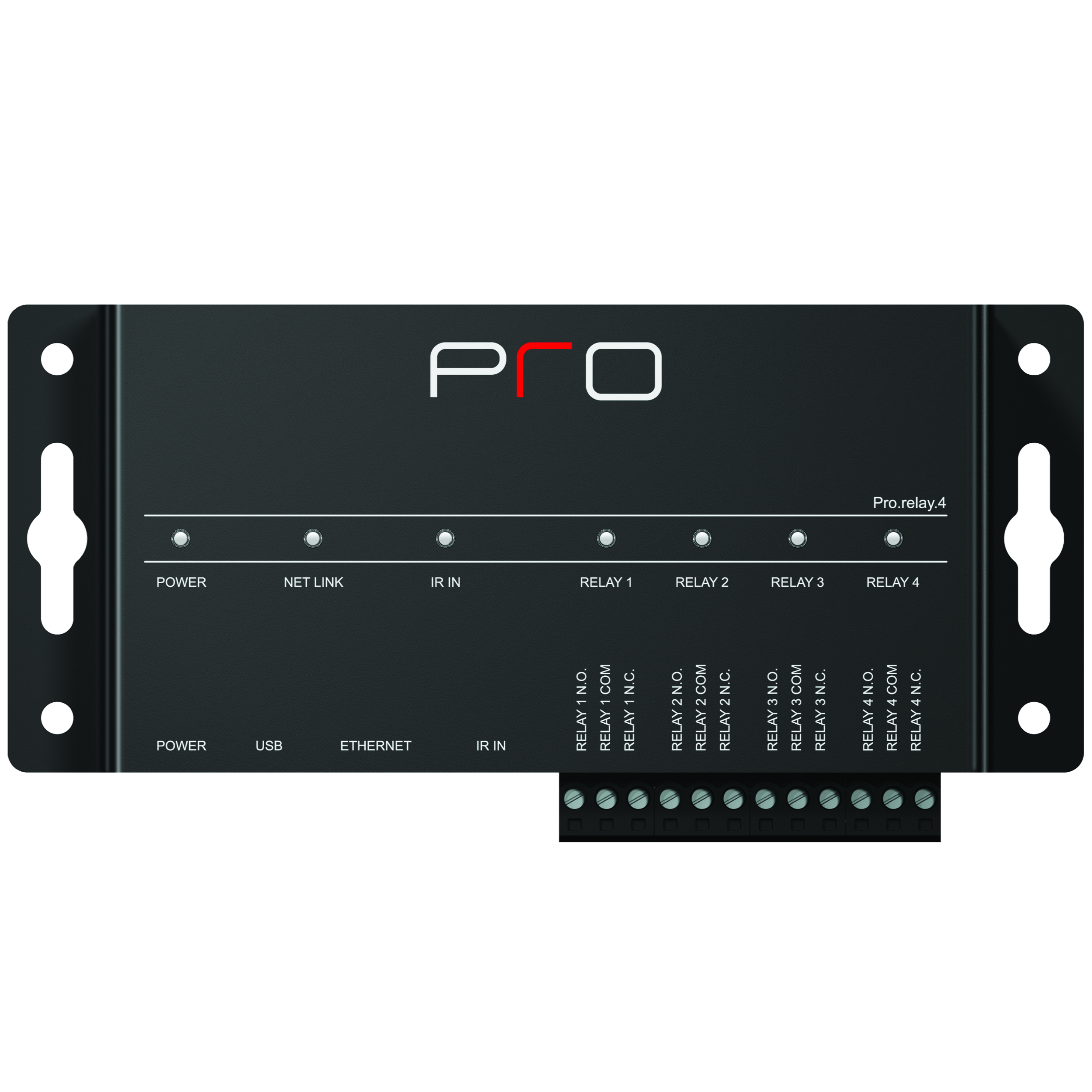

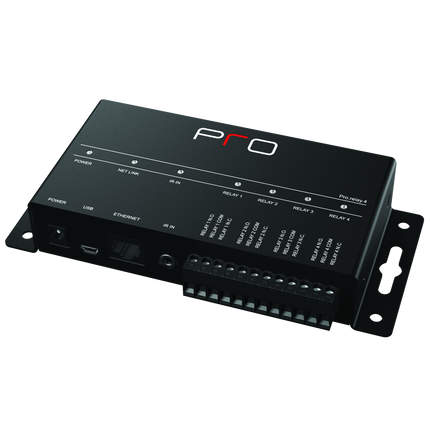

Pro.relay.4 Relay Control Module
- VendorPro Control
- Key Features
- Resources & Specs
- In the Box
- Four individually addressable relays.
- Relays capable of switching up to 28VDC@5A.
- Discrete set of IR codes and an IR input allows relays to be triggered from virtually any IR programmable system.
- Relays can be used in a normally open or normally closed configuration.
- Relays create a “dry contact”.
- Programmable momentary relay hold times.
- Ethernet RJ-45 jack.
- IR Input mini-jack for connection to a Pro Control Processor.
- The relays can be controlled with both IR and Ethernet.
- It can optionally be powered with PoE (Power over Ethernet).
- Sturdy steel construction.
- 12VDC 1A power supply is included.
- Surface mount or free standing.
- Dimensions: 6.75 x 1.25 x 3
| Power | +12VDC, 1A or PoE (Power over Ethernet) |
| Number of relays | Four, 28 VDC@5A |
| Enclosure | Formed steel, black powder coating |
| Infared input | Compatible w/ industry-standard repeaters/receivers |
| Control port | Ethernet RJ45, or 3.5mm mini-jack |
| Mounting | Surface-mount or free standing |
| Dimensions H x W x D | 6.75” x 1.25“ x 3.0” (171.4 mm x 32.7mm x 76.2mm) |
| Warranty | 1 year (parts & labor) |
| Specifications subject to change without notice. Mass & dimensions are approximate. | |
- Pro.relay.4 assembly
- Four 3-position terminal blocks
- 12VDC 1A power supply
- Pro.relay.4 Quick Usage Guide
