HDMI Analyzers & Generators

Never get stumped by a signal again.

The STIX platform delivers compact HDMI™ generators and analyzers designed to simplify field testing and troubleshooting. Together, they give integrators a reliable way to validate signal paths, confirm system compatibility, and resolve issues quickly on-site.

Never get stumped by a signal again.

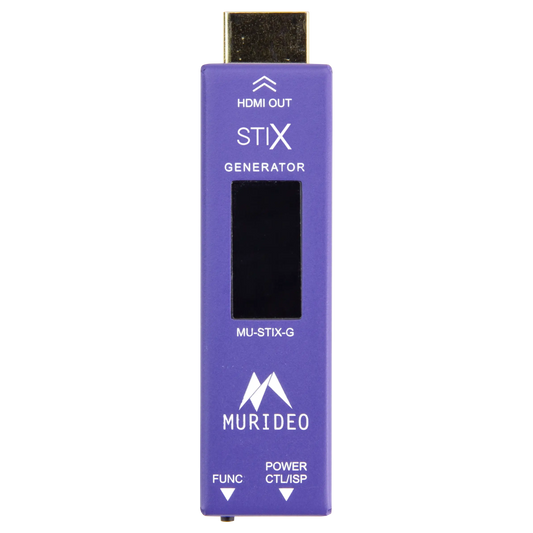

Generate

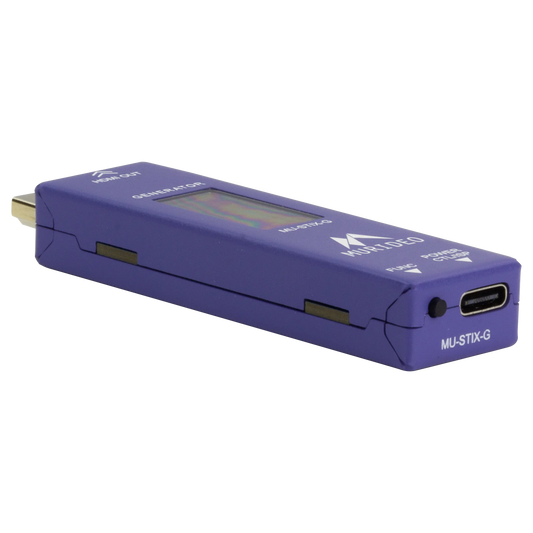

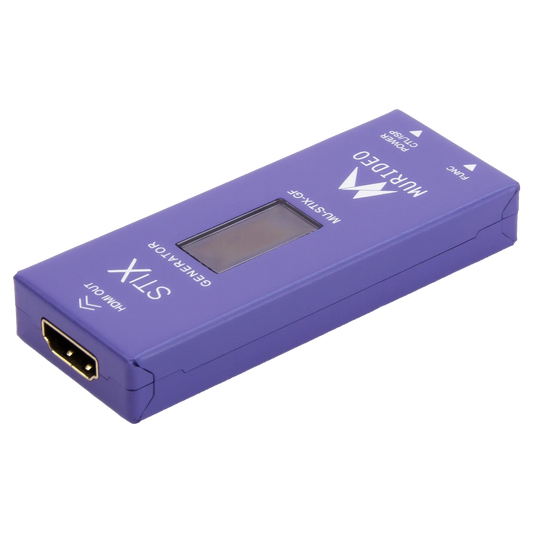

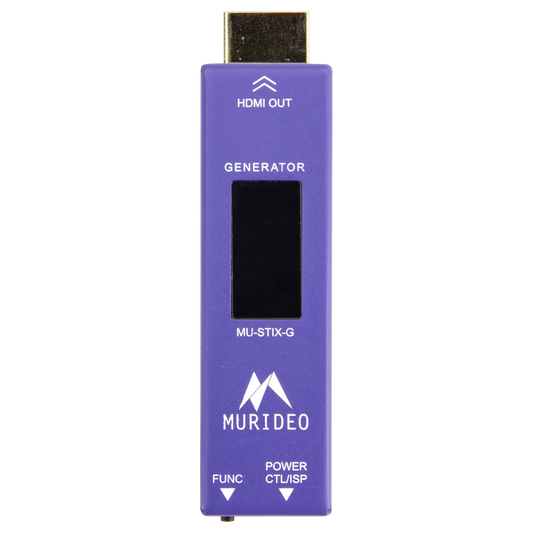

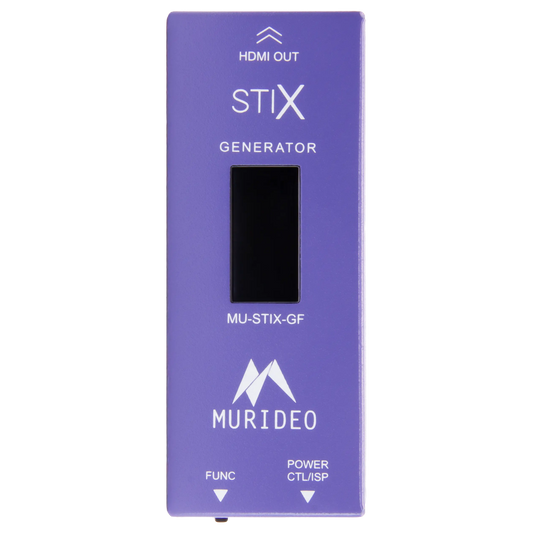

The STIX generators are pocket-sized HDMI signal generators that produce test patterns up to 8K/30 Hz and 4K/120 Hz. With full HDMI 2.1 feature support, HDCP control, 13 built-in test patterns, and 6 preset timing options, they give integrators the ability to validate system performance, check cable integrity, and confirm device compatibility in minutes.

FIELD TROUBLESHOOTING
Trust the STIX as a known-good source when diagnosing issues in distributed video systems.
PRE-DEPLOYMENT VALIDATION
Stress test AV over IP systems and HDMI distribution systems with 8K/30 and 4K/120 signals to confirm compatibility before installation.
SYSTEM COMMISSIONING
Send controlled HDMI test patterns into AVRs, switchers, or displays to verify proper system handshakes, confirm accurate EDID communication, and validate HDCP negotiation.
CABLE VERIFICATION
Confirm that installed cables support 48 Gbps bandwidth and pass 4K/120 Hz or 8K/30 Hz signals without errors.
SERVICE DOCUMENTATION
Identify issues with HDMI signal loss or signal changes to validate performance, support commissioning reports, or provide evidence for warranty/service calls.
CONNECTOR FLEXIBILITY
Available in both male and female versions, eliminating the need for adapters and making field testing easier.

STIX_Generator_Pair_Interesting_71c2e8ba-79c6-425b-bb9a-92367e2c6afb

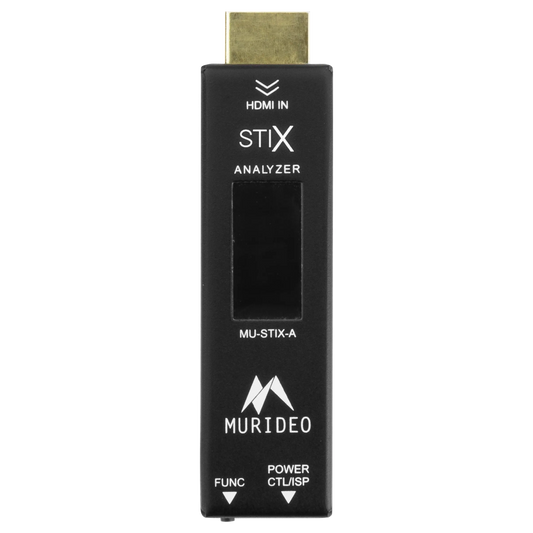

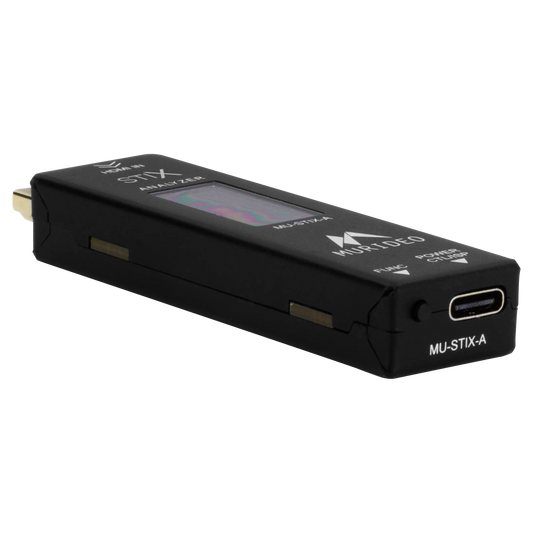

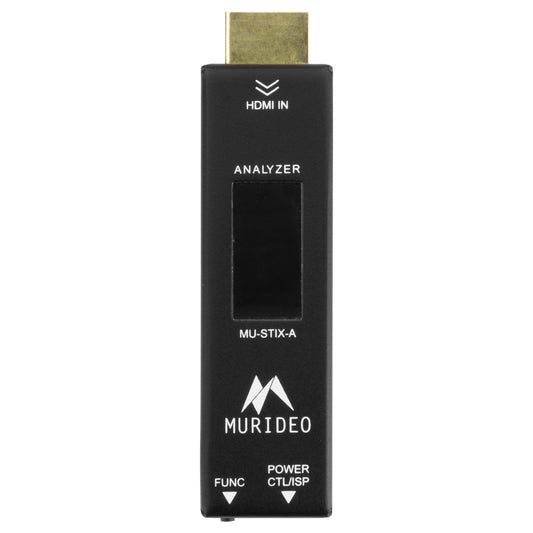

ANALYZE

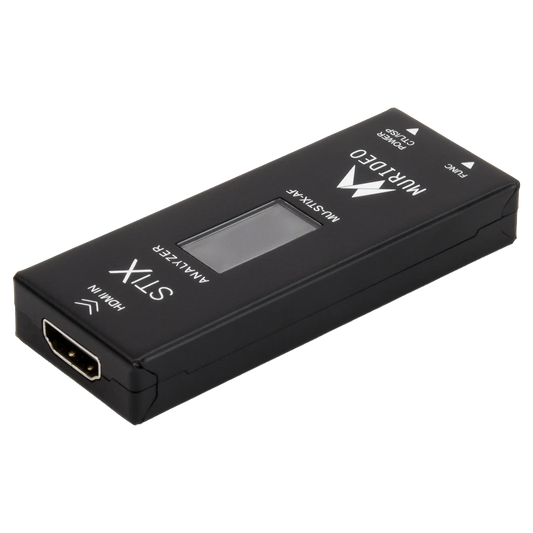

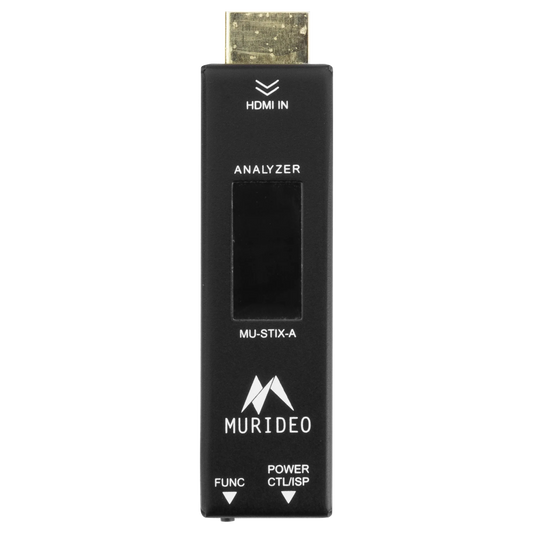

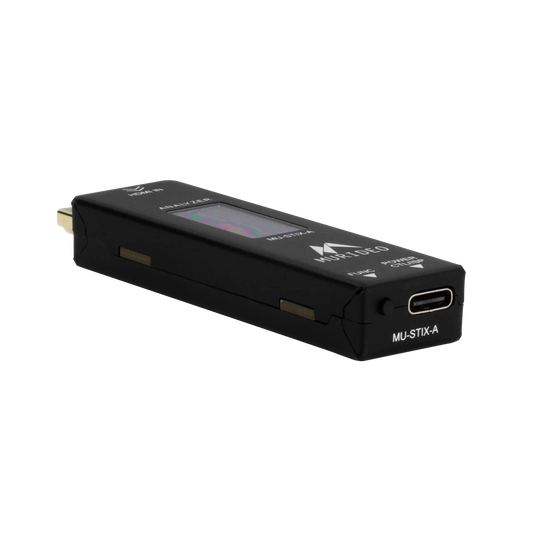

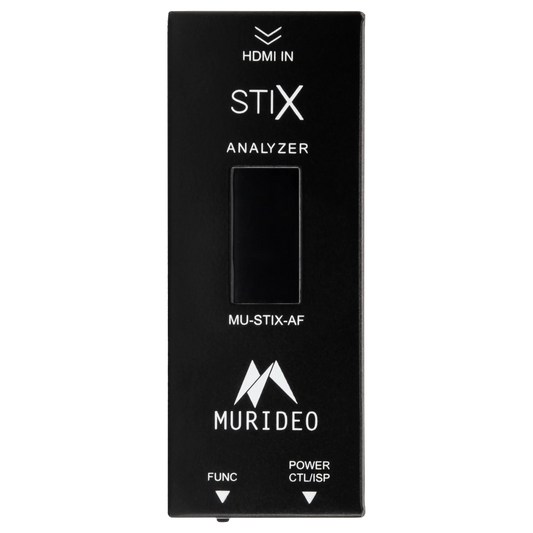

The STIX analyzers are compact HDMI signal analyzers that reports detailed information about incoming signals, including resolution, color space, HDR metadata, audio format, and HDCP version. With live monitoring and event logging, they gives integrators clear visibility into what the system is actually delivering.

SOURCE VERIFICATION
Test outputs from Blu-ray players, game consoles, set-top boxes, or streaming devices to confirm accurate signal details.
SIGNAL DISTRIBUTION TESTING
Check outputs from AVRs, switchers, or video processors to ensure proper signal delivery across complex systems.
HDCP & EDID DIAGNOSTICS
Quickly identify handshake and communication issues that prevent sources from working with downstream equipment.
CABLE VERIFICATION
Confirm that installed cables support 48 Gbps bandwidth and pass 4K/120 Hz or 8K/60 Hz signals without errors.
SERVICE DOCUMENTATION
Identify issues with HDMI signal loss or signal changes to validate performance, support commissioning reports, or provide evidence for warranty/service calls.
CONNECTOR FLEXIBILITY
Available in both male and female versions, eliminating the need for adapters and making field testing easier.
