STIX Test Ecosystem Controller
- VendorMurideo
A Scalable HDMI test platform – At full capacity, one to twenty* controllers support 960 STIX-A and STIX-G device combinations; RJ45-cascadable.

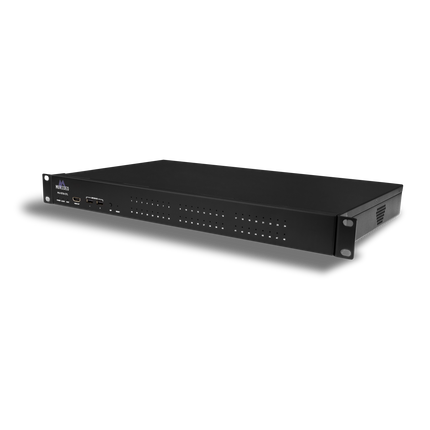

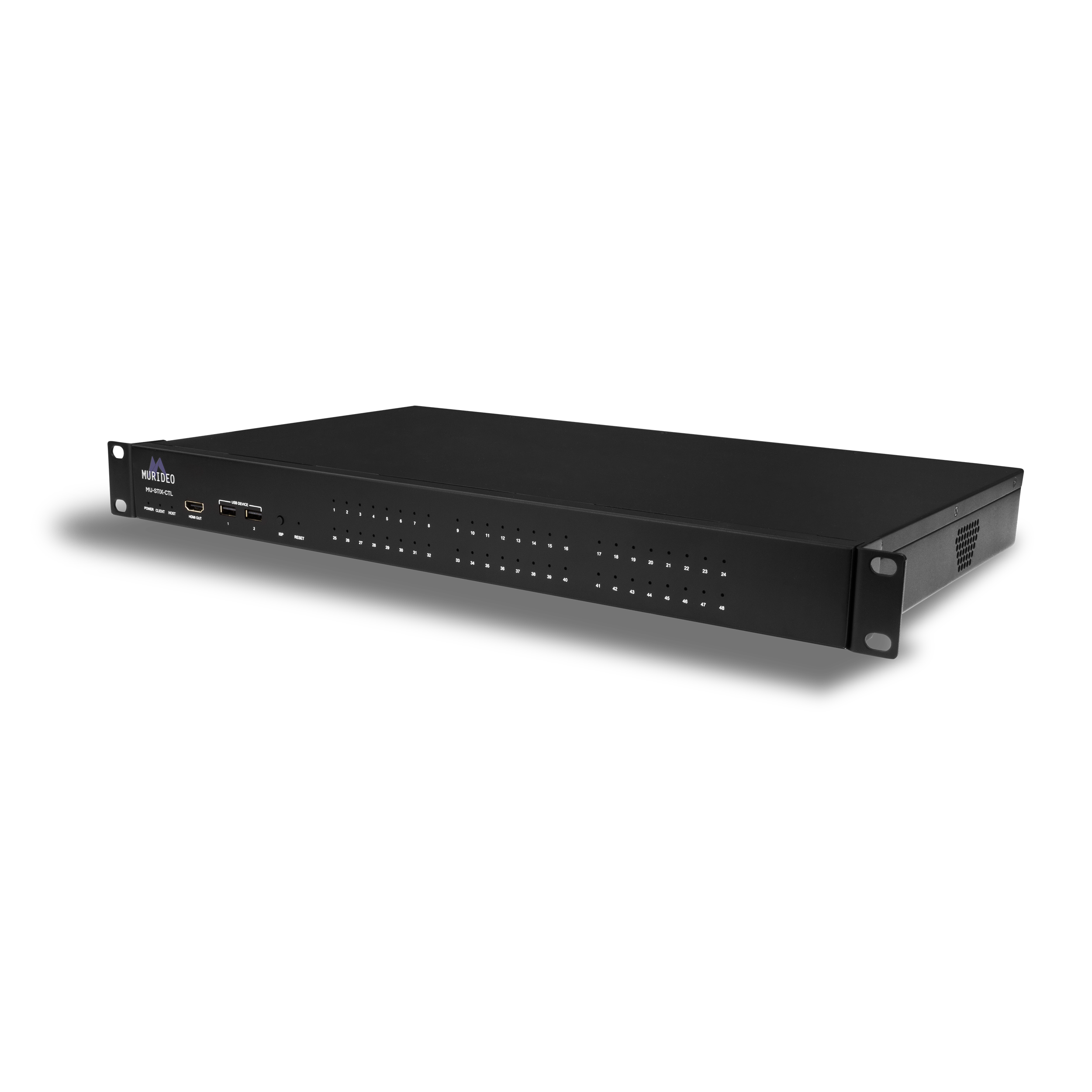

Ultra-compact One-RU form factor – Space-saving at a single rack unit height.

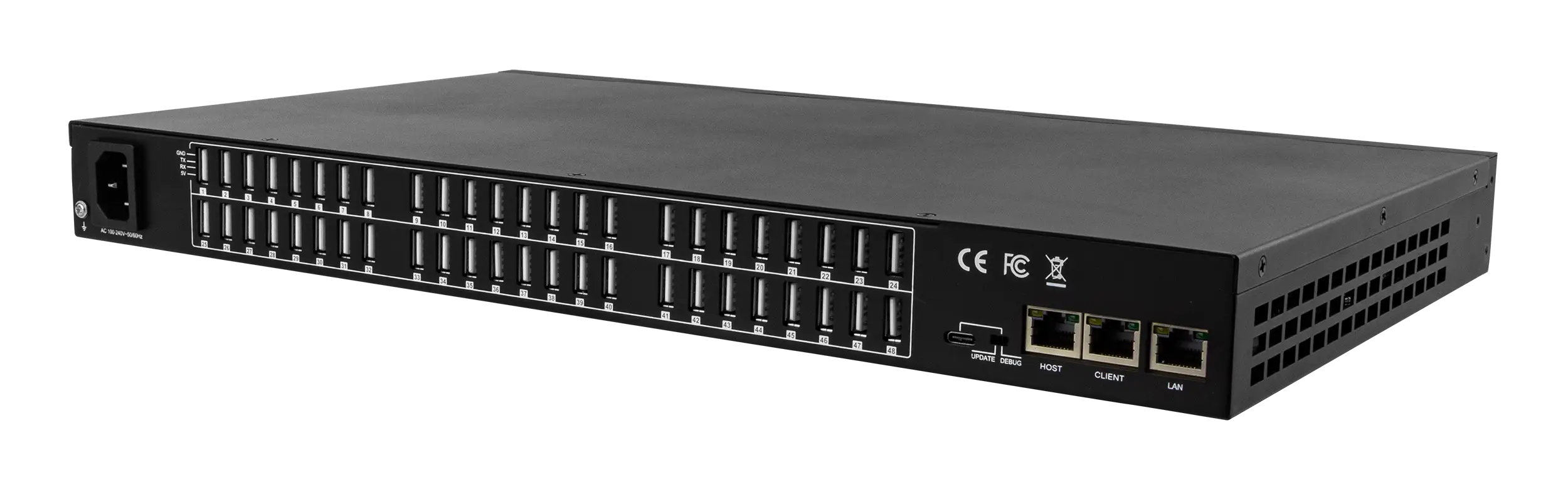

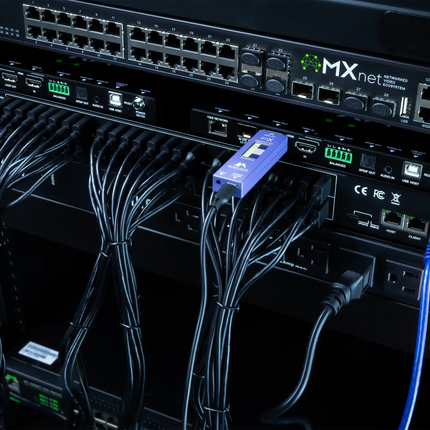

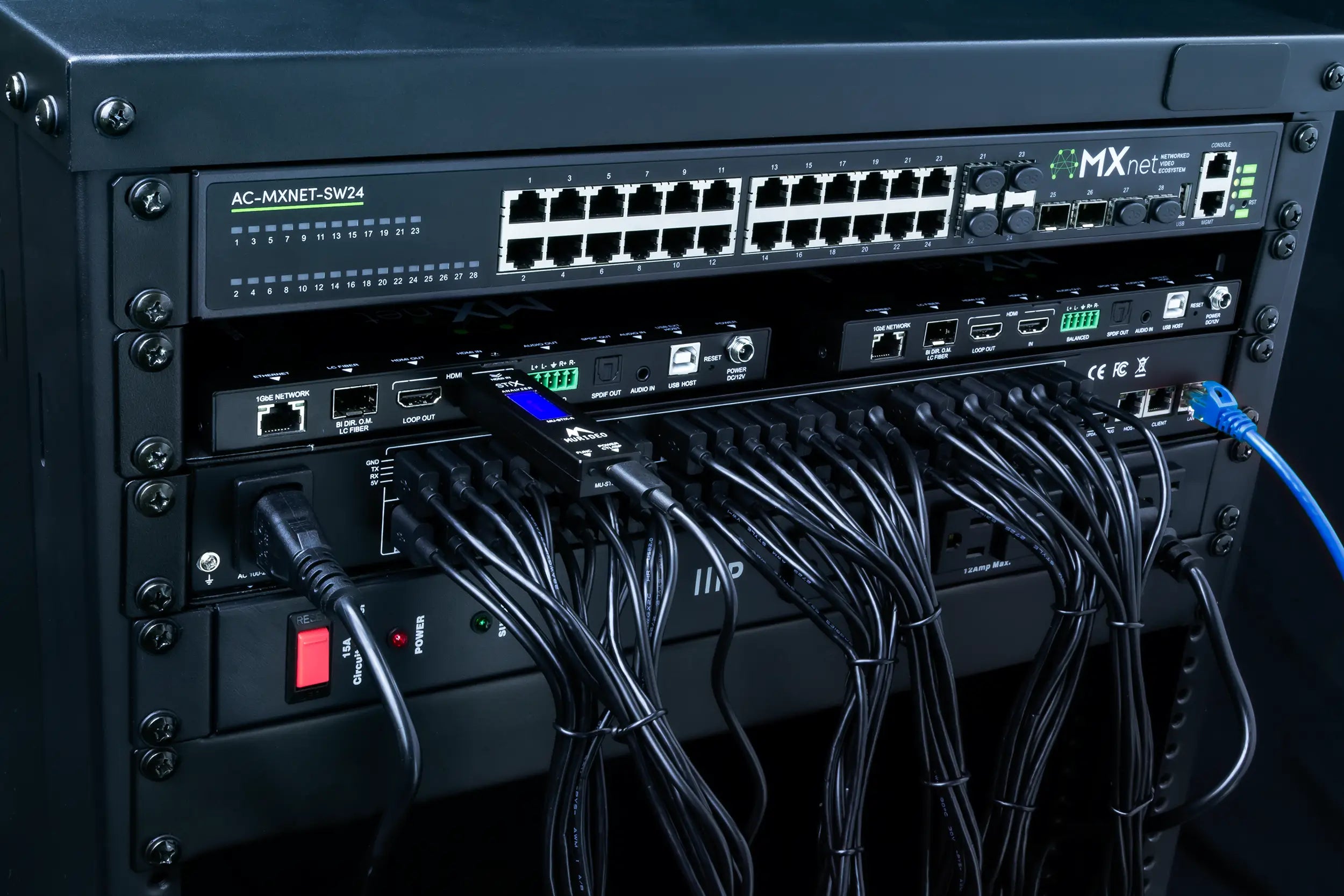

Powers connected devices – USB Type-A provides data communication while powering all rear-panel-connected STIX analyzer and generator devices, eliminating the need for external adaptors.
Centralized Web-based GUI – Easy testing setup and management control with remote network monitoring. One to twenty controllers may be cascade-linked via RJ45 to comprise a unified system. The GUI displays HDMI video thumbnails in real time.
Designed for large-scale testing – A unique, cost-effective, high-capacity testing and QC platform for manufacturers or distribution vendors wishing to QC HDMI I/O devices before finalized shipping. It is also a viable, time-saving test regimen for commercial and residential integrators who routinely sell and install high-count AVoIP endpoint systems and seek complete QC pre-deployment.

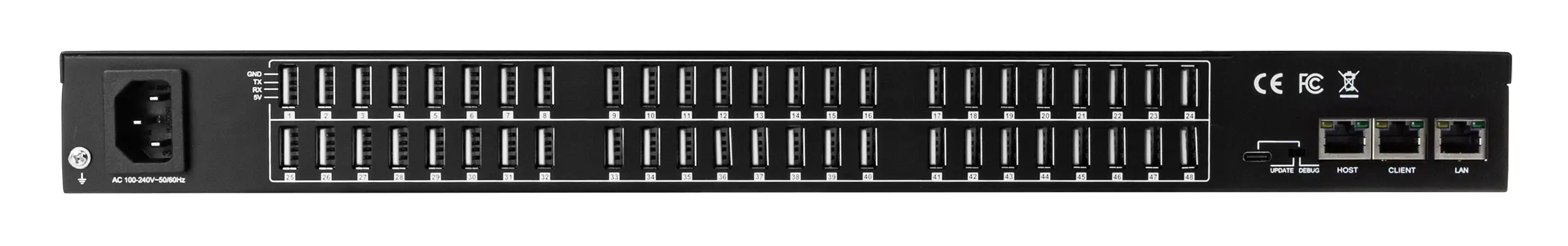

| Ports | |

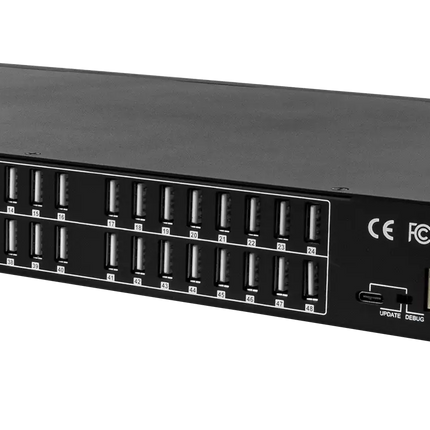

| USB | 48x Type-A (MU-STIX devices) 2x Type-A DEVICE (Mouse, Keyboard) 1x Type-C (ISP) |
| HDMI Source | Output: Type-A, Female (web interface) |
| RJ45 | 1x LAN (web interface) 1x HOST (connect to CLIENT unit) 1x CLIENT (connect to HOST unit) |
| Ground | Grounding terminal |
| Firmware / ISP Port | USB Type-C |
| Power | |
| Power | IEC 320-C14, male |
| Power Consumption | Total: 160 W max |
| Power Supply | Input: 100 VAC to 240 VAC ~ 50/60 Hz |
| Control | |
| Web Interface | Yes, LAN |
| Environmental | |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Physical | |
| Mounting | 1-RU Rack Mounting Brackets Rubber Feet |
| Dimensions (Unit) | L × W × H: 259 × 439.7502 × 44.45 mm (10.196 × 17.313 × 1.75 in.) |
| Dimensions (Packaged) | L × W × H: 565 × 375 × 125 mm (22.24 × 14.76 × 4.92 in.) |
| Weight (Unit) | 8.25 lb. (3.74 kg) |
| Weight (Packaged) | 10.42 lb. (4.73 kg) |
| Regulatory / Certifications | FCC, CE, UL |
| Warranty | 2 years |
| Notes | *Specifications subject to change without notice. Mass & dimensions are approximate |
