STIX Test Signal Analyzer

Description

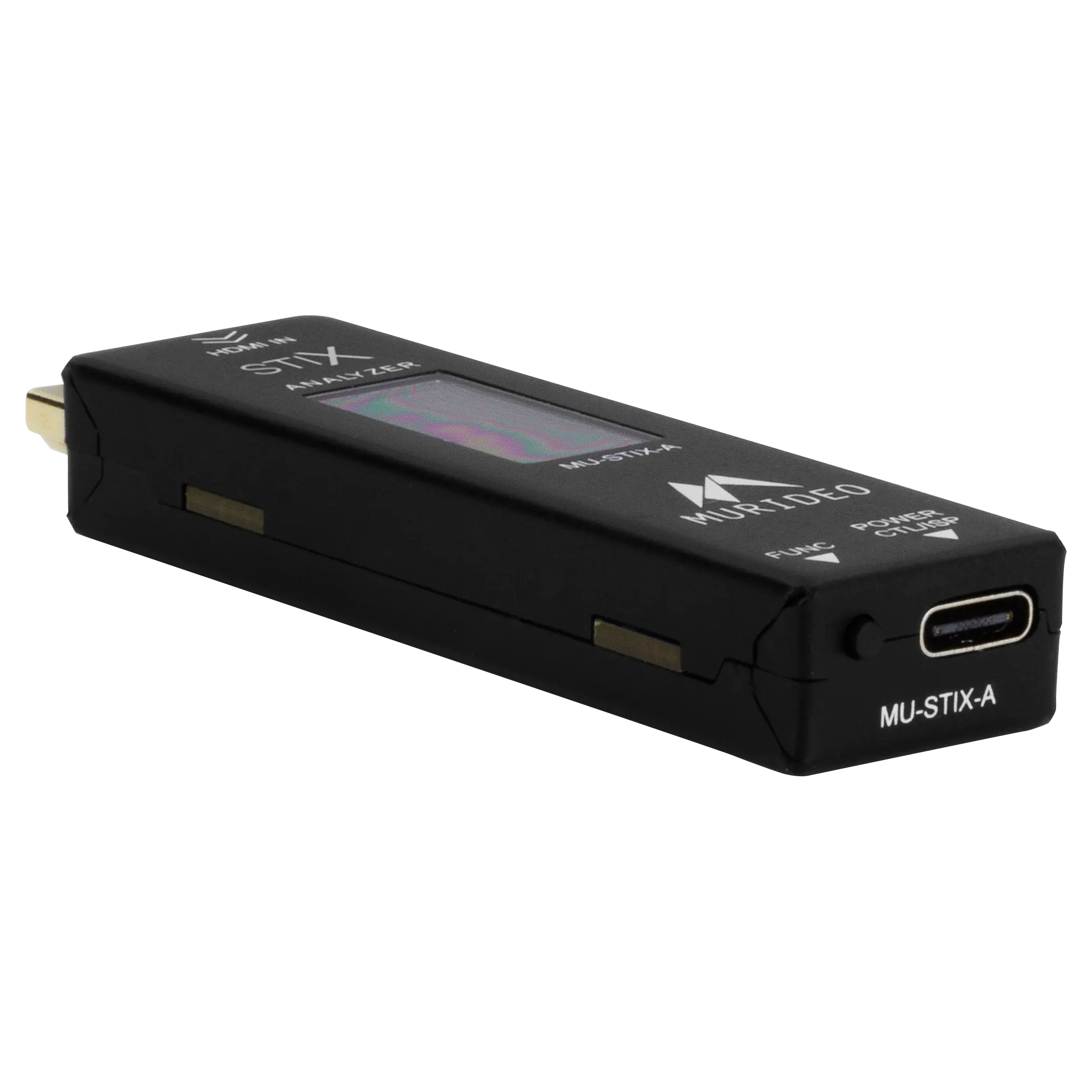

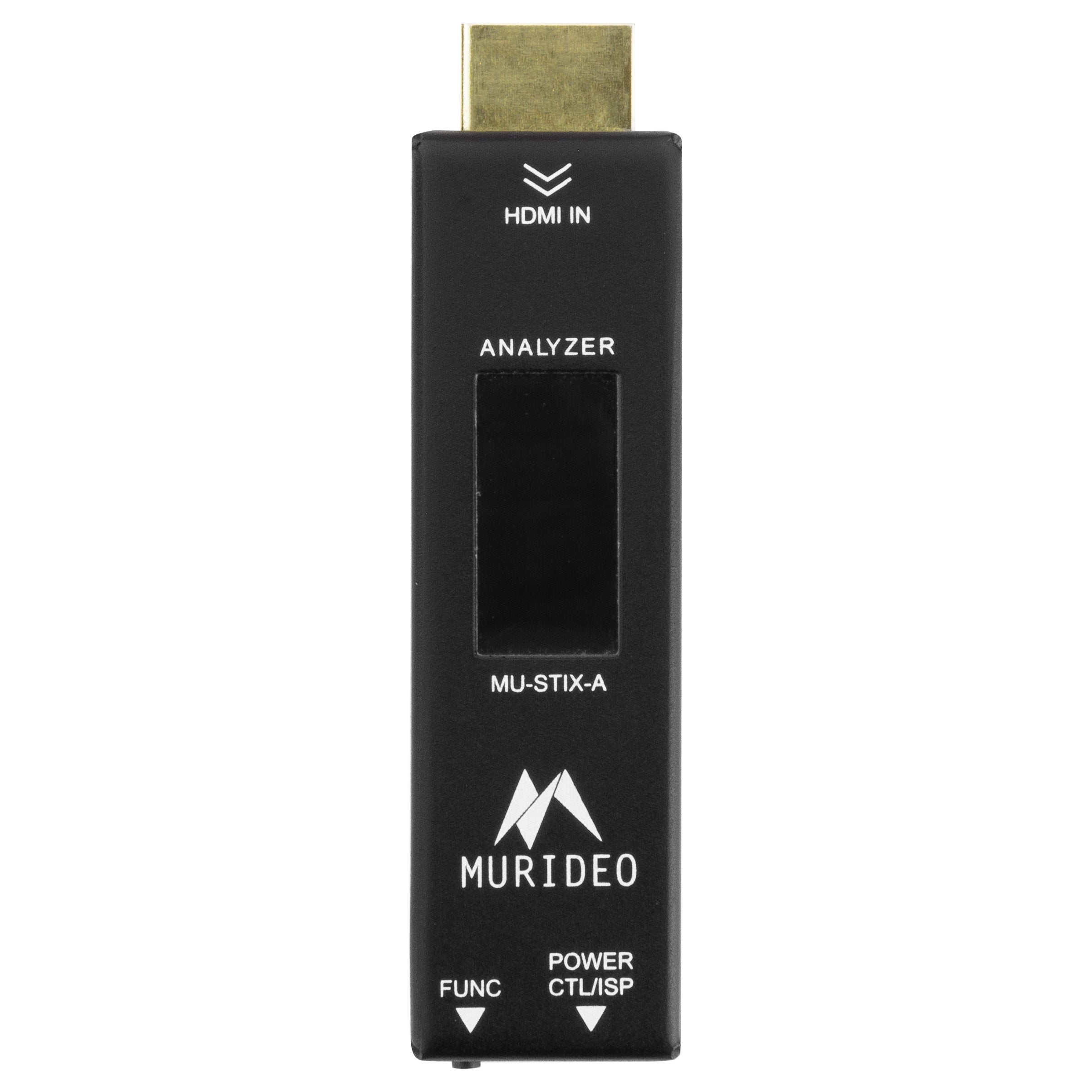

The MU-STIX-A is a thumb drive-sized HDMI pattern analyzer designed for Murideo’s STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

The MU-STIX-A analyzes video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate. When used in stand-alone applications, a mini OLED screen displays the source selected, resolution, bit rate, color space, and FRL version of TDMS.

STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters. The Murideo MU-STIX-A onboard display physically corroborates source information parameters when connected to the HDMI output of a receiving device.

For stand-alone use, the MU-STIX-A is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required. Equipped with one or more MU-STIX-As enables system signal throughput confirmation for display supporting electronics that are installed inside cable and device management in-wall storage enclosures, eliminating potential duplicate labor before the display is mounted.

STIX Test Signal Analyzer

Product form

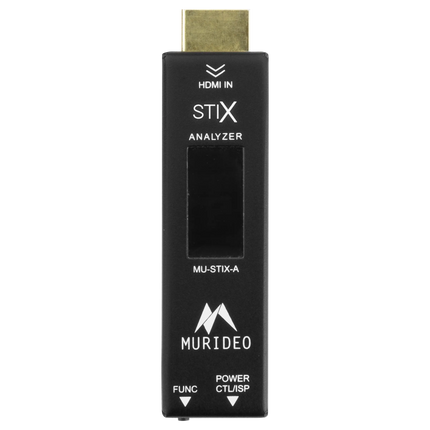

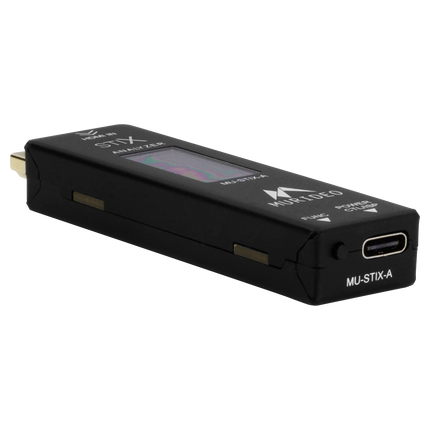

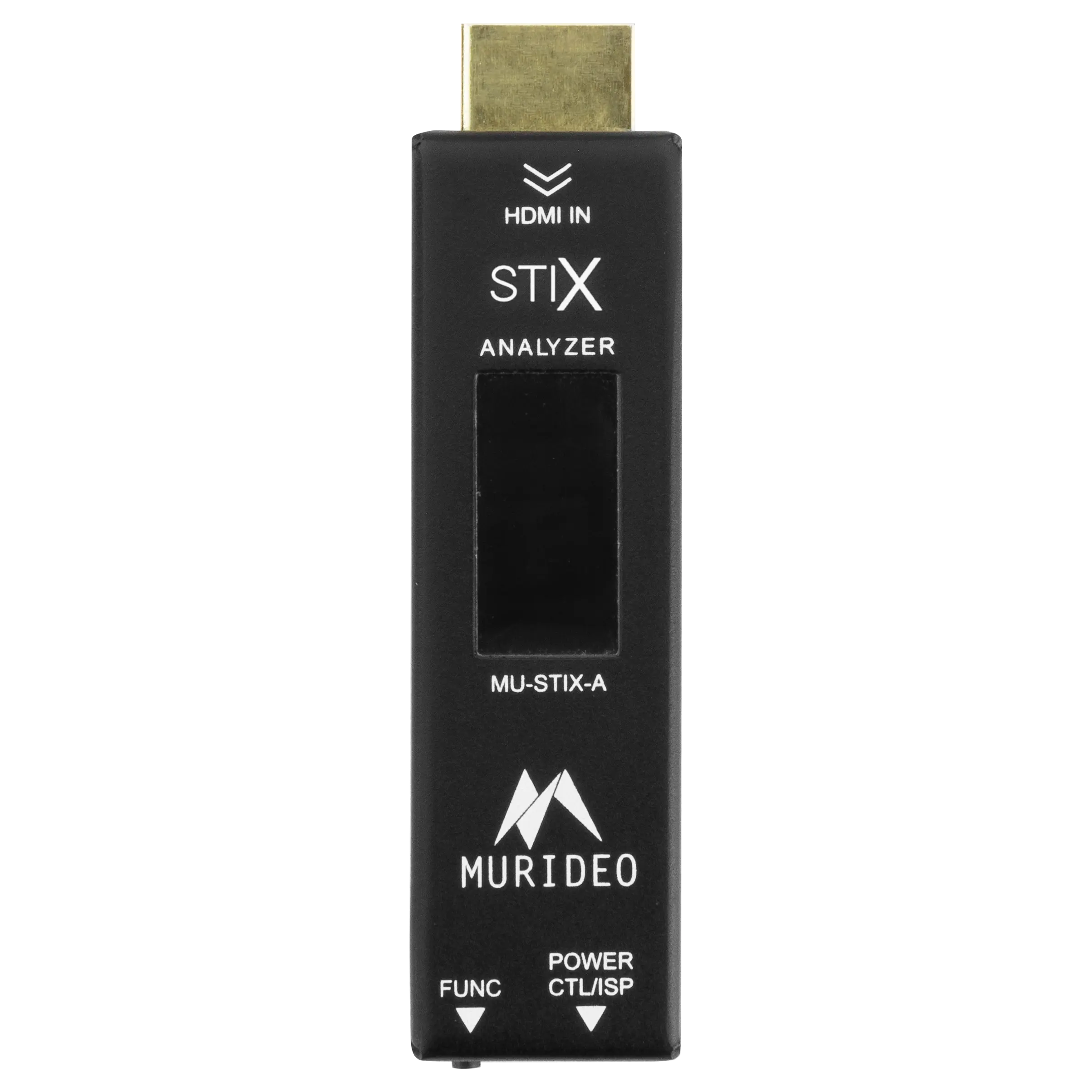

STIX Test Signal Analyzer

  • HDMI 2.1b, 8K 48 Gbps (FRL) compliant
  • Accepts 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
  • Detects signal changes, sync losses, and logs loss time
  • OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
  • Displays audio information, including incoming sampling frequency, bit rate size, and audio type
  • STIX is compatible with any brand of HDMI devices

SKU: MU-STIX-A

$257.00

  • Shipped today? Order within: Nov 20, 2026 13:00:00 -0600

Description

The MU-STIX-A is a thumb drive-sized HDMI pattern analyzer designed for Murideo’s STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

The MU-STIX-A analyzes video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate. When used in stand-alone applications, a mini OLED screen displays the source selected, resolution, bit rate, color space, and FRL version of TDMS.

STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters. The Murideo MU-STIX-A onboard display physically corroborates source information parameters when connected to the HDMI output of a receiving device.

For stand-alone use, the MU-STIX-A is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required. Equipped with one or more MU-STIX-As enables system signal throughput confirmation for display supporting electronics that are installed inside cable and device management in-wall storage enclosures, eliminating potential duplicate labor before the display is mounted.

  • Key Features
  • Specs
  • Resources

Low-cost, flexible analyzer

Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant signal analyzer.



Analyze signals up to 8K

Resolution timings at 8-, 10-, and 12-bit color depths, in RGB 4:2:0, 4:2:2, and 4:4:4 color spaces.



Signal detection

Automatically detects and logs signal changes, sync losses and signal loss time.



OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.



Detailed display information
Displays audio information, including audio type, sampling rate and number of channels.



Low power draw
Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.



Ultra-compact form factor

The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

Video
HDMI VersionHDMI 2.1
HDCP / Copy ProtectionVersion: HDCP 1.4 and 2.3
HDCP ON/OFFNo
Maximum Clock Rate600 mscs (1188 MHz)
Maximum Throughput Per Channel12 Gbps (48 Gbps Total)
Video ResolutionHDMI VICs up to 8K/ 60 Hz DCI up to 4096x2160 /60 Hz VESA DMT VESA CVT-RB up to 600 MHz
Video CodecRGB, YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Color Bit Depth8-, 10-, 12-bit
Audio
Audio TypeL-PCM
Sample Rates32, 44.1, 48, 88.2, 96, 176, 192
Audio ChannelsUp to 8
Audio VolumeNo
Ports
HDMIMale Type-A
Firmware / ISP PortUSB Type-C
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Power
Power5 VDC, 540 mA
Power Consumption2.7 W max
Physical
Dimensions (Unit)W × D × H: 81.1 × 21 × 12 mm
Weight (Unit)1 oz. (27 g)
