48Gbps Generator & Analyzer

Description

The Murideo MU-GAX-8K is a single-chassis, industrial-grade, benchtop 8K HDMI 2.1b full 48 Gbps signal generator and analyzer HDMI testing platform featuring Display Stream Compression 1.2, developed for the manufacturing segment that designs, installs, and maintains components or communication systems that incorporate HDMI electronics and protocols.

Scientifically accurate and constructed to laboratory-grade standards, the MU-GAX-8K is a high-performance HDMI test and development tool with DSC support from 9 Gbps to 48 Gbps. Manual Fixed Rate Link lane assignment and selectable DSC enable simultaneous testing for bandwidth and compression.
Comprehensive HDMI InfoFrame signal data construction generation and analysis is possible for audio clock regeneration N and CTS values, HDR metadata, HDR byte extraction and pixel data interpretation, HDMI Video Identification Code mapping, plus Auxiliary Video Information and Source Product Description analysis. Hybrid Log Gamma is supported, and there are eight user HDR metadata memory slots.

HDMI standard frame rate analysis is possible from 24 fps to 60 fps and High Frame Rates from 120 fps to 240 fps. Preset EDIDs in the analyzer section accept 120 Hz signals, and user EDID slots can store emulated HFR EDIDs up to 240 Hz. Seven supplied 4K/8K EDIDs may be supplemented by user EDID configurations stored in ten user EDID recallable memory slots.

Two to eight channels of lossless LPCM can be generated across 32 channel configurations, ranging from 32 kHz to 192 kHz with 16 to 24-bit depth.
Audio analysis is aided by the onboard VU meter and signal info screen.

The MU-GAX-8K generates 36 test patterns at data rates up to Fixed Rate Link 6 (48 Gbps) and is HDCP 1.4/2.3, 4K/8K compatible. A high-resolution 7.5-inch (19.05-cm) LCD screen displays generated patterns and functions as an eight-channel volume unit meter, an error rate counter, and a signal information source for HDMI audio and video performance metrics.
MU-GAX is designed for heavy-duty cycles and long-term testing regimens that require precision test signaling and accurate feedback analysis at the highest data rates currently expected in HDMI-based devices.

Read more

48Gbps Generator & Analyzer

Product form

The Murideo MU-GAX-8K is a single-chassis, industrial-grade, benchtop 8K HDMI 2.1b full 48 Gbps signal generator and analyzer HDMI testing platform featuring Display Stream Compression 1.2, developed for the manufacturing segment that designs, installs, and maintains components or communication systems that incorporate HDMI electronics and protocols.

  • Extended Range FRL6-48 Gbps 8K/60 fps Bandwidth Capability
  • Support for Display Stream Compression 1.2b, Including HDR and HLG
  • Up to 8-Channel LPCM Audio Analysis with Companion Volume Unit Meter
  • Seven provided EDIDs and 10 User EDID Memory Slots; Eight User HDR Metadata Slots
  • Laboratory-grade Industrial Build Quality

SKU: MU-GAX-8K

$4,999.00

  • Shipped today? Order within: Jun 30, 2025 13:00:00 -0500

Description

The Murideo MU-GAX-8K is a single-chassis, industrial-grade, benchtop 8K HDMI 2.1b full 48 Gbps signal generator and analyzer HDMI testing platform featuring Display Stream Compression 1.2, developed for the manufacturing segment that designs, installs, and maintains components or communication systems that incorporate HDMI electronics and protocols.

Scientifically accurate and constructed to laboratory-grade standards, the MU-GAX-8K is a high-performance HDMI test and development tool with DSC support from 9 Gbps to 48 Gbps. Manual Fixed Rate Link lane assignment and selectable DSC enable simultaneous testing for bandwidth and compression.
Comprehensive HDMI InfoFrame signal data construction generation and analysis is possible for audio clock regeneration N and CTS values, HDR metadata, HDR byte extraction and pixel data interpretation, HDMI Video Identification Code mapping, plus Auxiliary Video Information and Source Product Description analysis. Hybrid Log Gamma is supported, and there are eight user HDR metadata memory slots.

HDMI standard frame rate analysis is possible from 24 fps to 60 fps and High Frame Rates from 120 fps to 240 fps. Preset EDIDs in the analyzer section accept 120 Hz signals, and user EDID slots can store emulated HFR EDIDs up to 240 Hz. Seven supplied 4K/8K EDIDs may be supplemented by user EDID configurations stored in ten user EDID recallable memory slots.

Two to eight channels of lossless LPCM can be generated across 32 channel configurations, ranging from 32 kHz to 192 kHz with 16 to 24-bit depth.
Audio analysis is aided by the onboard VU meter and signal info screen.

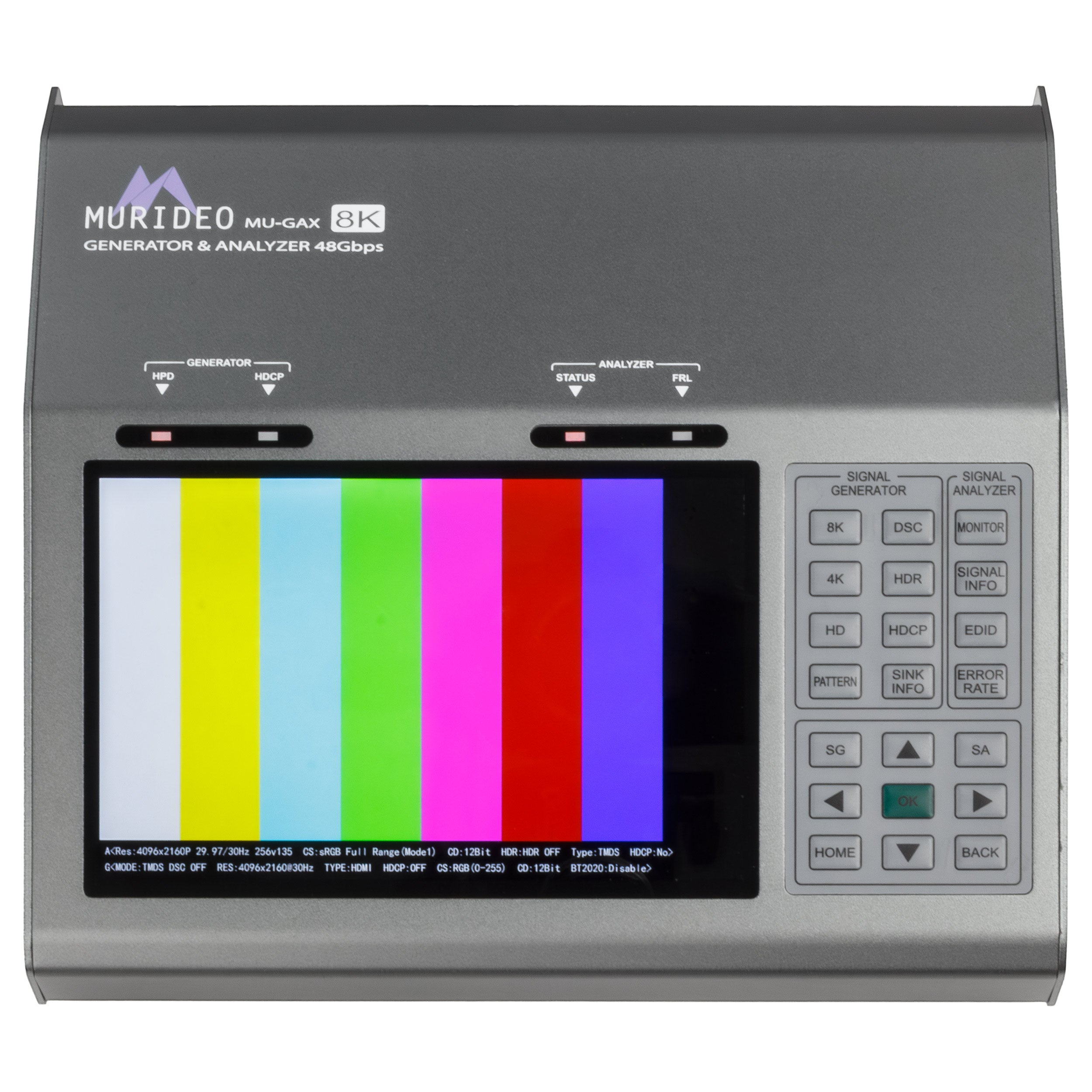

The MU-GAX-8K generates 36 test patterns at data rates up to Fixed Rate Link 6 (48 Gbps) and is HDCP 1.4/2.3, 4K/8K compatible. A high-resolution 7.5-inch (19.05-cm) LCD screen displays generated patterns and functions as an eight-channel volume unit meter, an error rate counter, and a signal information source for HDMI audio and video performance metrics.
MU-GAX is designed for heavy-duty cycles and long-term testing regimens that require precision test signaling and accurate feedback analysis at the highest data rates currently expected in HDMI-based devices.

Read more

  • Key Benefits
  • Specs
  • Resources

Affordable FRL6 Test Device - The MU-GAX-8K provides essential test capabilities for HDMI devices up to 48 Gbps at an affordable price while retaining rigorous Murideo performance standards and laboratory-grade industrial build quality.

TDMS generation, testing, and analysis are also possible.



HDMI InfoFrame Analysis –  Every aspect of HDMI signal composition can be evaluated and reported.



NextGen Signal Support - Display Stream Compression 1.2b is supported from 9 Gbps to 48 Gbps. HDR10 (including custom HDR capabilities) and HLG are supported for acute analysis of advanced-performance HDMI devices and cables. Eight HDR user metadata memories partner with ten user EDID memories for unimpeded developmental testing progress.



LPCM Signal Generation and Analysis- Complete diagnostics of sampling frequency, sampling bit rate, channel composition, and more.



Large 7.5-inch (19.05-cm) LCD Screen - The built-in high-resolution screen reveals incoming signal flaws and doubles as a VU meter, error rate counter, or signal information display.



EDID Analyzation and Emulation – EDID blocks up to 512 bytes can be analyzed or emulated.


Comprehensive Web GUI – Enables easy configuration and control.



36 Built-In Test Patterns – HDCP 1.4/2.3 options for 4K/8K testing versatility.

Video Output
Video ResolutionsUp to 8k 60Hz 4:2:0 (4K120 4:4:4)
DCI ResolutionsUp to DCI 4K (4096x2160 60Hz)
VESA ResolutionsUp to 1920x1200 60Hz
HDR Formats4:2:0, 4:2:2, 4:4:4 (10 and 12 Deep Color) HDR-10 and HLG
Chroma Subsampling4:2:0, 4:2:2, 4:4:4
Deep ColorUp to 12 Bit
Audio
Audio Formats Supported HDMIUp to LPCM 7.1 CH
Audio Formats Supported Analog TRSPCM 2.0 CH
Other
Bandwidth48Gbps (FRL6)
VESA Display Stream Compression 1.2aup to 48Gbps (FRL6)
HDCPHDCP 2.3 and earlier
Control
PortsLAN, DB9, USB 2.0 Type B, Keypad
HTTP GUIYes

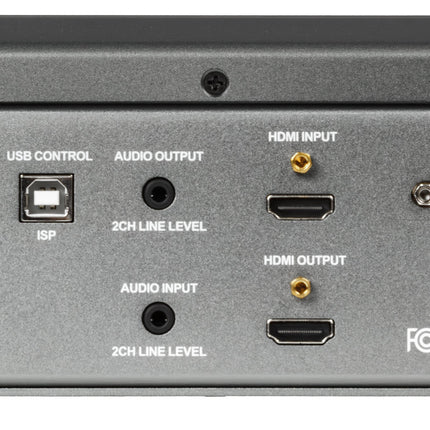

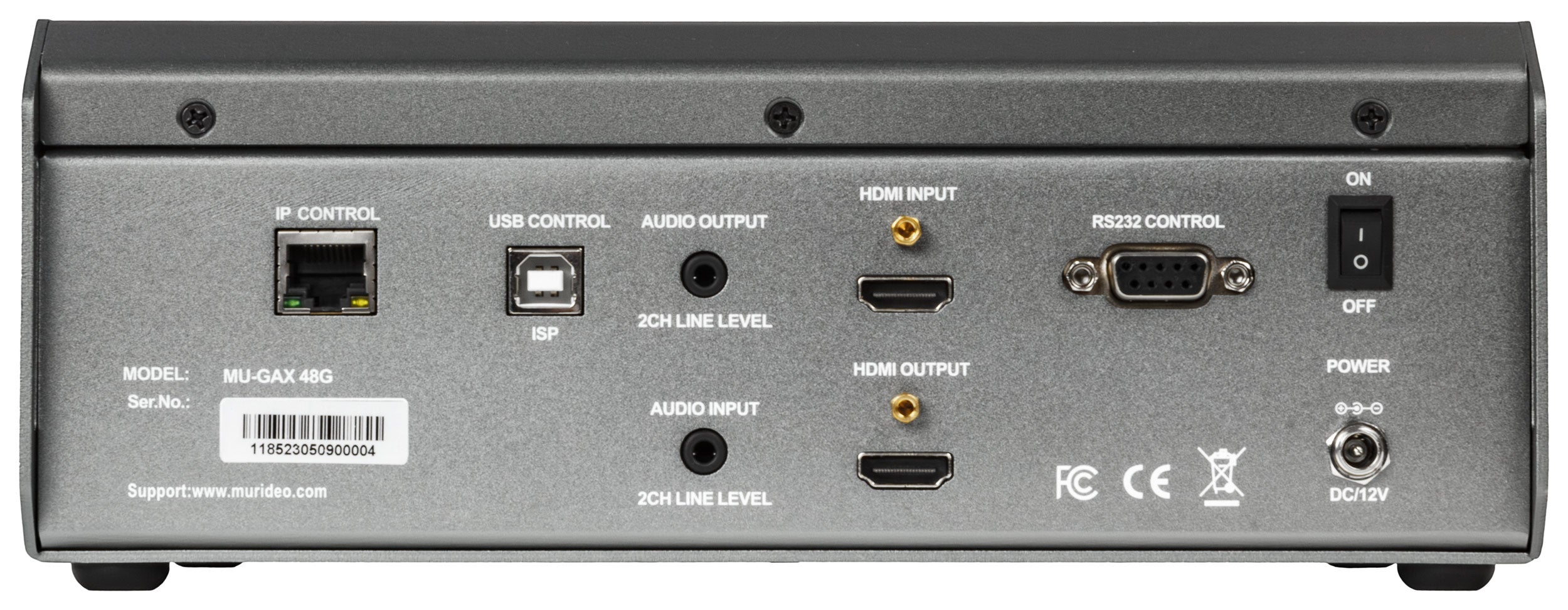

Ports
HDMI SourceType A
HDMI SINKType A
LAN HTTP GUIRJ45
Audio InputAnalog 3.5mm TRS
Audio OutputAnalog 3.5mm TRS
RS232/ISPDB9 or USB 2.0 Type B
Environmental
Operating Temperature23 to 125 (-5 to 51)
Storage Temperature-4 to 140 (-20 to 60C)
Humidity Range5-90% RH (No Condensation)
Power
Power Consumption36 Watts Max
Power SupplyInput: AC 100-240V ~ 50/60Hz
 Output: DC 12V 5A
