STIX Test Signal Generator (Female)

Description

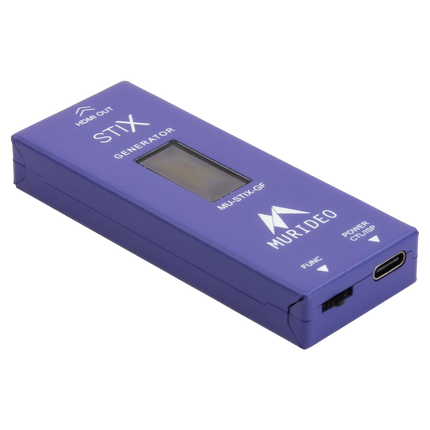

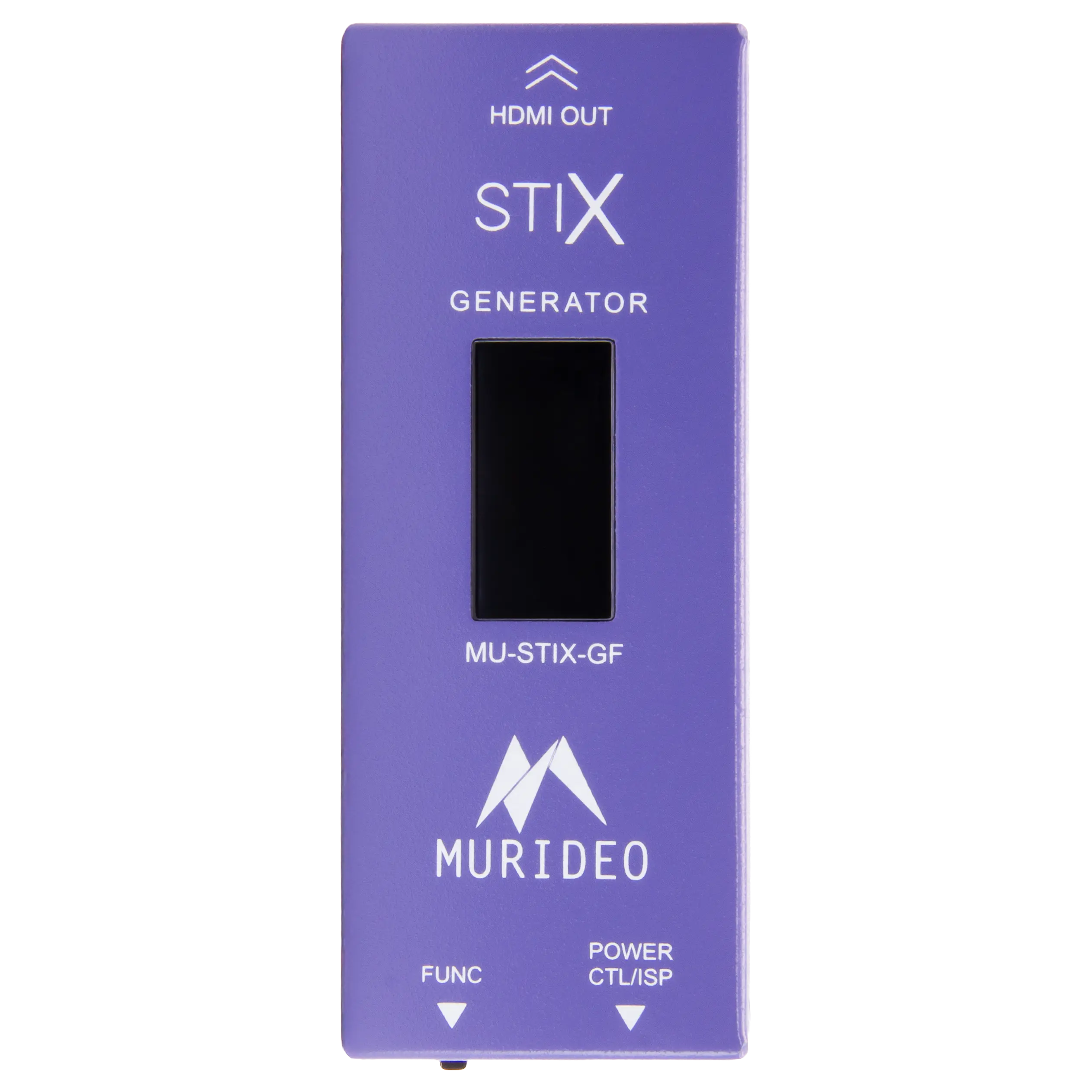

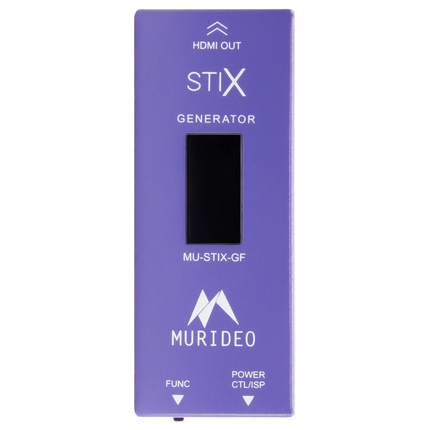

The MU-STIX-GF thumb drive-sized HDMI pattern generator is equipped with a female HDMI signal output port, which provides additional in-field and rack room pass/fail signal transmission path verification flexibility.

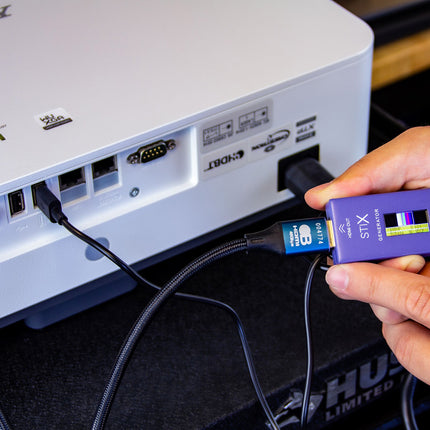

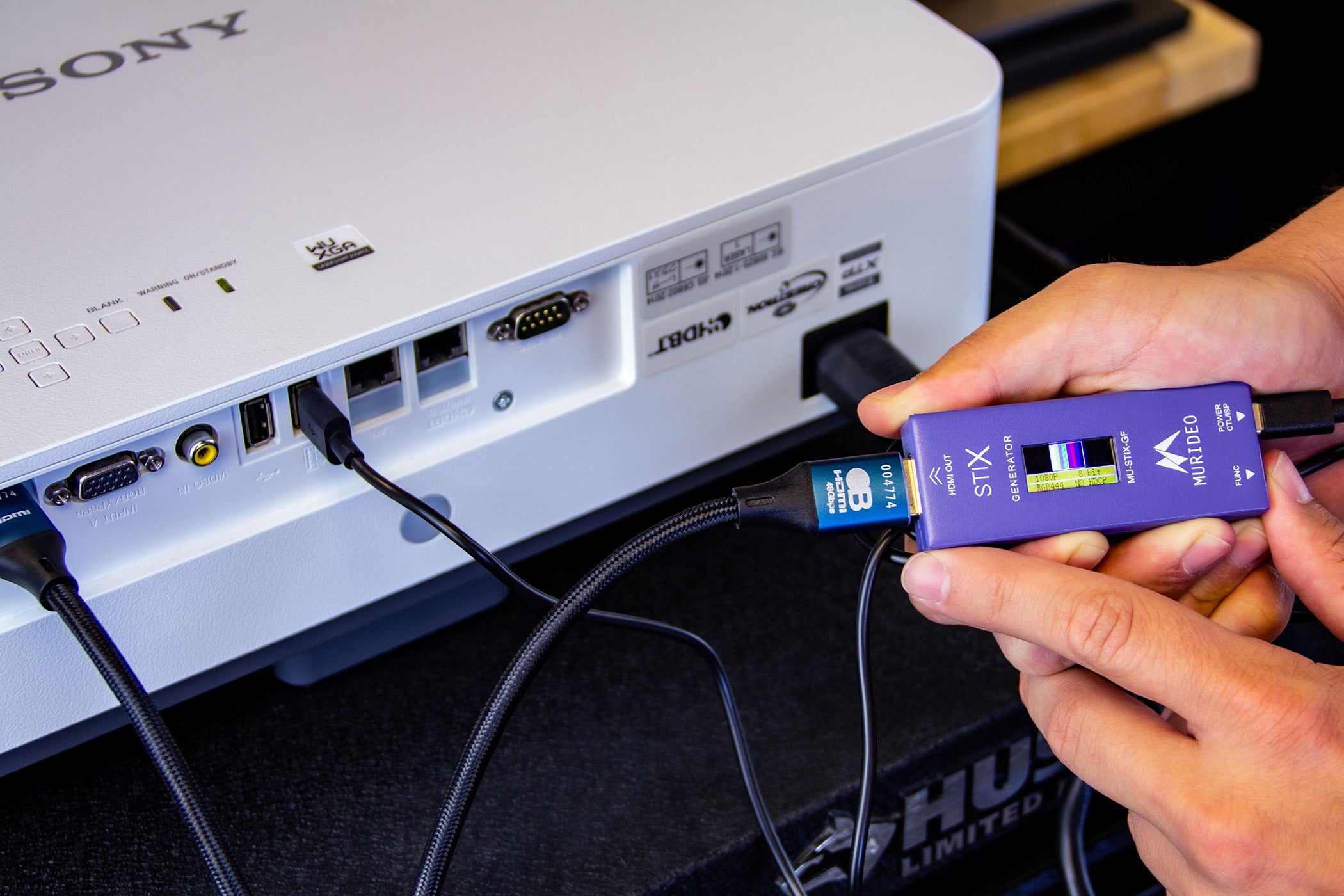

While the MU-STIX-G with its male HDMI connector negates the need for an additional HDMI cable to rapidly test a display device, HDMI switcher, distribution amplifier, MXnet 1G encoder, or 10G transceiver, the MU-STIX-GF with its female HDMI port facilitates testing in tight spaces via HDMI cable extension.

Coupled with the MU-STIX-AF HDMI analyzer, end-to-end signal throughput and HDMI cable bandwidth/continuity verification are possible.

The STIX ecosystem was initially developed as a resource for AVPro Edge's internal quality control. It was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers, an impossibility with conventional source devices. Additionally, with the MU-STIX-CTL, data exchanges relating to signal dropouts or transmission send/receive failures are communicated and logged.

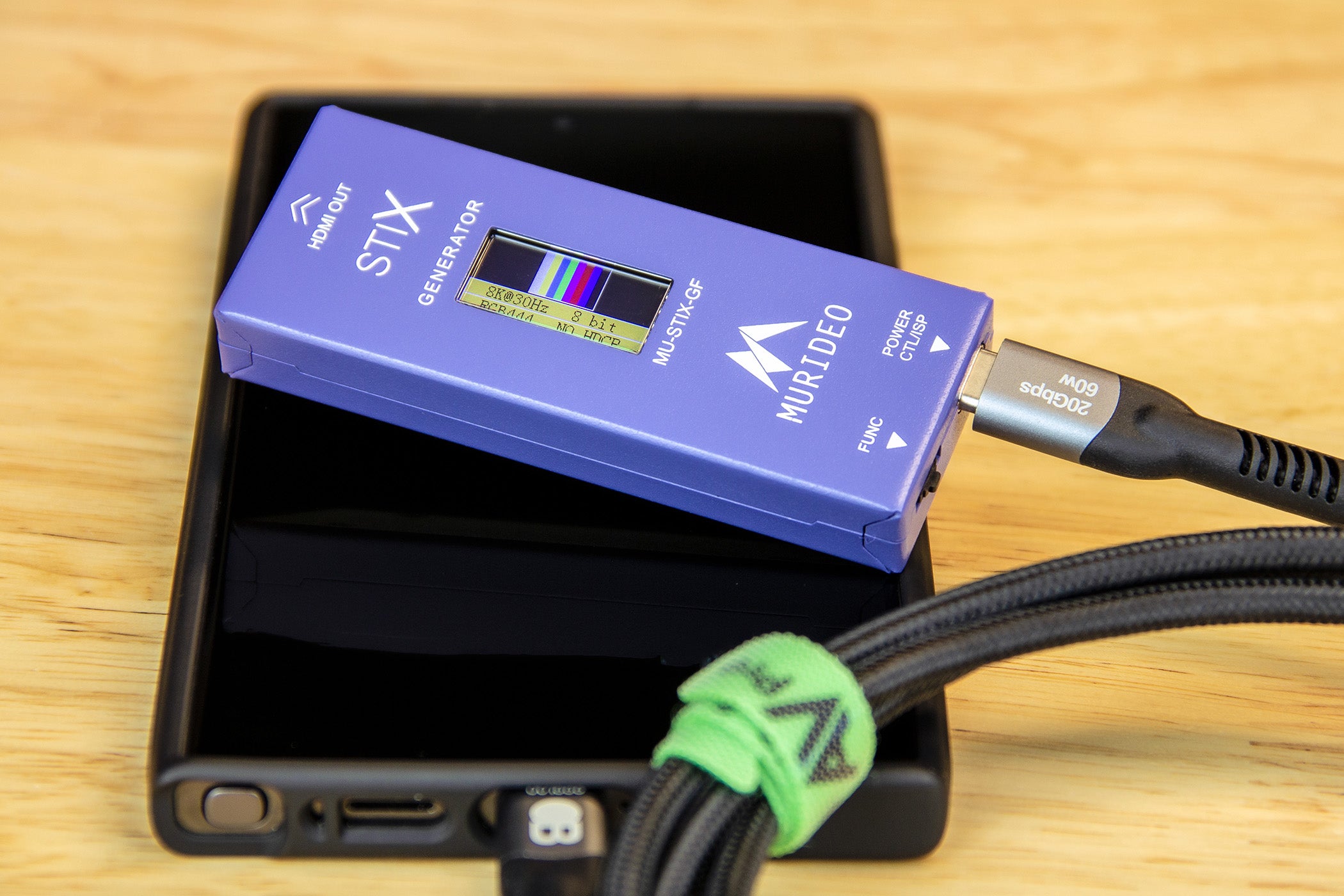

The MU-STIX-GF generates video test patterns at resolutions from 720p/ 60 fps through 8K/ 30 fps, including 4K/120 fps High Frame Rate. A mini OLED screen displays the selected pattern, resolution, bit rate, color space, and HDCP version when used in stand-alone applications.

Murideo’s collection of STIX verification devices enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

The MU-STIX-GF is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass/fail transmission path and display capability verification are required.

Read more

STIX Test Signal Generator (Female)

Product form

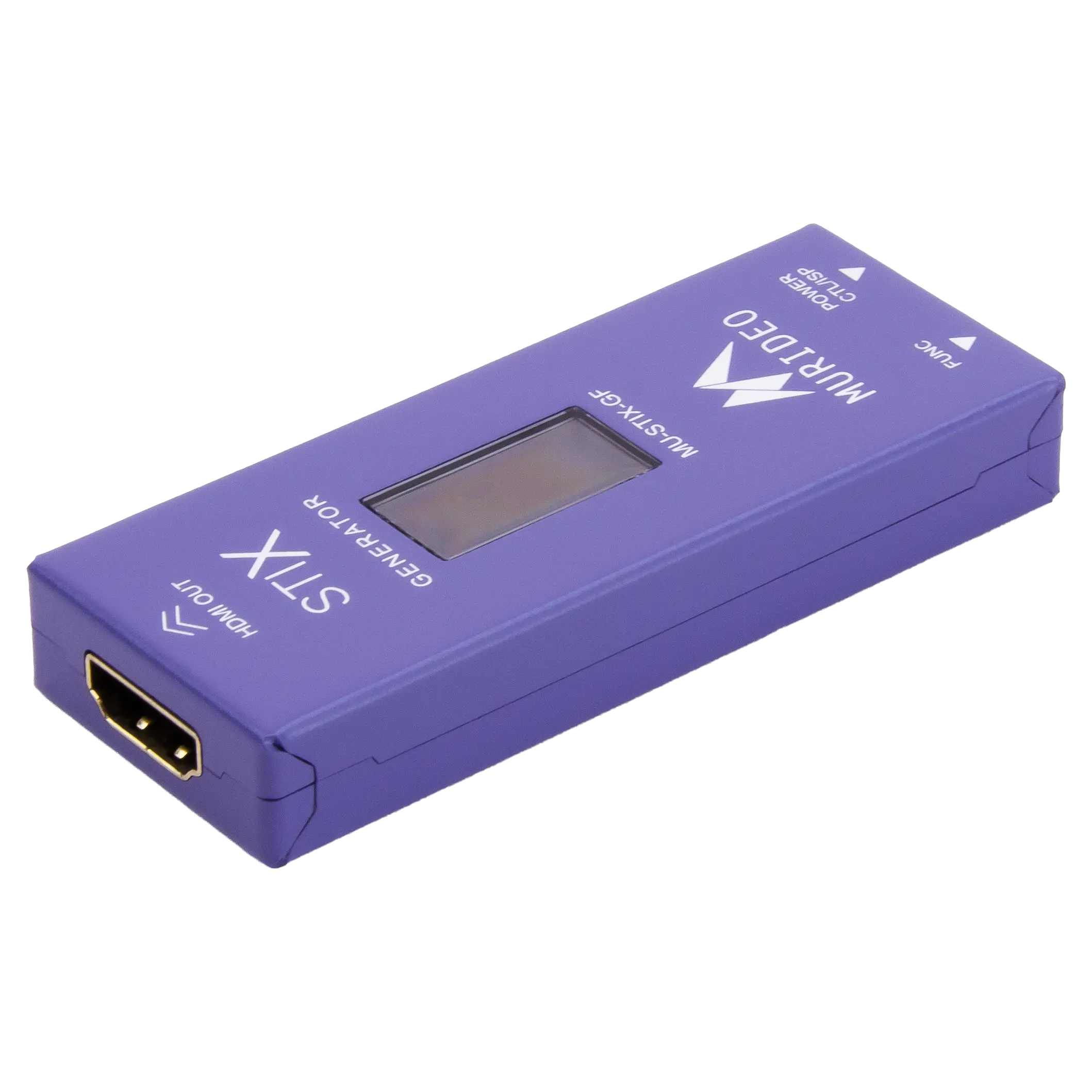

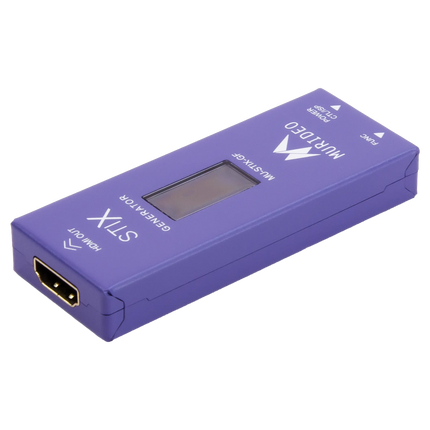

8K HDMI 2.1 Test Pattern Generator with Female HDMI Connector

  • HDMI 2.1b, 8K 48 Gbps (FRL) compliant
  • Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
  • HDCP encryption selectable at Off, 1.4, and 2.3 (1.4 is TDMS only)
  • 13 test patterns, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
  • STIX is compatible with any brand of HDMI devices

SKU: MU-STIX-GF

$289.00

  • Shipped today? Order within: Sep 28, 2025 13:00:00 -0500

Description

The MU-STIX-GF thumb drive-sized HDMI pattern generator is equipped with a female HDMI signal output port, which provides additional in-field and rack room pass/fail signal transmission path verification flexibility.

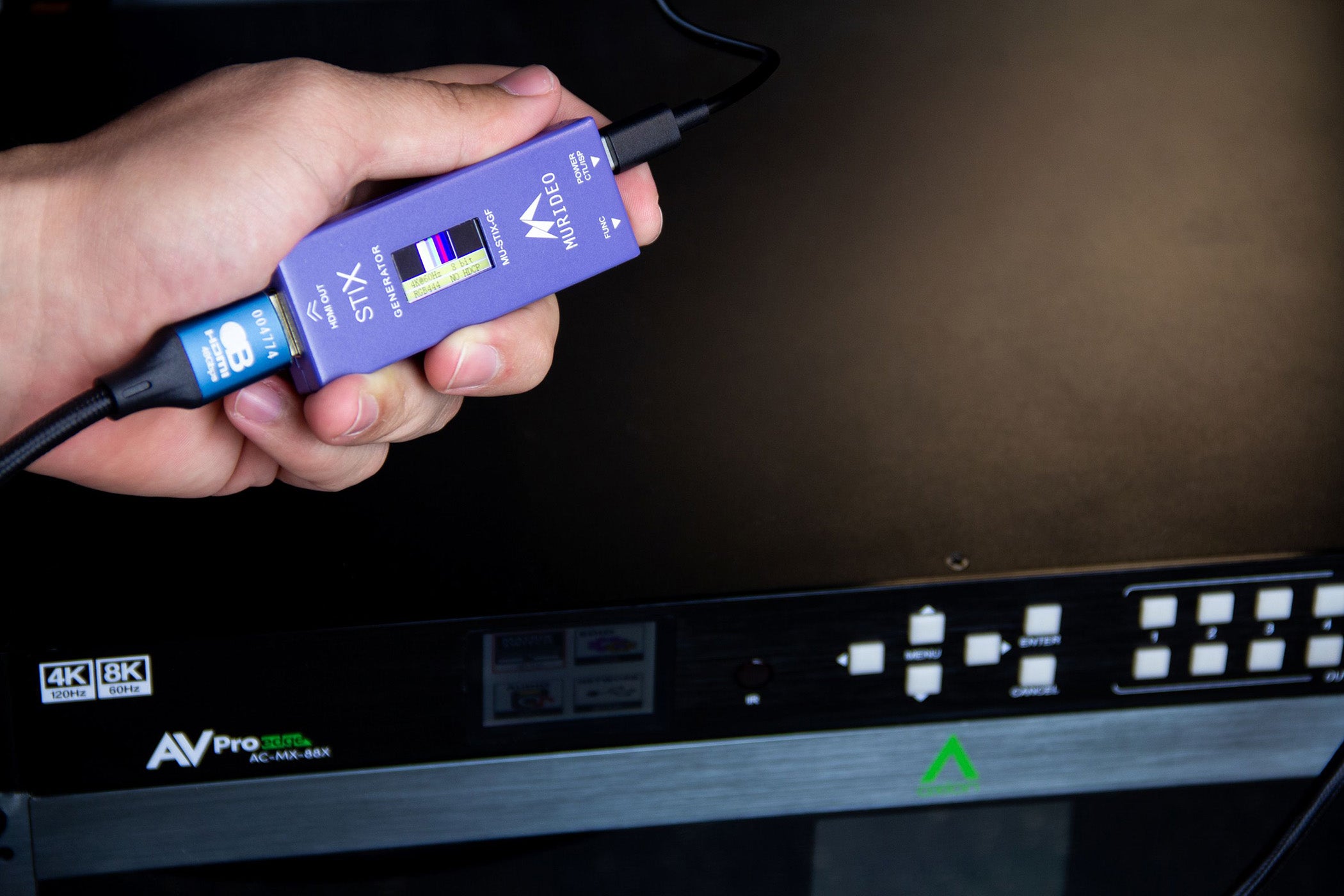

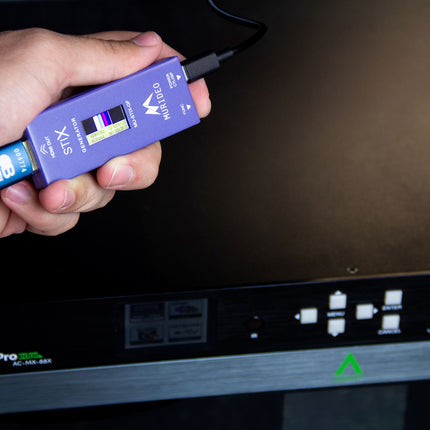

While the MU-STIX-G with its male HDMI connector negates the need for an additional HDMI cable to rapidly test a display device, HDMI switcher, distribution amplifier, MXnet 1G encoder, or 10G transceiver, the MU-STIX-GF with its female HDMI port facilitates testing in tight spaces via HDMI cable extension.

Coupled with the MU-STIX-AF HDMI analyzer, end-to-end signal throughput and HDMI cable bandwidth/continuity verification are possible.

The STIX ecosystem was initially developed as a resource for AVPro Edge's internal quality control. It was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers, an impossibility with conventional source devices. Additionally, with the MU-STIX-CTL, data exchanges relating to signal dropouts or transmission send/receive failures are communicated and logged.

The MU-STIX-GF generates video test patterns at resolutions from 720p/ 60 fps through 8K/ 30 fps, including 4K/120 fps High Frame Rate. A mini OLED screen displays the selected pattern, resolution, bit rate, color space, and HDCP version when used in stand-alone applications.

Murideo’s collection of STIX verification devices enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

The MU-STIX-GF is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass/fail transmission path and display capability verification are required.

Read more

  • Key Features
  • Specs
  • Resources

Level-Switch Interface

Enhanced menu access versus the previous button-only interface.



Low-cost, flexible output source
Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant generator.

Analyze signals up to 8K
Generates 720p, 1080p, 4K, and 8K signal timings at 8-bit, 10-bit, and 12-bit color depths, in RGB, 4:2:2, and 4:4:4 color spaces.

Configurable HDCP
Options for Off, or versions 1.4 and 2.3 (1.4 is TDMS only).



Built-in test patterns
13 built-in test patterns and six preset timing options, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.

Low power draw

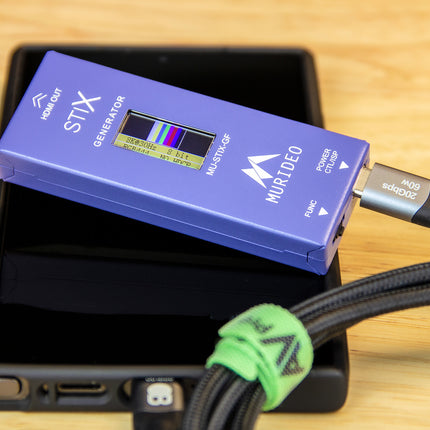

The MU-STIX-GF is powered over USB-A to Type-C (from device accessory ports) or Type-C to Type-C from a mobile device.

OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.

Ultra-compact form factor
Packaged in a durable, foam-fit, compact protective tin container.

Video
HDMI Version2.1
HDCP Version1.4 and 2.3
HDCP ON/OFFYes
Resolution Timings120 Hz - 4K
60 Hz - 4K, 1080p, 720p
30 Hz - 8K, 4K, 1080p
Video EncodingRGB (Limited), YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Color Bit Depth12-, 10-, 8-bit
PatternsBlack, Checkbox, Stripes, Red, Green, Blue, White, White Ramp, Red Ramp, Green Ramp, Blue Ramp, PRBS, Color Bars
Audio
Audio Channels8-Channel (7.1)
Audio Output8-Channel LPCM at 1kHz
Sampling Rates48 kHz, 96 kHz, 192 kHz
Ports
HDMI 19-pin Type-A, female

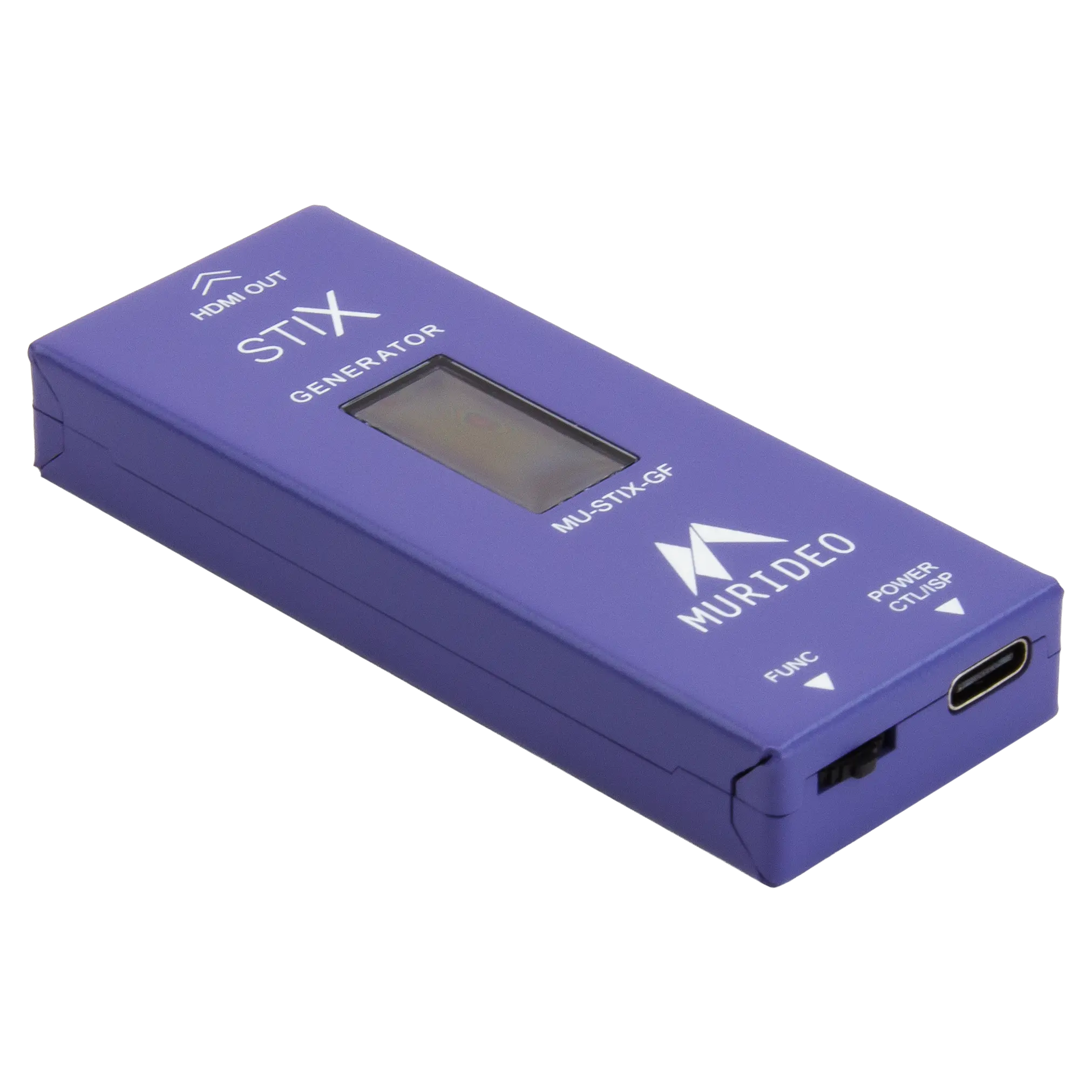

Power/Firmware&ControlUSB Type-C
Environmental
Operating Temperature23° to 125°F (-5° to 51°C)
Storage Temperature-4° to 140°F (-20° to 60°C)
Humidity Range5% to 90% RH (No Condensation)
CoolingPassive
Power
Power5 VDC, 270 mA
Power Consumption1.35 W Maximum
Physical / Dimensions
Dimensions
(Unit Length/Width/Height)		mm: 12 x 32 x 82
in: .47 x 1.26 x 3.22
Dimensions
(Packaged Length/Width/Height)		mm: 122 x 91 x 26
in: 4.80 x 3.58 x 1.02
Weight (Unit).09 lbs. (0.04 kg)
Weight (Packaged).34 lbs. (.15 kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
