STIX Test Signal Analyzer (Female)

Description

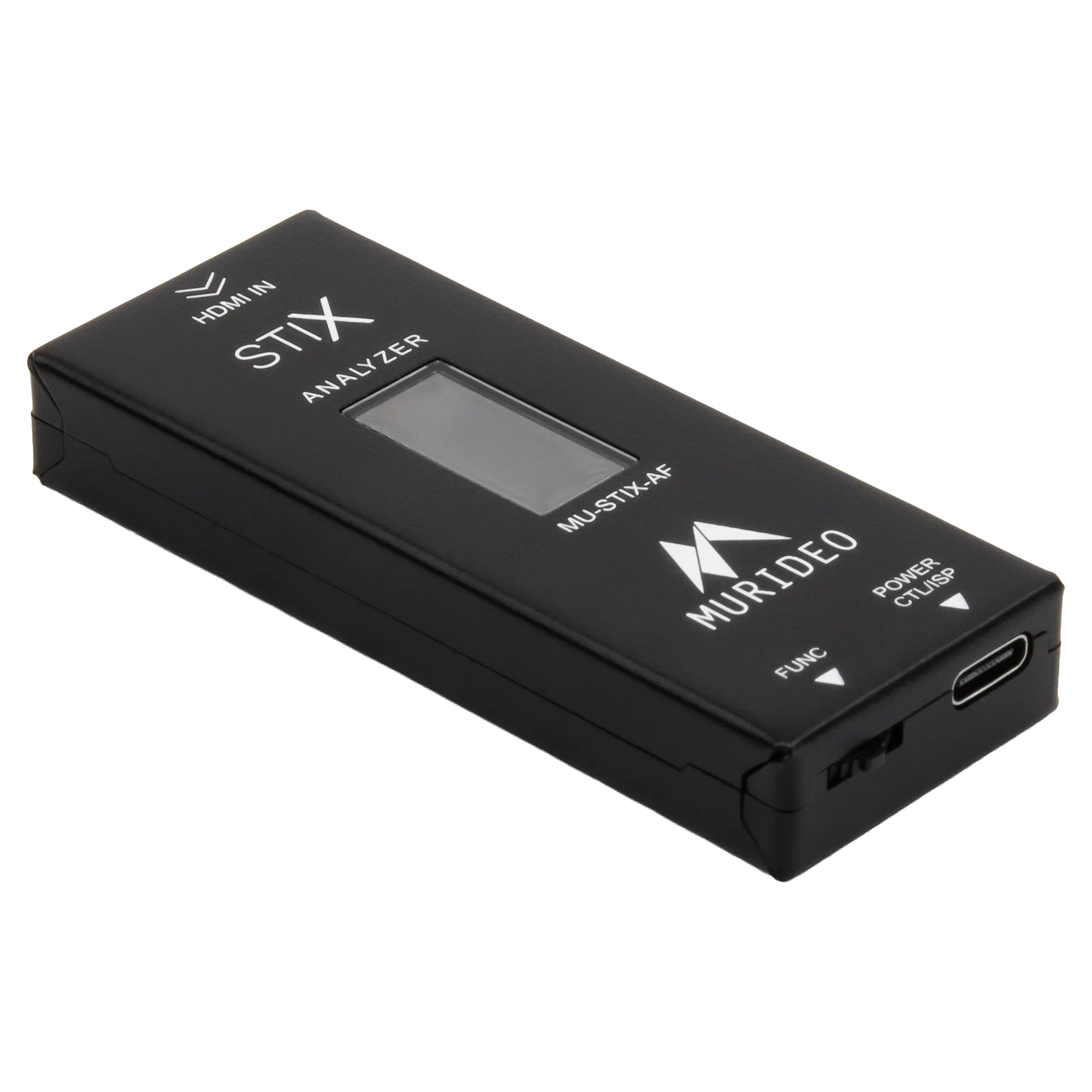

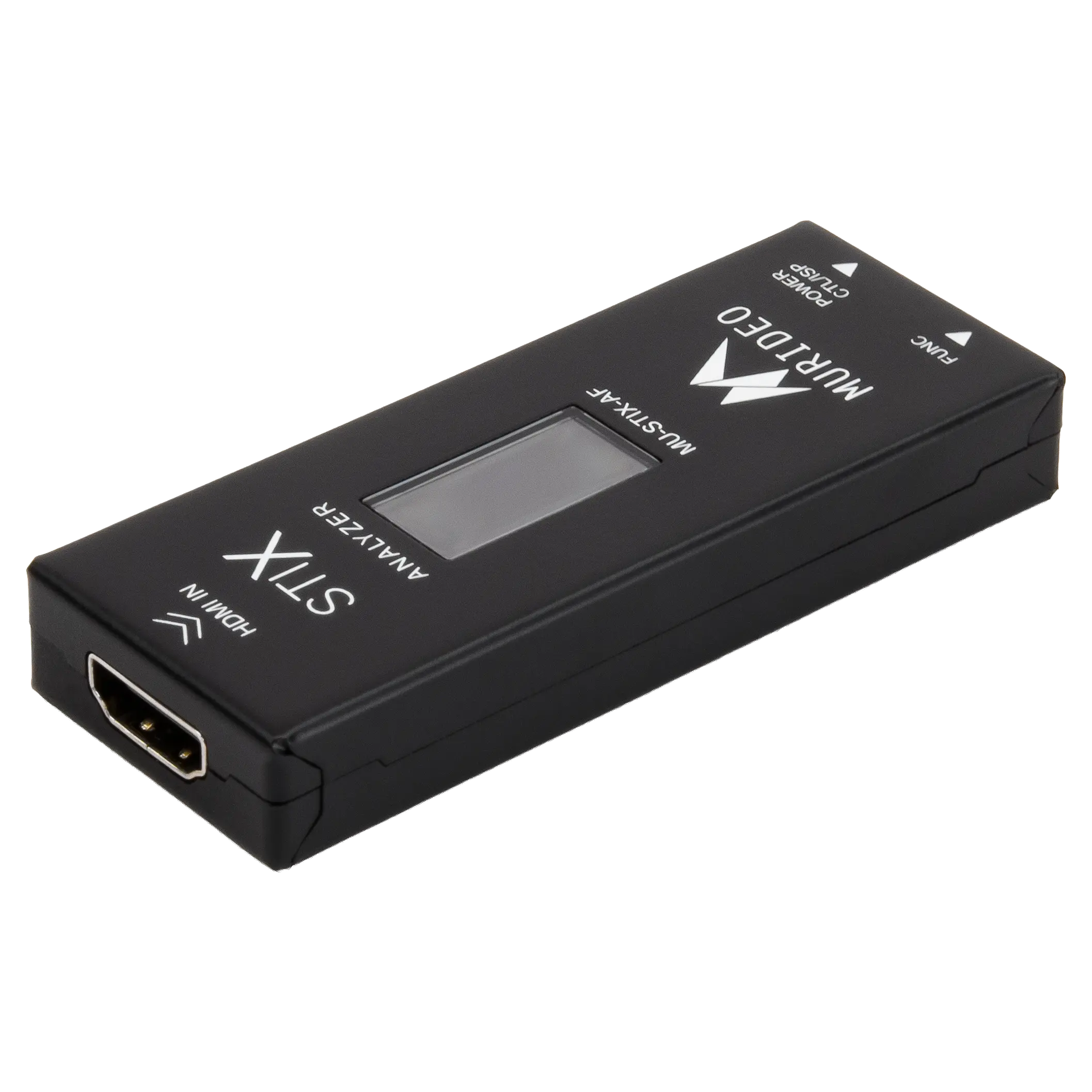

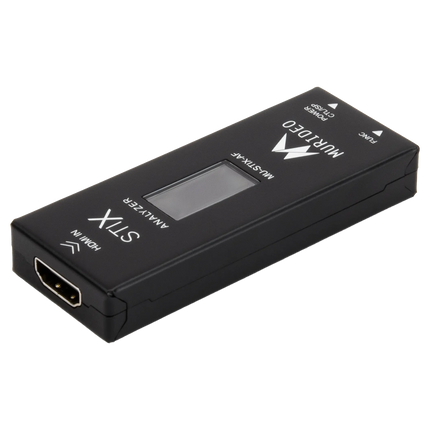

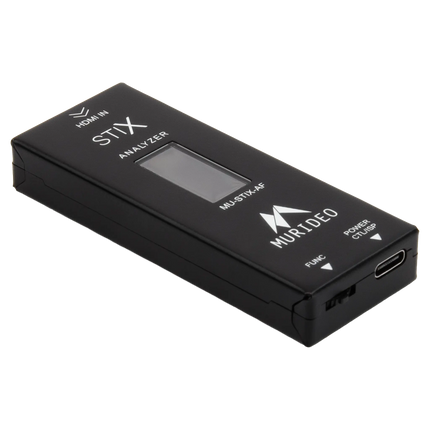

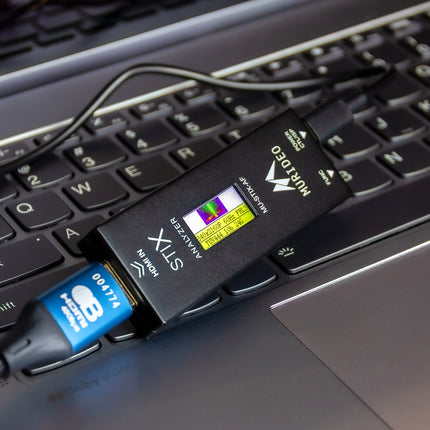

The MU-STIX-AF thumb drive-sized HDMI signal analyzer is equipped with an HDMI signal input port, which provides additional in-field and rack room pass/fail signal transmission path verification flexibility.

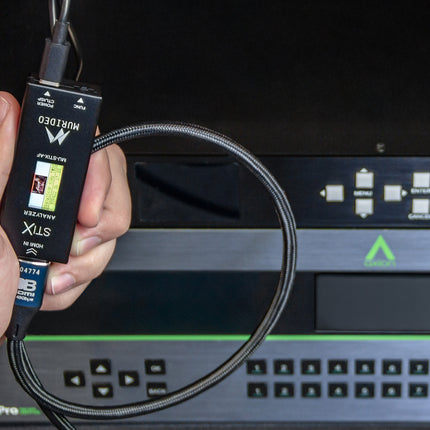

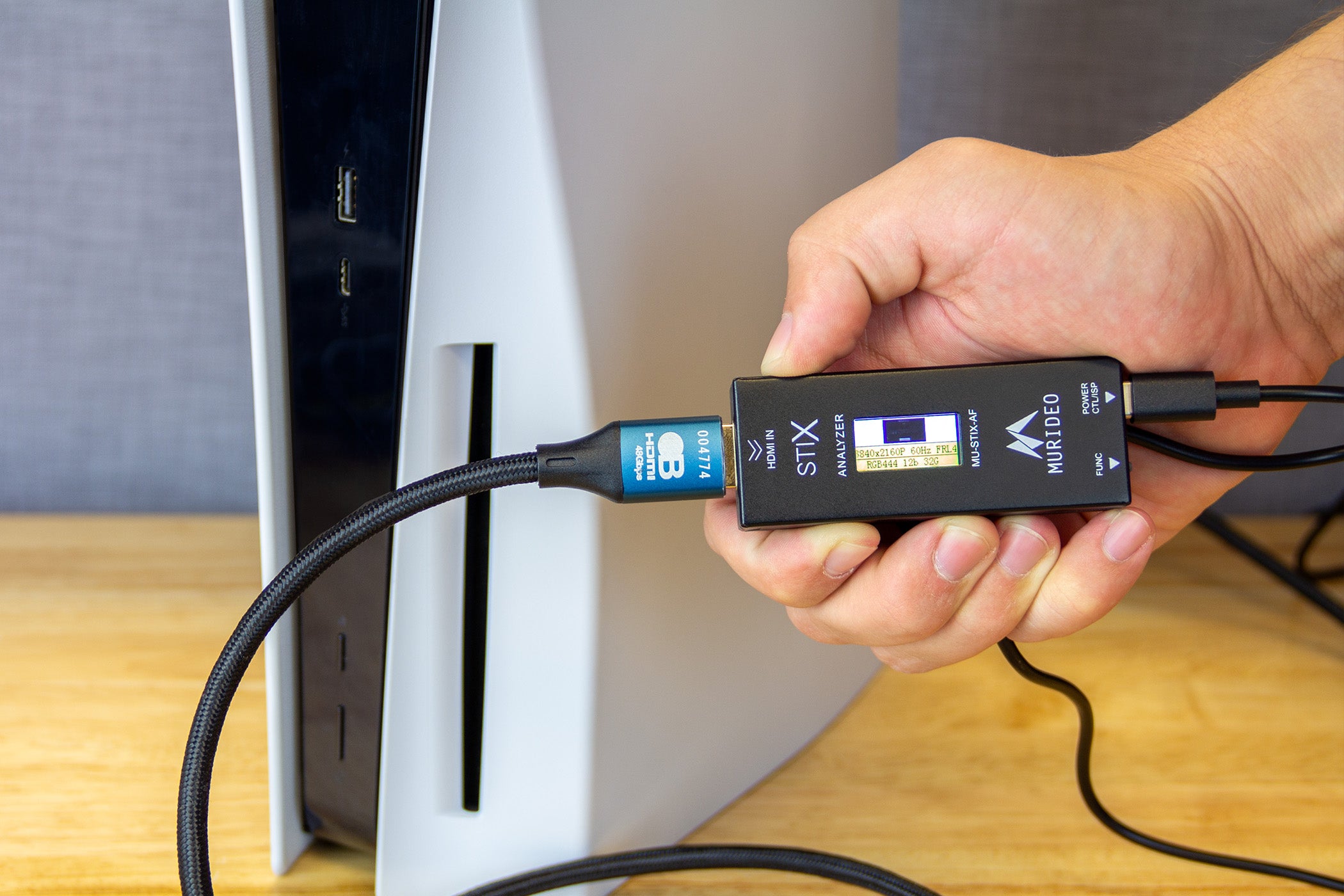

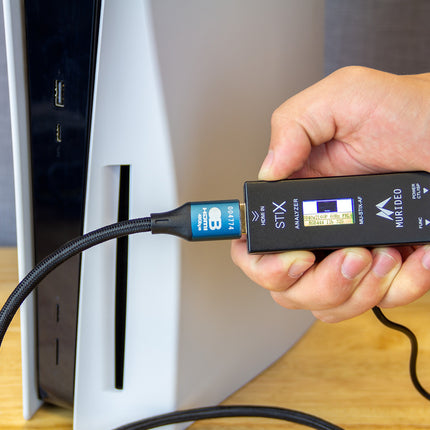

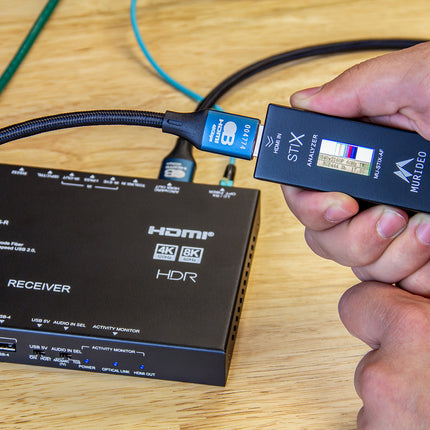

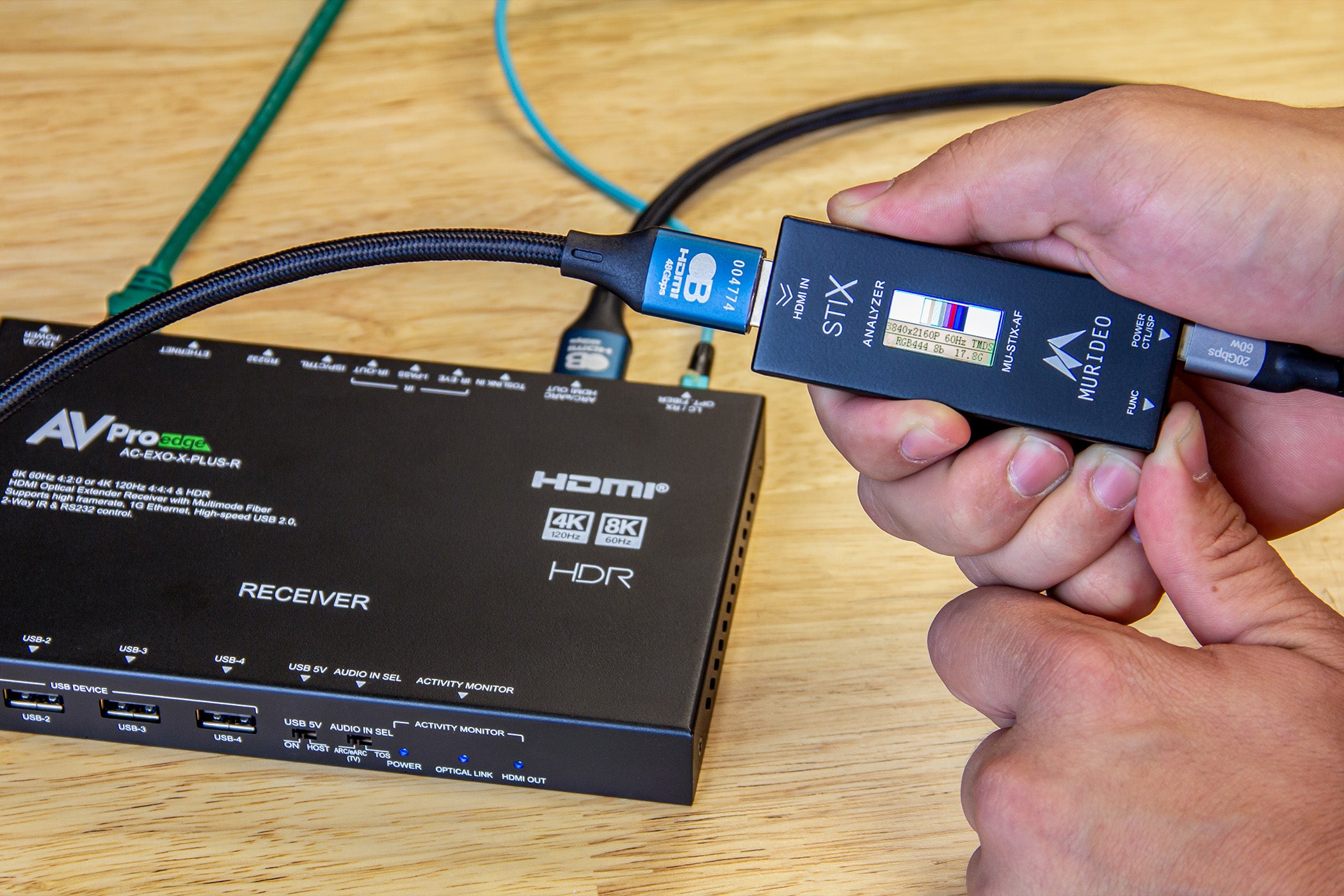

While the MU-STIX-A with its male HDMI connector negates the need for an additional HDMI cable to test source and pass-through devices rapidly, the MU-STIX-AF with its female HDMI port facilitates testing in tight spaces via HDMI cable extension.

Coupled with the MU-STIX-GF HDMI generator, end-to-end signal throughput and HDMI cable bandwidth/continuity verification are possible.

The STIX ecosystem was initially developed as a resource for AVPro Edge's internal quality control. It was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers, an absolute impossibility considering the monitoring requirements in such an environment. Additionally, with the MU-STIX-CTL, data exchanges relating to signal dropouts or transmission send/receive failures are communicated and logged.

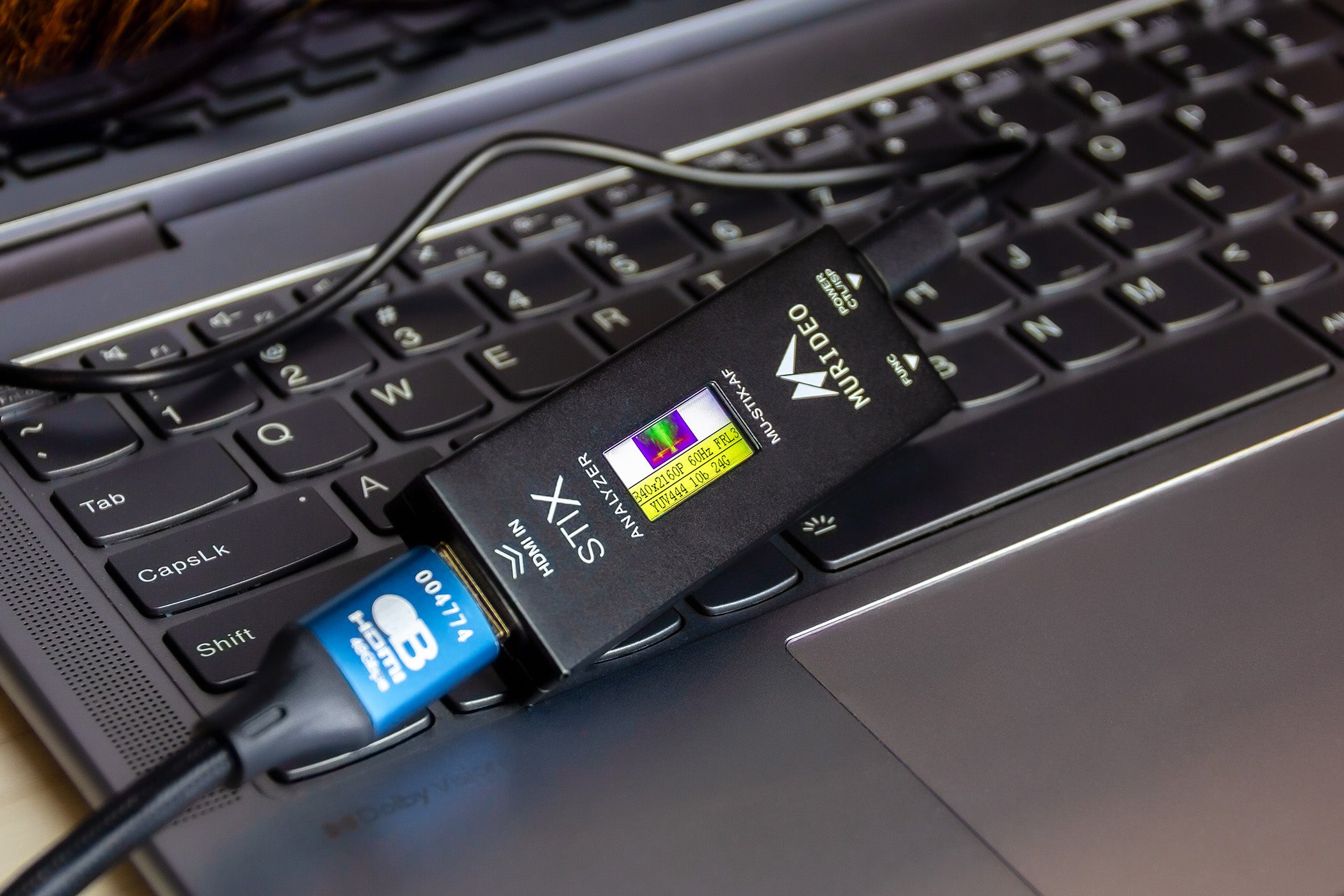

The MU-STIX-AF analyzes video test patterns at resolutions from 720p/ 60 fps through 8K/ 60 fps, including 4K/120 fps High Frame Rate. A mini OLED screen displays the incoming signal, resolution, bit rate, color space, and FRL version of TDMS when used in stand-alone applications. The same information is displayed on the MU-STIX-CTL controller GUI.

Murideo’s collection of STIX verification devices enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

The MU-STIX-AF is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass/fail transmission path and display capability verification are required.

Read more

STIX Test Signal Analyzer (Female)

Product form

8K HDMI 2.1 Signal Analyzer with Female HDMI Connector

  • HDMI 2.1b, 8K 48 Gbps (FRL) compliant
  • Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
  • Detects signal changes, sync losses, and logs loss time
  • OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
  • Displays audio information, including incoming sampling frequency, bit rate size, and audio type
  • Displays audio information, including incoming sampling frequency, bit rate size, and audio type

SKU: MU-STIX-AF

$289.00

  • Shipped today? Order within: Sep 28, 2025 13:00:00 -0500

Description

The MU-STIX-AF thumb drive-sized HDMI signal analyzer is equipped with an HDMI signal input port, which provides additional in-field and rack room pass/fail signal transmission path verification flexibility.

While the MU-STIX-A with its male HDMI connector negates the need for an additional HDMI cable to test source and pass-through devices rapidly, the MU-STIX-AF with its female HDMI port facilitates testing in tight spaces via HDMI cable extension.

Coupled with the MU-STIX-GF HDMI generator, end-to-end signal throughput and HDMI cable bandwidth/continuity verification are possible.

The STIX ecosystem was initially developed as a resource for AVPro Edge's internal quality control. It was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers, an absolute impossibility considering the monitoring requirements in such an environment. Additionally, with the MU-STIX-CTL, data exchanges relating to signal dropouts or transmission send/receive failures are communicated and logged.

The MU-STIX-AF analyzes video test patterns at resolutions from 720p/ 60 fps through 8K/ 60 fps, including 4K/120 fps High Frame Rate. A mini OLED screen displays the incoming signal, resolution, bit rate, color space, and FRL version of TDMS when used in stand-alone applications. The same information is displayed on the MU-STIX-CTL controller GUI.

Murideo’s collection of STIX verification devices enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

The MU-STIX-AF is a convenient, cost-effective multi-resolution format analyzer for commercial or residential integrators when simple pass/fail transmission path and display capability verification are required.

Read more

  • Key Features
  • Specs
  • Resources

Level-Switch Interface

Enhanced menu access versus the previous button-only interface.



Low-cost, flexible output source
Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant signal analyzer.

Analyze signals up to 8K
Analyzes 720p, 1080p, 4K, and 8K signal timings at 8-bit, 10-bit, and 12-bit color depths, in RGB, 4:2:2, and 4:4:4 color spaces.

Low power draw
The MU-STIX-GF is powered over USB-A to Type-C (from device accessory ports) or Type-C to Type-C from a mobile device.

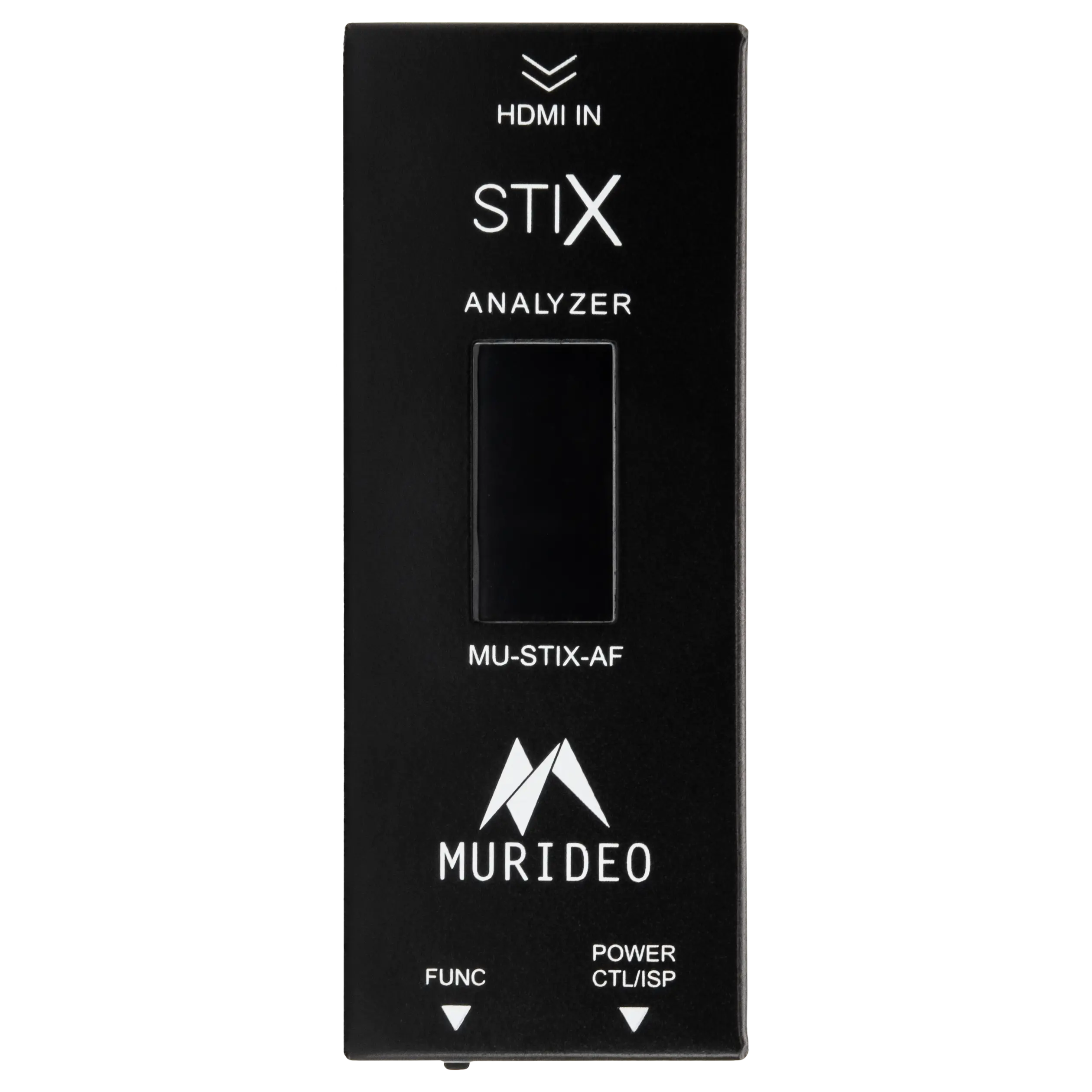

OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.

Ultra-compact form factor
Packaged in a durable, foam-fit, compact protective tin container.

Video
HDMI Version2.1
HDCP Version1.4 and 2.3
HDCP ON/OFFNo
Maximum Clock Rate600 mscs (1188 MHz)
Maximum Throughput per Channel12 Gbps (48 Gbps Total)
Resolution TimingsHDMI VICs up to 8K/30 Hz, DCI up to 4K/60 Hz, VESA DMT, VESA CVT-RB up to 600 MHz
Video EncodingRGB, YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0
Color Bit Depth12-, 10-, 8-bit
Audio (Diagnostic Only)
Audio TypeLPCM
Audio Sampling Rate32 kHz, 44.1 kHz, 48 kHz, 88 kHz, 96 kHz, 176 kHz, 192 kHz
Audio ChannelsUp to 8-Channel
Audio VolumeNo
Ports
HDMI 19-pin Type-A, female
Power/Firmware&ControlUSB Type-C
Environmental
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
CoolingPassive
Power
Power5 V 540 mA
Power Consumption2.7 W Maximum
Physical / Dimensions
Dimensions (Unit Length/Width/Height)mm: 12 x 32 x 82
inches: .47 x 1.26 x 3.22
Dimensions
(Packaged Length/Width/Height)		mm: 122 x 91 x 26
inches: 4.80 x 3.58 x 1.02
Weight (Unit)0.09 lbs. (0.04 kg)
Weight (Packaged).34 lbs. (.15 kg)
*Specifications subject to change without notice.  Mass & dimensions are approximate
