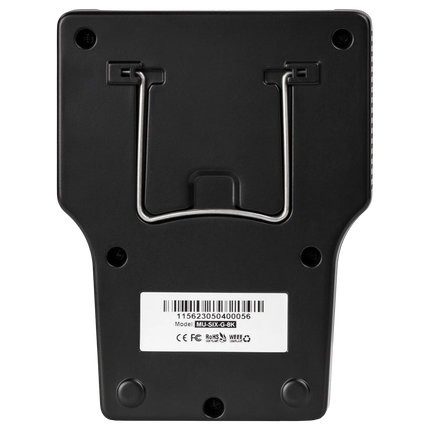

8K SIX-G 40Gbps HDMI Signal Generator

Description

The Murideo 8K SIX-G is an HDMI pattern generator intended for the AV integration market to confirm HDMI 2.0(b) and HDCP 2.3 operation at the 40Gbps level. This device can create a signal that allows it to act as any modern HDMI source. Additionally, the SIX-G is an excellent field troubleshooting tool for distributed high bandwidth HDMI systems and a reference source for video calibration. Recently upgraded to a full metal body, the SIX-G is designed to be tough and versatile.

The handheld device is portable thanks to a built-in battery and can generate over 100 different test patterns for setup, calibration, and troubleshooting. There’s a three-inch color display with simplified menus as well as free PC control software. The 8K SIX-G also features Hot Plug Detect, EDID read/write functionality, and the ability to create custom resolutions. There’s the option for either RS232 or USB control and support for Calman and Light Illusion calibration software. The 8K SIX-G is the only unit to carry the complete suite of ISF test patterns, select-able color output level, RGB Triplets, and Constant APL (Average Picture Level) all in one place. The 8K SIX-G is a calibrator’s dream because it’s: ISF Labs certified, the firmware is field upgradable, and it even includes audio confidence tests.

Pair the 8K SIX-G with the 8K SIX-A Analyzer, and you have the most powerful HDMI system troubleshooting system on the planet! You can upload any image/pattern you want. The uploader will store the pattern in one of the ten available “slots” for recall later.  It will even upload the thumbnail to the LCD screen. Plastic Body Six G 8K only capable of .bmp files. Metal Body Six G 8K Capable of BIN, BMP, RGB, and YUV files.

You can access the Pattern Uploader & Library at our new, consolidated downloads page.


8K SIX-G 40Gbps HDMI Signal Generator

Product form

Everyone’s favorite HDMI test device received an 8K overhaul. The 8K SIX-G from Murideo is beyond a test pattern generator. It is an essential tool for anyone working with HDMI. Able to produce video signals up to 40Gbps allowing you to test any 8K capable HDMI product, including 8K TVs, sources, AVR’s, and projectors.

  • Ideal for Modern Display Calibration
  • 40Gbps Maximum Bandwidth
  • 8K60 (4:2:0) 10-bit
  • Full HDR, Dolby Vision, HDR10+ and HLG support
  • EDID Read Functionality
  • Imaging Science Foundation Certified

SKU: MU-SIX-G-8K-M

$3,088.97

  • Shipped today? Order within: Nov 20, 2026 13:00:00 -0600

Description

The Murideo 8K SIX-G is an HDMI pattern generator intended for the AV integration market to confirm HDMI 2.0(b) and HDCP 2.3 operation at the 40Gbps level. This device can create a signal that allows it to act as any modern HDMI source. Additionally, the SIX-G is an excellent field troubleshooting tool for distributed high bandwidth HDMI systems and a reference source for video calibration. Recently upgraded to a full metal body, the SIX-G is designed to be tough and versatile.

The handheld device is portable thanks to a built-in battery and can generate over 100 different test patterns for setup, calibration, and troubleshooting. There’s a three-inch color display with simplified menus as well as free PC control software. The 8K SIX-G also features Hot Plug Detect, EDID read/write functionality, and the ability to create custom resolutions. There’s the option for either RS232 or USB control and support for Calman and Light Illusion calibration software. The 8K SIX-G is the only unit to carry the complete suite of ISF test patterns, select-able color output level, RGB Triplets, and Constant APL (Average Picture Level) all in one place. The 8K SIX-G is a calibrator’s dream because it’s: ISF Labs certified, the firmware is field upgradable, and it even includes audio confidence tests.

Pair the 8K SIX-G with the 8K SIX-A Analyzer, and you have the most powerful HDMI system troubleshooting system on the planet! You can upload any image/pattern you want. The uploader will store the pattern in one of the ten available “slots” for recall later.  It will even upload the thumbnail to the LCD screen. Plastic Body Six G 8K only capable of .bmp files. Metal Body Six G 8K Capable of BIN, BMP, RGB, and YUV files.

You can access the Pattern Uploader & Library at our new, consolidated downloads page.


  • Key Features
  • Specs
  • Resources
  • Applications
  • HDMI 2.1 Support
  • 8K@60 4:2:0 10-bit Maximum Resolution
  • Fixed Rate Link (FRL)
  • Color Space Selectable
  • Full Range RGB (0-255)
  • SMPTE RGB (16-235)
  • YC444, 422, 420 (16-235)
  • Auto Detect (read EDID – display preferred format)
  • High Bit Depth – 8, 10, 12, and 16 bit per pixel support
  • HDR (High Dynamic Range) Support
  • Multiple HDR Memories
    • HDR 10, 10+
    • HLG
    • Dolby Vision testing
    • Custom HDR Memory
  • BT. 2020 Wide Color Gamut (WCG) Support
  • HDCP Content Type Selectable
    • Type 0 – Type 0 content can pass over any version of HDCP ( 1.X or 2.X) – like 1080P – all 1080P content is type 0.
    • Type 1 – Type 1 content requires mandatory HDCP 2.2 – will not pass over any 1.X infrastructure. Most 4K UHD movies at type 1.
  • Full 10-Bit RGB Triplet Generator (0-1024 RGB)
  • HDCP Selectable – Off, HDCP 2.2 or HDCP 1.X
  • Hot Plug Detect Indicator
  • ISF Labs Certified​
  • EDID Read and Save functionality
  • Multiple EDID Memories
  • Read and Display EDID (short form on device, long form on PC)
  • Emulate any display
  • USB Control and free PC software
  • API (Application Programming Interface) Available
  • Reference Source / Auto-Control for Calman, Light Illusion,  and Argyll color calibration software.
  • Portable - Battery Operated > Rechargeable batteries included make field troubleshooting much easier.
  • Optimized Ergonomics – 3” LCD display and simple menu system makes SIX-G very user friendly
  • ISF Test Patterns including contrast, brightness, color, tint, sharpness and more
  • Multi-cultural family pattern for verifying flesh tones
  • Pattern Uploader
  • 4K 1:78 (16x9) Geometry Patterns in all 4K frame rates
  • Includes audio confidence test tones > to make sure audio is active on the HDMI line
General
NotesSIX-G-8K specs
Video
HDMI VersionHDMI 2.1 (FRL5 40 Gbps)
HDCP / Copy ProtectionVersion: HDCP 2.3 and 1.4
HDCP ON/OFFYes
Maximum Clock Rate600 Mcsc (594 MHz)
Maximum Throughput Per Channel10.0 Gbits/sec (40 GBP/sec Total)
Video ResolutionVESA; Video Standard with 60, 59.94, 30, 29.97, 24, 23.98, fps; Video Standard with 50, 25 fps; AUTO and 10 USER Definded
Video CodecRGB, YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 HDMI 2.0
Color Bit Depth8, 10, 12, 16, and AUTO EDID Read
PatternsOver 80 built in including ISF geometery, ISF Resolution, ISF Pluge, Colors, Focus, Resolution, Bars, Ramps, Multiburst, Black/White and Moving bars.
Audio
Audio ChannelsUp to 8 (7.1)
Audio Output2-Ch. LPCM
VU Meter ChannelsUp to 8 (7.1)
Sample Rates32K; 44K; 48K; 88K; 96K; 176K; 192K
Ports
HDMIType-A
Audio InputL/R: 3.5 mm Stereo (3-Conductor)
SYNC (Sync & Latency Test)3.5 mm Stereo (3-Conductor)
RS-2323.5 mm Stereo (3-Conductor)
Firmware / ISP PortMicro USB
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Power
Power7.4 V 2600mAh Internal Battery or Wall Adapter
Power ConsumptionTotal: 12 W max
Power SupplyInput: AC 100 V to 240 V ~ 50/60 Hz Output: DC 12 V 2 A
Physical
Dimensions (Unit)W × D × H: 108.44 × 28.8 × 139 mm (4.27 × 1.13 × 5.47 in.)
Weight (Unit)0.8 lb. (0.36 kg)
Notes*Specifications subject to change without notice. Mass & dimensions are approximate
Selectable Settings
Color ModesRGB (0-255); RGB (16-235); YC444; YC422; YC420
Auto
Operating ModesHDMI; DVI
HDCP ModesOFF; HDCP 1.4
EDID FunctionsRead EDID; Save EDID; Open EDID
Audio Bit16-bit; 20-bit; 24-bit
Audio Output Settings36 different audio output settings between 2 Channel to 7.1 Channel. Listed in Manual.
Hdcp 2.2
Color Bit DepthDepth: 8-bit; 10-bit; 12-bit; 16-bit
Selectable Resolutions Supported
VESA640x480; 800x600; 1024x768; 1280x768; 1360x768; 1280x960; 1280x1024; 1400x1050; 1600x1200; 1900x1200
Std Video480i (59.94); 480p (59.94); 720p (59.94); 720p (60); 1080i (59.94); 1080i (60); 1080p (23.94); 1080p (24); 1080p (29.97); 1080p (30); 1080p (59.94); 1080p (60)
4K Video4K (23.98); 4K (24); 4K (25); 4K (29.97); 4K (30); 4K (50); 4K (59.94); 4K (60); smpte 4K (23.98); smpte 4K (24); smpte 4K (25); smpte 4K (29.97); smpte 4K (30); smpte 4K (24); smpte 4K (50); smpte 4K (59.9); smpte 4K (60)
Notes*SMPTE 4K = 4096x2160
**4K = 3840x2160
3D Video720p 3D (59.94); 720p 3D (50); 720p 3D (60); 1080p 3D (23.98); 1080p 3D (24); 25/50 FPS:; 576i (50); 576p (50); 720p (50); 1080i (50); 1080p (25); 1080p (50)
