STIX Test Signal Generator

Description

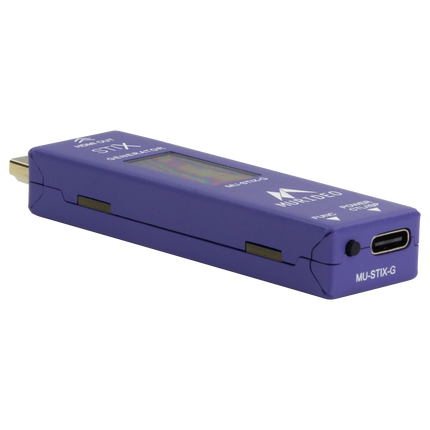

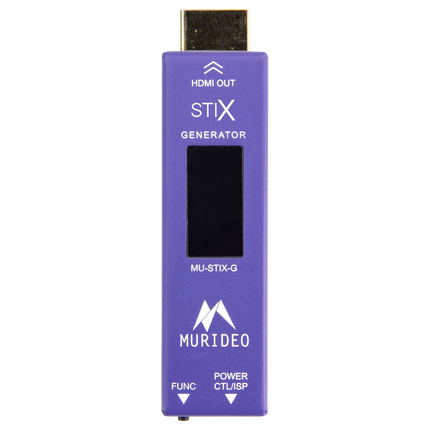

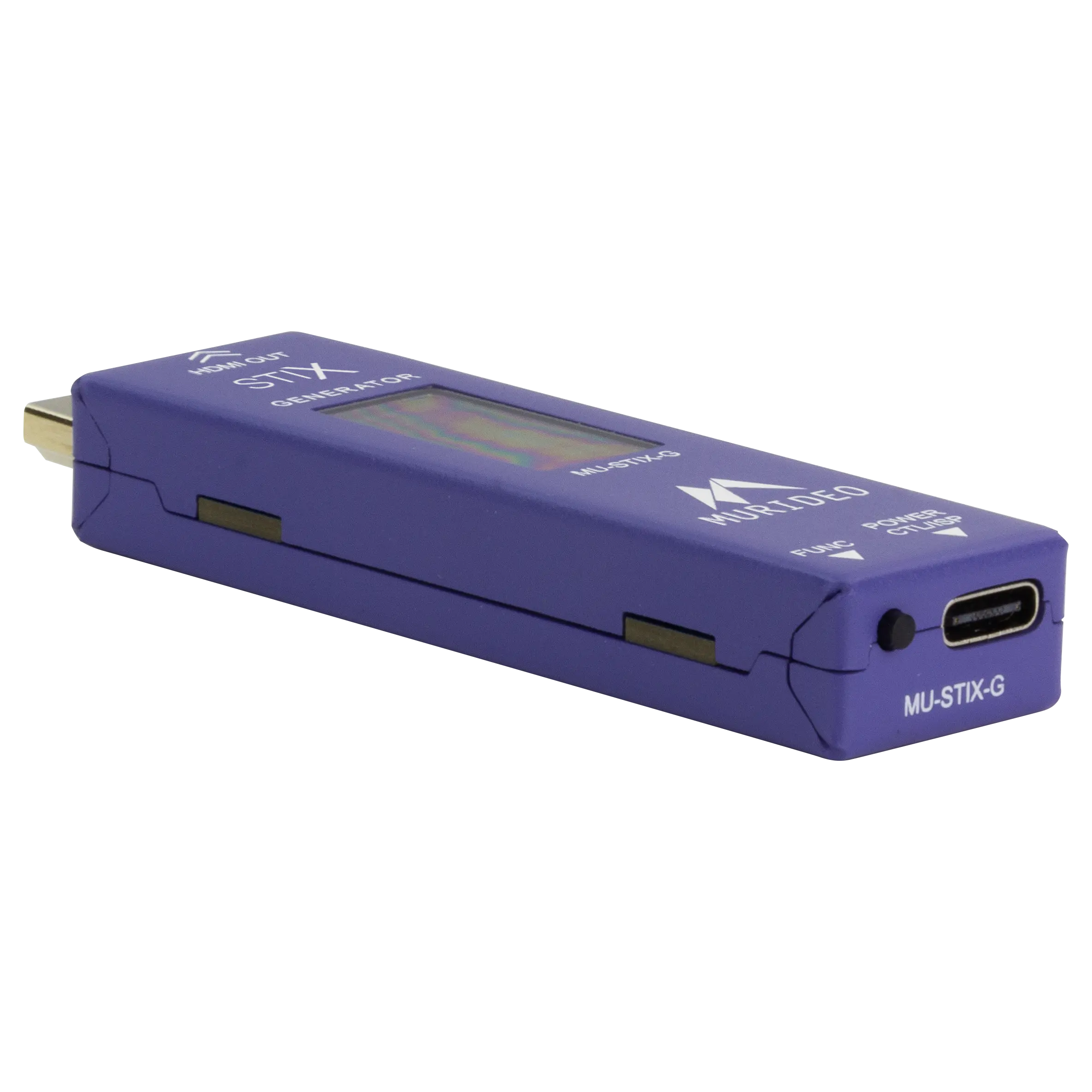

The MU-STIX-G is a thumb drive-sized HDMI pattern generator designed for Murideo’s STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

Video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate, may be generated by the MU-STIX-G. When used in stand-alone applications, a mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version.

STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

For stand-alone use, the MU-STIX-G is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.

Read more

STIX Test Signal Generator

Product form

STIX Test Signal Generator

  • HDMI 2.1b, 8K 48 Gbps (FRL) compliant
  • Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
  • HDCP selectable at Off, 1.4, and 2.3 (1.4 is TDMS only)
  • 13 test patterns, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
  • STIX is compatible with any brand of HDMI devices

SKU: MU-STIX-G

$249.00

  • Shipped today? Order within: Nov 13, 2025 13:00:00 -0600

Description

The MU-STIX-G is a thumb drive-sized HDMI pattern generator designed for Murideo’s STIX large-deployment evaluation platform. It may also be used for light-duty in-field pass/fail signal transmission verification.

Initially developed as a resource for AVPro Edge internal quality control, STIX was conceived as an asymmetric testing methodology for dynamically transmitting, receiving, and logging test sources through 1,152 MXnet endpoint transmitters and receivers. Imagine pursuing this process with hundreds of Blu-ray machines or streaming devices, or the number of video displays… it is simply impossible.

Video test patterns at resolutions from 720p/ 60 Hz through 8K/ 60 Hz, including 4K/120 Hz High Frame Rate, may be generated by the MU-STIX-G. When used in stand-alone applications, a mini OLED screen displays the pattern selected, resolution, bit rate, color space, and HDCP version.

STIX enables rapid yet thorough in-house signal throughput confirmation before site deployment to verify that endpoint devices are correctly functioning, appropriately responding to programming, and aligned with system performance parameters.

For stand-alone use, the MU-STIX-G is a convenient, cost-effective multi-resolution format generator for commercial or residential integrators when simple pass-fail transmission path and display capability verification are required.

Read more

  • Key Features
  • Specs
  • Resources

Low-cost, flexible output source

Cost-effective HDMI 2.1b, 8K 48 Gbps (FRL) compliant generator.



Analyze signals up to 8K

Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit color depths, in RGB, 4:2:2, and 4:4:4 color spaces.



Configurable HDCP

With options for versions 1.4, and 2.3 (1.4 is TDMS only) or Off.



Built-in test patterns
13 built-in test patterns and 6 preset timing options, including pseudo-random binary sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.



Low power draw

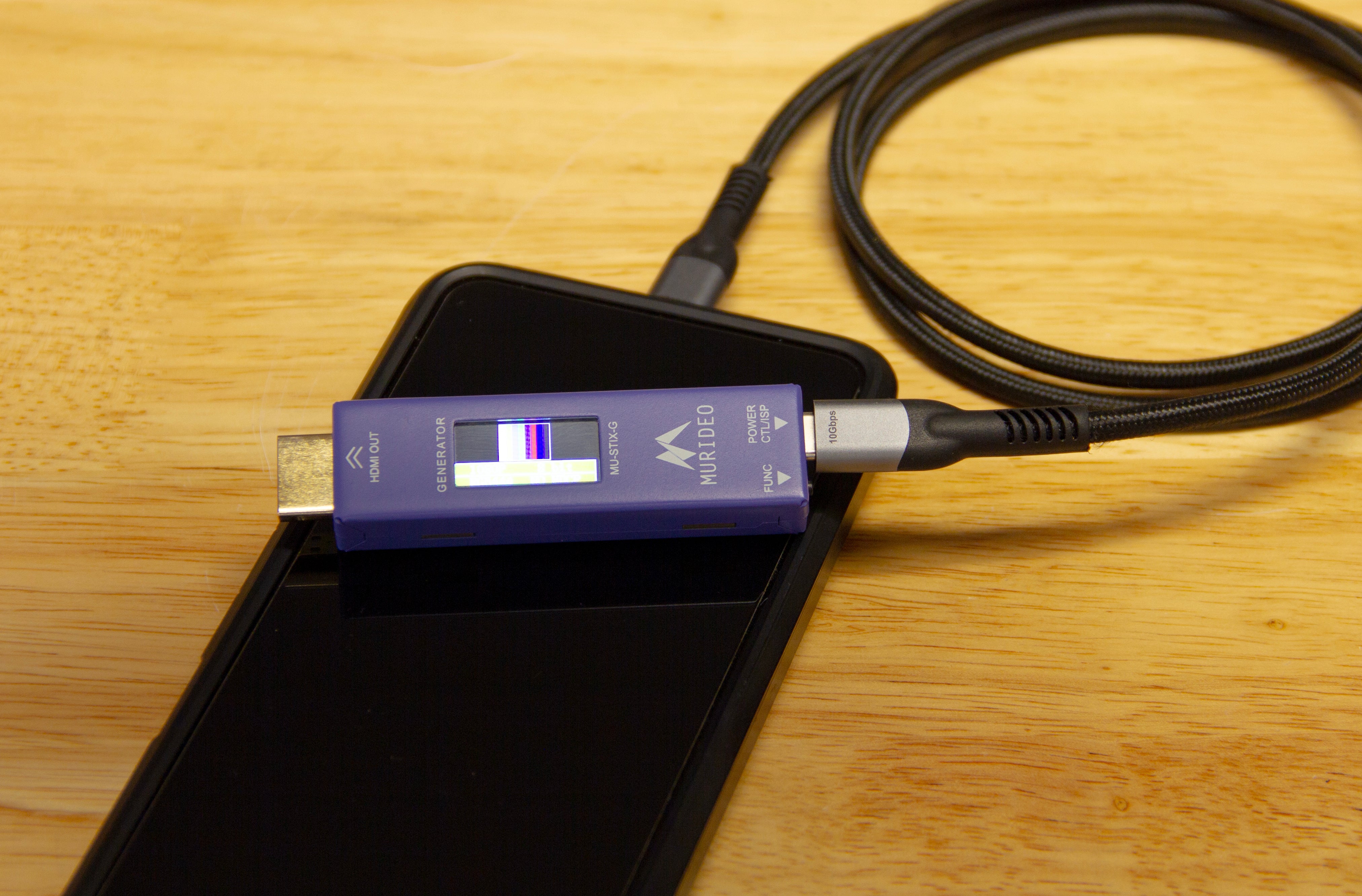

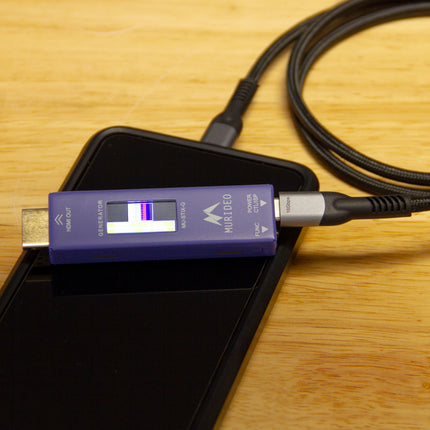

Allows device to be powered over USB-A (from AVR or display) or via USB Type-C from mobile device.


OLED color screen
An intuitive navigation menu displays incoming video thumbnail, source timing, FRL or TDMS presence, color space, color depth, and HDCP 1.4/2.X versions.



Ultra-compact form factor

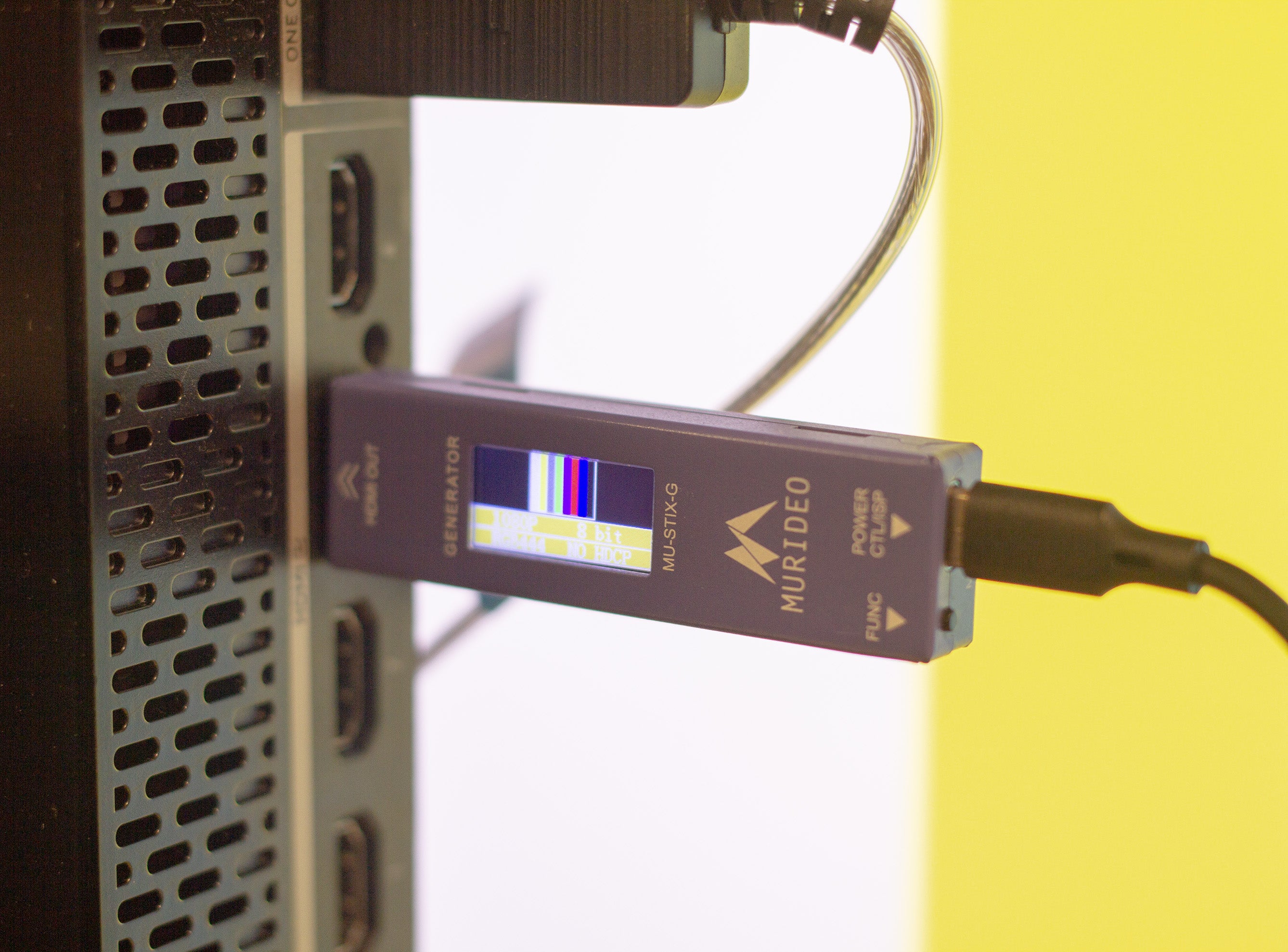

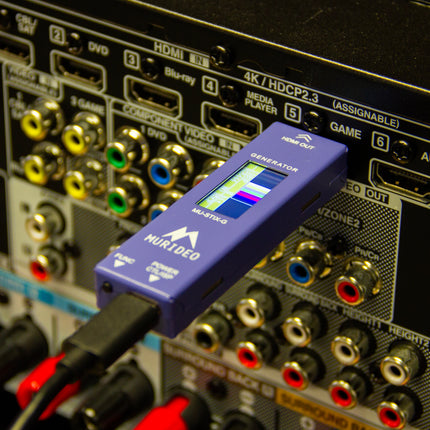

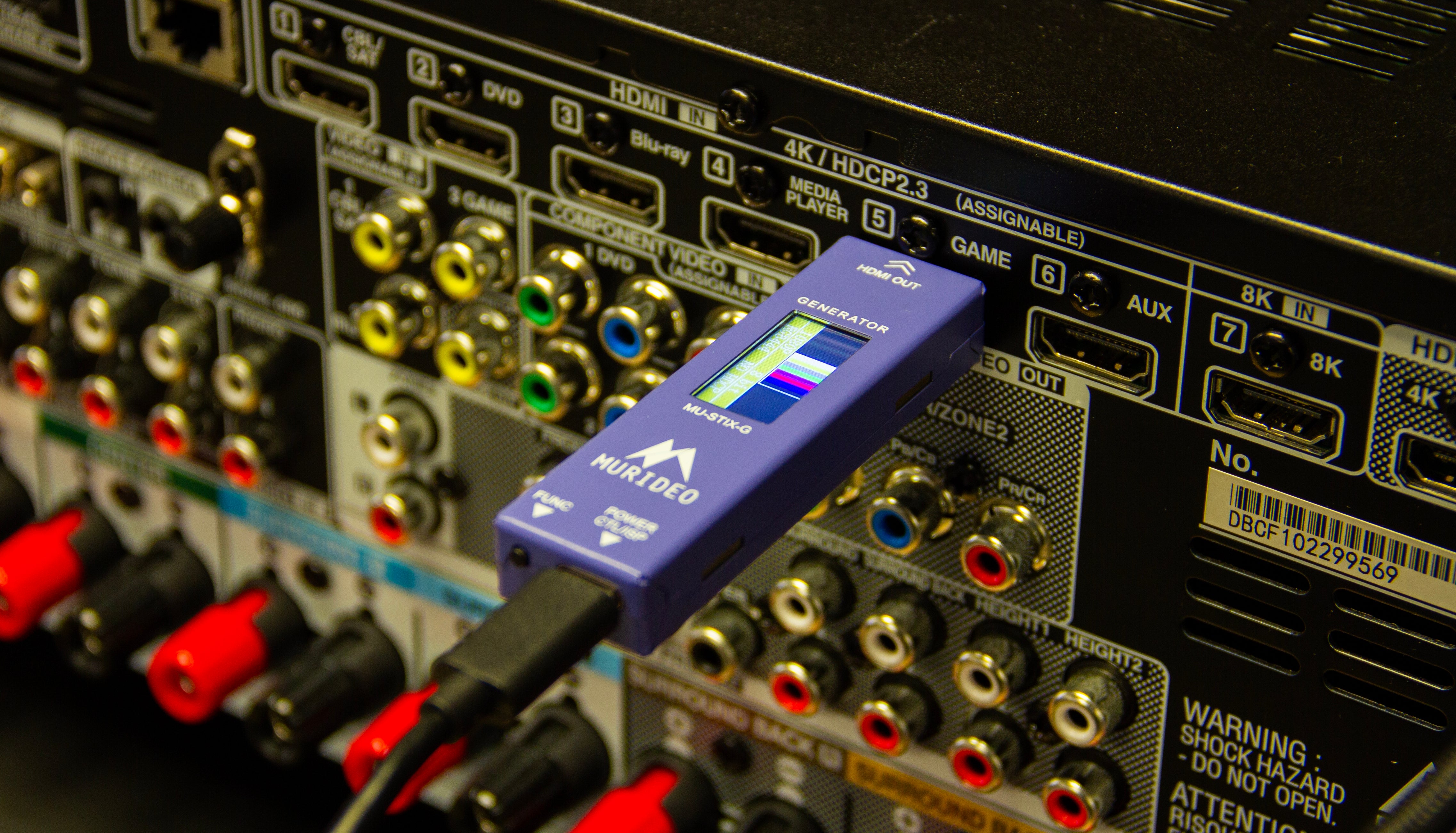

The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

VIDEO
HDMI VersionHDMI 2.1
HDCP Version1.4 and 2.3
HDCP ON/OFFYes
Resolution Timings

4K & 8K/30 Hz

720p, 1080p, 4K/60Hz

4K/120 Hz

Video EncodingRGB (Limited), YCbCr
Video Sampling ModelsRGB 4:4:4, YUV 4:4:4, YUV 4:2:2
Color Bit Depth8-, 10-, 12-bit
Patterns

Black, Checkbox, Stripes, Red, Green, Blue, White, White Ramp, Red

Ramp, Green Ramp, Blue Ramp, PRBS, Color Bars

Audio
Audio OutputNot Supported
Ports
HDMIMale Type-A
Firmware/ControlUSB Type-C
ENVIRONMENTAL
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Humidity Range5-90% RH (No Condensation)
POWER
Power (Single Unit)5 VDC, 270 mA
Power Consumption1.35 W Max
DIMENSIONS
Dimensions (SIngle Unit Only  Height/Depth/Width)mm: 12 X 21 X 81.1
inch: 0.47 X 0.82 X 3.2
Weight (Single Unit)27g / 1oz

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
