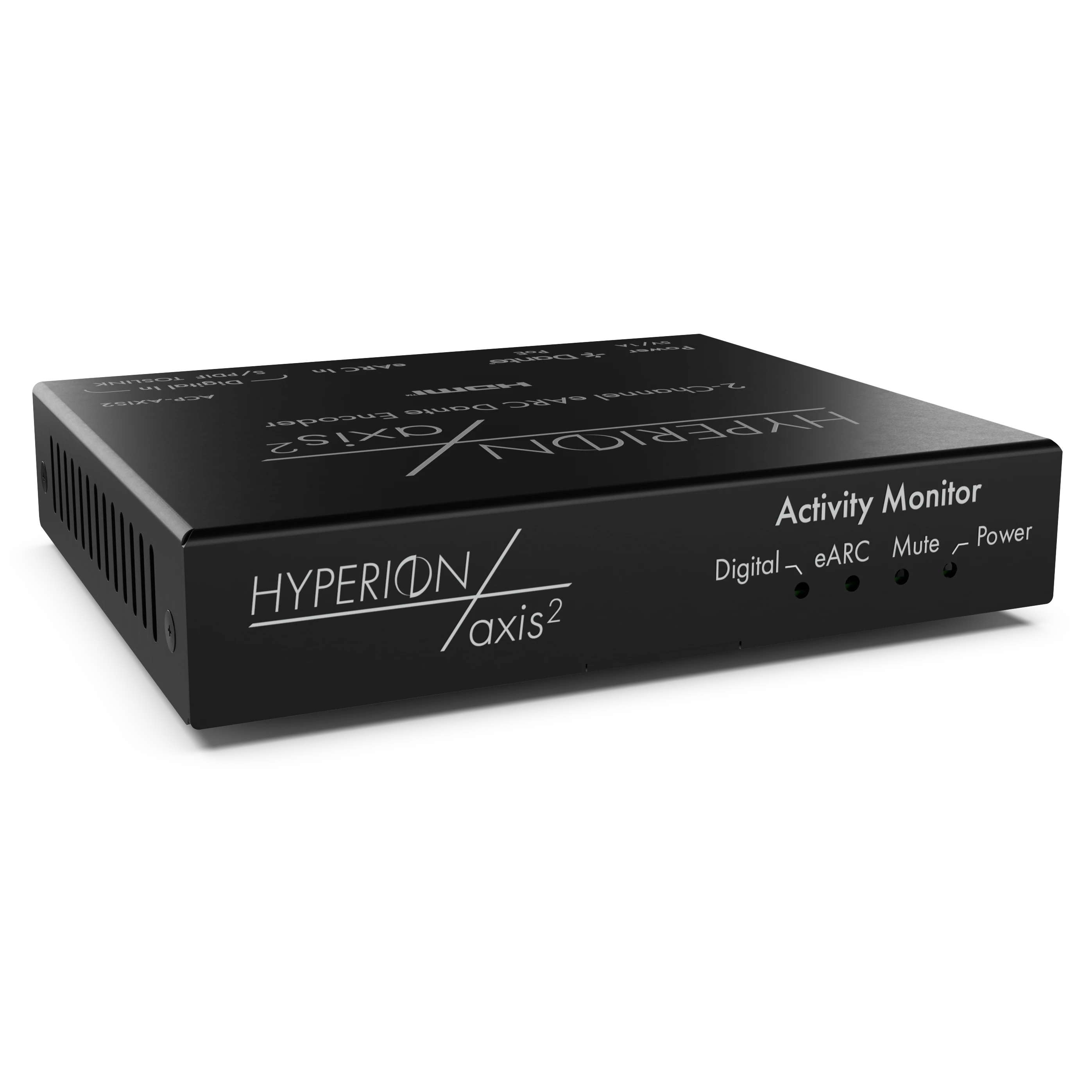

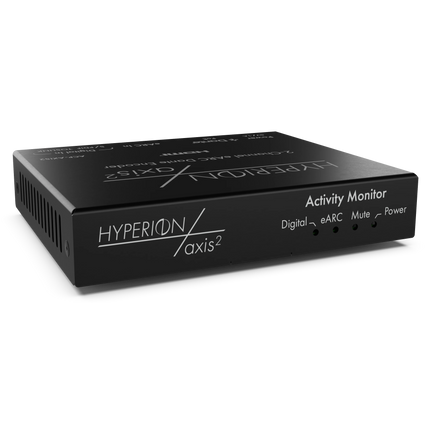

Extract audio directly from smart displays and embedded applications and deliver it over Dante and AES67 networks. AXIS enables clean, scalable audio integration without traditional AV receivers and is the ideal distributed audio solution for both residential and commercial applications.
SKU: ACP-AXIS2
Display Driven Networked Audio - Axis2 converts stereo audio from a display into Dante or AES67 network streams, allowing you to share high-quality sound throughout a home or business. It makes it easy to connect display audio to distributed audio systems in remote locations.
High-Quality Audio up to 96kHz - With support for high-bitrate audio up to 96kHz, Axis2 preserves the clarity and detail of the original audio source. Whether streaming music or watching live content, you’ll experience clean, accurate stereo audio across every connected zone.
Digital Audio Inputs with Signal-Sense Switching - In addition to eARC, Axis2 includes digital coaxial and optical inputs with automatic signal detection. When audio is present on the digital input, the unit seamlessly switches sources, ensuring uninterrupted audio distribution and providing installation flexibility for a variety of source devices.
CEC Volume Control - Axis series supports HDMI CEC pass-through volume control, allowing users to manage audio levels using the TV’s native remote control. This enables seamless, unified operation without the need for additional remotes or control programming.
| Audio | |
| Frequency Response | 20 Hz to 20 kHz |
| Format | PCM |
| Samples Rates | 44.1kHz | 48kHz | 88.2kHz | 96kHz |
| Bit Depths | 16- | 24- | 32-bit |
| Channel Counts | 2 channels |
| Latency | Configurable: 1, 2 or 5ms |

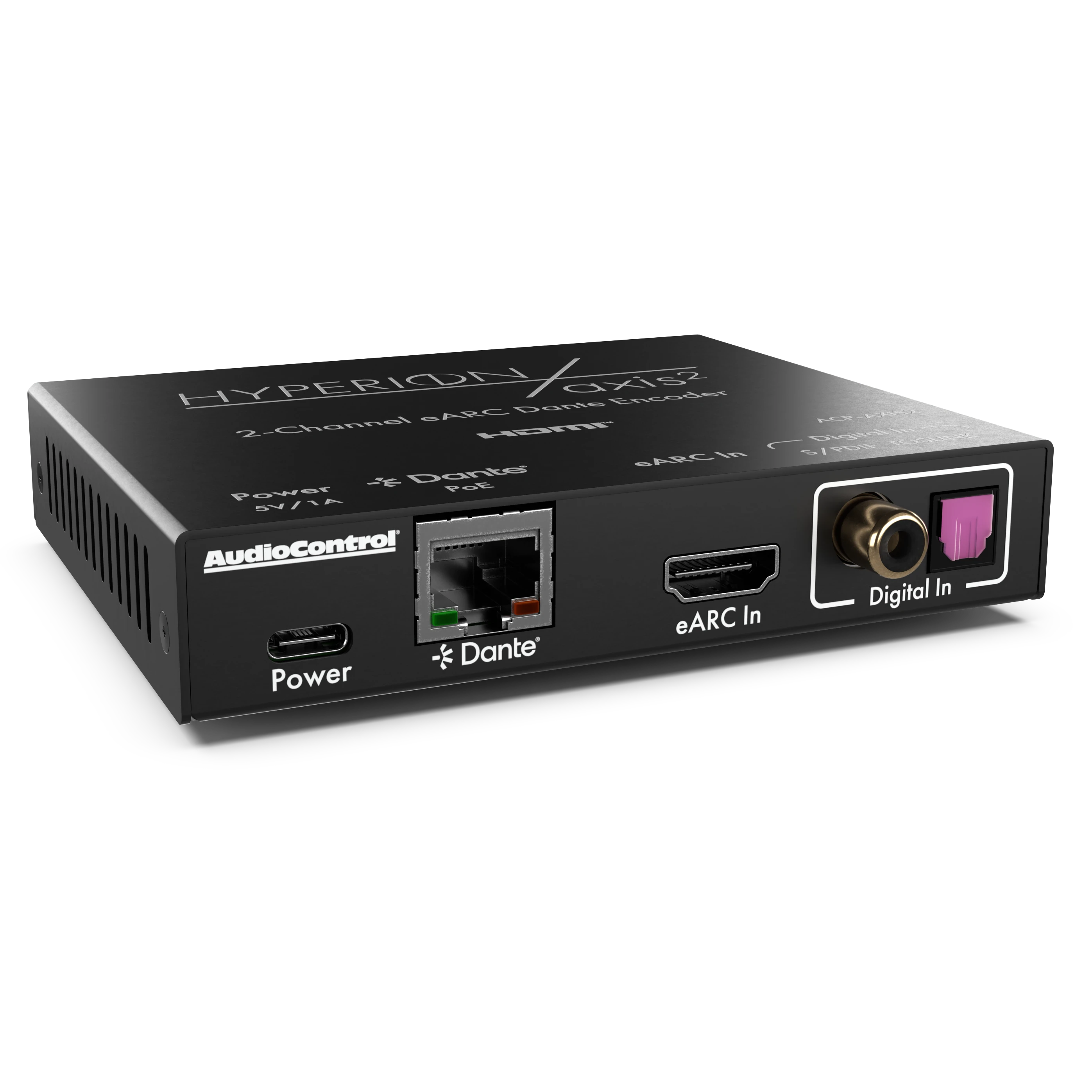

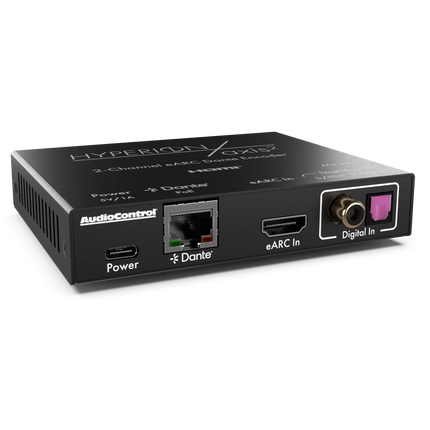

| Connections | |
| eARC | 1x HDMI |
| Digital Audio | 1x TOSLINK | 1x Coaxial |
| Dante/AES67 | 1x RJ45 (PoE) |
| Power | |
| PoE | 802.3af PoE |
| DC Power | 5 VDC 1 A (USB Type-C) |
| Avg. Consumption | ~2W |
| Weight & Dimensions | |
| Dimensions | 4.33in. (110mm) x 3.78in. (96mm) x 1in. (25mm) |
| Weight | 0.5 lbs. |
| Environmental | |
| Operating Temperature | 23°F (-5°C) to 125°F (51°C) |
| Storage Temperature | -4°F (-20°C) to 140°F (60°C) |
| Humidity Range | 5% to 90% RH (no condensation) |
