New Products

June 2026 Releases

MXnet P-Series 48 Port Network Switch

Dealer Access - July 13th

Preconfigured 48-port PoE switch with 740W total PoE budget, PoE++ on ports 41–48, and 6× 25G SFP28 uplink ports, purpose-built for MXnet 1G V1/V2 deployments at scale.

48× 10/100/1000Base-T PoE/PoE+ copper ports
6× 25G SFP28 uplink/stacking ports
Preconfigured for MXnet 1G V1/V2
IGMP Snooping, VLANs, and QoS support
Non-blocking for 1G (150G uplinks > 40.8G max 1G load)
396 Gbps switching capacity
740W PoE budget (ports 41–48 support PoE++ at 90W)
1RU rackmount form factor
Max 4 switch hops

May 2026 Releases

MXnet P-Series 24 Port Network Switch

AC-MXNET-SW24P

Dealer Access - June 22th

Preconfigured 24-port PoE switch with 370W total PoE budget and 4× 10G SFP+ uplink ports, purpose-built for MXnet 1G V1/V2 deployments at scale.

24× 10/100/1000Base-T PoE/PoE+ copper ports
4× 10G SFP+ uplink/stacking ports
Preconfigured for MXnet 1G V1/V2
IGMP Snooping, VLANs, and QoS support
Non-blocking for 1G (40G uplinks > 20.4G max 1G load)
128 Gbps switching capacity
370W PoE budget
1RU rackmount form factor
Max 4 switch hops

March 2026 Releases

MXnet X-Series 48 Port Fiber Network Switch

AC-MXNET-SW48XF

Dealer Access - April 24th

48-port 10G (SFP+) MXnet switch with 6x 100G (QSFP28) stacking ports

Enterprise-Grade Full Layer 3 Switching Architecture
Non-Blocking SDVoE Design Pre-configured for MXnet 10G (SDVoE)
Edge-to-Core Deployment Flexibility
48 x 10G SFP+ Ports / 6 x QSFP28 Ports
2.16 TeraBits Per Second Switching Capacity
Near-zero latency A/V Switching Engineered for MXnet 10G (SDVoE)
Redundant Hot-Swappable Modular Power Supplies and Fans

February 2026 Releases

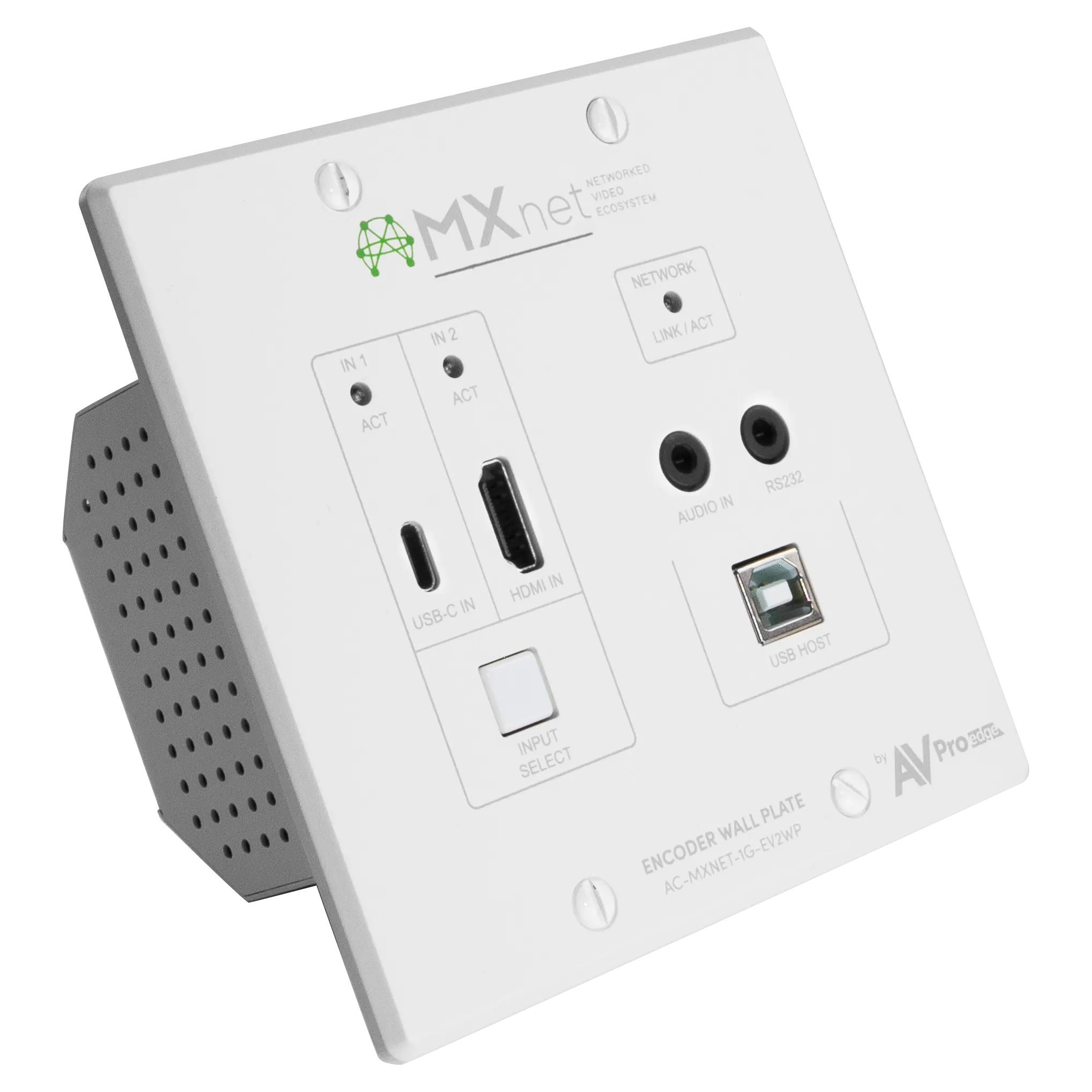

MXnet Evolution II Wall Plate Encoder

AC-MXNET-1G-EV2WP-B

Dealer Access - March 20th

New Black Decora faceplate in 2-Gang U.S. Decora Form Factor.

Part of the Evolution II ecosystem, a series of advanced endpoints that work together to deliver a cutting-edge AV solution built for today’s most demanding Pro AV applications.
4K/60fps 4:4:4 Encoding
Low Latency Distribution
Auto Switching HDMI + USB-C Inputs
Source Preview Streams
RS232 & CEC Control Routing

100M USB 3.2 Gen 1 Wall Plate Extender Kit

AC-EXUSB-3-WP-KIT

AC-EXUSB-3-WP-KIT-B

Dealer Access - March 20th

The AC-EXUSB-3-WP-KIT provides USB 3.2 Gen 1 HOST extension functionality in a sleek wall plate form factor, extending USB signals over UTP category cabling up to 100 meters. This kit pairs a wall plate transmitter with a desktop receiver, simplifying professional AV installations by integrating USB extension capabilities directly into the wall.

Single cable connection for USB data up to 5Gbps
External PSU delivers up to 65W through wall plate
Fits standard US single-gang electrical boxes
Proven, stable extension up to 100 meters
Power receiver from wall plate via category cable

100M USB 3.2 Gen 1 Wall Plate Extender Kit (International)

AC-EXUSB-3-WP-KIT-EU

AC-EXUSB-3-WP-KIT-EU-B

Dealer Access - March 20th

Single cable connection for USB data up to 5Gbps
External PSU delivers up to 65W through wall plate
Fits standard EU electrical boxes
Proven, stable extension up to 100 meters
Power receiver from wall plate via category cable

ConferX Long Distance 150m HDMI Wall Plate Extender Kit

AC-CXWP-150-BKT

Dealer Access - March 20th

The AC-CXWP-150-BKT is a long-distance HDMI extender featuring a wall plate transmitter form factor based on the proven AC-EX150-BKT technology. This kit transforms the ultra-stable AC-EX150-BKT transmitter into a clean, wall-integrated solution that extends HDMI signals up to 150 meters for 1080p and 100 meters for 4K UHD over legacy Category cabling.

Works with legacy CAT5e infrastructure including splices and punch-down blocks
150-meter 1080p / 100-meter 4K UHD extension capability
Supports 18 Gbps 4K HDMI 2.0 with HDR10 and Dolby Vision
Configurable EDID management for stable signal delivery

48Gbps EDID Manager

AC-EDID-X

Dealer Access - March 20th

The AC-EDID-X is a compact, inline device designed to manage and manipulate Extended Display Identification Data (EDID) between HDMI source and sink devices. By emulating or altering EDID information, the AC-EDID-X ensures stable handshakes, eliminates compatibility issues, and maintains consistent video and audio performance across AV systems. Ideal for troubleshooting, system setup, or ensuring specific resolutions and audio formats are maintained, the AC-EDID-X is a must-have tool for installers and integrators.

48Gbps HDMI 2.1 compatible
Four DIP switches for precise EDID management
Eliminates HDMI handshake issues
Supports all HDMI video resolutions up to 8K

January 2026 Releases

MXnet E-Series 24 Port Network Switch

AC-MXNET-SW24E

Dealer Access - February 6th

E-series 24‑port 1G (copper) MXnet switch with 4×10G SFP+ stacking ports.

Pre-configured support for MXnet USP, 1G Evolution I & Evolution II, and Dante audio.
Cost-effective enhanced L2.5 architecture for networks needing more control with segmentation, providing balance, and scalability for effortless expansion.
4 x1 Gbps SFP non-blocking, plannable USP/Dante stacking bandwidth (1.44 Gbps maximum USP).
Optimized for AV-over-IP jumbo frames, VLAN, QoS, and IGMP settings with no manual configuration required.
370 watts PoE+ capacity

MXnet E-Series 48 Port Network Switch

AC-MXNET-SW48E

Dealer Access - February 6th

E-series 48‑port 1G (copper) MXnet switch with 4×10G SFP+ stacking ports.

Pre-configured support for MXnet USP, 1G Evolution I & Evolution II, and Dante audio.
Cost-effective enhanced L2.5 architecture for networks needing more control with segmentation, providing balance, and scalability for effortless expansion.
6x 1 Gbps/10 Gbps SFP+ non-blocking, plannable USP/Dante stacking bandwidth (60 Gbps stacking, 2.88 Gbps maximum USP).
Optimized for AV-over-IP jumbo frames, VLAN, QoS, and IGMP settings with no manual configuration required.
740 watts PoE+ capacity

MXnet USP Essential Transceiver

AC-MXNET-USP-ES

Dealer Access - February 6th

The USP Essential is a versatile 1080p60 AV over IP transceiver powered by AVPro Flow, engineered for dynamic and scalable AV deployments across a wide range of professional environments. Supporting both H.265 and H.264 codecs, the USP Essential delivers efficient, high-quality video distribution over standard IP networks.

1080p60 Encoding/4K60 Decoding
Simultaneous Encode/Decode
Low-Bandwidth H.265 & H.264 with AVPro Flow Interoperability
Up to 4-Window Multiview Processing
Built-in Signage Player

MXnet USP Plus Transceiver

AC-MXNET-USP-PL

Dealer Access - February 6th

The USP Plus is a versatile 4K60 AV over IP transceiver powered by AVPro Flow, engineered for dynamic and scalable AV deployments across a wide range of professional environments. Supporting both H.265 and H.264 codecs, the USP Plus delivers efficient, high-quality video distribution over standard IP networks.

4K60 Encoding/4K60 Decoding
Simultaneous Encode/Decode
Low-Bandwidth H.265 & H.264 with AVPro Flow Interoperability
Up to 7-Window Multiview Processing
2CH Dante/AES67 Audio

MXnet USP Pro Transceiver

AC-MXNET-USP-PR

Dealer Access - February 6th

The USP Pro is a versatile and premium 4K60 AV over IP transceiver powered by AVPro Flow, engineered for dynamic and scalable AV deployments across a wide range of professional environments. Supporting both H.265 and H.264 codecs, the USP Pro delivers efficient, high-quality video distribution over standard IP networks.

4K60 Encoding/8K30 Decoding
Simultaneous Encode/Decode
Low-Bandwidth H.265 & H.264 with AVPro Flow Interoperability
Up to 16-Window Multiview Processing
USB-C Single Cable Solution
2CH Dante/AES67 Audio

November 2025 Releases

STIX Test Ecosystem Controller

MU-STIX-CTL

Launched November 21st, 2025

Supports proprietary HDMI statistical signal monitoring and verification for up to 48 STIX analzyer and generator devices in a compact 1RU chassis.
Centralized Web-based GUI for Precision Monitoring, Globalized Control, and Display of Real-time Video Thumbnails
Multiple Controllers Cascade via RJ45 to Accommodate Large-Scale Compliance Testing, System Pre-Deployment Emulation, QC Protocols, and Computational System Signal Throughput Tracking
USB-A Power Distribution Eliminates External Adaptors

Evolution II USB 2.0 over IP Extension (Host)

AC-MXNET-1G-HEX-UV2

Launched November 21st, 2025

USB 2.0 over IP transmitter for host extension and routing over long distance or high endpoint systems. Capable of supporting HID devices such as a keyboard, mouse, game controller or touchscreen and higher speed endpoints such as PTZ cameras, microphones and external storage transfers.

USB 2.0 over IP
MXnet V2 Interoperability
PoE-Powered Endpoints
USB-C Host Port
Enhanced Isochronous Device Support

Evolution II USB 2.0 over IP Extension (Device)

AC-MXNET-1G-DEX-UV2

Launched November 21st, 2025

USB 2.0 over IP receiver for device extension and routing over long distance or high endpoint systems. Capable of supporting HID devices such as a keyboard, mouse, game controller or touchscreen and higher speed endpoints such as PTZ cameras, microphones and external storage transfers.

USB 2.0 over IP
MXnet V2 Interoperability
PoE-Powered Endpoints
2x USB-A + 2x USB-C Device Ports
Enhanced Isochronous Device Support

August 2025 Releases

STIX Test Signal Generator (Female)

MU-STIX-GF

Launched September 29th, 2025

HDMI 2.1b, 8K 48 Gbps (FRL) compliant
Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
HDCP encryption selectable at Off, 1.4, and 2.3 (1.4 is TDMS only)
13 test patterns, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
STIX is compatible with any brand of HDMI devices

STIX Test Signal Analyzer (Female)

MU-STIX-AF

Launched September 29th, 2025

HDMI 2.1b, 8K 48 Gbps (FRL) compliant
Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
Detects signal changes, sync losses, and logs loss time
OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
Displays audio information, including incoming sampling frequency, bit rate size, and audio type
Displays audio information, including incoming sampling frequency, bit rate size, and audio type

July 2025 Releases

ecom-edit-imageYKwuMXrqNZAudioControl_Black_d4759f2b-b5d9-4499-b1f5-8c6e2dc8029a

VESA Mount for AudioControl Bijou and AVPro Edge MV41

ACP-VESA-MOUNT

Launched July 25th, 2025

Installs on any VESA compliant TV
Low-Profile VESA Mounting Adapter for the AudioControl Bijou product line and AVPro Edge MV41 Multi-viewer.
Single or Dual mounting options, the ACP-VESA-MOUNT-2 will accommodate a Bijou amplifier and an MV-41, or two Bijou amplifiers for creative flexibility

June 2025 Releases

Fresco 4K 18 Gbps 2x2 Video Wall Processor

AC-FRESCO-44

Launched June 27th, 2025

Unique Dual-Mode Hybrid 4x4 HDMI Matrix Switcher with 2x2 Video Wall Processor
Dynamic Instant HDMI Switching Between Unified Video Wall Mode and Per-Display Assignments
HDMI Inputs Have Loop Outs with Analog and S/PDIF Audio Extraction
Limit-Free Large Array Cascade Configurability
