DANTE™ Decoder

Dante Enabled

Description

Description

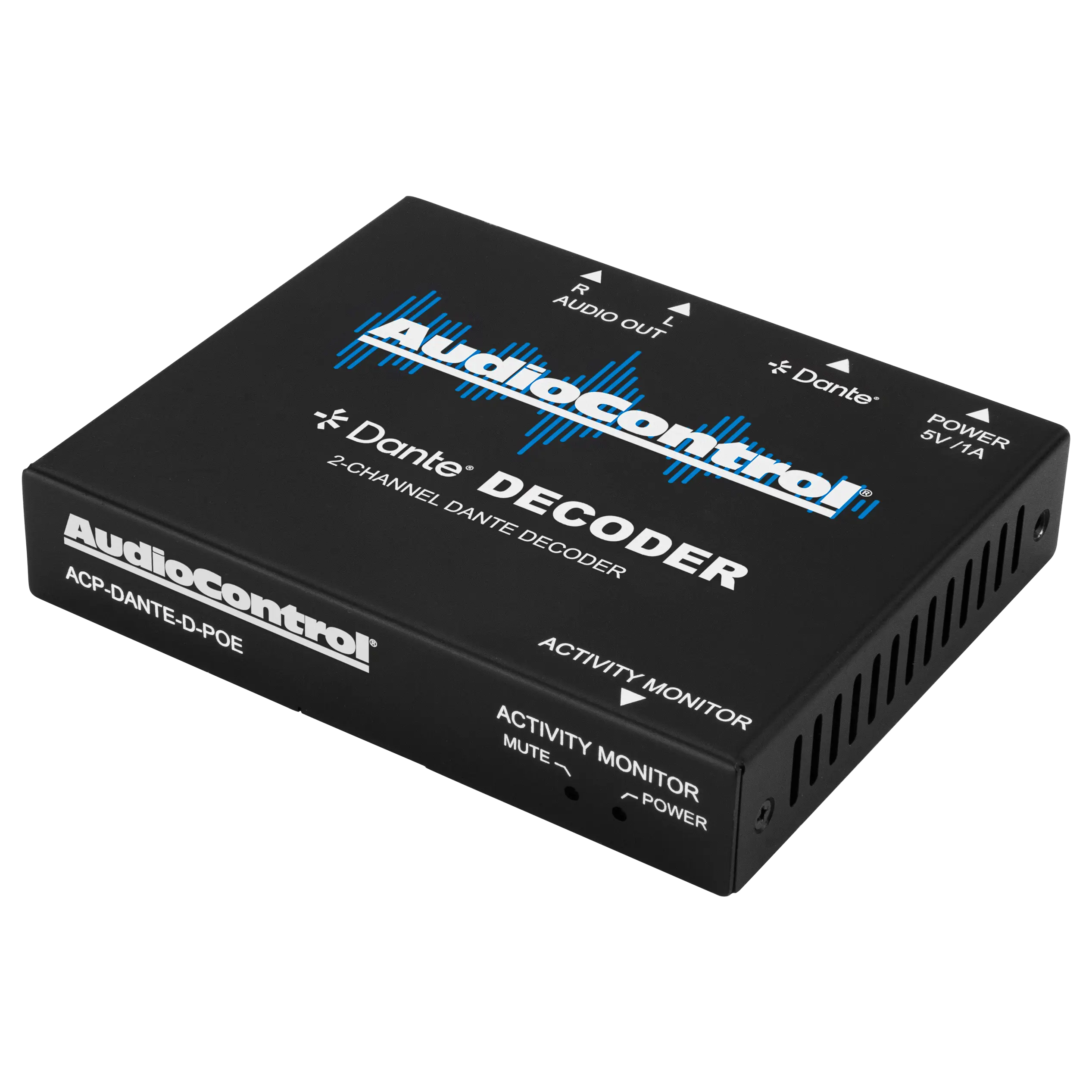

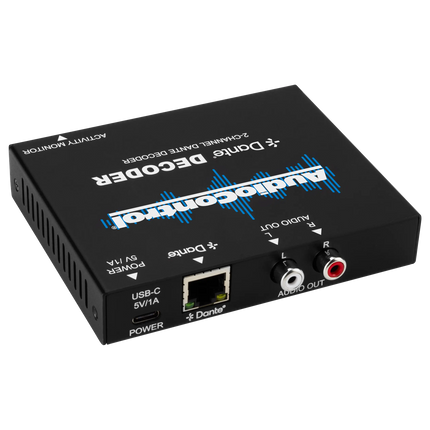

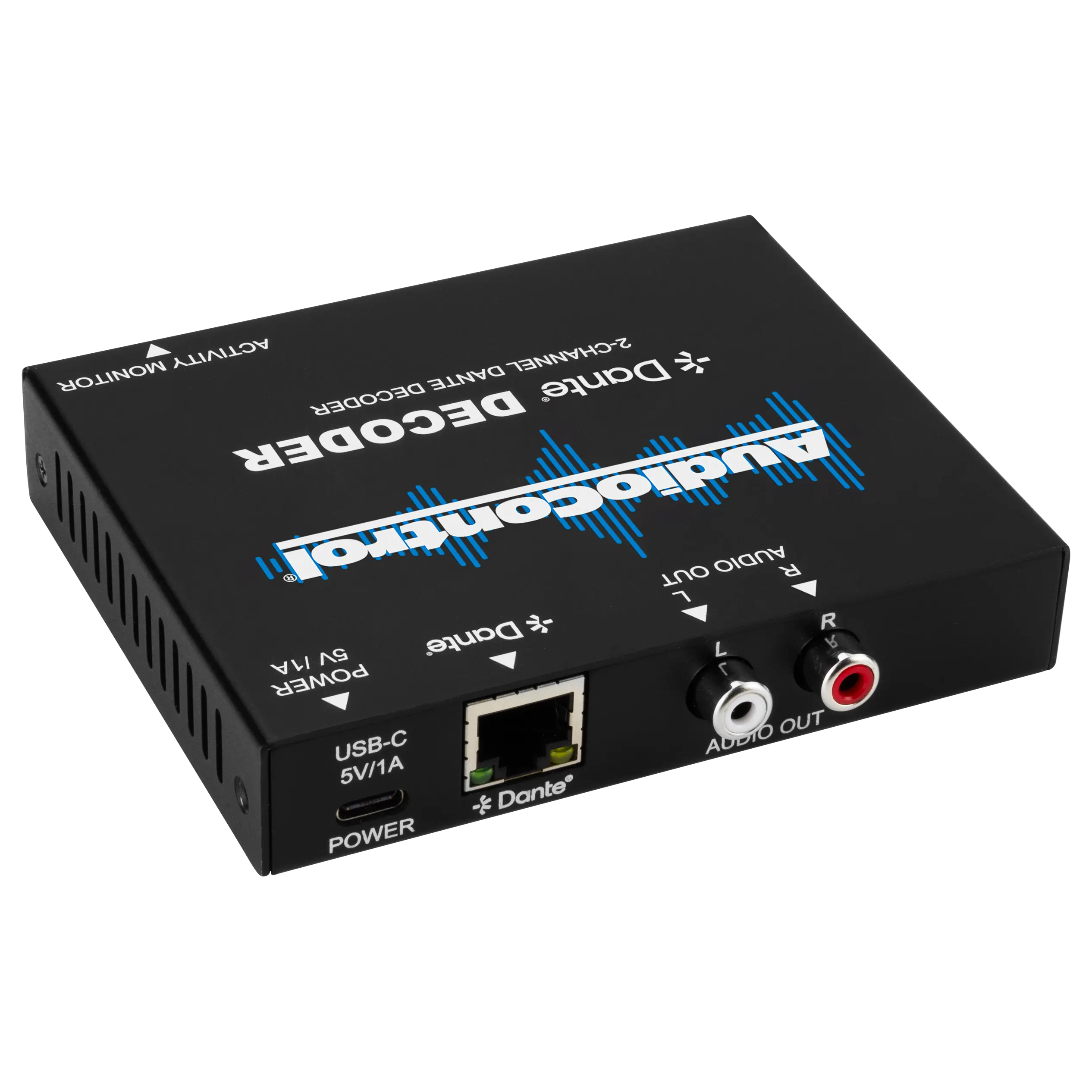

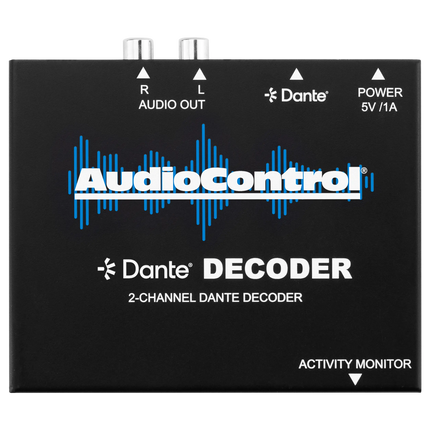

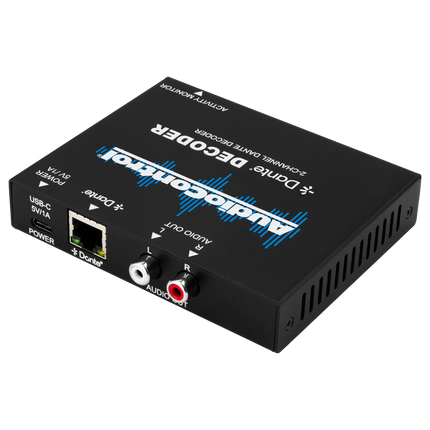

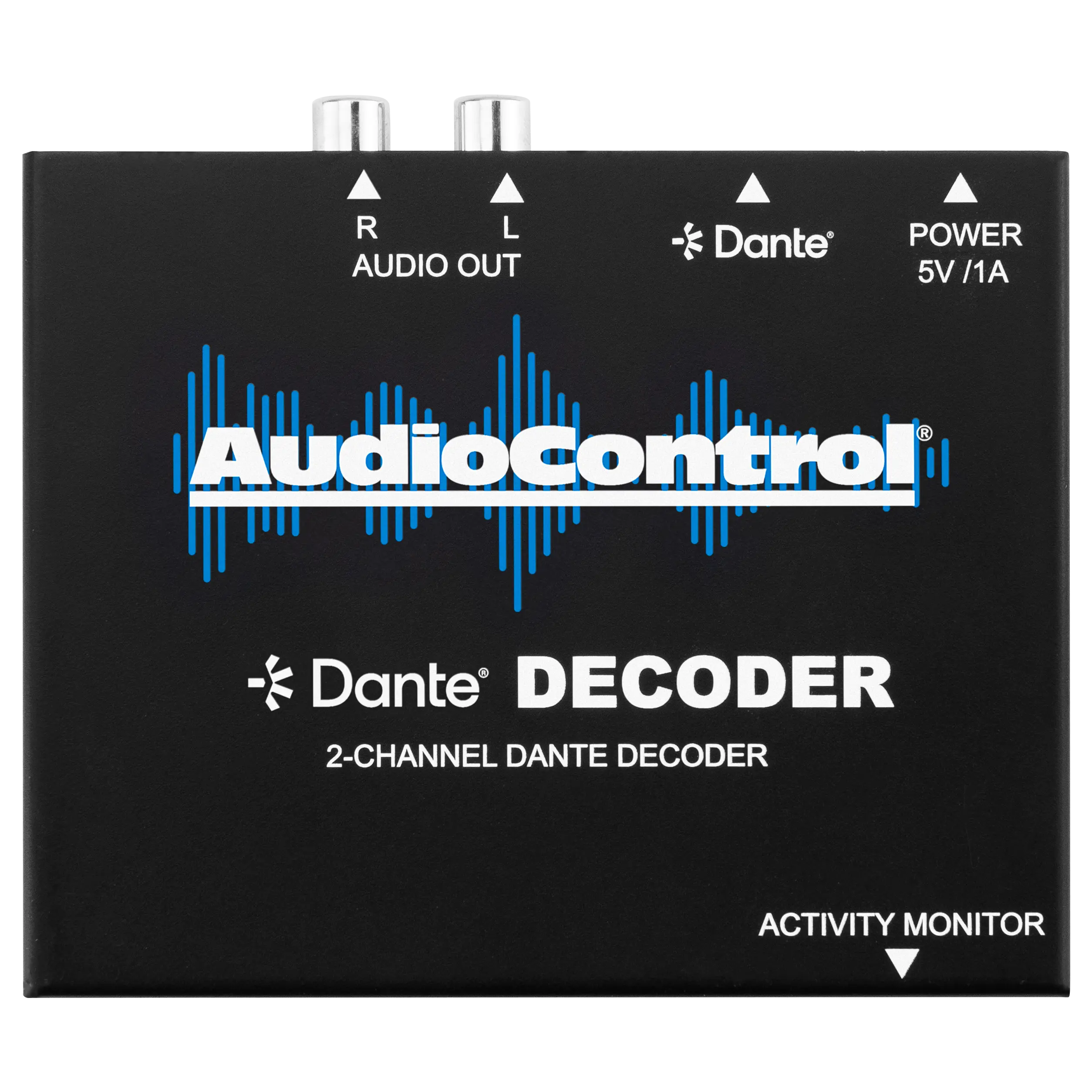

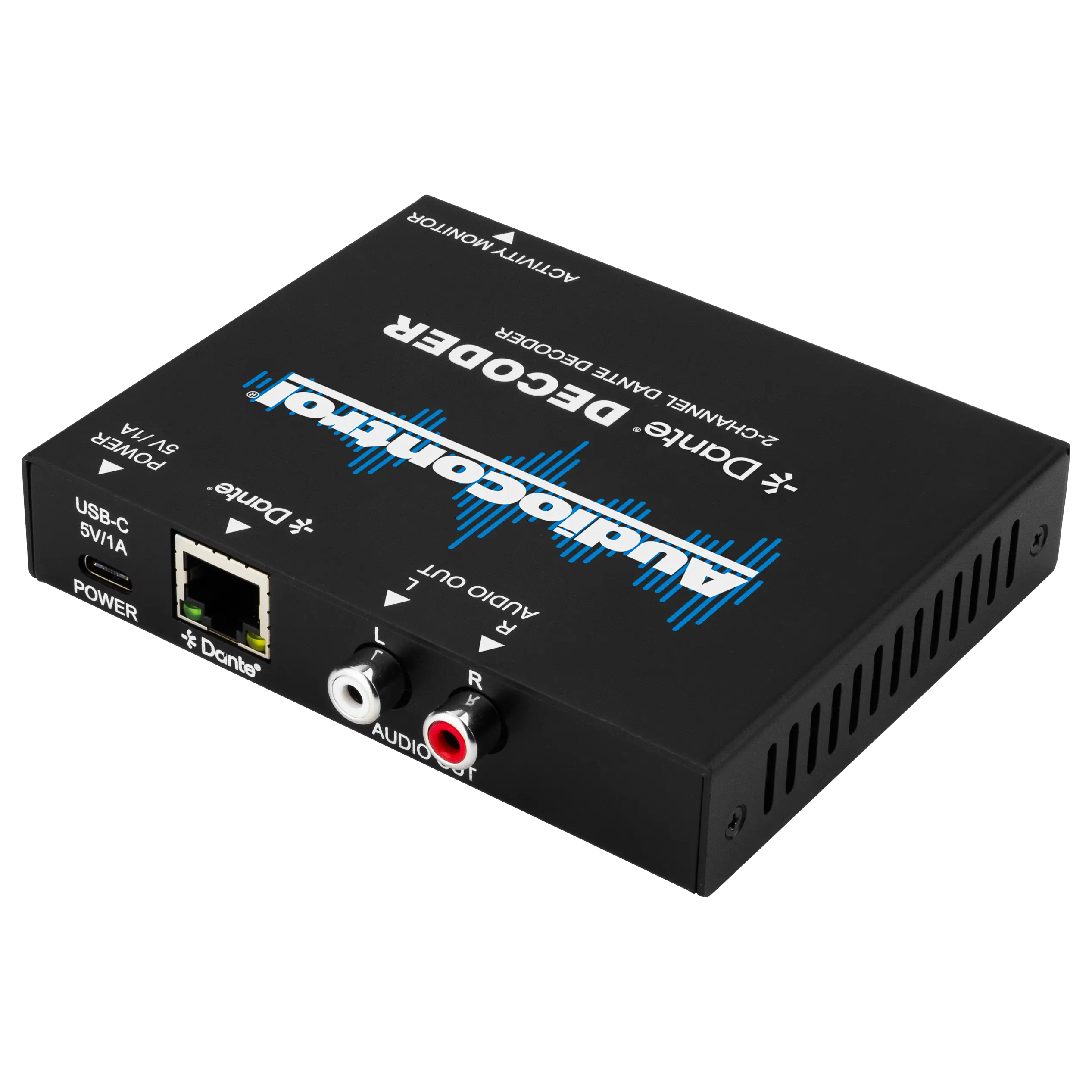

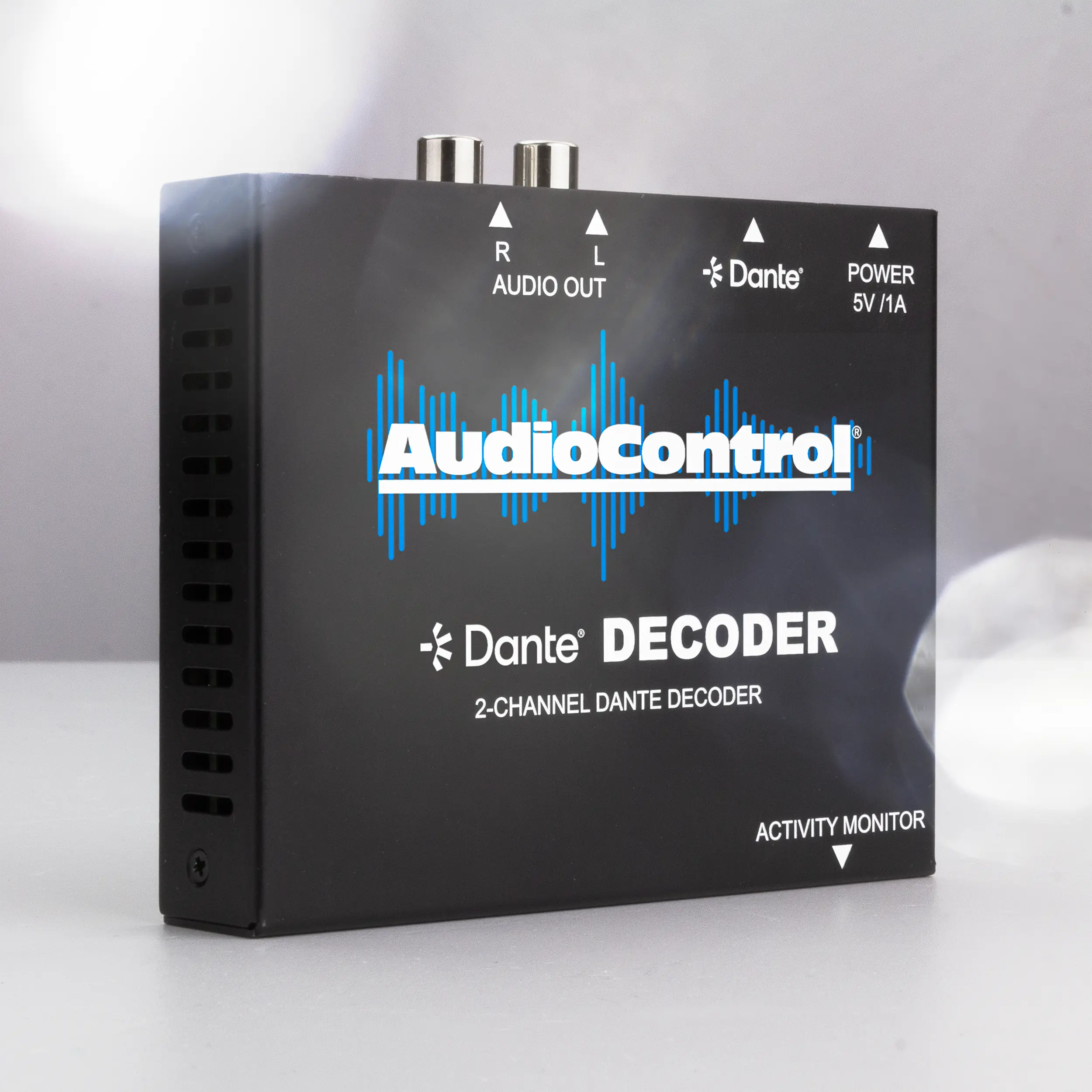

The ultra-compact AudioControl ACP-DANTE-D-POE is a two-channel, 100% lossless, Dante™ network audio decoder for Dante or AES67 audio streams. Industry-standard sampling rates from 44.1 kHz to as high as 96 kHz in 16-, 24-, or 32-bit word lengths are accurately converted back into an analog waveform.

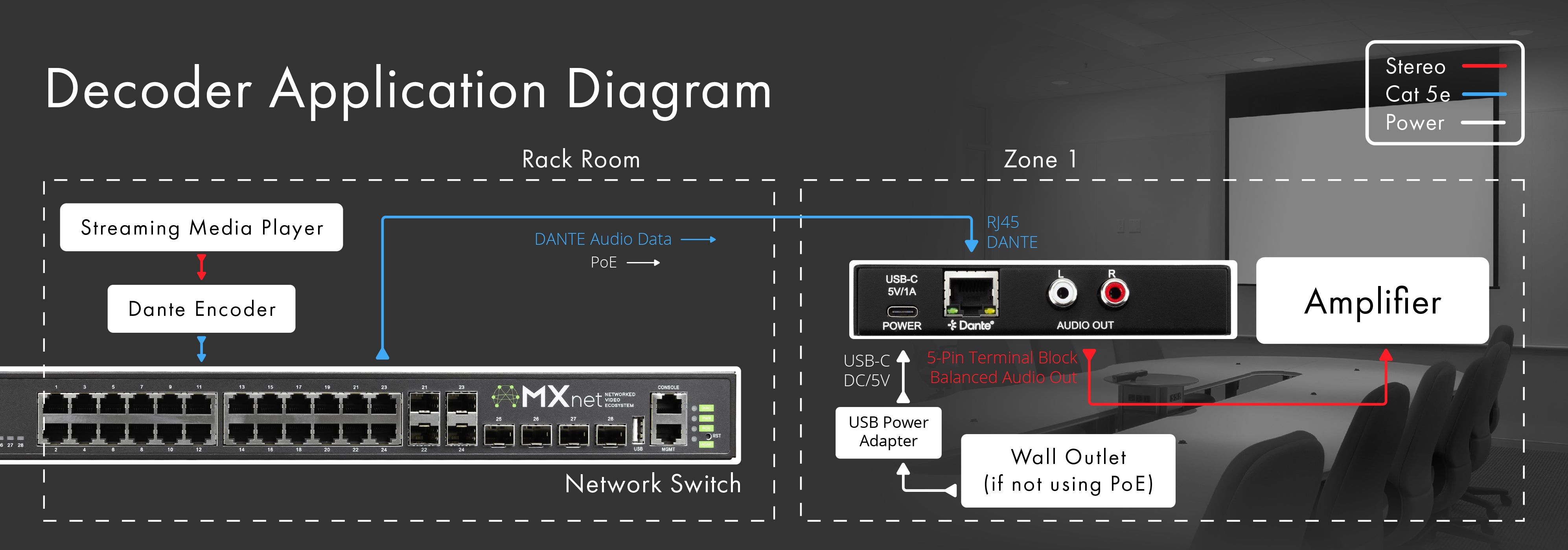

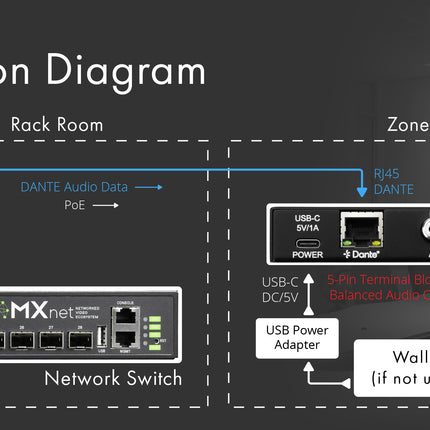

PoE capability and a compact form factor enable the ACP-DANTE-D-POE to be powered remotely for strategic placement near endpoint components. Any AVPro Edge MXnet 1G PoE switch may be used stand-alone or configured for Dante network traffic, providing a transfer distance of up to 100 meters (328 feet) with correctly implemented CAT5e or CAT6A infrastructure.

Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the ACP-DANTE-D-POE is ‘auto-discovered’ for easy identification.

DANTE™ Decoder

Product form

2-Channel Analog Audio Output DANTE™ Decoder

  • Power over Ethernet (PoE) compatible; also by an included 5V PSU
  • Dante™ and AES67 multicast system compatible
  • Four supported sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
  • 100% lossless analog conversion

SKU: ACP-DANTE-D-POE

  • Shipped today? Order within: Nov 19, 2026 13:00:00 -0600

Description

Description

The ultra-compact AudioControl ACP-DANTE-D-POE is a two-channel, 100% lossless, Dante™ network audio decoder for Dante or AES67 audio streams. Industry-standard sampling rates from 44.1 kHz to as high as 96 kHz in 16-, 24-, or 32-bit word lengths are accurately converted back into an analog waveform.

PoE capability and a compact form factor enable the ACP-DANTE-D-POE to be powered remotely for strategic placement near endpoint components. Any AVPro Edge MXnet 1G PoE switch may be used stand-alone or configured for Dante network traffic, providing a transfer distance of up to 100 meters (328 feet) with correctly implemented CAT5e or CAT6A infrastructure.

Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the ACP-DANTE-D-POE is ‘auto-discovered’ for easy identification.

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • PoE or PSU powered
  • Accepts all Dante-platform and AES67 multicast audio signals up to a 96 kHz sampling rate and 32-bit resolution
  • 100% lossless, accurate full frequency response decoding accuracy
  • May be paired with the AudioControl AC-DANTE-E-POE encoder for a stand-alone, long-distance audio transmission system
Audio
Frequency Response20 kHz to 20 kHz
Analog Input VoltageBalanced or Unbalanced 1 Vrms (2.828VP-P) at 0 dBFS
FormatLPCM
Sample Rates44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Supported Bit Depths16, 24, 32
LatencyConfigurable 1, 2, 5 ms

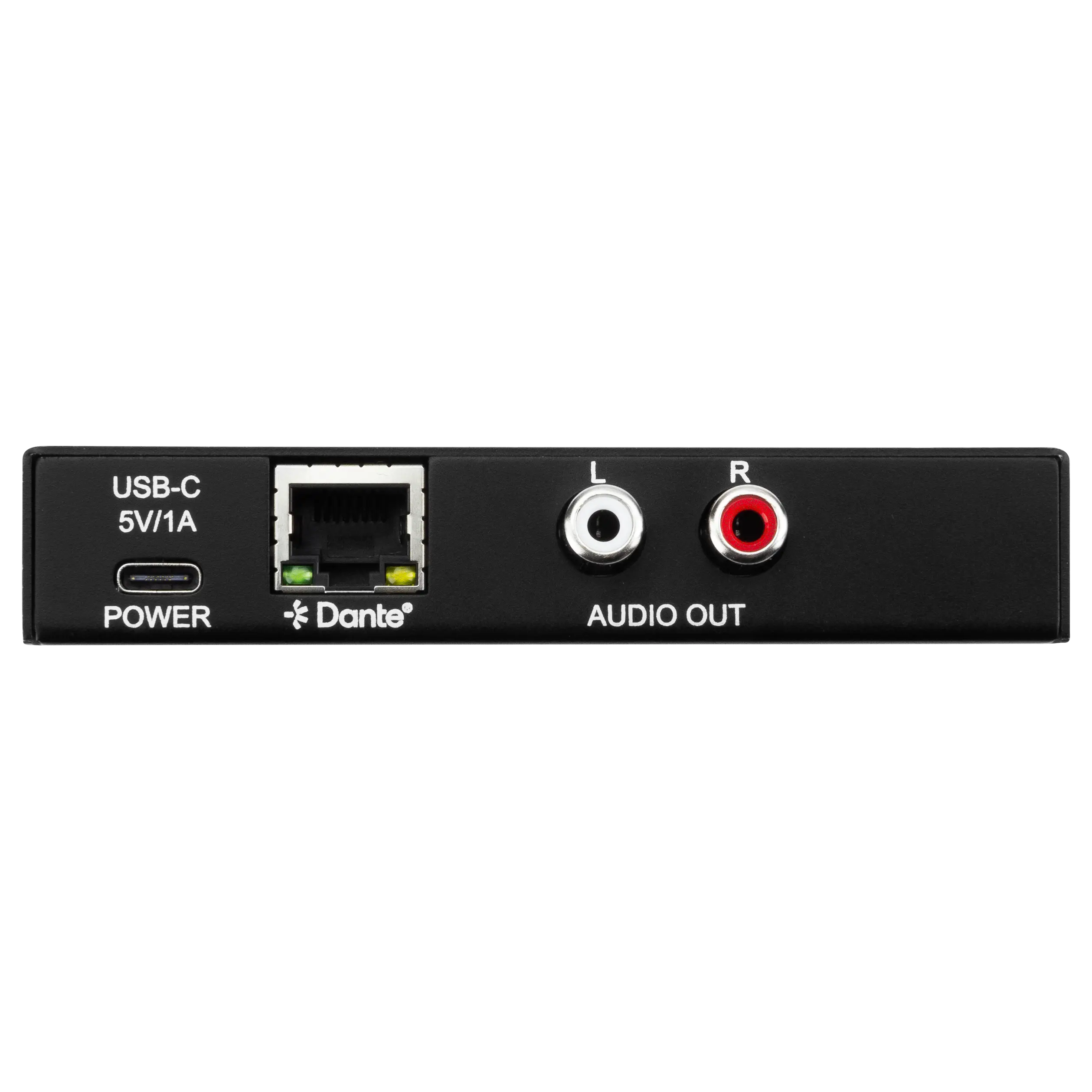

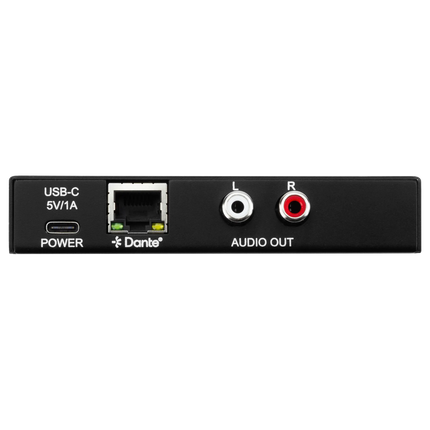

Audio Connections
Analog Output1x Stereo RCA
Dante Network Audio1x RJ45
Power
Power SupplyUSB Type-C Power Adapter: Input: 100 VAC to 240 VAC, 50/60 Hz, 0.5 A Output: 5 VDC, 1 A
PoEVia RJ45: Power over Ethernet
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Physical
MountingFurniture Mount Support
Dimensions (Unit)W × D × H: 96 × 25 × 110 mm (3.78 × 1 × 4.33 in.)
Dimensions (Packaged)W × D × H: 136 × 41 × 193 mm (5.35 × 1.62 × 7.6 in.)
Weight (Unit)0.5 lb. (0.23 kg)
Weight (Packaged)0.85 lb. (0.38 kg)
Warranty5 years
Notes*Specifications are subject to change without notice. Mass and dimensions are approximate.
