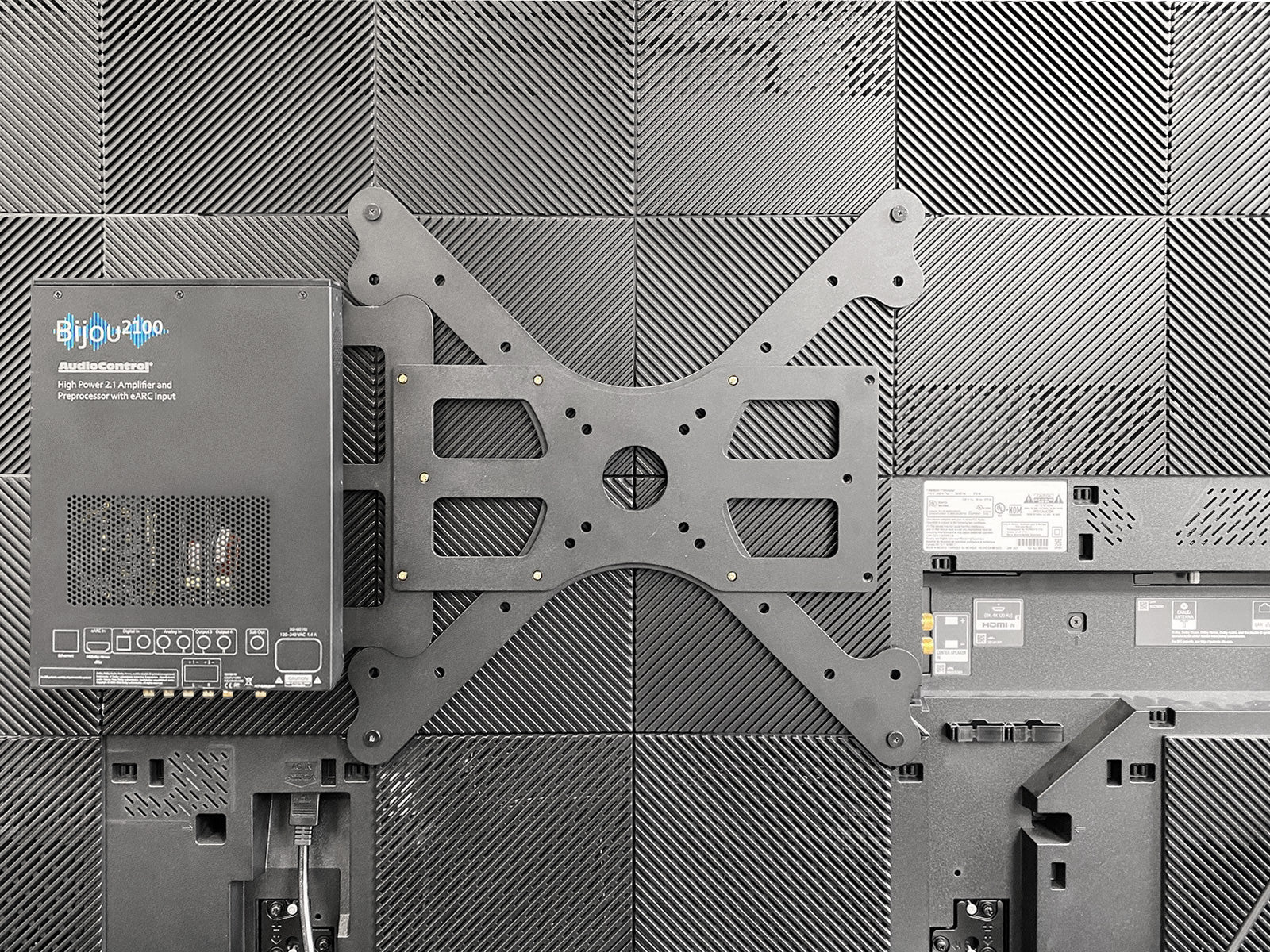

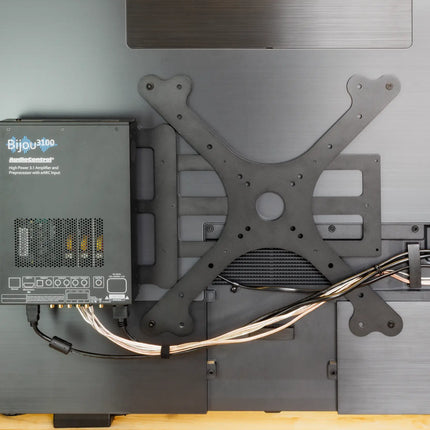

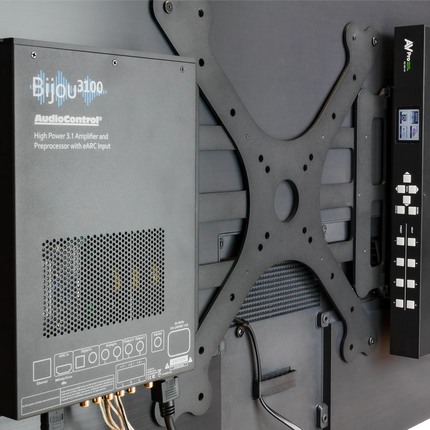

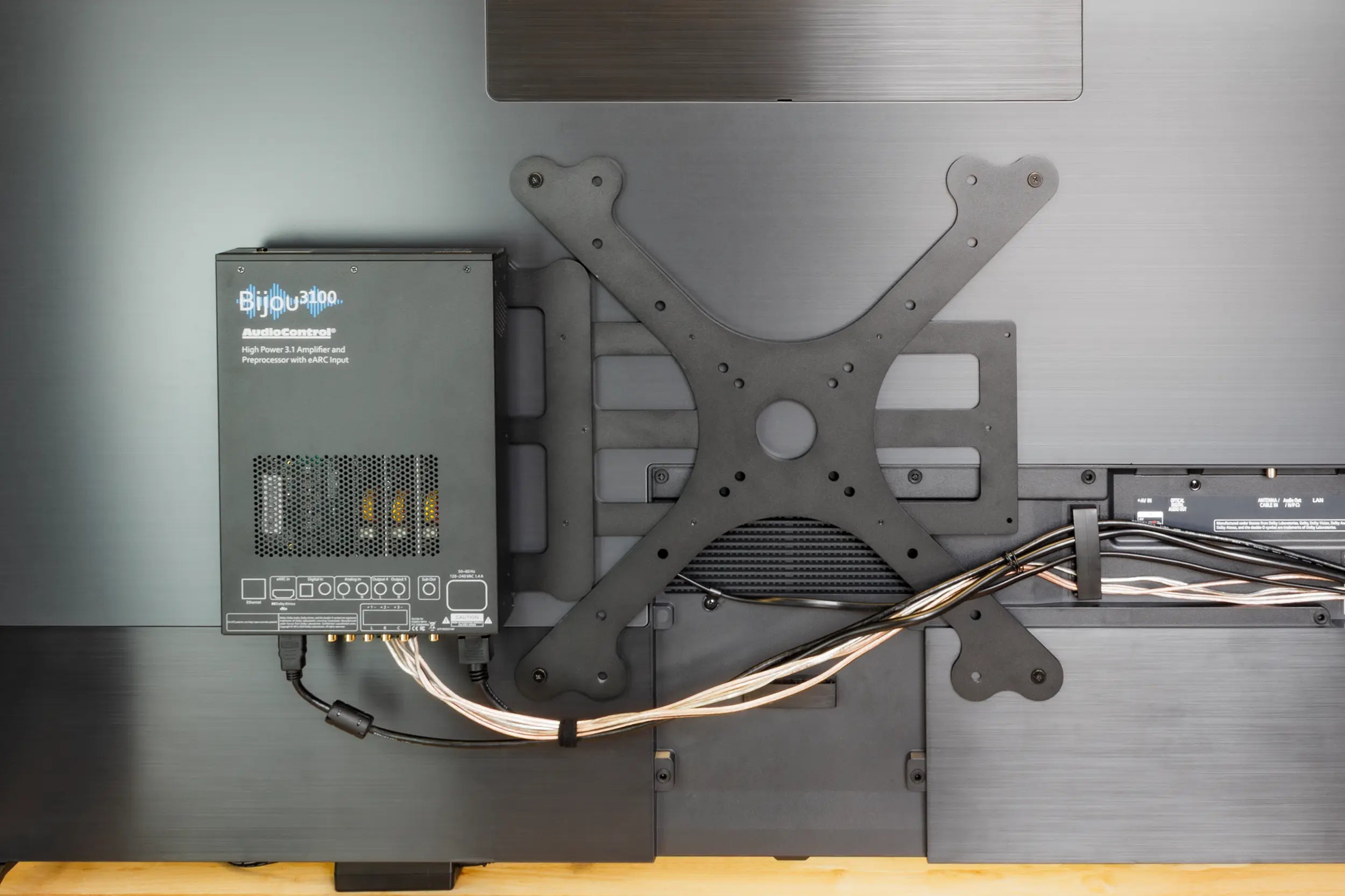

VESA Mount for AudioControl Bijou and AVPro Edge MV41
- VendorAudioControl
VESA Mount for AudioControl Bijou and AVPro Edge MV41
- VendorAudioControl
- Specs
- Resources
- In The Box
| Physical | |
| Dimensions (Unit) | ACP-VESA-MOUNT-1 (Single): H: 442 mm (17.4in) W: 658 mm (25.91in) H: 16.5 mm (0.65in) ACP-VESA-MOUNT-2 (Dual): H: 442 mm (17.4in) W: 872 mm (34.33in) H: 18.5 mm (0.73in) |
| Weight (Unit) | ACP-VESA-MOUNT-1 (Single): 4.01 lb. (1.81 kg) ACP-VESA-MOUNT-2 (Dual): 5.6 lb. (2.54 kg) |
| ACP-VESA-MOUNT-1 (Single) | |
| Load Capacity | 30 lb./13.6 kg |
| ACP-VESA-MOUNT-2 (Dual) | |
| Load Capacity | 30 lb./13.6 kg |
| VESA Standards | |
| Compatible with the following VESA Standards | 100 mm x 100 mm 200 mm x 200 mm 300 mm x 300 mm 400 mm x 300 mm 400 mm x 400 mm |
| Notes | *If TV is wall mounted, capacity may be dependent upon wall mount specs. Specifications subject to change without notice. Mass & dimensions are approximate. |

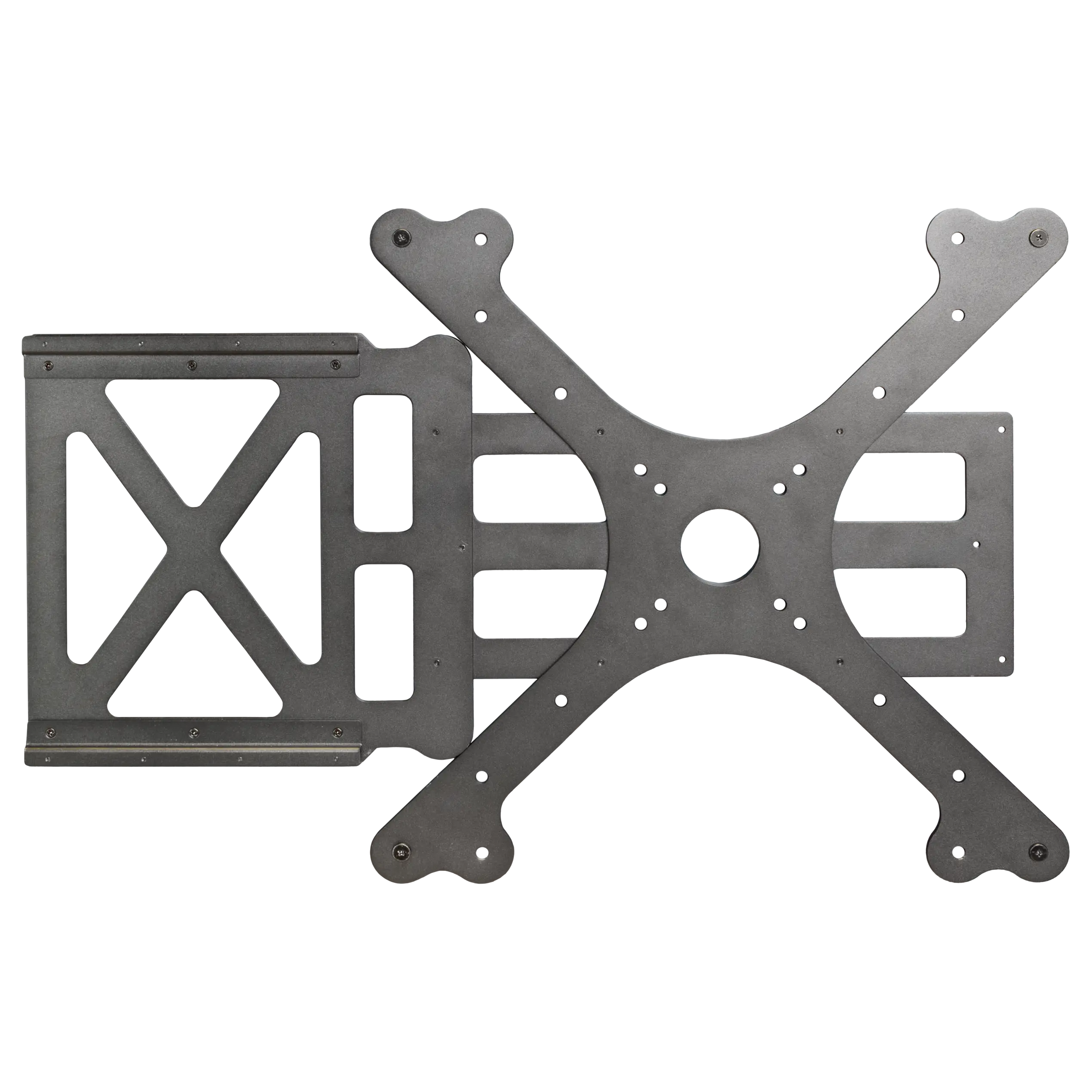

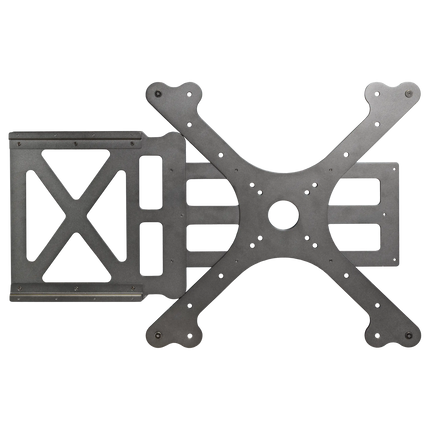

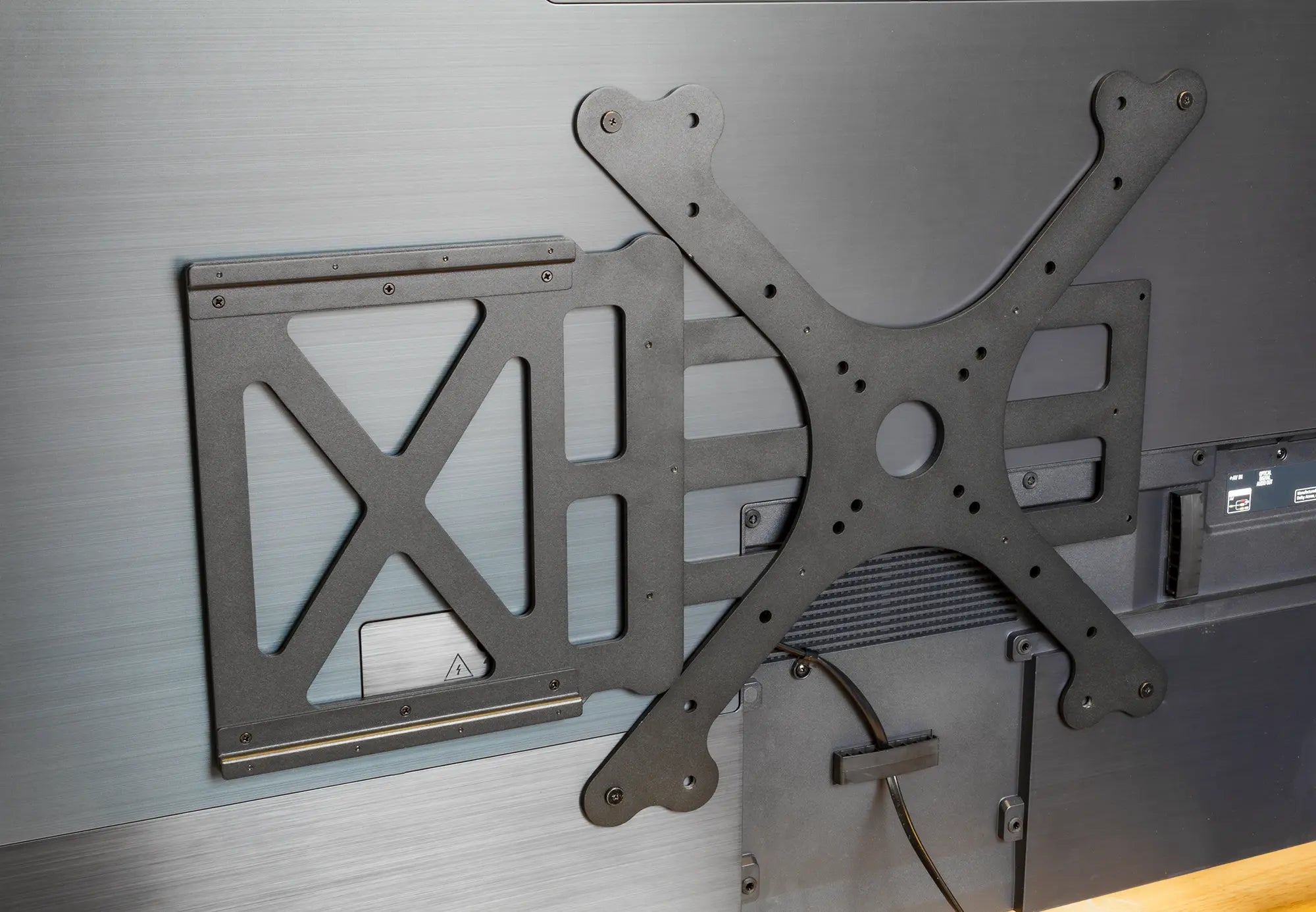

- ACP-VESA-MOUNT-1:
- 3x M3 Black Screws - For connecting the extension bracket
- 4x M3 Silver Screws - For connecting Bijou/MV41 to the extension bracket
Not Included: VESA Screws that fit your TV

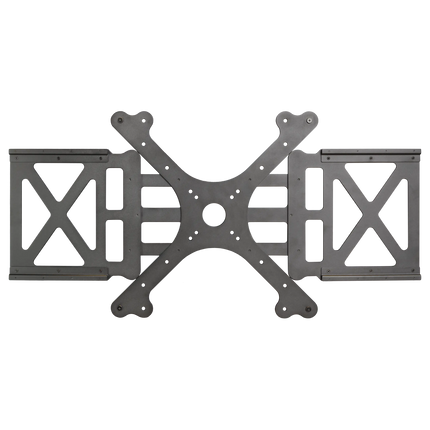

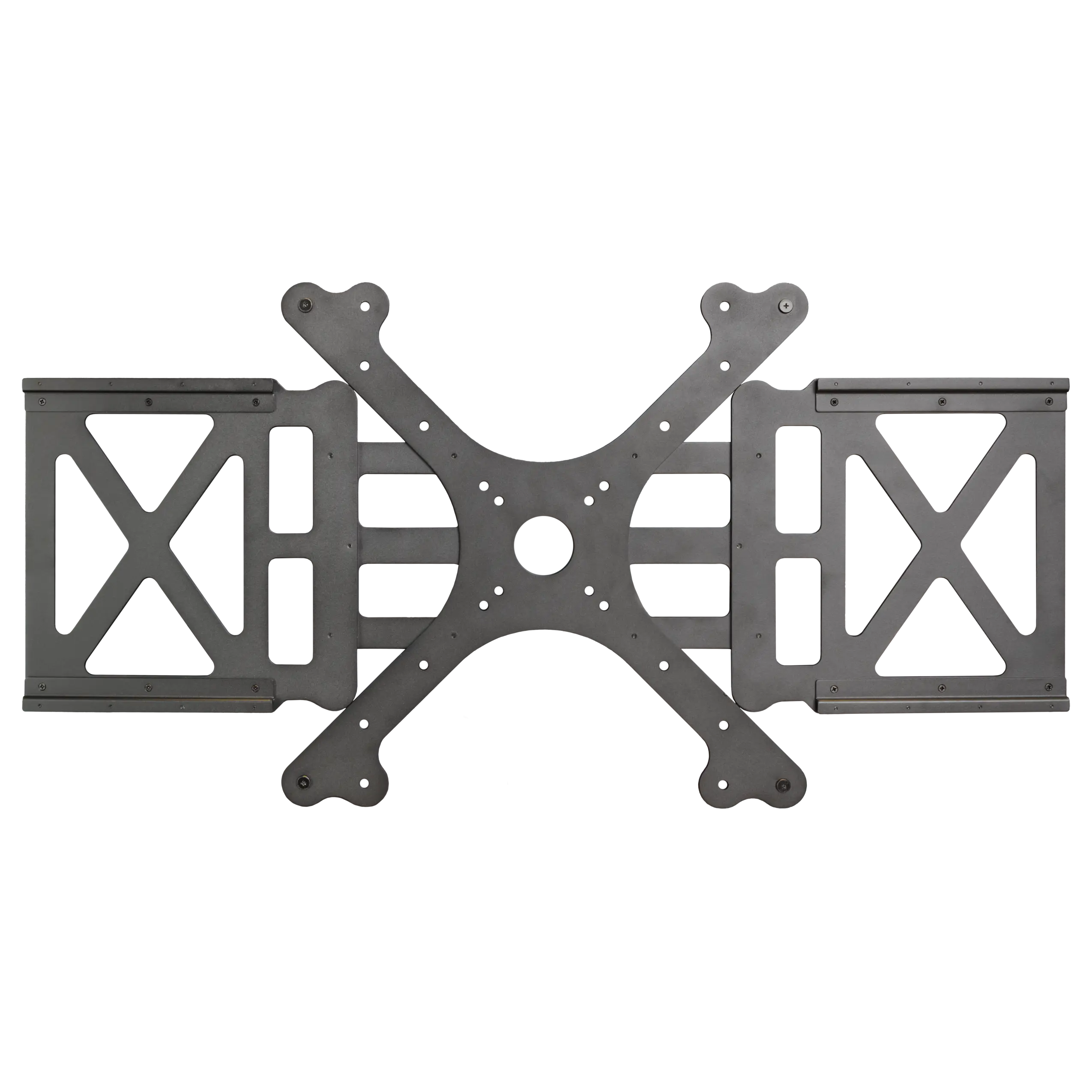

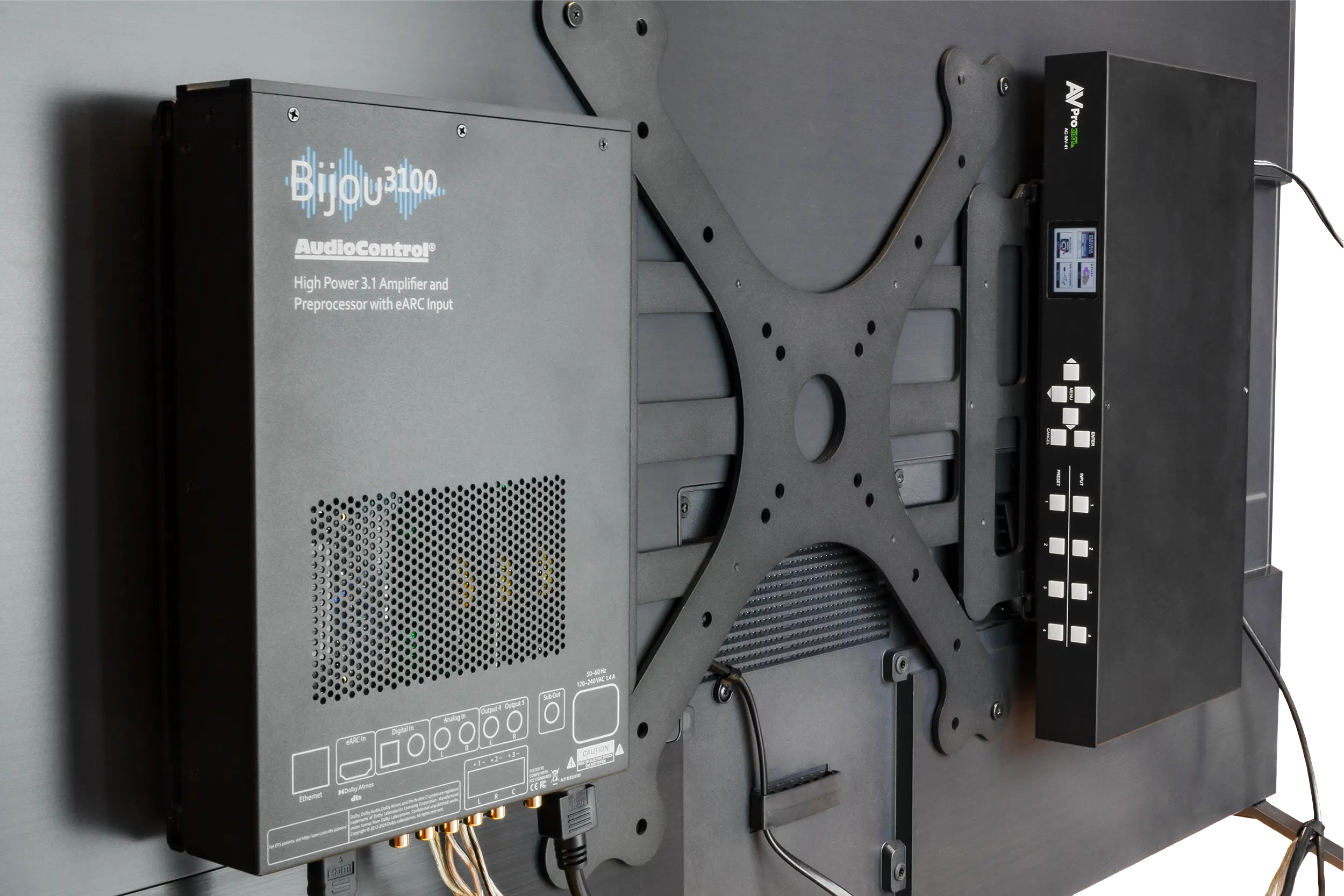

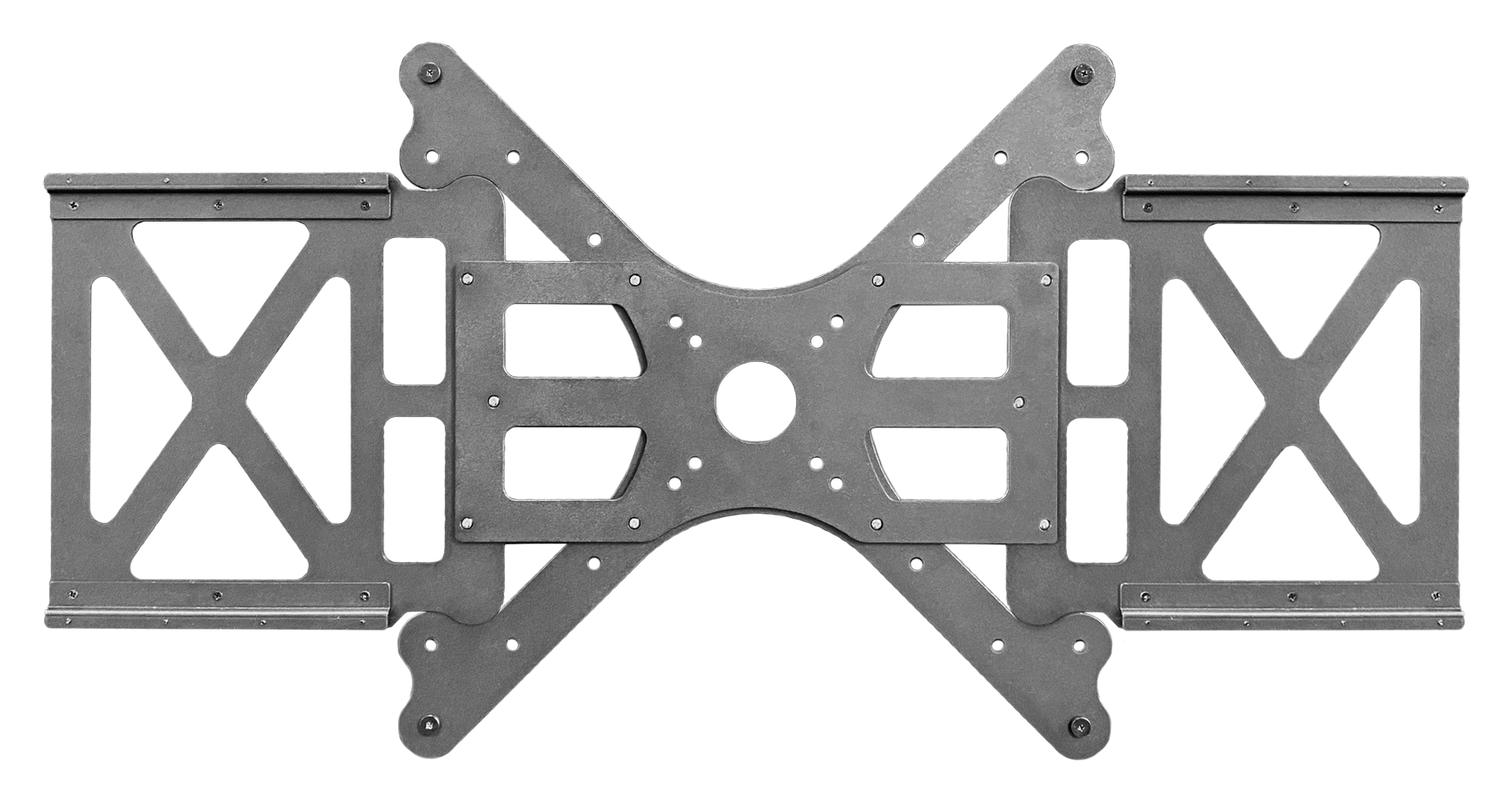

- ACP-VESA-MOUNT-2:
- 6x M3 Black Screws - For connecting the extension bracket
- 8x M3 Silver Screws - For connecting Bijou/MV41 to the extension bracket
- Not Included: VESA Screws that fit your TV
