DANTE™ Encoder

Dante Enabled

Description

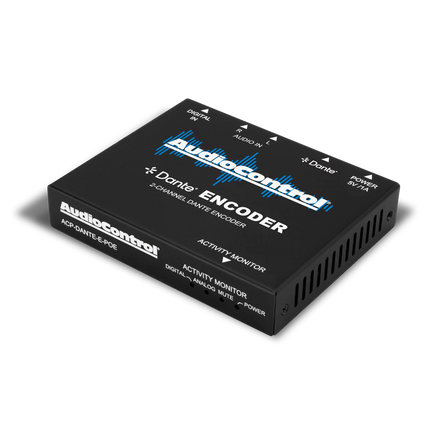

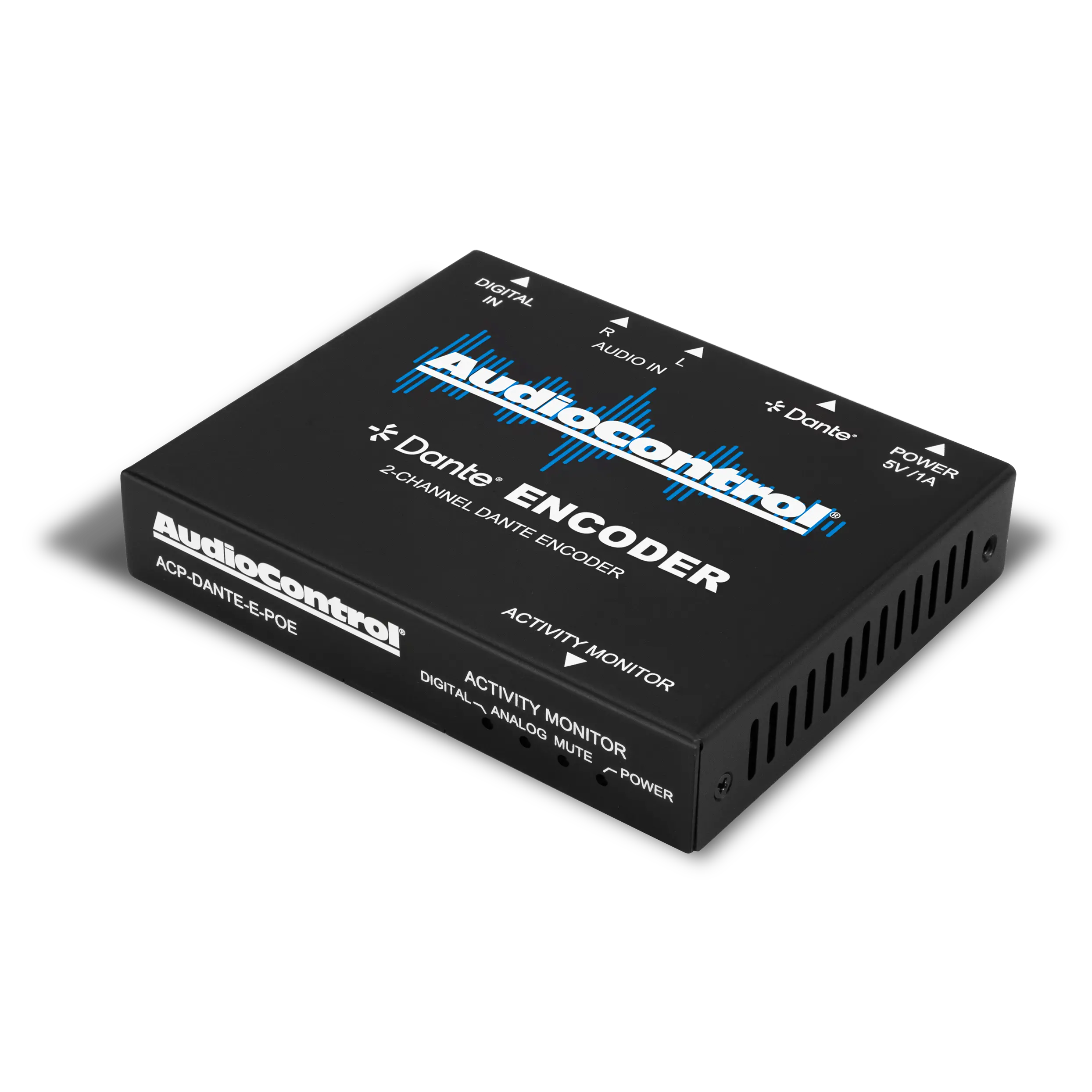

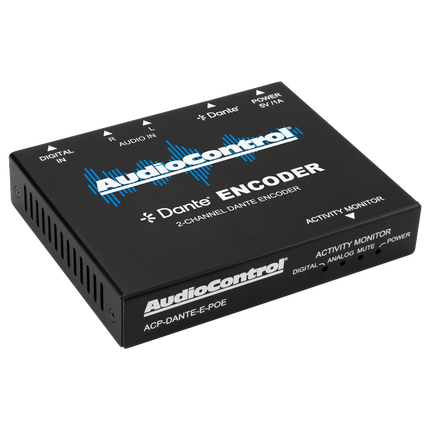

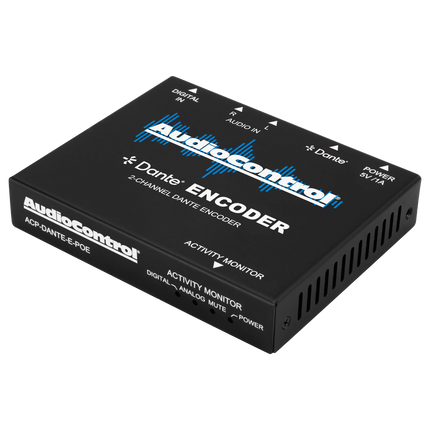

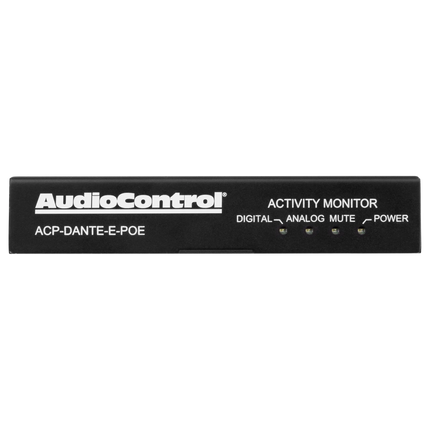

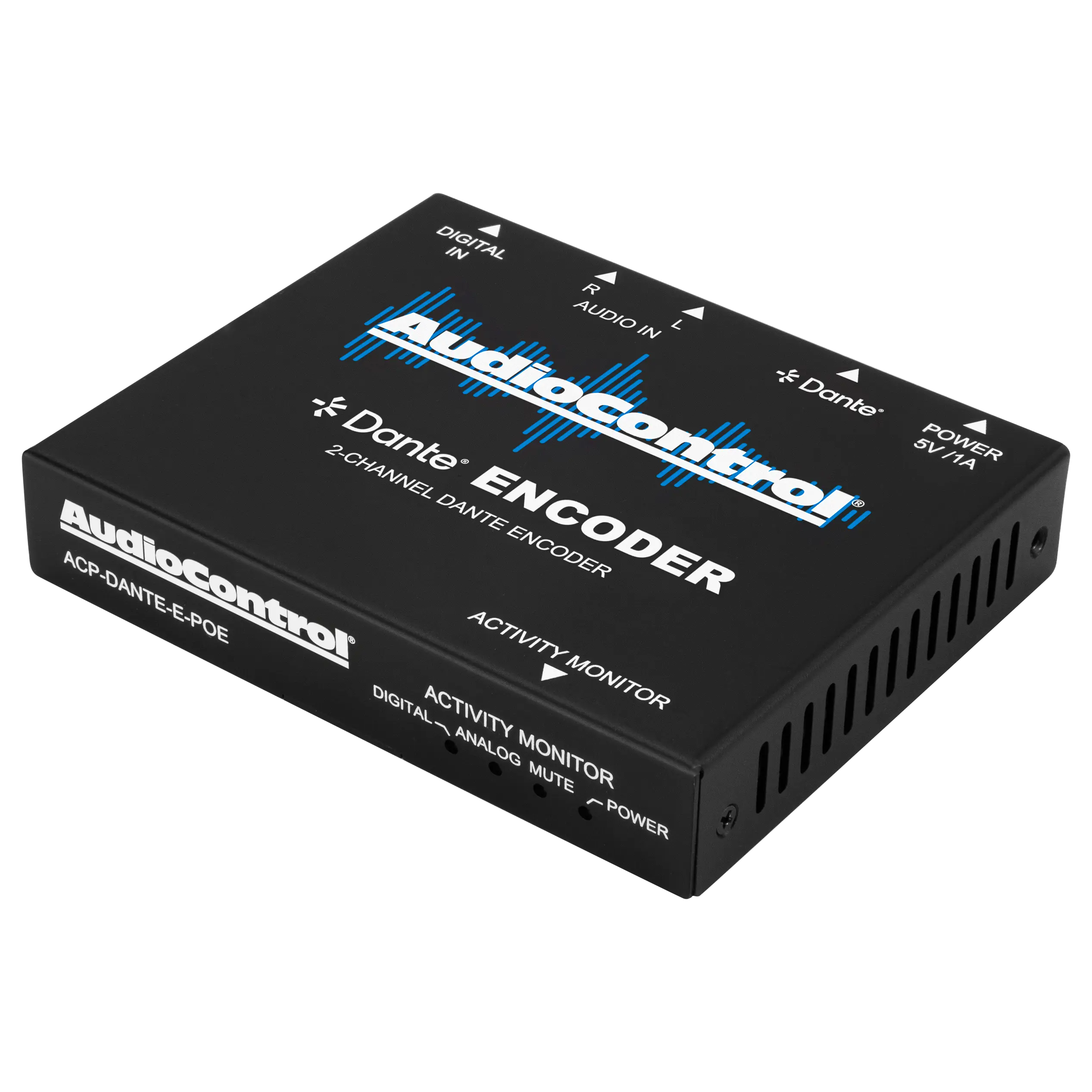

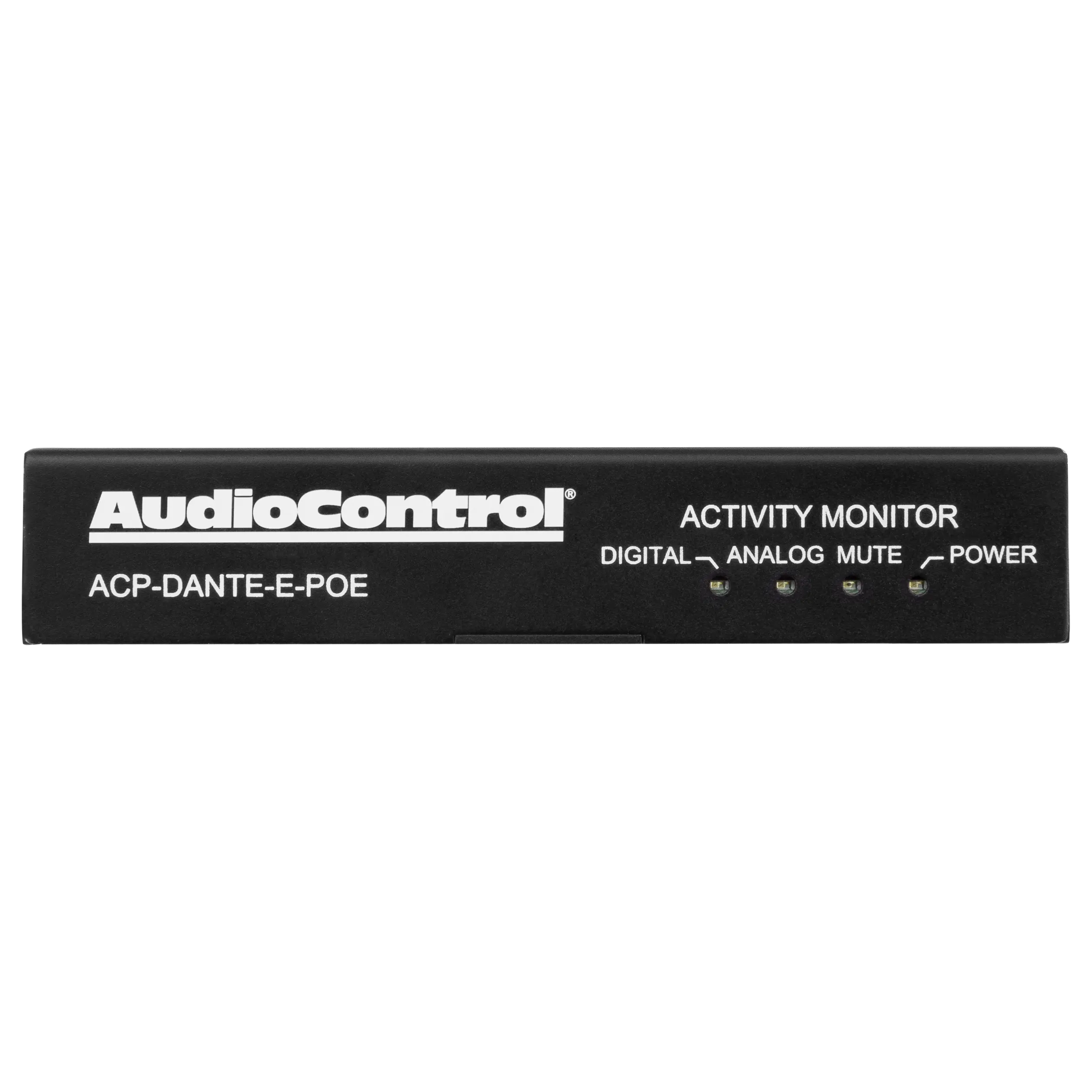

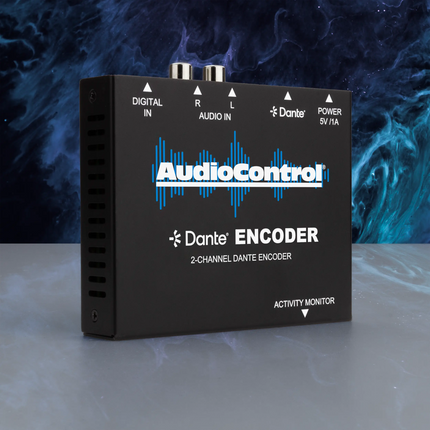

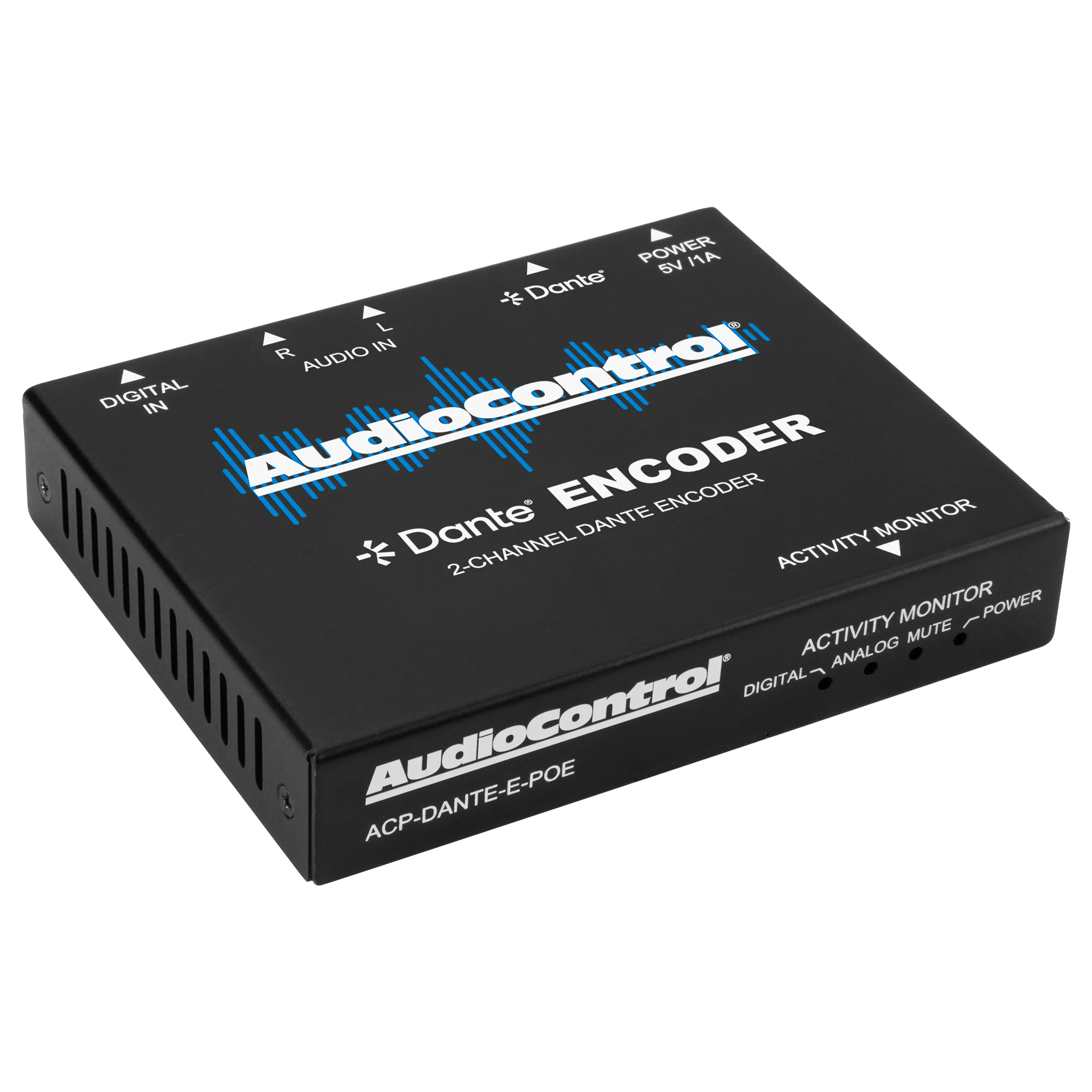

The ultra-compact AudioControl ACP-DANTE-E-POE is a two-channel, 100% lossless, Dante™ network audio encoder for Dante or AES67 audio streams. The ACP-DANTE-E-POE is configurable for industry-standard sampling rates from 44.1 kHz to 96 kHz in 16-, 24-, or 32-bit word lengths to encode analog stereo signals into Dante for network distribution to compatible Dante devices.

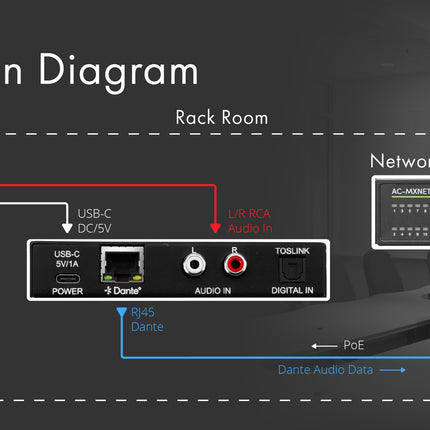

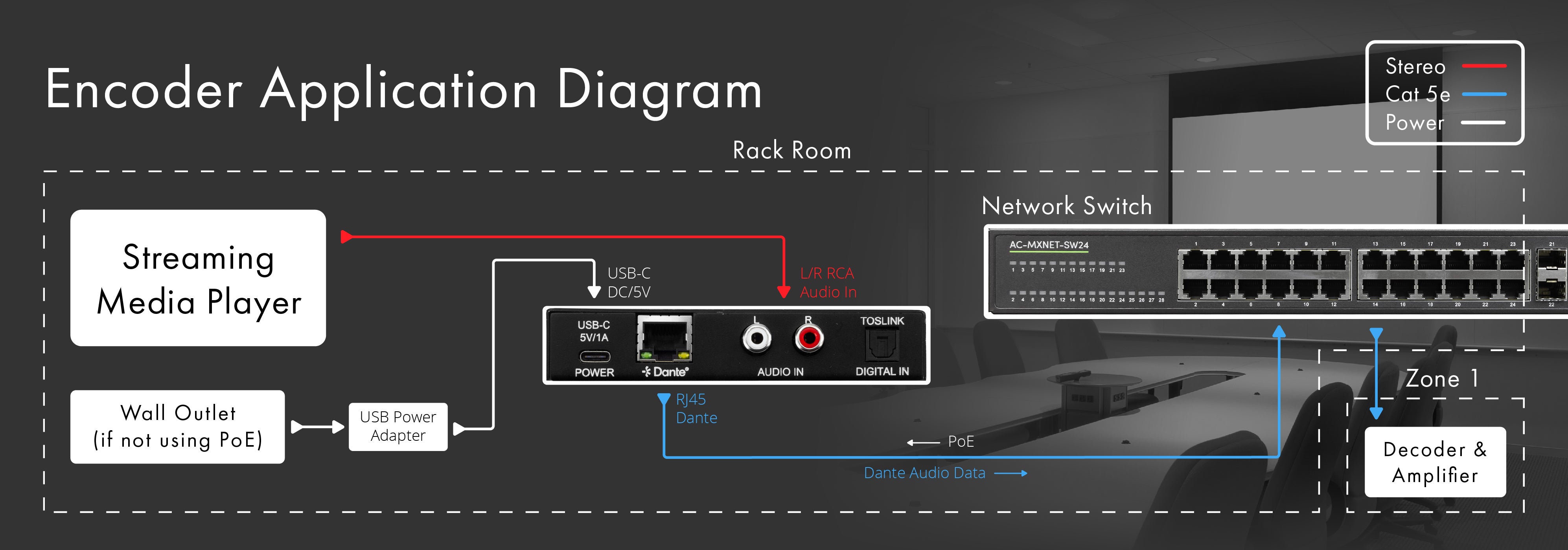

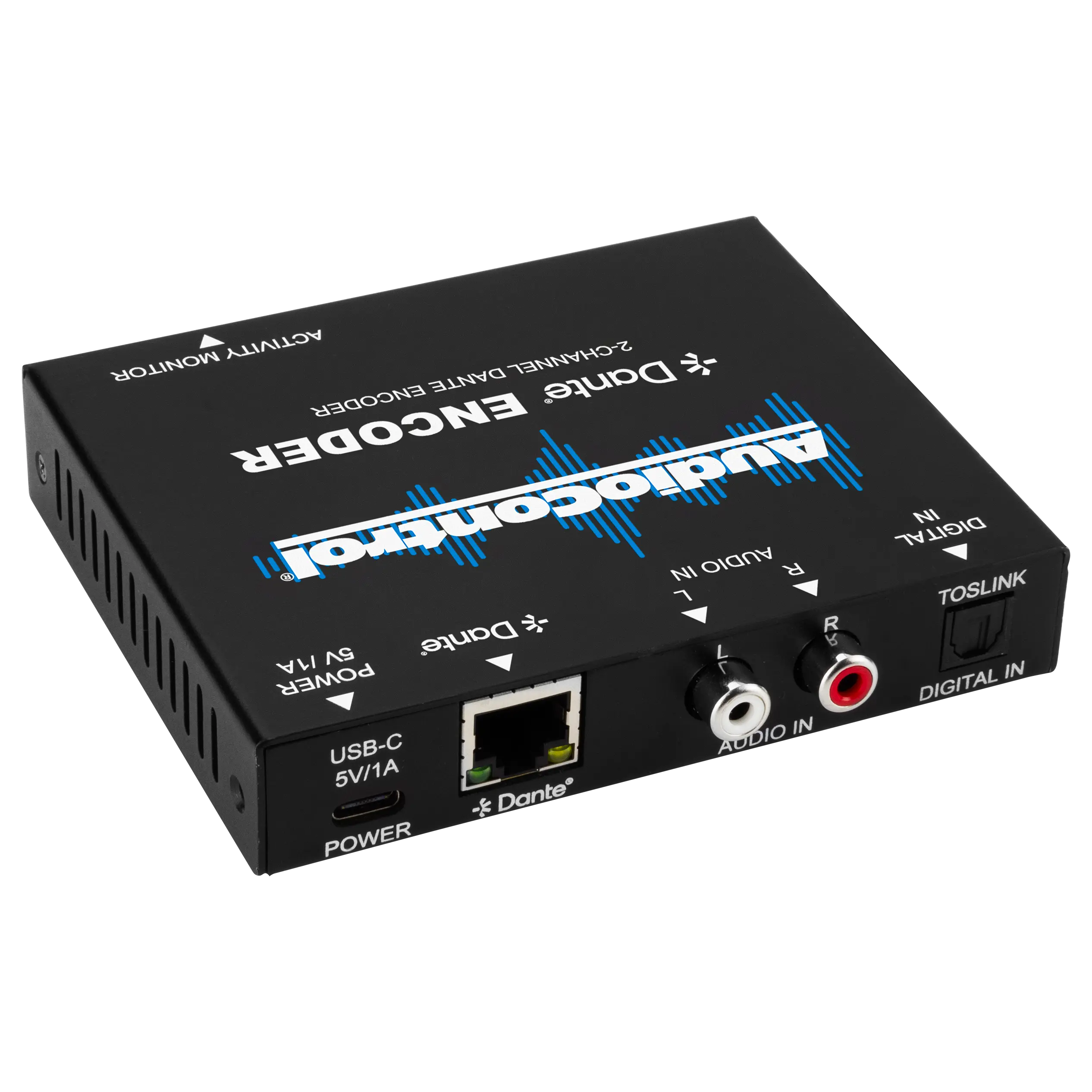

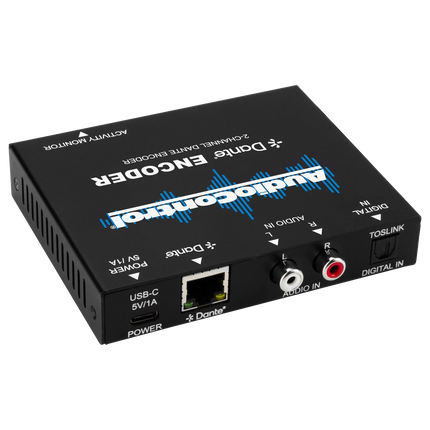

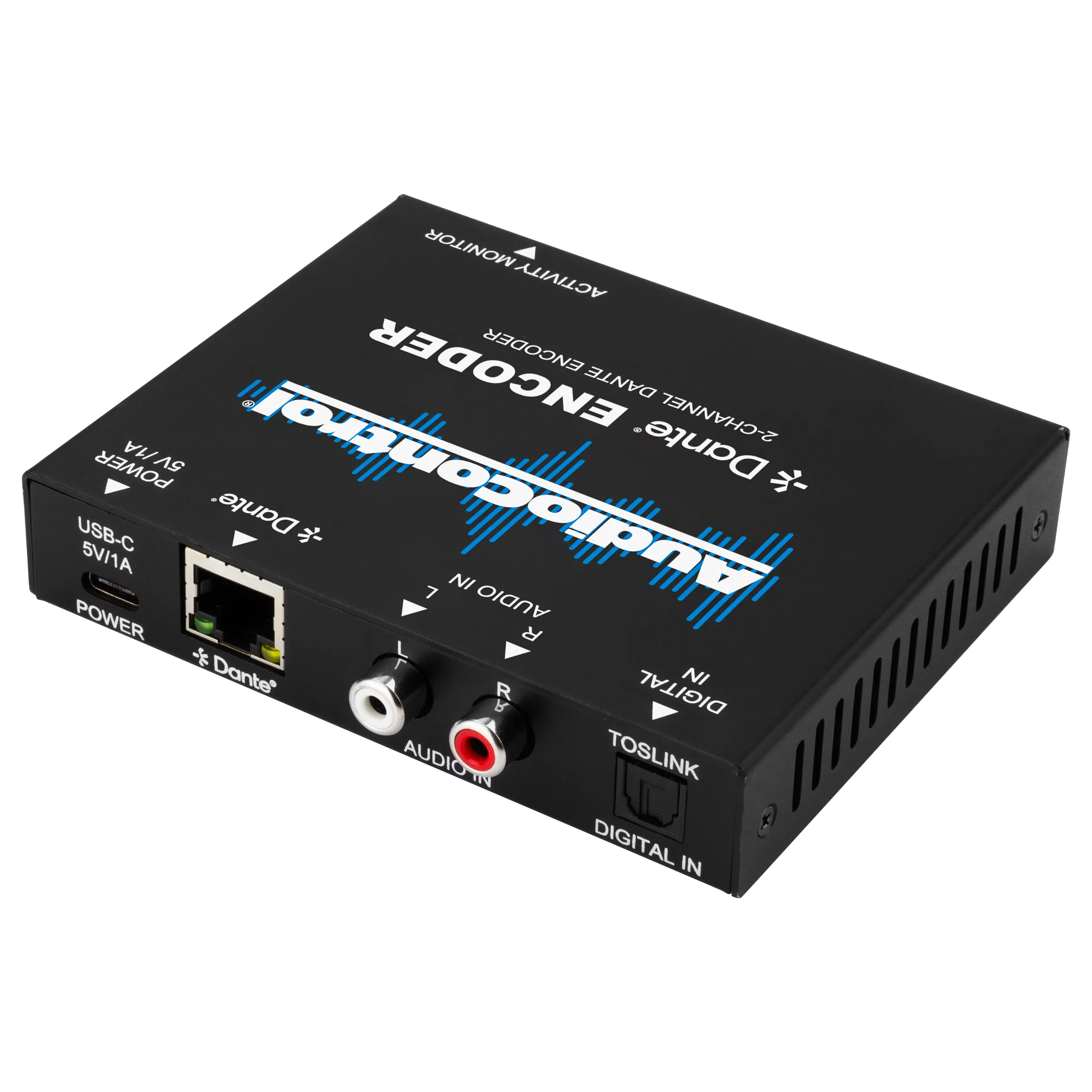

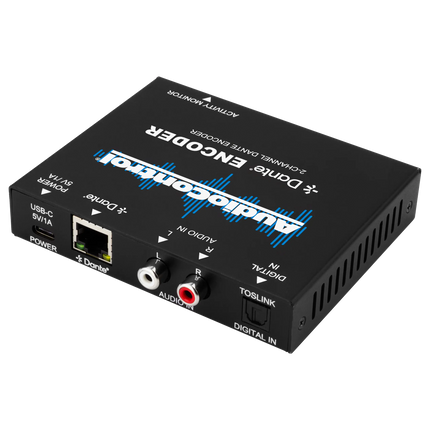

The compact form factor ACP-DANTE-E-POE may be placed strategically wherever Dante encoding of an analog or digital source device is required. It can be powered either from the included 5 V PSU or via PoE if desired. Any AVPro Edge MXnet 1G PoE switch may be used stand-alone or configured for Dante network traffic, providing a transfer distance of up to 100 meters (328 feet) with correctly implemented CAT5e or CAT6A infrastructure. A stereo analog RCA input pair accompanies a TOSLINK digital input to easily place usable legacy audio sources such as FM tuners, various format tape machines, or high-capacity CD changers onto a Dante network for distribution at distances up to 100 meters (328 feet) while retaining original, full fidelity into Dante-compatible devices such as AudioControl CM series or Director Series amplifiers.

Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the ACP-DANTE-E-POE is ‘auto-discovered’ for easy identification.

DANTE™ Encoder

Product form

2-Channel Analog Audio Input DANTE™ Encoder

  • Power over Ethernet (PoE) compatible; also by an included 5V PSU
  • Dante™ and AES67 multicast system compatible
  • Four supported sampling rates of 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz
  • 100% lossless analog conversion

SKU: ACP-DANTE-E-POE

  • Shipped today? Order within: Nov 19, 2026 13:00:00 -0600

Description

The ultra-compact AudioControl ACP-DANTE-E-POE is a two-channel, 100% lossless, Dante™ network audio encoder for Dante or AES67 audio streams. The ACP-DANTE-E-POE is configurable for industry-standard sampling rates from 44.1 kHz to 96 kHz in 16-, 24-, or 32-bit word lengths to encode analog stereo signals into Dante for network distribution to compatible Dante devices.

The compact form factor ACP-DANTE-E-POE may be placed strategically wherever Dante encoding of an analog or digital source device is required. It can be powered either from the included 5 V PSU or via PoE if desired. Any AVPro Edge MXnet 1G PoE switch may be used stand-alone or configured for Dante network traffic, providing a transfer distance of up to 100 meters (328 feet) with correctly implemented CAT5e or CAT6A infrastructure. A stereo analog RCA input pair accompanies a TOSLINK digital input to easily place usable legacy audio sources such as FM tuners, various format tape machines, or high-capacity CD changers onto a Dante network for distribution at distances up to 100 meters (328 feet) while retaining original, full fidelity into Dante-compatible devices such as AudioControl CM series or Director Series amplifiers.

Dante Controller, downloadable free from Audinate, is required to perform initial configuration, encoding parameters, Dante stream subscriptions, network settings, and AES67 audio support adjustments. For static installations, these may be set-and-forget adjustments. When powered and connected to a Dante network, the ACP-DANTE-E-POE is ‘auto-discovered’ for easy identification.

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • PoE or PSU powered
  • Encodes all Dante-platform and AES67 multicasting rates up to 96 kHz and 32-bit resolution
  • 100% lossless, accurate full frequency response encoding accuracy
  • May be paired with the AudioControl AC-DANTE-D-POE decoder for a stand-alone, long-distance audio transmission system
Audio
Frequency Response20 kHz to 20 kHz
Analog Input VoltageUnbalanced 1 Vrms (2.828VP-P)
Loopback Output VoltageUnbalanced 1 Vrms (2.828VP-P)
FormatLPCM
Sample Rates44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
Supported Bit Depths16, 24, 32
LatencyConfigurable 1, 2, 5 ms

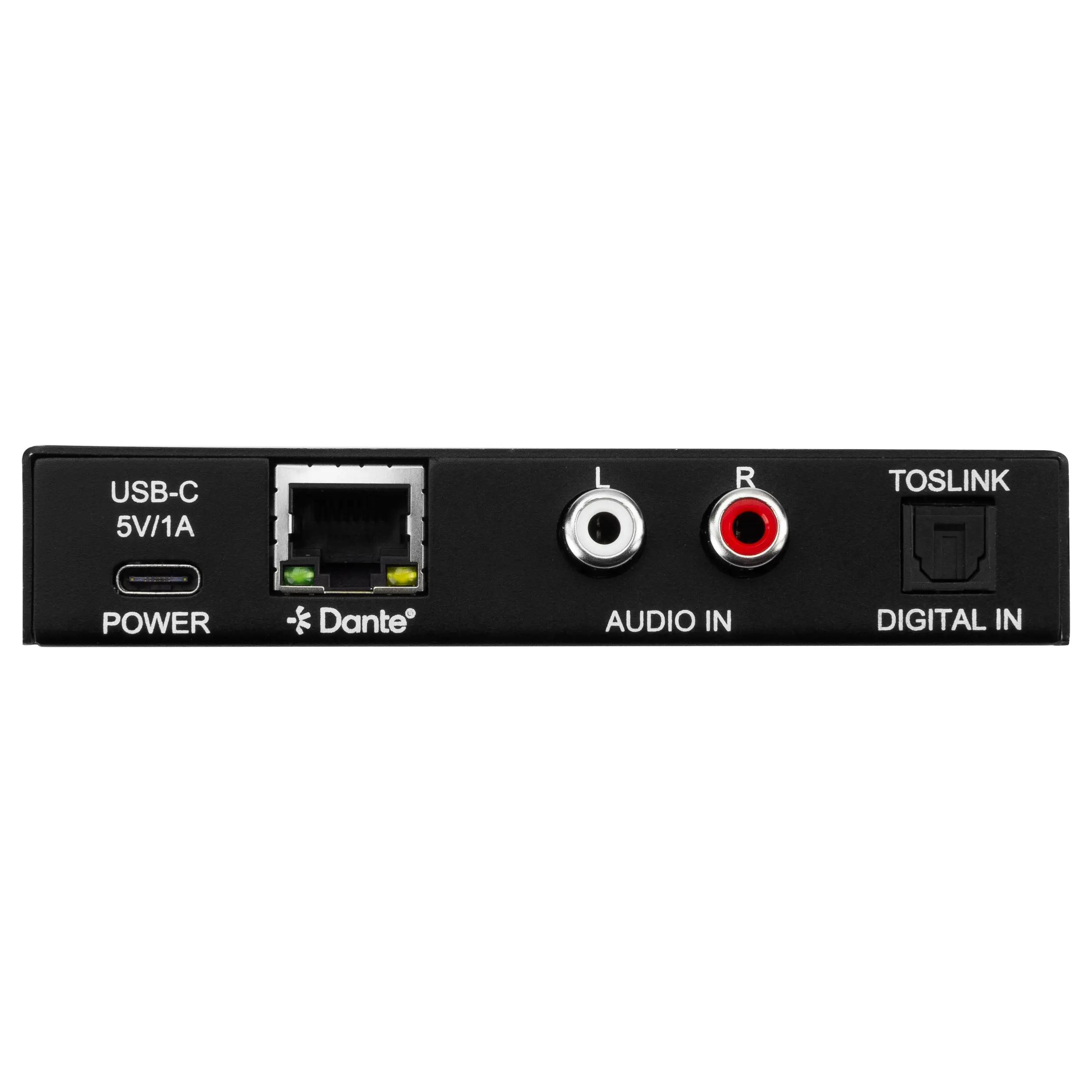

Audio Connections

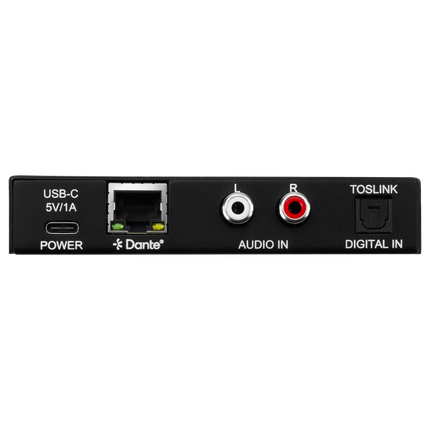

Analog Input1x Stereo RCA 1x TOSLINK
Analog Output1x Stereo RCA 1x TOSLINK
Dante Network Audio1x RJ45
Power
Power SupplyUSB Type-C Power Adapter: Input: 100 VAC to 240 VAC, 50/60 Hz, 0.5 A Output: 5 VDC, 1 A
PoEVia RJ45: Power over Ethernet
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Physical
MountingFurniture Mount Support
Dimensions (Unit)W × D × H: 96 × 25 × 110 mm (3.78 × 1 × 4.33 in.)
Dimensions (Packaged)W × D × H: 136 × 41 × 193 mm (5.35 × 1.62 × 7.6 in.)
Weight (Unit)0.5 lb. (0.23 kg)
Weight (Packaged)0.85 lb. (0.38 kg)
Warranty5 years
Notes*Specifications are subject to change without notice. Mass and dimensions are approximate.
