Architect P250 EQ

Description

2-Channel High-Current Amplifier with EQ

 The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.

At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.

Architect P250 EQ

Product form

2-Channel High-Current Amplifier with EQ

  • 2 channels
  • 180 W per channel into 8 Ohms
  • 250 W output into 4/2 Ohms
  • 500 W bridged into 8/4 Ohms
  • Input Prioritization & Signal Sense Switching
  • Selectable EQ presets

SKU: ACP-AZ-P250

  • Shipped today? Order within: Nov 19, 2026 13:00:00 -0600

Description

2-Channel High-Current Amplifier with EQ

 The Architect Model P250 EQ is a high-power, 2-channel amplifier engineered with an emphasis on sound quality to deliver clarity and tonally balanced sound into any loudspeaker.

At only one rack space high, the P250 EQ delivers solid performance found in much larger solutions. Constructed with a high-current overbuilt power supply, an advanced filter stage, and fast-switching, impedance-matching output transistors, the P250EQ delivers 250 watts per channel into 4/2-ohm loads and 180 watts per channel into 8 ohms. The P250 EQ reproduces nuanced detail from any style of music with the power to control even the hardest to drive loudspeakers effortlessly.

  • FEATURES
  • SPECIFICATIONS
  • RESOURCES
  • 250 Watts Per Channel at 4/2 Ohms
  • 180 Watts Per Channel at 8 Ohms
  • 500 Watts at 8/4 Ohms Bridged
  • High Current Design, 2 Ohm Stable
  • LightDrive™ Anti-clipping Protection
  • Stereo Coaxial and TOSLINK Digital inputs
  • Stereo Coaxial Digital Loop Output
  • Stereo Analog Input with Loop Output
  • Signal Detection Switch Input
  • Input Prioritization & Signal Sense Switching
  • Selectable EQ Presets
  • Shallow Mounting Depth (13.5”)
  • Compact 1U Design
  • Unparalleled Energy Efficiency

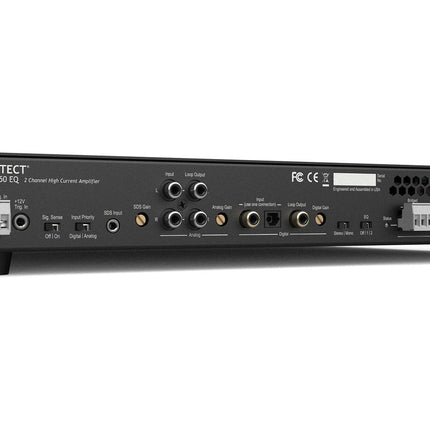

Inputs
Inputs1 Analog Stereo Main, 1 Digital Main (Coaxial / TOSLINK), 1 Analog SDS
Input SensitivityAnalog: 1 Vrms for full output, level at maximum
Performance
Gain27 dB
Frequency Response±0.25 dB, 20 Hz to 20 kHz, 8 Ω Load
Signal-to-Noise Ratio>110 dB, A-weighted, ref Full Output +/- 3db
Crosstalk>80 dB @ 1 kHz
General
Power ConsumptionStandby: 1.5 W
Idle / All Channels Off: 18 W
All Channels Active: 24 W
Loud listening level: 87 W
Maximum: 591 W
BTU/Hour Heat Dissipation (Standby)5.1
BTU/Hour Heat Dissipation (Idle / All Channels Off)61
BTU/Hour Heat Dissipation (All Channels Active)82
BTU/Hour Heat Dissipation (loud listening level)108
BTU/Hour Heat Dissipation (maximum)268
In the BoxArchitect Model P250 EQ, Power Cord, Manual, Warranty
Power
Protectionclipping, short circuit, thermal, ultrasonic, DC offset, stable into reactive or mismatched loads

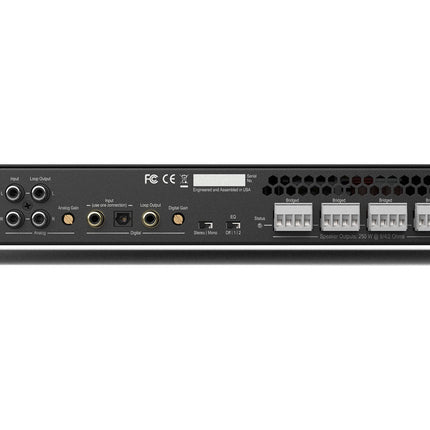

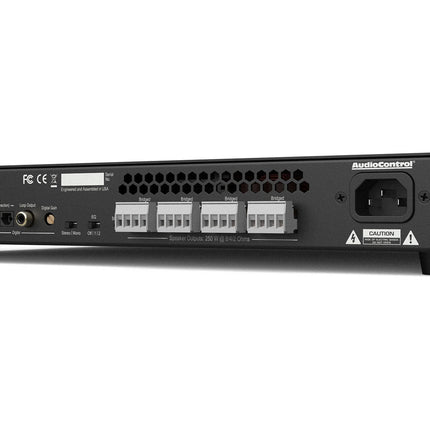

Outputs
Amplifier Channels2
Minimum Loudspeaker Load2 Ω
Power Output
Power Output180 W per channel into 8 Ω; 250 W per channel at 4/2 Ω; 500 W Bridged Mono at 8/4 Ω
Physical
Dimensions (Unit)19” W w/rack ears / 17” w/o rack ears x 13.5” D x 1.75” H (1 U)
Weight (Unit)15.0 lb. (6.8 kg)
THD+N @ Rated Power
THD+NRated Power: <1% @ 8 Ω per ch.; <0.2% @ 4 Ω per ch.; <0.07% @ 2 Ω per ch.
DAC Specs32 to 192 kHz sample rate, 16-/24-bit depth
Control
12 V Trigger+12 VDC
