ISR-AB Advanced Base for Intelligent Surface Remotes
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Wi-Fi access point for solid, dedicated, instant-on Wi-Fi connection for the ISR-4 or ISR-2
Wired or wireless connection to the system

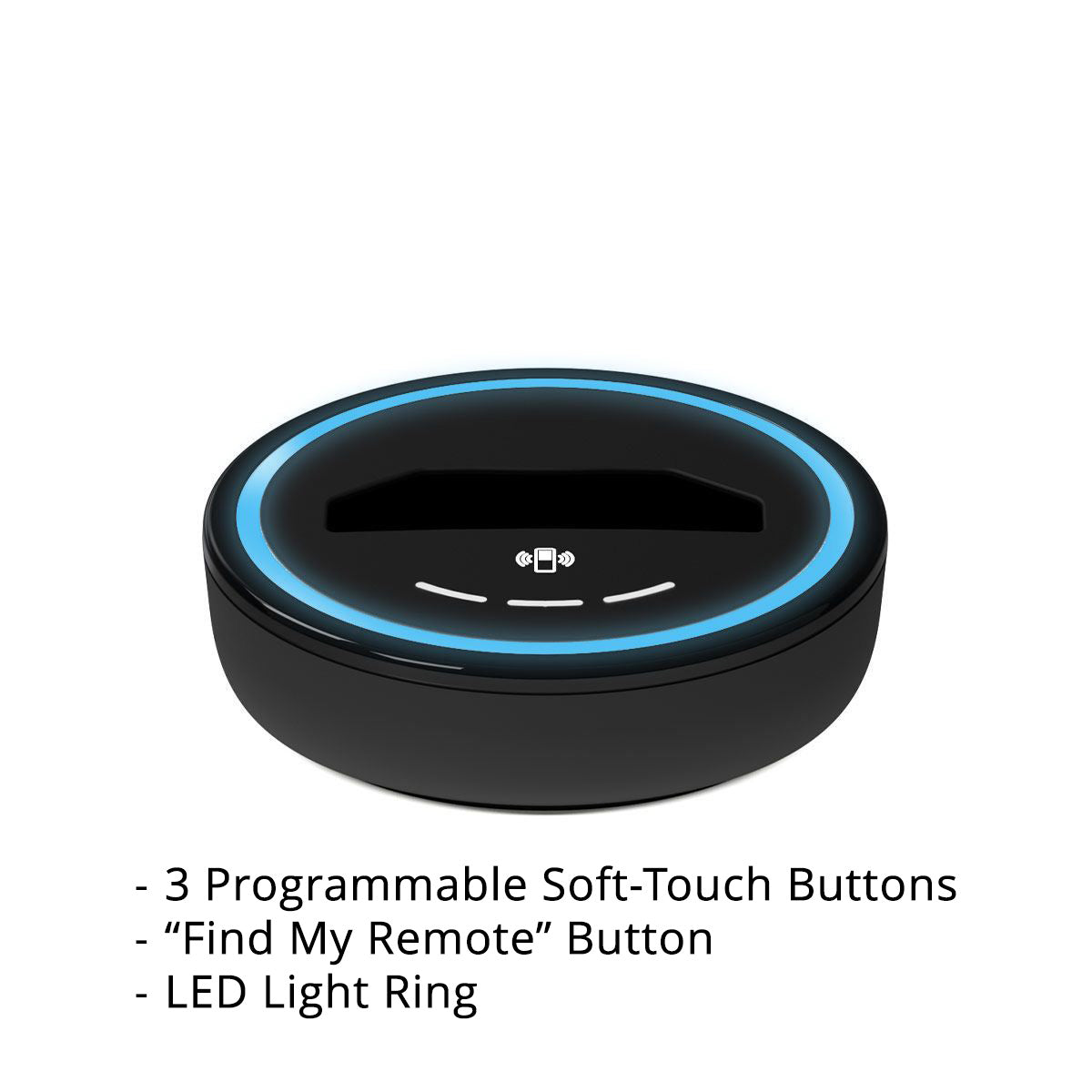

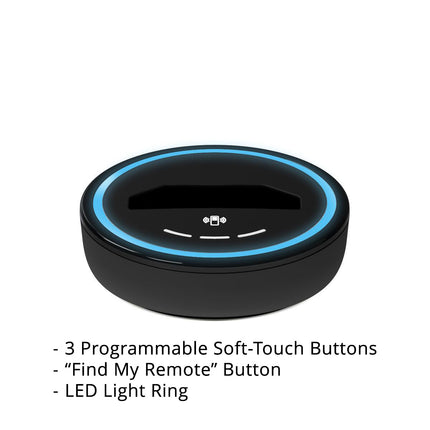

Three programmable soft-touch buttons for scenes and commands
"Find My Remote" button
Modern design with LED light ring for operation status

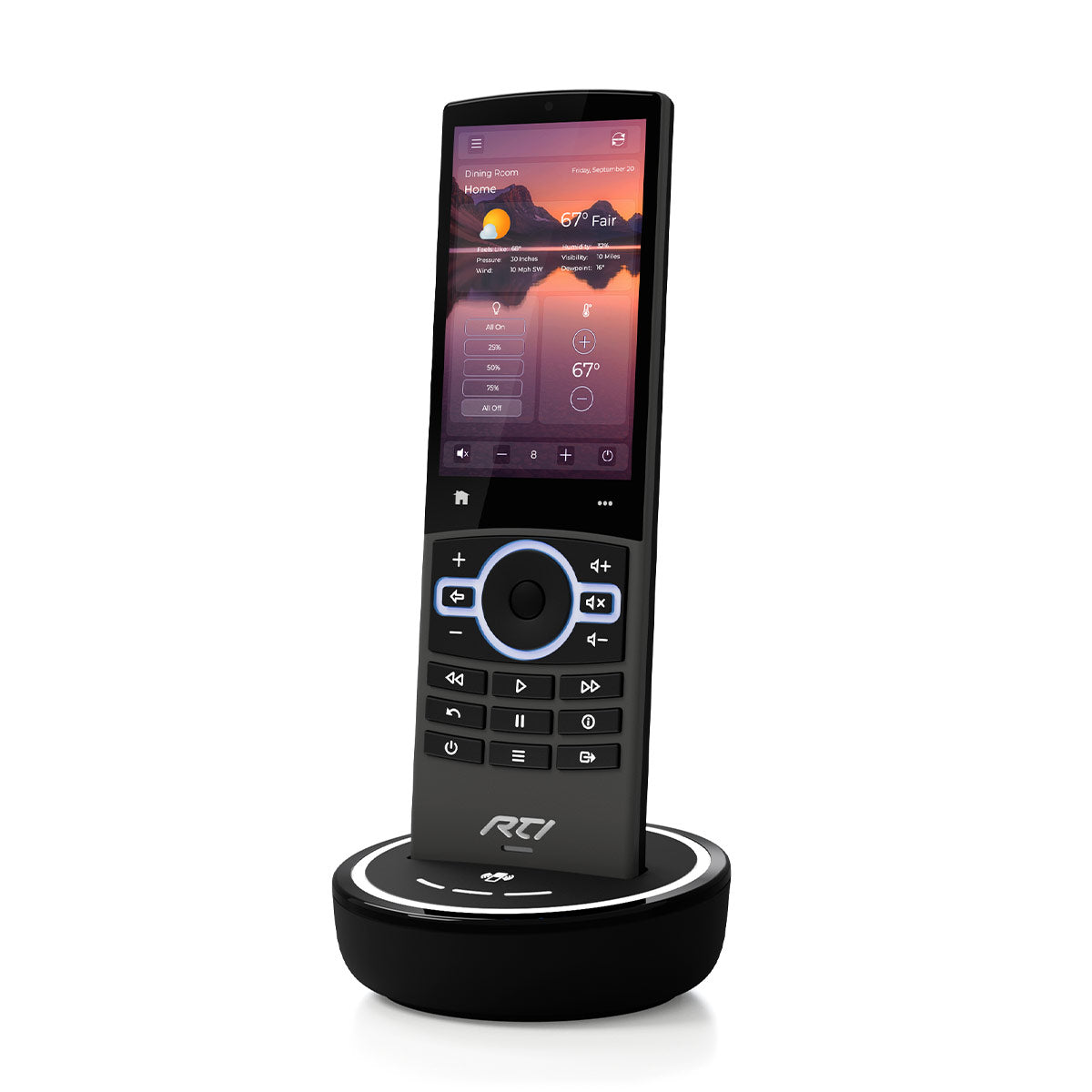

Easy charging for the ISR-4 or ISR-2
| Power Supply | +5VDC, 2.0A |
| Ethernet | 10/100BaseT, RJ-45 Connector |
| PoE | 802.3af |
| Wi-Fi Frequeny | 2.4GHz |
| Wi-Fi Modes | 802.11b/g/n |
| Wi-Fi Range | Minimum of 30ft (9m) indoors |
| Modes of Operation | Hard Wired Ethernet and Wi-Fi Bridge Mode |
| Security | WPA or WPA 2 password protection |
| Buttons | Four capacitive touch, all programmable through ID11. One "Find my Remote" and three programmable scenes. |
| Button LEDs | Combined illumination for "Find my Remote" and three soft-touch buttons. |
| LED Light Ring | Illuminates in set colors to correspond to different modes of operation: BLUE - No remote in the ISR-AB RED - Remote is in the ISR-AB and charging GREEN - Remote is in the ISR-AB and fully charged |
| Power for ISR Remote | Charging for ISR-4 or ISR-2 |
| Battery Charge Time | 3-4 Hours |
| Minimum ID Version | 11.12 or later |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
Included in the box:
- ISR-AB
- International Power Supply (5VDC, 2.0A)
