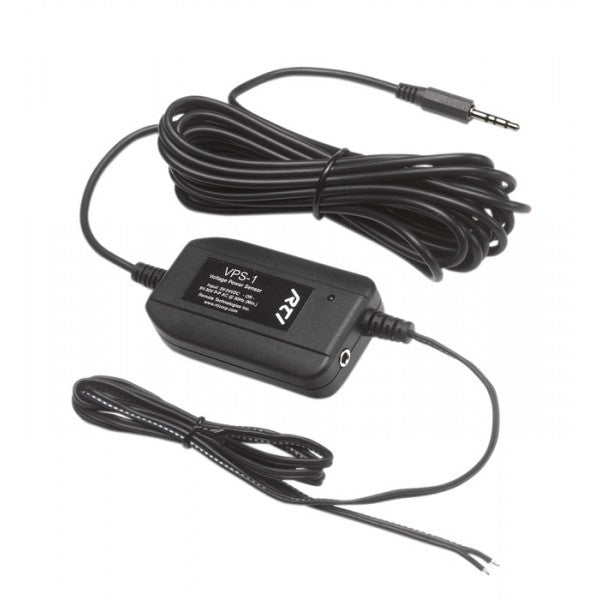

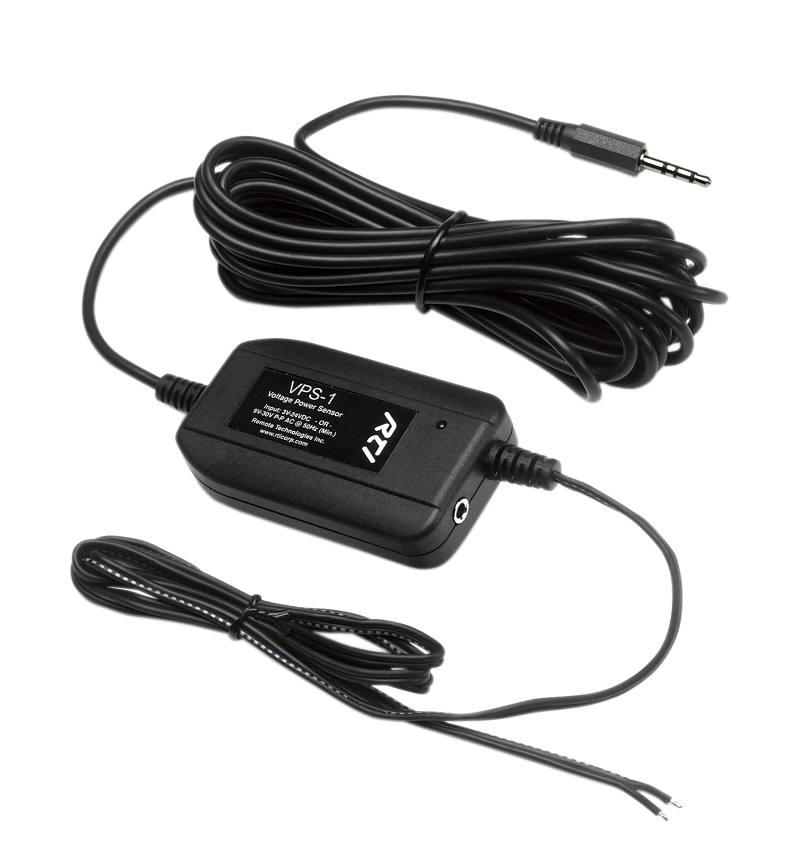

VPS-1 Voltage Power Sensor
- VendorRTI
VPS-1 Voltage Power Sensor
- VendorRTI
- Key Benefits
- Specs
- Resources
Connects to the MPIO (Multi-Purpose I/O) ports of an RTI control processor or expansion modules (ie. PCM-4 Port Control Module)
Detects the on/off status of almost any component
No power supply required - Power is supplied by the output ports
Power sensing circuit is housed in a compact, rugged ABS enclosure
LED light indicates the current power status
Control cable can be extended up to 500 feet
| General | |
| Output | Compatible with industry standard IR emitters (Xantech ® or compatible) |
| IR Output Drive | 100 mA maximum |
| Power Requirements | Input: 3 V to 24 V DC -or- 9 V to 30 V P-P AC (50 Hz min) |
| Power Consumption | Maximum Current: 0.5 mA |
| Cable Length | Control cable: 12 ft. (3.7 m) Voltage sensor cable: 3 ft. (0.9 m) |
| Dimensions (Unit) | W × D × H: 44 × 18 × 76 mm (1.75 × 0.7 × 3.0 in.) |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
