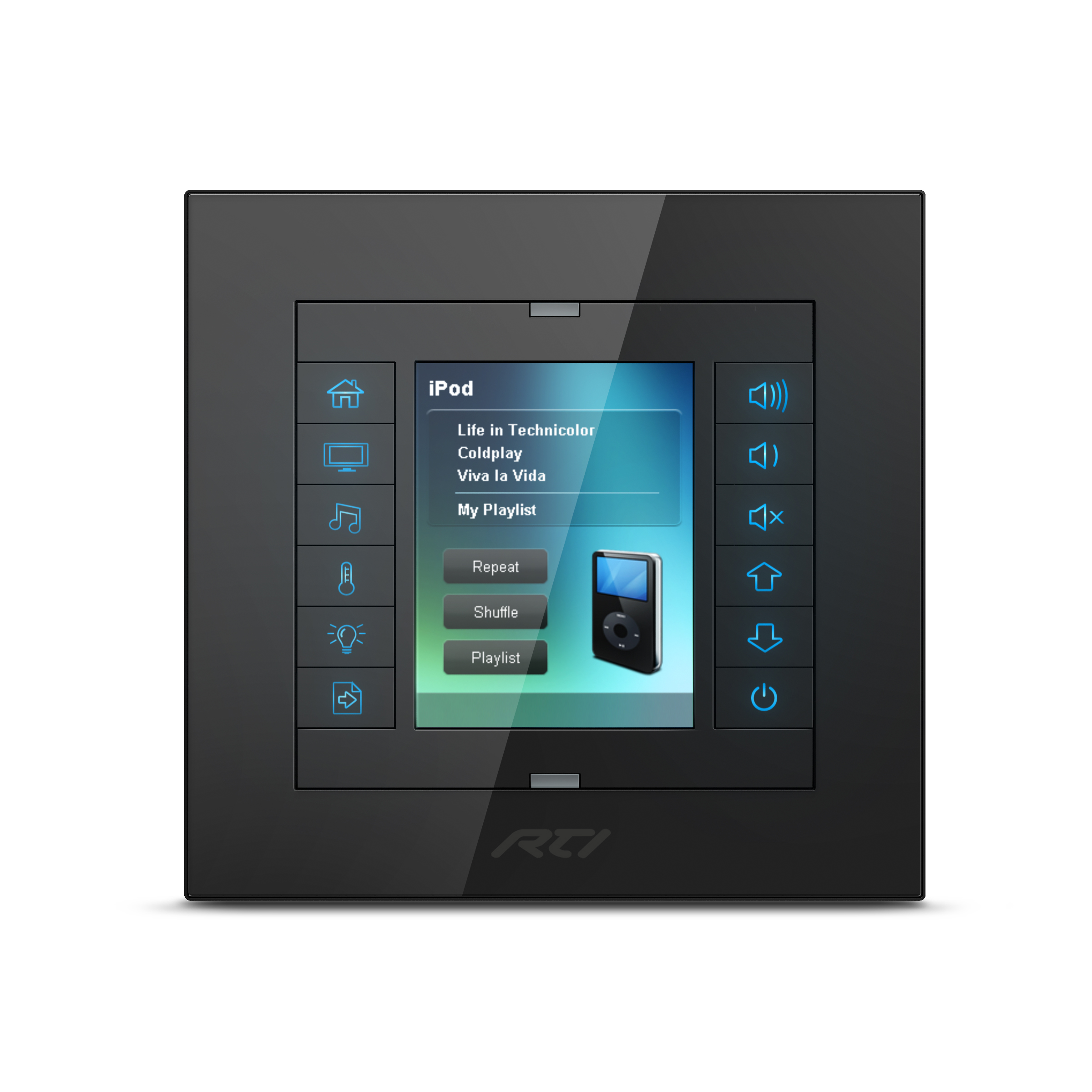

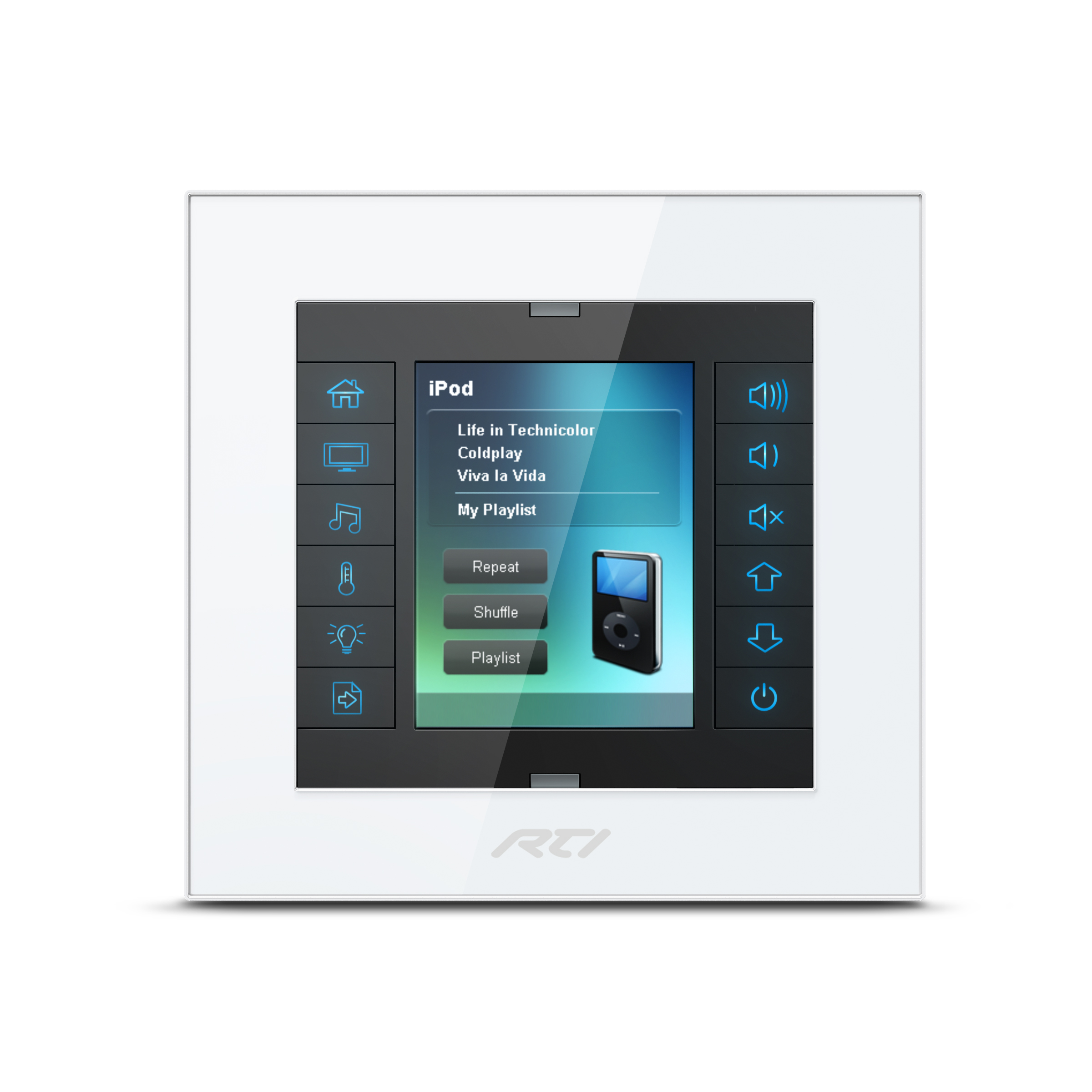

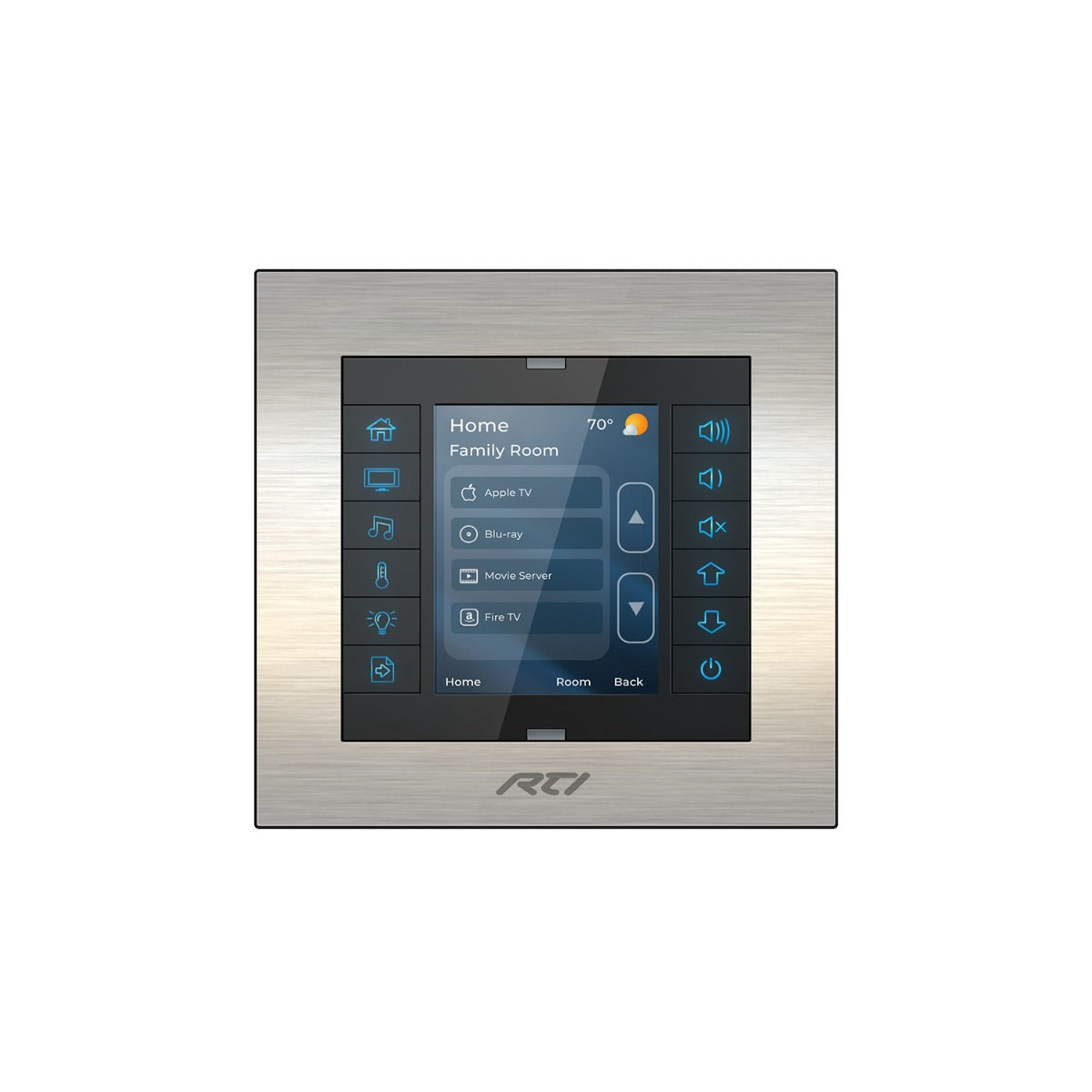

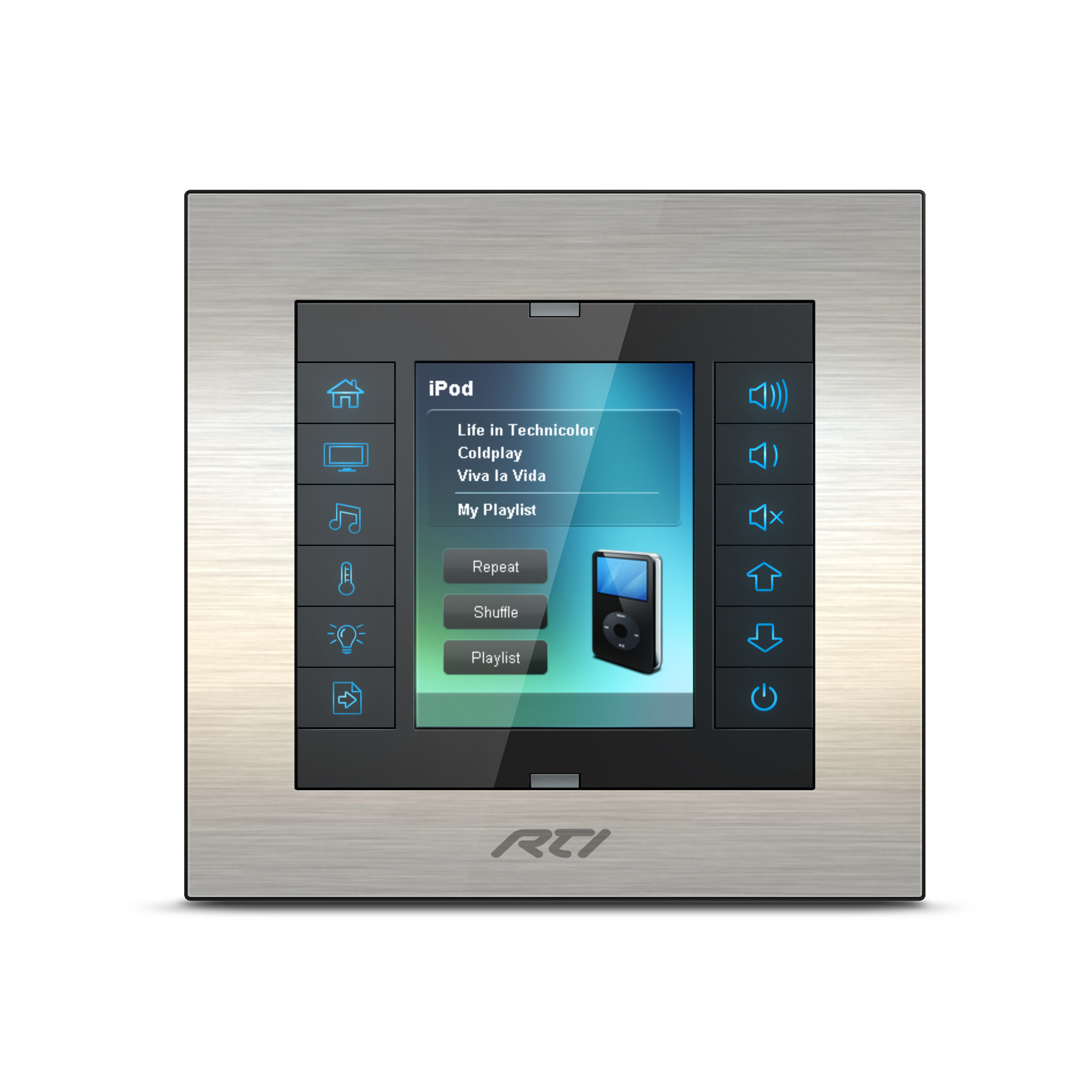

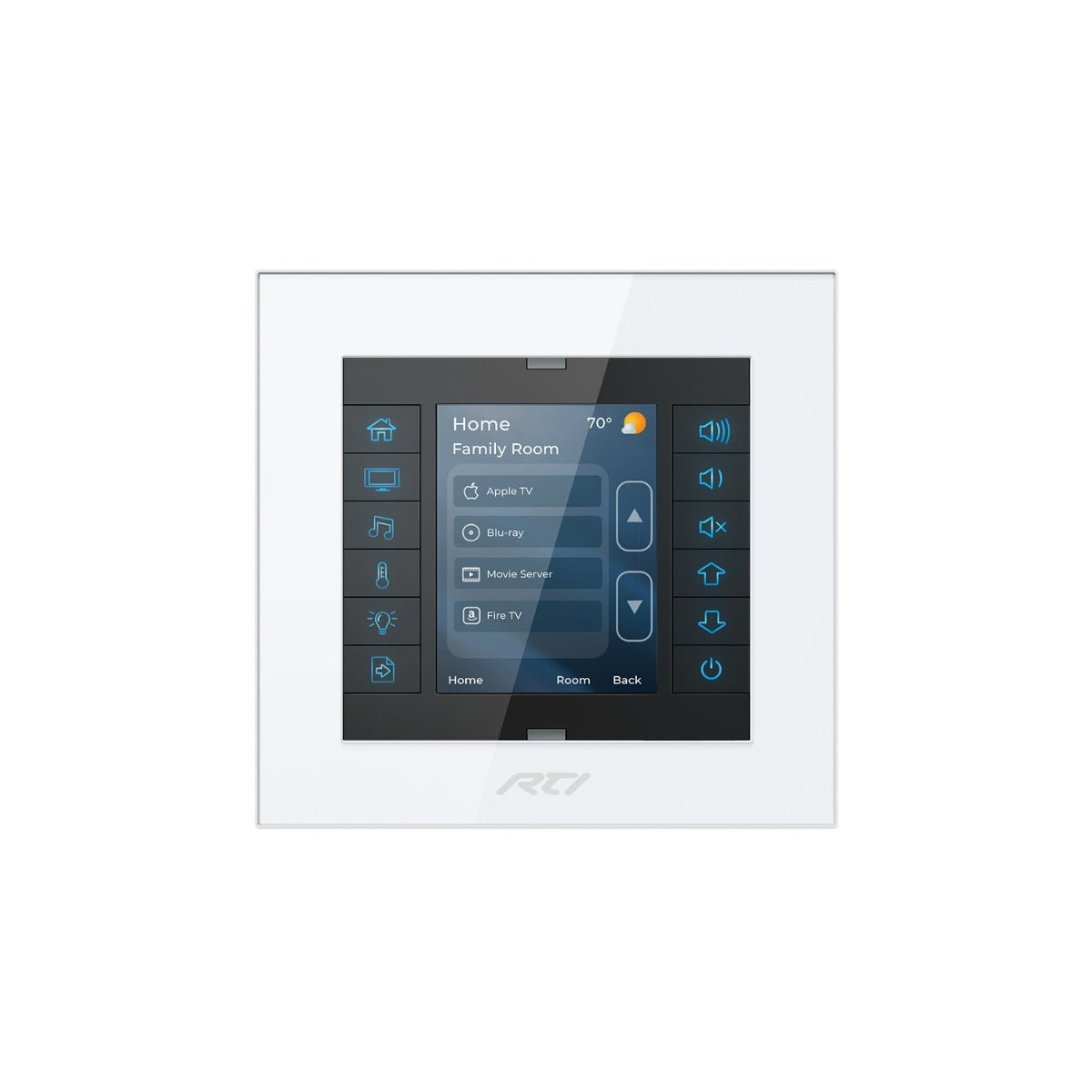

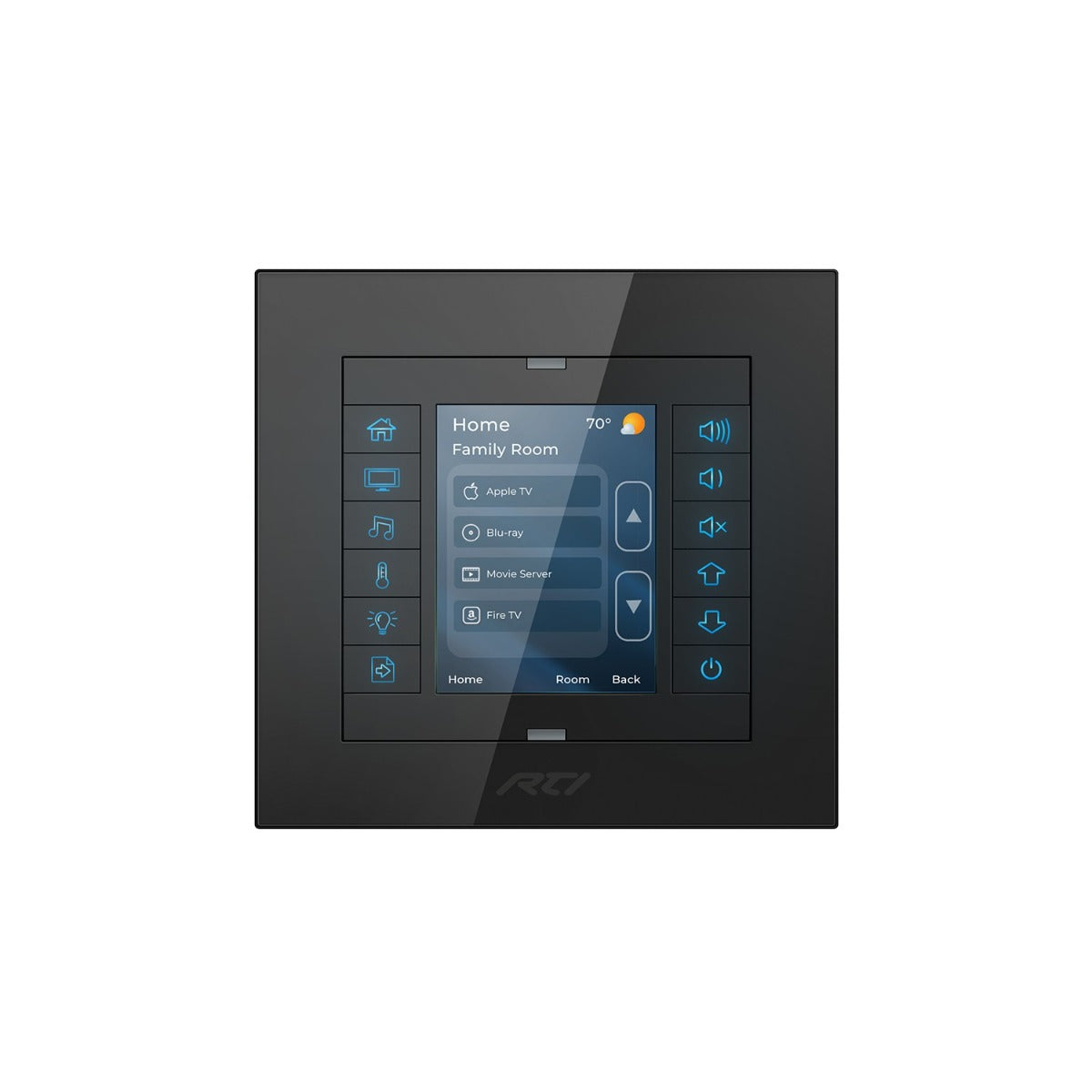

KX2 2.8 inch In-Wall Touchpanel Keypad

Description

The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation.

*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.

Included in the box:
KX2, Bezel (white), interchangeable key set (12 keys), mounting wings (2), screws (4), drywall template

Notes

KX2 Programming Notes:

• Programming T2i/KX2 touchscreen - It is NOT possible to overlap/stack "active" buttons: Click here for instructions.(PDF)
• Programming T2i/KX2 touchscreen - Two-way lists and gauges: Click here for instructions.(PDF)
• The KX2 does not support: system recovery, album art, dynamic weather images, motionJPEG video, custom sounds or page swiping.
•You can convert a KX2 to a T2i and vice versa only.

Read more

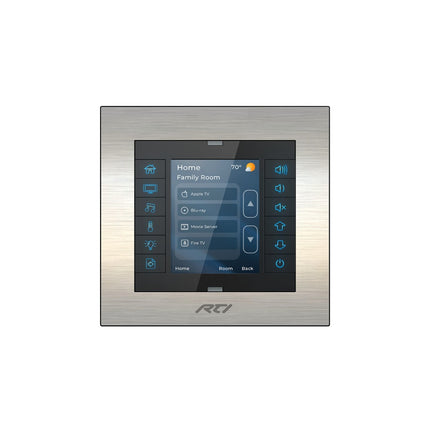

KX2 2.8 inch In-Wall Touchpanel Keypad

Product form

  • In-Wall
  • Hard Buttons
  • 2-Way
  • Ethernet
  • PoE
  • Infrared

SKU: RTI-KX2

  • Shipped today? Order within: Jun 17, 2026 13:00:00 -0500

Description

The KX2 in-wall controller has a clean, sleek design with twelve programmable hard buttons and a 2.8" color touchscreen. The hard buttons and graphic interface are fully programmable using RTI's Integration Designer® software for full control of electronics throughout the building. A built-in infrared output port allows direct control or get two-way control when used with an RTI XP series control processor. In addition, the unit's integrated 10/100Base-T Ethernet port with Power-over-Ethernet (POE) provides the flexibility to accommodate any installation.

*Feedback requires a compatible two-way RTI control processor.
*Integration Designer software only available to authorized RTI dealers.

Included in the box:
KX2, Bezel (white), interchangeable key set (12 keys), mounting wings (2), screws (4), drywall template

Notes

KX2 Programming Notes:

• Programming T2i/KX2 touchscreen - It is NOT possible to overlap/stack "active" buttons: Click here for instructions.(PDF)
• Programming T2i/KX2 touchscreen - Two-way lists and gauges: Click here for instructions.(PDF)
• The KX2 does not support: system recovery, album art, dynamic weather images, motionJPEG video, custom sounds or page swiping.
•You can convert a KX2 to a T2i and vice versa only.

Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

In-Wall
Blend your flush-mount touchpanel into the wall and make it a central point for controlling your home or business.


Hard Buttons
Twelve Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.


2-Way
Get status feedback from controlled devices on your touchpanel such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.


Ethernet
Check the weather forecast, view video from network security cameras or perform remote programming updates through a standard 10/100 BaseT network connection.


PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.


Infrared
Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.


Proximity Sensor
Wake the touchpanel by just approaching it. This is very convenient when you enter a dark room or your home at night.


Ambient Light Sensor
Enjoy the perfect display brightness that’s automatically set depending on the ambient light.


Laser Shark
Customize the button labels with text or graphics.


IR output drives up to 1000 feet of wire.


Integrated mounting wings for easy installation in retrofit installs.


Fits in a 4"x4" square electrical junction box (See installation guide for important information).**


Optional modules/processors for voltage sensing, relays and advanced two-way control.

Power +9VDC to +16VDC, 1A max
Power Management Adjustable backlight brightness, Ambient light sensor, Proximity sensor
Touchscreen Display High-brightness color TFT LCD
QVGA (240w x 320h pixels) with 65K colors
Integrated high-resolution resistive touchscreen
Display Size 2.8" (71mm) diagonal
Display Backlight LED Backlit, 200nit
Infrared Output Through control port, 200mA output
Drives up to 1000 ft (300 m) of wire
Ethernet Port 10/100 Base-T with Power-over-Ethernet
Audio Beeper
Total System Memory 32MBytes Flash (non-volatile) memory
Device Capability Total number of devices is limited only by memory
Macro Capability Unlimited steps in a single macro
Total number of macros is limited only by memory
Macro capability on every button
Communications USB programming port
Enclosure High-impact molded ABS plastic
Mounting Integrated mounting wings, or screws through front bezel
Front Plate Dimensions (H x W) 4.4 in (112mm) x 4.6 in (117mm)
Installation Cut-Out (H x W) 3.789 in (96.5mm) x 3.789 in (96.5mm)
Total Depth in Wall 1.2 in (31mm) Plus cables
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 7.5 oz (212g)
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

IMPORTANT NOTES:
The KX2 uses a standard 4"x 4" electrical junction box. These should be available at most hardware stores or electrical supply stores online (ex. Grainger.com).

  • A dual gang outlet box will NOT work.
  • The KX2 has .38" thick corner tabs, making the KX2 protrude .38" from the front edge of the junction box. Therefore, the electrical box should be mounted flush with the wall stud. Typically wall sheeting materials like drywall are ½" or thicker, allowing the KX2 to be flush with the wall sheeting. If the wall sheeting is thinner than .38", the junction box will need to be mounted set back.
  • Use #8 "“ 32 flat head screws.
  • Box should be 1.5" minimum depth.

Included in the box:

  • KX2 In-wall Touchpanel Keypad
  • Bezel (white)
  • Interchangeable key set (12 keys)
  • Mounting Wings (2)
  • Screws (4)
  • Drywall template
  • Operation guide
  • MAC address card

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
