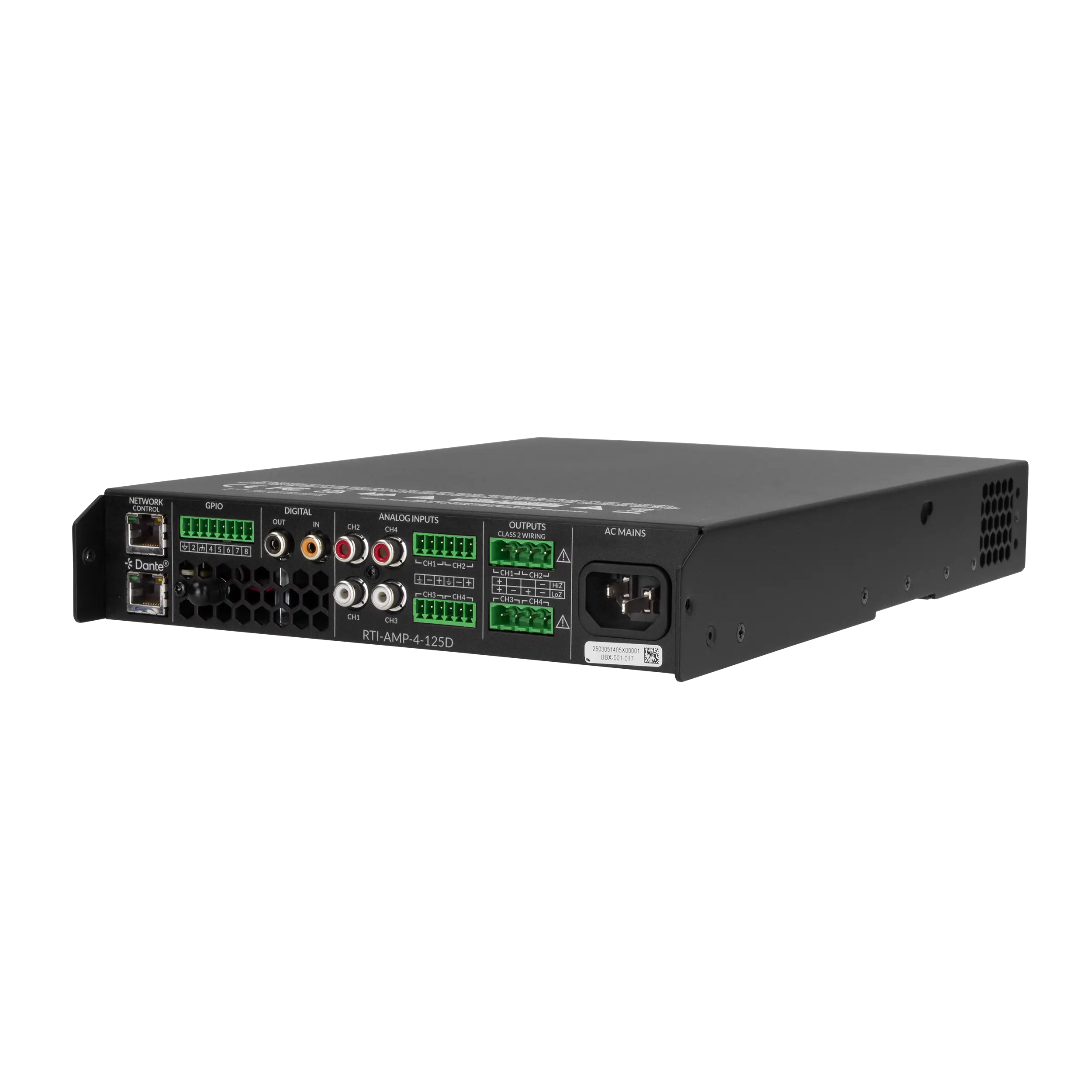

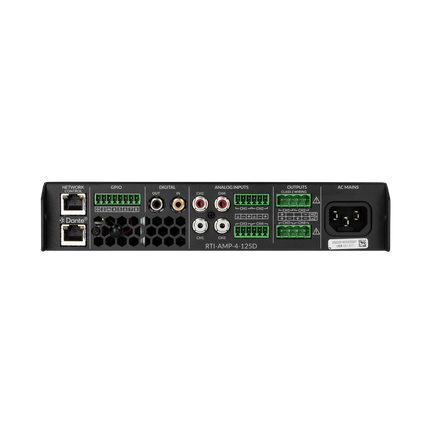

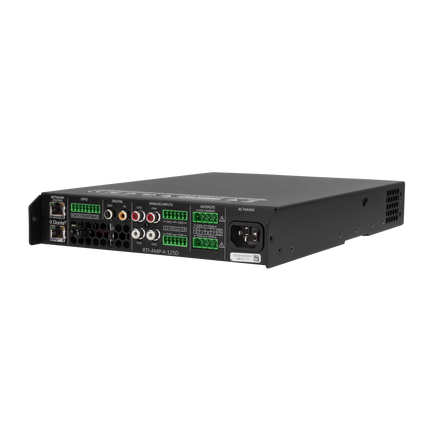

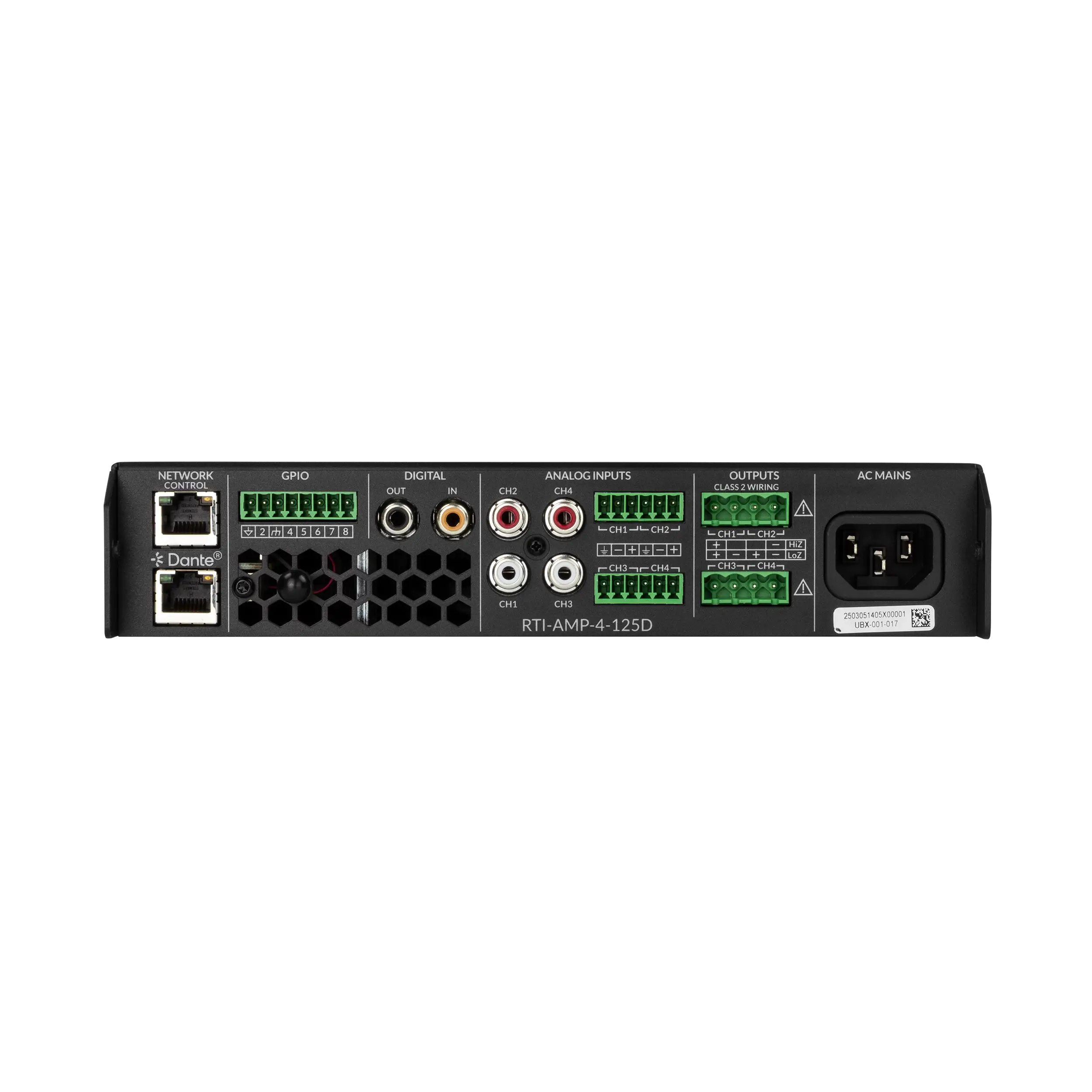

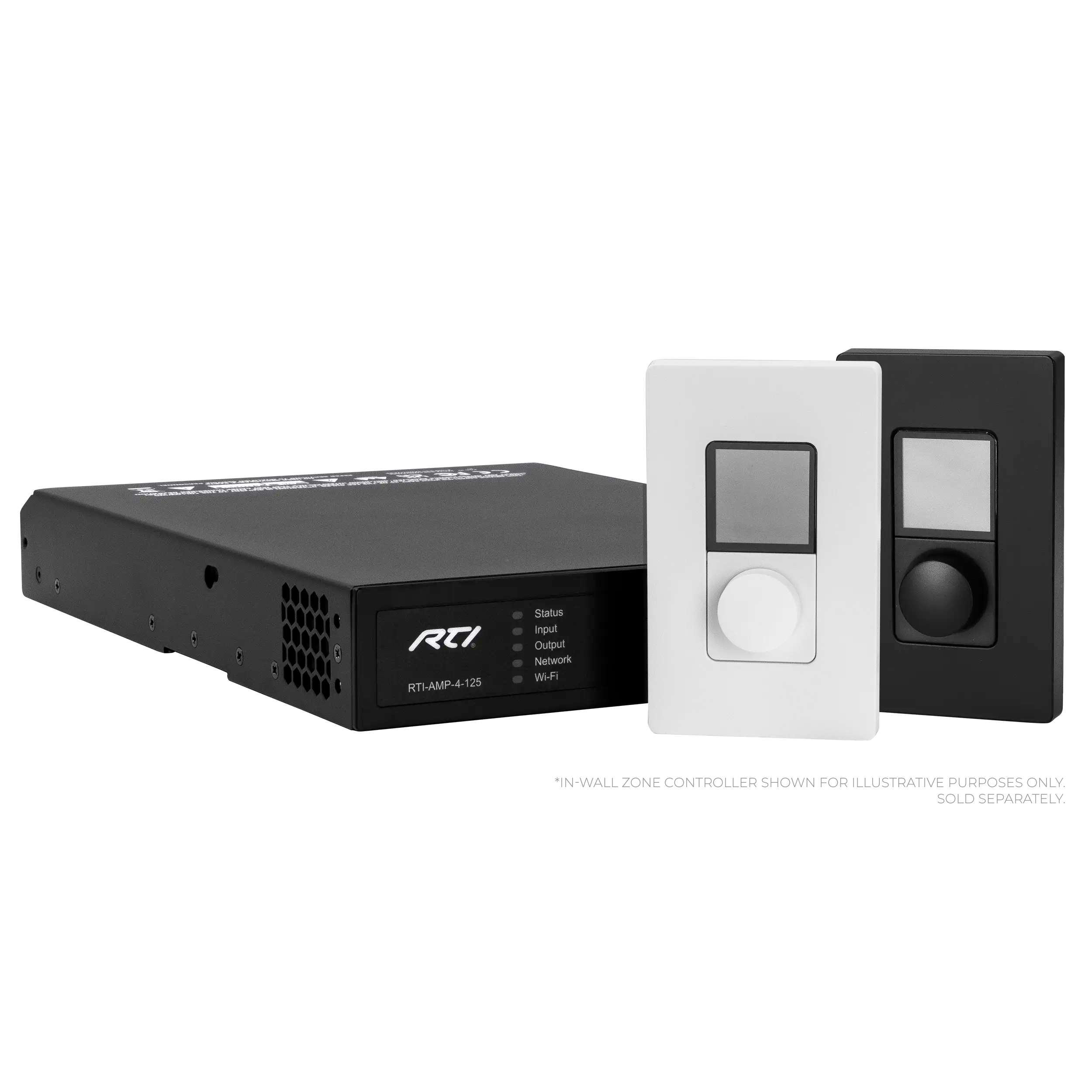

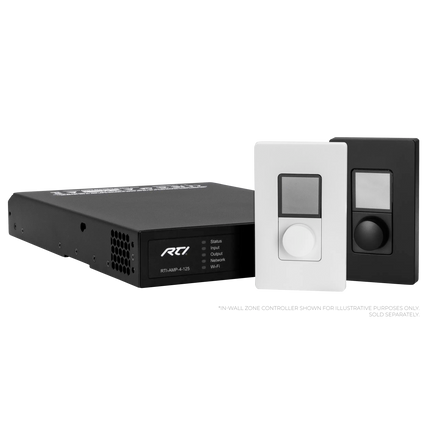

4 analog Inputs, 1 digital input / 4 outputs with 4x4 Dante

Four analog audio inputs (balanced or unbalanced), one digital input, and 4x4 Dante networking. Outputs configurable as four Lo-Z or two Hi-Z.

2 Zones
Choose between a standard stereo zone or a 70V/100V sound system.

UMAC™ Class D Amplification
Delivers ultra-low distortion, full-bandwidth <0.05% THD+N and >106dB SNR. Professional audio quality at commercial scale, with high efficiency that reduces heat load and operating cost.

PowerShare Technology

Unused headroom from idle channels is redistributed to active channels in real time, maximizing amplifier utilization without upsizing the unit or adding hardware.

Browser-Based Control Web App

Installers configure inputs, zones, EQ, speaker presets, and GPIO via any web browser over Ethernet or Wi-Fi,  no proprietary software, no dedicated laptop, no return trips.

Dual-Mode Lo-Z and Hi-Z Output

One unit drives both 4Ω/8Ω speakers and 70V/100V distributed systems, eliminating the need for external transformers or separate product SKUs across mixed-topology projects. 125W per channel Lo-Z (4Ω/8Ω) and Hi-Z (70V/100V) - no external transformer required.

Dante® / AES67 Networking

Dante-enabled variants integrate into existing professional IP audio networks with AES67 interoperability, enabling long-distance routing and daisy-chaining without dedicated audio cabling.

Per-Output Speaker Presets

FIR, parametric EQ, crossover, delay, limiter, polarity. Eliminates external speaker processors for most installs. Presets can be locked, exported, and shared across projects, reducing commissioning time and ensuring consistent tuning.

GPIO Interface

Physical volume, standby, mute, and 12V trigger. Enables wall-volume controls and building-automation integration without a full control system, expanding deployment options for budget-conscious commercial installations.
