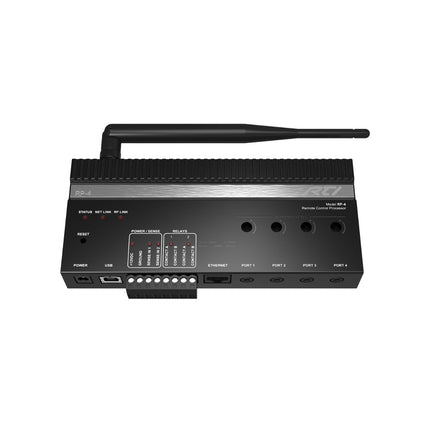

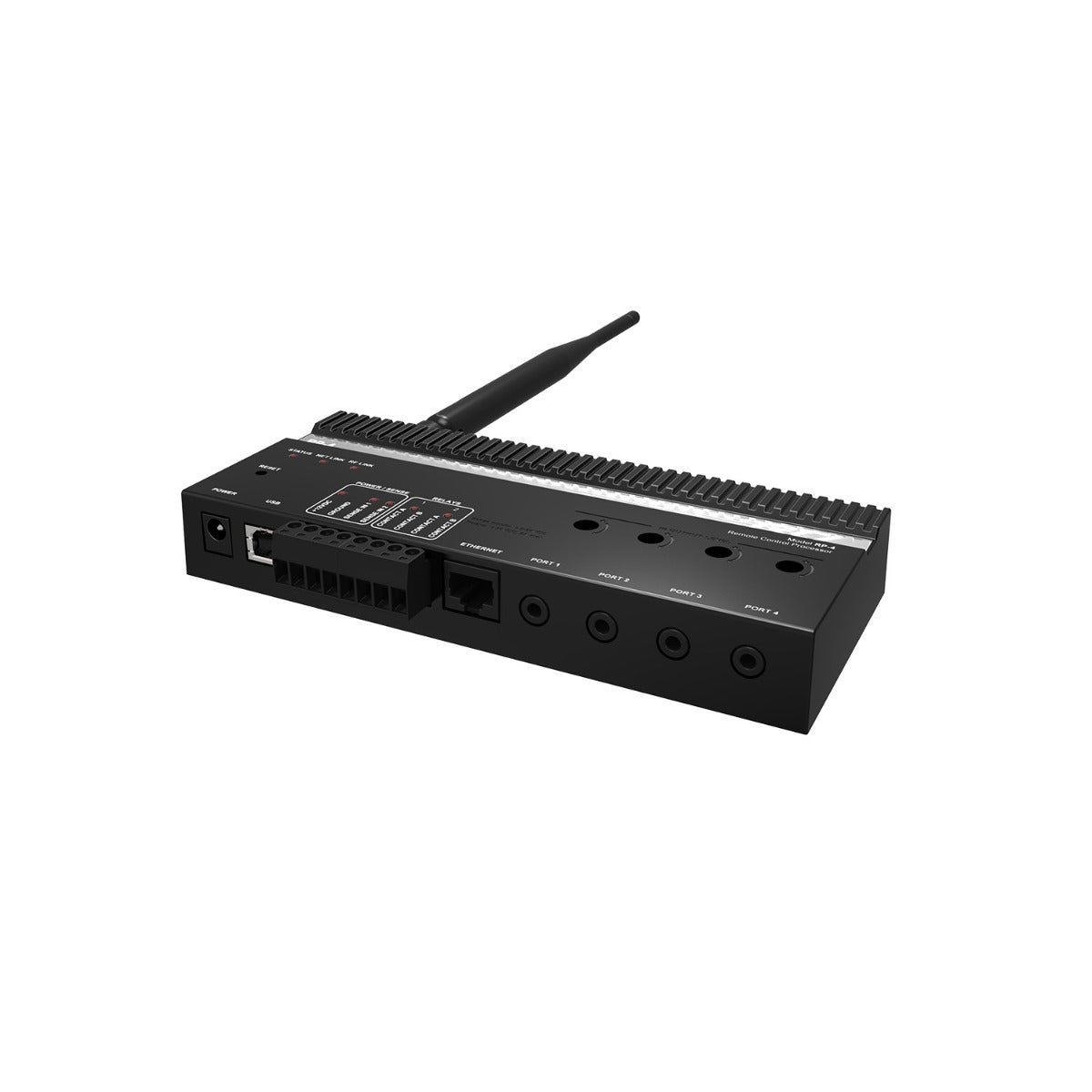

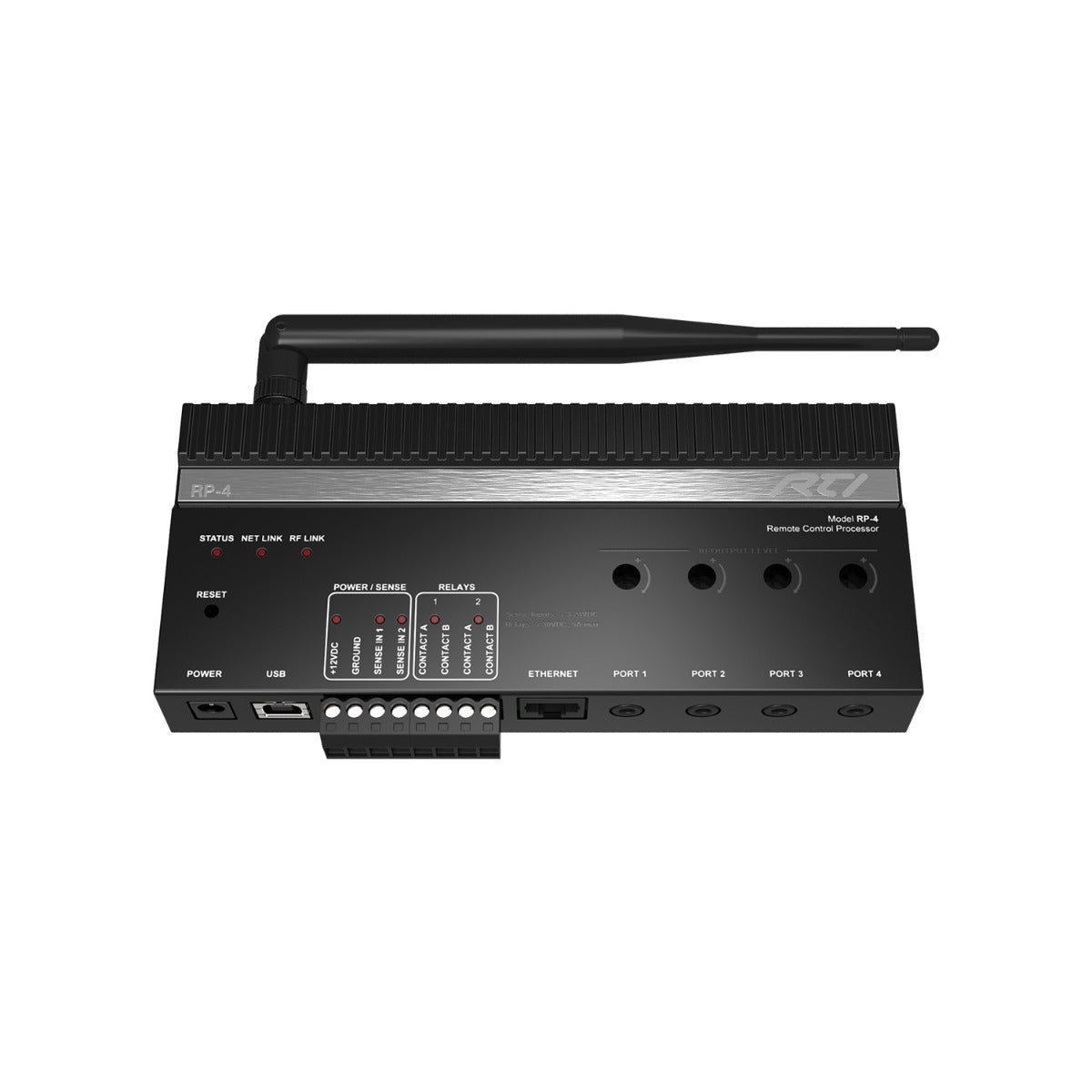

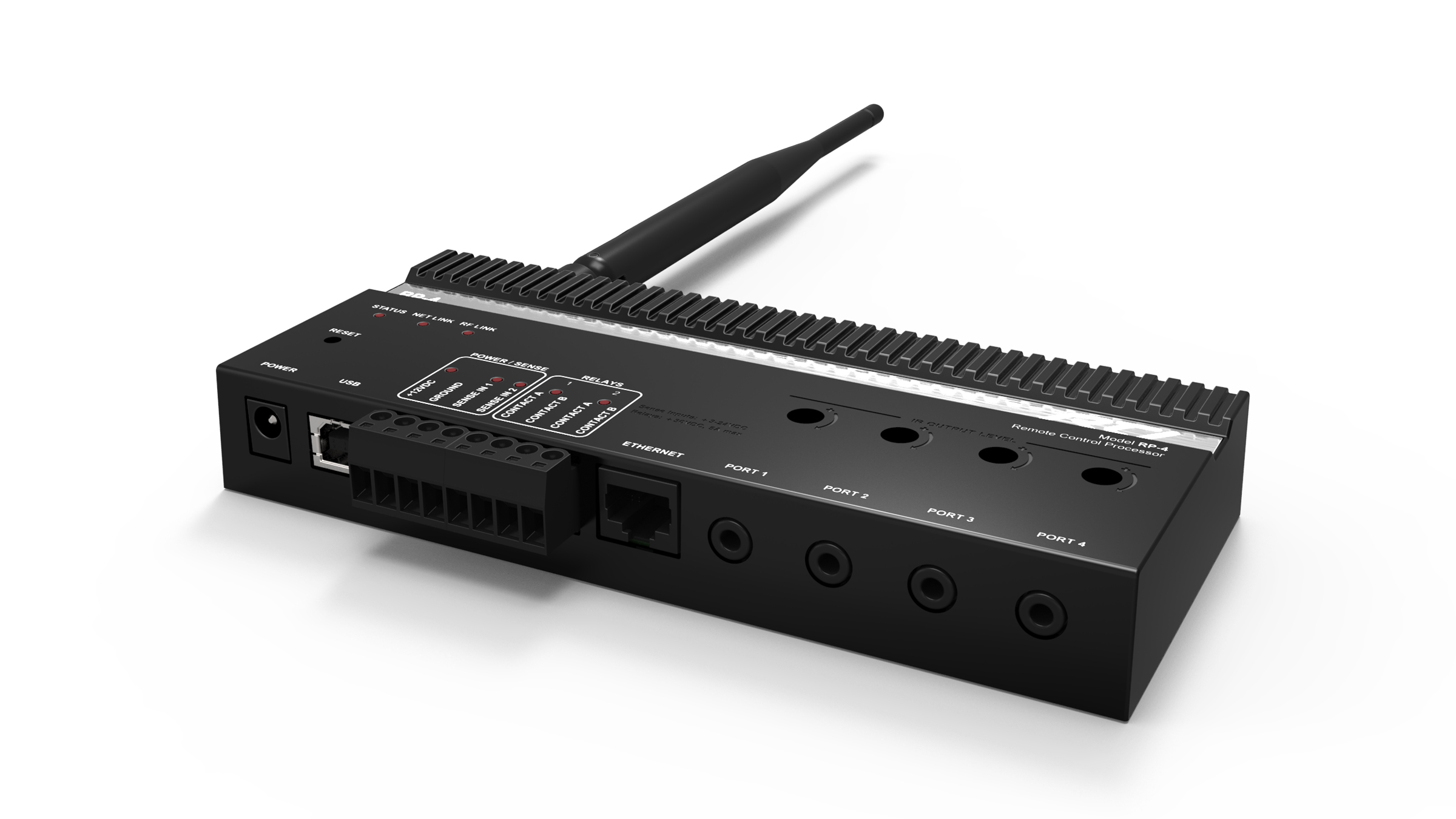

RP-4 RF Control Processor

Description

The RP-4 is an excellent solution for cost-effective control of A/V and other electronic systems in single room installations such as home theaters, media centers, and bedrooms. With the RP-4, A/V components and other equipment can be hidden away in a closet for a clean, professional look.

The RP-4 features an integrated 433-MHz RF receiver, IR control, voltage sense inputs, and relays, all in one compact package. Perfect for use with any RTI 433-MHz wireless interface, the processor also supports one-way control via the RTiPanel app*, allowing users to incorporate their iPhones and iPads easily into the control system. The processor stores all system commands and macros for rock-solid reliability, providing a powerful alternative to IR repeater systems which can suffer from inconsistent performance.

*Note: RP-4 supports RTiPanel app for Apple iOS devices only
Integration Designer software only available to authorized RTI dealers.

Included in the box:
RP-4, power supply (12V, 1A), antenna
mounting plate, screws and drywall anchors (4)

Notes

Important notes:


•The RP-4 does not support any RTI wired interfaces/modules (In-wall touchpanels, keypads, CM232, VPS1, PCM4, RCM4 etc).
•It is not possible to add additional RM-433 433MHz RF antennas and ZM-24 Zigbee transceivers.
•The RP-4 supports one-way control via the RTiPanel App (NOTE: Virtual Panel is NOT supported).
•If an RTiPanel device is in the Integration Designer system file, the computer used to download to the RP-4 must have an Internet connection.

Read more

RP-4 RF Control Processor

Product form

  • Infrared
  • Relay
  • Sense Input
  • Ethernet
  • RF 433 MHz

SKU: RTI-RP4

  • Shipped today? Order within: Jun 17, 2026 13:00:00 -0500

Description

The RP-4 is an excellent solution for cost-effective control of A/V and other electronic systems in single room installations such as home theaters, media centers, and bedrooms. With the RP-4, A/V components and other equipment can be hidden away in a closet for a clean, professional look.

The RP-4 features an integrated 433-MHz RF receiver, IR control, voltage sense inputs, and relays, all in one compact package. Perfect for use with any RTI 433-MHz wireless interface, the processor also supports one-way control via the RTiPanel app*, allowing users to incorporate their iPhones and iPads easily into the control system. The processor stores all system commands and macros for rock-solid reliability, providing a powerful alternative to IR repeater systems which can suffer from inconsistent performance.

*Note: RP-4 supports RTiPanel app for Apple iOS devices only
Integration Designer software only available to authorized RTI dealers.

Included in the box:
RP-4, power supply (12V, 1A), antenna
mounting plate, screws and drywall anchors (4)

Notes

Important notes:


•The RP-4 does not support any RTI wired interfaces/modules (In-wall touchpanels, keypads, CM232, VPS1, PCM4, RCM4 etc).
•It is not possible to add additional RM-433 433MHz RF antennas and ZM-24 Zigbee transceivers.
•The RP-4 supports one-way control via the RTiPanel App (NOTE: Virtual Panel is NOT supported).
•If an RTiPanel device is in the Integration Designer system file, the computer used to download to the RP-4 must have an Internet connection.

Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Infrared
Four (4) control ports for 2-wire connection to infrared emitters, blasters and repeaters.


Relay
Two (2) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 5A/30VDC (external power supply required).


Sense Input
Two (2) inputs that sense contact closure from switches, windows or doors or voltage state from a voltage sensor to trigger a programmed control command or macro.


Ethernet
Standard 10/100 BaseT network connection for programming and one-way control via the RTiPanel App on Apple iOS devices.


RF 433 MHz
Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.

Power Supply +12V DC, 1A
IR Output Ports Four (4), 3.5 mm jacks
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Transmission Bandwidth 15kHz - 460kHz
Ethernet Port One, RJ45 Connection, 10/100Base-T
Relays Two, +30VDC, 5A max
Sense Inputs Two, 3-24VDC
RF Receiver Carrier Frequency 433 MHz
Mounting Wall-mount or free standing
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (W x H x D) 7.0" (175mm) x 3.0" (76mm) x 1.0" (25mm)
(does not include antenna or connectors)
Weight 6.7 oz. (190g)
Warranty Three Years (Parts & Labor)
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

INSTALLATION NOTES:
"¢ The RP-4 does not support RTI wired interfaces (In-wall touchpanels, keypads, etc).
"¢ RP-4 is not compatible with RM-433 433MHz RF antennas and ZM-24 Zigbee® transceivers.
"¢ The RP-4 supports one-way control via the RTiPanel App on Apple iOS® devices only
(Android devices and Virtual Panel are NOT supported).
"¢ If an RTiPanel device is in the Integration Designer system file, the computer used to download to the RP-4 must have an Internet connection.

Included in the box:

  • RP-4 Control Processor
  • Power supply (12V, 1A)
  • Antenna
  • Mounting plate
  • Screws and drywall anchors (4)
  • Operation guide
  • MAC address card

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
