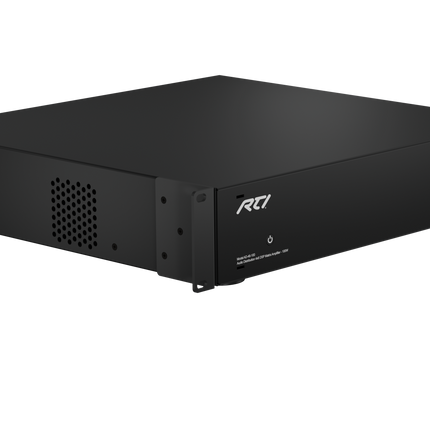

4 Sources
Four analog audio source inputs and 2 digital inputs (mirrored analog inputs).
6 Zones
Six stereo audio output zones with 4 amplified stereo and 2 preamp stereo outputs to integrate external power amplifiers or subwoofers.
Ultra-Efficient
Cool Power ® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
Clearly Powerful
Experience the apex of audio power with 100 Watts @ 4Ω or 50 Watts @ 8Ω, delivering unparalleled sound quality and clarity. For more power, bridge outputs for 200 Watts per channel.
4x6 Audio Matrix
Distribute four audio source inputs to six zones, expandable to 48 zones by stacking up to eight AD-46-100 units.
Audio Source Versatility
Use either analog or digital audio sources or a combination of both.
Built-In DSP

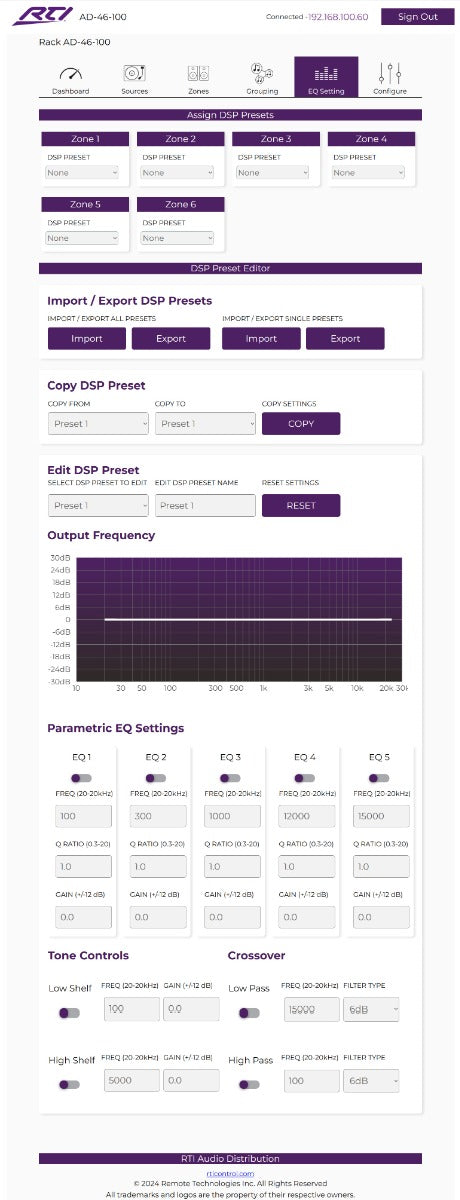

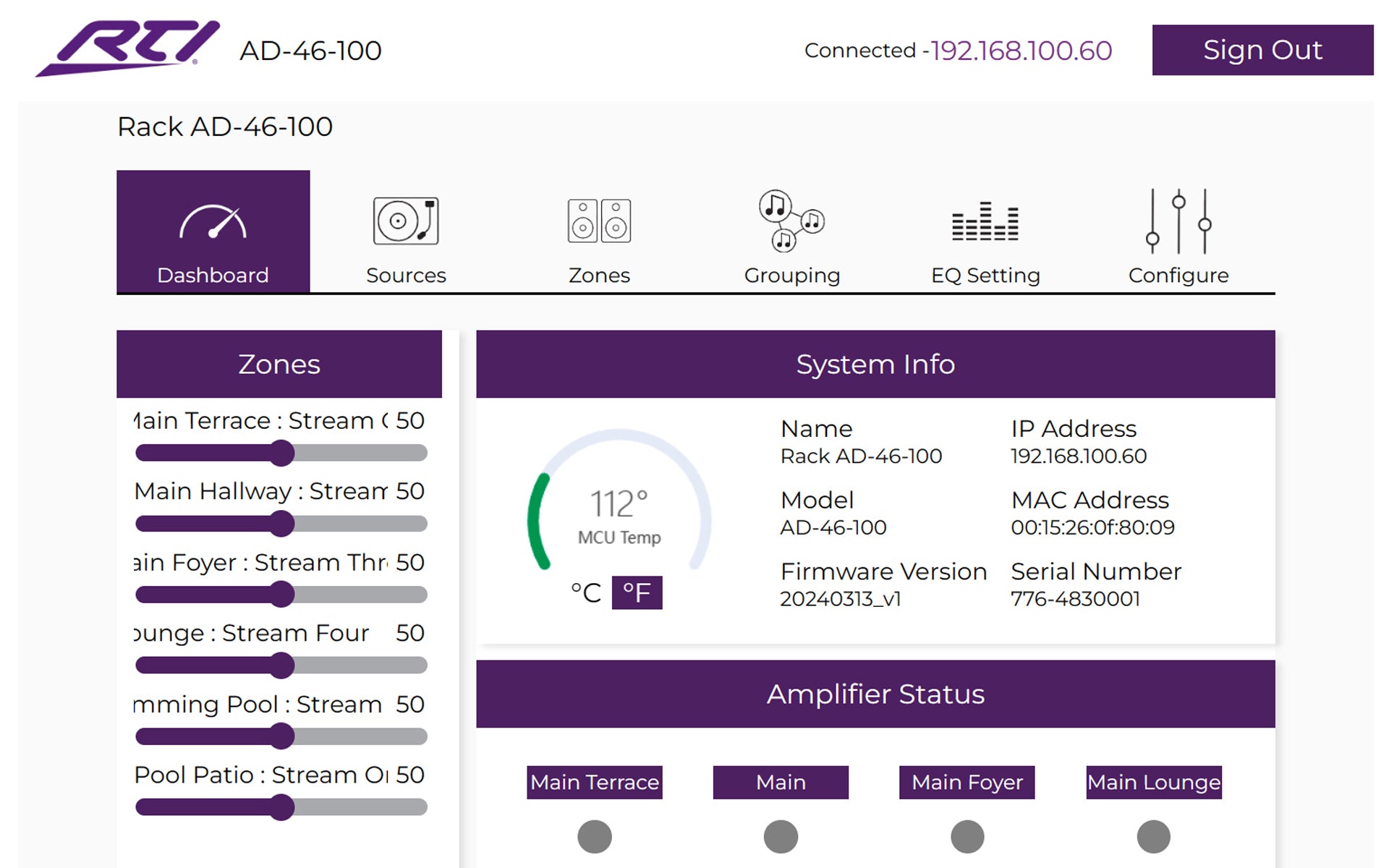

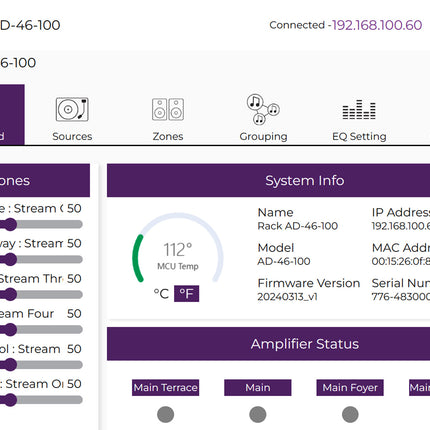

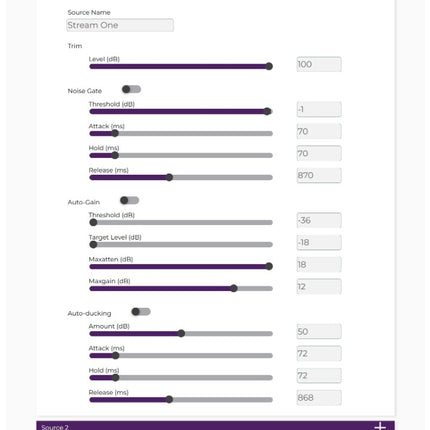

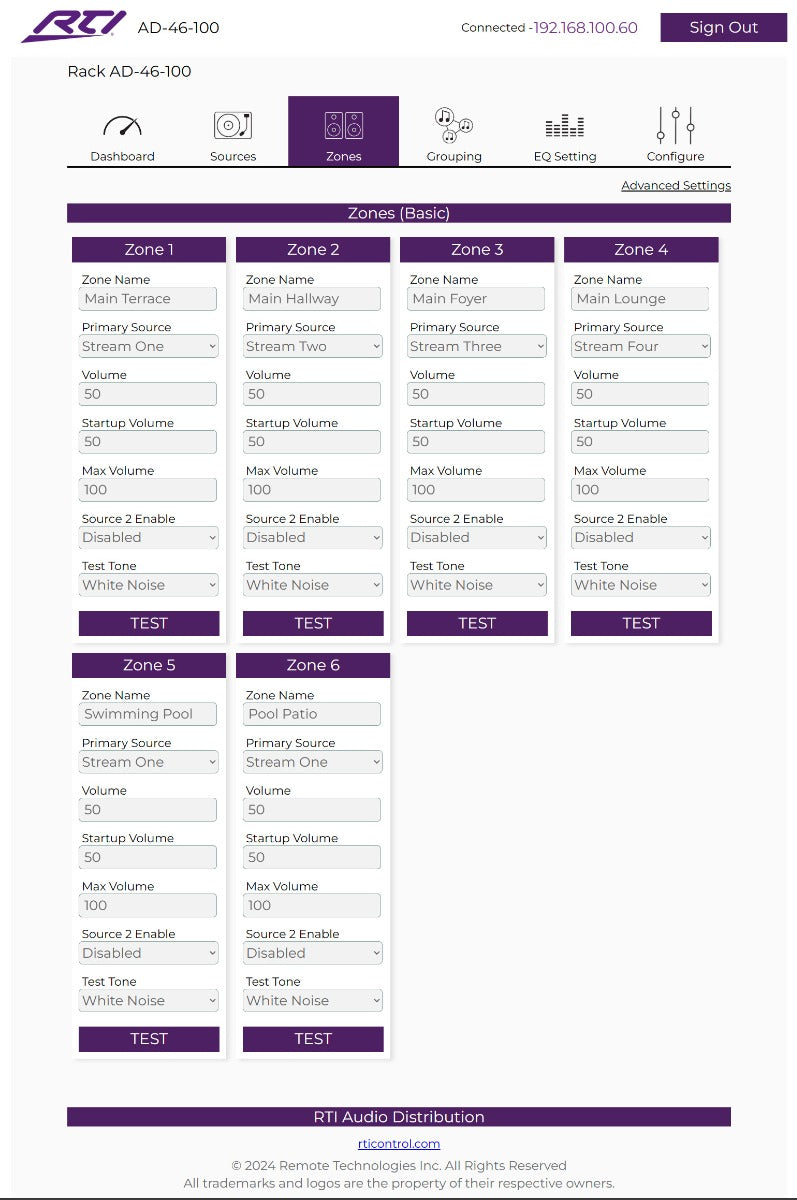

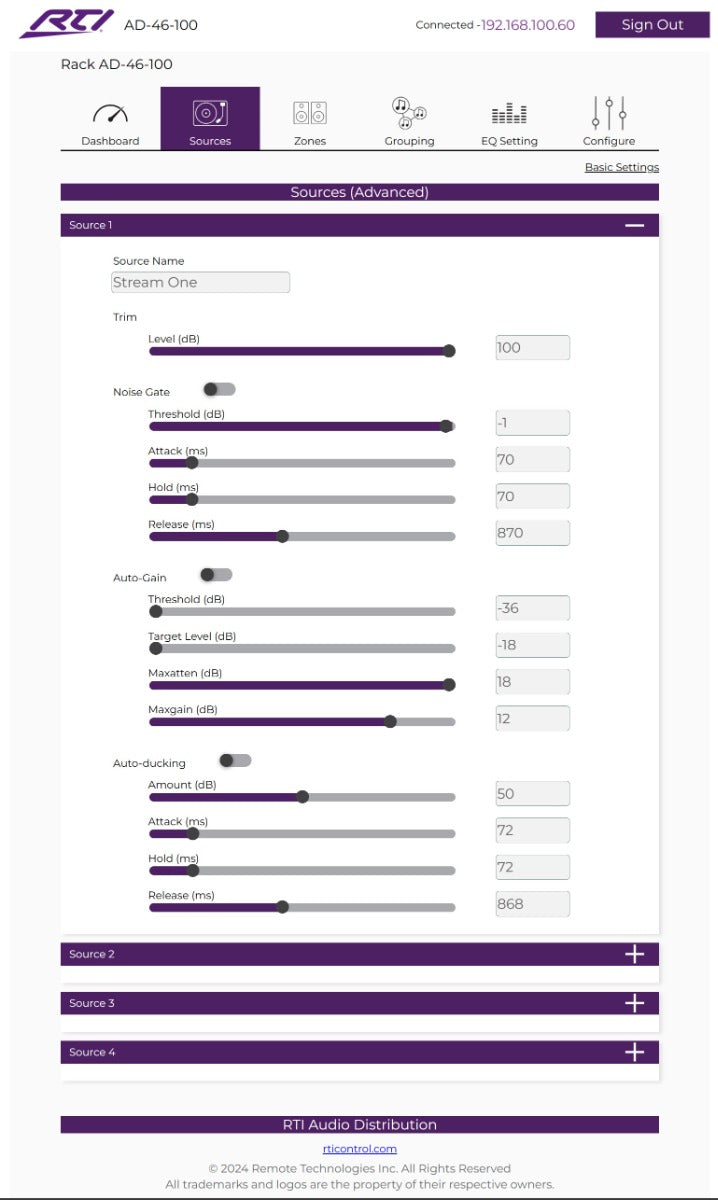

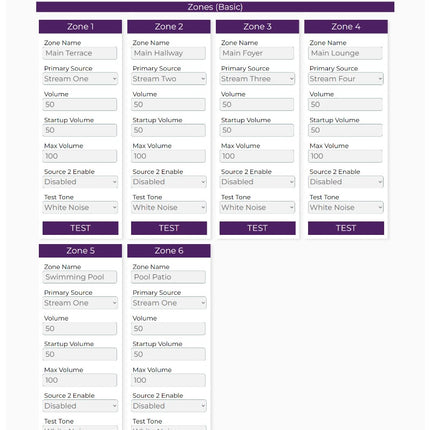

Configure and optimize DSP and matrix settings directly within Integration Designer or with the intuitive web user interface.

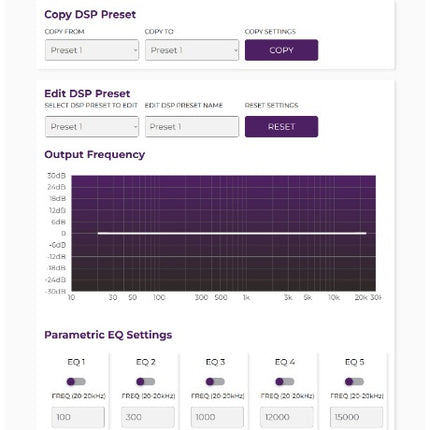

5-Band Parametric Equalizer
Fine-tune acoustic characteristics, correcting imperfections and tailoring sound to specific spaces.
Control
Use RTI or 3rd party control system with multiple control options: Two-way control with feedback via RS-232 and IP, or One-way control with infrared.
Auto Configuration
Configure and deploy the AD-46-100 with ease within RTI's Integration Designer platform.

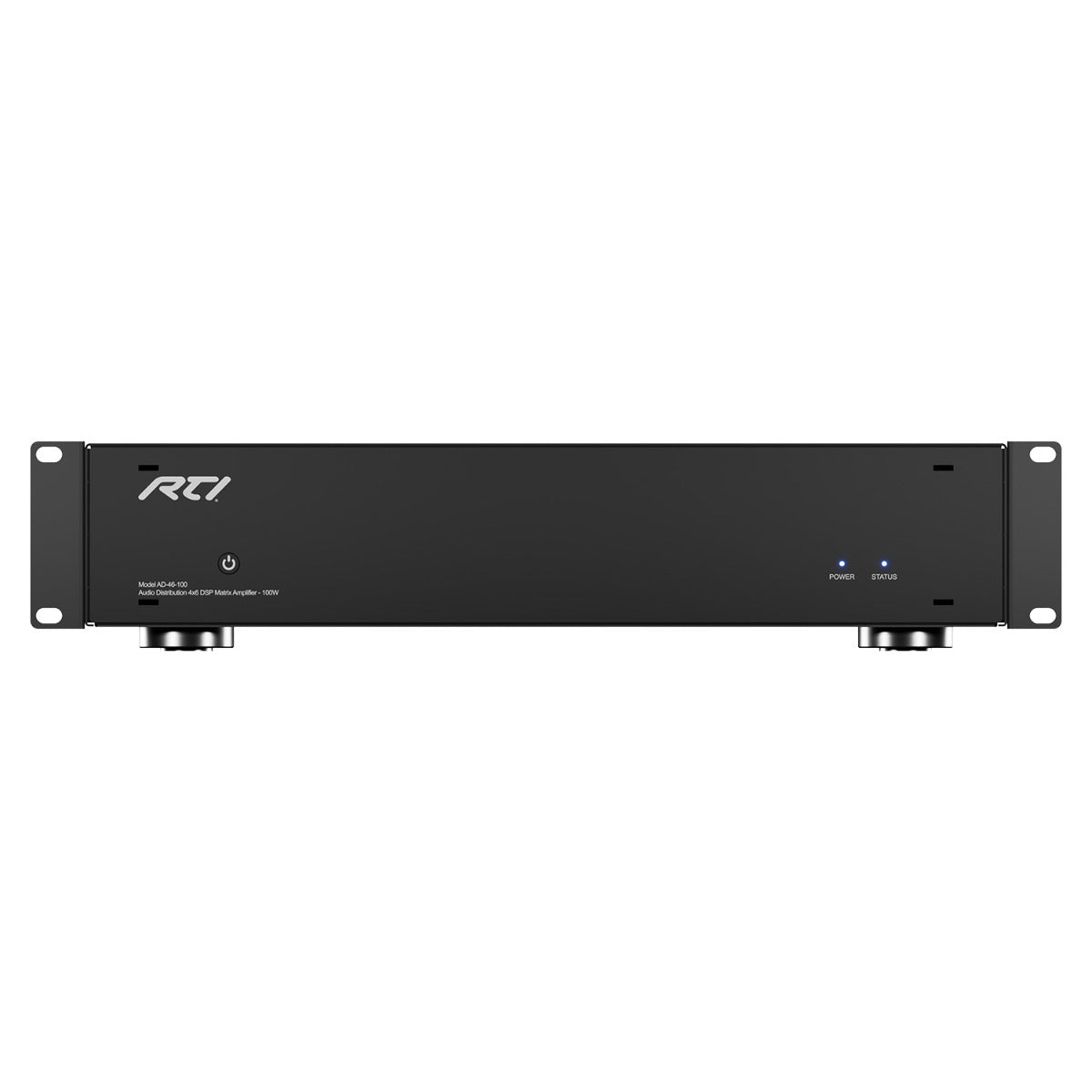

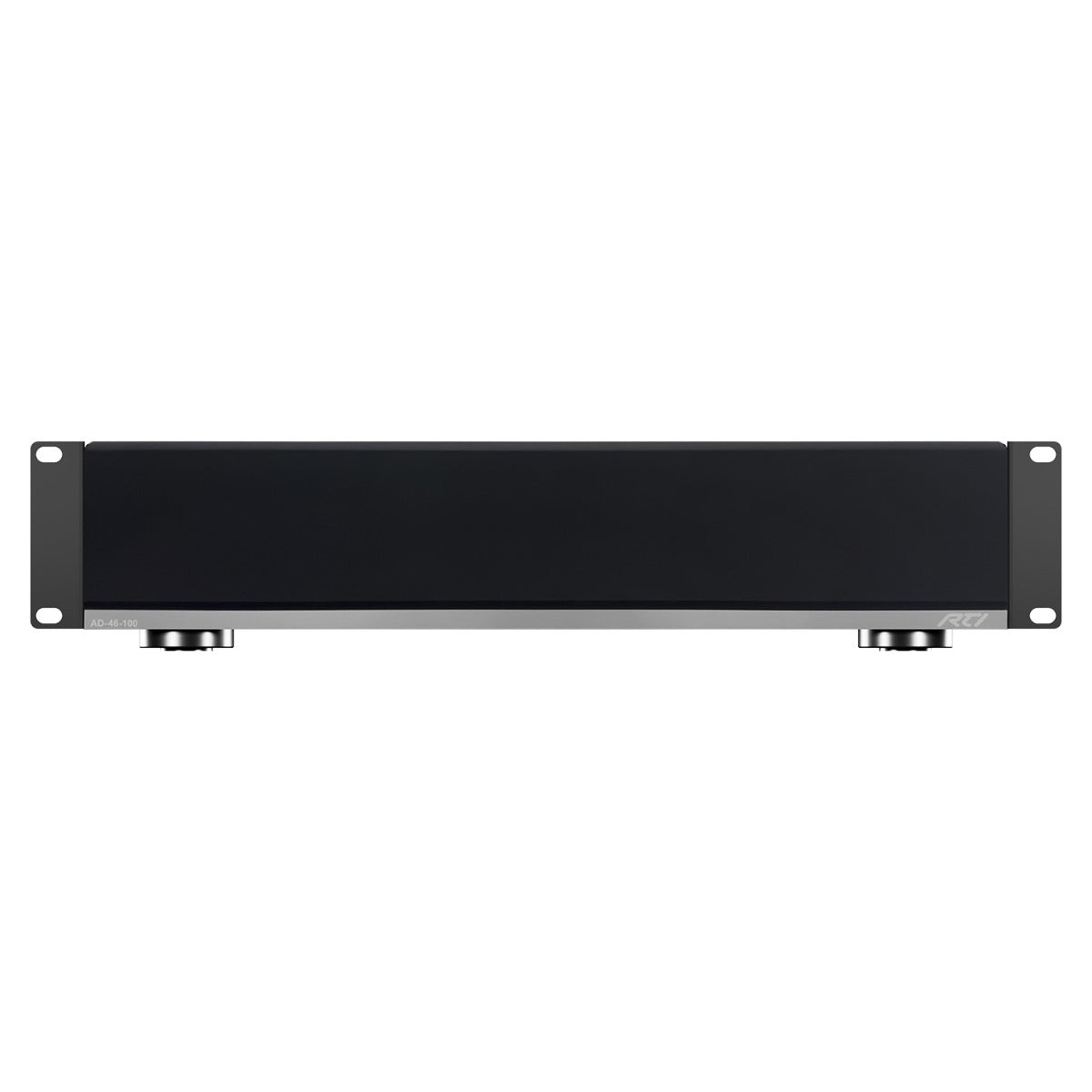

Mounting Options
Rack mount or free-standing installation with included rack ears and removable feet.
Rack mount or free-standing installation..

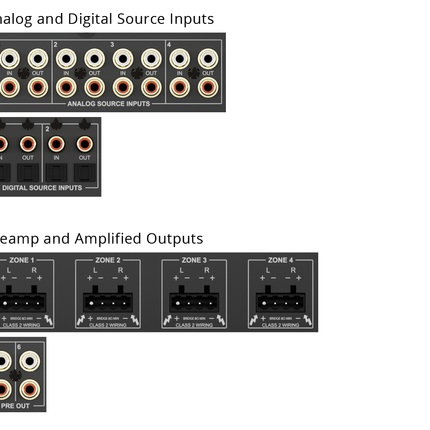

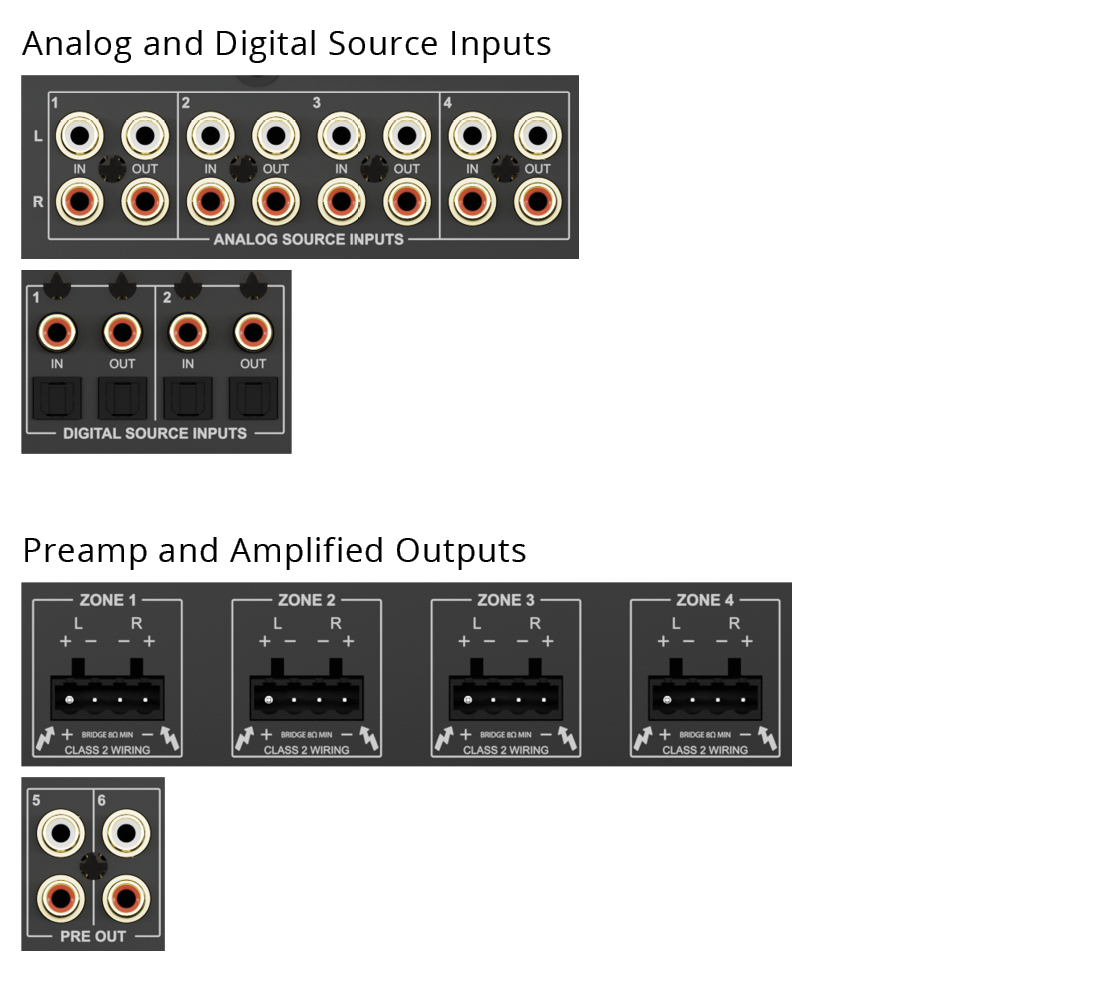

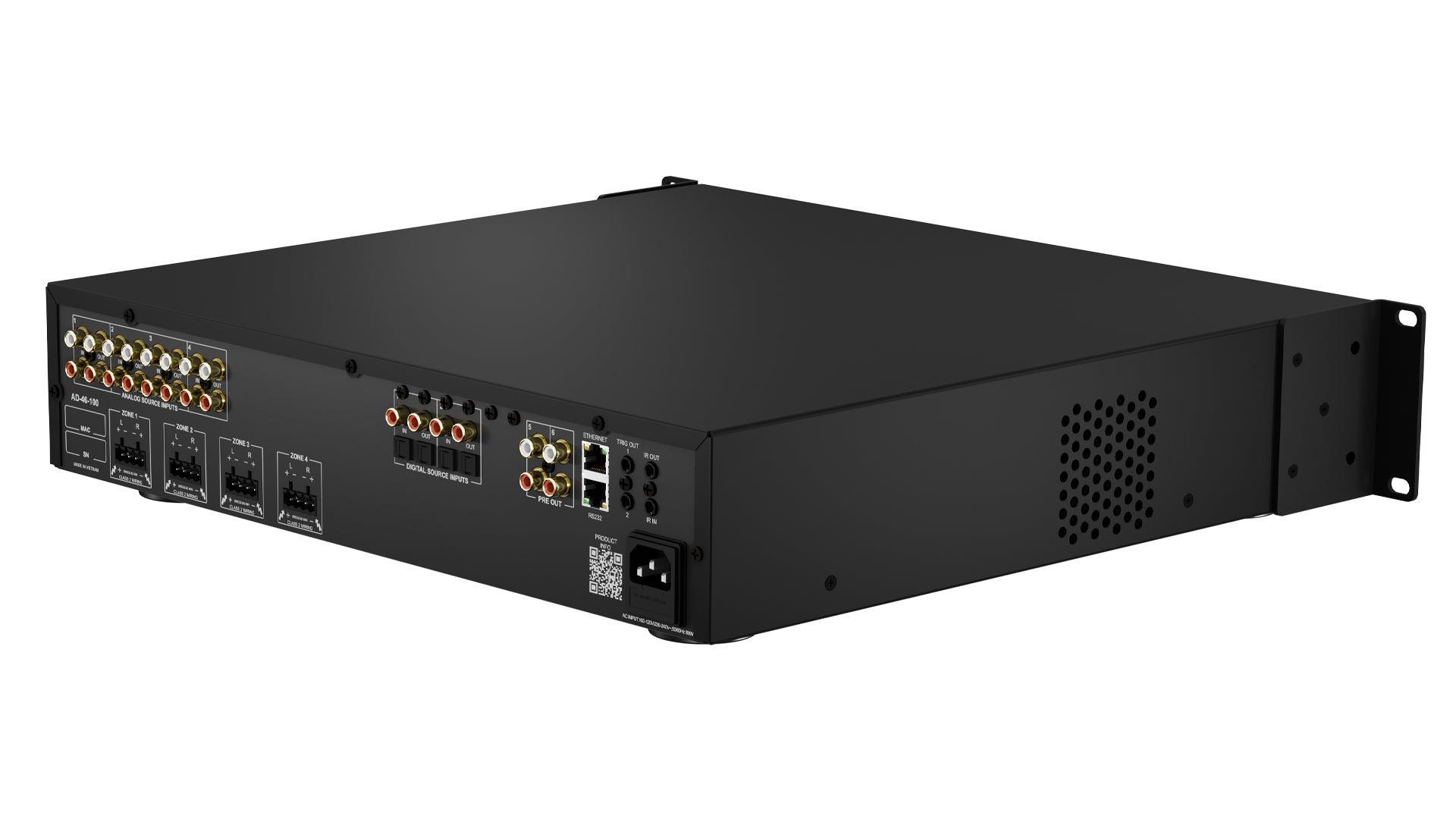

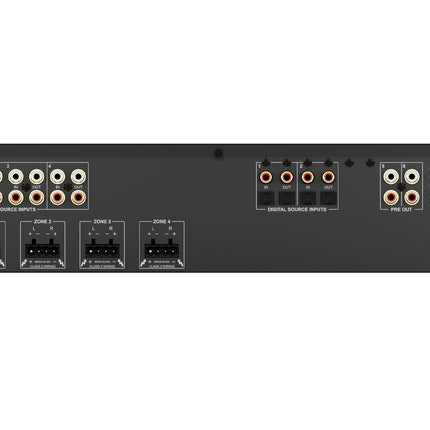

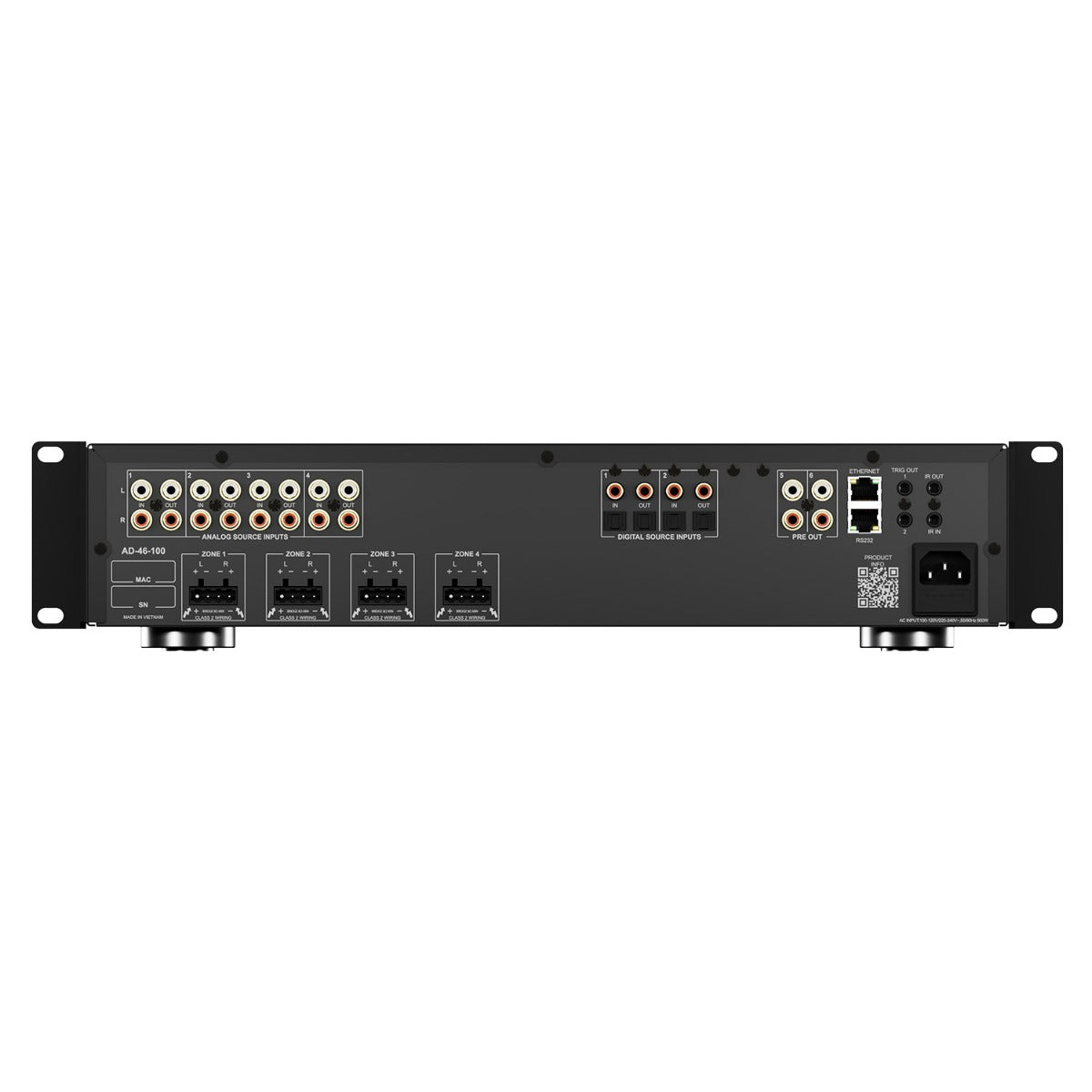

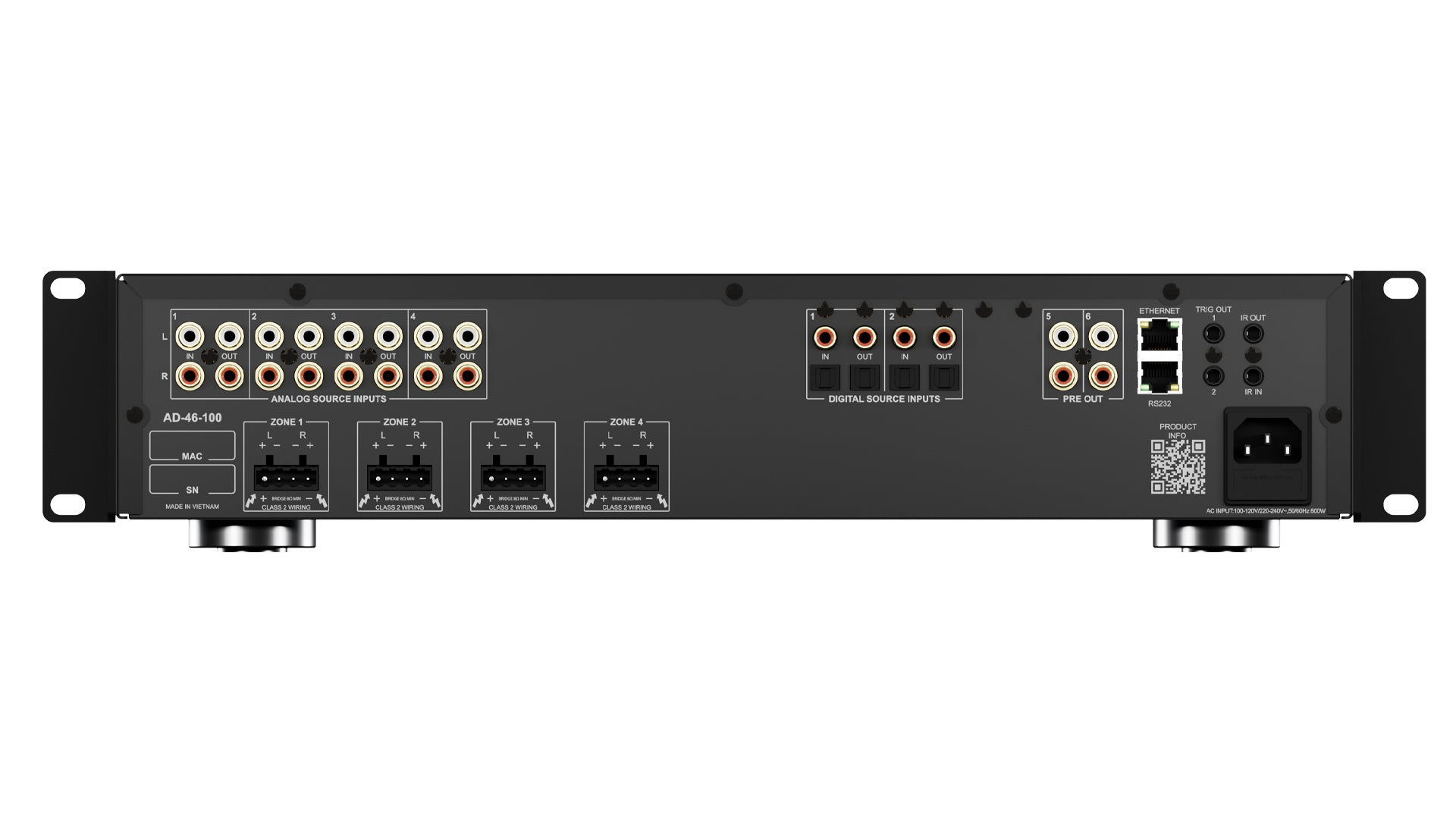

| General | |
| Analog Sources | 4 RCA (Stereo) |
| Digital Sources | 2 Coax and 2 Optical (Mirror Analog 1 & 2) |
| Loop Out | 4 Analog + 2 Digital |
| Amplified Zones | 4 Stereo (16 Channels) |
| Preamp Zones | 2 Stereo or 4 Mono (4 Channels) |
| Audio Zone Expansion | Up to 48 zones by combining up to 8 AD-46-100 units |
| Input Impedance | 20 kΩ |
| Amplifier | Class D |
| Power Output (8 Ω) | 50 W/Ch (all channels driven) |
| Power Output (4 Ω) | 100 W/Ch (all channels driven) |
| Power Output (Bridged) | 200 W/Ch bridged (8 Ω) (all channels driven) |
| Volume Range | 0-100 (-80dB - 0 dB) |
| Digital Optical Input | Up to 192 kHz/24-bit sample rate. PCM only |
| Digital Coaxial Input | Up to 192 kHz/24-bit sample rate. PCM only |
| THD+N | N: THD+N <0.01%, 1 kHz @ 1/8 rated power THD+N <0.05%, 20 Hz to 20 kHz @ 1/8 rated power |
| Signal-to-Noise Ratio | SNR: >95 dB, A-weighted input to output @rated power @Amp >100 dB, A-weighted - input to output @ preamp out |
| Frequency Response | 20 Hz "“ 20 kHz +/- 2 dB @ 4 Ω and 8 Ω |
| Dynamic Range | >95 dB A-weighted |
| Sampling Frequency | 48 kHz |
| RTI or 3rd Party Control | IP (RJ45), RS-232 (RJ45) and IR (3.5 mm mono) |
| Input Voltage | 100 V to 120 V/ 220 V to 240 V~, 50/60 Hz, 800 W |
| Power Switch | Front Panel On/Off with LED power indicator |
| Mounting | Rack-mount or free-standing |
| Dimensions (Unit) | W × D × H: 437 × 89 × 416.5 mm (17.2 × 3.5 × 16.4 in.) |
| Weight (Unit) | 22.88 lb. (10.38 kg) |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Warranty | 3 years (parts & labor) |
| Prop 65 | This product contains Butadine which is listed on California's Safe Drinking Water & Toxic Enforcement Act of 1986. This Act, commonly known as Proposition 65 (Prop 65), establishes a list of chemicals which the state of California's risk assessment process has determined to present a risk of cancer, birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ports | |
| Analog Input | 2 Vrms Maximum |
| Analog Output | 2 Vrms Maximum. Volume controlled |
All features and specifications subject to change without notice.
Included in the box:
- AD-46-100 4x6 DSP Matrix Amplifier
- AD-46-100 Faceplate
- Power Cord (1)
- Rack Ears with Screws (4)
- 4-pin Phoenix Connectors (4)
- Feet with Screws (4)
