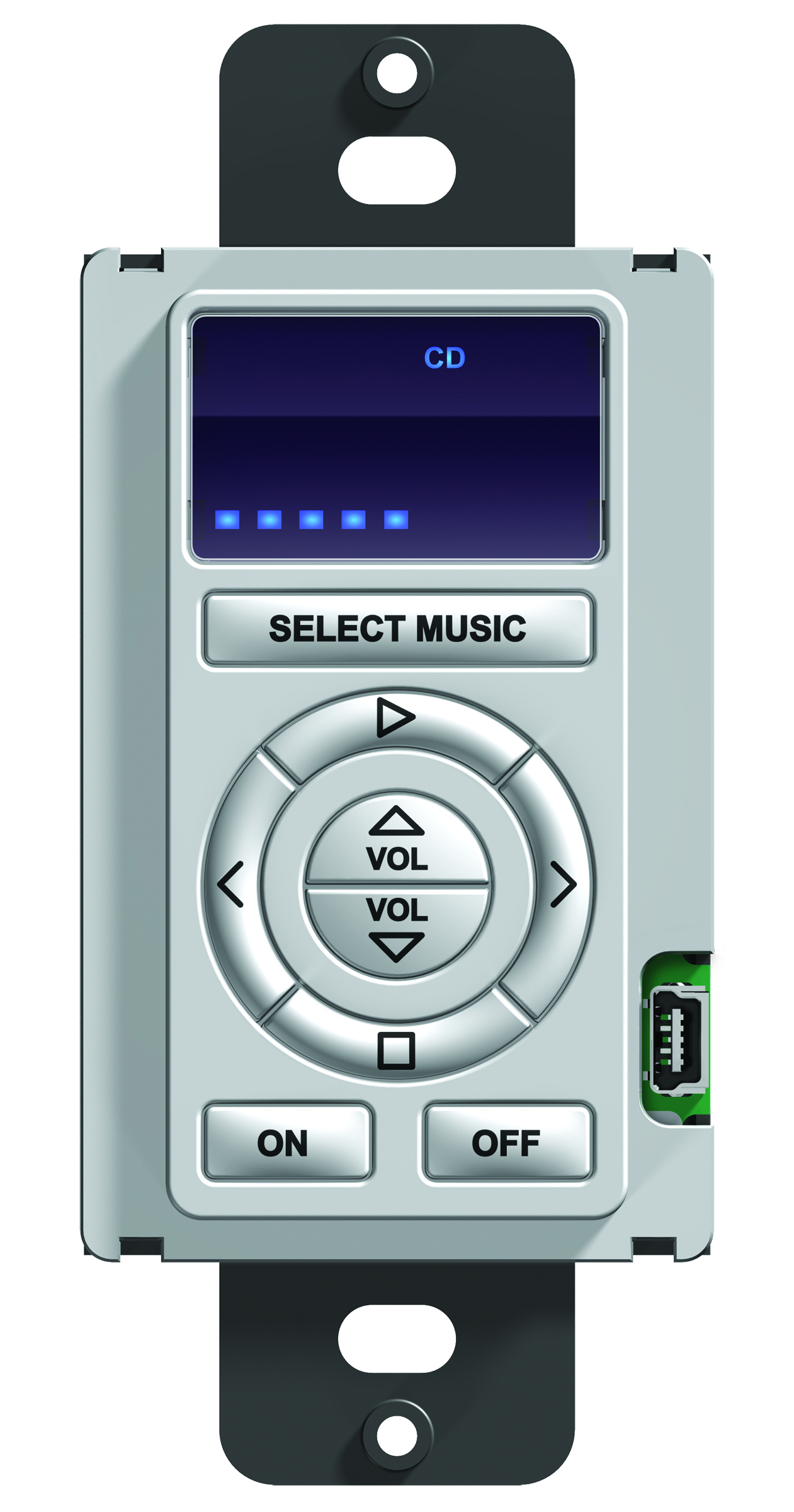

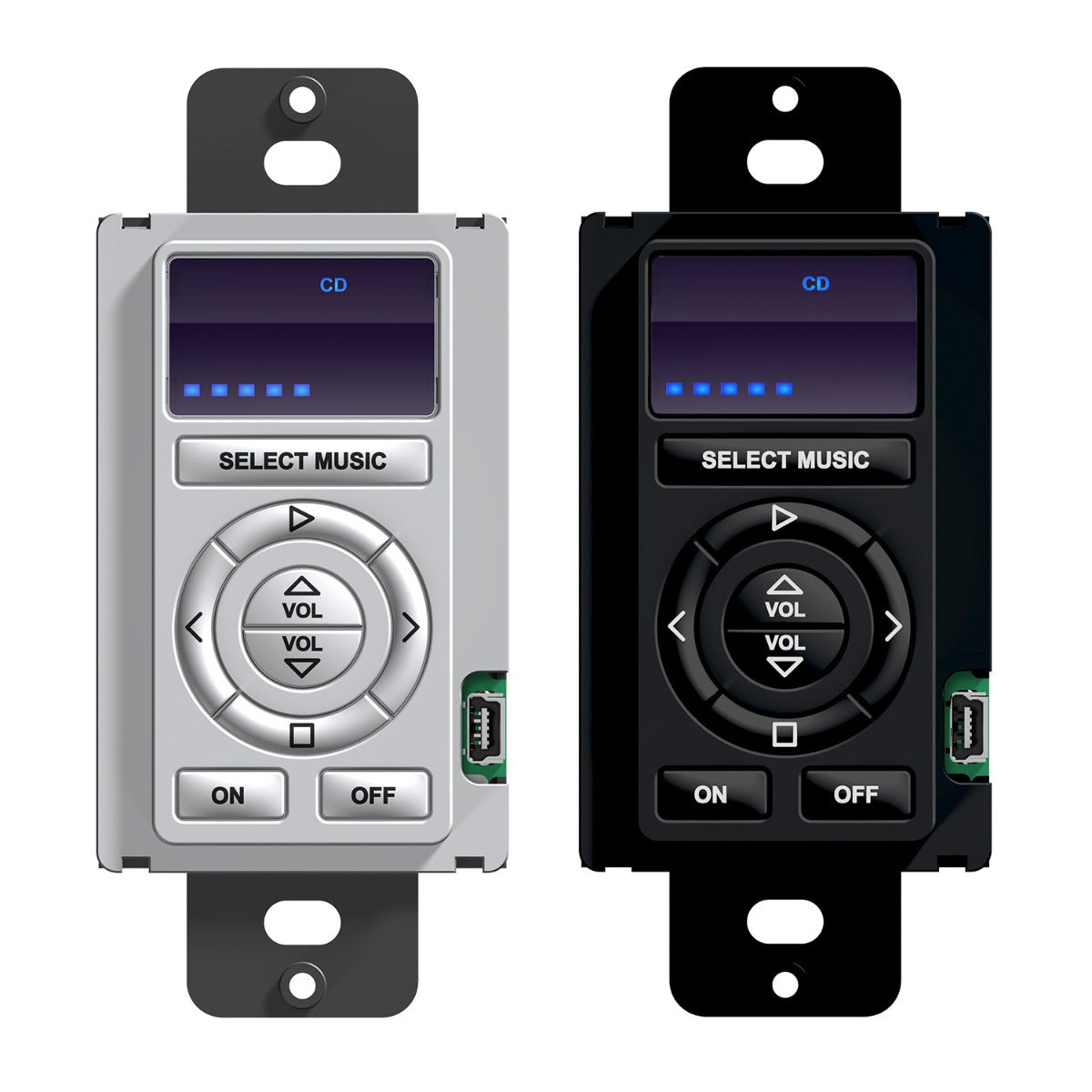

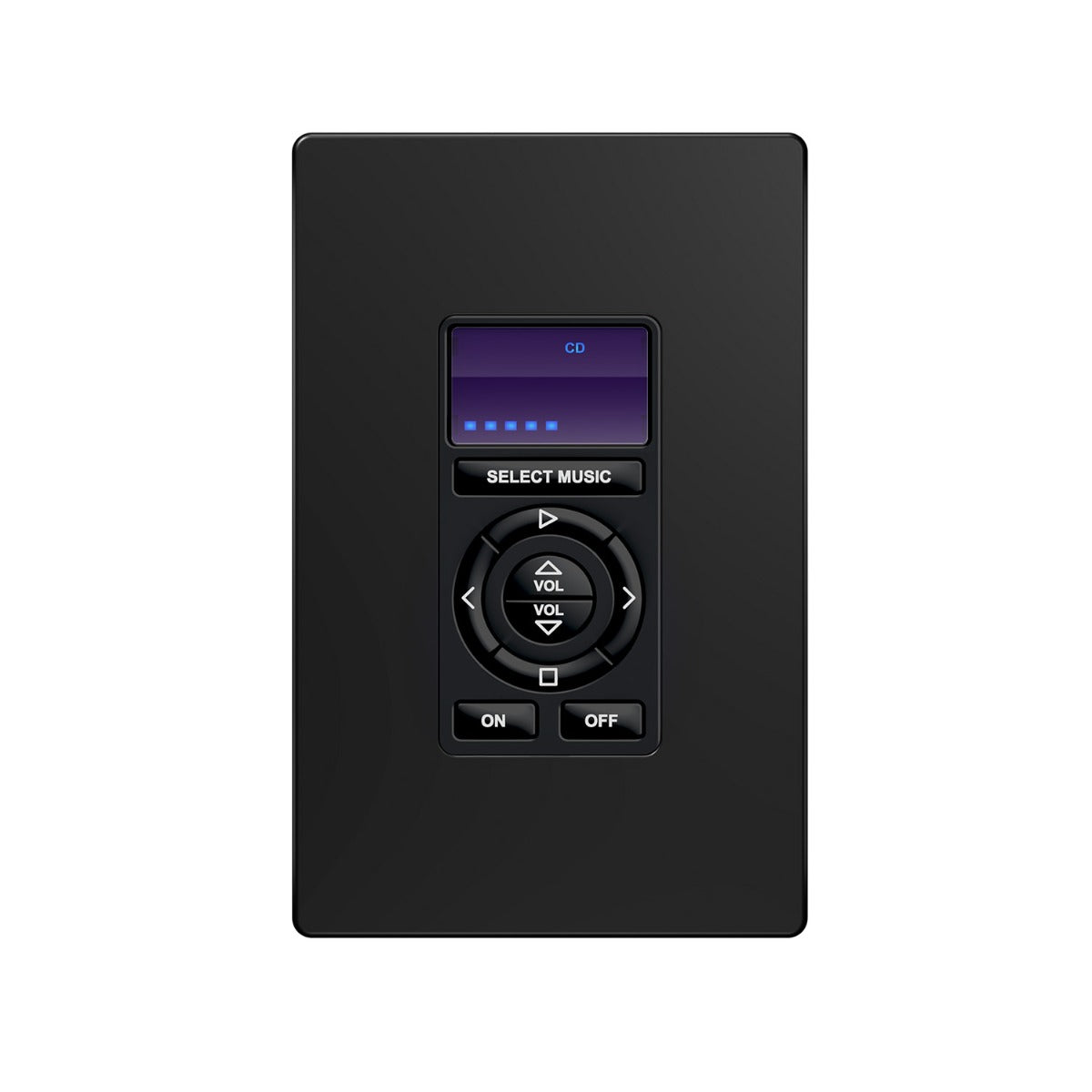

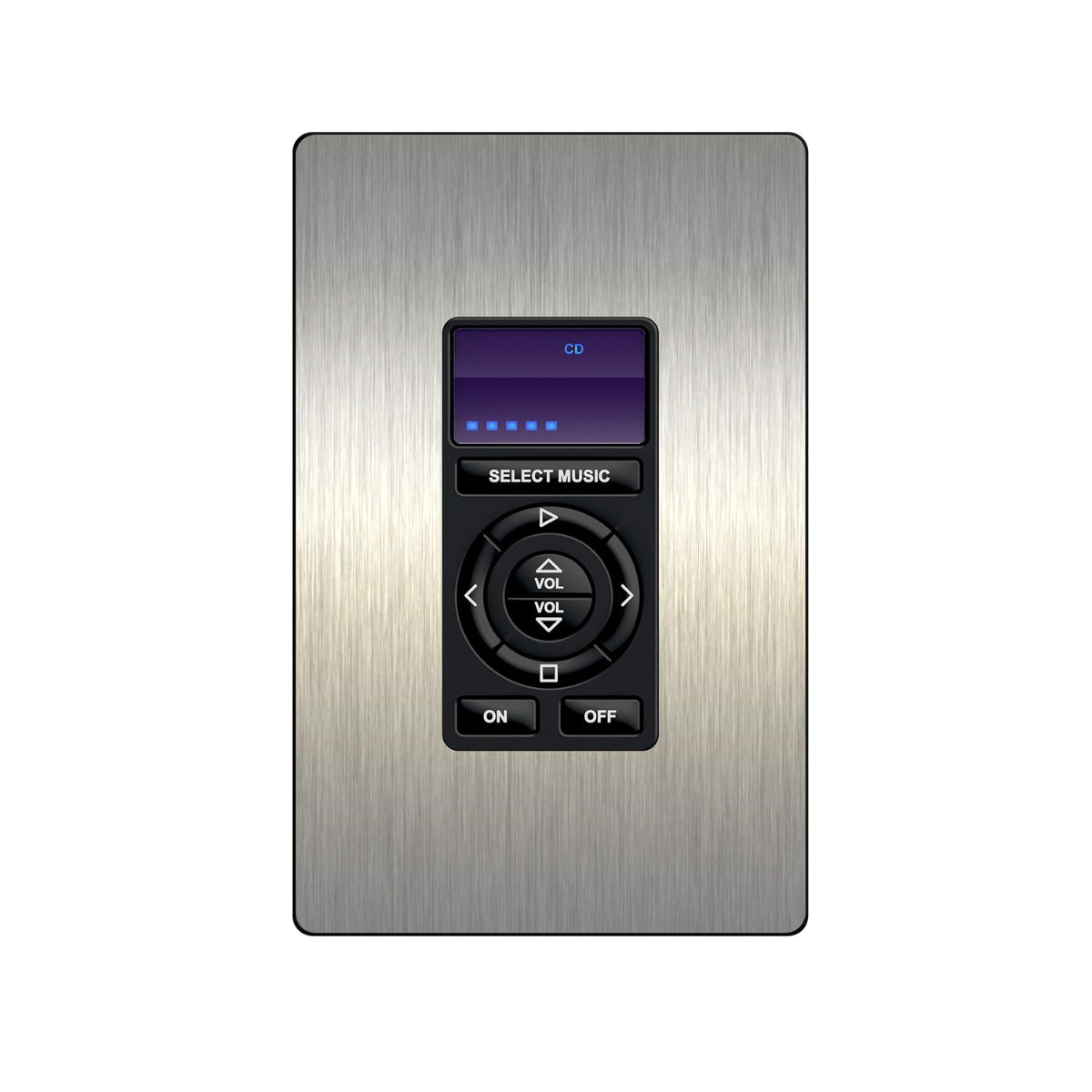

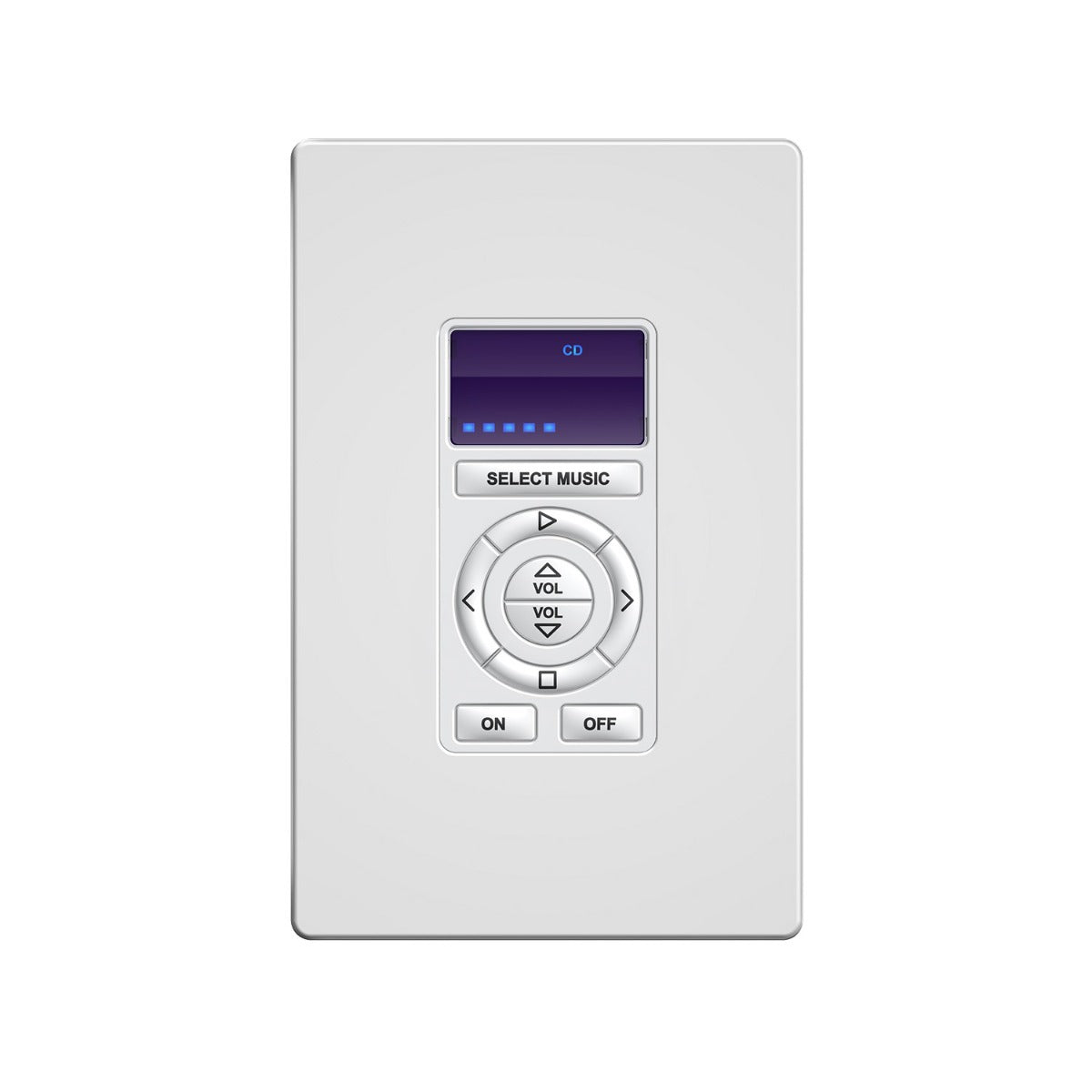

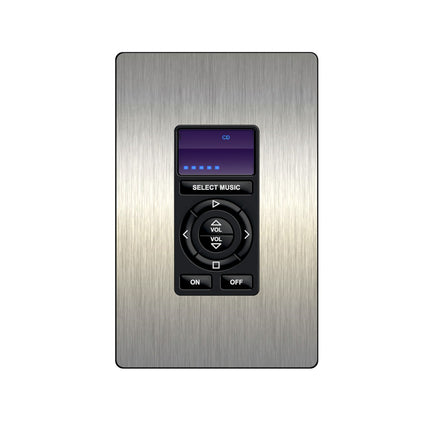

RKM-1+ In-Wall Audio Distribution Keypad
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
In-Wall
Blend your flush-mount keypad into the wall and use it for simple control of your home or business.
Buttons
Nine buttons provide quick access to control functions such as lights, music, audio/video source selection.
2-Way / Status Display
Control intuitively with the buttons of your keypad and get status feedback from controlled devices on the status display such as on/off or arm/disarm status, dimming value of lights, selected audio/video source.
RS-232
Control devices directly without a control processor by connecting a CPB-1 Control Block .
Infrared
Control infrared devices directly without a control processor by connecting IR emitters blasters or repeaters.
RTI Control Port
Power your keypad by connecting the control port to a CB-8 Connecting Block and establish two-way control communication with RTI processors and accessories.
Laser Shark
Customize the button labels with text or graphics.
1-Gang
Mount your keypad conveniently in a standard US single gang wall box.

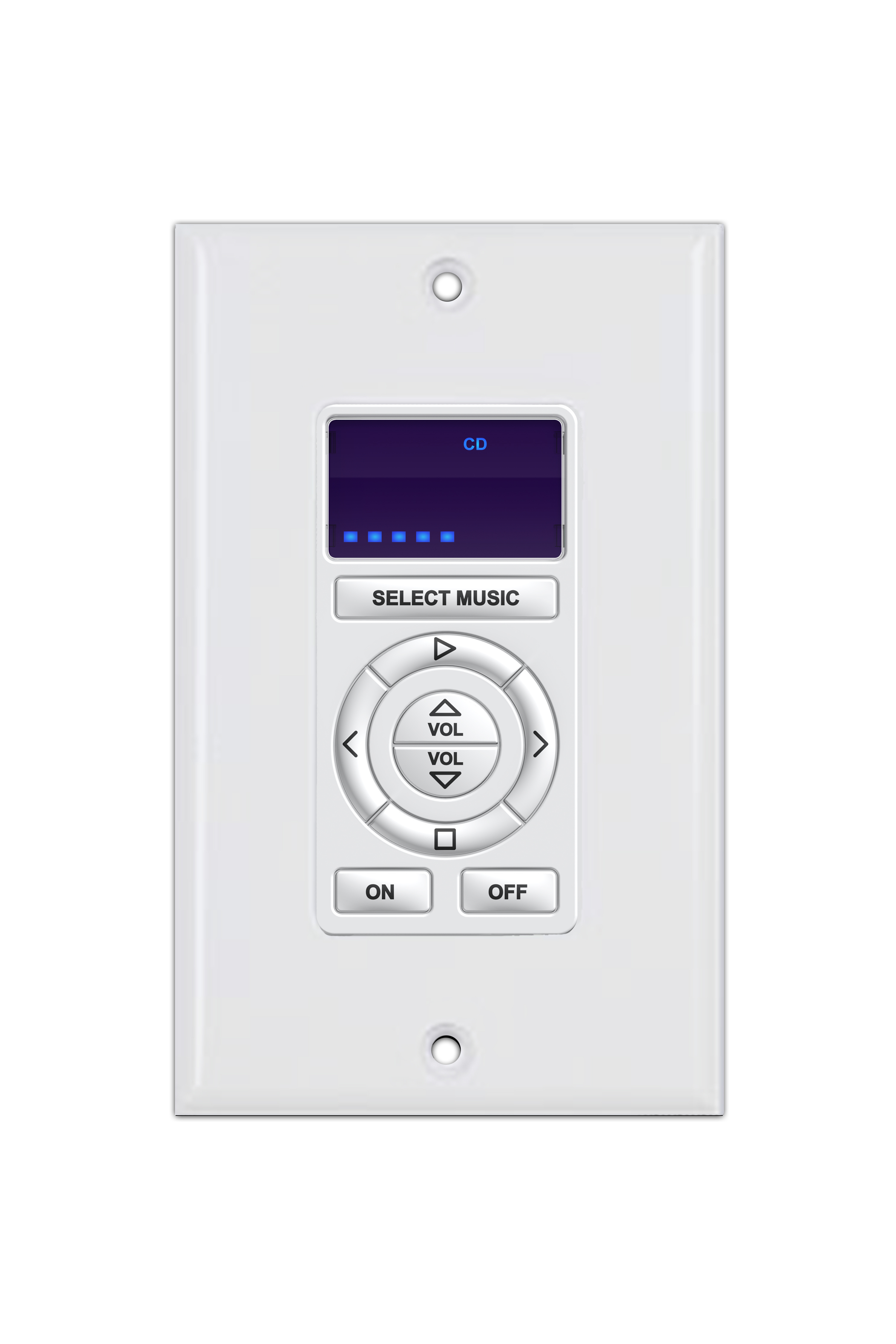

Use any standard Decora® type faceplate (sold separately).
Fits in a single gang outlet box.
Eight selectable sources.
Backlit volume level indicator.
Customizable LED backlit film source indicator.
Completely customizable and programmable.
USB Programming.
| General | |
| Power | +9 VDC to +16 VDC, 350 mA max |
| Display Backlight | Blue LED - Eight sources Blue LED - Nine volume level indicators |
| IR Transmit | Put Port: 200 mA output Drives up to 1000 ft. (300 m) of wire |
| Total System Memory | 64K Bytes Flash (non-volatile) memory |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | Formed steel, black powder coat |
| Front Plate | High-impact molded ABS plastic, white |
| Mounting | Mounts into single gang box |
| Dimensions (Unit) | Bezel: Purchased separately (Decora Type) W × D × H: 46 × 25 × 104 mm (1.8 × 1.0 × 4.1 in.) |
| Installation Cut-Out | H x W: 2.8 in (71 mm) x 1.8in (46 mm) |
| Total Depth in Wall | 0.75 in (19 mm) Plus Cables |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Weight (Unit) | 4 oz. (113 g) |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
Included in the box:
- RKM-1+ In-Wall Audio Distribution Keypad (white)
- Additional Keypad Cover
- Keycap Set
- Mute & Power Buttons (1 each - black & light almond),
- Window Film (1 clear, 1 transparent purple)
- Label Sheet
- Screws (2)
