KP-8 - 8 Button In-Wall PoE Keypad Controller
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Programmable Buttons
8 buttons provide quick access to control functions such as lights, shades, music, and audio/video source selection.
In-Wall
The flush-mount keypad design enables easy control of frequent home or business activities.
Ethernet
Use the existing standard home or corporate network infrastructure to connect the KP-8 keypad to the RTI processor.
PoE Powered
Use any PoE network switch to power the KP-8 keypad over the same network cable that runs control communication with the RTI processor.
2-Way with Control Status Feedback

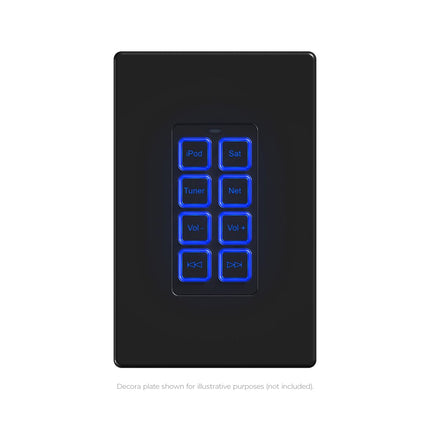

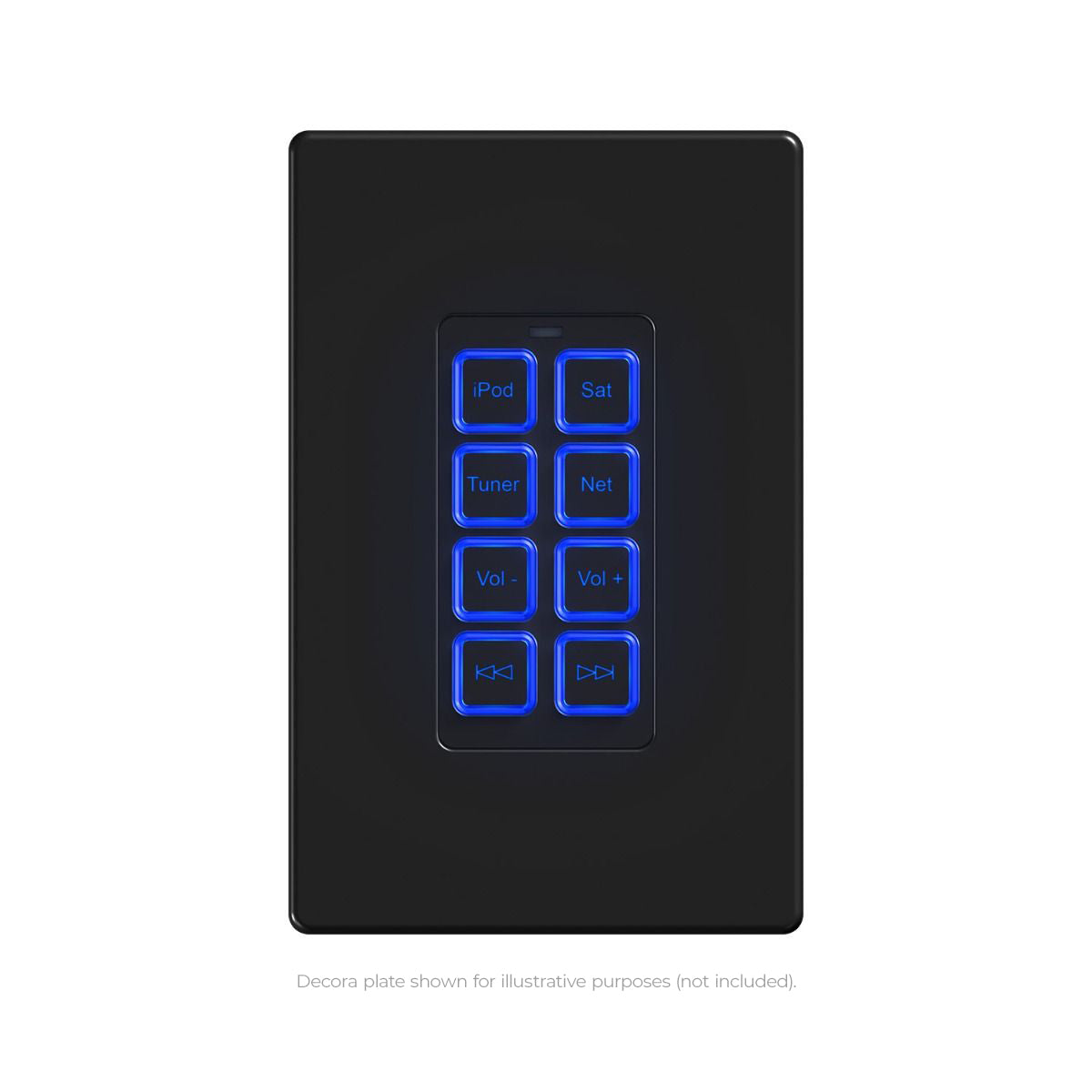

Intuitive control is elevated with status feedback via the programmable button backlight colors.
Ambient Light Sensor
Adjusts the backlight brightness automatically depending on the ambient light.
Custom Engraved Keypad Buttons
For an elevated look and even more intuitive control experience, use RTI Laser Shark TM engraving service to customize the key caps with text and graphics.
Free Laser Shark engraving for one (1) keycap set.
Fits in a single gang electrical outlet box.
Network or USB Programming.

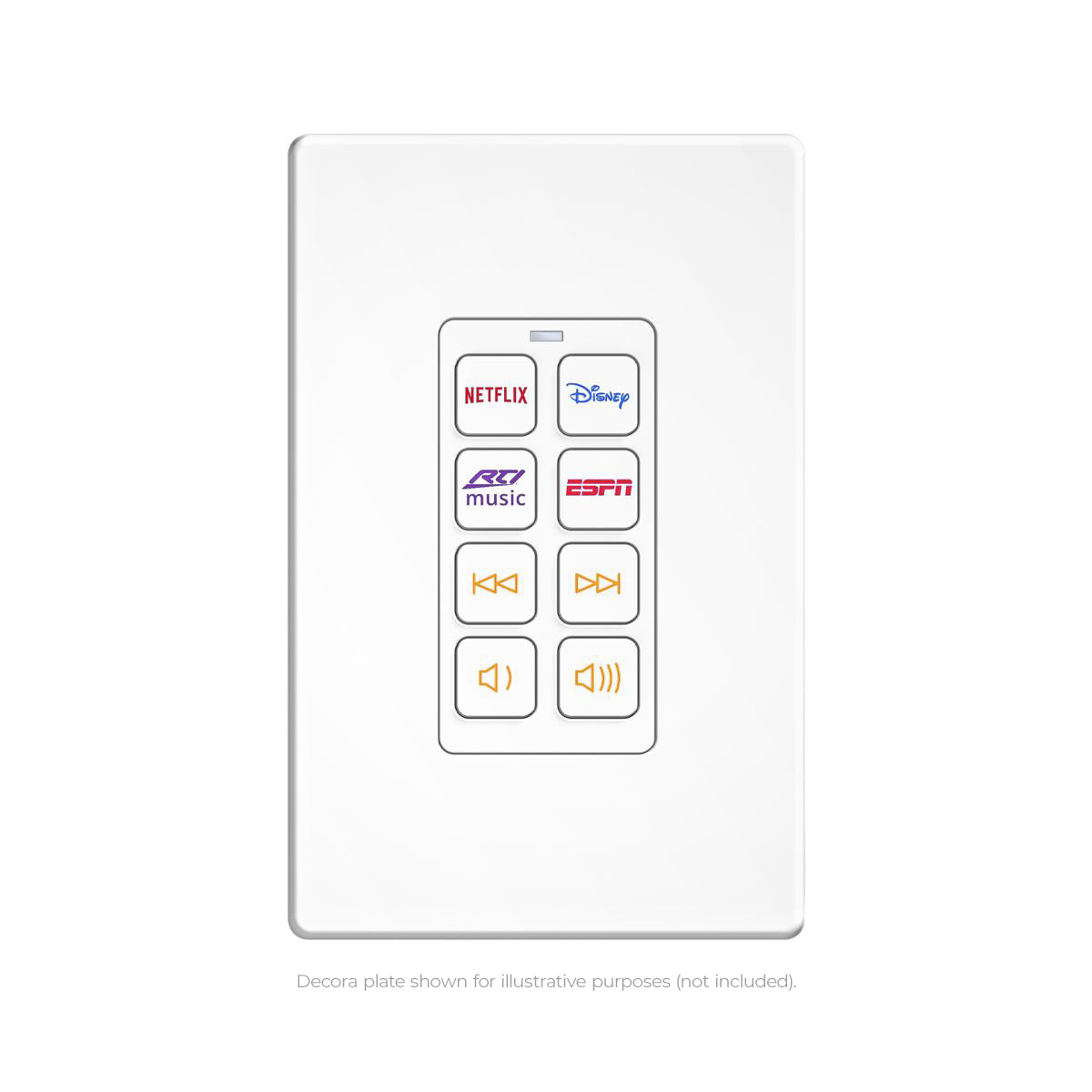

Use any standard Decora® type wallplate (not included).
| Power | PoE IEEE802.3af |
| Backlights | RGB LED - 16 programmable colors |
| Control Port | 10/100 BaseT with Power over Ethernet |
| Total System Memory | 512k Bytes Flash (non-volatile) memory |
| Macro Capability | Macro capability on every button |
| Communications | USB Type C programming port |
| Enclosure | Formed steel, black powder coat |
| Keypad Frame | High-impact molded ABS plastic, white |
| Mounting | US standard single-gang box |
| Front Plate Dimensions (H x W) | 4.6" x 2.75" (117 mm x 70 mm) Purchased separately (Decora® Type) |
| Dimensions (H x W x D) | 4.1" x 1.8" x 1.7" 104 mm x 46 mm x 43 mm |
| Installation Cut-Out (H x W) | 2.8" x 1.8" 71 mm x 46 mm |
| Total Depth in Wall | 1.37" (34 mm) plus cables |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Weight | 4 oz (113 g) |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
All specifications subject to change without notice.
Decora® is a registered trademark of Leviton Manufacturing Co. Inc.
Wallplate not included.
Included in the box:
- KP-8 In-Wall Keypad Controller

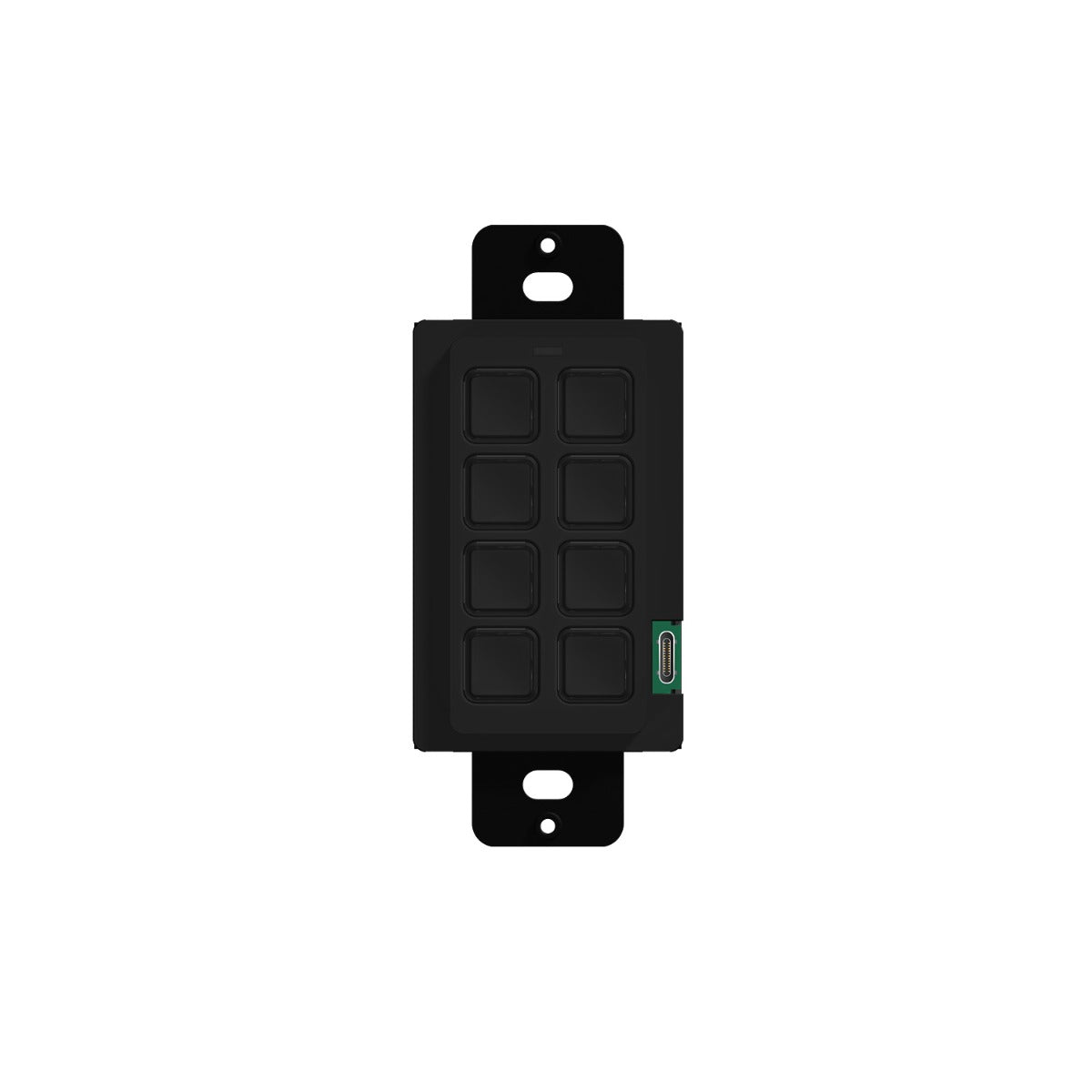

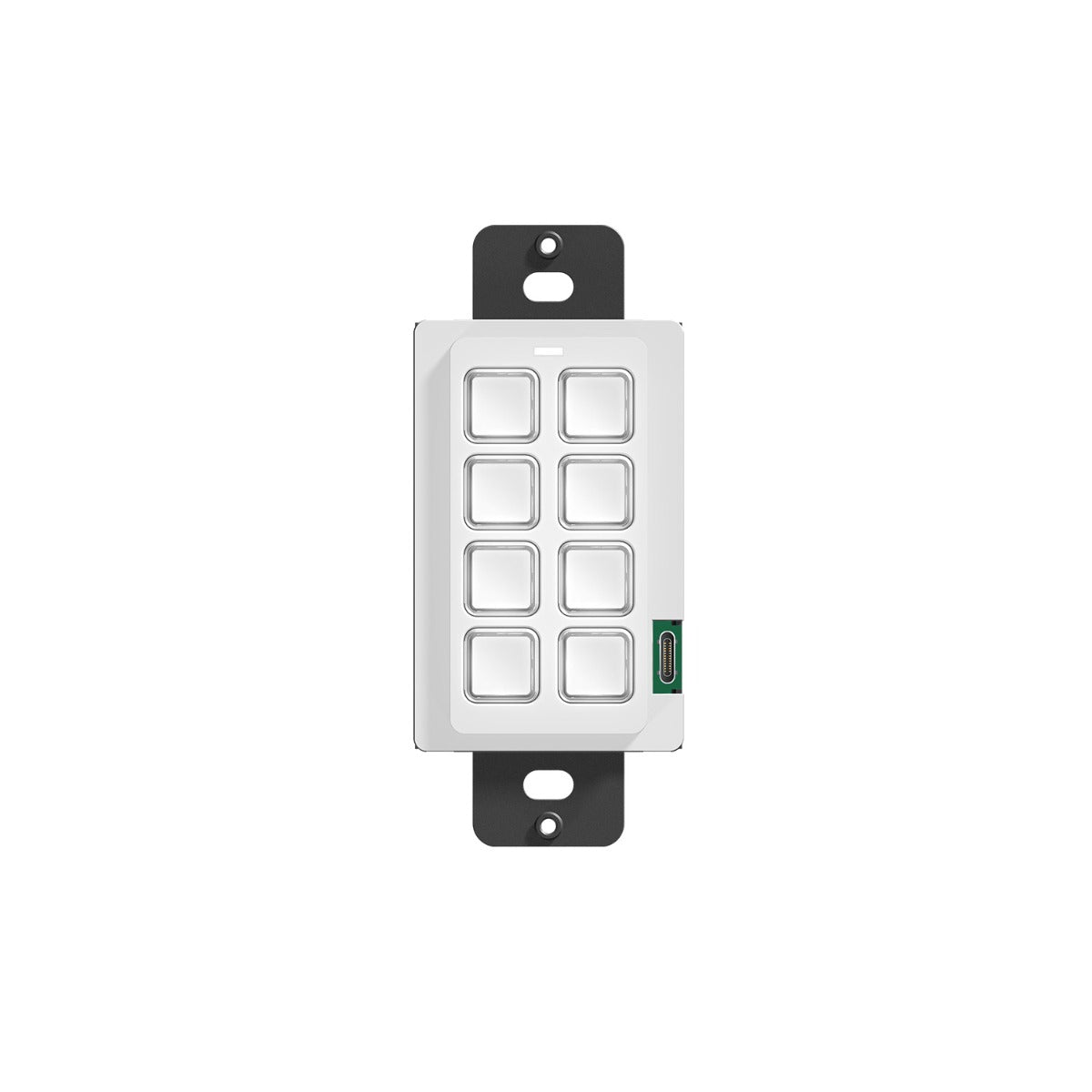

- Black and White keypad frames (2)
- Black and White Keycap Label Kits (2)
- Free Laser Shark engraving (1), use device's serial number for order code in the Laser Shark Software
- Screws (2)
