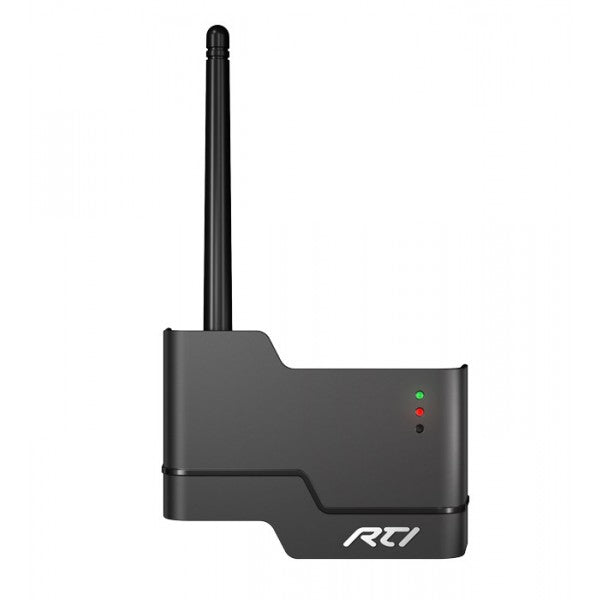

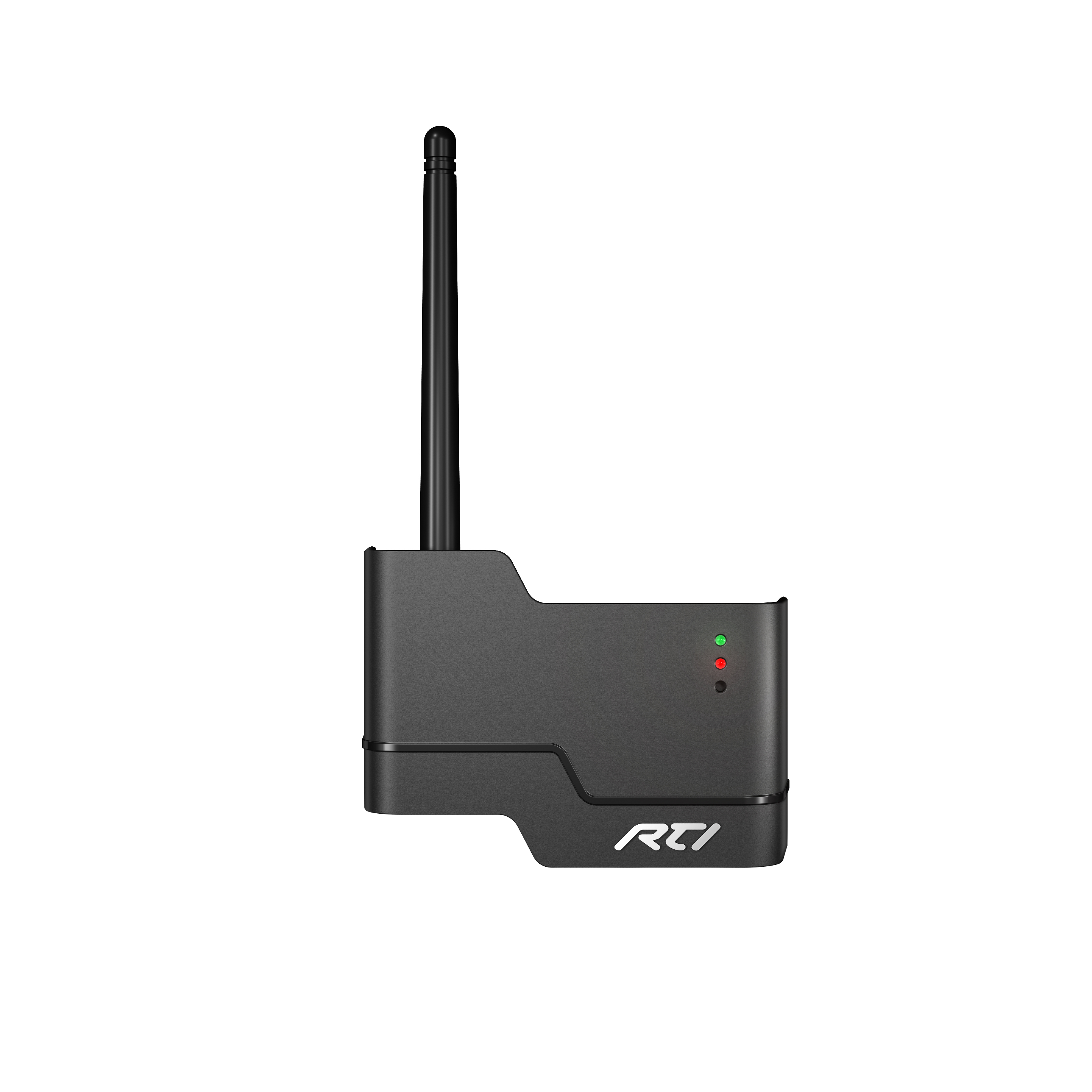

ZM-24 Zigbee Transceiver Module
- VendorRTI
ZM-24 Zigbee Transceiver Module
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Enables bi-directional Zigbee® communication.
Wireless Zigbee® communication range between ZM-24 modules up to 100 feet.
Connects to a central processor from up to 1000 feet away using standard Cat5 cable.
Multiple ZM-24's may be used when configured in "repeater" mode.
Utilizes IEEE802.15.4 wireless Zigbee® communication at 2.4Ghz.
Durable plastic enclosure and adjustable antenna.
Receives power from an RTI control processor or from the included power supply.
Durable plastic enclosure and adjustable antenna.
Easy mounting with a detachable wall bracket.
| General | |
| Power Requirements | +9 VDC to +16 VDC @ 60 mA |
| RTI COM Port | Two-way Zigbee® Communication Port, RJ45 Connection Drives up to 1000 ft. (300 m) of wire. |
| Wireless Networking | IEEE802.15.4 Zigbee® network compliant |
| RF Carrier Frequency | 2.4 GHz to 2.5 GHz |
| Device Capability | Total number of devices is limited only by memory |
| Communications | OTA (Over-the-air) Programmable |
| Enclosure | High-impact molded ABS plastic, black |
| Mounting | Detachable bracket |
| Dimensions (Unit) | Module - Antenna Extended: Axis order not stated: 89 × 184 × 28 mm (3.5 × 7.5 × 1.1 in.) |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Weight (Unit) | 4.4 oz. (125 g) |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
- Datasheet
- Manual
- Zigbee Installation and Troubleshooting Guide
- Zigbee Installation and Troubleshooting Online Guide
- CE Certificate
- Declaration of Conformity
- Dimensional Drawing
Included in the box:
- ZM-24
- Power supply (12V, 1A)
- Installation bracket
- Drywall screws/anchors (2)
- Antenna
- CAT5e RJ45 cable (6ft)
- Operation guide
