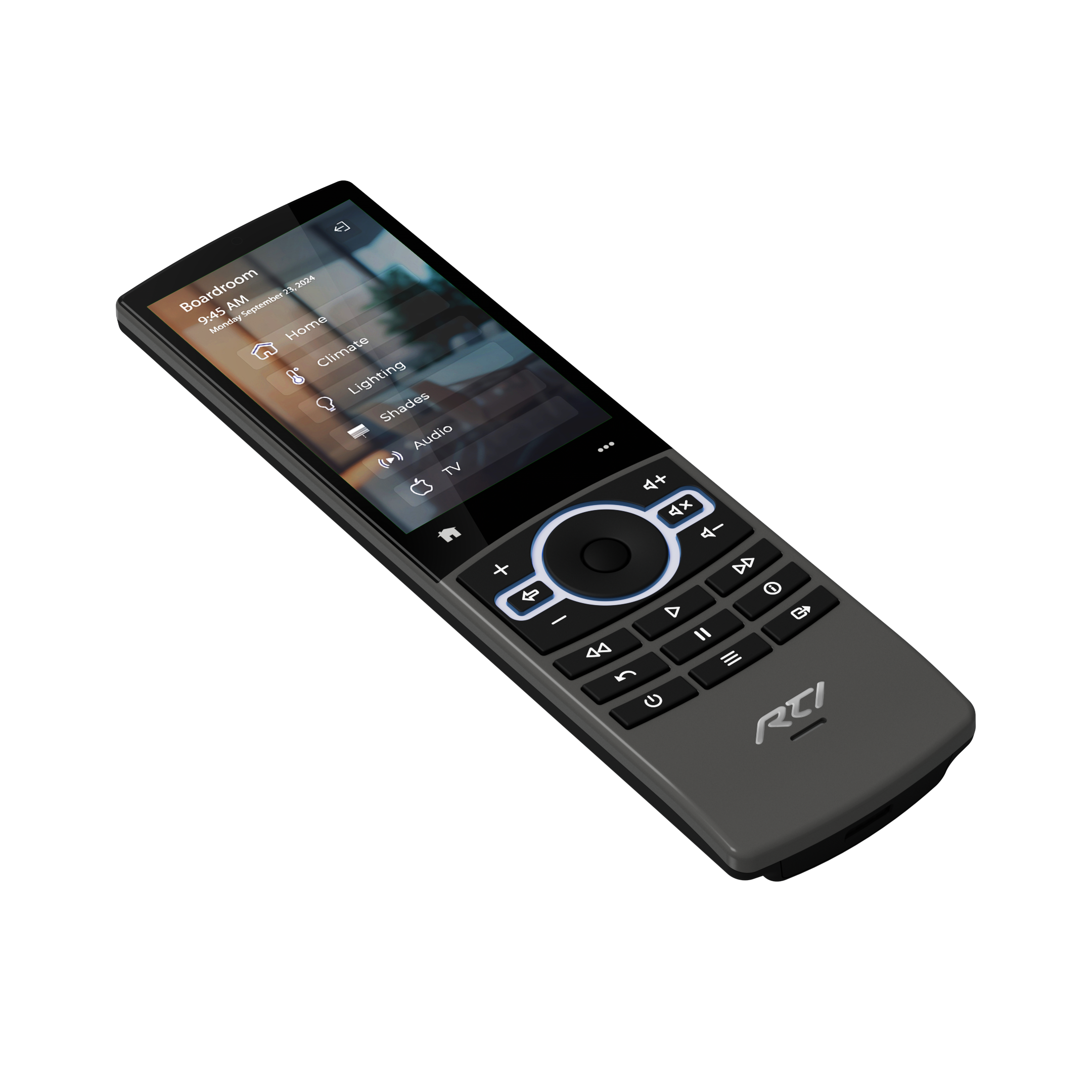

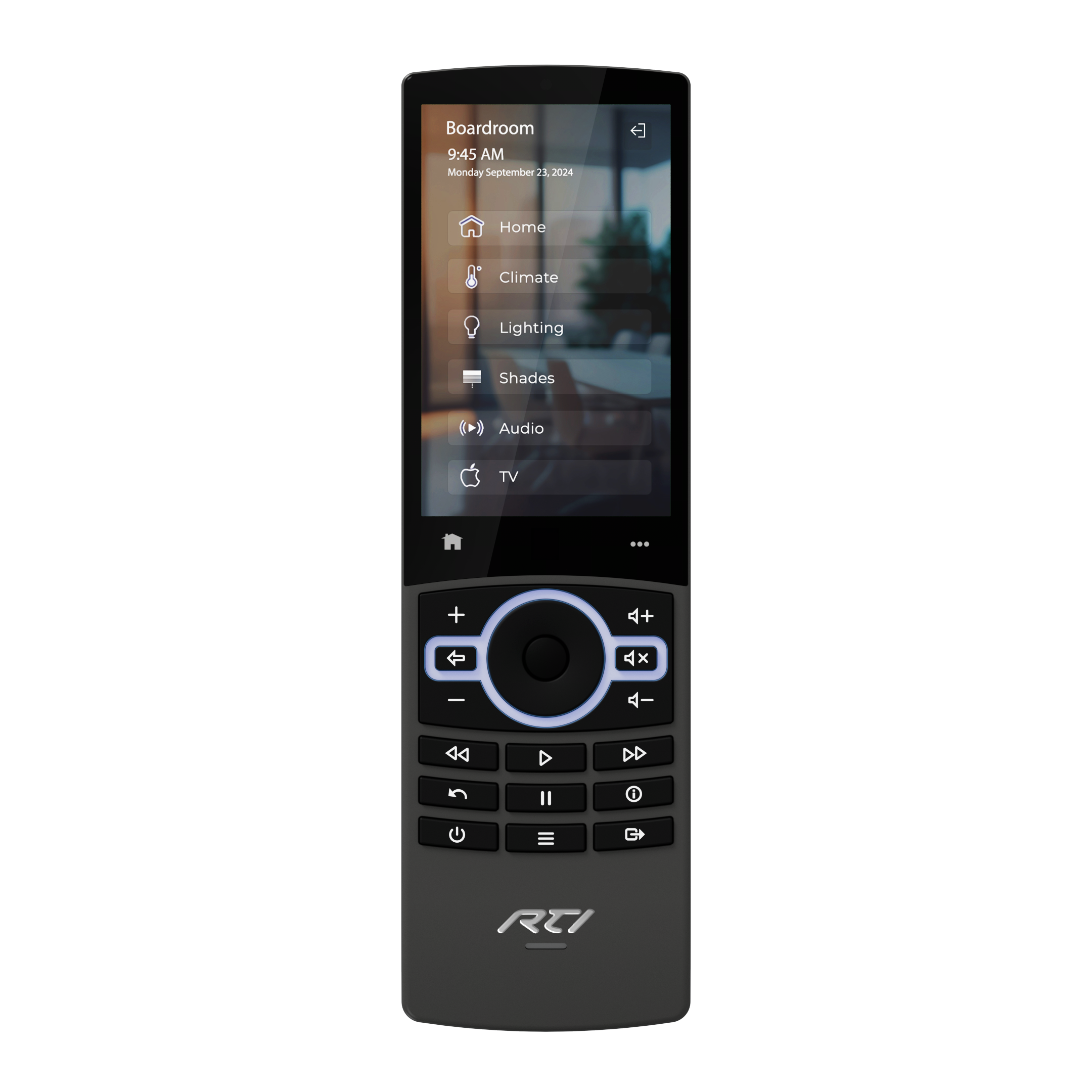

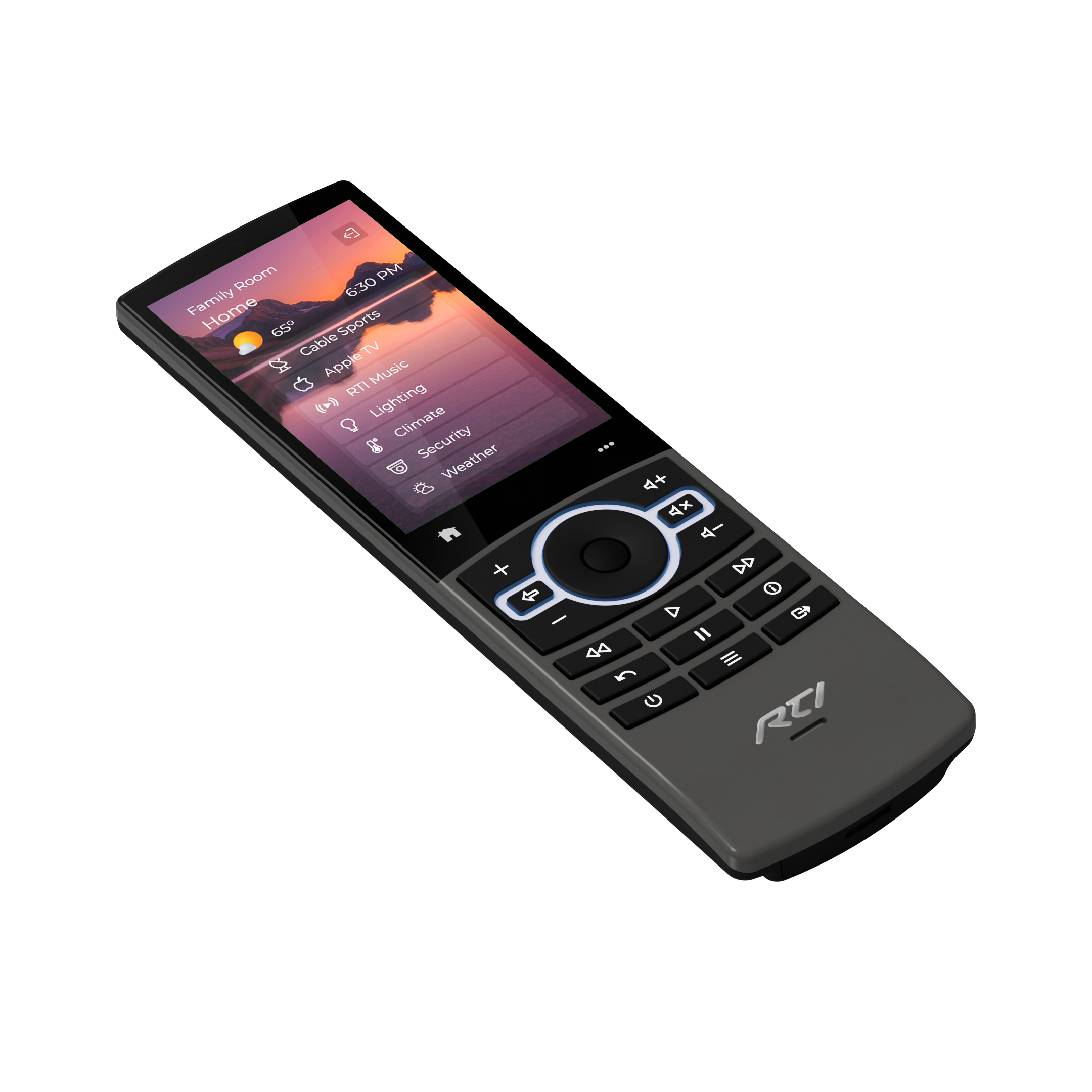

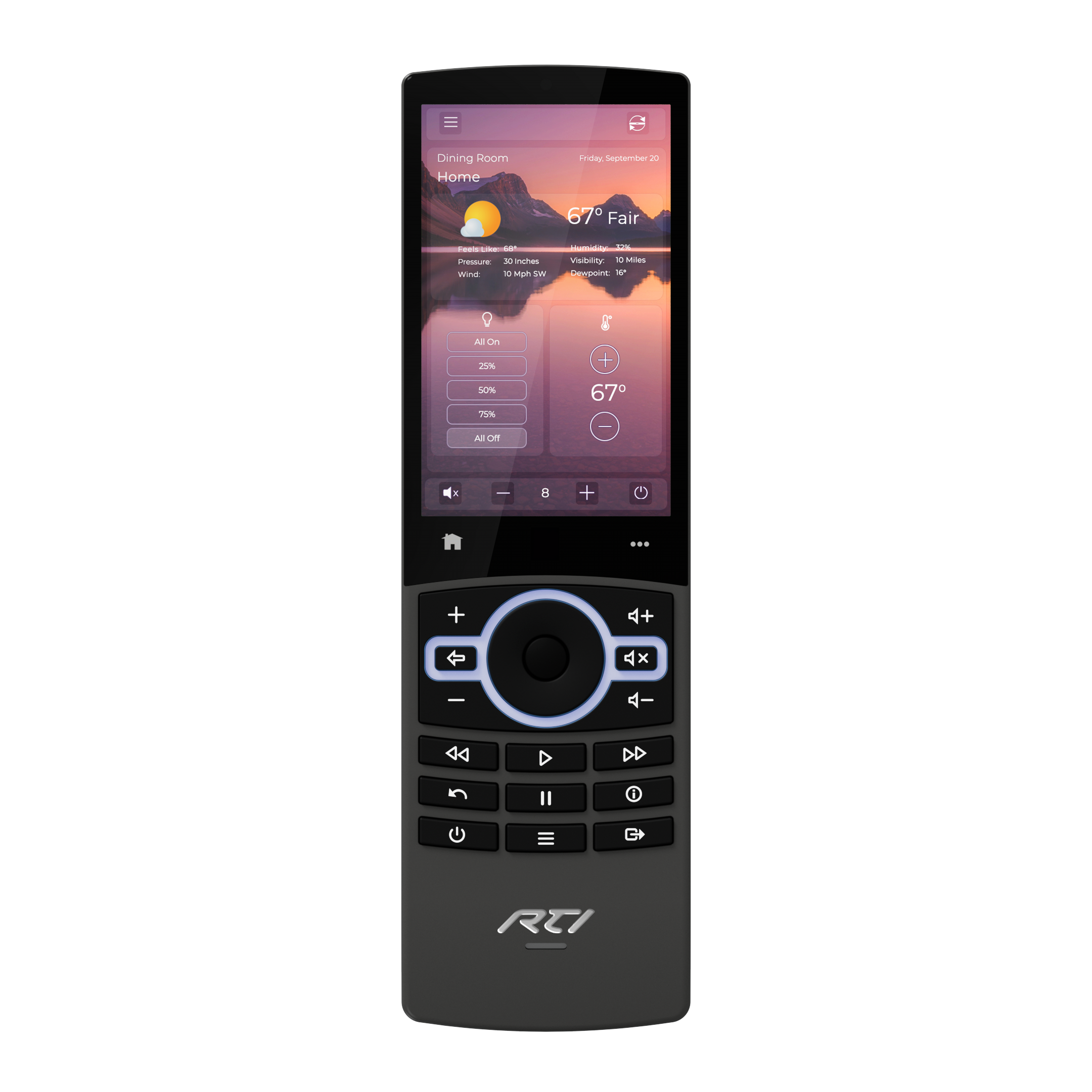

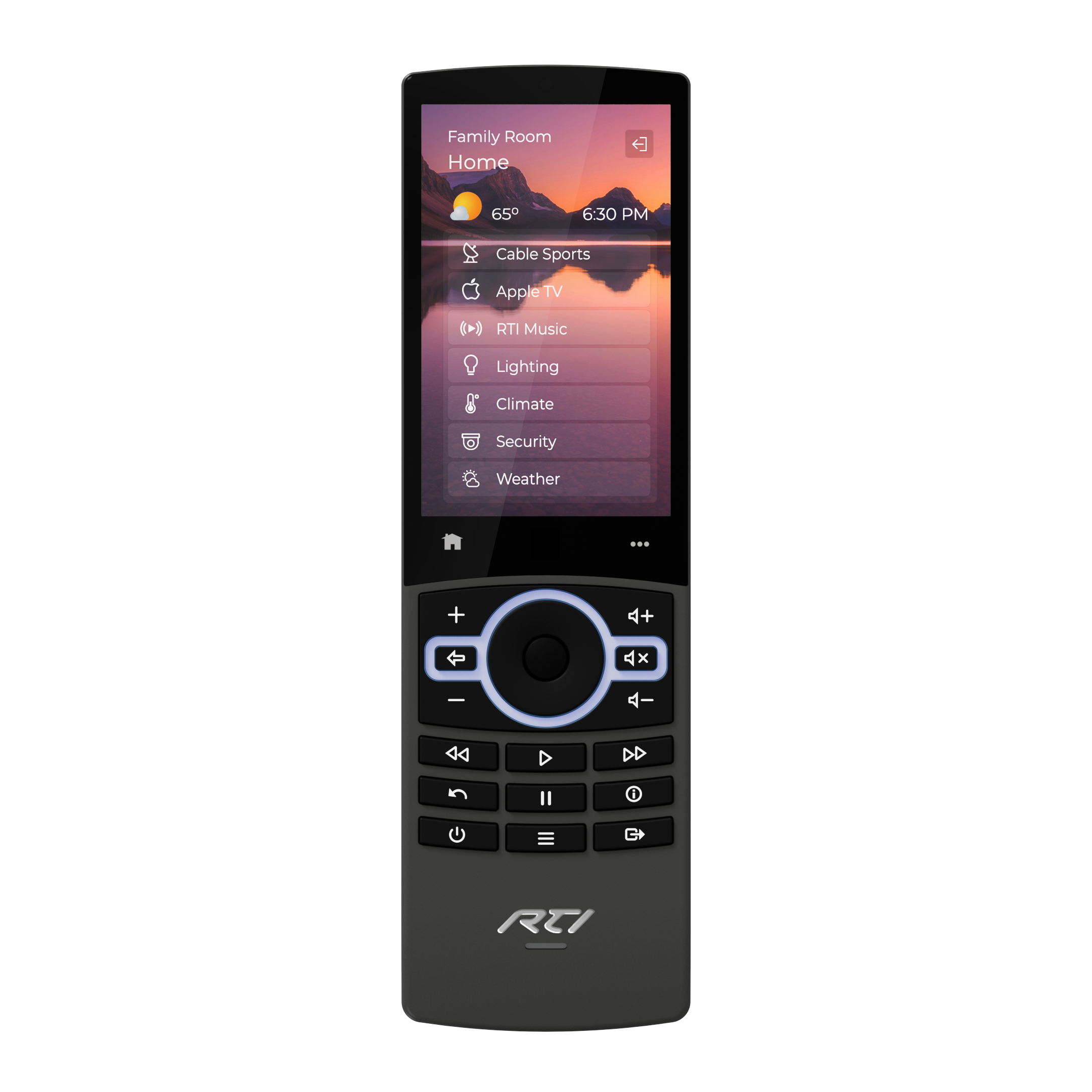

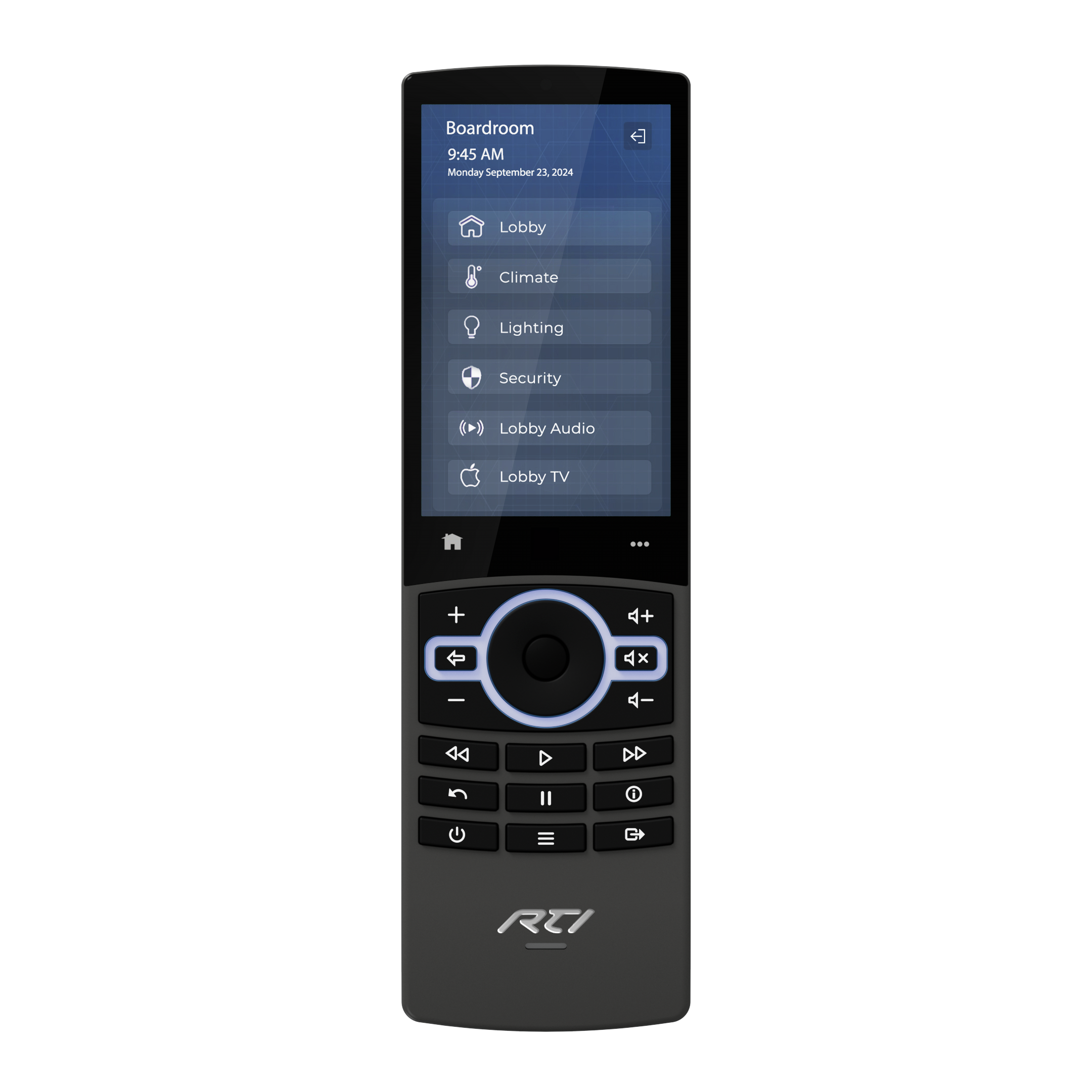

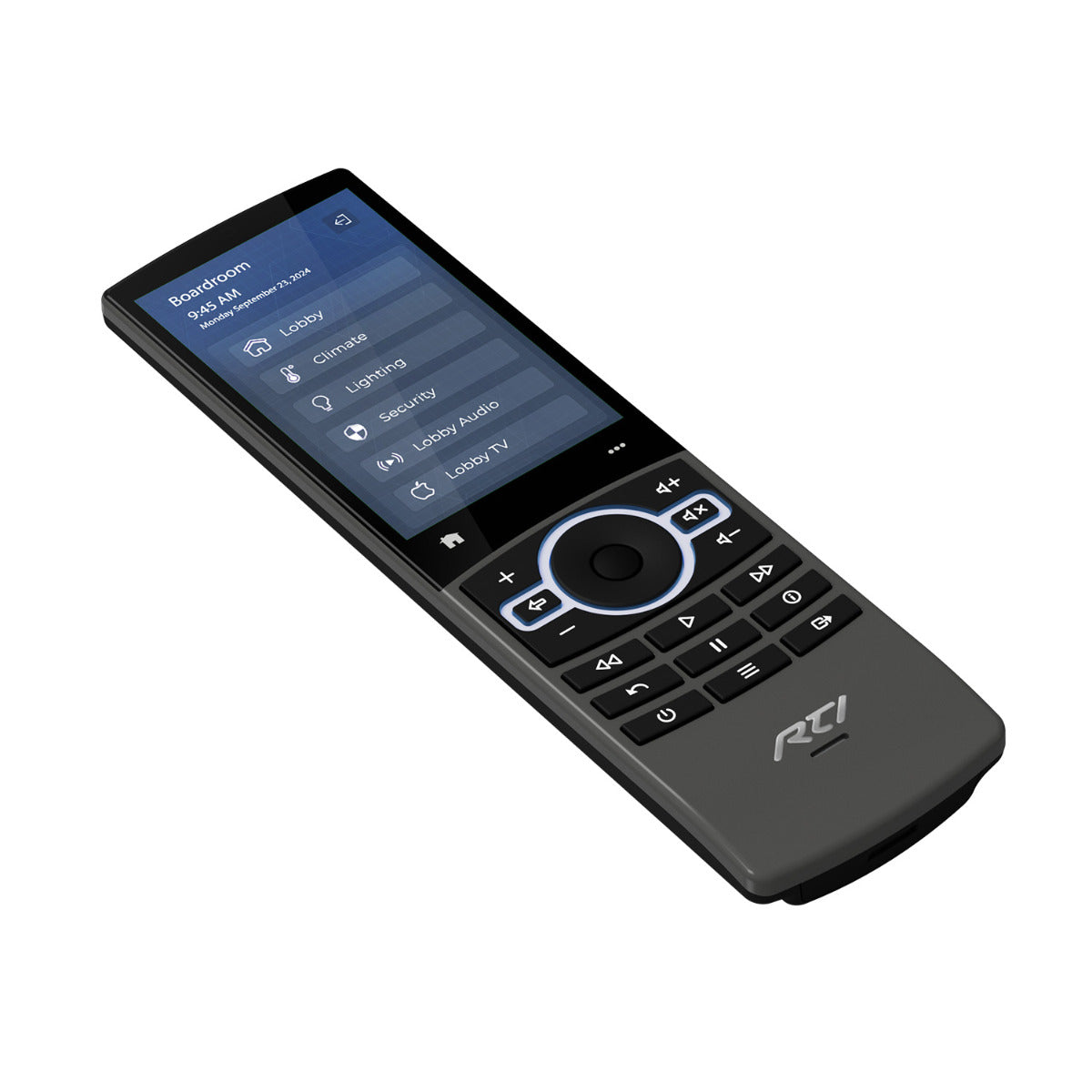

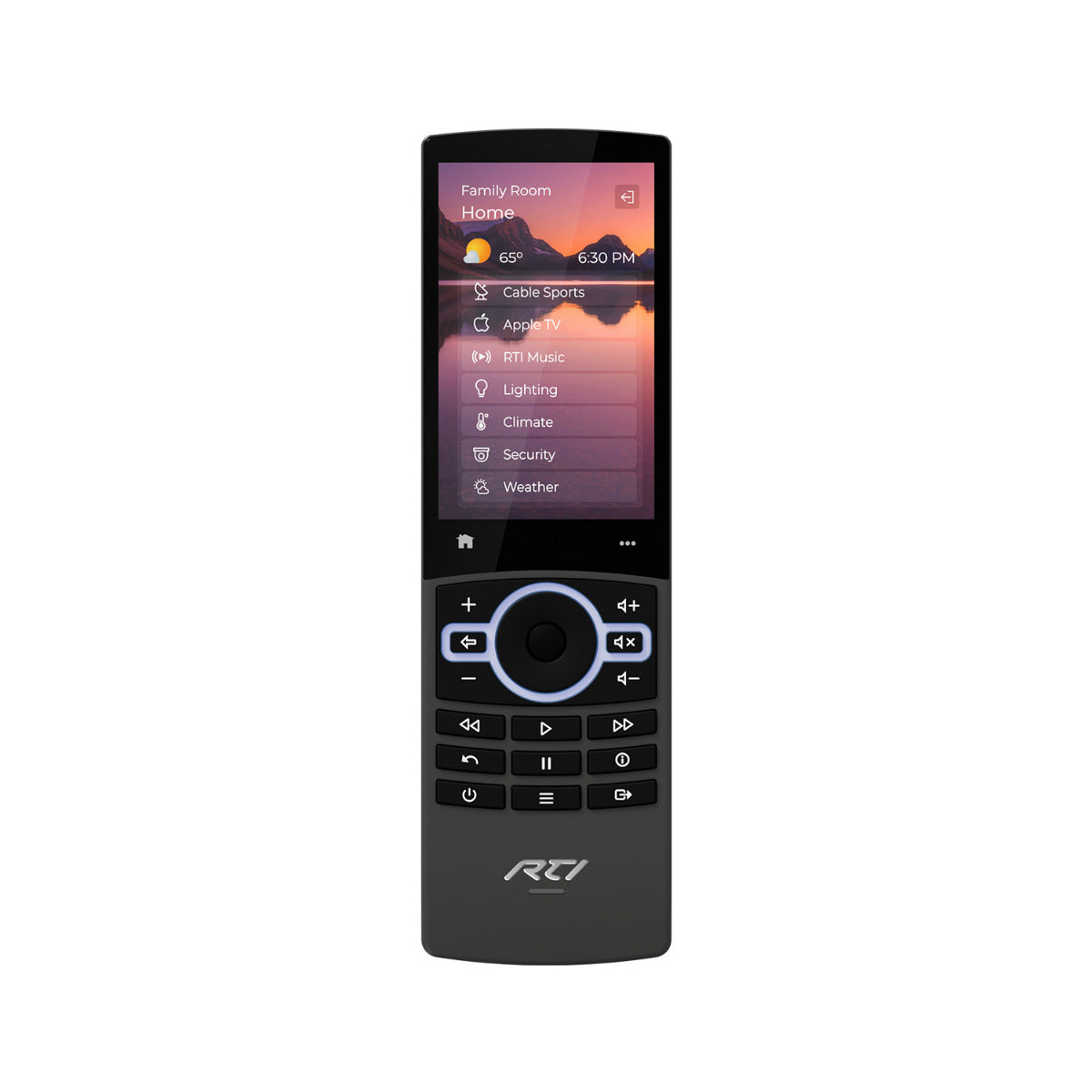

ISR-4 - 4" Intelligent Surface Remote Control with Wi-Fi and IR

Description

In-stock and shipping.

Experience unmatched entertainment and control convenience with the ISR-4 Intelligent Surface Remote from RTI.

The ISR-4 combines cutting-edge design and advanced functionality, with a stunning edge-to-edge capacitive touchscreen encased in a sleek aluminum frame. Art meets engineering for an elevated control experience throughout the home, and the ISR-4 is equally 'at home' in the executive boardroom.

The ISR-4's brilliant 4" display delivers a smartphone-like user experience, with easy swipe and ample space for viewing cover art, camera feeds, lighting controls, and more. Fully customizable soft keys sit below the display, ideal for selecting scenes from 'good morning' to 'good night,' while the soft-touch backlit buttons deliver effortless control of your audio and video systems. The intuitive 5-way thumbpad, full transport controls, and real-time haptic feedback ensure every interaction is smooth and responsive, ideal for today's streaming world.

The ISR-4 features advanced Wi-Fi technology for instant and reliable network connectivity. Plus, its built-in accelerometer activates the remote as soon as it's picked up, ensuring it's always ready for action without any delay. Meanwhile, the ambient light sensor automatically adjusts the display brightness to match the room's lighting conditions for optimal visibility.

The ISR-4 intelligently hibernates when not in use, delivering up to 4-5 days of battery life between charges with typical use. Plus, the included ISR-SB charging base ensures the remote is always ready when you need it.

The ISR-4 programs only with RTI Integration Designer 11 to deliver a 100% customizable experience exclusive to RTI control and automation systems.

Included in the box:
ISR-4, charging base, power supply (5V, 2A)

Notes

ISR Best Practices

Intended Deployment: The new ISR-4 and ISR-2 intelligent surface remote controls are designed to function as room controllers within the RTI ecosystem. As room controllers, they can manage all sources within the same room while also controlling global sources like lighting, thermostats, and more"”just like any RTI room controller.

Wi-Fi Connectivity Best Practices

The new ISR-4 and ISR-2 are Wi-Fi-based remote controllers operating on the 2.4GHz frequency. They feature a low-power IoT instant-connect Wi-Fi module, ensuring near-instantaneous network connectivity while maximizing battery life. The ISRs support connecting to a single SSID for both 2.4GHz and 5GHz bands, including access points with band-steering. However, with certain networking brands, band-steering may require the ISRs to be directed to the 2.4GHz band and potentially restricted from accessing the 5GHz band. If connectivity issues arise with a dual-band SSID, best practice is to disable band-steering or configure a fixed 2.4GHz connection to the desired access point.

Read more

ISR-4 - 4" Intelligent Surface Remote Control with Wi-Fi and IR

Product form

  • 4" High Resolution Touchscreen
  • Capacitive Touch Buttons
  • Soft-Touch Buttons
  • 2-Way Control
  • 2.4 GHz Wi-Fi
  • Direct Infrared Control

SKU: RTI-ISR4

  • Shipped today? Order within: Jun 17, 2026 13:00:00 -0500

Description

In-stock and shipping.

Experience unmatched entertainment and control convenience with the ISR-4 Intelligent Surface Remote from RTI.

The ISR-4 combines cutting-edge design and advanced functionality, with a stunning edge-to-edge capacitive touchscreen encased in a sleek aluminum frame. Art meets engineering for an elevated control experience throughout the home, and the ISR-4 is equally 'at home' in the executive boardroom.

The ISR-4's brilliant 4" display delivers a smartphone-like user experience, with easy swipe and ample space for viewing cover art, camera feeds, lighting controls, and more. Fully customizable soft keys sit below the display, ideal for selecting scenes from 'good morning' to 'good night,' while the soft-touch backlit buttons deliver effortless control of your audio and video systems. The intuitive 5-way thumbpad, full transport controls, and real-time haptic feedback ensure every interaction is smooth and responsive, ideal for today's streaming world.

The ISR-4 features advanced Wi-Fi technology for instant and reliable network connectivity. Plus, its built-in accelerometer activates the remote as soon as it's picked up, ensuring it's always ready for action without any delay. Meanwhile, the ambient light sensor automatically adjusts the display brightness to match the room's lighting conditions for optimal visibility.

The ISR-4 intelligently hibernates when not in use, delivering up to 4-5 days of battery life between charges with typical use. Plus, the included ISR-SB charging base ensures the remote is always ready when you need it.

The ISR-4 programs only with RTI Integration Designer 11 to deliver a 100% customizable experience exclusive to RTI control and automation systems.

Included in the box:
ISR-4, charging base, power supply (5V, 2A)

Notes

ISR Best Practices

Intended Deployment: The new ISR-4 and ISR-2 intelligent surface remote controls are designed to function as room controllers within the RTI ecosystem. As room controllers, they can manage all sources within the same room while also controlling global sources like lighting, thermostats, and more"”just like any RTI room controller.

Wi-Fi Connectivity Best Practices

The new ISR-4 and ISR-2 are Wi-Fi-based remote controllers operating on the 2.4GHz frequency. They feature a low-power IoT instant-connect Wi-Fi module, ensuring near-instantaneous network connectivity while maximizing battery life. The ISRs support connecting to a single SSID for both 2.4GHz and 5GHz bands, including access points with band-steering. However, with certain networking brands, band-steering may require the ISRs to be directed to the 2.4GHz band and potentially restricted from accessing the 5GHz band. If connectivity issues arise with a dual-band SSID, best practice is to disable band-steering or configure a fixed 2.4GHz connection to the desired access point.

Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

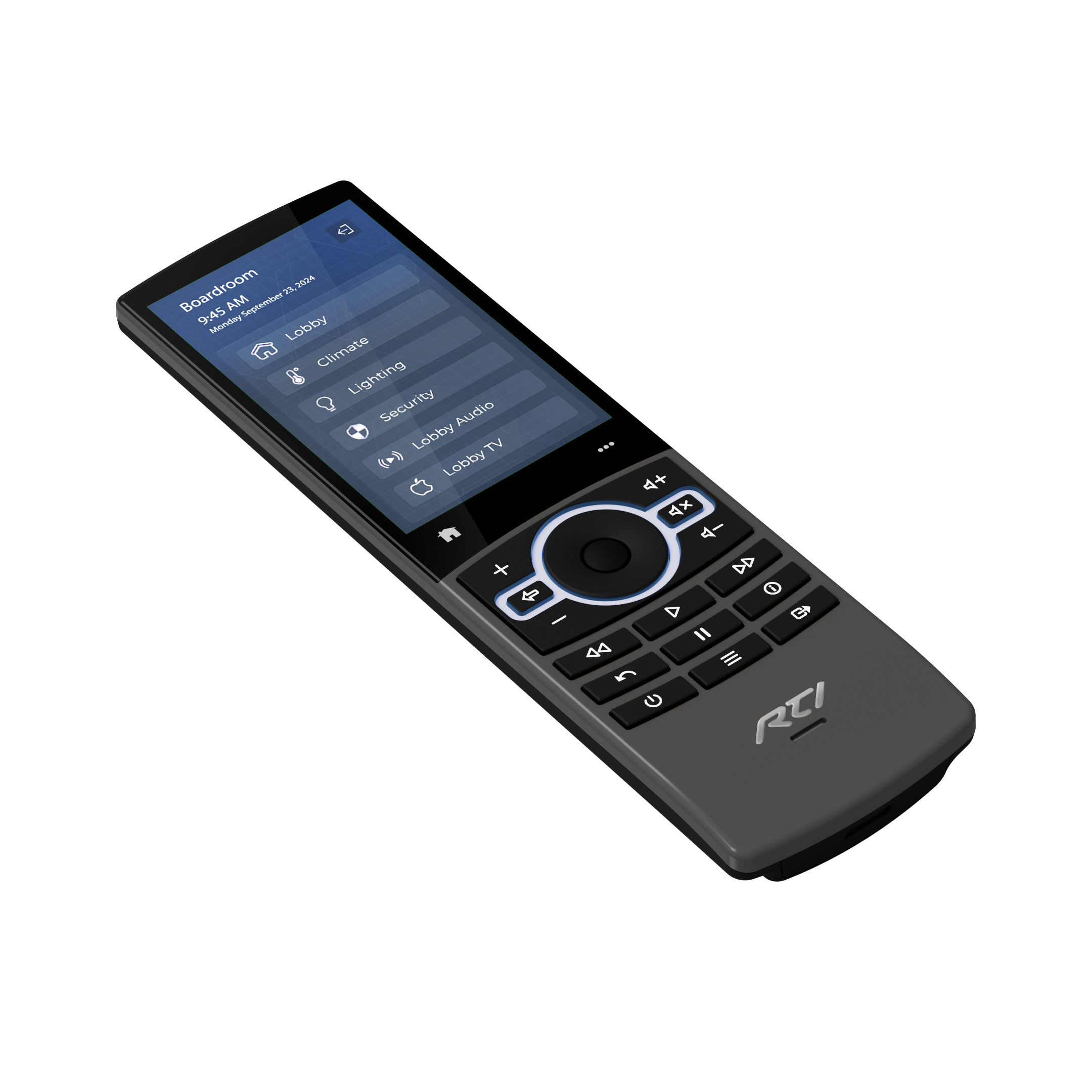

4" High Resolution Touchscreen
Large 4" flush-mount, high-resolution capacitive LCD touchscreen with a 480x800 resolution. The customizable graphical user interface allows for intuitive touch screen control.


Capacitive Touch Buttons
2 individually illuminated programmable capacitive touch buttons on the touchscreen give fast response to commonly used functions incl. Home, Options, and Voice.


Soft-Touch Buttons
20 programmable soft-touch, back-lit buttons provide quick access to often used control functions such as lights, music, or audio/video source selection.


2-Way Control
Get status feedback from controlled devices on your remote such as on/off or arm/disarm status, dimming value of lights, music playlists, available radio stations.


2.4 GHz Wi-Fi
Full control, check the weather forecast, view video from network security cameras or perform remote programming updates through a standard WiFi connection.


Direct Infrared Control
Control devices directly without a control processor.


Accelerometer
Pick up your remote and the accelerometer automatically wakes the touchscreen.


Ambient Light Sensor
Enables the perfect display brightness to be set automatically depending on the ambient light.


Lithium Polymer Battery
The powerful battery features higher energy densitiy and leighter weight than other batteries.

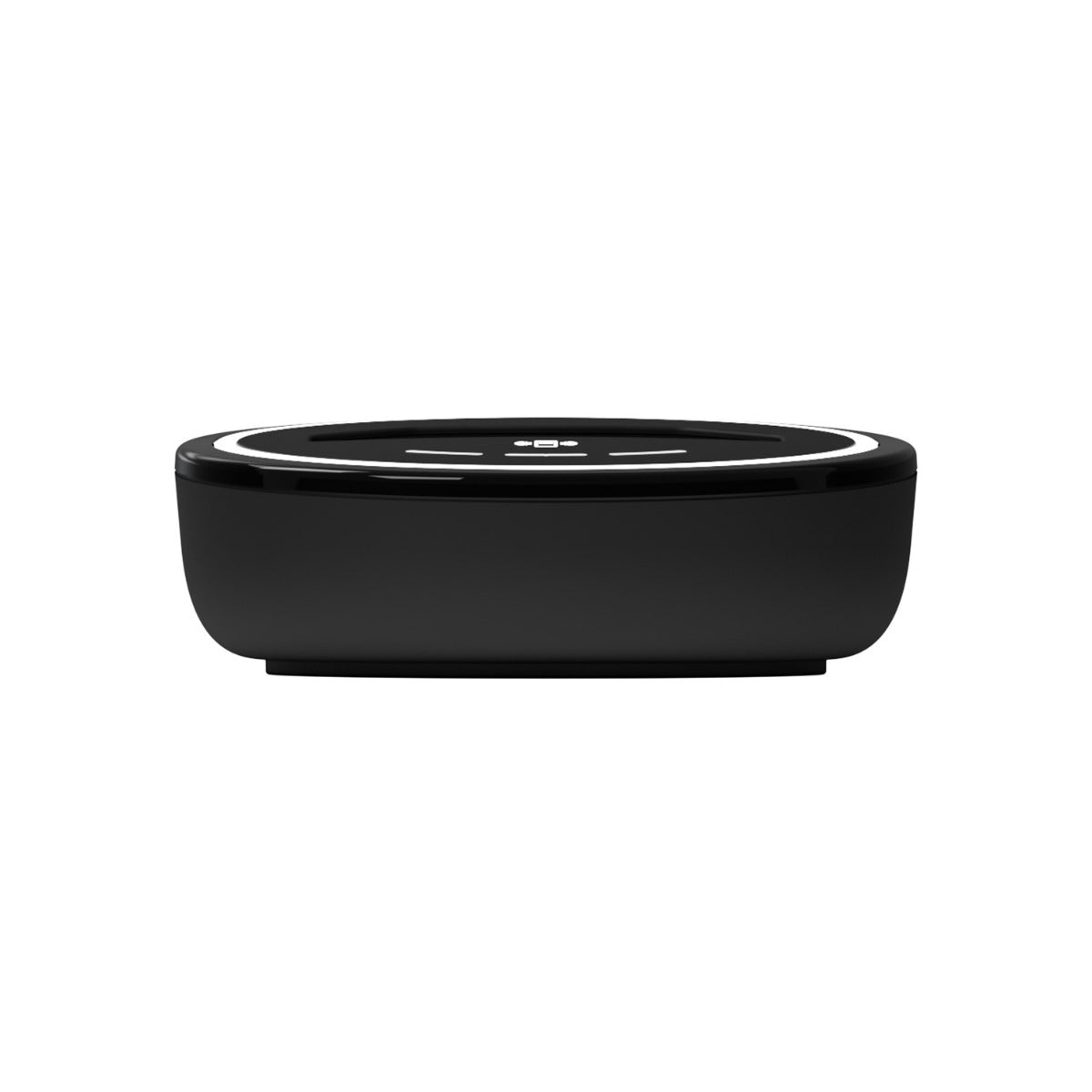

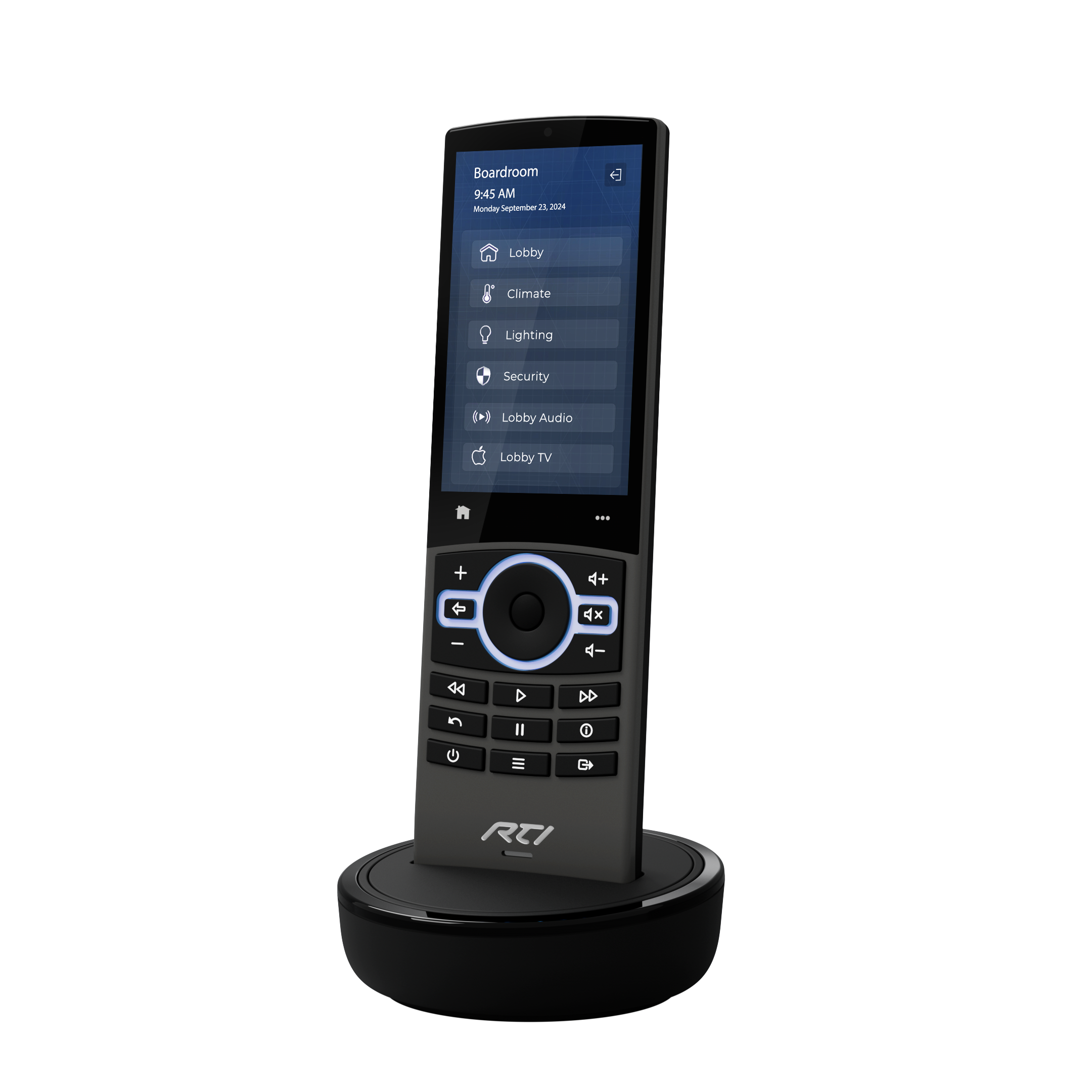

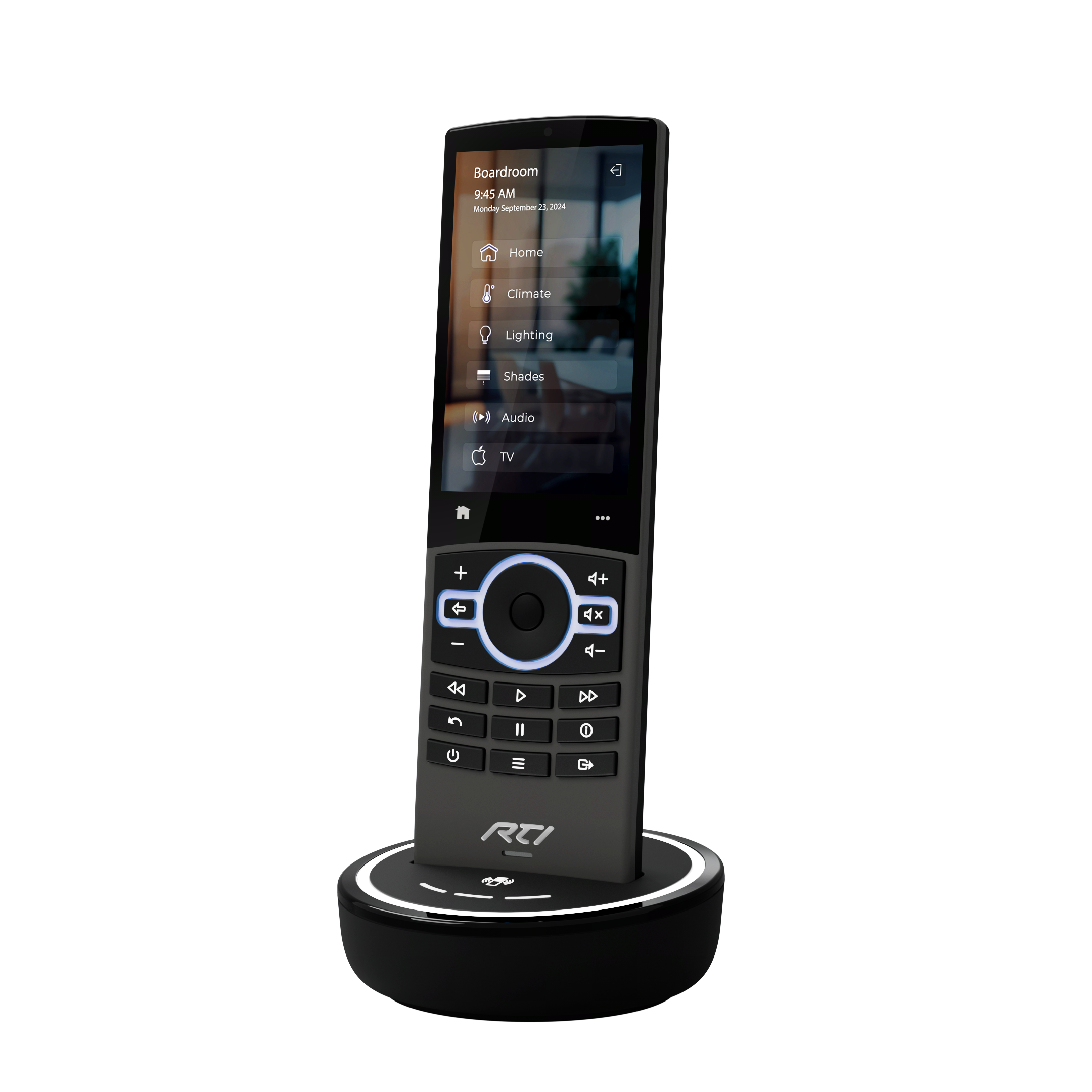

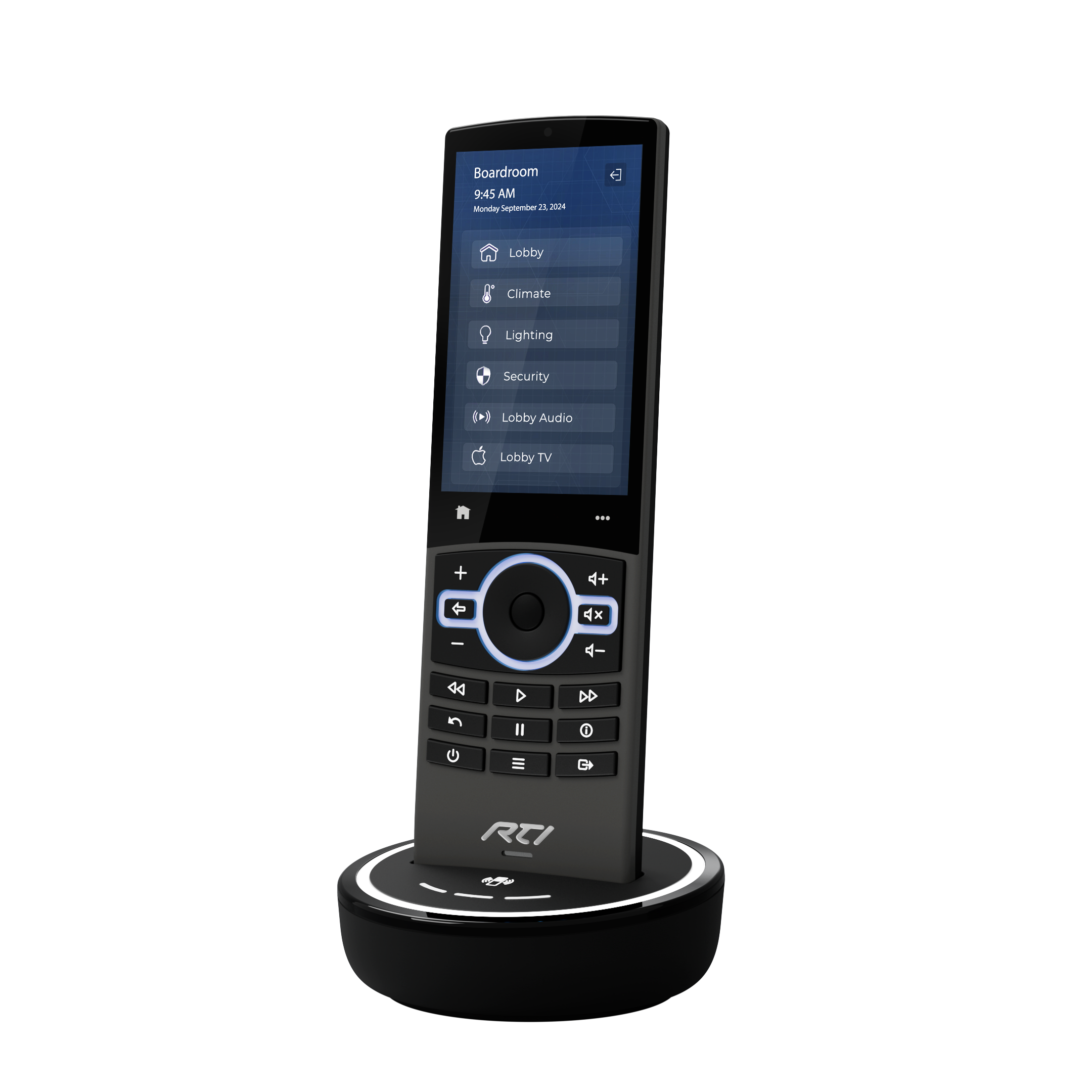

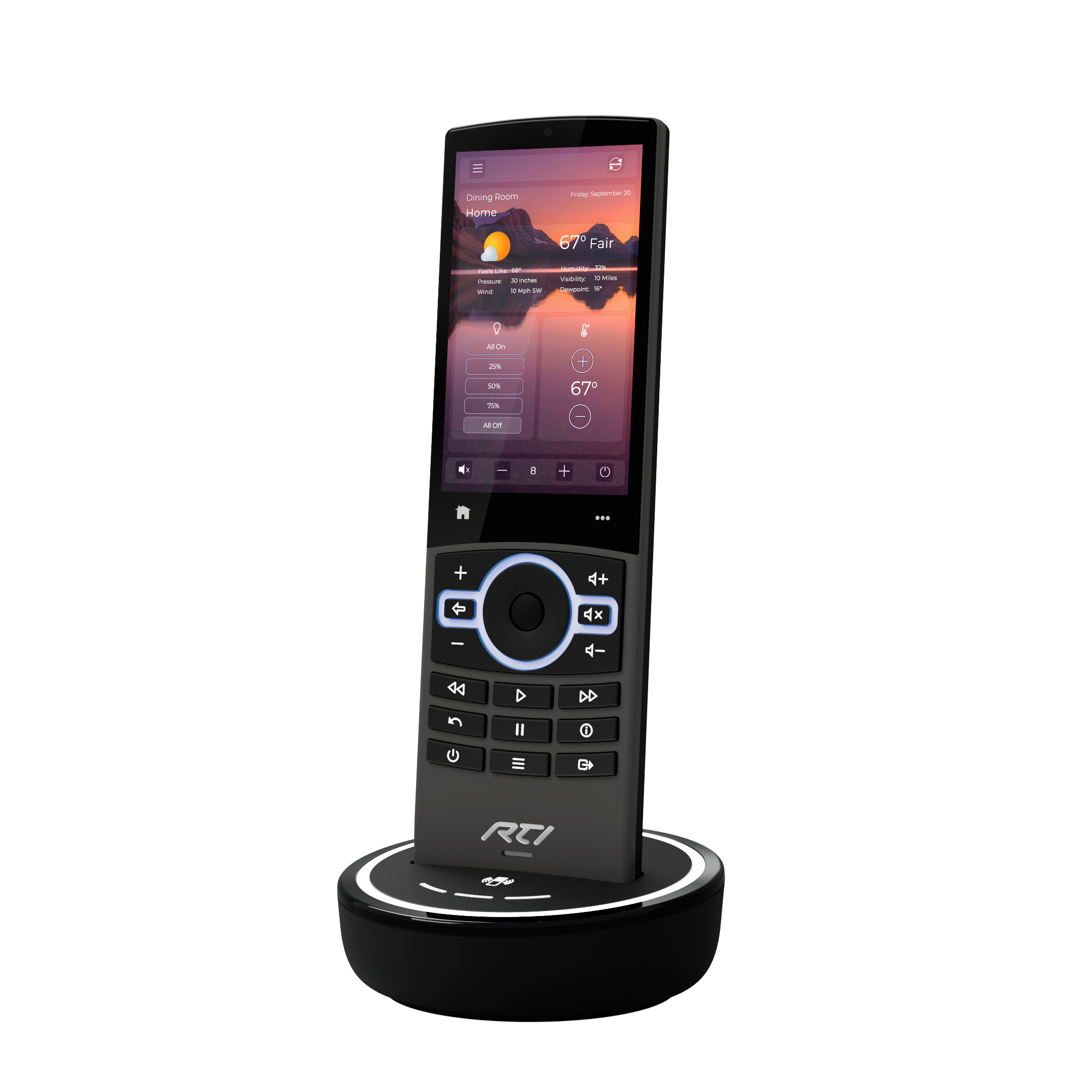

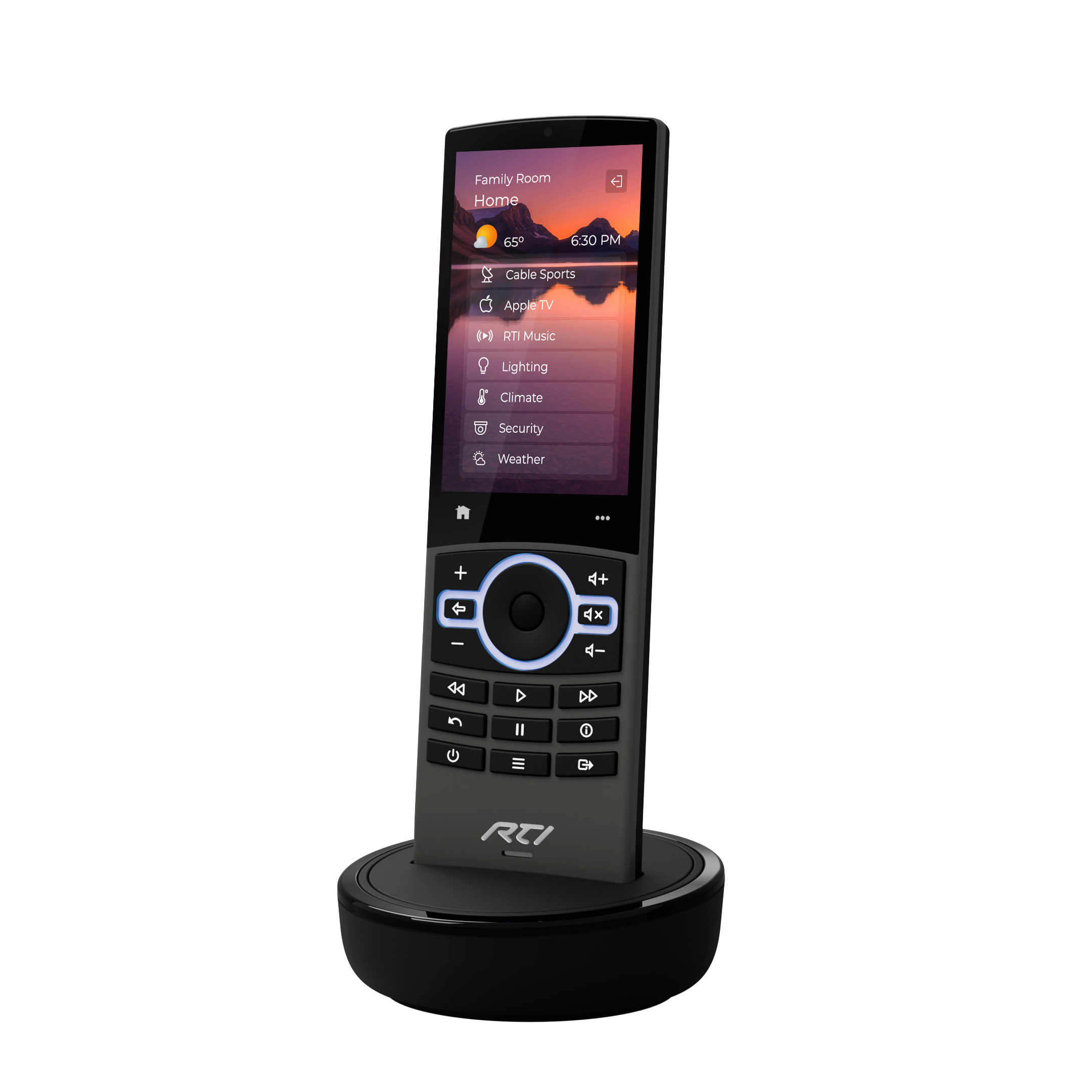

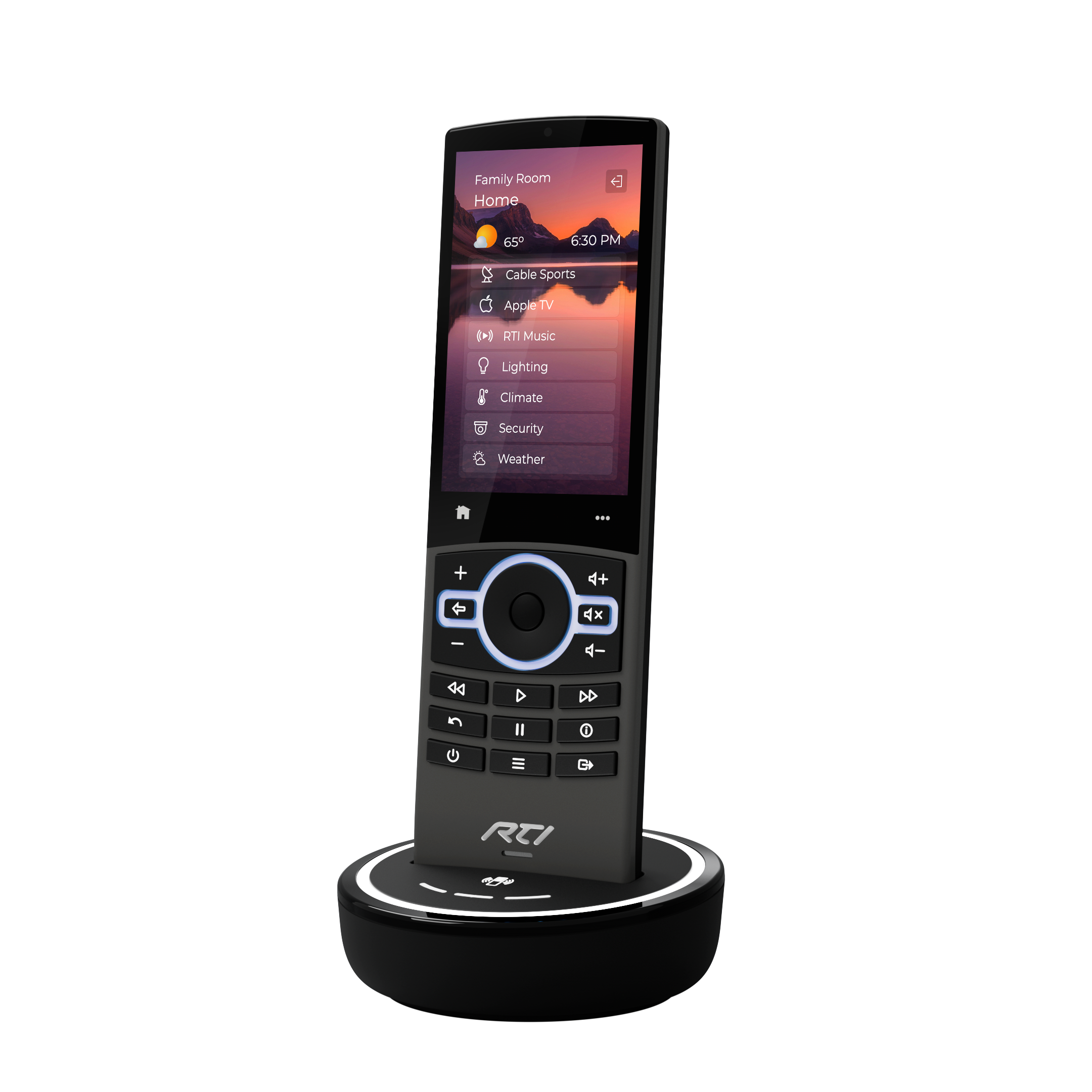

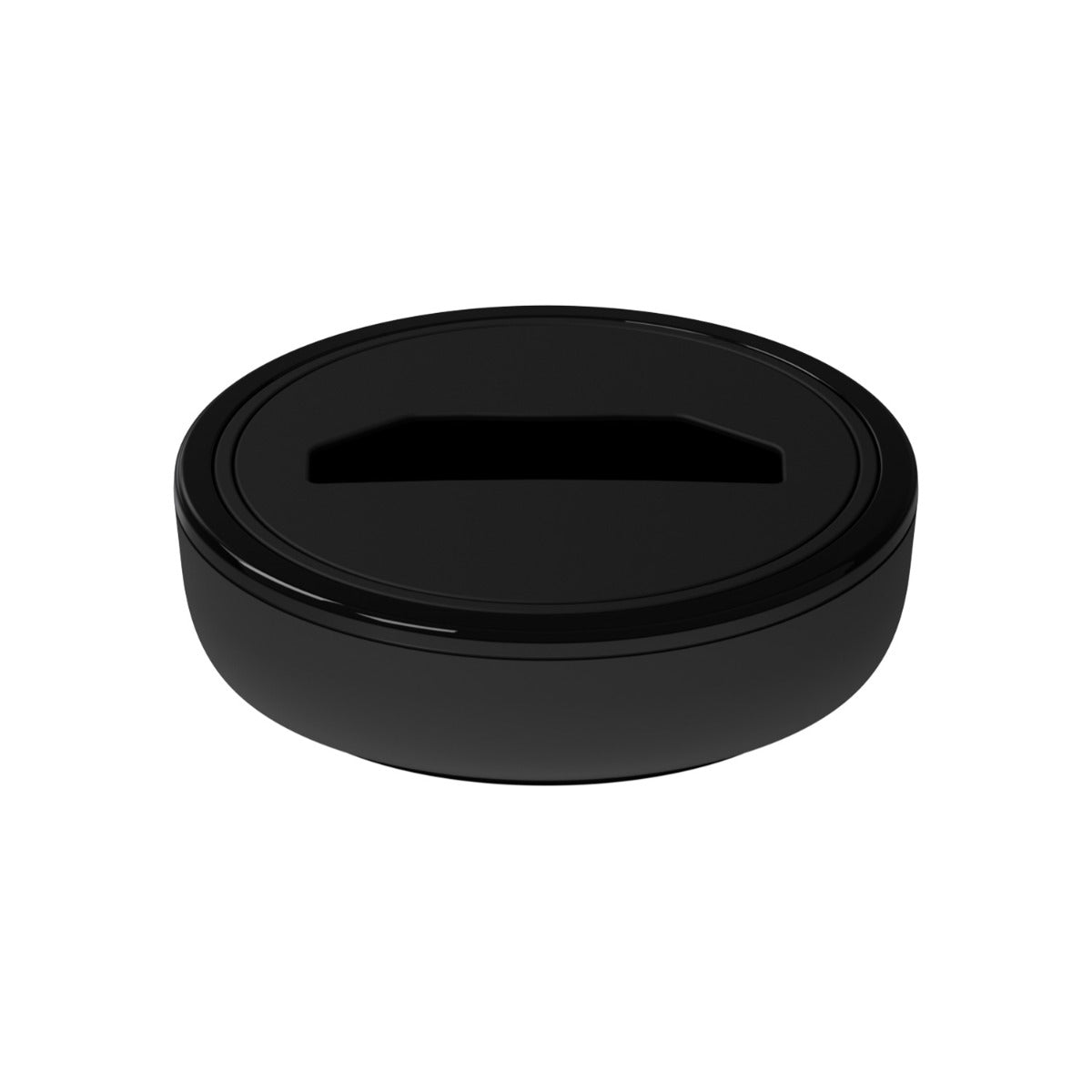

Charging Base
Charge the ISR-4's battery conveniently with the included charging base.

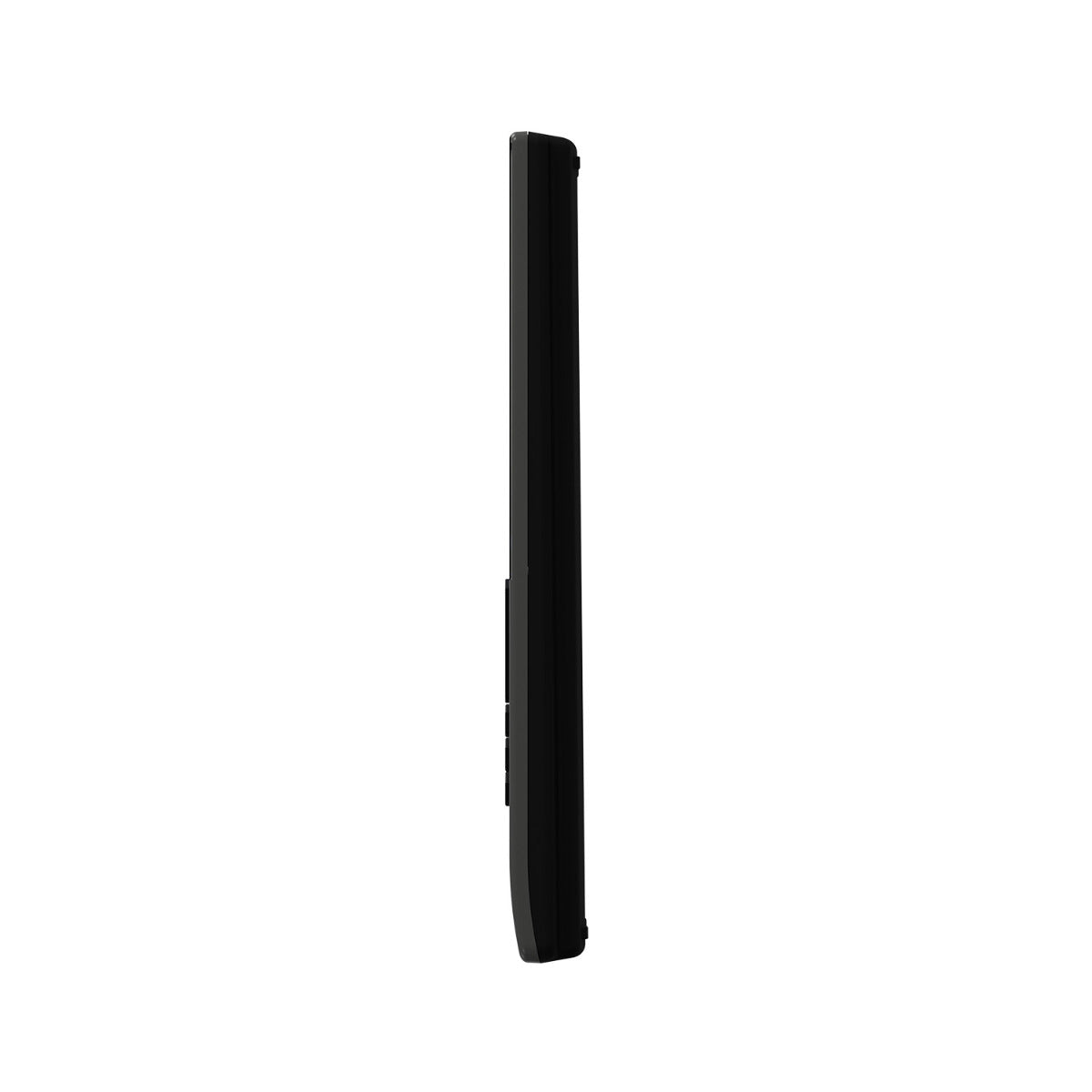

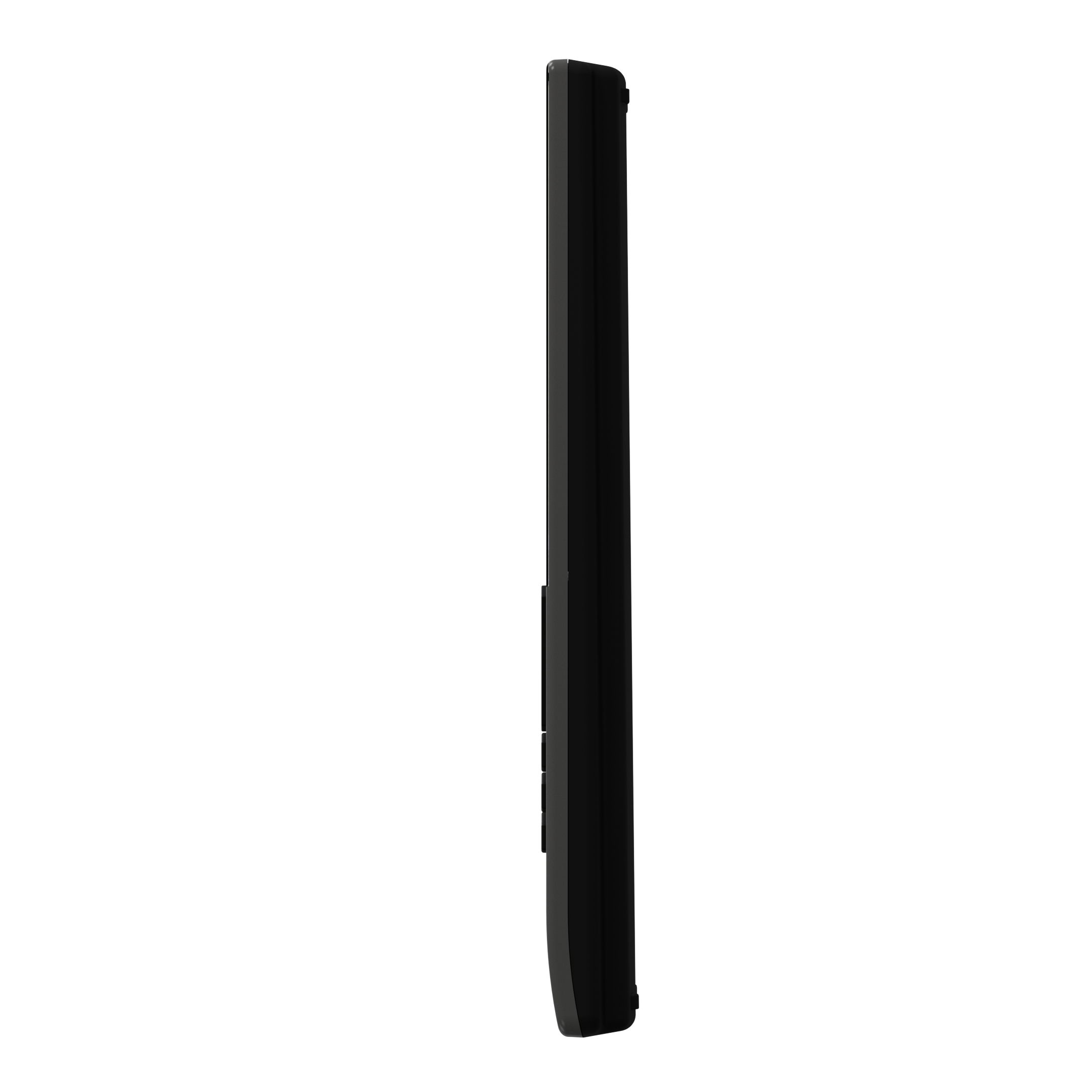

Thin, sleek design with superb ergonomics.


Cursor button allows simple scrolling list navigation.


Extremely wide IR transmitting frequency range.


Completely customizable and programmable.


Non-volatile Flash memory stores your system configuration even when power is not present.

Power 3.85 VDC, 1800 mAh Lithium-Ion Battery Pack
Power Management Integrated accelerometer
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Transmission Range 15kHz - 460kHz
Radio Frequency Control Range Up to 100 feet (30.5 meters)
Wireless Ethernet 802.11b/g/n @ 2.4Ghz
Touchscreen Display High-brightness color IPS-TFT LCD
480x800 pixels with 16.7M colors
Integrated high-resolution capacitive touchscreen
Display Size 4" (101mm) diagonal
Backlights White LED (keypad & soft buttons)
Standby Time on Full Charge 7 Days
Battery Charge Time 3-4 Hours
Operating Temperature .+32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Dimensions (L x W x D) 8.1" (206mm) x 2.5" (65mm) x 0.8" (20mm)
Enclosure Aluminum and molded ABS plastic
Weight ISR-4: 7.55 oz. (214g) with battery pack
ISR-SB: 9.88 oz. (280g)
Warranty Three Years (Parts & Labor) / 1 year on the battery
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

All specifications subject to change without notice.

Included in the box:

  • ISR-4
  • Charging Base
  • Power Supply (5V, 2A)
