2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.

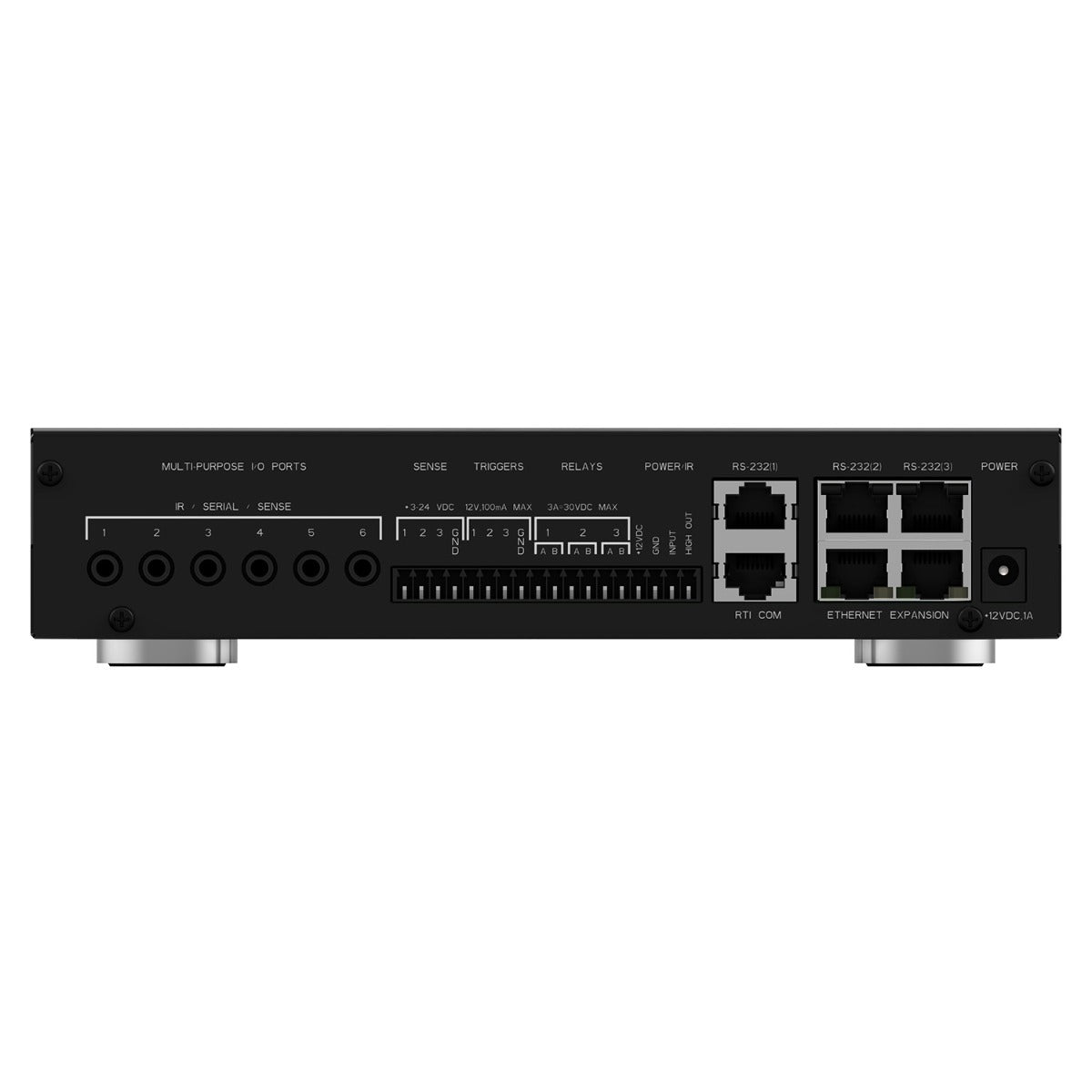

RS-232
Three (3) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.

Relay
Three (3) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 3A/30VDC (external power supply required).

MPIO / Infrared
Six (6) M ulti- P urpose I nput/ O utput control ports that allows for infrared control with infrared emitters, blasters and repeaters and connecting voltage sensors or RS-232 communication modules.

Sense Input / Voltage Trigger
Three (3) programmable 100mA/2VDC outputs to control and high voltage external relay in amplifiers or other devices to turn them on or off when a sense input detects contact closure from switches, windows or doors. Sense inputs can also be used to trigger a programmed control command or macro.

Expansion Port
Proprietary communication port that allows bidirectional control communication with RTI touchpanels and keypads.

Ethernet
Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.

Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes via ZM-24 Zigbee transceiver module.

RF 433 MHz
Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.

Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.

Rack-Mount
Allows for mounting the unit into a standard 19" wide rack or placing on any surface using the included feet.

Powerful 32bit, 1GHz CPU.

512MB of non-volatile Flash and 512MB of internal RAM memory.

Compatible with all RTI wired, wireless (requires RTI RF antennas/Zigbee® transceivers), and app-based user interfaces.

Six multi-purpose I/O ports are compatible with industry standard IR emitters, blasters, and repeater systems.

Multi-purpose I/O ports also support optional RTI power sensing and communications modules.

Variable IR output on all IR ports.

Non-volatile Flash memory stores your system configuration even when power is not present.

Field upgradable firmware.

Rack mountable or free standing.
