T1-B+ Remote Control

Description

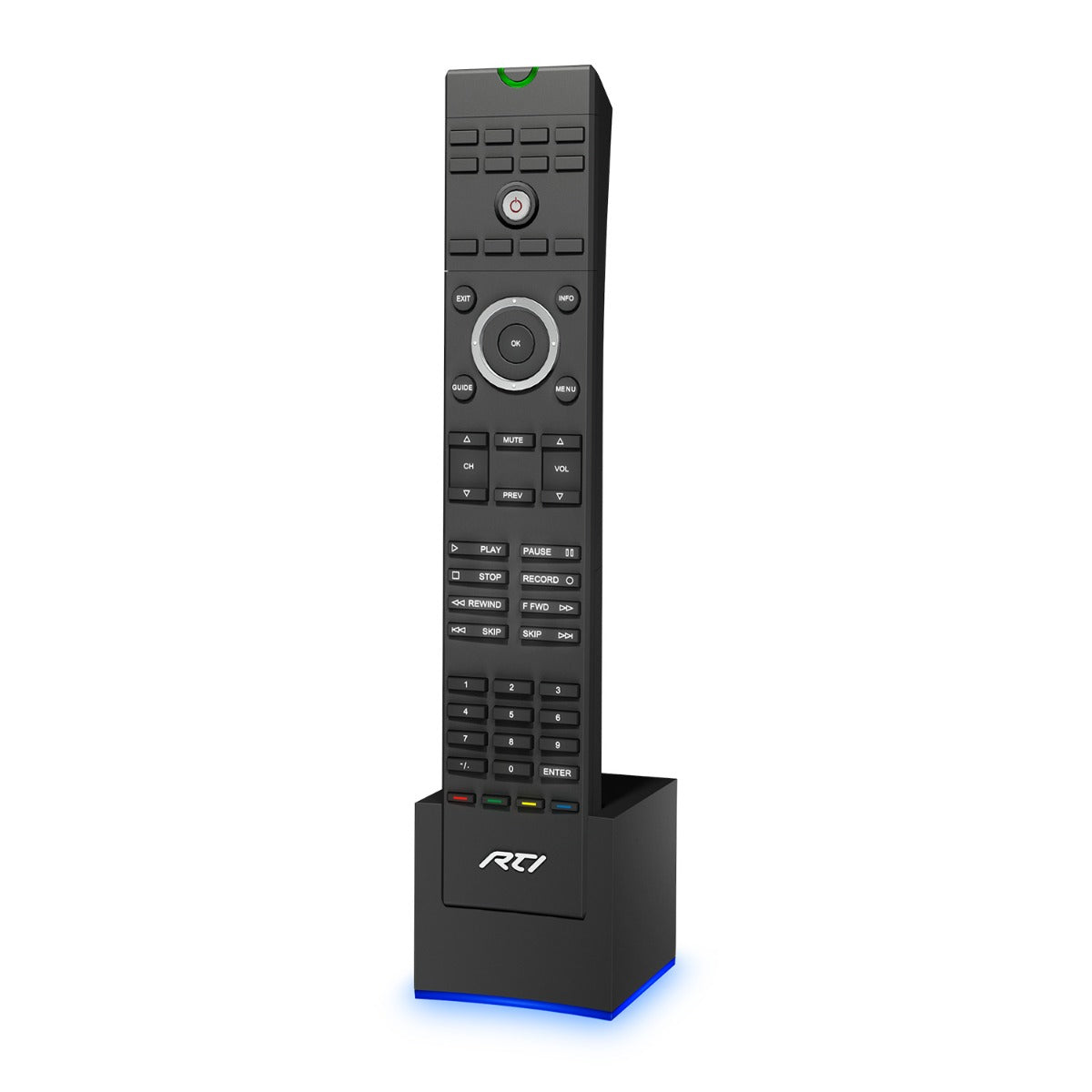

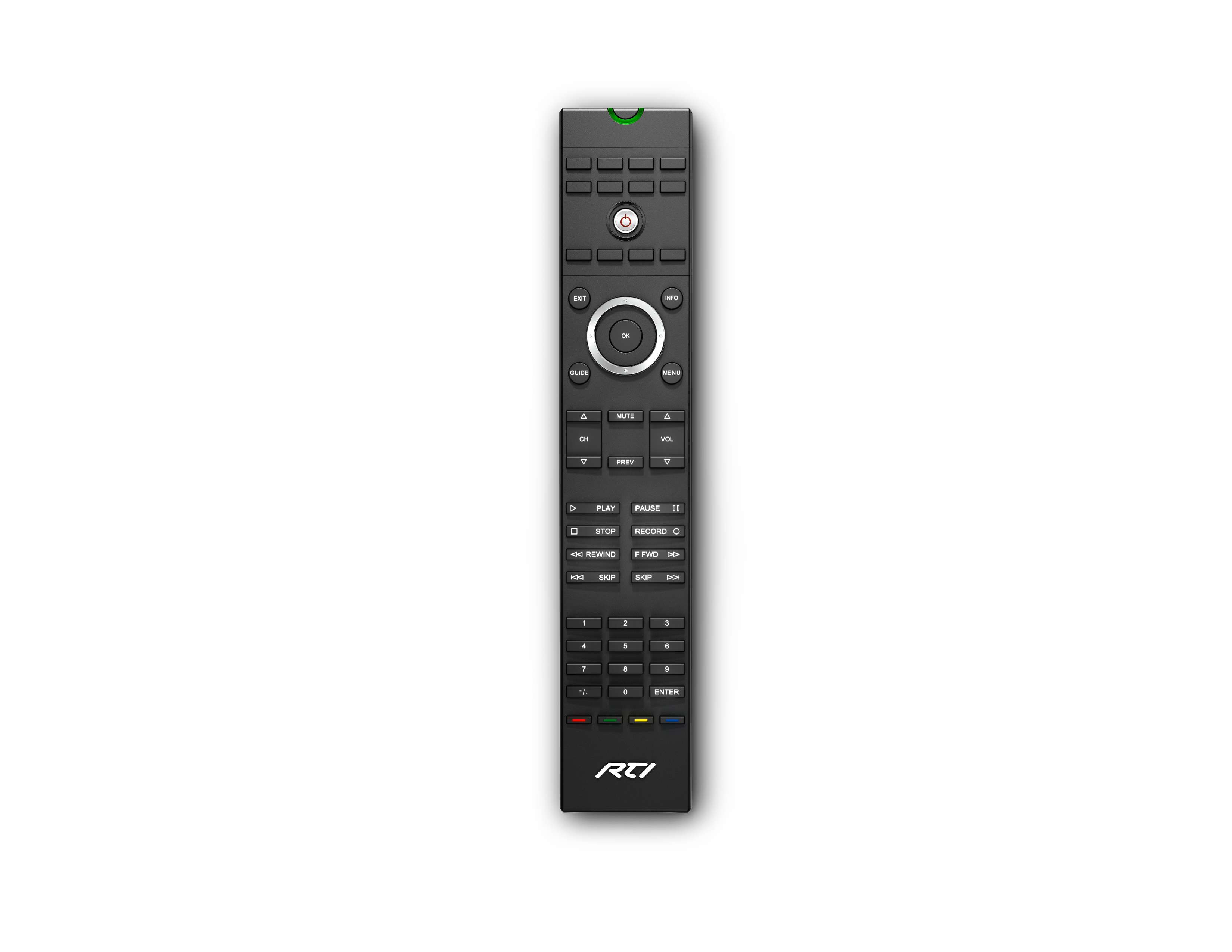

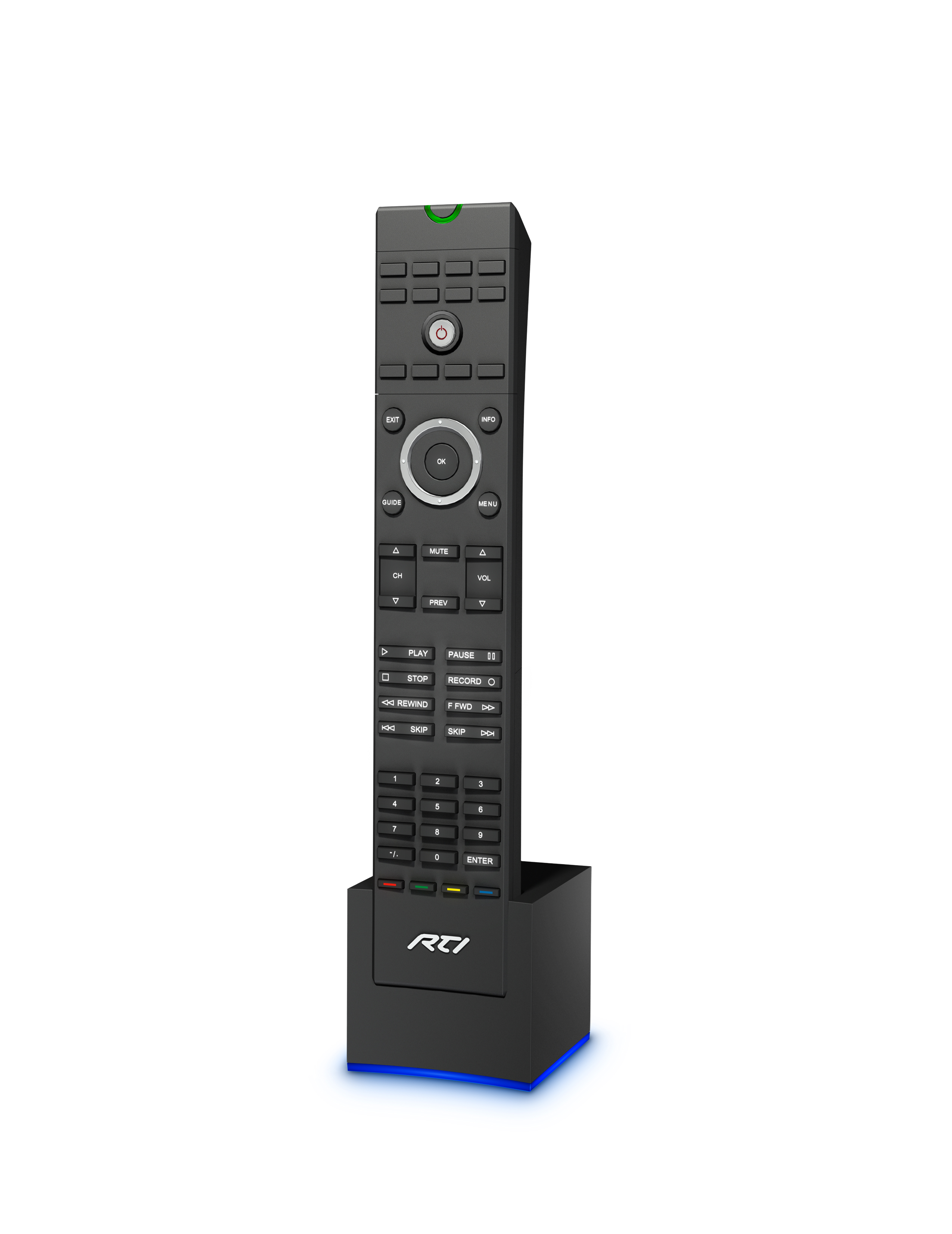

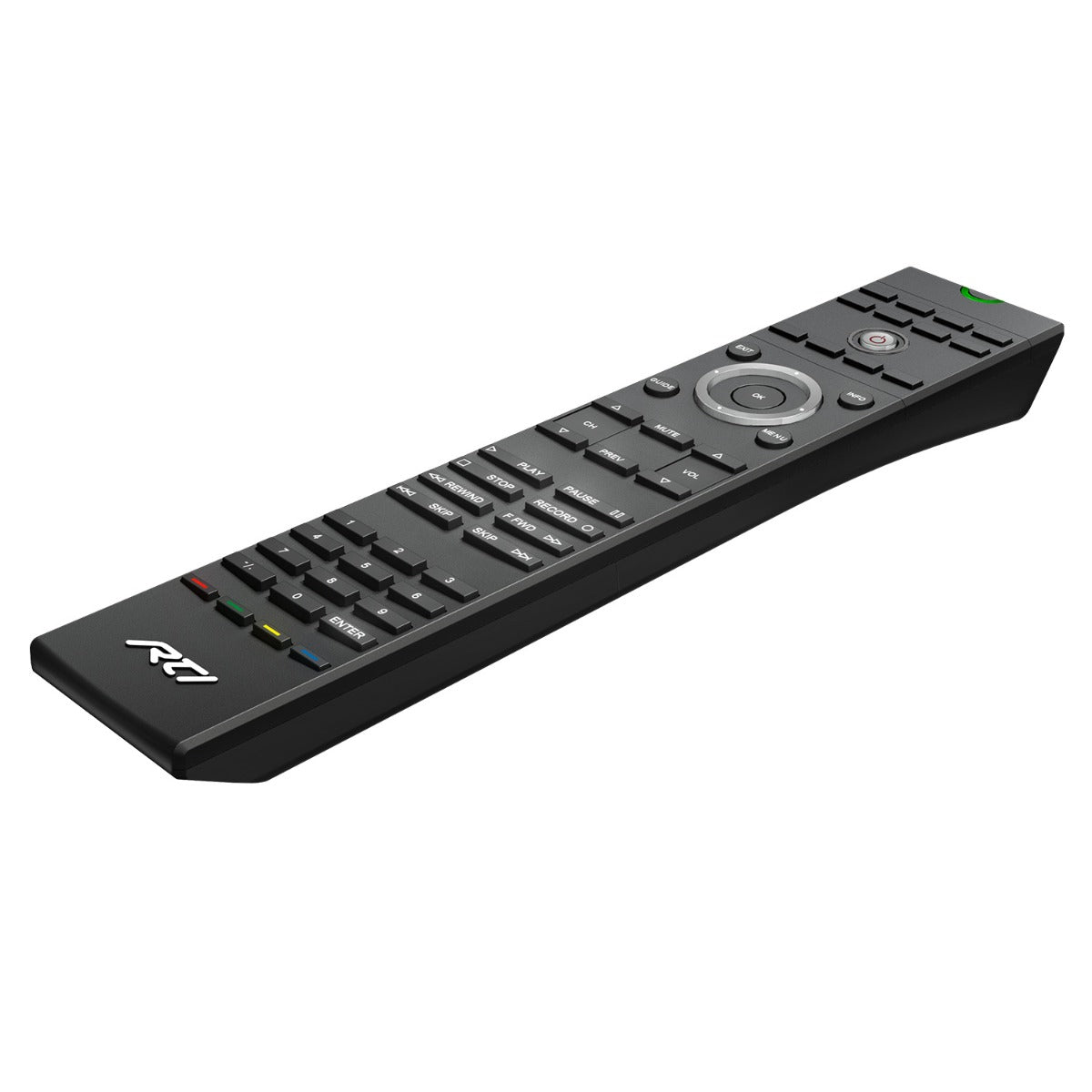

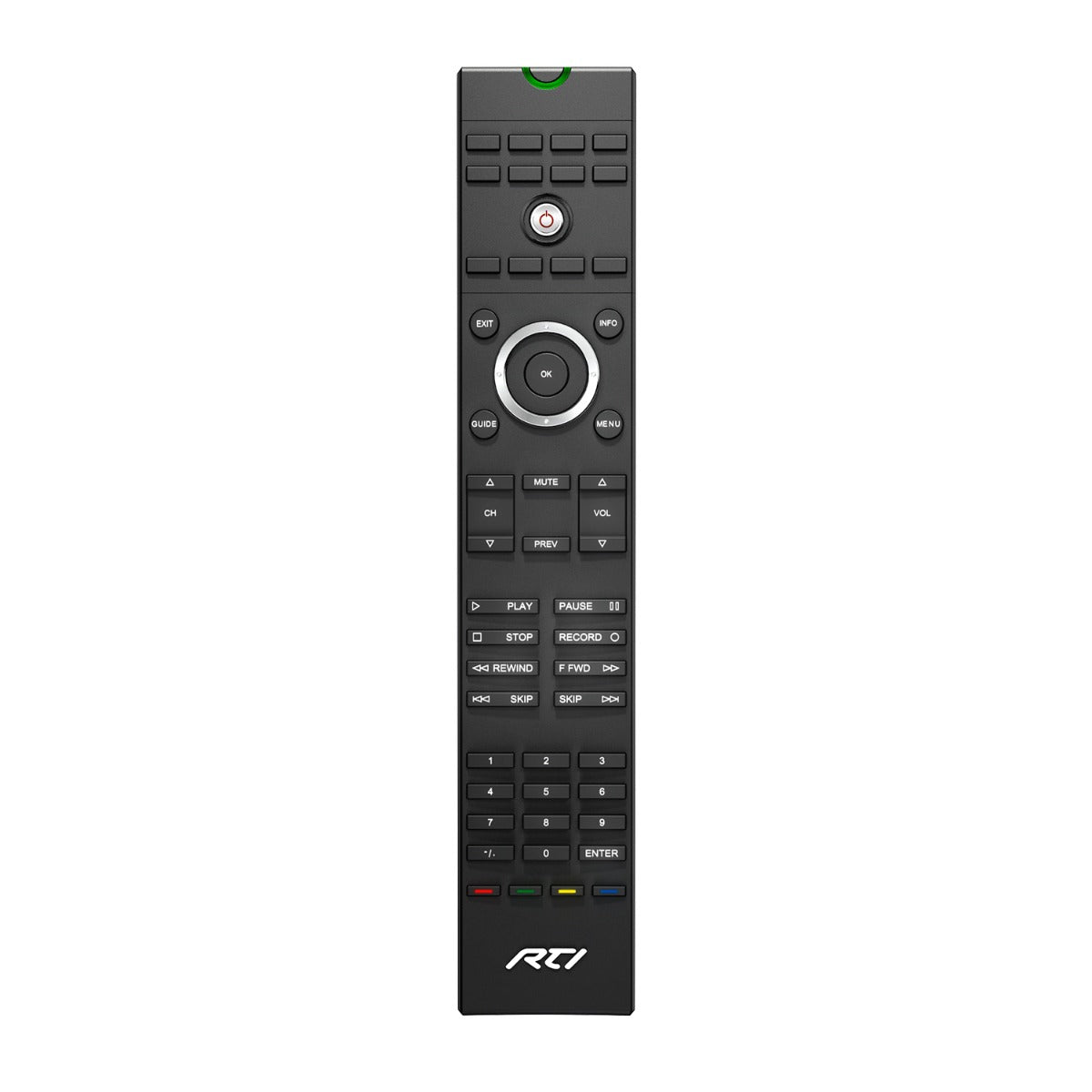

The T1-B+ is the third generation of RTI's popular T1 universal system controller, now featuring the RTI dual RF platform and backlit buttons. The T1-B+ allows all other factory remote controls to be combined into one simple, ergonomic user interface providing powerful one-handed system control. Featuring a sleek new industrial design and perfect assortment of keypad buttons for commonly used functions, the T1-B+ can operate today's sophisticated media system, no matter how complex, at an affordable price.

Included in the box:
T1-B+, docking station, power supply (5V, 2A), interchangeable keycap trees (2), wall mount bracket, screws and drywall anchors (2) for wall mount bracket, free Laser Shark engraving (1)

Notes

Important Notes

    • RF control requires an RM-433 433MHz antenna or ZM-24 2.4GHz transceiver module and an RTI control processor, or an RTI control processor with an integrated antenna.
    • T1-B+ has an RTiPanel Companion Mode (Programmed and functions similar to SURFiR remote) - Requires firmware 1.10 or higher.

  • NOTE: For Companion Mode, the T1-B+ is added to the Integration Designer system file as a " T1-B+ Companion Mode", found under the "Apps" section. Also, it cannot be converted to or from a regular T1-B+.

Read more

T1-B+ Remote Control

Product form

  • 2-Way
  • Zigbee
  • RF 433 MHz
  • Infrared
  • Hard Buttons
  • Laser Shark

SKU: RTI-T1-B

  • Shipped today? Order within: Jun 17, 2026 13:00:00 -0500

Description

The T1-B+ is the third generation of RTI's popular T1 universal system controller, now featuring the RTI dual RF platform and backlit buttons. The T1-B+ allows all other factory remote controls to be combined into one simple, ergonomic user interface providing powerful one-handed system control. Featuring a sleek new industrial design and perfect assortment of keypad buttons for commonly used functions, the T1-B+ can operate today's sophisticated media system, no matter how complex, at an affordable price.

Included in the box:
T1-B+, docking station, power supply (5V, 2A), interchangeable keycap trees (2), wall mount bracket, screws and drywall anchors (2) for wall mount bracket, free Laser Shark engraving (1)

Notes

Important Notes

    • RF control requires an RM-433 433MHz antenna or ZM-24 2.4GHz transceiver module and an RTI control processor, or an RTI control processor with an integrated antenna.
    • T1-B+ has an RTiPanel Companion Mode (Programmed and functions similar to SURFiR remote) - Requires firmware 1.10 or higher.

  • NOTE: For Companion Mode, the T1-B+ is added to the Integration Designer system file as a " T1-B+ Companion Mode", found under the "Apps" section. Also, it cannot be converted to or from a regular T1-B+.

Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

2-Way
Control intuitively with the buttons of your remote and get status feedback via button backlight.


Zigbee
Standard wireless Zigbee IEEE802.15.4 connection for bidirectional control communication with RTI processors.


RF 433 MHz
Wireless unidirectional RF communication on the 433 MHz band for control communication with RTI processors.


Infrared
Control devices directly without a control processor.


Hard Buttons
52 Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.


Laser Shark
Customize the button labels with text or graphics.


Accelerometer
Pick up your remote and the accelerometer automatically wakes the touchscreen.


Lithium Ion Battery / Charging Cradle
Your remote can operate 5 to 7 days on average use. Charge it conveniently with the included charging cradle.


Comfortable ergonomic design permits effortless, one-handed operation.


Capable of transmitting IR and RF from a single button press.


Completely customizable and programmable.


Optional modules/processors for voltage sensing (to monitor power status of equipment) and RS-232 control.


USB Programming.

Power 3.6 VDC, 900mAh Lithium-Ion Battery Pack
Power Management Automatic On/Off (tilt switch)
Infrared Control Range 30 feet (9.1 meters) @ 60 degrees
Infrared Frequency Range 15kHz - 460kHz
RF Control Range Up to 100 feet (30.5 meters)
RF Carrier 802.15.4 @ 2.4Ghz (Zigbee technology) and 433MHz
Battery Charge Time 3-4 Hours
Communications USB programming port
Dimensions (L x W x D) 10.0 in (254mm) x 1.9 in (48mm) x .9 in (23mm)
Enclosure High-impact molded ABS plastic
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 7 oz. (200g) with battery pack
Warranty Three Years (Parts & Labor) / One year on the battery
Prop 65 Warning WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Included in the box:

  • T1-B+
  • Docking Station
  • Power Supply (5V, 2A)
  • Interchangeable keycap trees (2)
  • Free Laser Shark engraving (1), use device's serial number for order code in the Laser Shark Software
  • Wall mount bracket
  • Screws and drywall anchors (2) for wall mount bracket
  • Operation guide

WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer.
​For more information, go to www.P65Warnings.ca.gov.
