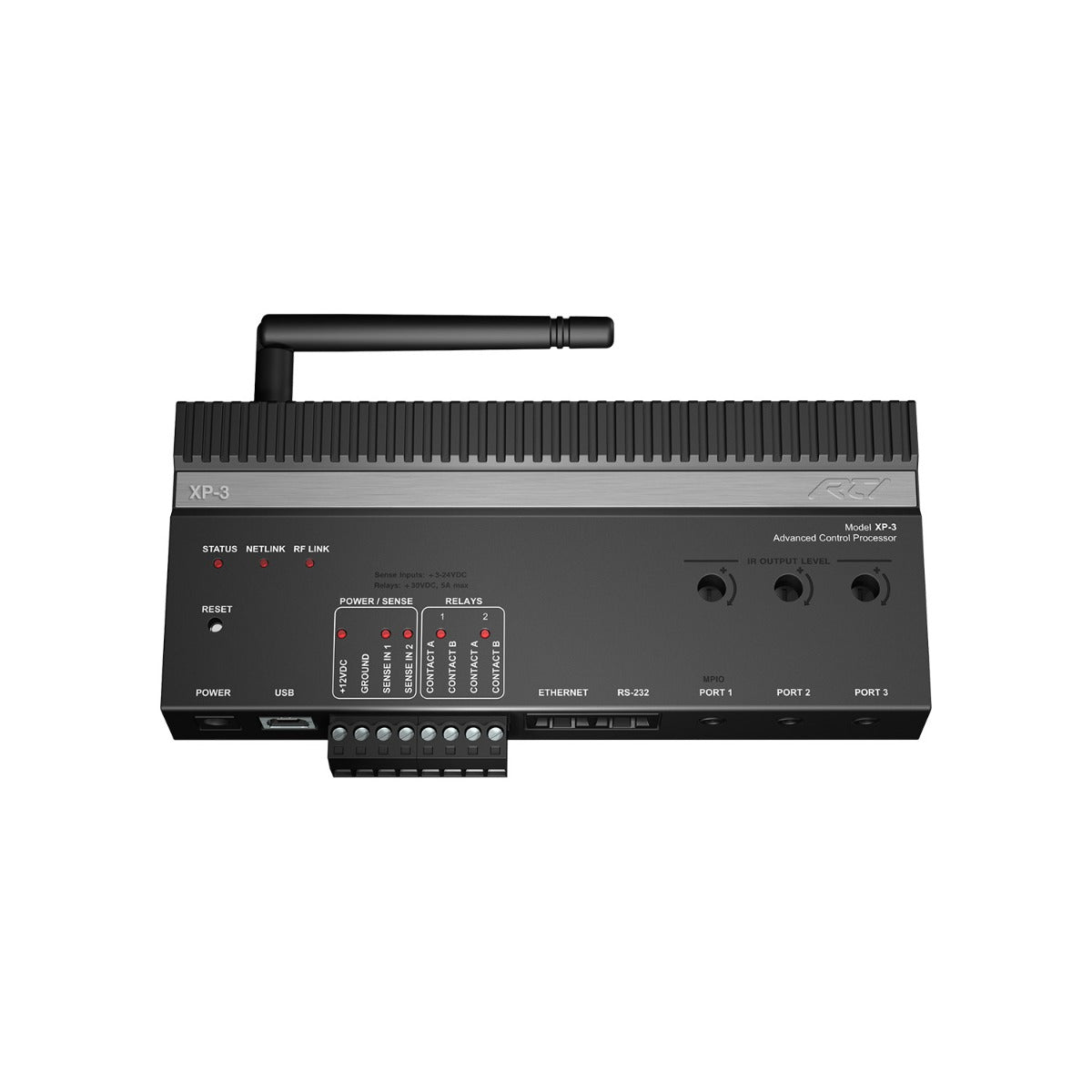

XP-3 Control Processor
- VendorRTI

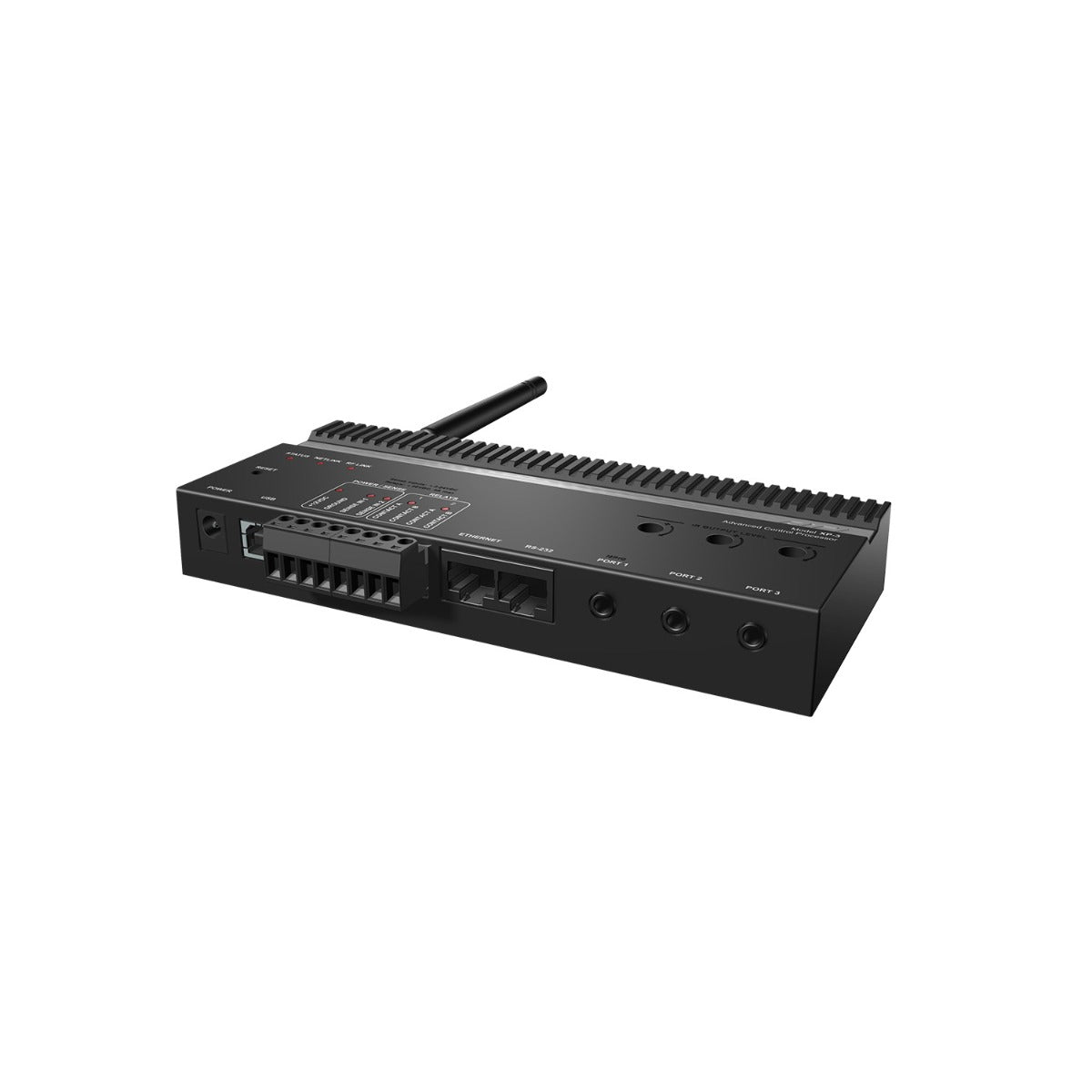

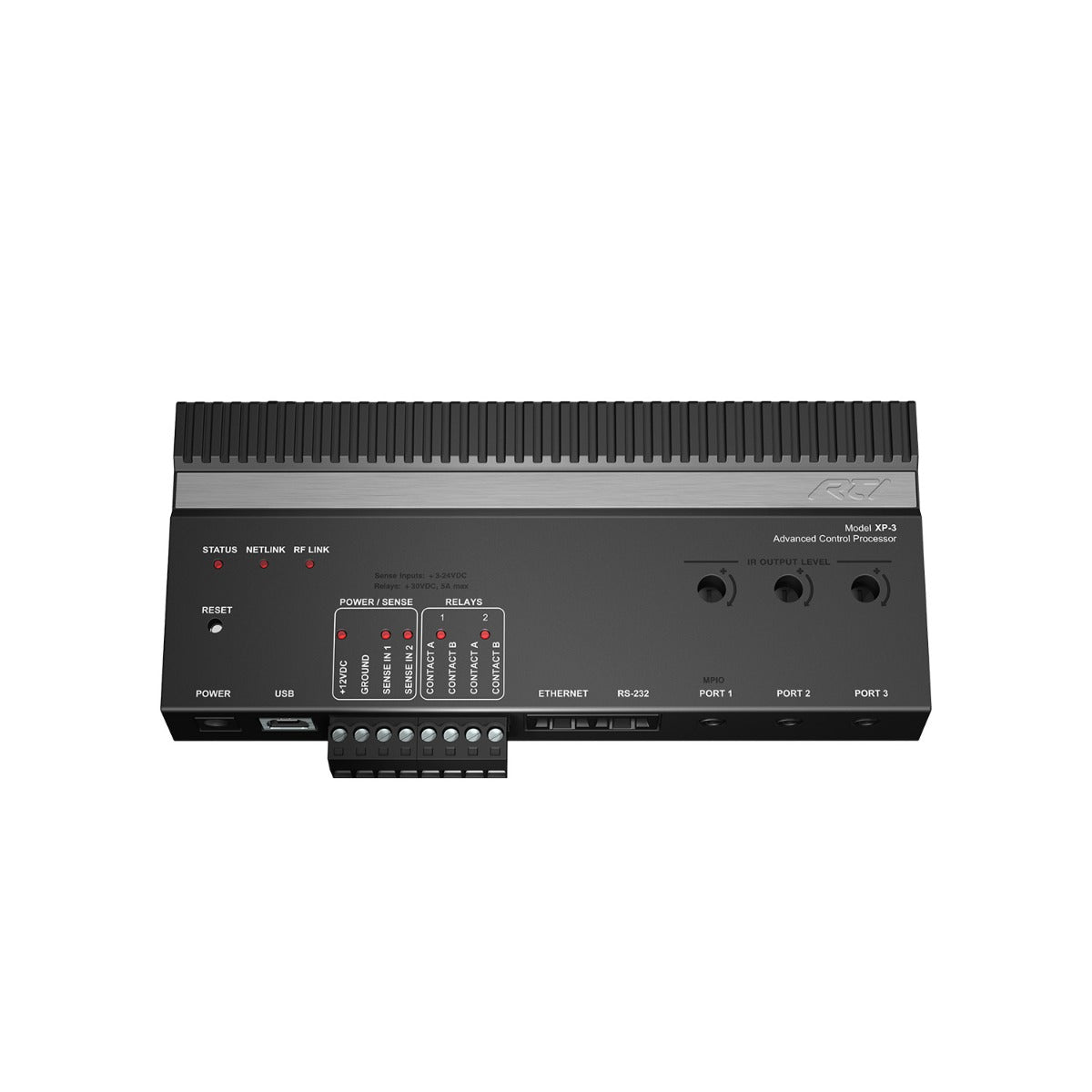

XP-3 Control Processor
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box

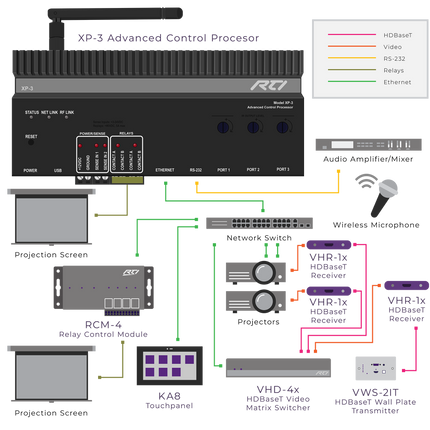

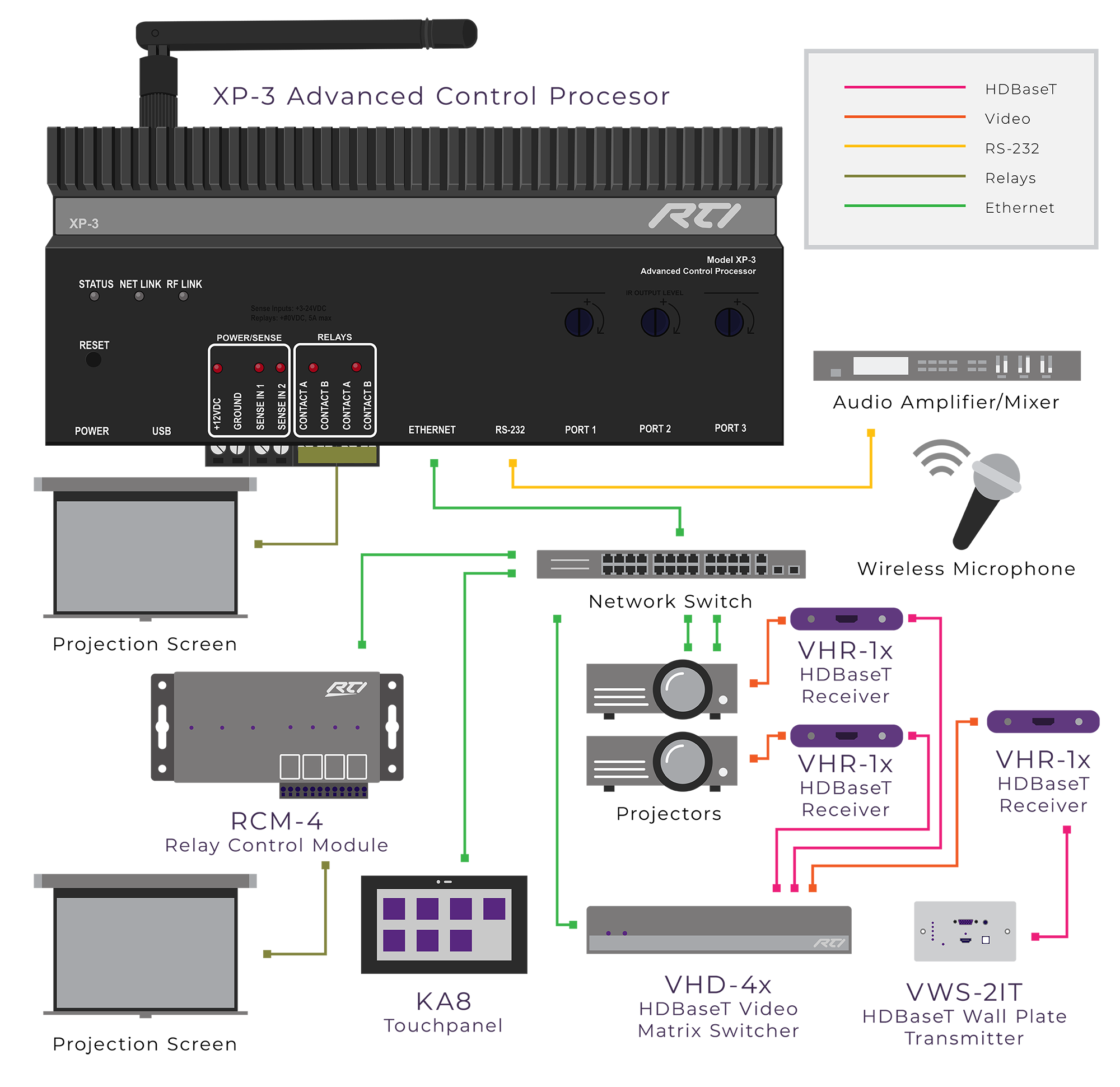

2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.
RS-232
One (1) control port for 3-wire connection with the capability of polling status feedback from controlled devices or systems.
Relay
Two (2) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 5A/30VDC (external power supply required).
MPIO
One (1) M ulti- P urpose I nput/ O utput control port that allows for infrared control and connecting voltage sensors or RS-232 communication modules.
Infrared
Two (2) control ports for 2-wire connection to infrared emitters, blasters and repeaters.
Sense Input
Two (2) inputs that sense the voltage state from a voltage sensor to trigger a programmed control command or macro.
Ethernet
Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.
Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes.
Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.
Supports RTiPanel App for Apple/Android Smart Phones and Tablets and Windows PCs.
Supports same two-way drivers used by XP6/XP8.
Powerful 32bit, 533MHz CPU.
128Mb of non-volatile Flash memory stores your system configurationeven when power is not present.
One multi-purpose I/O port supports optional RTI power sensing andcommunications modules.
Two IR output ports with variable output.
Compatible with industry standard IR emitters and blasters.
Configurable for communication with RTI in-wall products and433MHz wireless controllers.*
Programmed using the RTI Integration Designer Software.
| General | |
| Power | +12 VDC, 1 A |
| Wireless Networking | IEEE802.15.4 Zigbee network compliant |
| RF Carrier Frequency | 2.4 GHz to 2.5 GHz |
| Multi-Purpose Output Ports | One custom 3.5 mm 4-conductor jack (port 1) Designed for RTI modules as well as industry-standard IR emitters |
| IR Output Ports | Two, 3.5 mm jack (ports 2 & 3) Compatible with industry-standard IR emitters |
| IR Output Drive | 100 mA maximum (per port, adjustable) |
| IR Frequency Range | 15 kHz to 460 kHz |
| Relays | Two, 5 A @ 30 VDC |
| Sense Inputs | Two, 3 VDC to 24 VDC |
| RS-232 Ports | One, Bidirectional RJ45 Connections |
| Ethernet / LAN | One, 10/100Base-T with PoE (Class 3) |
| USB Ports | One, Programming |
| RAM Memory | 64MB |
| Mounting | Wall-mount or free standing |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Dimensions (Unit) | W × D × H: 175 × 25 × 76 mm (7.0 × 1.0 × 3.0 in.) |
| Weight (Unit) | 0.4 lb. (212 g) |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ports | |
| IR Input | Compatible with industry-standard repeaters and receivers |
| Processor Engine | |
| Flash Memory | 128MB |
Included in the box:
- XP-3 Control Processor
- Power supply (12V, 1A)
- RJ45 to DB9 serial adaptor
- Antenna
- Mounting plate
- Screws & drywall anchors (4)
- Operation guide
- MAC address card
