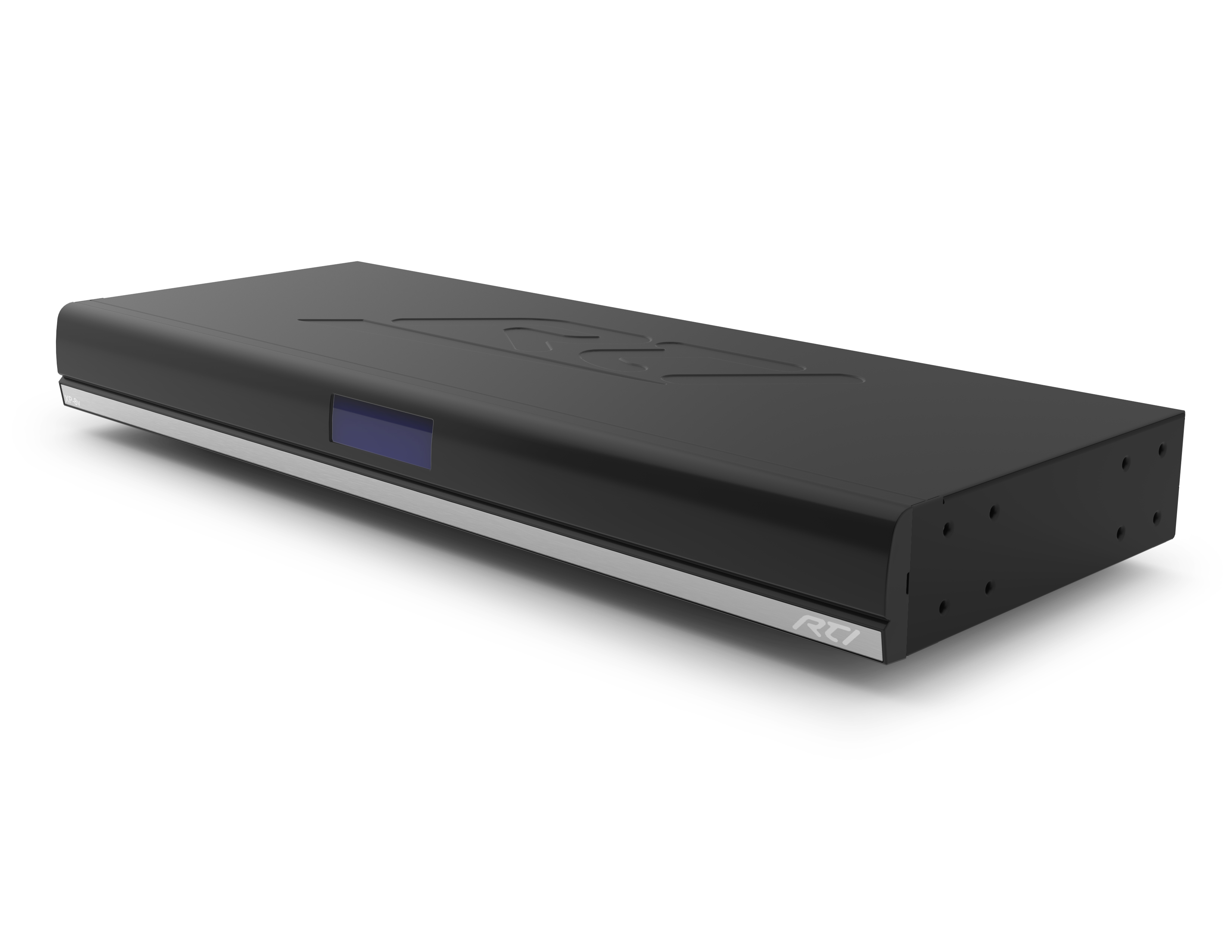

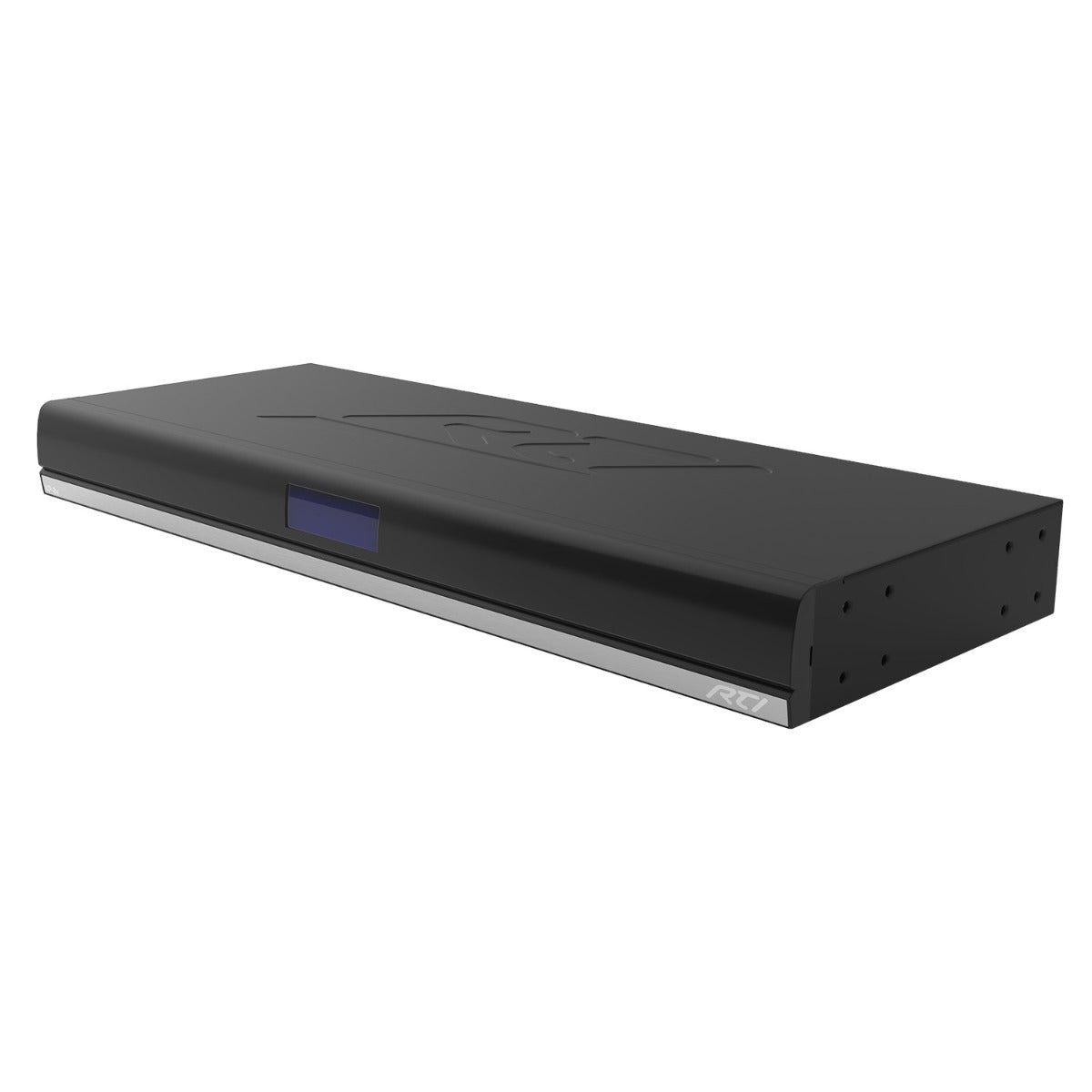

XP-8v Control Processor
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box

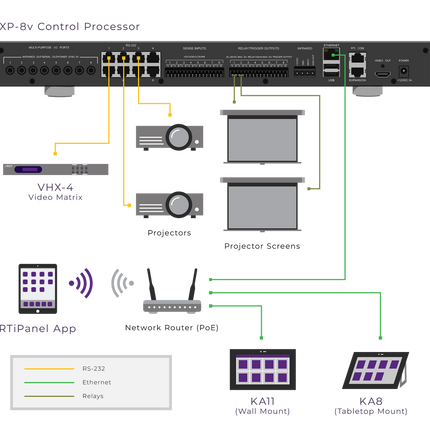

2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.
RS-232
Eight (8) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.
Relay
Eight (8) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 3A/30VDC (external power supply required).
MPIO / Infrared
Eight (8) M ulti- P urpose I nput/ O utput control ports that allows for infrared control with infrared emitters, blasters and repeaters and connecting voltage sensors or RS-232 communication modules.
Sense Input / Voltage Trigger
Eight (8) programmable 100mA/2VDC outputs to control and high voltage external relay in amplifiers or other devices to turn them on or off when a sense input detects contact closure from switches, windows or doors or when the sense input reaches a voltage input threshold. Sense inputs can also be used to trigger a programmed control command or macro.
Expansion Port
Proprietary communication port that allows bidirectional control communication with RTI touchpanels and keypads.
Ethernet
Standard 10/100 BaseT network connection for bidirectional control communication with RTI remotes, touch panels and devices that are controlled over IP network.
Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes via ZM-24 Zigbee transceiver module.
RF 433 MHz
Wireless RF communication on the 433 MHz band for unidirectional control communication with RTI remotes.
Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.
Rack-Mount
Allows for mounting the unit into a standard 19" wide rack or placing on any surface using the included feet.
Powerful 1GHz i.MX CPU.
1GB of RAM memory and 512MB of non-volatile Flash memory.
Eight multi-purpose I/O ports are compatible with industry standard IR emitters and optional RTI power sensing and communications modules.

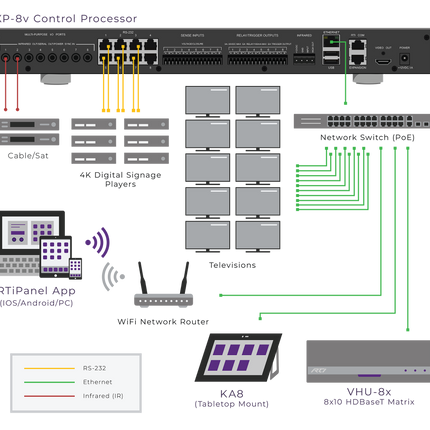

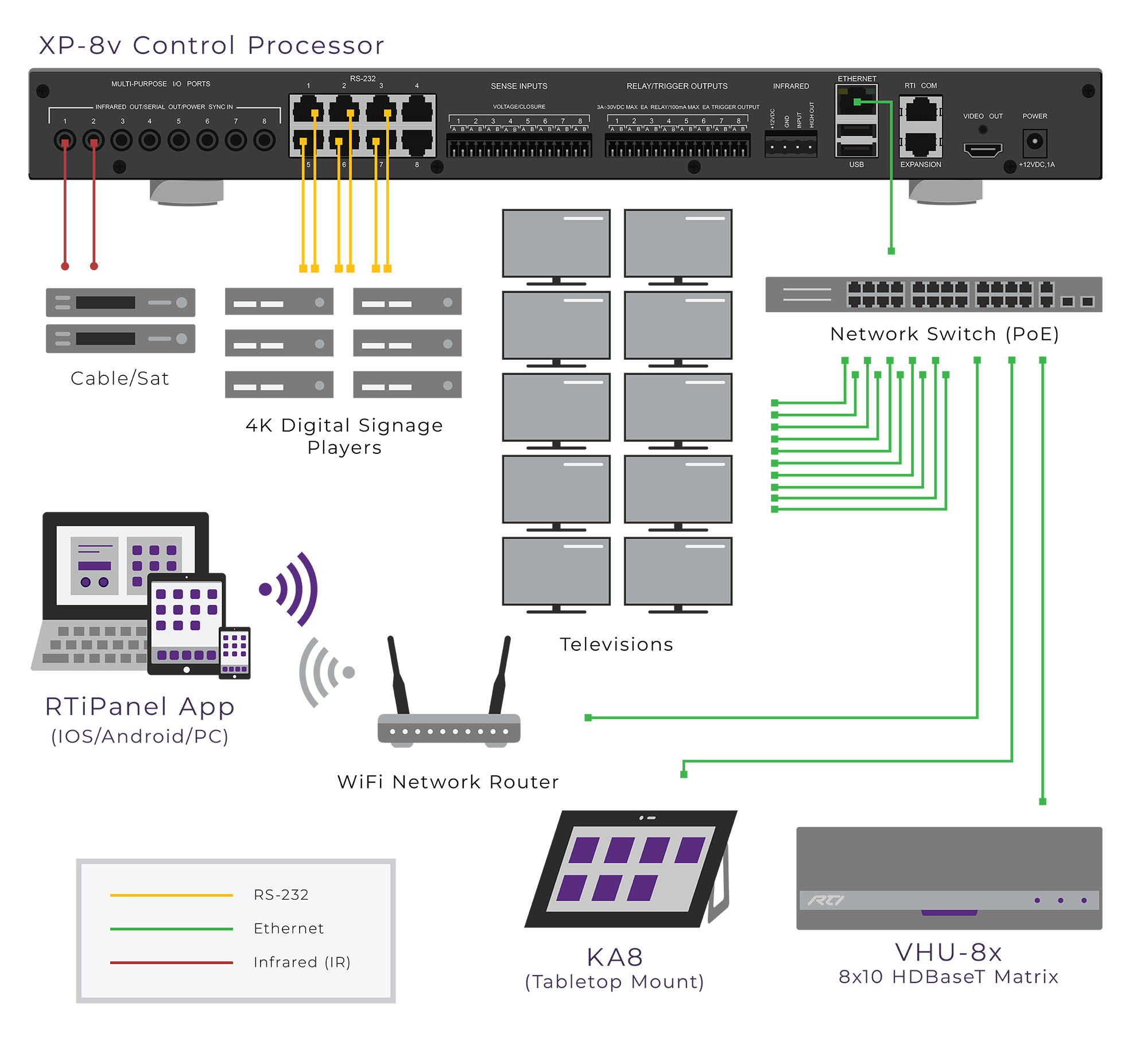

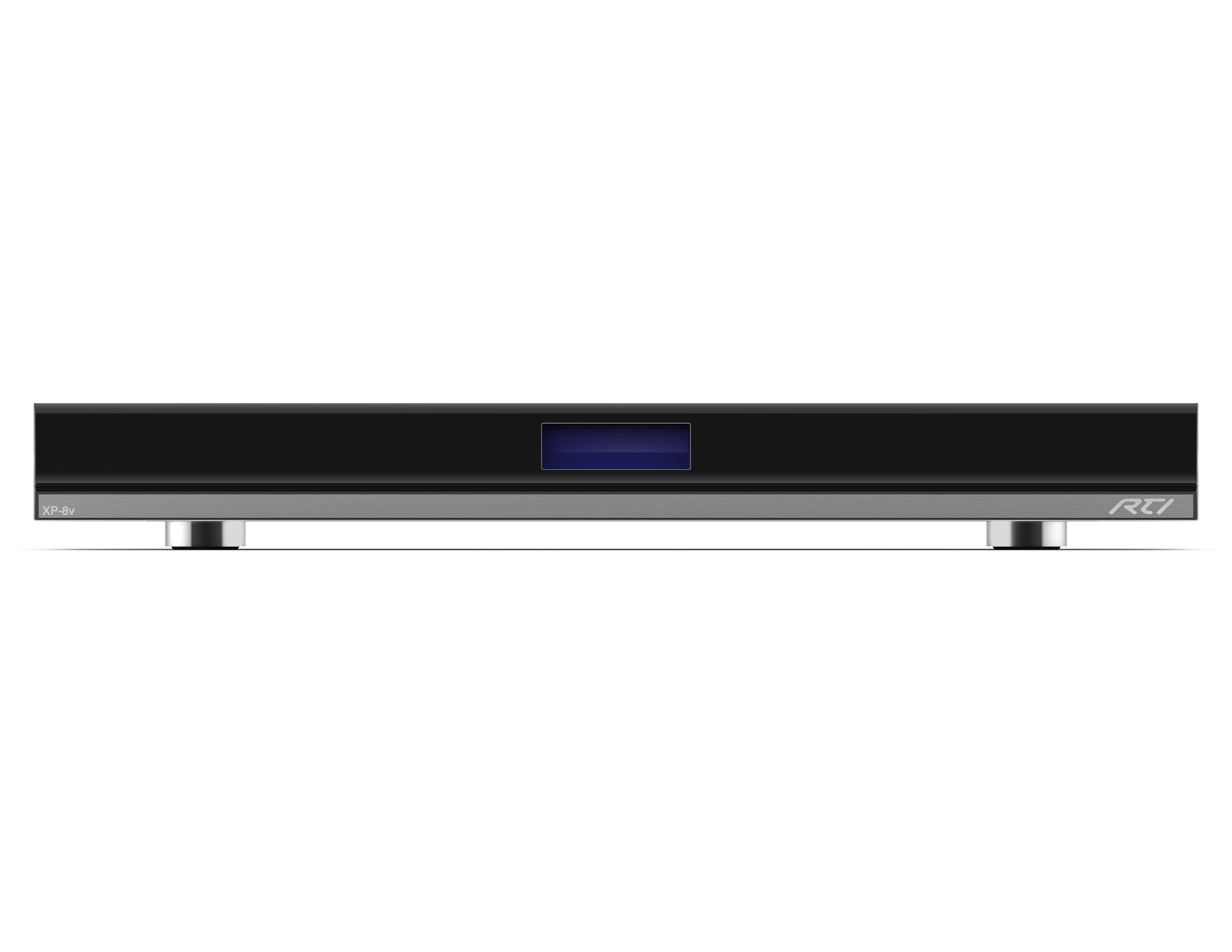

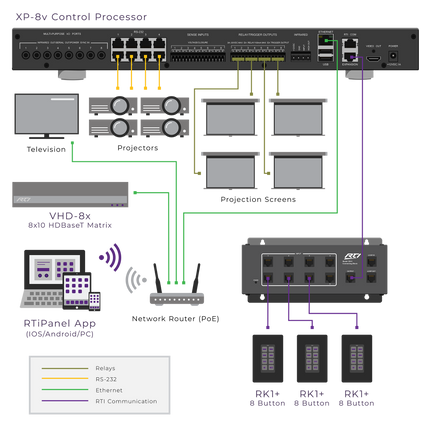

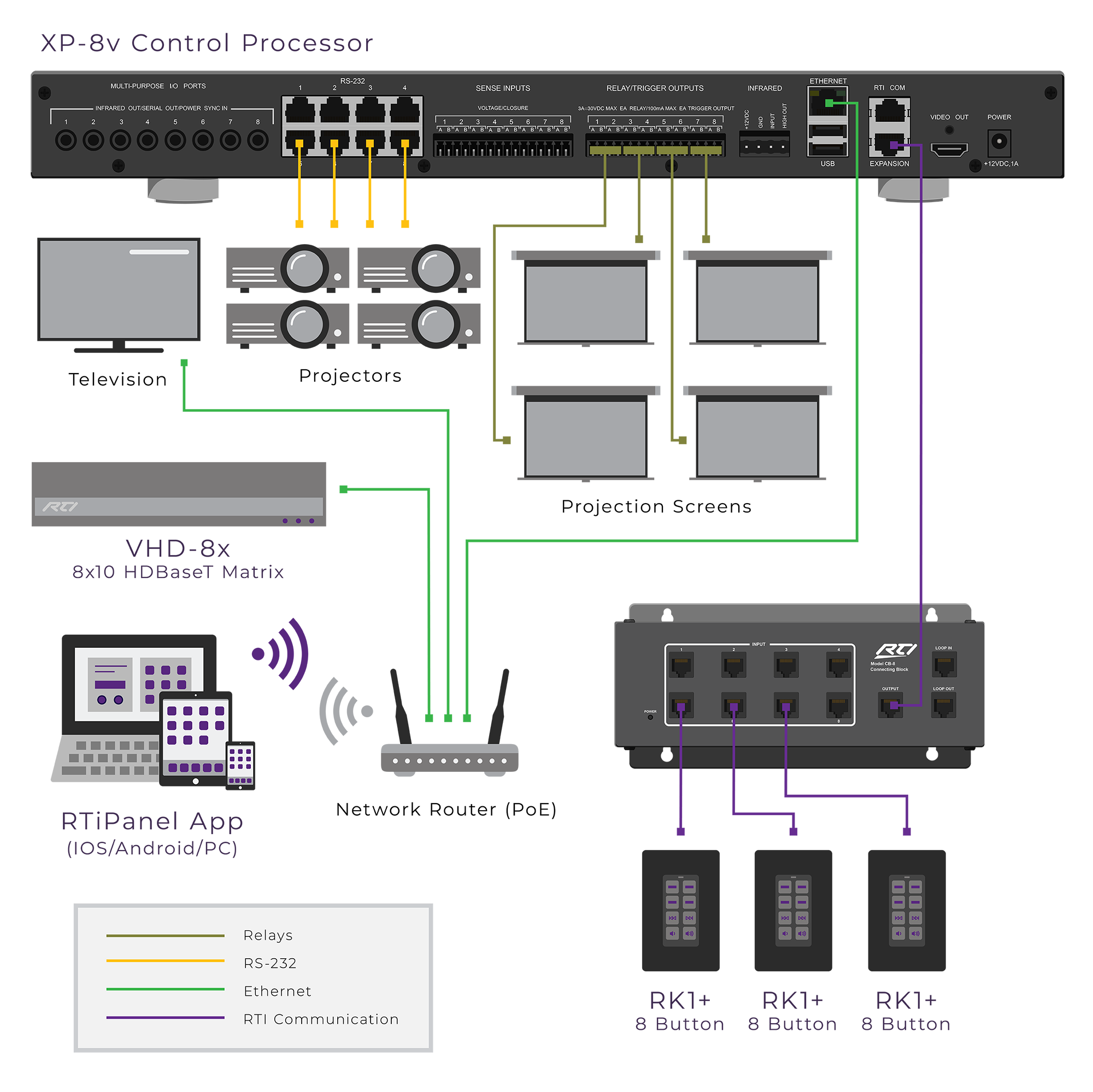

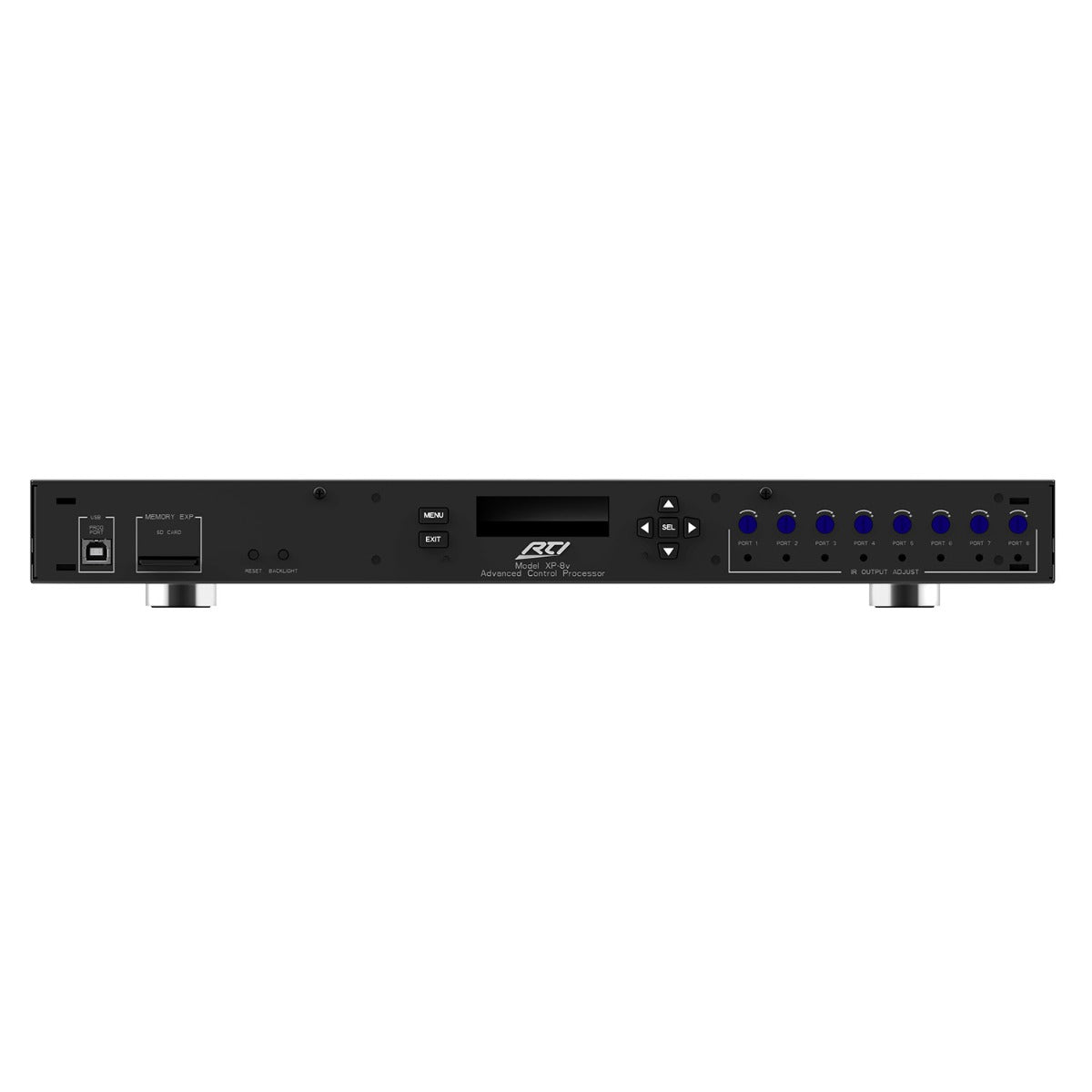

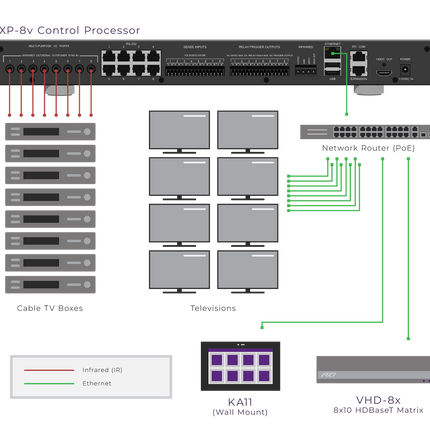

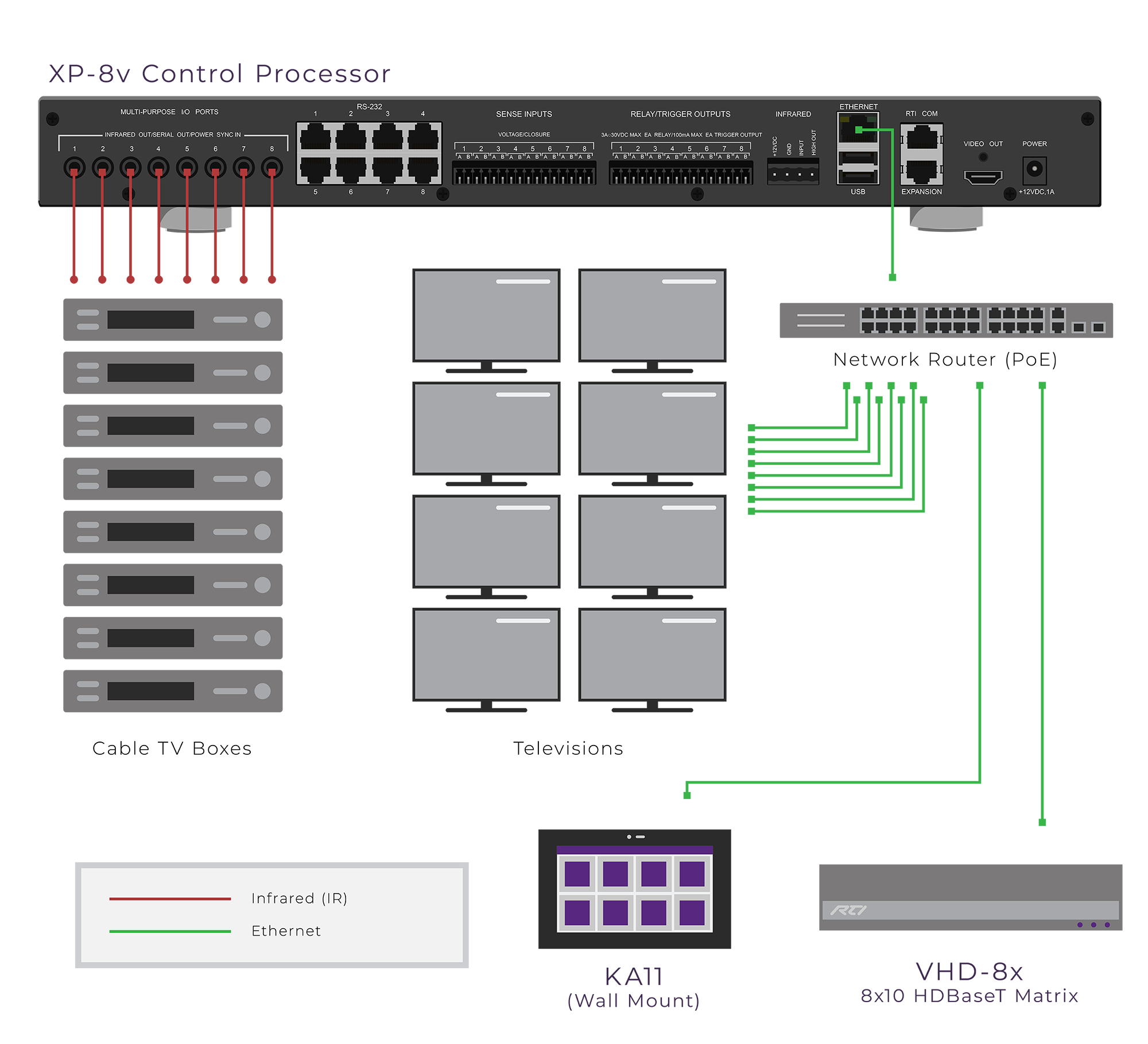

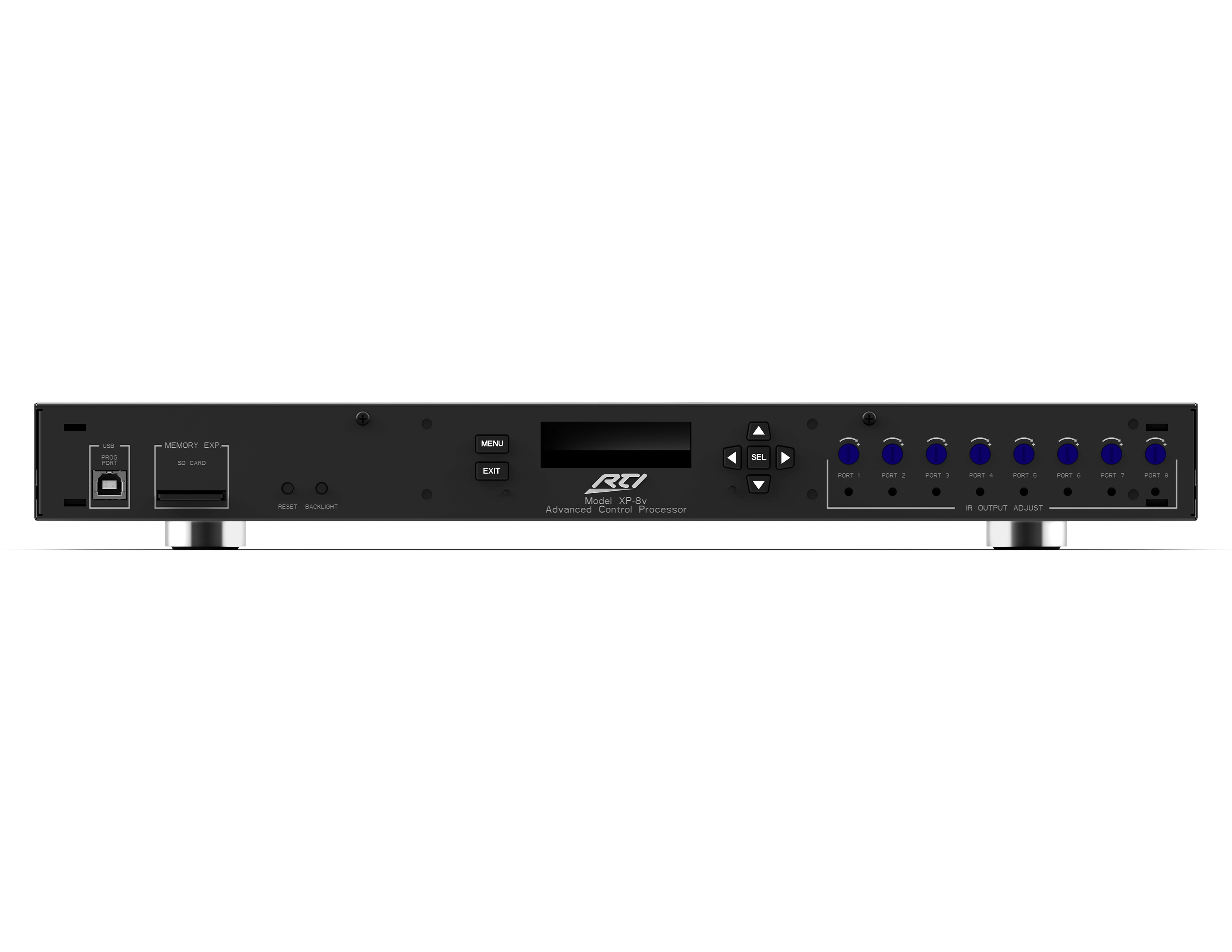

Front panel controls/display (11 Buttons for front panel control).
All output ports incorporate both short-circuit and overload protection.
Variable IR output on all ports.
Programmed using the Integration Designer® Software.
Non-volatile Flash memory stores your system configuration even when power is not present.
Field upgradable firmware.
Rack mountable or free standing.

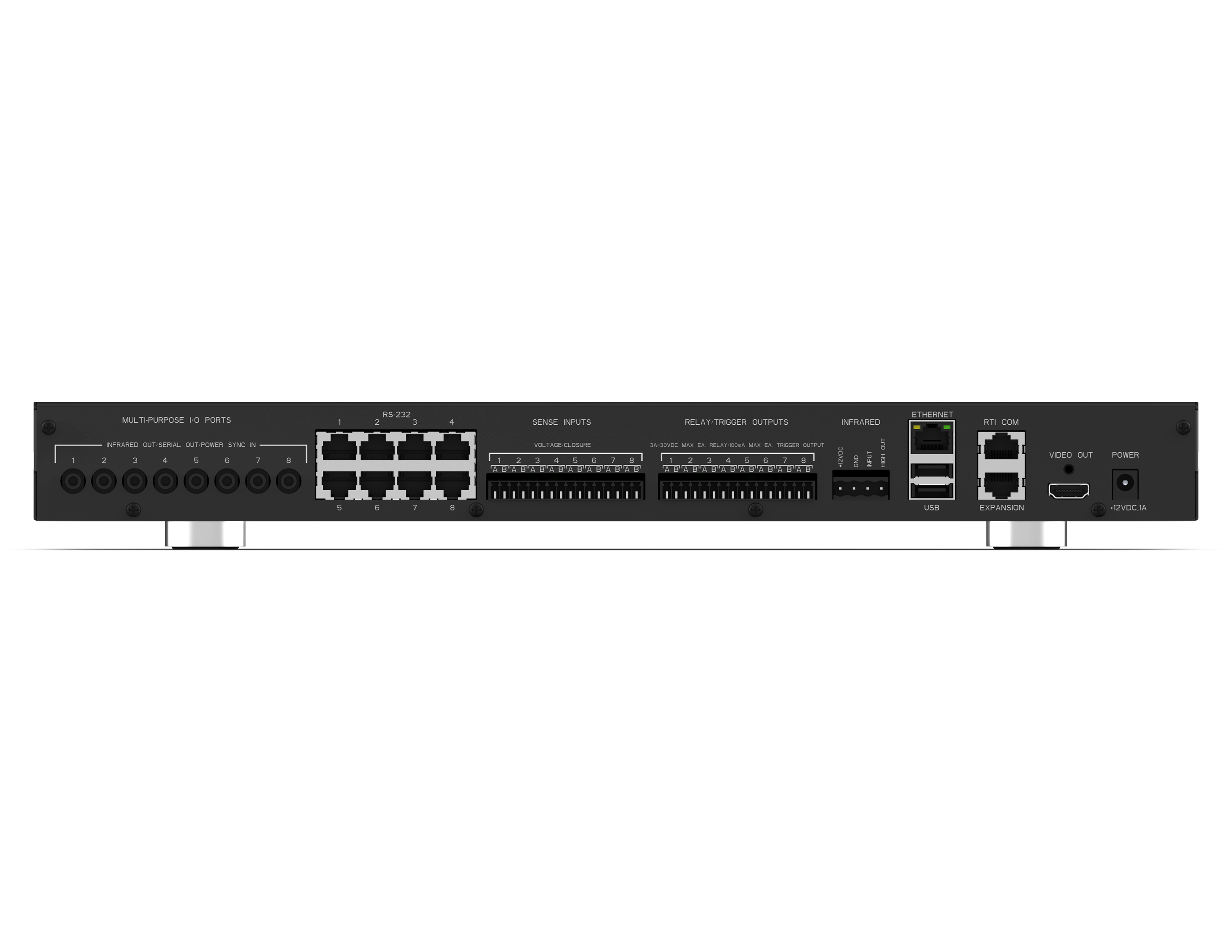

| General | |
| Power | +12 VDC, 1.0 A |
| Multi-Purpose Output Ports | Eight custom 3.5 mm 4-conductor jacks Designed for RTI modules as well as industry-standard IR emitters |
| IR Output Drive | 100 mA maximum (per port, adjustable) 200 mA maximum (high IR output port) |
| IR Frequency Range | 15 kHz to 460 kHz |
| Relays | Eight, 3 A @ 30 VDC or 12 V/100 mA Trigger |
| Sense Inputs | Eight, Digital/Closure |
| RS-232 Ports | Eight RJ45 Connections |
| Ethernet / LAN | One 10/100Base-T, RJ45 Connection |
| USB Ports | Two Host, One Programming |
| RTI COM Port | Two-way Zigbee® Communication Port, RJ45 Connection |
| Expansion Port | RS-485/IR/PWR, RJ45 Connection |
| Memory Expansion | SD/MM Card Slot |
| Display | High-contrast STS LCD |
| Display Size | HxD: 0.7 in x 2.8 in (18 mm x 60 mm) 32h x 122w pixels |
| Display Backlight | Blue LED (Display/Keypad) |
| Mounting | Rack-mount or free standing |
| Operating Temperature | 32 to 122 °F (0 to 50 °C) |
| Operating Humidity | 5% to 95% RH, non-condensing |
| Dimensions (Unit) | W × D × H: 432 × 162 × 43 mm (17 × 6.4 × 1.7 in.) |
| Weight (Unit) | 4 lb. (1814 g) |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Ports | |
| IR Input | Compatible with industry-standard repeaters and receivers |
Included in the box:
- XP-8v Control Processor
- Power supply (12V, 1A)
- RJ45 to DB9 serial adaptor (2)
- Rack ears (2) with screws (8)
- Terminal blocks (3x 4-position, 3x 2-position)
- Operation guide
- MAC address card
