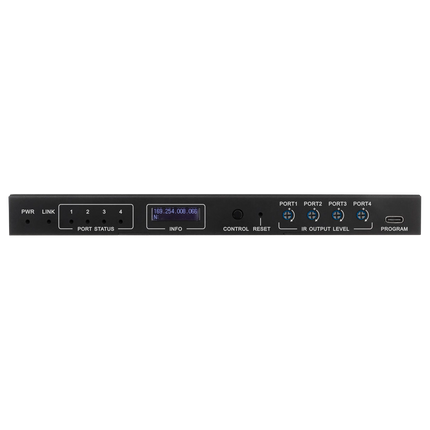

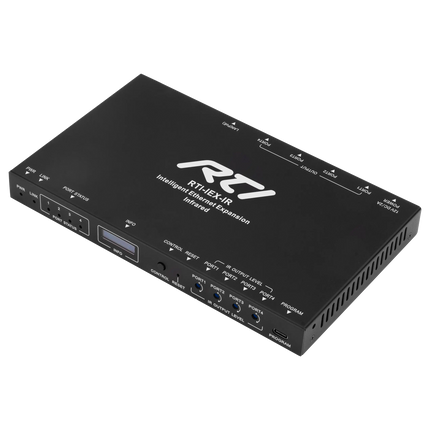

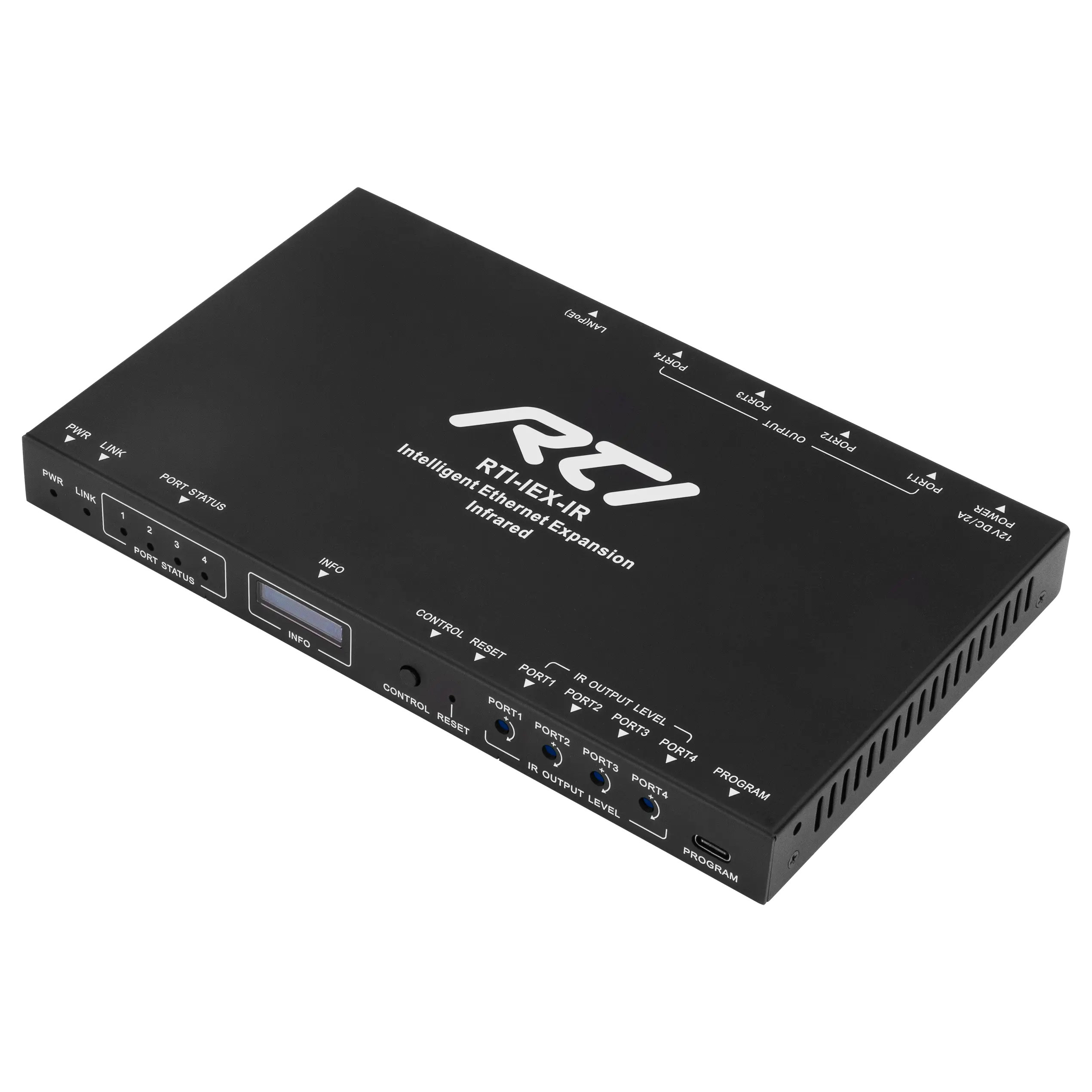

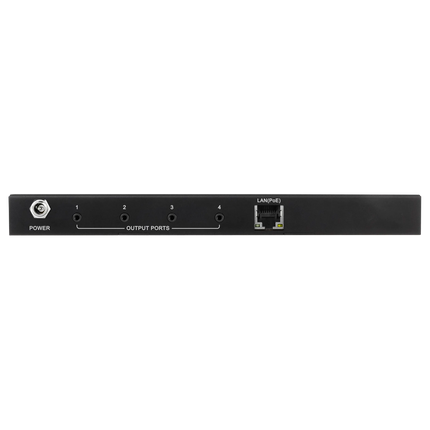

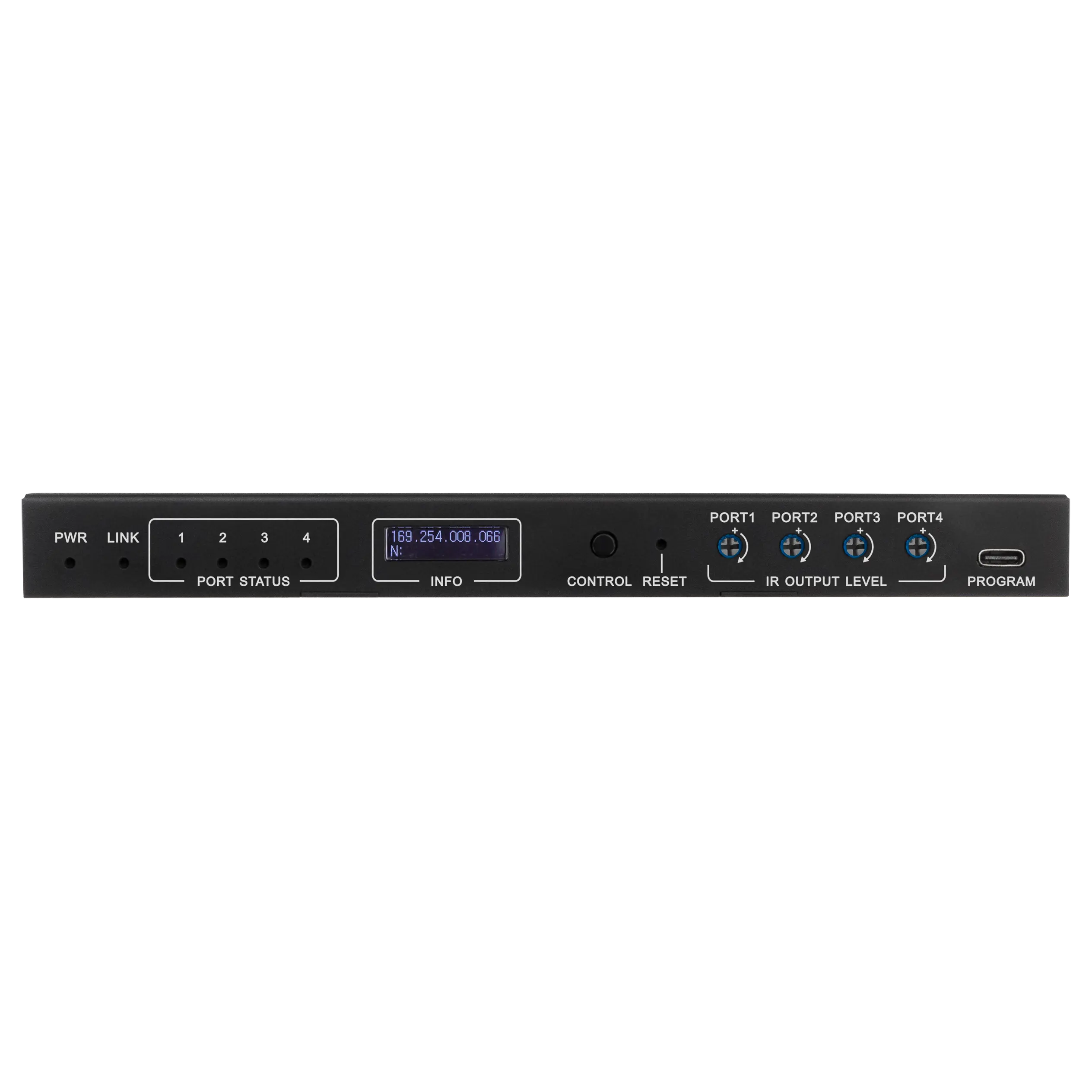

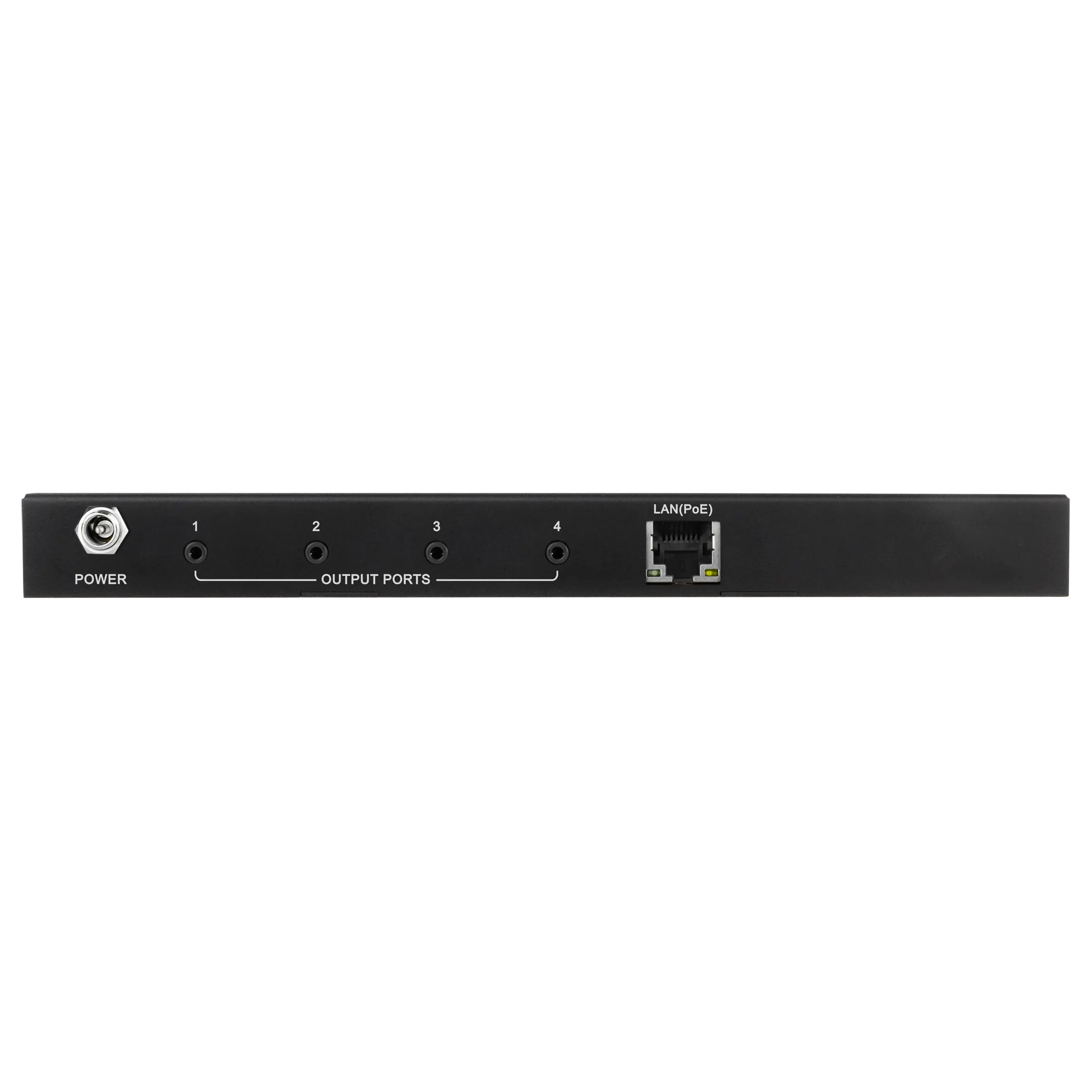

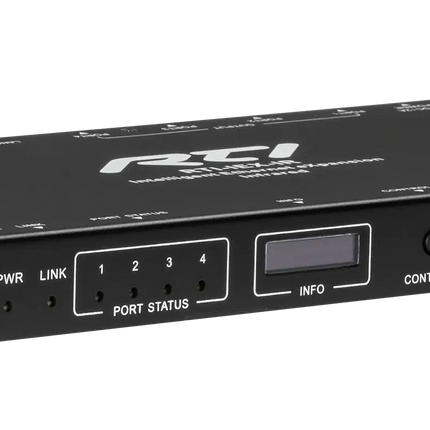

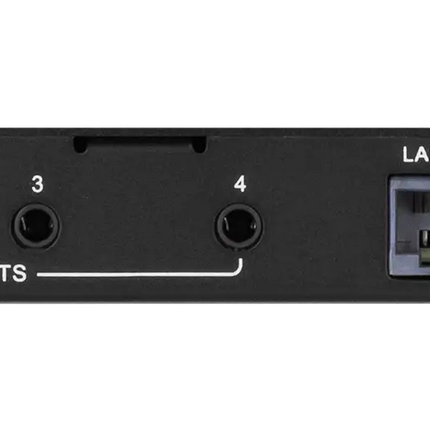

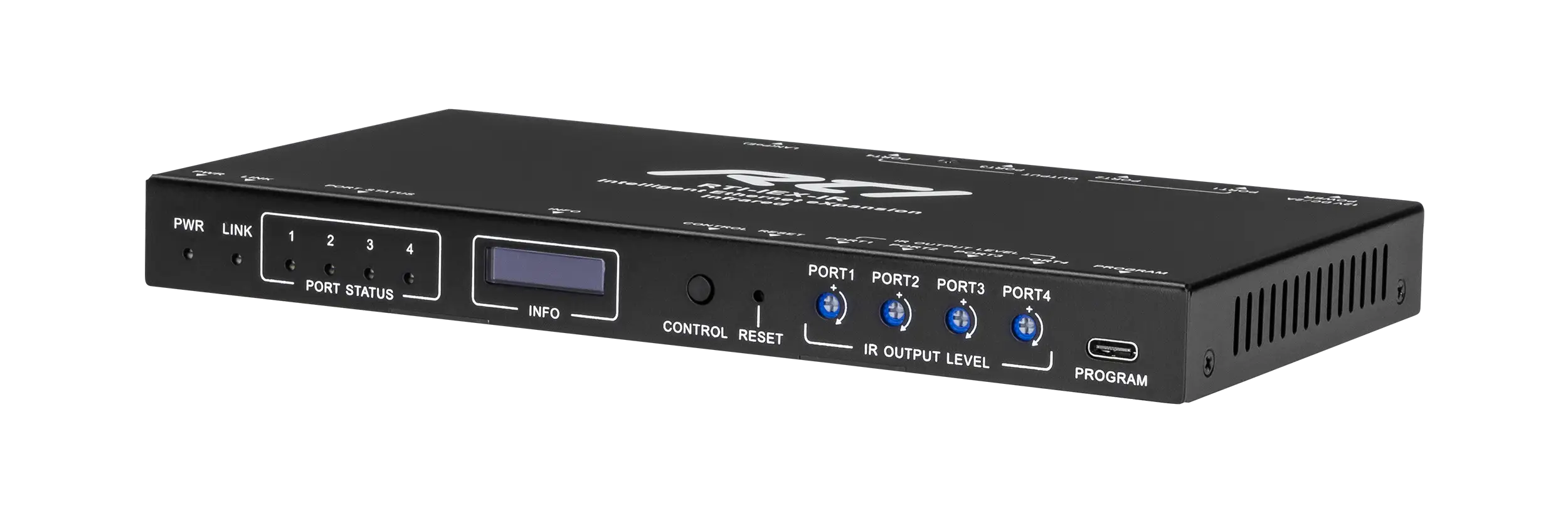

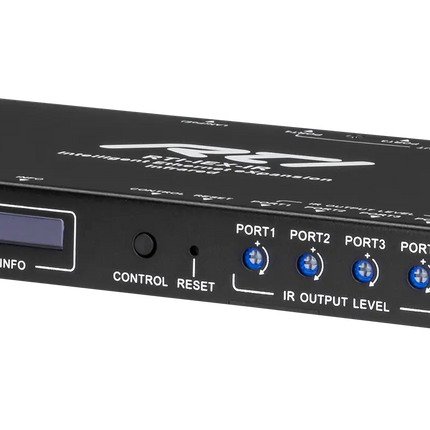

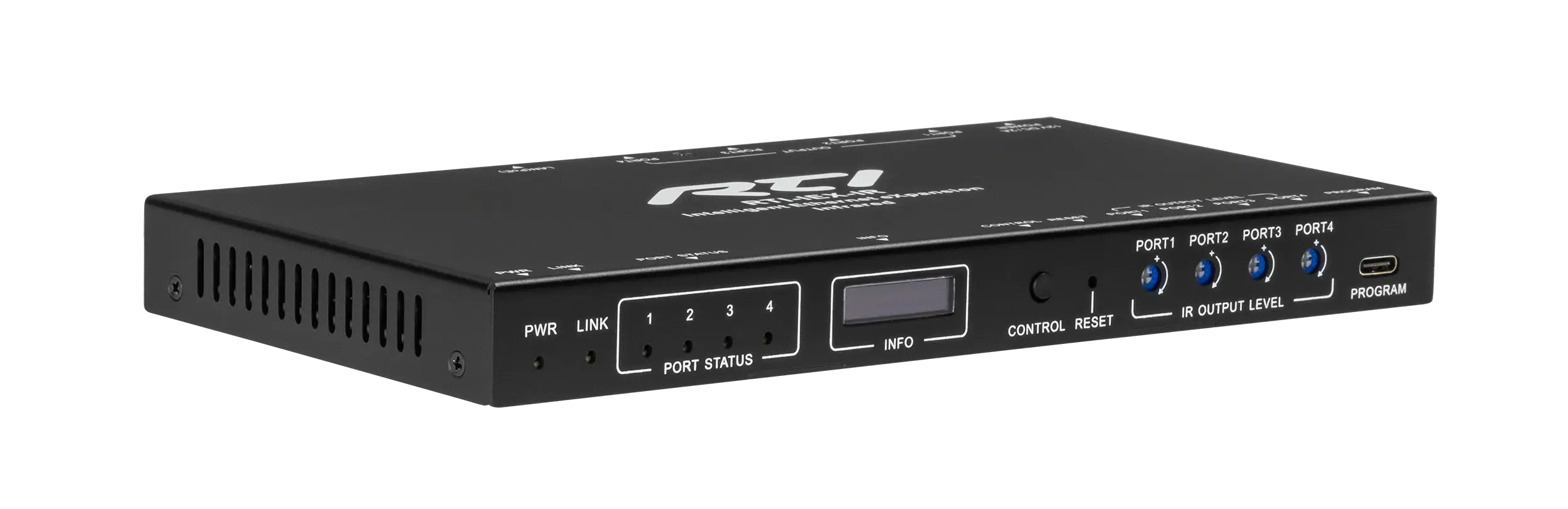

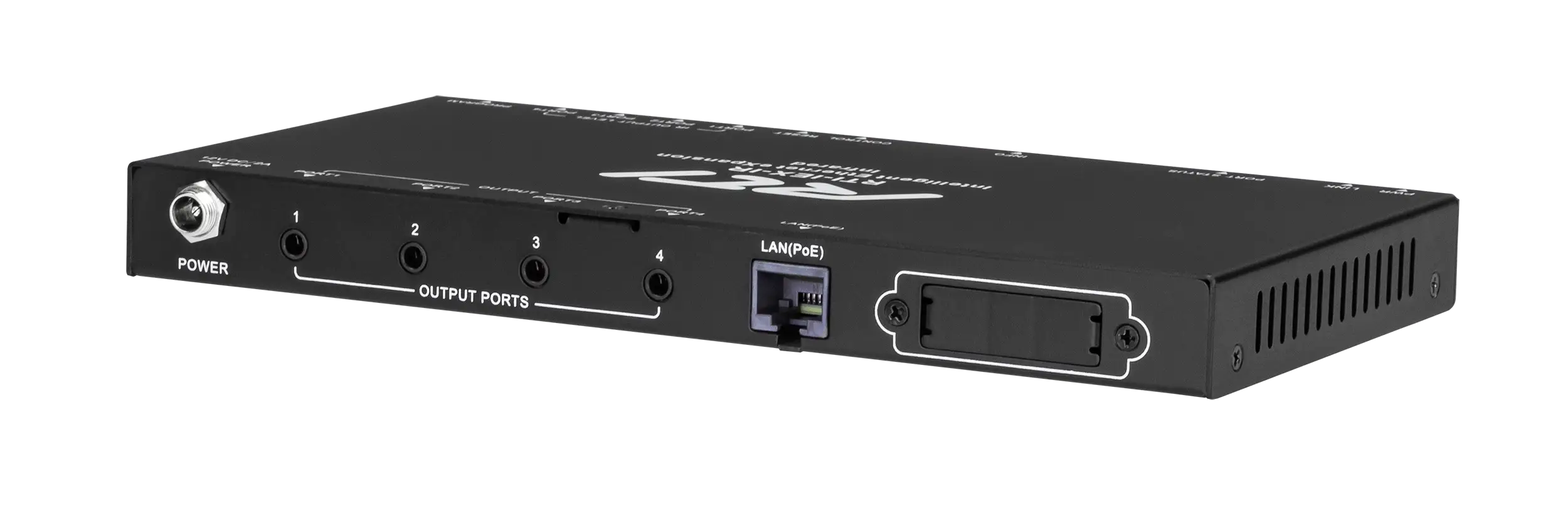

IEX-IR Intelligent Ethernet Expansion

Description

Intelligent Ethernet Expansion with four infrared ports for control, the IEX-IR extends control directly from the processor. Flexible, adaptable, compact, and versatile, the IEX-IR solves the solution of control exactly where you need it. An additional benefit is it is very easy to configure and program as the ports become addressable from the processor as IR connections.

Read more

IEX-IR Intelligent Ethernet Expansion

Product form

Coming Soon.

  • Infrared control exactly where it’s needed, being local to the device
  • Compact size to allow easy mounting in difficult to reach areas and create minimal environmental disruption
  • Convenient display to visually indicate key data such as IP and MAC address
  • Provides expansion I/O additional assignable IR ports to the control processor expanding it’s I/O capabilities
  • Web page to give easy access to network information, firmware upgrade capability, and system operations

SKU: RTI-IEX-IR

  • Shipped today? Order within: Jun 25, 2026 13:00:00 -0500

Description

Intelligent Ethernet Expansion with four infrared ports for control, the IEX-IR extends control directly from the processor. Flexible, adaptable, compact, and versatile, the IEX-IR solves the solution of control exactly where you need it. An additional benefit is it is very easy to configure and program as the ports become addressable from the processor as IR connections.

Read more

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Local control where you need it - IR control in the most difficult to reach areas delivering remotely from the processor



Easy configuration and setup - All settings are available to preplan through Integration Designer or live through the web page



Compact design - Small enough to fit behind the TV, beside AV equipment, or in any location needed



One cable connection for power and communication - Just one ethernet cable takes care of power, communication, and control making installation really simple



Built in diagnostics - A digital display for all the important details local to the device instead of tracing back to the main control

Processor Engine
Processor ICRockchip RK3506G2
Flash Memory256Mb
Communication
EthernetRJ45: 1Gb PoE
USB-CProgramming port
Display0.91” OLED
Inputs/Outputs
Infrared4 ports (3.5mm mono connectors)
Frequency Range15kHz - 460 kHz
IR Output Drive100mA maximum (per port, adjustable)
Mechanical
EnclosureFormed steel, black powder coating
Environmental
Operating Temperature23 to 125°F (-5 to 51°C)
Storage Temperature-4 to 140°F (-20 to 60°C)
Operating Humidity5-90% RH (No Condensation)
CoolingAir vents
Power
Max Power Consumption24W (12V 2A)
Power Supply UnitInput: AC 100-240V~ 50/60HZ
Output: DC 12V 2A
Dimensions
MountingVesa, rack
Dimensions (Unit only Width/Depth/Height)mm: 200.00 x 104.00 x 20.00
in: 4.05 x 7.88 x 0.79
Dimensions
(Packaged Width/Depth/Height)		mm: 267.00 x 150.00 x 70.00
in: 10.51 x 5.91 x 2.76
Weight (Unit)0.45kg / 1lb
Weight (Packaged)0.90kg / 2lb
RegulatoryFCC, CE, RCM
Product Warranty3 years
Specifications subject to change without notice.  Mass & dimensions are approximate
  • RTI-IEX-IR
  • 12V 2A Power Supply
  • Screwdriver
  • Quick Start Card
