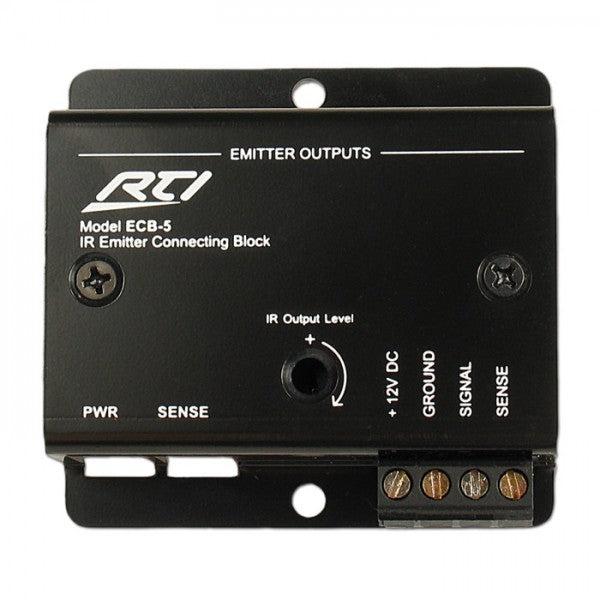

ECB-5 IR Emitter Connecting Block

Description

The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.

Read more

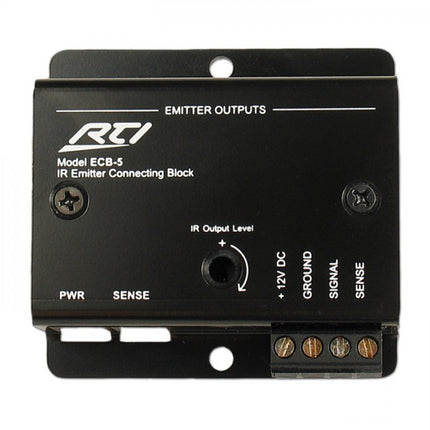

ECB-5 IR Emitter Connecting Block

Product form

  • Five infrared emitter outputs
  • Power sense input
  • Variable IR output power
  • Steel construction
  • No power supply required for operation

SKU: RTI-ECB5

  • Shipped today? Order within: Jun 17, 2026 13:00:00 -0500

Description

The ECB-5 IR Emitter Connecting Block provides expanded infrared signal distribution when used with RTI control processors, in-wall touchpanels, device connecting blocks (CB4/CB8), third party infrared repeater systems, etc. It has one infrared signal input and five emitter output ports that allow the connection of up to five single or dual infrared emitters. It also incorporates a sense input for monitoring the power status of a switched outlet, current sensor, light sensor, etc.

Read more

  • Key Benefits
  • Specs
  • Resources

Five infrared emitter outputs


Power sense input


Variable IR output power


Steel construction


No power supply required for operation

Power +9VDC to +16VDC, 1.5A
Number or Output Ports Five
Output Ports 3.5 mm jacks
Works with industry standard IR emitters
IR Output Drive 100mA maximum (per port, adjustable)
Infrared Input Compatible with industry standard repeaters/receivers
Mounting Wall-mount or free standing
Dimensions (H x W) 2.6" (66mm) x .9" (23mm) x 2.4" (61mm)
Operating Temperature +32°F to +122°F (0°C to +50°C)
Operating Humidity 5% to 95% Non-condensing
Weight 4oz (108g)
Warranty Three Years (Parts & Labor)
