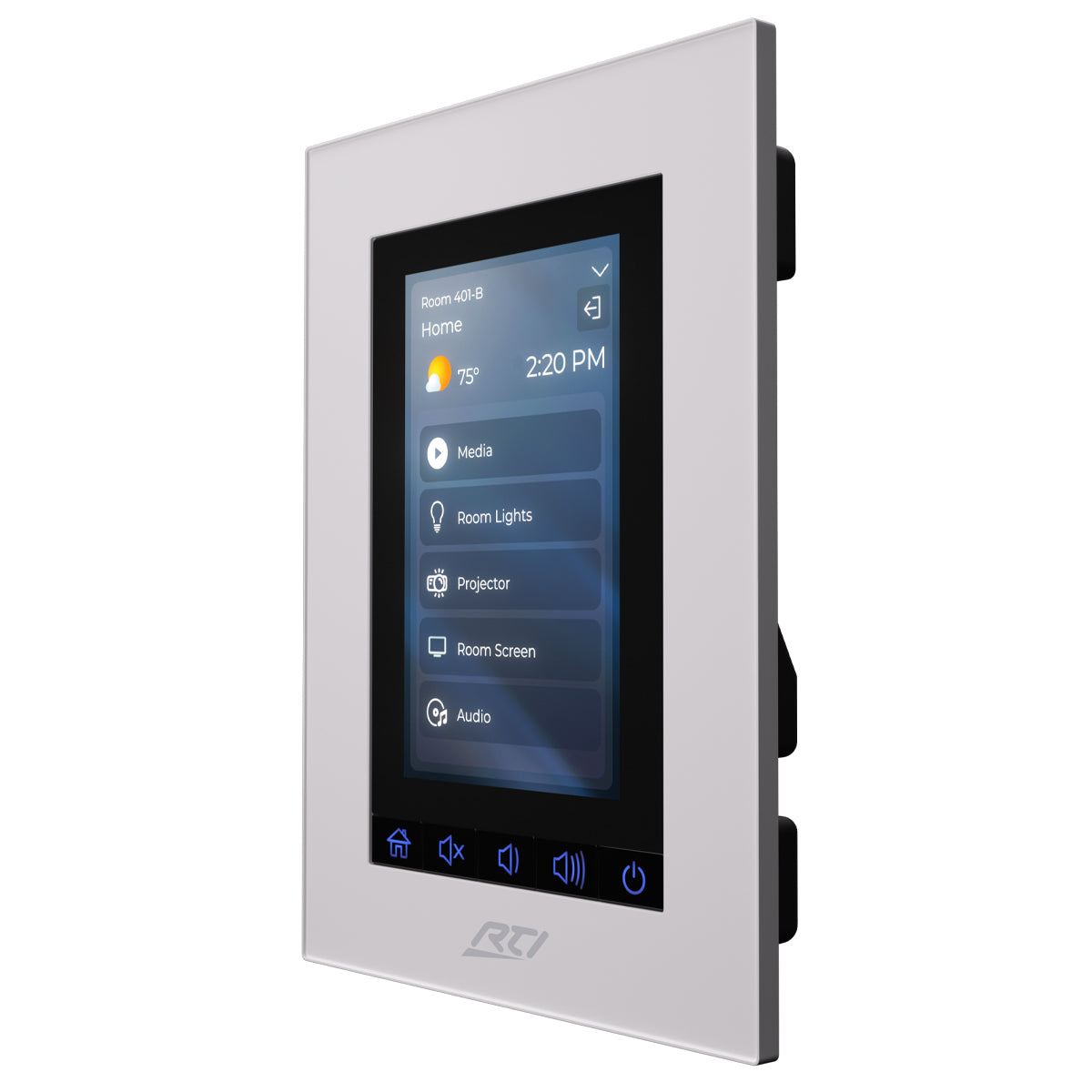

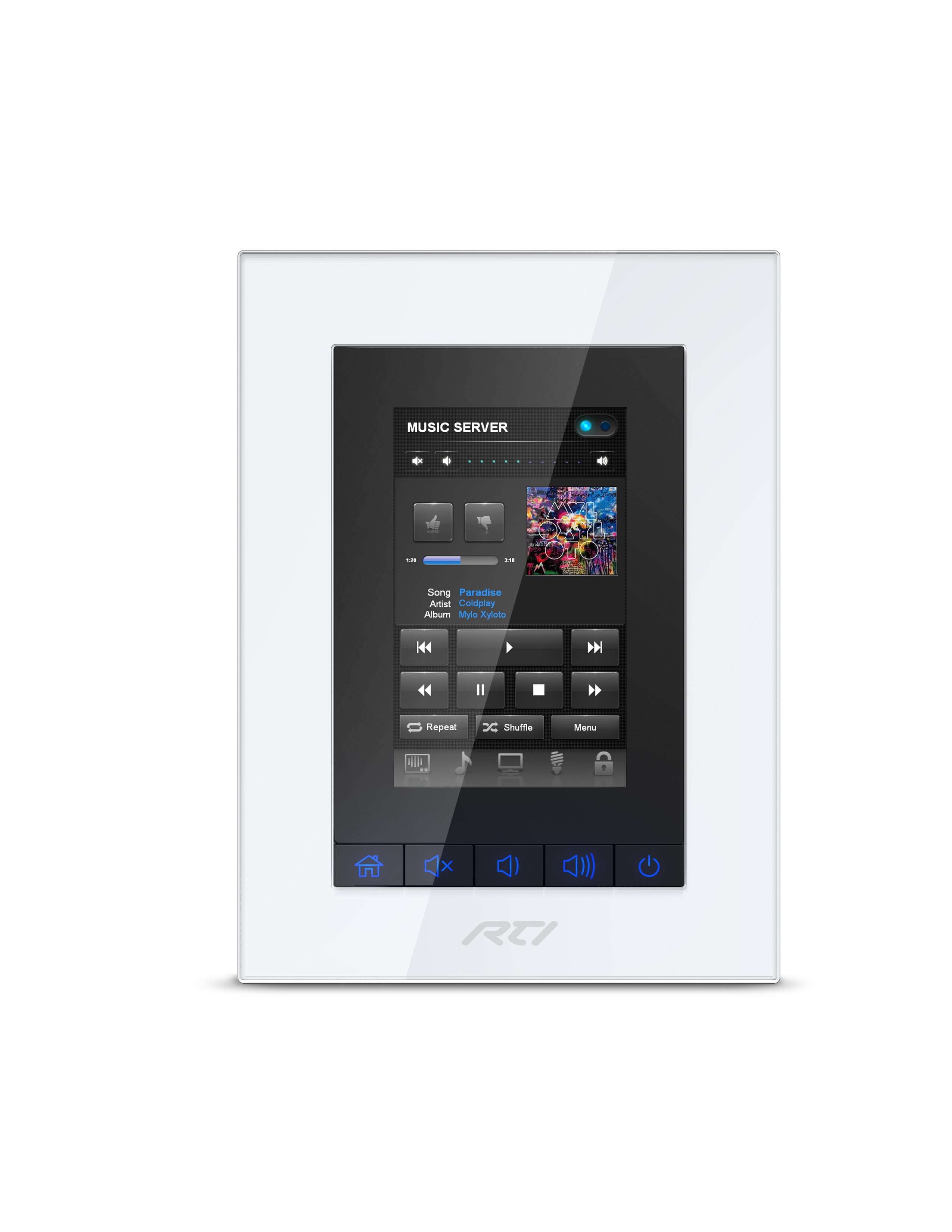

KX4 4 inch In-Wall Touchpanel Keypad w/ Control Processor
- VendorRTI

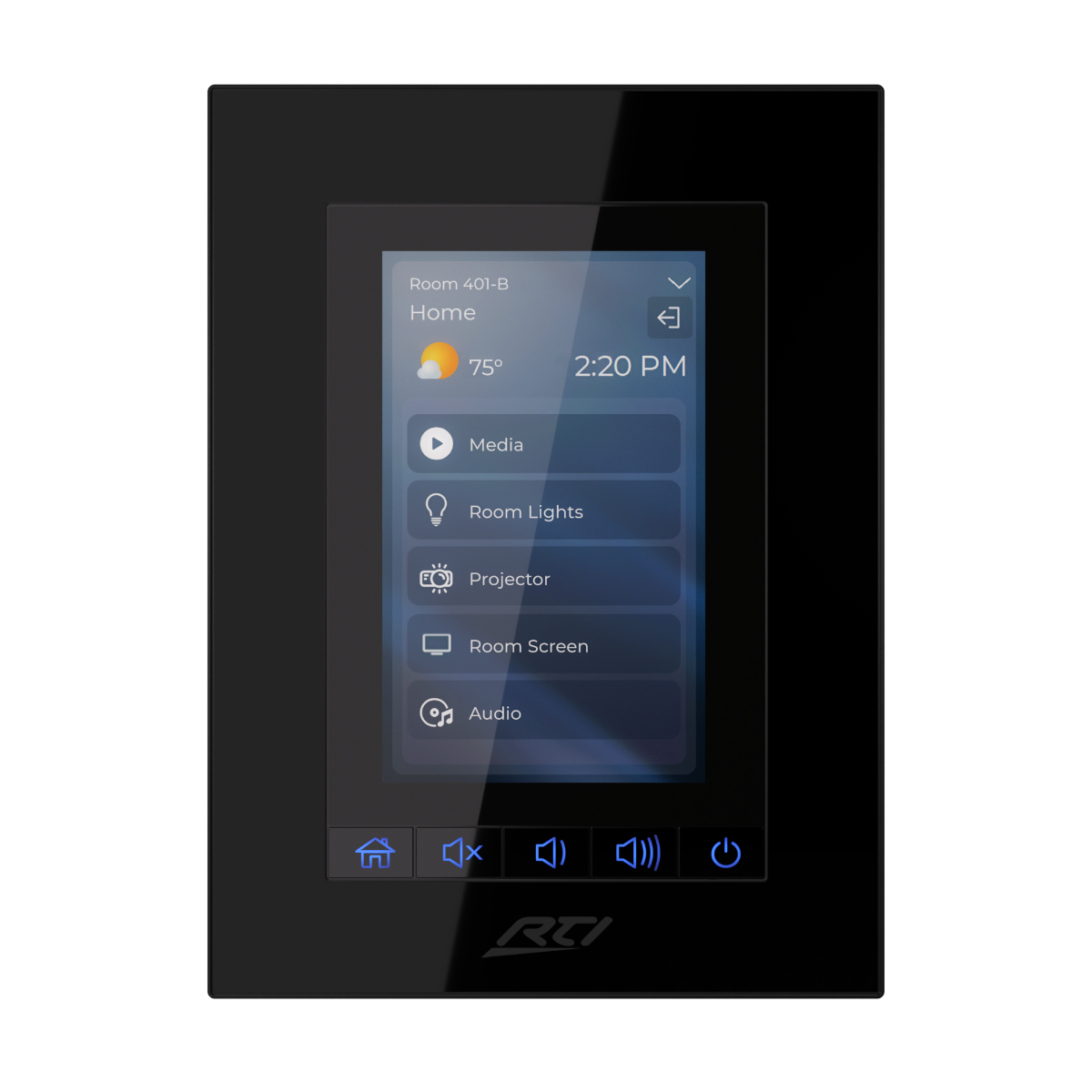

KX4 4 inch In-Wall Touchpanel Keypad w/ Control Processor
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
In-Wall
Blend your flush-mount touchpanel into the wall and make it a central point for controlling your home or business.
Hard Buttons
Five Hard Buttons provide quick access to often used control functions such as lights, music, audio/video source selection without the need to navigate through the graphical interface on your touchpanel.
2-Way
Convenient and reliable control with status feedback from controlled devices such as on/off or arm/disarm status, dimming value of lights, playlists, available stations.
RS-232
Two (2) control ports for 3-wire connection with the capability of polling status feedback from controlled devices or systems.
Relay
Four (4) built-in low voltage dry contacts that provide contact closure or switching control for loads up to 2A/30VDC (external power supply required).
Infrared
One (1) control port for 2-wire connection to infrared emitters, blasters and repeaters.
Sense Input
Six (6) inputs that sense contact closure from switches, windows or doors or voltage state from a voltage sensor to trigger a programmed control command or macro.
Ethernet
Standard 10/100 BaseT wired network connection for bidirectional control communication with RTI remotes, control accessories and devices that are controlled over IP network.
PoE
Power your touchpanel through a PoE network switch or PoE injector. No extra power supply required.
Zigbee
Standard wireless Zigbee connection for bidirectional control communication with RTI remotes.
Astronomical Clock
Built-in clock that syncs through an internet connection allows to schedule time-based events to automate all aspects of the installed environment, including climate, lighting, music, and much more.
Laser Shark
Customize the button labels with text or graphics.
Built-in control processor features advanced capabilities including support for two-way drivers, RTiPanel App and expansion capabilities.
Proximity sensor wakes up the unit as a user approaches and an ambient light sensor adjusts the touchpanel's backlighting.

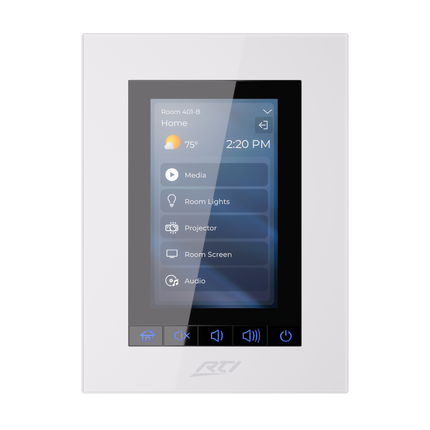

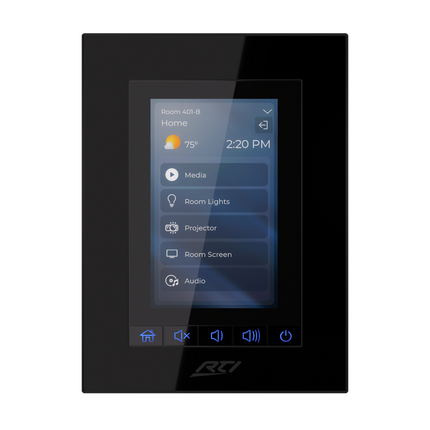

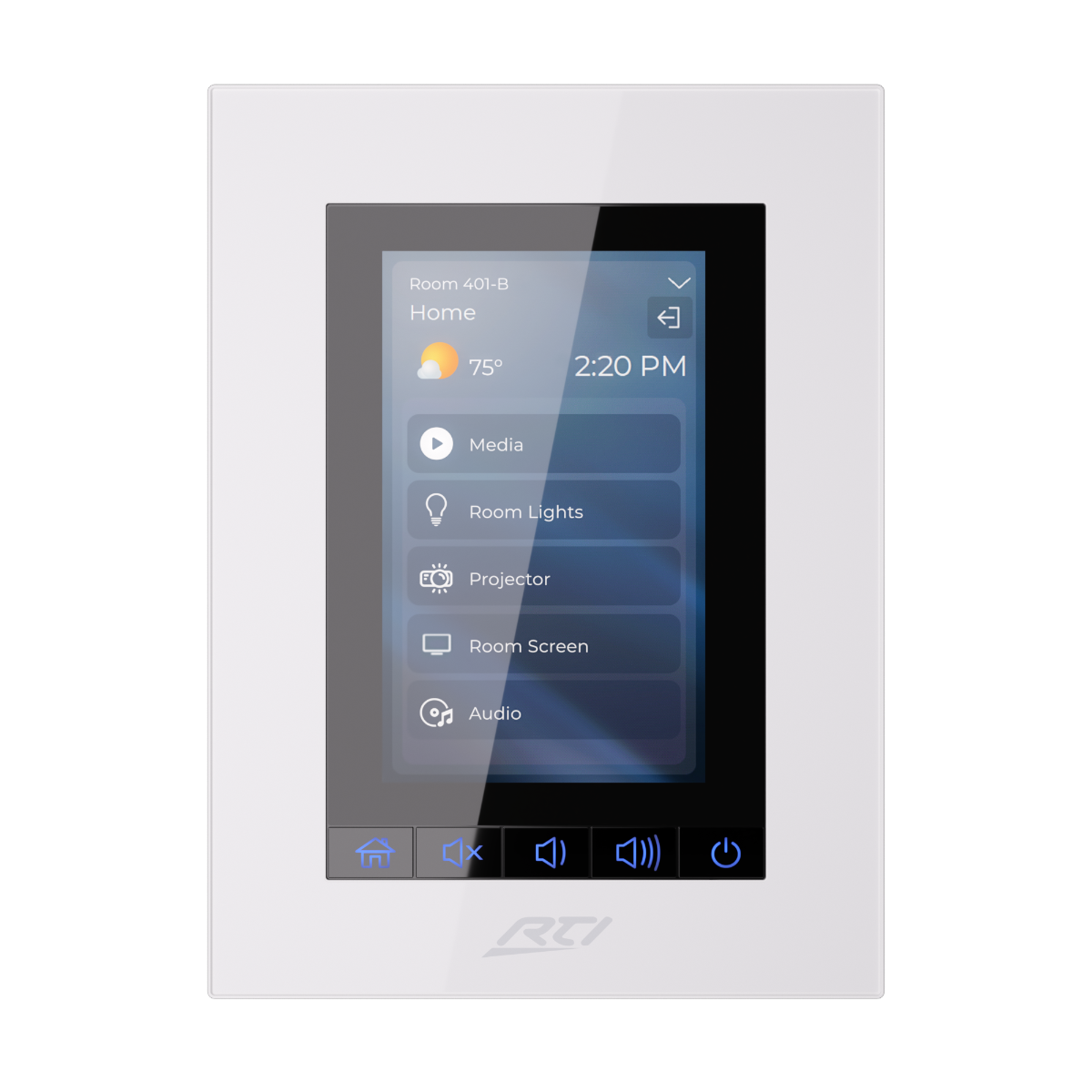

Stylish low-profile faceplate available in white or black (ships with white).
Weight8.9oz (252g)

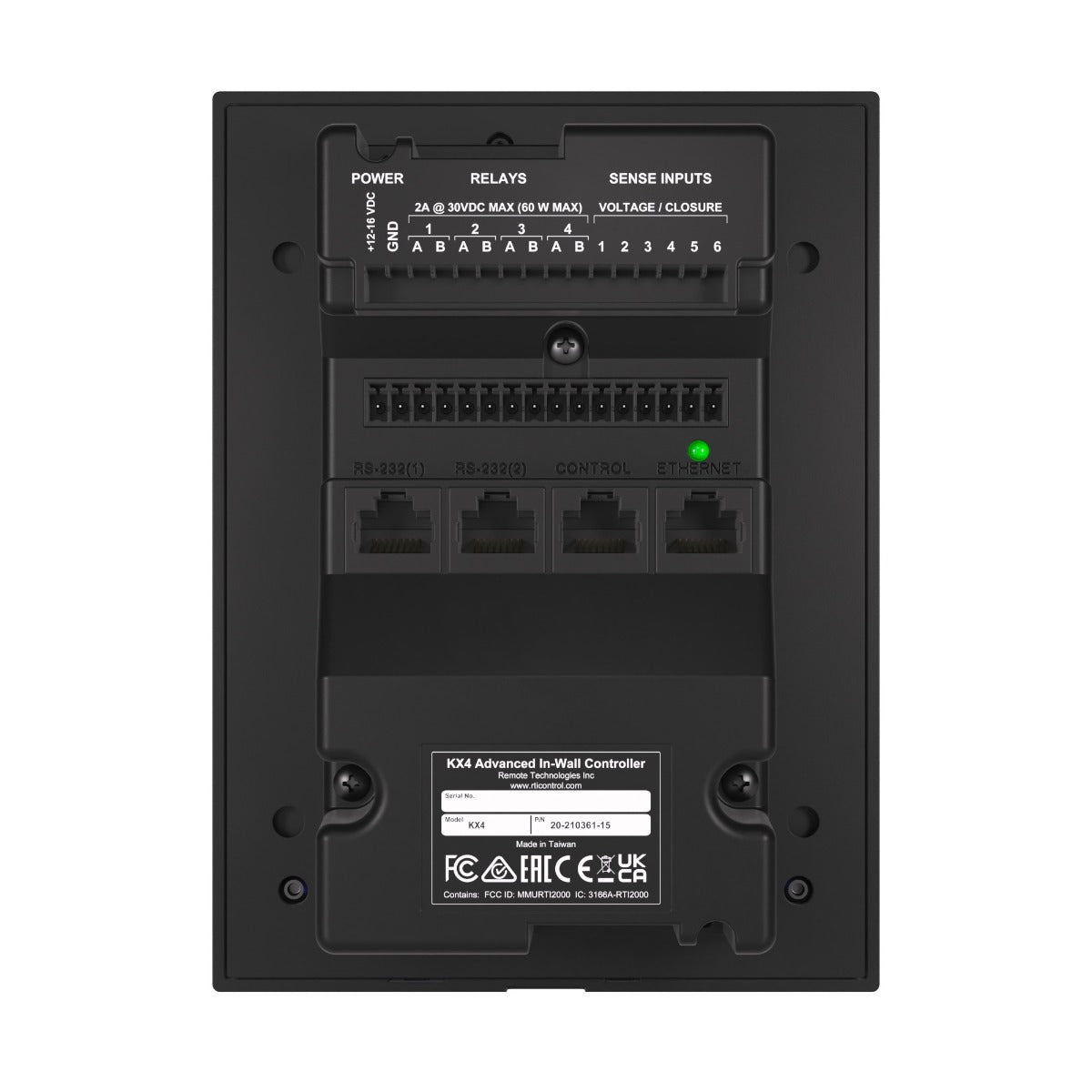

| Power | +12VDC to +16VDC, 1A max |
| Power Management | Adjustable backlight brightness, Ambient light sensor, Proximity sensor |
| Touchscreen Display | High-brightness color TFT LCD WVGA (480x800 pixels) with 16.7M colors Integrated high-resolution capacitive touch screen |
| Display Size | 4.0 in (97.2mm) diagonal |
| Display Backlight | LED Backlit, 200nit |
| Infrared Output | One, through control port, 200mA output Drives up to 1000 ft (300 m) of wire |
| Serial Port | Two RJ-45, RS-232 communication |
| Ethernet Port | 10/100 Base-T with Power-over-Ethernet |
| Relays | Four, 2 Amps @ 30 VDC |
| Sense Inputs | Six, 2-24VDC |
| Radio Frequency Control Range | Up to 100 feet (30.5 meters) Communication with optional wireless Interfaces |
| Radio Frequency Carrier | 802.15.4 @ 2.4GHz (Zigbee® Wireless Networking) |
| Microphone | Silicon MEMS |
| Speaker | One (1) 2 Watt, 8 Ohm |
| Flash Memory | 128MB Bytes Flash (non-volatile) memory |
| RAM Memory | 256MB |
| Device Capability | Total number of devices is limited only by memory |
| Macro Capability | Unlimited steps in a single macro Total number of macros is limited only by memory Macro capability on every button |
| Communications | USB programming port |
| Enclosure | High-impact molded ABS plastic |
| Mounting | Integrated mounting wings, or screws through front plate |
| Bezel Dimensions (W x H) | 4.352in (110.5mm) x 5.876in (149.25mm) |
| Installation Cut-Out (W x H) | 2.942in (74.7mm) x 5.192in (131.8mm) |
| Total Depth in Wall | 1.265in (32.1mm), with mounting wings 1.624in(41.2mm) NOTE: Additional room may be required depending on connections |
| Weight | 8.9 oz (252 g) |
| Operating Temperature | +32°F to +122°F (0°C to +50°C) |
| Operating Humidity | 5% to 95% Non-condensing |
| Warranty | Three Years (Parts & Labor) |
| Prop 65 Warning | WARNING: This product can expose you to chemicals including 1,3-Butadiene, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
* All Specifications subject to change without notice.
- KX4 Cutsheet (PDF)
- RTI Solution Guide Huddle Space with KX4 (PDF)
- RTI Solution Guide Classroom with KX4 and VSS-51 (PDF)
- KX4 Conference Room Diagram (PDF)
- KX4 Simple Classroom Diagram (PDF)
- KX4 University Classroom Diagram (PDF)
- KX4 Bedroom Diagram (PDF)
- Product Selector Guide (PDF)
- KX4 Operation Guide (PDF, 2.4M)
- KX3/KX4 Conduit Box Mounting Instructions (PDF, 230KB)
- firmware page
- Laser Shark Custom Engraving - Learn More
- Laser Shark Software v1.110 (zip, 6.5M)
- Laser Shark Custom Engraving Guide
- EU Declaration of Conformity (PDF)
- UKCA Declaration of Conformity (PDF)
- KX3/KX4 Dimensional Drawing
- KX3/KX4 Backbox (Conduit Box) Dimensional Drawing
- KX3/KX4 Drywall Cutout Template
- RTI Touchpanel Comparison Chart (PDF)
- RTI User Interfaces Feature Comparison Chart (PDF)
- RTI Control Processor Comparison Chart (PDF)

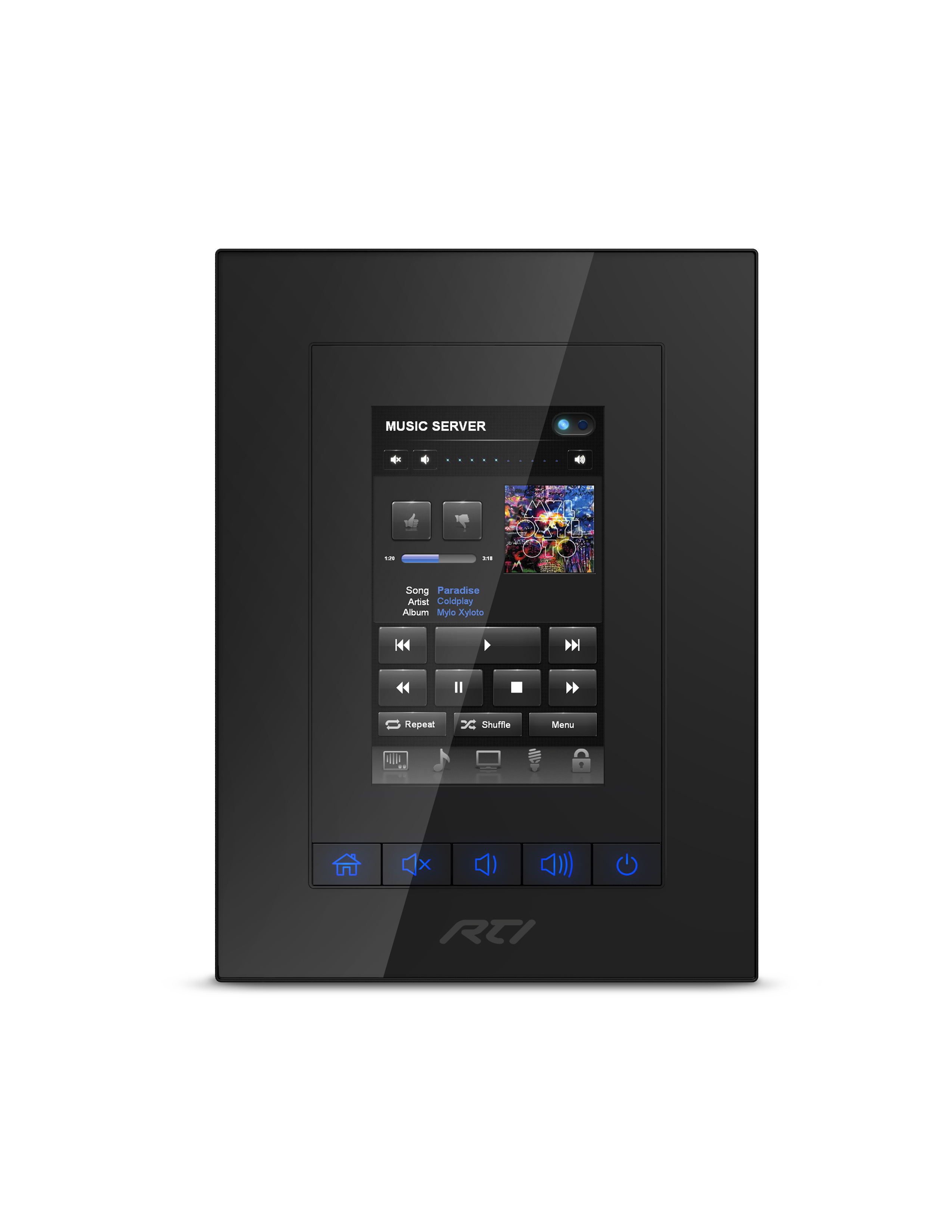

- KX3 Black (JPEG, 1M)
- KX3 Black (JPEG, 1.3M)

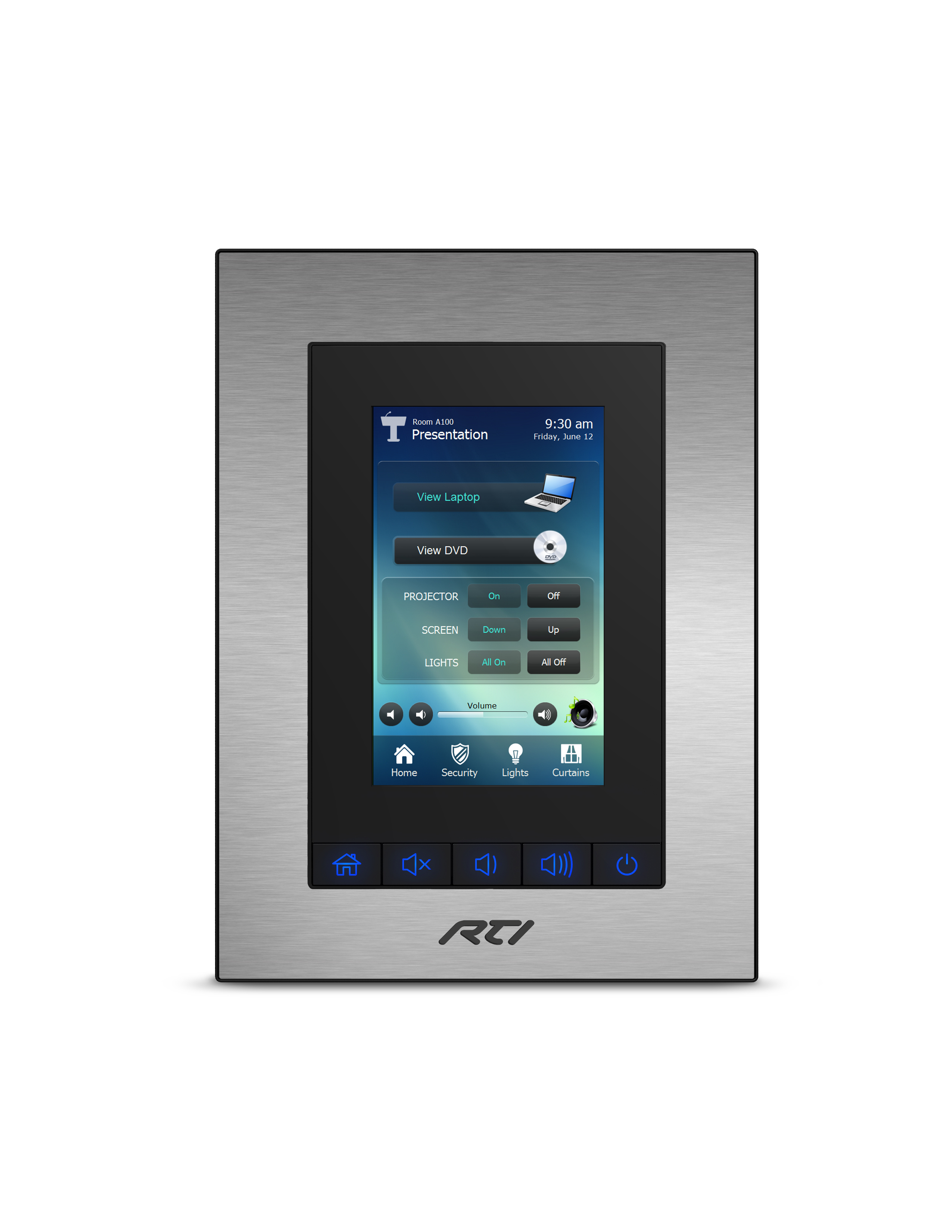

- KX3 Stainless (JPEG, 1M)
- All High-Resolution Images
- See the KX4 training videos
Included in the box:
- KX4 In-wall Touchpanel Keypad
- Bezel (white)
- RJ45 to DB9 serial adaptor (2)
- Mounting wings (2)
- Drywall template
- Screws (4)
- Operation guide
- MAC address card
