ICP-2 Intelligent Control Processor for Small Scale Systems
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Next-generation platform
Next-generation architecture expands the ability to run complex control functions and new features with an advanced driver control engine with more capabilities and faster operation.
Faster and More Powerful Control & Automation
Builds on the reliability of the previous XP series processors with more power and 20x faster speed for everyday function and control.
Multiple I/O For Local Control
Wide range of one-way outputs and inputs, and bidirectional options to suit a number of different transports, control, and protocols.
Two-Port Ethernet Switch
Makes installation easy by only needing a single cable to be run to the ICP-2 for power and control, and also able to send up to 1Gb of data to downstream devices.
WiFi Capability
Total flexibility of control and environment with the convenience of joining an existing WiFi network.
| Processor Engine | |
| Processor IC | NXP i.MX8 mm |
| Cores | Quad |
| RAM | 3GB |
| Flash Memory | 16GB |
| CPU Clock Rate | 1.8 GHz |

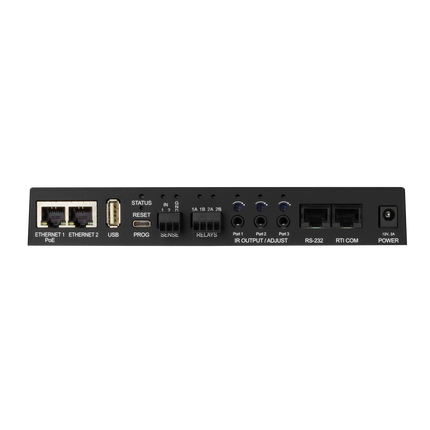

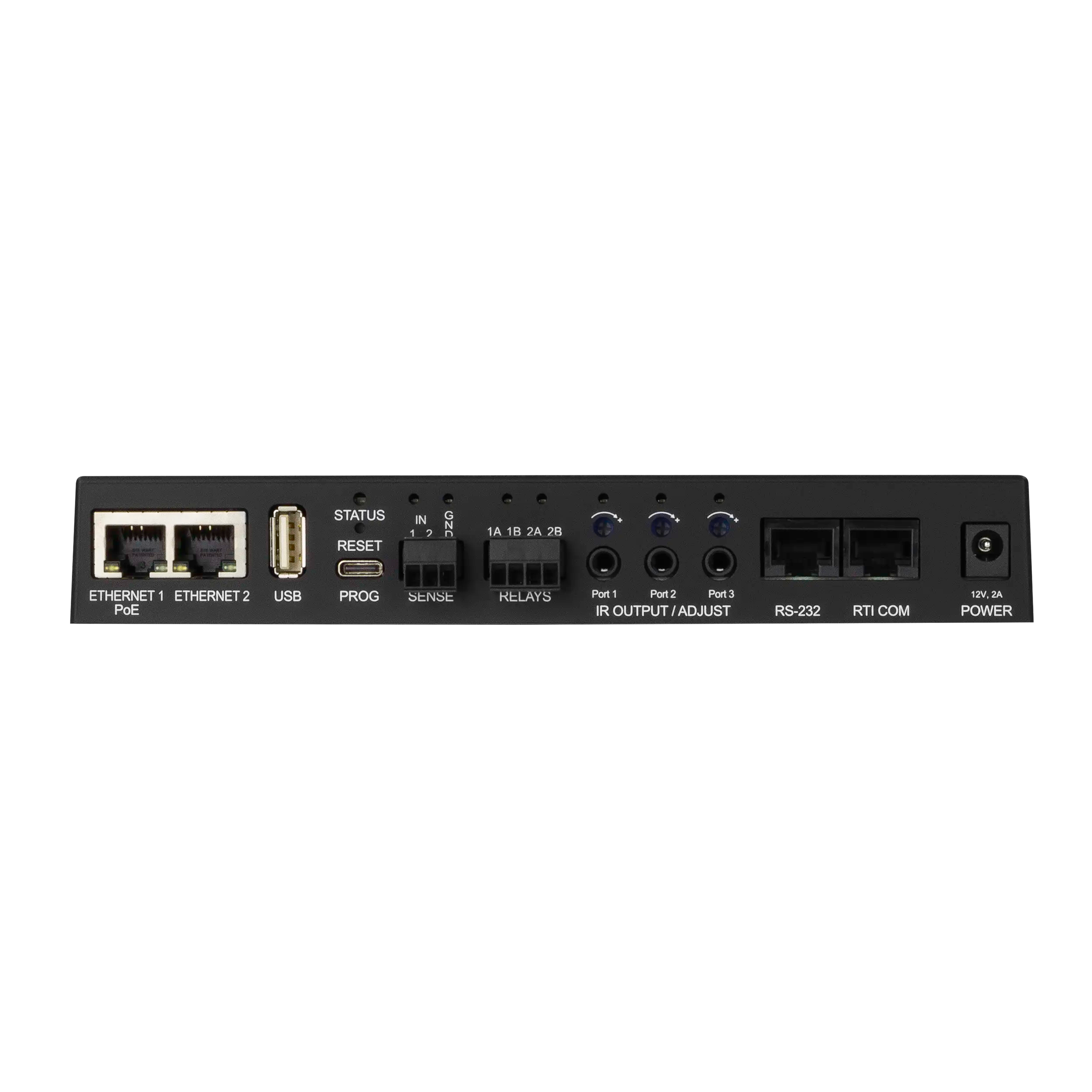

| Ports | |
| IR | 3 |
| RS-232 | 1 |
| 12 VDC Trigger | 0 |
| Contact Trigger | 0 |
| Sense | 2 |
| IR Input | 0 |
| RS485 | 0 |
| USB-A | 1 |
| USB-C | 1 x Programming port |
| General | |
| Relays | 2 |
| Ethernet / LAN | Port 1: 10/100/1000 PoE Port 2: 10/100/1000; Ports operate as a switch |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Mounting | Wall Mount Plate (Included) |
| Dimensions (Unit) | W × D × H: 195.00 × 104.00 × 30.00 mm (7.7 × 4.1 × 1.2 in.) |
| Weight (Unit) | 10.5 oz. (298 g) |
| Warranty | 3 years; Specifications subject to change without notice. Mass & dimensions are approximate |
| Communication | |
| Wi-Fi | 2.4/5 GHz |
| Environmental | |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Power | |
| Power Consumption | Max: 24 W (12 V 2 A) |
| Power Supply | Input: AC 100 V to 240 V~ 50/60 Hz Output: DC 12 V 2 A |
| Physical | |
| Dimensions (Packaged) | W × D × H: 305 × 245 × 70 mm (12.0 × 13.6 × 2.8 in.) |
| Weight (Packaged) | 114.8 oz. (872 g) |
| Regulatory / Certifications | FCC, CE, RCM |
Included in the box:
- One (1) ICP-2
- One (1) 12V 2A power supply with international adaptors
- One (1) RJS-232 connector
- One (1) Quick start card
- Four (4) Screws & drywall anchors
