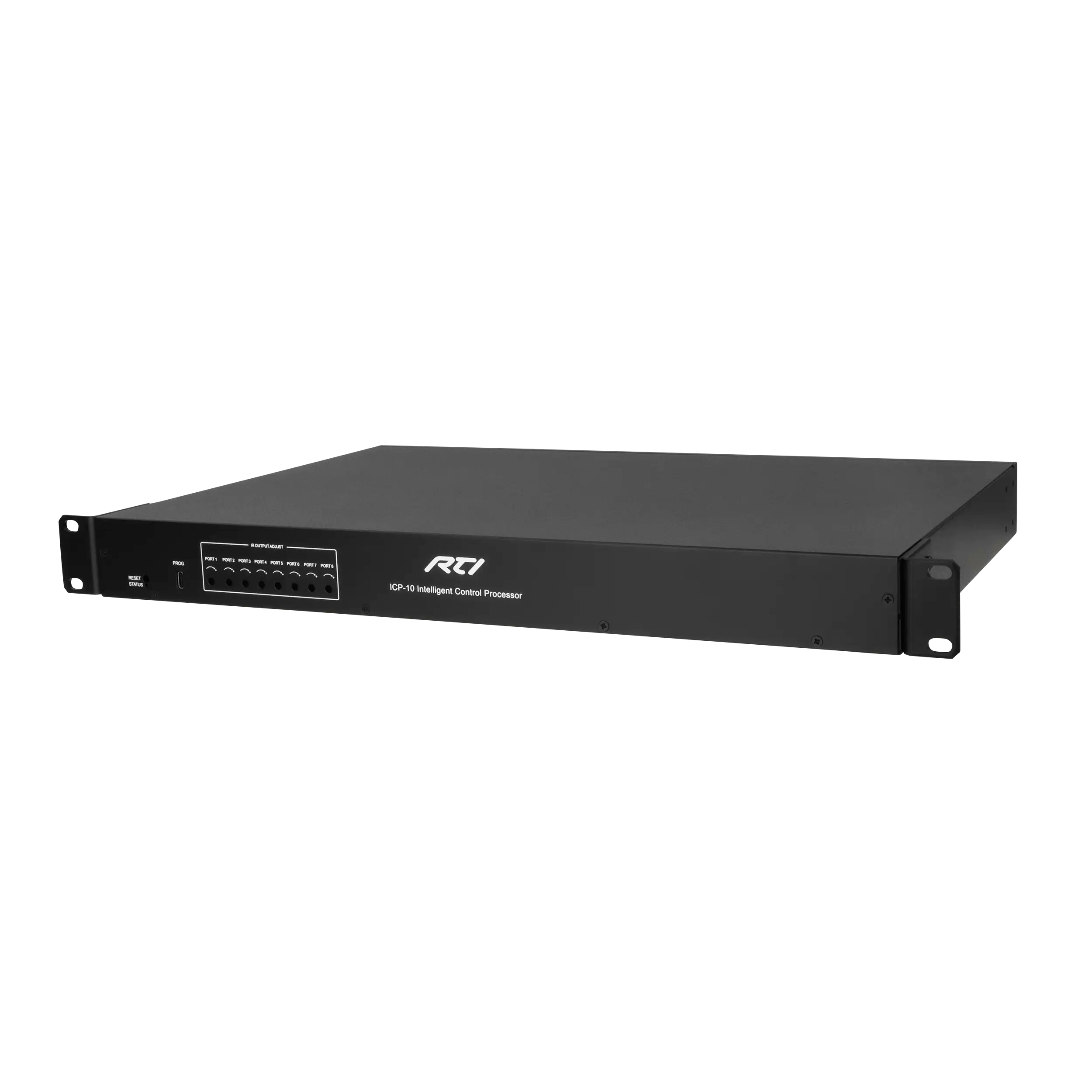

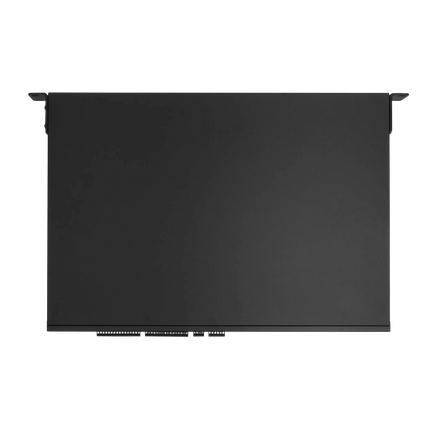

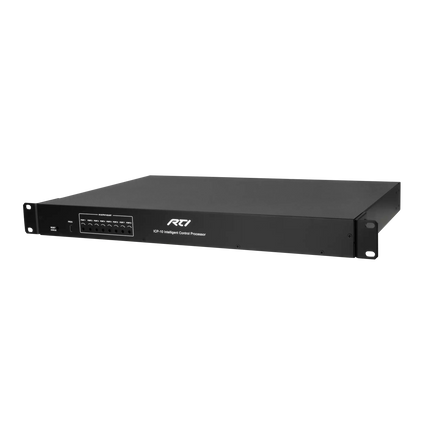

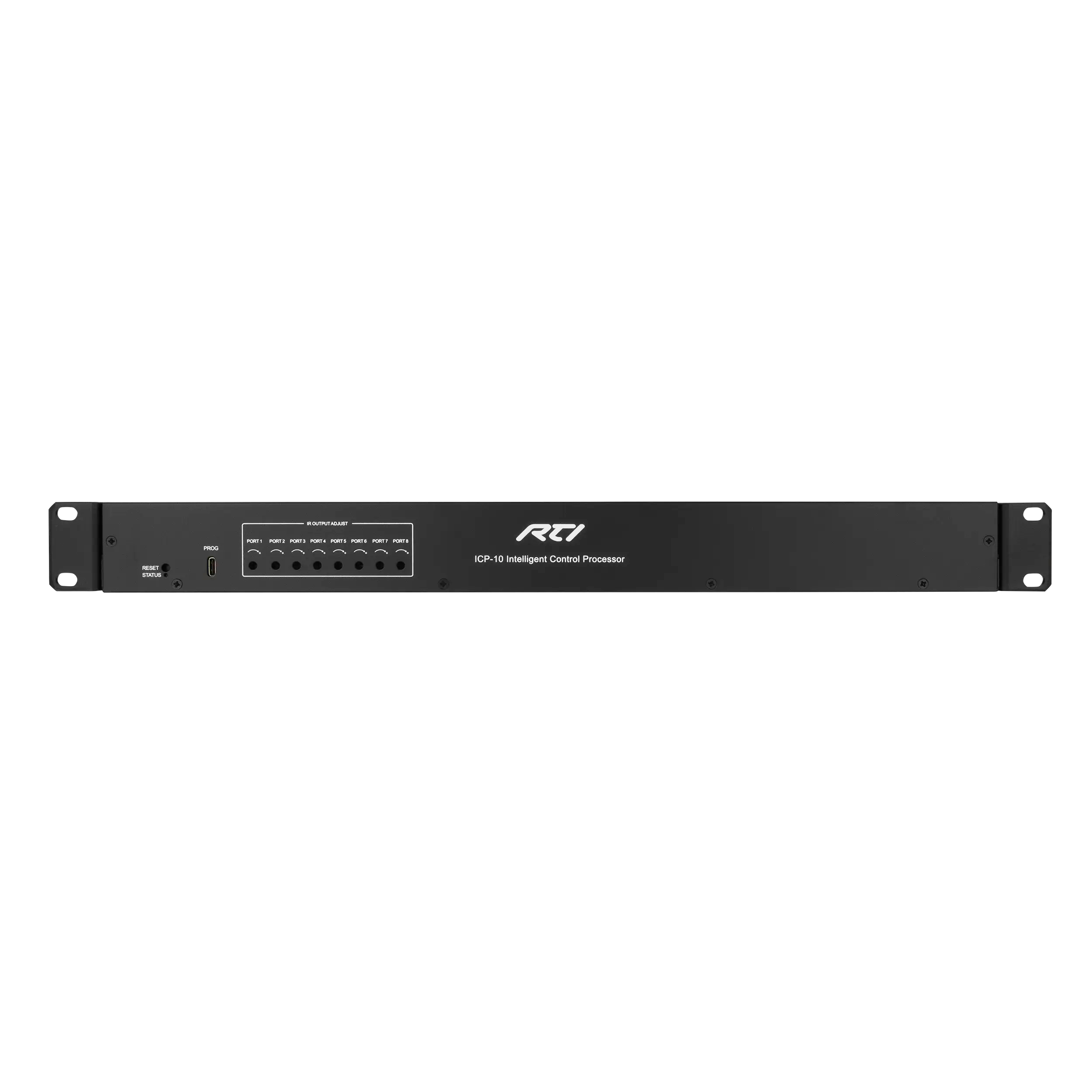

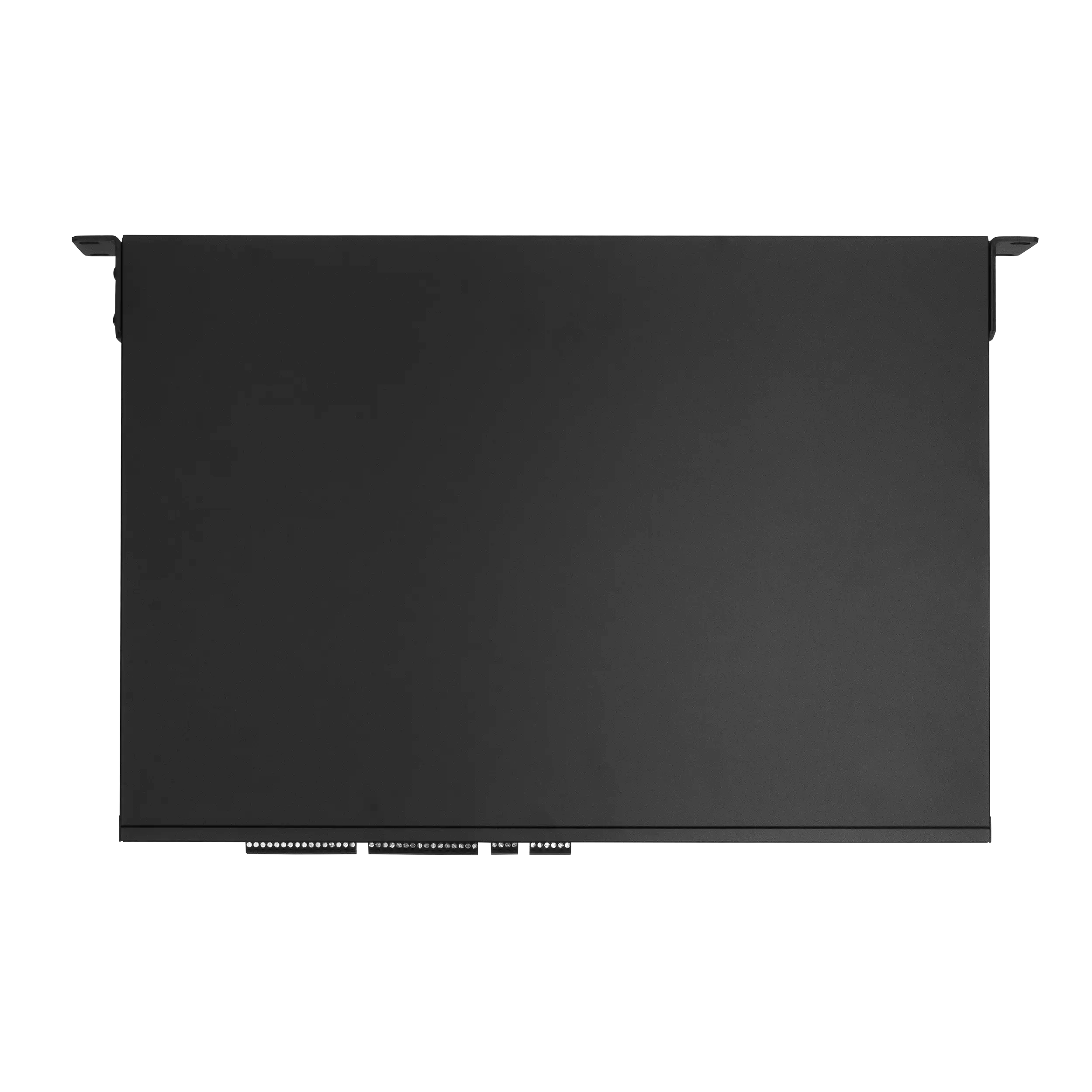

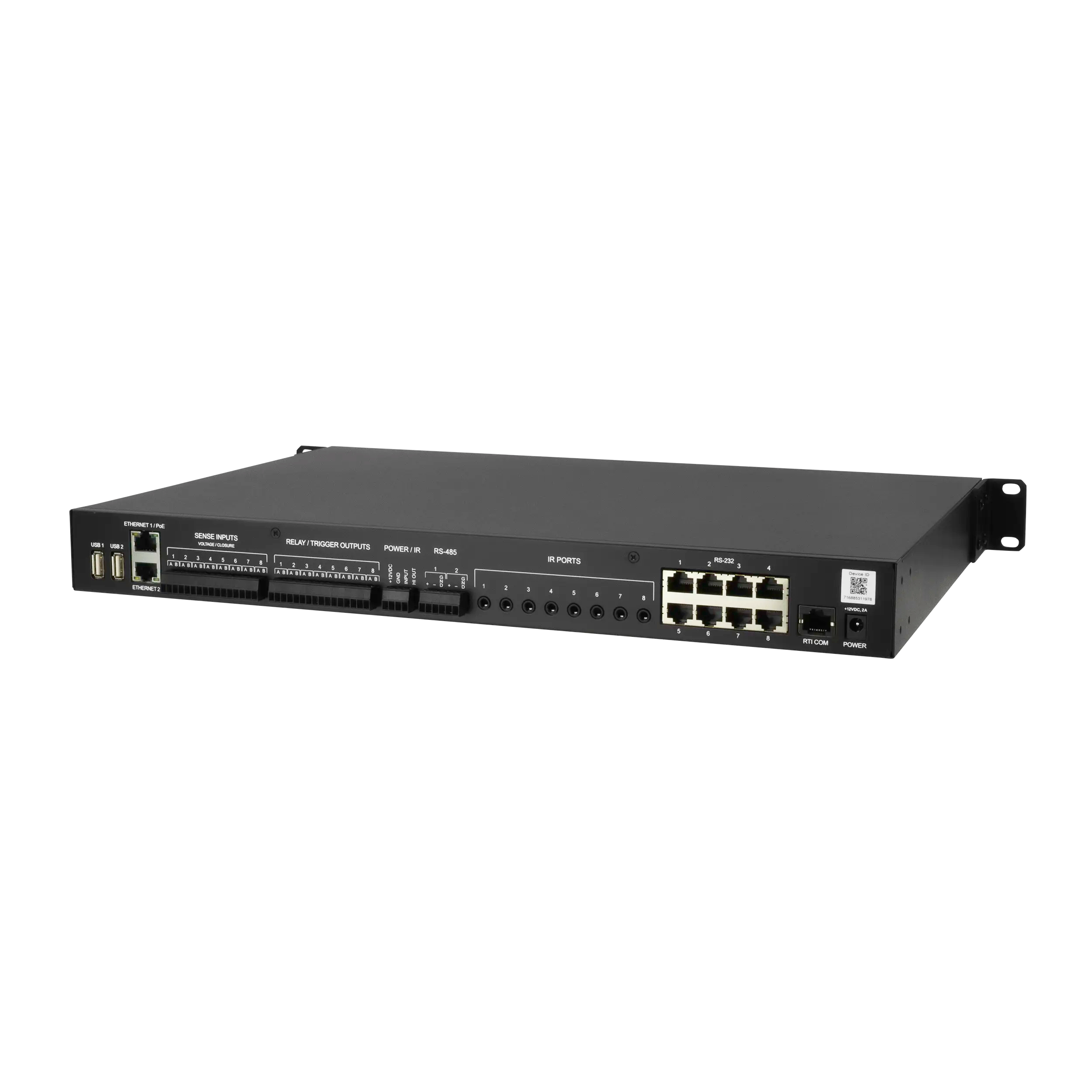

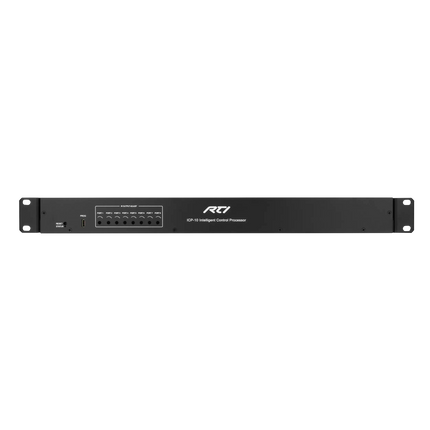

ICP-10 Intelligent Control Processor for Large Scale Systems
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Next-generation Platform
Next-generation architecture expands the ability to run complex control functions and new features with an advanced driver control engine with more capabilities and faster operation.
Faster and More Powerful Control and Automation
Builds on the reliability of the previous XP series processors with more power and 20x faster speed for everyday function and control.
Multiple I/O For Local Control
Wide range of one-way outputs and inputs, and bidirectional options to suit a number of different transports, control, and protocols.
Dual Ethernet Ports
Convenient option to use the Ethernet as a network switch or create two separate networks while still providing control and power.
| Processor Engine | |
| Processor IC | NXP i.MX8 mm |
| Cores | Quad |
| RAM | 3GB |
| Flash Memory | 16GB |
| CPU Clock Rate | 1.8 GHz |

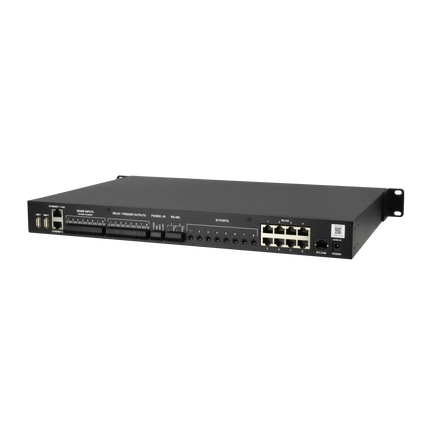

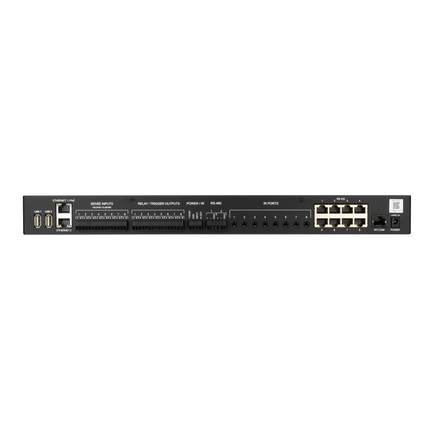

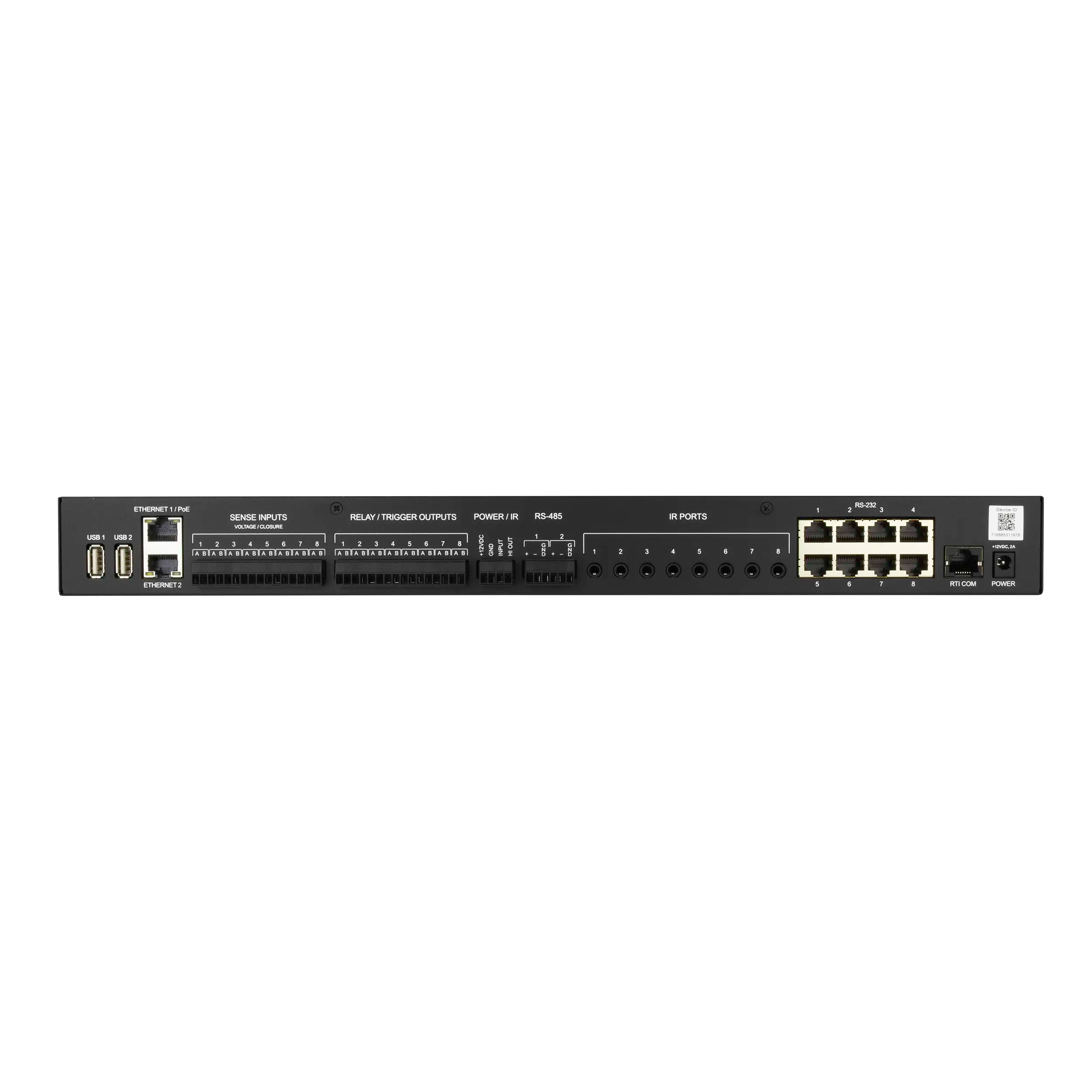

| Ports | |
| IR | 8 |
| RS-232 | 8 |
| 12 VDC Trigger | 8 |
| Contact Trigger | 8 |
| Sense | 8 |
| IR Input | 1 |
| RS485 | 2 |
| USB-A | 2 |
| USB-C | 1 x Programming port |
| General | |
| Relays | 8 |
| Ethernet / LAN | Port 1: 10/100/1000 PoE Port 2: 10/100/1000; Ports operate as a switch or separate NICs |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Mounting | Rack Mount (Brackets & Screws Included) |
| Dimensions (Unit) | W × D × H: 431.8 × 299.7 × 43.7 mm (17.0 × 11.8 × 1.7 in.) |
| Weight (Unit) | 5.5 lb. (2.6 kg) |
| Warranty | 3 years; Specifications subject to change without notice. Mass & dimensions are approximate |
| Communication | |
| Wi-Fi | No |
| Environmental | |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Power | |
| Power Consumption | Max: 24 W (12 V 2 A) |
| Power Supply | Input: AC 100 V to 240 V~ 50/60 Hz Output: DC 12 V 2 A |
| Physical | |
| Dimensions (Packaged) | W × D × H: 470 × 434 × 114 mm (18.5 × 17.1 × 4.5 in.) |
| Weight (Packaged) | 9 lb. (4 kg) |
| Regulatory / Certifications | FCC, CE, RCM |
Included in the box:
- One (1) ICP-10
- One (1) 12V 2A power supply with international adaptors
- Eight (8) RJS-232 connectors
- Two (2) Rack mount brackets
- Four (4) Rack screws
- Terminal blocks (phoenix connectors, shipped plugged into the unit)
- One (1) Quick start card
