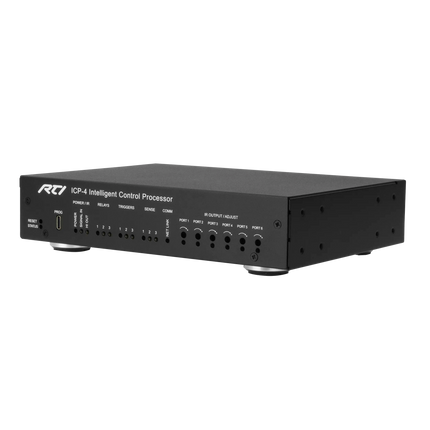

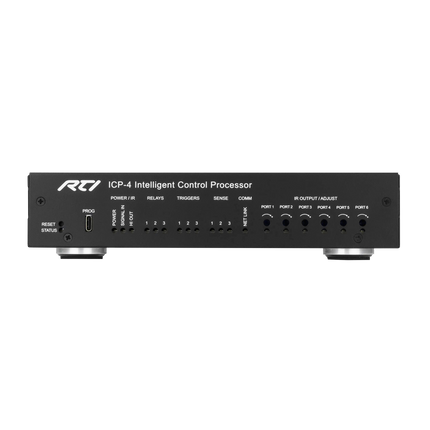

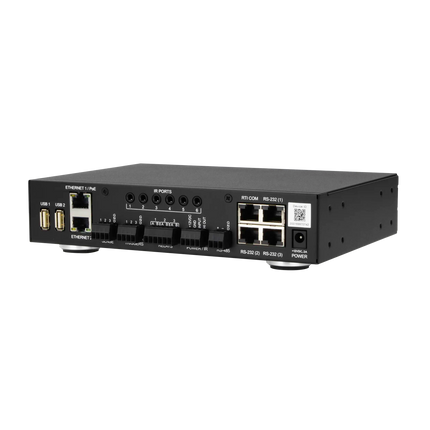

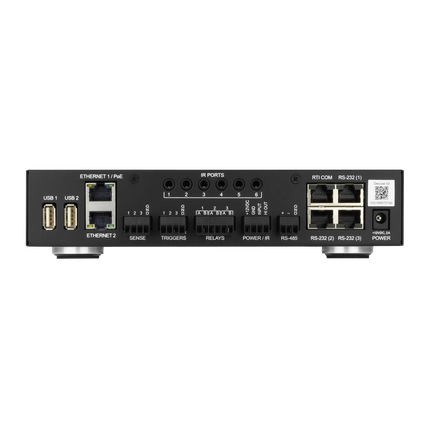

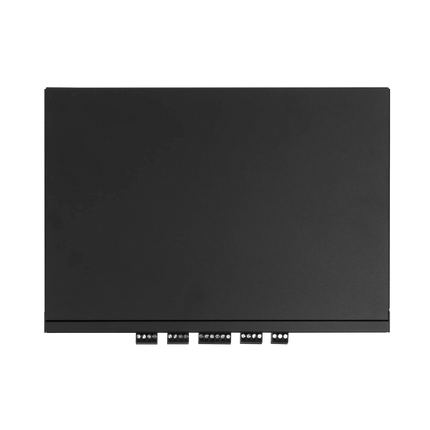

ICP-4 Intelligent Control Processor for Medium Scale Systems
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Next-generation platform
Next-generation architecture expands the ability to run complex control functions and new features with an advanced driver control engine with more capabilities and faster operation.
Faster and More Powerful Control & Automation
Builds on the reliability of the previous XP series processors with more power and 20x faster speed for everyday function and control.
Multiple I/O For Local Control
Wide range of one-way outputs and inputs, and bidirectional options to suit a number of different transports, control, and protocols.
Separate NICs
Capable of running on separate networks, perfect for the security of commercial environments.
| Processor Engine | |
| Processor IC | NXP i.MX8 mm |
| Cores | Quad |
| RAM | 3GB |
| Flash Memory | 16GB |
| CPU Clock Rate | 1.8 GHz |
| Ports | |
| IR | 6 |
| RS-232 | 3 |
| 12 VDC Trigger | 3 |
| Contact Trigger | 0 |
| Sense | 3 |
| IR Input | 1 |
| RS485 | 1 |
| USB-A | 2 |
| USB-C | 1 x Programming port |
| General | |
| Relays | 3 |
| Ethernet / LAN | Port 1: 10/100/1000 PoE Port 2: 10/100/1000; Ports operate as a switch or separate NICs |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |

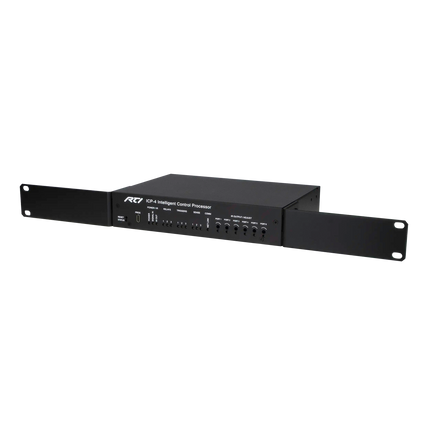

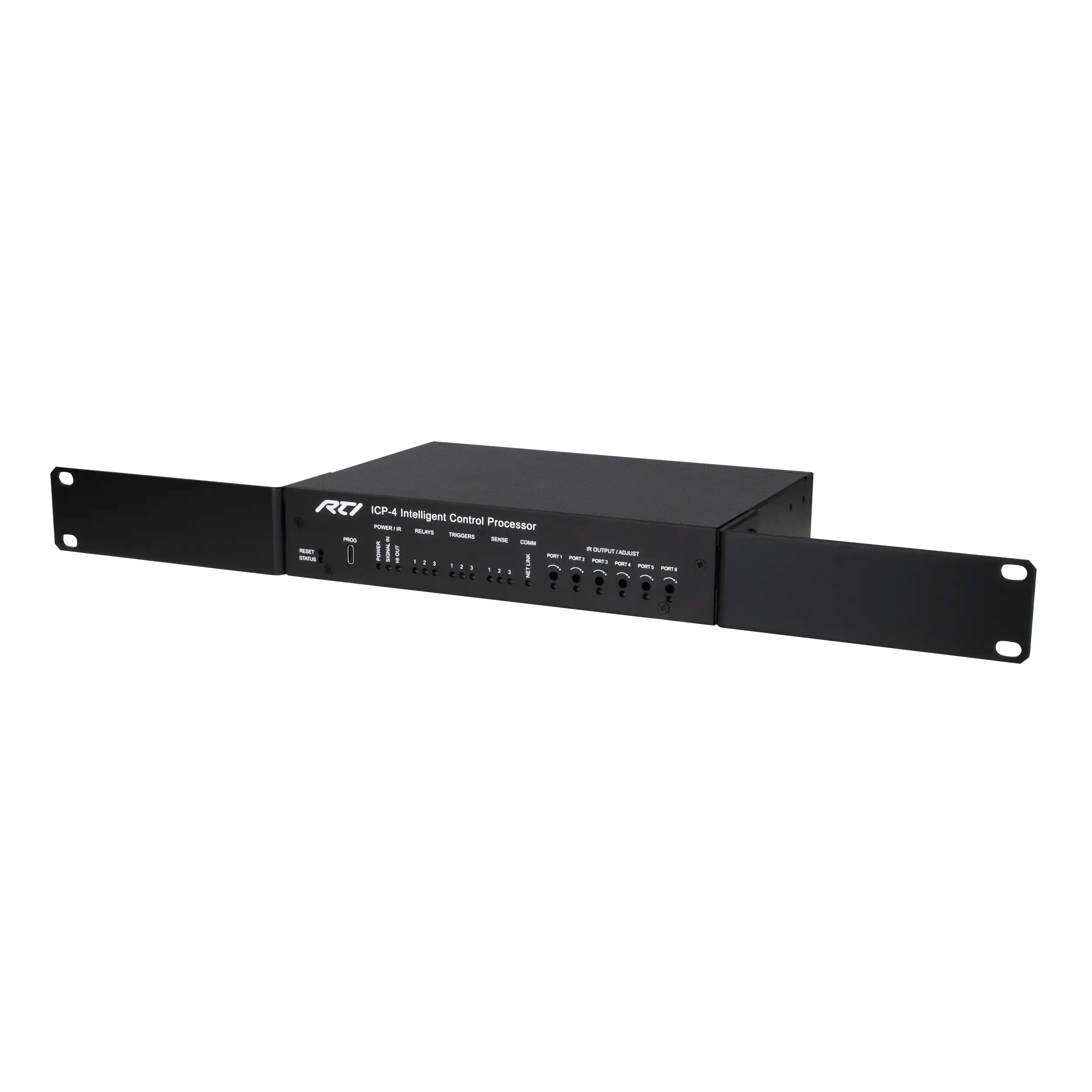

| Mounting | Standalone Rack Mount (Brackets & Screws Included) |
| Dimensions (Unit) | W × D × H: 215.0 × 152.0 × 44.0 mm (8.5 × 6.0 × 1.7 in.) (without feet) |
| Weight (Unit) | 2 lb. (890 g) |
| Warranty | 3 years; Specifications subject to change without notice. Mass & dimensions are approximate |
| Communication | |
| Wi-Fi | No |
| Environmental | |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Power | |
| Power Consumption | Max: 24 W (12 V 2 A) |
| Power Supply | Input: AC 100 V to 240 V~ 50/60 Hz Output: DC 12 V 2 A |
| Physical | |
| Dimensions (Packaged) | W × D × H: 323.6 × 236.2 × 114.3 mm (12.7 × 9.3 × 4.5 in.) |
| Weight (Packaged) | 4 lb. / 6.6 oz. (2 kg) |
| Regulatory / Certifications | FCC, CE, RCM |
Included in the box:
- One (1) ICP-4
- One (1) 12V 2A power supply with international adaptors
- Three (3) RJS-232 connector
- Two (2) Rack mount brackets
- Four (4) Rack screws
- Four removeable feet (shipped already installed)
- Terminal blocks (phoenix connectors, shipped plugged into the unit)
- One (1) Quick start card
