CP-16i 16 Channel Cool Power® Amplifier
- VendorRTI
- Key Benefits
- Specs
- Resources
- In the Box
Simplified Control
The Signal Sense function automatically turns the amp on with an audio signal is detected and then puts the amp in standby mode when the signal is gone.
Superior Performance
Utilizes proven audio amplification technology to deliver premium sonic performance.
Power & More Power
Command the room with 100W per channel at 4Ω or 200W per channel at 8Ω bridged.
Compact Design
At just 1RU high, the CP-16i leaves room to install more components in the rack.
Ultra-Efficient
Cool Power ® Class D amplifier technology ensures efficient heat dissipation and low power consumption.
Easily expands the RTI AD-46-100/AD-810-100 DSP Matrix Amplifiers and the AD-1616 Audio Distribution DSP Matrix.
Compatible with virtually any audio distribution system.
Signal Sense feature automatically powers the CP-16i on when an audio signal is detected or puts the unit is standby mode when no signal is present.
Voltage trigger pass-through for powering on/off additional amplifiers.

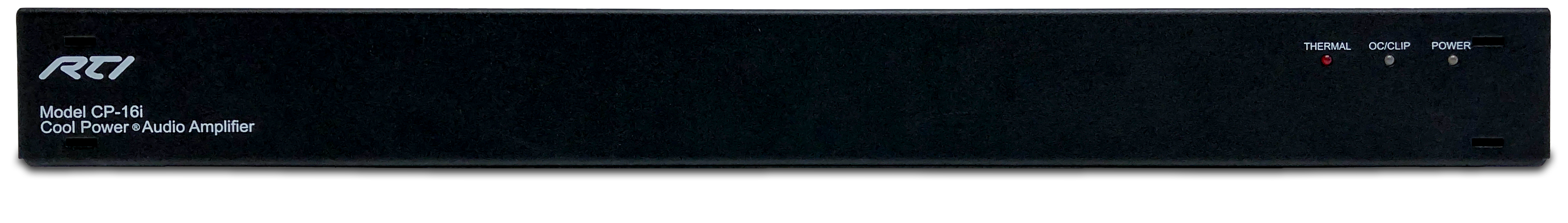

Thermal overload and OC (Overcurrent) monitor indicators protect the amplifier.
Rackmounting requires just 1RU or use included feet for free standing installation.
| General | |
| Input Voltage | 115 VAC or 240 VAC (Switchable), 230 W |

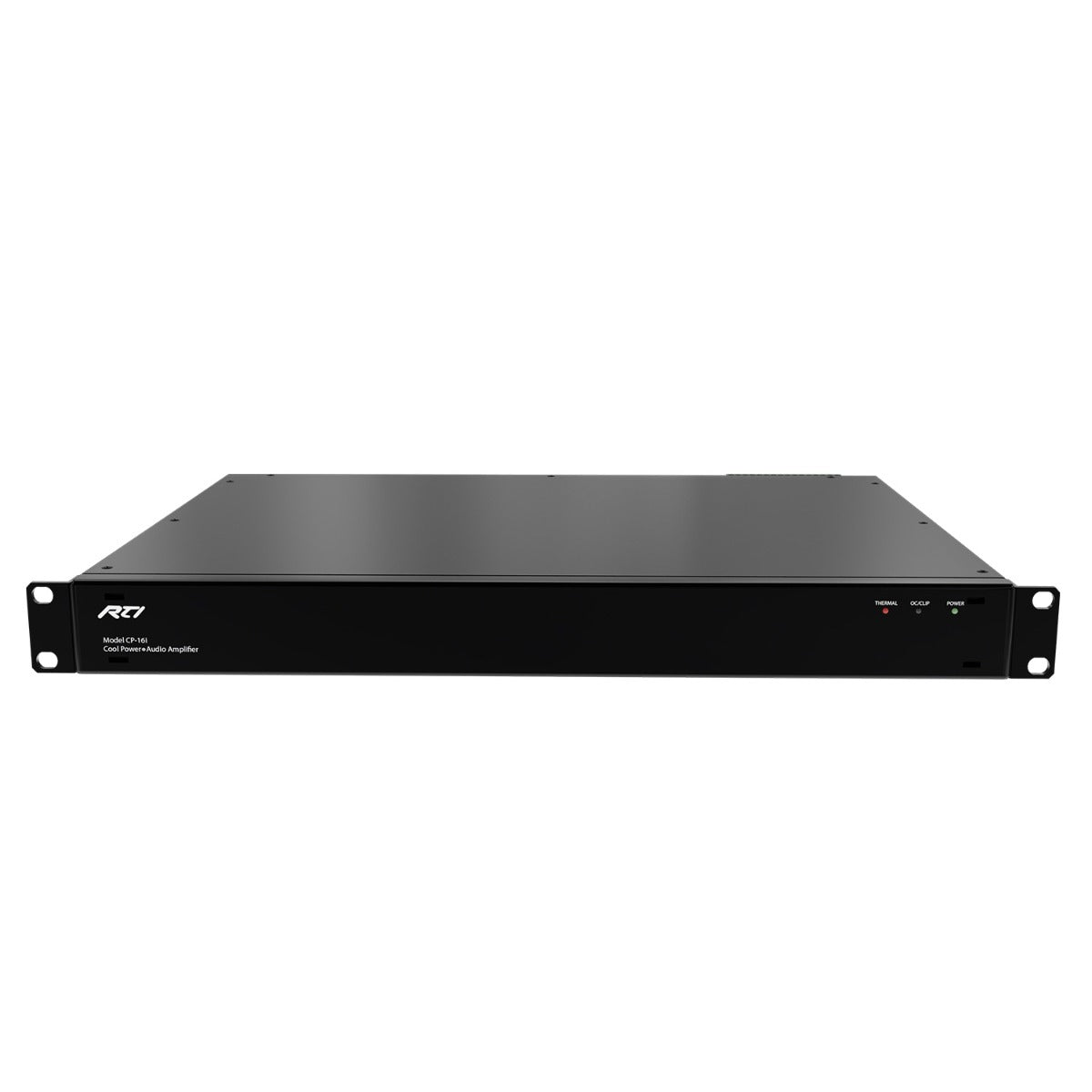

| Power Switch | Front Panel On/Off with LED |
| Mounting | Rack-mount (1RU) or free standing |
| Dimensions (Unit) | W × D × H: 438 × 228 × 44 mm (17.25 × 8.98 × 1.7 in.) |
| Weight (Unit) | 9.0 lb. (4.08 kg) |
| Signal Sense | Audio input sense, 12 V trigger and 3 V to 5 V trigger |
| Warranty | 3 years (parts & labor) |
| Prop 65 | WARNING: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Amplifier | Gain: (20 Hz to 20 kHz) 25.8 dB ±0.5 dB Amplifier Input: Single Ended input - 1 Vrms max Input Voltage without clipping Amplifier Output: Single Ended output stage - GND referenced 28Vp max Output Voltage without clipping |
| THD+N | + N: 1.0%, 4 Ω, SE, f=100 Hz, Po=1 W |
| Dynamic Range | 110 dBA SE, 115 dBA BTL |
| Frequency Response | ±0.4 dB, 10 Hz to 20 kHz, all loads |
| Input Impedance | 47K Ω |
| Operating Temperature | Environmental: 32 to 113 °F (0 to 45 °C) |
| Power | |
| Power Consumption | Standby: Less than 0.25 W |
| AC Mains Power | Universal Mains 100 VAC to 240 VAC, 50 Hz to 60 Hz |
| Fuse Rating | T6.3A_H 250 V |
| Power Connection | IEC 320 C13 power connector with 3-pole detachable power cord |
| Audio | |
| Number of Channels | 16 channels in 8 stereo zones: each zone can be bridged |
| Output Power | 100 W per ch. in SE, 4 Ω (1.0%THD+N, 20 Hz to 20 kHz) 200 W per ch. in BTL, 8 Ω (1.0%THD+N, 20 Hz to 20 kHz) |
| Idle Noise | 0 µV, A-weighted, 20 Hz to 20 kHz |
| Upper Bandwidth, -3dB | 100 kHz, 4 Ω, SE 120 kHz, 8 Ω, SE |
| Output Serial Impedance | 30 m Ω, f≤1 kHz |
| Environmental | |
| Thermal dissipation | 2 low noise fans mounted in side panels |
| Thermal dissipation heat loss | 0.23 W / 0.8 BTU/hr, standby 40 W / 135.5 BTU/hr, idle, all ch. 100 W / 341 BTU/hr, max output power, all, ch. driven |
NOTE: Note that the CP-16i requires an external preamp for volume control.
Included in the box:
- CP-16i ICEpower® Audio Amplifier
- Power Cord
- Rack Mounting Ears with Screws (2)
- Feet with Screws (4)
- Speaker Terminal Blocks (8)
- IO Port Terminal Block (1)
- Installation Guide
