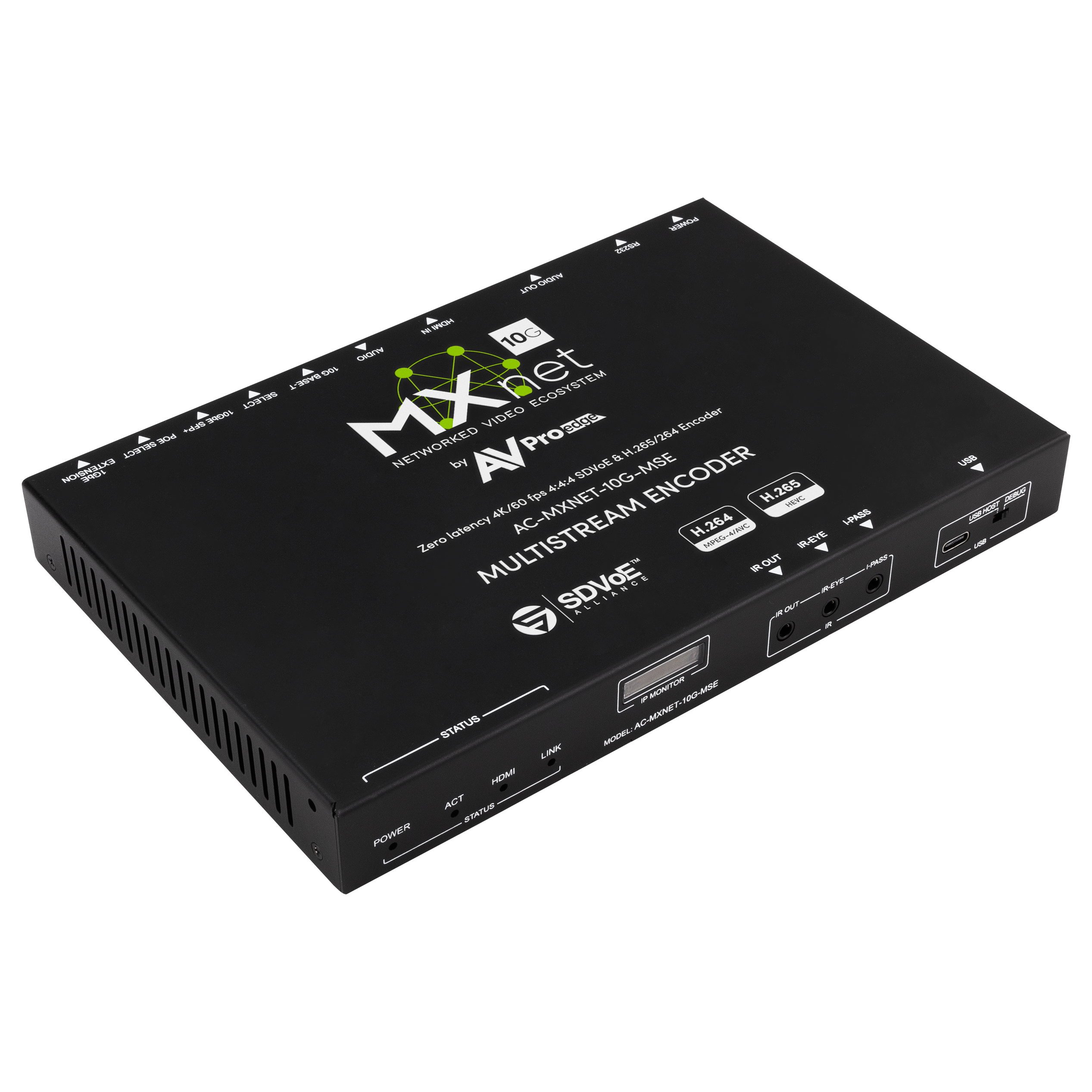

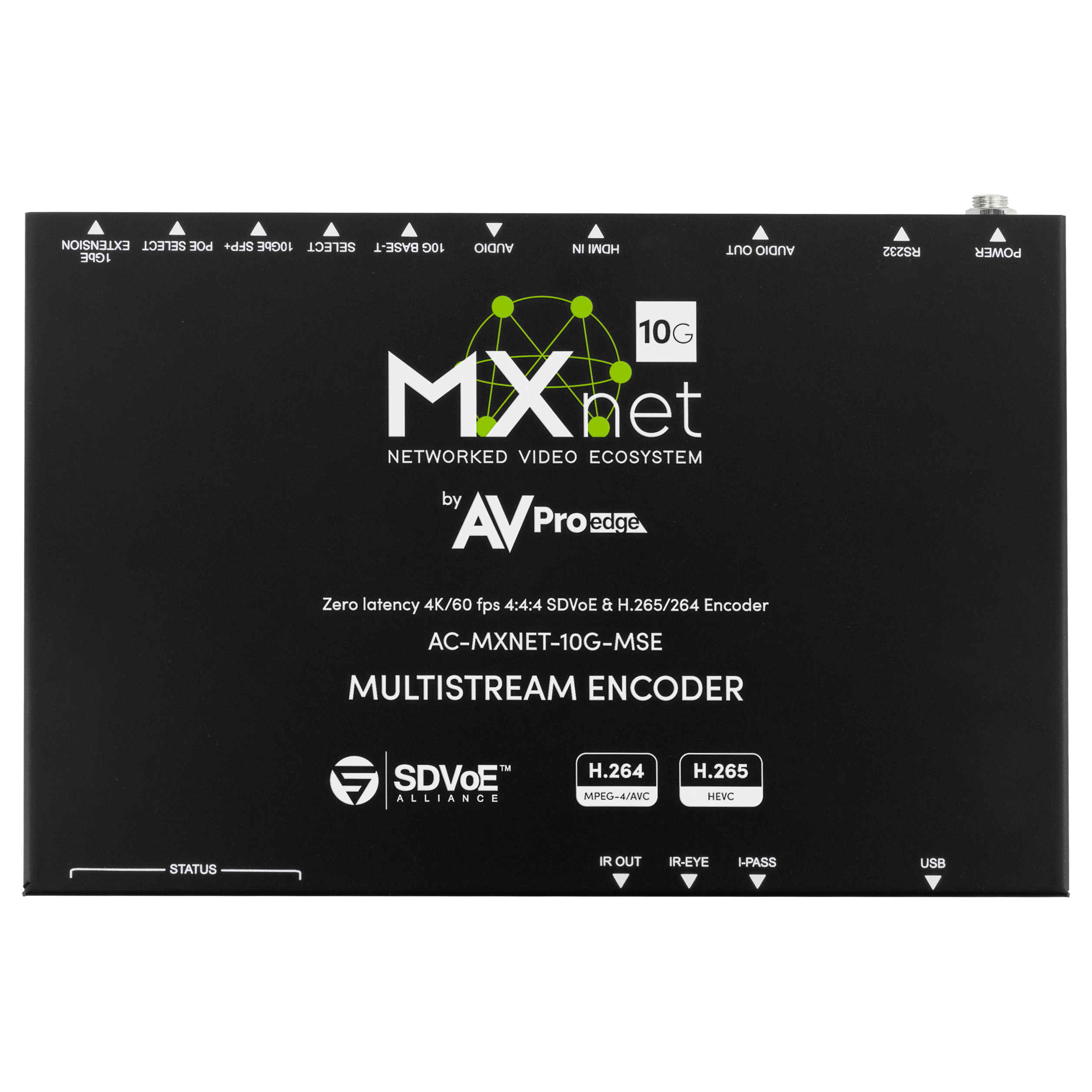

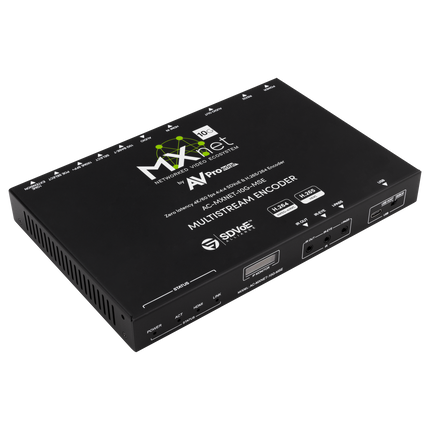

Multi-Stream Engine - The 10G-MSE is capable of transmitting two streams onto the network simultaneously. The main SDVoE output provides high fidelity 4K distribution to 10G-TCVR decoders and a secondary H.26x stream provides low-bandwidth 1080p interoperability with MXnet USP decoders.
4K/60fps Encoding - Capable of encoding via SDVoE up to 4K/60fps 4:4:4 8-bit YCbCr or RGB source content with support for 10/12-bit deep color formats including HDR10, HLG and Dolby Vision.
(Note: DV/HDR/HLG is not supported on the H.265 stream)
Zero Compression - SDVoE distributes completely uncompressed video signals up to 4K/30fps 4:4:4 8-bit. 4K resolutions above 30fps are very lightly compressed at a 1.3:1 ratio, resulting in a signal almost identical to source content.
Zero Latency - 10G endpoints can distribute AV content over the network with zero latency when in genlock mode. Making it the perfect solution for time sensitive and mission critical applications.
USB & Control - 10G endpoints are equipped with various control signal I/O. Using the powerful MXnet API, you can route USB & control signals over the network to control peripherals or create KVM matrix systems.

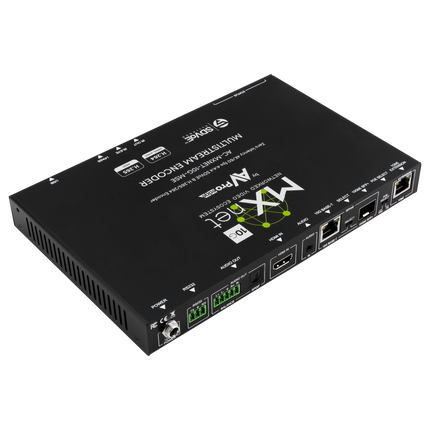

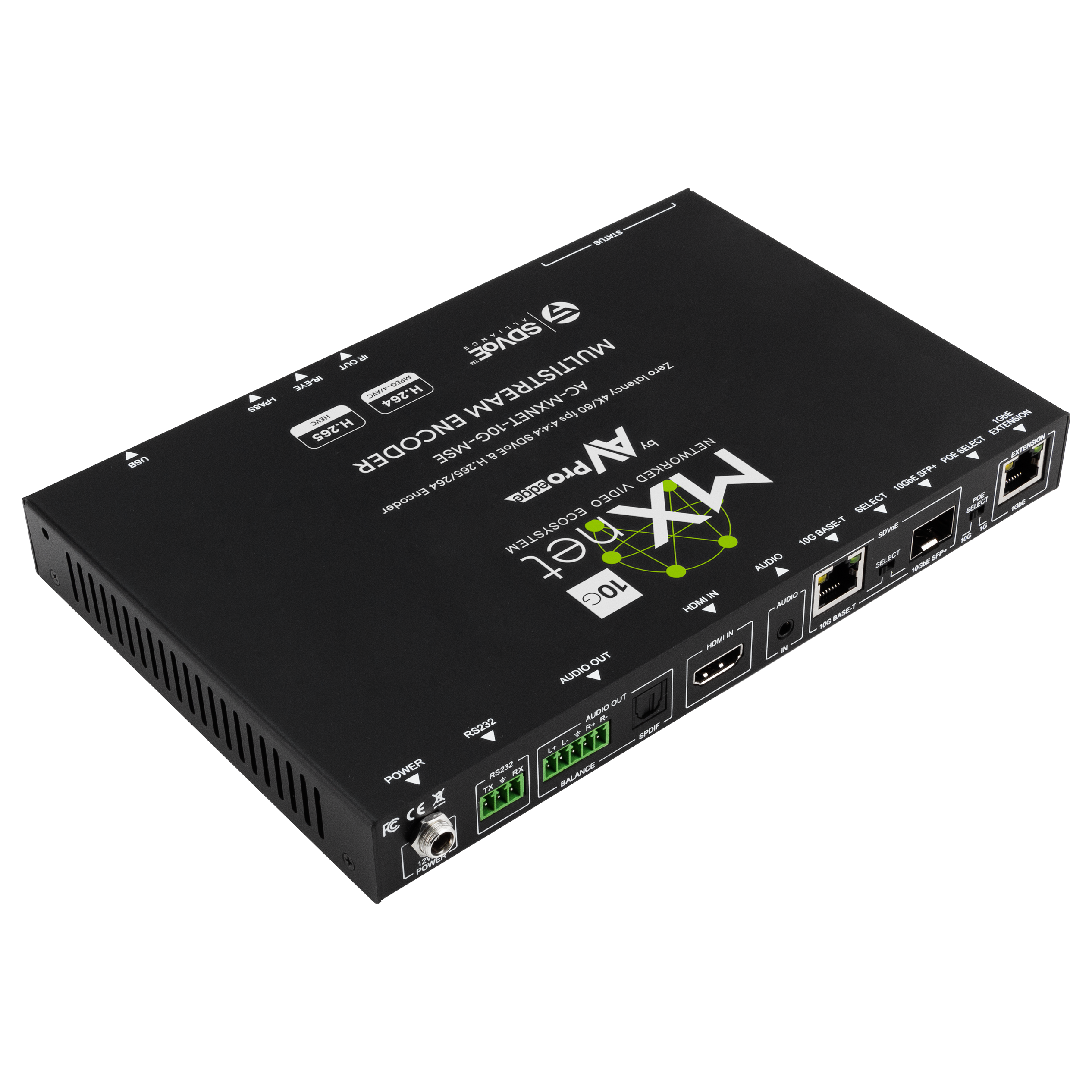

| Video | |
| Input | 1x HDMI 2.0b Type A |
| Max Encoding Resolution | SDVoE: 4K/60 4:4:4 8-bit YCbCr or RGB 4K/60 4:2:2 12-bit YCbCr Dolby Vision H.26x: 1920x1080p30 12-bit |
| HDR Support | Dolby Vision | HDR10 | HLG (SDVoE Stream Only) |
| HDCP | 2.3 and Earlier |
| Codec | SDVoE | H.26x |
| Stream Protocols | TCP, UDP, IGMP-V2 |
| Audio | |
| Input | 1x 3.5mm Mini-jack (configurable) |
| Output | 1x 5-pin Balanced Phoenix Stereo 1x S/PDIF TOSLINK 1x 3.5mm Mini-jack (configurable) |
| Formats | 2CH PCM | LPCM 7.1 | Up to Dolby Atmos | Up to DTS:X *Multi-channel audio is not supported via the H.265 stream. |
| Network | |
| Ethernet | 1x 10GbE RJ-45 (100m/328ft) 1x 1GbE RJ-45 Extension Port (100m/328ft) 1x SFP+ Slot Supported SFP+ Modules:
|

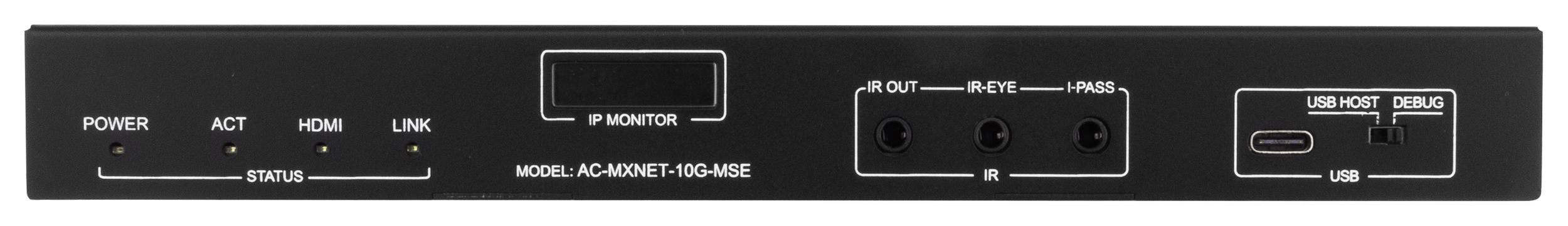

| End-to-End Latency | SDVoE Genlock Mode: ≤100µs (microseconds) SDVoE Seamless Switch Mode: 1-2 frames (16-33ms) H.265 Stream: ≤75ms |
| Average Bandwidth | SDVoE: 4K60: 8.5Gbps 4K30: 6Gbps 1080p60: 3Gbps H.26x: 1080p30: 10Mbps |
| Control/USB | |
| IR | 1x 3.5mm IR Receive 1x 3.5mm IR Transmit 1x 3.5mm IR Passthrough |
| RS232 | 1x 3-pin Phoenix |
| USB | 1x USB Type-C (Selectable debug/HID host) |
| Environmental | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Operating Humidity | 5-90% RH (No Condensation) |
| Cooling | Passive Cooling |
| Acoustic Noise Level | 0dB |
| Power | |
| Average Power Consumption | 8W |
| PoE (Power over Ethernet) | 802.3af PoE (15.4W) |
| External Power Supply | 12V 2A DC |
| Dimensions | |
| Mounting | Rack mount or surface mount capable. Supported Rack Mounts:
|
| Dimensions (Unit only) | mm: 215 × 140 × 25 inch: 8.46 × 5.51 × 0.98 |
| Dimensions (Packaged) | mm: 310 × 180 × 54 inch: 12.2 × 7.09 × 2.13 |
| Weight (Unit) | 1.76 lbs / 0.8 kg |
| Weight (Packaged) | 2.25 lbs / 1.02 kg |
| Regulatory | |
| Product Warranty | 10 Years |
| Certifications | CE, FCC |
| Specifications subject to change without notice. Mass & dimensions are approximate. | |
- 1x AC-MXNET-10G-MSE Encoder
- 1x 3-pin Phoenix terminal block
- 1x 5-pin Phoenix terminal block
- 1x IR emitter
- 1x IR Receiver
- 1x Set of surface mount brackets
Can the 10G-MSE output a 4K H.265 signal?
No. 4K is only supported on the SDVoE stream. The H.265 AVPro Flow stream is limited to 1080p30. This also means that high dynamic range formats such as HDR10, HLG and Dolby Vision are not supported through H.265.
What is AVPro Flow?
AVPro Flow is a technology based on H.265/H.264 codecs. It allows interoperability between different MXnet ecosystems (in this case 10G and USP) and adopts standards-based capability, allowing an AVPro Flow enabled solution to stream to 3rd-party devices.
Will the 10G-MSE work with all MXnet USP endpoints?
Yes, the H.265 (AVPro Flow) stream from 10G-MSEs are compatible with all USP endpoints. In most cases the USP-ES is the most economical choice, but you are not limited to a specific USP model.
Can the 10G-MSE stream to 3rd-party decoders?
Yes. The H.265 (AVPro Flow) stream can be configured for open-streaming, allowing content to be sent to compatible 3rd-party hardware or software decoders or live streaming platforms.
Will the 10G-MSE work with existing 10G-TCVRs?
Absolutely. The 10G-MSE is an SDVoE encoder just like TCVRs, but also includes a secondary H.265 output. SDVoE signals from MSE can be sent to TCVRs in decoder mode and will also be managed through the CBOX-HA.
Will the 10G-MSE supporting generating preview streams?
Yes! This is another benefit of the multi-stream functionality. All 10G-MSE’s can provide a low-resolution preview stream using MJPEG that can be seen inside of Mentor and used via 3rd-party control systems.
How does CBOX management work when using 10G and USP systems together?
Currently, the CBOX-HA only operates in one MXnet mode at a time. This means for systems leveraging 10G-MSE’s and USP endpoints to create a hybrid system, two CBOX-HA’s will be required. One CBOX-HA operating in 10G mode and the other operating in USP mode.
Will the 10G CBOX provide preview streams when using MSE?
Yes. The preview stream of the MSE can be viewed from either the 10G-CBOX or the USP-CBOX. A USP-CBOX is only needed if routing video streams to USP endpoints.
Is the 10G-MSE a transceiver like other 10G models?
No. “MSE” stands for Multi-Stream Encoder and is designed to operate as an encoder only.
