What is MXnet?
MXnet is a versatile and high-performance ecosystem of networked encoders & decoders designed for the distribution of AV content over a traditional IT network, commonly referred to as AV over IP. Unlike traditional video matrix systems, MXnet is extremely scalable and can handle a large number of AV sources and displays simultaneously, making it suitable for various applications, from small installations to large-scale commercial environments.
MXnet Markets
Hospitality
Casinos, restaurants & sports bars benefit from using MXnet by allowing you to send cable/satellite boxes and media players throughout a venue to hundreds of a displays. Create, captivating large-format video walls & picture-in-picture video feeds that customers can't experience at home.
Higher Education
Whether it be classroom, lecture haII, or a technology lab, MXnet has you covered. Professors and students can share content easily with no perceivable latency, perfect for digital collaboration. Easily integrate document cameras, smart displays or webcams & speaker phones for distanced learning.
Government
Courtrooms, legislative buildings and training facilities all need a robust AV solution. MXnet provides reliable signal distribution where you need it. Many of our models are also manufactured in the USA and are TAA compliant. Ensuring they meet the strict specifications for government systems.
Residential
Home theaters, gaming rooms or outdoor patios can all leverage the power of MXnet. Send lossless 4K HDR signals throughout a home to multiple displays such as theater projector or high performance gaming monitors. Or pair up our weather resistant decoder with an outdoor patio display.
Stadiums & Events
From massive LED walls and concourse displays to luxury suite feeds and real-time broadcast integration, MXnet enables dynamic content delivery, instant replays, live stats, and advertising with ease. Its scalability and flexibility make it perfect for enhancing fan engagement.
Transportation
Whether in airports, train stations, subways, or transit control centers, MXnet enables the seamless distribution of high-quality video and audio. From dynamic wayfinding and live surveillance feeds to creating engaging digital signage experiences on large format video wall displays.
What is the MXnet Difference?
All system Components Designed Engineered and Manufactured by Us
Guaranteed reliability you need with the benefit of being TAA compliant
Network Switches Designed for AV over IP
Forget the hassle of configuring a switch. MXnet switches are ready for AV over IP out of the box.
Commitment to Quality Assurance
Our QA lab is fitted with a 1,000+ endpoint system for large scale testing and performance benchmarking.
Mentor Software Environment
All MXnet products are managed and configured from a single web-hosted interface.
MXnet Ecosystems
1G & 10G
MXnet 1G Evolution II
MXnet 1G Evolution II (V2) is an AV-over-IP ecosystem that supports 4K/60fps 4:4:4 video signals, high bitrate multi-channel audio formats, and HDR support. It offers features like matrix routing, video walls, and can be managed through the MXNet Mentor control.
Specifications
| Network Infrastructure | 1 GbE |
|---|---|
| Video Compression | JPEG 2000 |
| Max Video Resolution | 4K/60 fps, 4:4:4, 8-bit |
| Source Preview Stream | Thumbnail Image and MJPEG Live Stream |
| High Dynamic Range | HDR10, HLG, Dolby Vision Supporting 10-, 12-bit Color |
| Min. End-to- End Latency | 4 ms |
| Video Processing | 16x16 Video Wall |
| Audio Formats | 7.1 Bitstream Passthrough, 2-Ch Dante, Multichannel Downmixing |
| USB | USB 2.0 Routing |
| Target Markets | Higher Education, Corporate, Government, Residential |

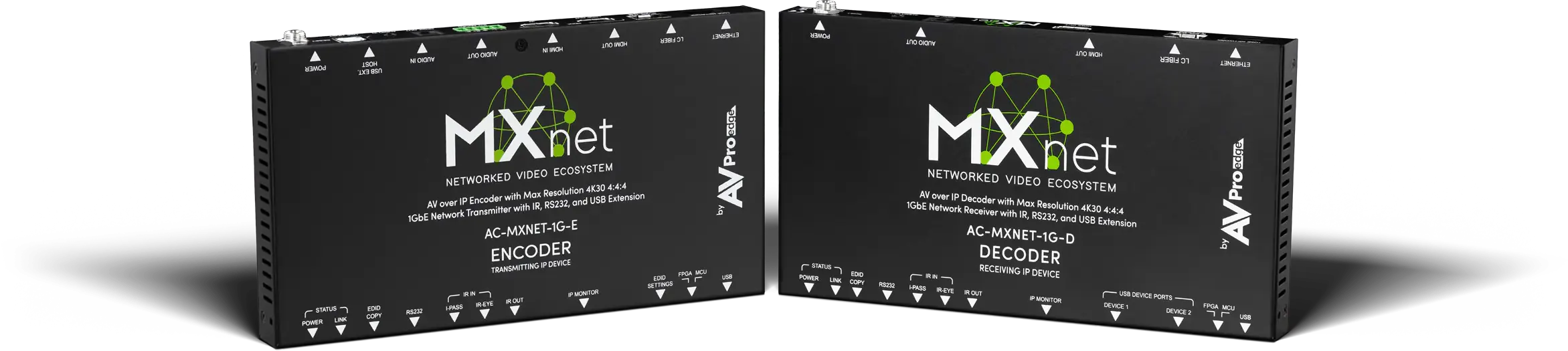

MXnet 1G Evolution I
MXnet 1G is an AV-over-IP ecosystem that supports HDMI signals up to 4K/30 fps, with 4:4:4 chroma subsampling. It offers features like matrix routing, video walls, near-zero latency, and can be managed through the MXNet Mentor control.
Specifications
| Network Infrastructure | 1 GbE |
|---|---|
| Video Compression | JPEG 2000 |
| Max Video Resolution | 4K/30 fps, 4:4:4, 8-bit |
| Source Preview Stream | Thumbnail Image |
| High Dynamic Range | N/A |
| Min. End-to- End Latency | 16 ms |
| Video Processing | 16x16 Video Wall |
| Audio Formats | 5.1 Bitstream Passthrough, 2-Ch Dante, Multichannel Downmixing |
| USB | USB HID Routing |
| Target Markets | Hospitality, Stadiums & Venues, Transportation, Retail |
MXnet 10G
MXnet 10G is an SDVoE-based AV-over-IP ecosystem that distributes uncompressed video, audio, and control signals over a 10GbE network with no latency. It supports advanced features like video walls, multiviewing, managed through the MXnet Mentor interface.
Specifications
| Network Infrastructure | 10 GbE |
|---|---|
| Video Compression | SDVoE |
| Max Video Resolution | 4K/60 fps, 4:4:4, 8-bit |
| Source Preview Stream | Thumbnail Image |
| High Dynamic Range | HDR10, HLG, Dolby Vision Supporting 10-, 12-bit Color |
| Min. End-to- End Latency | <1 ms |
| Video Processing | 8x8 Video Wall, 16 Window Multiview |
| Audio Formats | 7.1 Bitstream Passthrough, 2-Ch Dante, Multichannel Downmixing |
| USB | USB 2.0 Routing |
| Target Markets | Medical, Healthcare, eSports/Gaming, Broadcast, Residential |
MXnet USP
Universal Streaming Platform
Powered by
MXnet USP is an AV over IP ecosystem that supports the distribution of video signals up to 4K/60 fps. USP leverages H.26x codecs to achieve highly efficient and low-bandwidth streams making system scalability a breeze. Built-in multiview processing a digital signage system and AV interoperability through AVPro Flow make USP a great choice for a wide range of ProAV applications.
USP Feature Comparison
| USP-ES | USP-PL | USP-PR | |
|---|---|---|---|
| AVPro Flow Interop | ✅ Supported | ✅ Supported | ✅ Supported |
| Simultaneous Enc/Dec | ✅ Supported | ✅ Supported | ✅ Supported |
| Video Walls | ✅ Up to 8x8 | ✅ Up to 8x8 | ✅ Up to 8x8 |
| Latency | ≤75ms | ≤75ms | ≤75ms |
| Built-In Signage Player | ✅ Supported | ✅ Supported | ✅ Supported |
| Max Input/Output Resolution | 1080p60 Encode / 4K60 Decode | 4K60 4:4:4 8b | 4K60 4:4:4 8b |
| Encode Bandwidth | 15Mbps | 60Mbps | 60Mbps |
| USB | - | ✅ HID | ✅ HID |
| USB-C DP & 60W PD | - | - | ✅ Supported |
| Multiview | ✅ 4 Windows @ 1080p | ✅ 7 Windows @ 1080p | ✅ 16 Windows @ 1080p |
| Dante/AES67 Audio | - | ✅ 2x2 | ✅ 2x2 |
What is AVPro Flow?
AVPro Flow is built on open-standard H.26x technology that lets AV signals seamlessly 'Flow' across products, series, and even manufacturers. Delivery true interoperability for ProAV systems.
MXnet Management
MXnet Control Box
At the heart of every MXnet system is the CBOX. The intelligent command center that powers and connects your AV network. Hosting the intuitive Mentor Management Interface, the CBOX bridges communication between every encoder, decoder, and switch. With multiple LAN ports, it simplifies network segmentation and streamlines system setup, monitoring, and configuration.
Control Drivers
MXnet Switch Ecosystems
E-Series
E-Series switches provide a cost-effective 1G platform for MXnet USP, Dante/AES67, and smaller AV-over-IP systems. Select the appropriate model based on endpoint count, PoE requirements, and the amount of traffic that must pass between switches.
P-Series
P-Series switches are high-capacity 1G models designed for MXnet Evolution I and Evolution II systems, especially topologies requiring multiple switches. Higher-speed uplinks make them suitable for systems with substantial inter-switch bandwidth requirements or planned expansion.
X-Series
X-Series switches are designed for the MXnet 10G SDVoE ecosystem. Copper and fiber models are available, with high-capacity uplinks for multi-switch system designs. Select the model based on endpoint connection type, port count, PoE requirements, and the bandwidth required between switches.
Design Services
Our design services are presented to you at no cost, because our integration customers are our partners. We want to work alongside you to provide impactful solutions for you your clients. How it works:
- Complete simple request form
- Our application engineering team reviews submission
- We'll create a comprehensive system diagram
- Focus on MXnet solution with supporting AVPro products
MXnet Resources
Want to dive deep? Check out the links below to read more about MXnet or take the training course to become MXnet certified!
