Fresco 4K 18 Gbps 2x2 Video Wall Processor

Description

The AC-FRESCO-44 is another powerful, innovative AVPro Edge commercial integration tool destined to become an instant classic. Designed to provide instant, imperceptibly fast HDMI switching, this dual-mode hybrid HDMI matrix switcher with 2x2 video wall processing is perfect for new installations and especially for upgrading traditional 2x2 video walls with dynamic new capabilities. Retrofit traditional 2x2 single image configurations into offering four independent programs, with instant recall returning to a unified image at the press of a button. 4K to 1080p downscaling provides compatibility with legacy displays.

Source loop-outs enable multiple units to be cascaded to create larger arrays, synchronized easily for seamless processing, and simplified interconnectivity. EDID management ensures display compatibility while delaying the extracted audio up to 630 ms maintains lip-sync in any installation scenario.

The versatile AC-FRESCO-44 from AVPro Edge is perfect for video wall applications that require creative flexibility in markets such as hospitality, retail, education, government, command and control, and even houses of worship.

Fresco 4K 18 Gbps 2x2 Video Wall Processor

Product form

Matrix and video wall processor with instant HDMI source switching.

  • Unique Dual-Mode Hybrid 4x4 HDMI Matrix Switcher with 2x2 Video Wall Processor
  • Dynamic Instant HDMI Switching Between Unified Video Wall Mode and Per-Display Assignments
  • HDMI Inputs Have Loop Outs with Analog and S/PDIF Audio Extraction
  • Limit-Free Large Array Cascade Configurability

SKU: AC-FRESCO-44

  • Shipped today? Order within: Nov 20, 2026 13:00:00 -0600

Description

The AC-FRESCO-44 is another powerful, innovative AVPro Edge commercial integration tool destined to become an instant classic. Designed to provide instant, imperceptibly fast HDMI switching, this dual-mode hybrid HDMI matrix switcher with 2x2 video wall processing is perfect for new installations and especially for upgrading traditional 2x2 video walls with dynamic new capabilities. Retrofit traditional 2x2 single image configurations into offering four independent programs, with instant recall returning to a unified image at the press of a button. 4K to 1080p downscaling provides compatibility with legacy displays.

Source loop-outs enable multiple units to be cascaded to create larger arrays, synchronized easily for seamless processing, and simplified interconnectivity. EDID management ensures display compatibility while delaying the extracted audio up to 630 ms maintains lip-sync in any installation scenario.

The versatile AC-FRESCO-44 from AVPro Edge is perfect for video wall applications that require creative flexibility in markets such as hospitality, retail, education, government, command and control, and even houses of worship.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Dual Display Modes – Functions as a video wall processor for a 2x2 native unified single source configuration (cascade-capable for larger arrays) or as an HDMI matrix switcher to display four separate sources.



Instant HDMI Source Switching – Delay-free, imperceptible instant switching, suitable for real-time production environments. In a monitored situation, switch from quad sources to a single source to immediately highlight live action.



Web GUI Video Wall Configuration – Use the built-in browser-based Web GUI to plot default picture mapping coordinates for each display in the video wall.



Scalable Configurations –  HDMI source loop outputs with companion extracted analog audio and S/PDIF outputs invite limitless, creative, synchronized, cascading expandability into wall arrays of any size.



Supports 4K/60 fps 4:4:4 – Legendary AVPro Edge superior video signal processing delivers images with the highest fidelity.



Web Interface and Front Panel Display and Control – Limited control functionality can be assigned with User-Only credentials, permitting video wall and source assignment, and audio control access only, keeping Admin settings secure.



4K Downscaling – Easily retrofit and refresh legacy installations with downscaling to 1080p. Update traditional single-source video walls with HDMI source matrixing.



Audio Delay and Extraction - Up to 630 ms of audio delay control through extracted audio aligns image and audio to eliminate distracting lip-sync issues.



Built-in Troubleshooting – EDID management and test pattern generation verify signal paths and ensure system compatibility.



LAN and RS-232 Control – Automation friendly with a comprehensive API.



AVPro Edge Warranty – Covered by AVPro’s 10-year no-hassle warranty

Video
Video ResolutionVideo Input: 4K/60 Hz 4:4:4
Video Output: 4K/60 Hz 4:4:4
HDR FormatsVideo Input: Dolby Vision, HDR10, HDR10+, HLG
Video Output: Dolby Vision, HDR10, HDR10+, HLG
Color SpaceVideo Input: YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
Video Output: YUV (Component), RGB (CSC: ITU-R BT.601, ITU-R BT.709, ITU-R BT.2020, DCI-P3 D65)
Chroma SubsamplingVideo Input: 4:4:4, 4:2:2, 4:2:0
Video Output: 4:4:4, 4:2:2, 4:2:0
Color Bit DepthVideo Input: Up to 12-bit
Video Output: Up to 12-bit
ScalingVideo Output: Optional: 4K to 1080p / 720p, 1080p to 720p
Other
HDCP / Copy ProtectionVideo Input: HDCP 2.3 and earlier
Video Output: HDCP 2.3 and earlier
Video Output
Loop OutOne loop out per HDMI input
Audio
Audio Formats Supported HDMILPCM up to 7.1, 192 kHz 24-bit, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos (All Formats), Dolby AC-4, DTS-Digital Surround, DTS-ES Discrete, DTS-HD High Res Audio, DTS-HD Master Audio, DTS:X
Audio Formats Supported (TOSLINK)S/PDIF: LPCM up to 2.0, 96 kHz 24-bit, Dolby Digital 5.1, Dolby Digital Plus, DTS-HD High Resolution Audio, DTS-Digital Surround, DTS-ES Discrete
Audio Formats Supported Extracted (2-Ch. Port)PCM 2-Ch.
Audio Extraction ModeBind to Input, Bind to Output, or Matrix (Independent)
Audio Delay (Per Output, Extracted)Up to 630 ms
Distance
HDMI Cable Distance (Passive)Up to 50 ft. **
HDMI Cable Distance (AOC)Up to 130 ft. **
Control

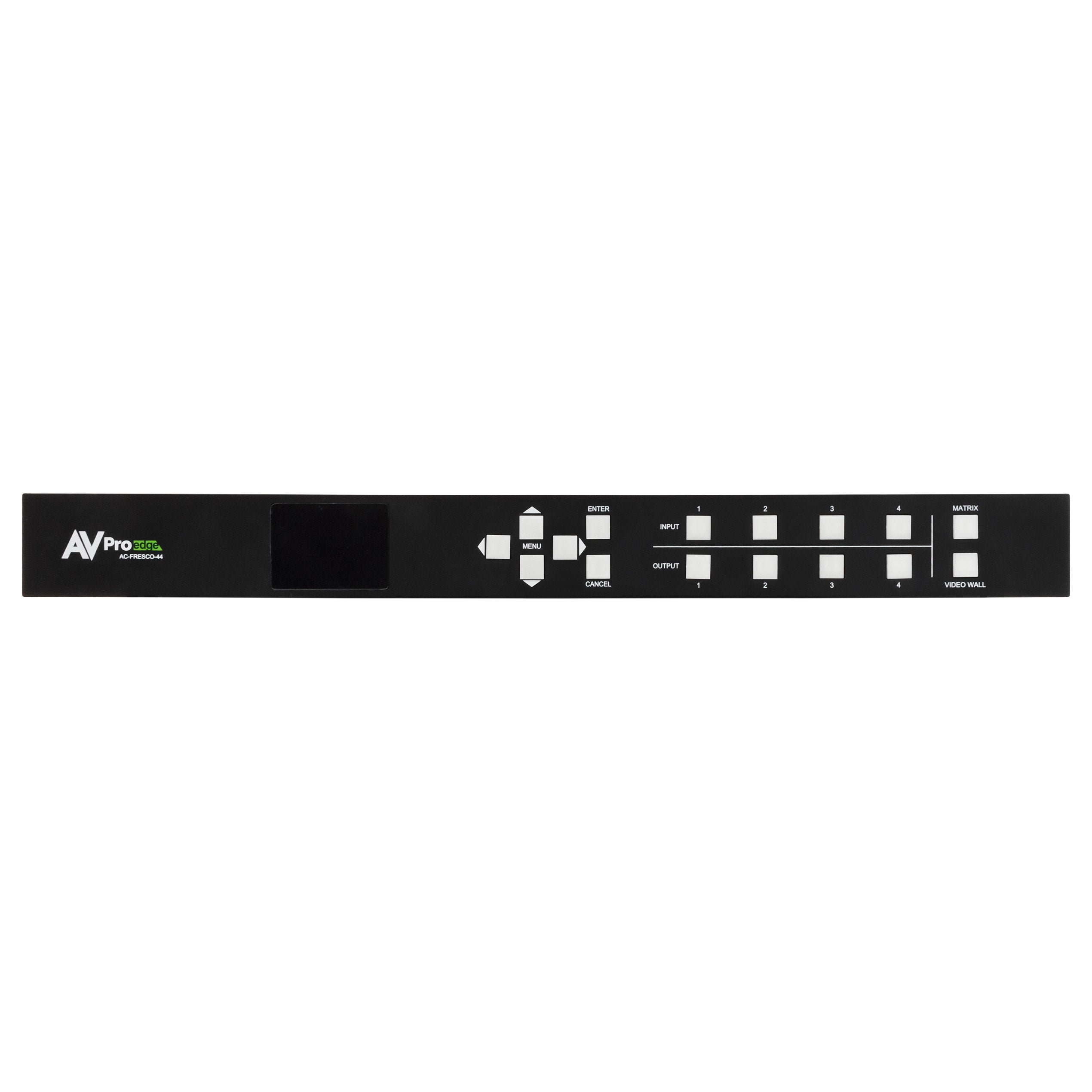

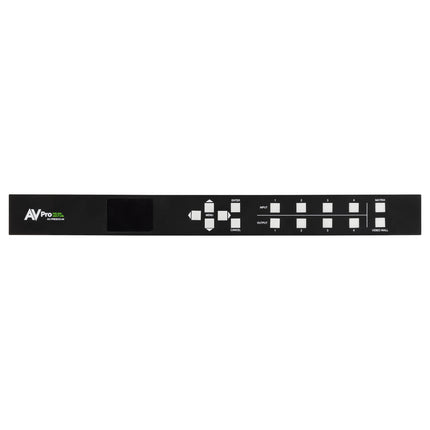

Front PanelLCD Screen with 4-button navigation
PortsLAN, RS-232, USB Type-C
Web InterfaceYes

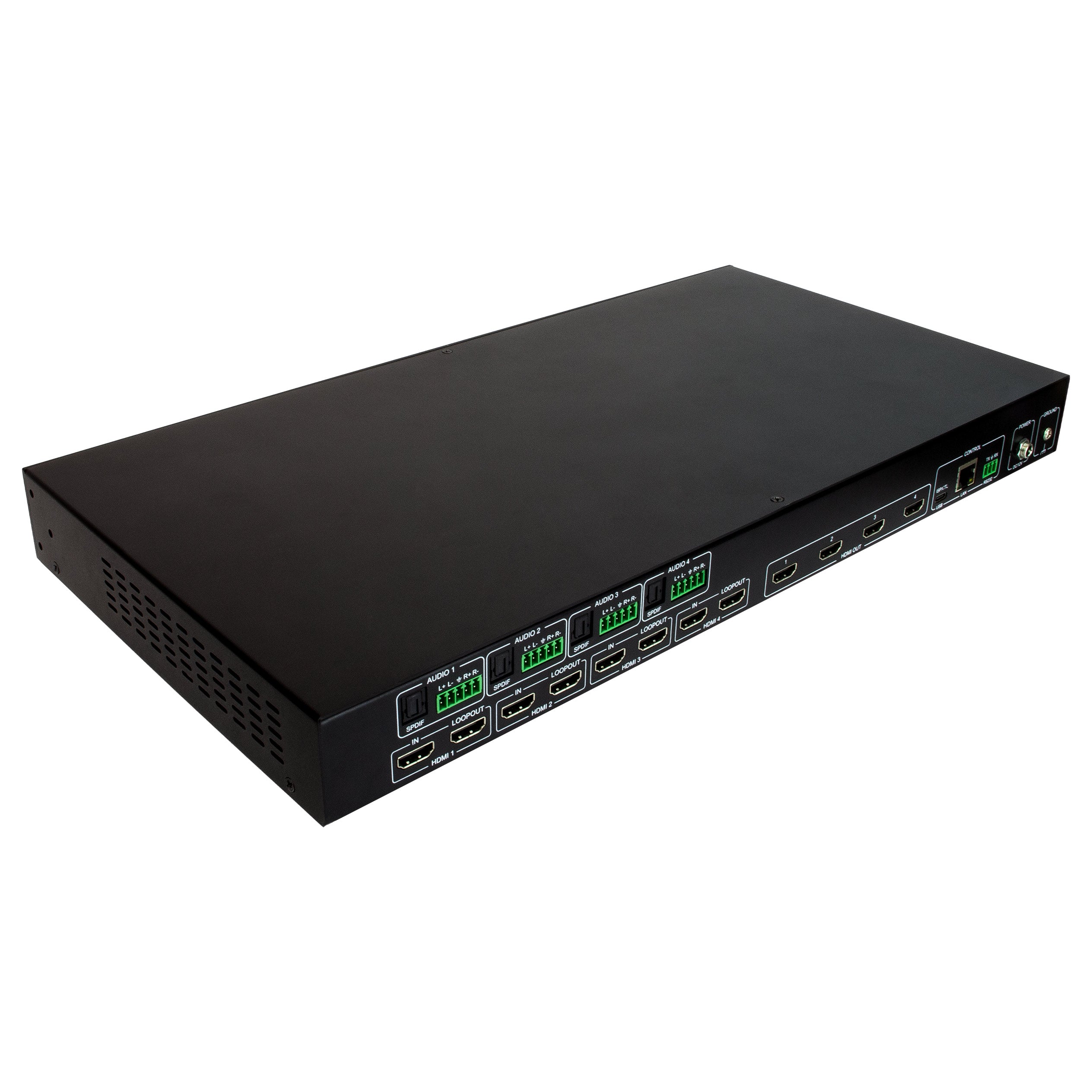

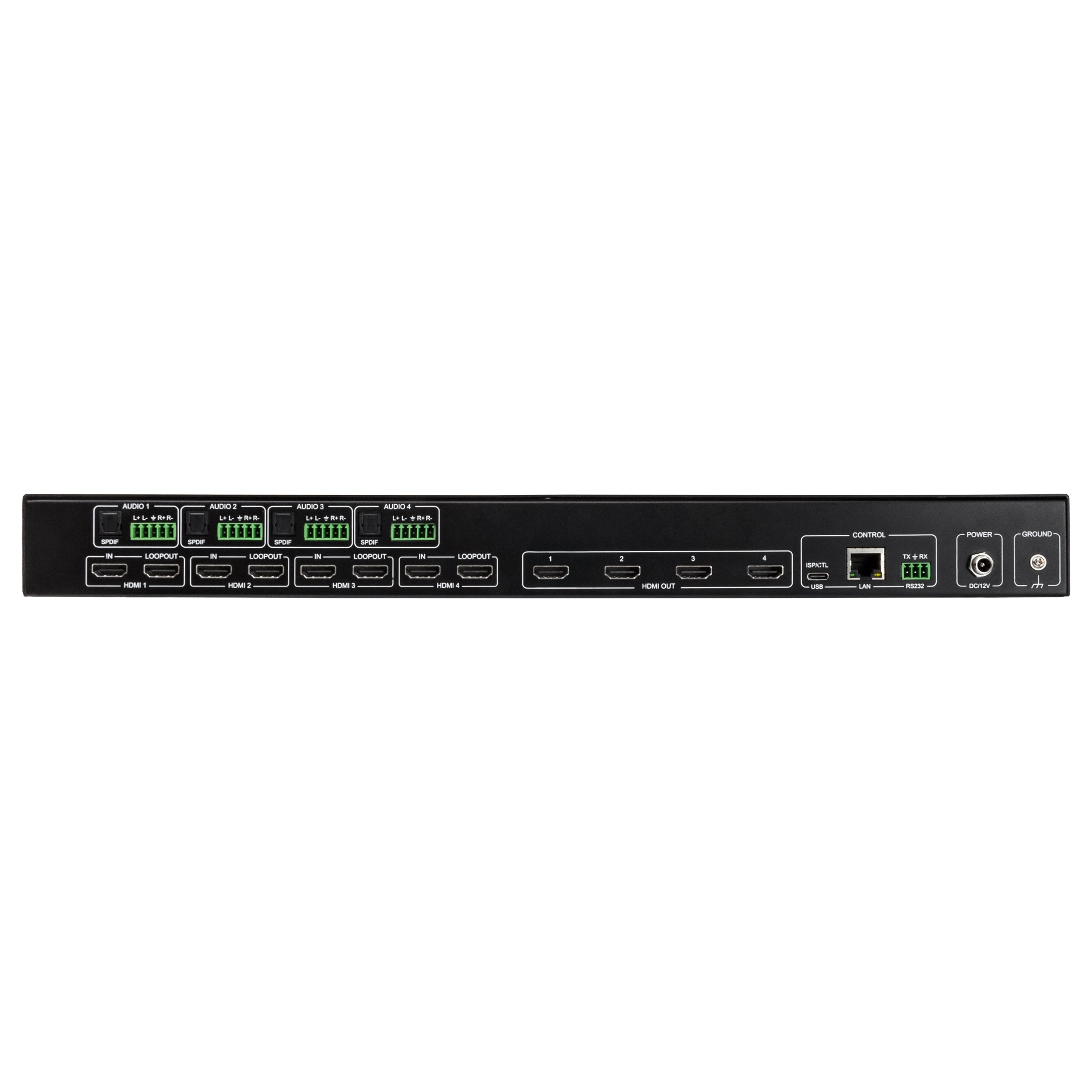

Ports
HDMIType-A
Ethernet / LANRJ45 w/ Web Interface & Control
Audio (Extracted Digital)S/PDIF
Audio (Extracted Analog)5-pin Euroblock (Balanced)
RS-2323-pin Euroblock
ISP / CTLUSB Type-C
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Power
Power ConsumptionTotal: 33 W max
Power SupplyInput: 100 VAC to 240 VAC ~ 50/60 Hz Output: 48 VDC, 0.5 A
Physical
Mounting1-RU Rack Mounting Brackets Rubber Feet
Dimensions (Unit)L × W × H: 225.3 × 440 × 44 mm (8.87 × 17.32 × 1.73 in.)
Dimensions (Packaged)L × W × H: 375.65 × 565.15 × 125.39 mm (14.75 × 22.25 × 4.93 in.)
Weight (Unit)6.9 lb. (3.12 kg)
Weight (Packaged)9.95 lb. (4.51 kg)
Regulatory / CertificationsFCC, CE
Warranty10 years
Notes*Specifications subject to change without notice. Mass & dimensions are approximate



  • (1x) AC-FRESCO-44 2x2 Video Wall Processor
  • (2x) 1U Rack Mounting Brackets
  • (6x) Screws for Mounting Brackets
  • (4x) x Rubber Feet & Screws
  • (4x) 5-Pin 2 Channel Audio Extraction Cables
  • (1x) 3-Pin Terminal Block Connector
  • (1x) 12V Locking Power Supply
  • (1x) Grounding Cable
