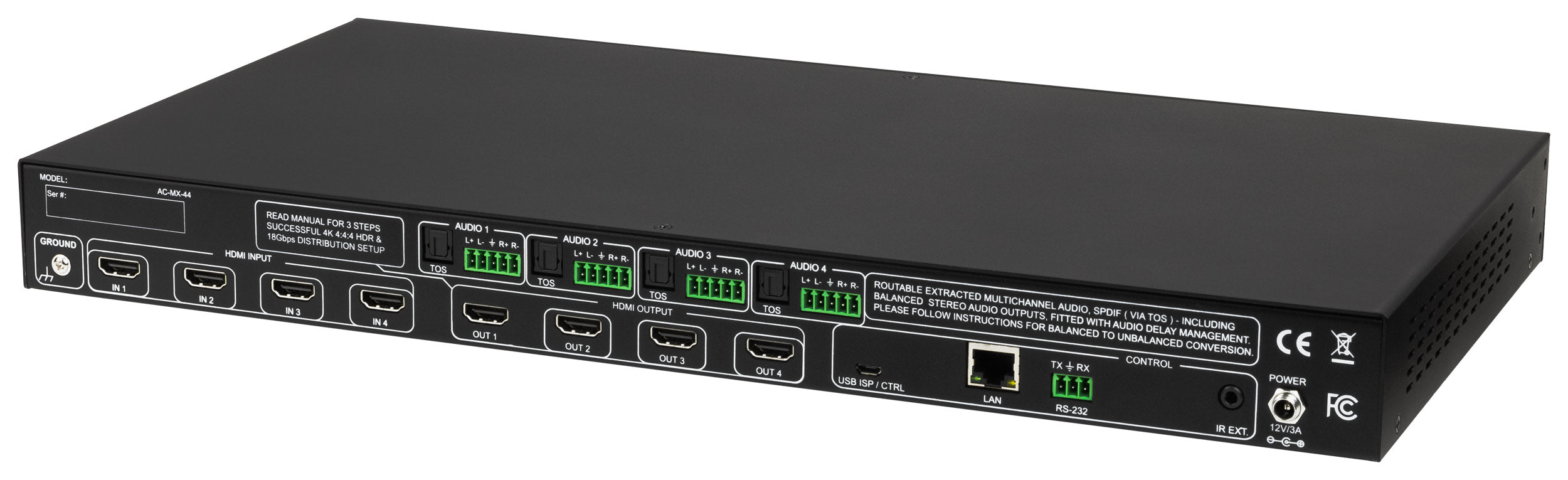

18Gbps 4x4 HDMI Matrix Switch

Description

The AC-MX-44 is a 4x4 HDMI matrix switch that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18Gbps bandwidth. Audio Delay is “On-Board” so integrators can manage lip-sync issues before they become a problem. Video signal management is also possible with built-in scalers. In addition to scalers, this matrix supports complete EDID management, allowing maximum flexibility with today’s broad range of sources and displays. The AC-MX-44 also features the AVPro Edge User Interface (AEUI). We built the AEUI from scratch for our integrators with the technology they requested.

Our best developers have been hard at work bringing our integrators an easy-to-use web based user interface that allows them to set up, troubleshoot, and control this 4K 4x4. The AVPro Edge user interface (AEUI) allows for easy configuration and sets up the 4K 4x4. This matrix switcher also comes with a screen on the unit that can tell you the IP address for connecting directly to your control system. From built-in scaling to complete EDID control and configuring, you can customize every aspect of this device to work perfectly for your system.

18Gbps 4x4 HDMI Matrix Switch

Product form

  • HDMI 2.0(a/b)
  • 18Gbps Bandwidth Support
  • 4K60 4:4:4 Support
  • Full HDR Support (HDR 10 & 12 Bit)

SKU: AC-MX-44

  • Shipped today? Order within: Nov 15, 2026 13:00:00 -0600

Description

The AC-MX-44 is a 4x4 HDMI matrix switch that supports HDMI 2.0(a/b), HDCP 2.3, up to 4K video resolution, and up to 18Gbps bandwidth. Audio Delay is “On-Board” so integrators can manage lip-sync issues before they become a problem. Video signal management is also possible with built-in scalers. In addition to scalers, this matrix supports complete EDID management, allowing maximum flexibility with today’s broad range of sources and displays. The AC-MX-44 also features the AVPro Edge User Interface (AEUI). We built the AEUI from scratch for our integrators with the technology they requested.

Our best developers have been hard at work bringing our integrators an easy-to-use web based user interface that allows them to set up, troubleshoot, and control this 4K 4x4. The AVPro Edge user interface (AEUI) allows for easy configuration and sets up the 4K 4x4. This matrix switcher also comes with a screen on the unit that can tell you the IP address for connecting directly to your control system. From built-in scaling to complete EDID control and configuring, you can customize every aspect of this device to work perfectly for your system.

  • Key Benefits
  • Specs
  • Resources
  • In The Box
  • Dolby Vision, HDR10+ and HLG Support
  • HDCP 2.3 (and all earlier versions supported)
  • 4K > 1080p Down Scalers on each output
  • Advanced EDID Management
  • IR, RS-232 and LAN Control Options
  • Digital Toslink Out (7CH PCM, DD, DTS)
  • Balanced Analog Out (2CH PCM)
  • Audio Delay for Digital & Analog Out
  • HDBaseT Compatibility mode for mixed systems
  • Driver Support For Crestron, C4, RTI, ELAN and more
  • Extracted Audio Now Has 3 Operating Modes. Bound to Input, Bound to Output, or Independent Matrix
  • Built in Test Pattern on Each Output to Verify Infrastructure



Video
Video ResolutionUp to 4K 60 Hz 4:4:4
VESA ResolutionsUp to DCI 4K (4096x2160)
HDR FormatsResolutions: 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision, HLG
Color SpaceYUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0
Color Bit DepthUp to 16-bit (1080p), up to 12-bit (4K)
ScalingHDMI Per OUTPUT Optional: 4K to 1080p Down-Scaling (Resolutions Only, Framerate Stays the same), and 4:4:4 to 4:2:0 (See manual for more info)
Audio
Audio Formats Supported HDMIPCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos
Audio Formats Supported Extracted (TOSLINK)PCM 2.0-Ch., LPCM 6-Ch., LPCM 7-Ch.,Dolby Digital, Dolby Digital Plus
Audio Formats Supported Extracted (2-Ch. Port)PCM 2-Ch.
Audio Extraction LocationBind to INPUT, Bind to OUTPUT, or Matrix (Independent)
Audio Delay (Per OUTPUT, Extracted)Up to 630 ms
Distance
HDMI Cable Distance (Passive)4K60 4:4:4: Up to 50 ft. (using Bullet Train HDMI)
HDMI Cable Distance (AOC)4K60 4:4:4: Up to 130 ft. (using Bullet Train AOC)
Other
Bandwidth18 Gbps
HDCP / Copy ProtectionHDCP 2.3 and earlier
Control
PortsLAN, RS-232, IR
DriversC4, RTI, ELAN, CRESTRON, URC (For More Information - See Drivers Page on AVProEdge.com/Drivers
Web InterfaceYes

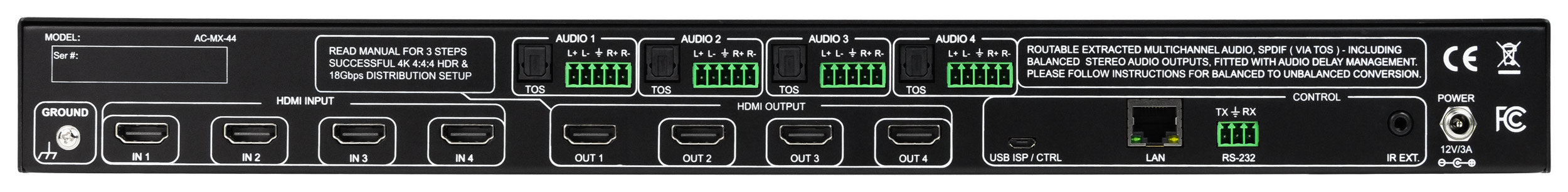

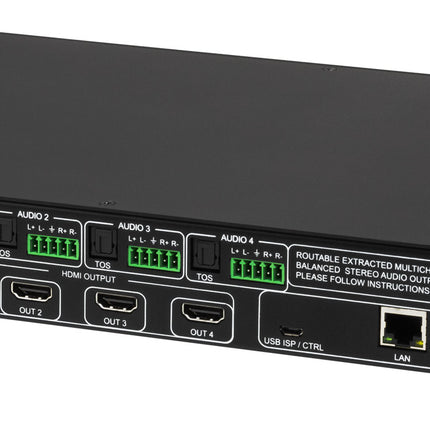

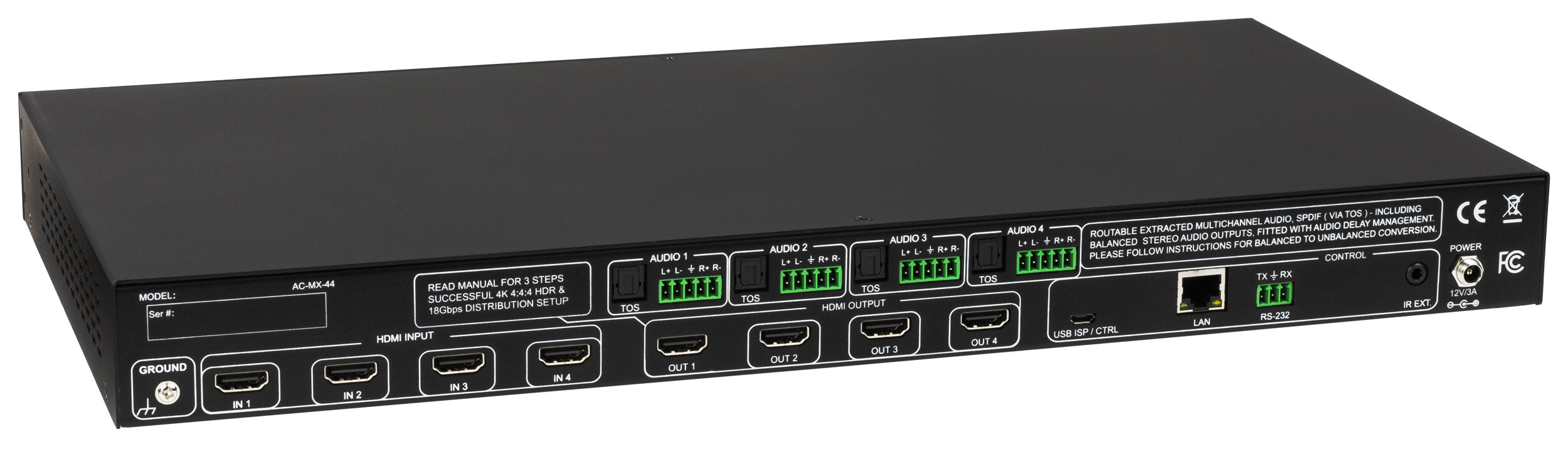

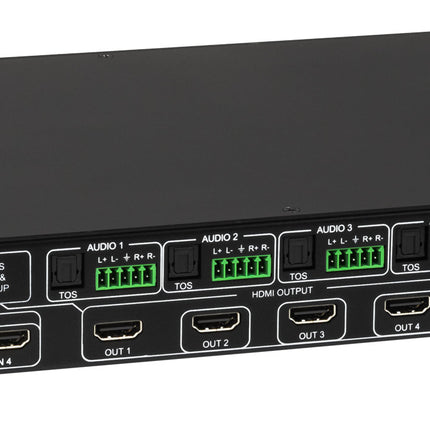

Ports
HDMIType-A
Ethernet / LANRJ45 w/ Web Interface/ Control
Audio (Extracted Digital)TOSLINK
Audio (Extracted Analog)5 PIN Terminal Block (Balanced)
IR Extension RX3.5 mm Stereo (3 Conductor)
RS-2323 Pin Terminal Block
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Power
Power ConsumptionTotal: 38 W max
Power SupplyMatrix: Input: AC 100 V to 240 V ~ 50/60 Hz Output: DC 12 V 4 A
Physical
Dimensions (Unit)W × D × H: 438.15 × 225.43 × 44.45 mm (17.25 × 8.875 × 1.75 in.)
Dimensions (Packaged)W × D × H: 495.3 × 336.55 × 88.9 mm (19.5 × 13.25 × 3.5 in.)
Rack Space1 Unit
Weight (Unit)6.2 lb. (2.81 kg)
Weight (Packaged)8.32 lb. (3.78 kg)
Notes*Specifications subject to change without notice. Mass & dimensions are approximate

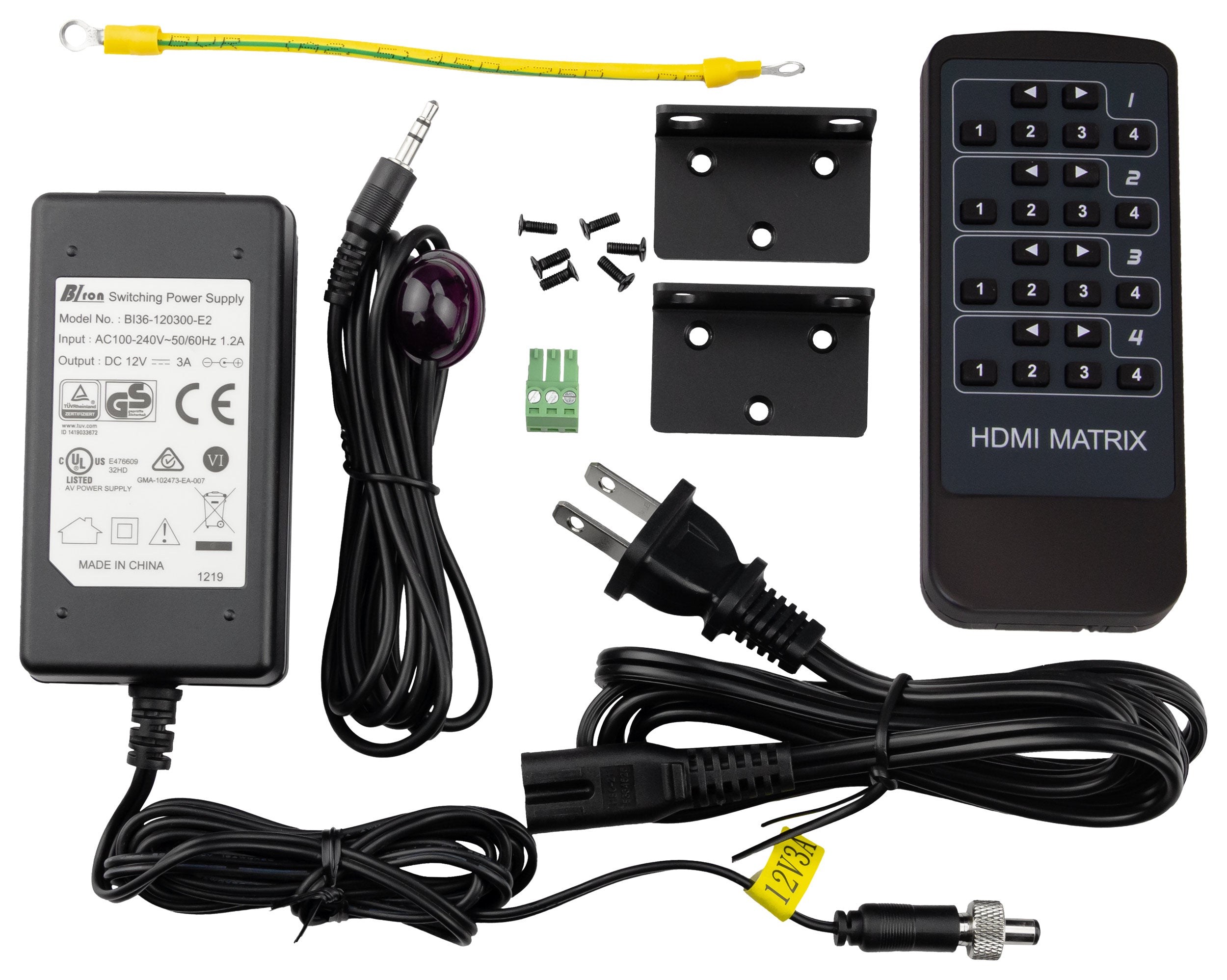

  • AC-MX-44 (Matrix Switch)
  • 12V Locking Power Supply
  • 1 x IR Remote Control (Battery not included)
  • 1 x IR Extension Cable
  • 4 x 5-Pin 2 Channel Audio Extraction Cables
  • 1 x 3 Pin Terminal Connector (For RS232)
  • Mounting Brackets
