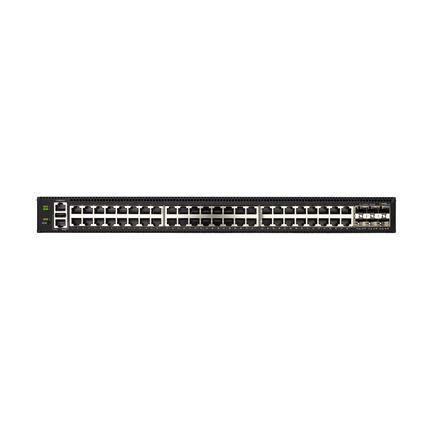

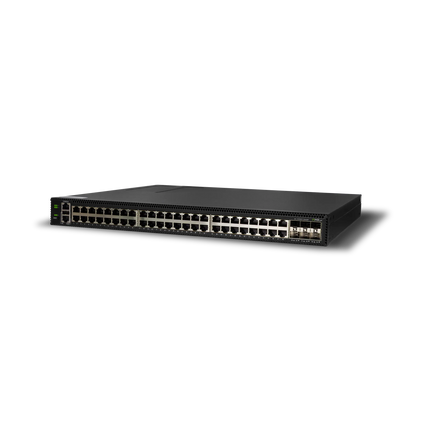

MXnet P-Series 48 Port Network Switch
- VendorAVPro Edge
MXnet P-Series 48 Port Network Switch
- VendorAVPro Edge
- Key Benefits
- Specs
- Resources
- In the Box
48× PoE/PoE+ Copper Ports - Power and connect MXnet 1G encoders, decoders, and AV devices directly with up to 740W total PoE budget.
6× 25G SFP28 Uplink Ports - Enable high-density stacking and uplinking for large MXnet 1G deployments with 150Gbps total uplink bandwidth and substantial headroom.
Preconfigured for MXnet 1G - Plug-and-play setup with IGMP Snooping, VLAN segmentation, and QoS optimized out of the box for MXnet 1G V1/V2.
Non-Blocking for MXnet 1G - 150Gbps uplink bandwidth exceeds the maximum 1G load across all 48 ports (3.68× headroom).
Built for MXnet 1G at Scale - The P-series is designed for MXnet 1G systems at scale, supporting stacking and uplinking when a deployment grows beyond a single switch. The SW48P is the high-density node for large residential, hospitality, and commercial deployments.
740W PoE Budget - Powers up to 32× USP-PR or 48× USP-PL/ES endpoints with every port able to power a device. Ports 41-48 support PoE++ at up to 90W per port.
1RU Rackmount Design - Fits cleanly into standard AV racks for professional residential, hospitality, and commercial installations.
Â
| Ports | |
| RJ45 Ports | 48× 10/100/1000Base-T PoE/PoE+ (41-48 PoE++) |
| SFP / SFP+ / SFP28 Ports | 6× 25GE SFP28 Ports: 25GbE/10GbE, 25GbE by default |
| Management Port | 1× RJ45 Ethernet Management Port |
| Console Port | 1× RJ45 Console |
| USB | 1× USB 2.0 |
| Performance | |
| Switching Capacity | 396 Gbps |
| Forwarding Rate | 295 Mpps |
| MAC Address Table | 32K |
| Jumbo Frame Support | Up to 10,000 bytes |
| Routing Table | 32K |
| Switching | |
| Hardware Queues per port | 8 |
| ARP Table | 8K |
| Hardware | |
| Switch ASIC | Marvell AC5X 98DX3510 |
| RAM | 1GB |
| Flash | 32MB SPI / 256MB nand |
| Power | |
| Input Voltage | AC 100 V to 240 V, 50/60 Hz |
| Power Supply | Internal AC |
| Power Consumption | Maximum: <880 W |
| PoE Standard | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), IEEE 802.3bt (PoE++—ports 41–48 only) |
| Total PoE Power Budget | 740 W |
| PoE | Ports: Port 1–40: PoE/PoE+ (up to 30 W); Port 41–48: PoE++ (up to 90 W) |
| Environmental | |
| Operating Temperature | 23 to 113 °F (-5 to 45 °C) |
| Storage Temperature | -40 to 158 °F (-40 to 70 °C) |
| Operating Humidity | 10% to 90% RH, non-condensing |
| Storage Humidity | Up to 95% |
| Physical | |
| Dimensions (Unit) | W × D × H: 441 × 419 × 38 mm (17.38 × 16.5 × 1.5 in.) |
| Dimensions (Packaged) | W × D × H: 654 × 559 × 152 mm (25.75 × 22 × 6 in.) |
| Weight (Unit) | 11.94 lb. (5.42 kg) |
| Weight (Packaged) | 16.45 lb. (7.46 kg) |
| Warranty | 10 years; Specifications subject to change without notice. Mass & dimensions are approximate. |
- AC-MXNET-SW48P (Network Switch)
- 1 x IEC C14 Power Cable
- 1 x Grounding cable
- 4 x Rubber Feet
- 1 x Console cable
- 2 x Mounting Brackets
- 8 x Screws for Mounting Brackets
- 4 x 10-32 Rackmount Screws
- 4x 10-32 Cage Nuts
