70M 10Gbps Basic HDBaseT Extender Kit
- VendorAVPro Edge
Extend 4K HDMI over Category Cable: The length of manufactured HDMI cable is unchangeable after it is made and they are unreliable after about 25FT. Additionally, HDMI connectors can only be terminated in specialized factory environment due to its extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. CAT 6A cables are available widely and can be reworked easily by the installer or end-user.

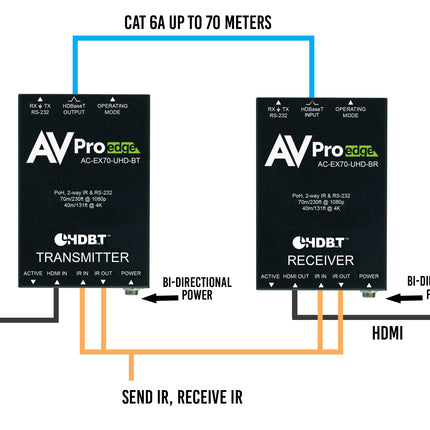

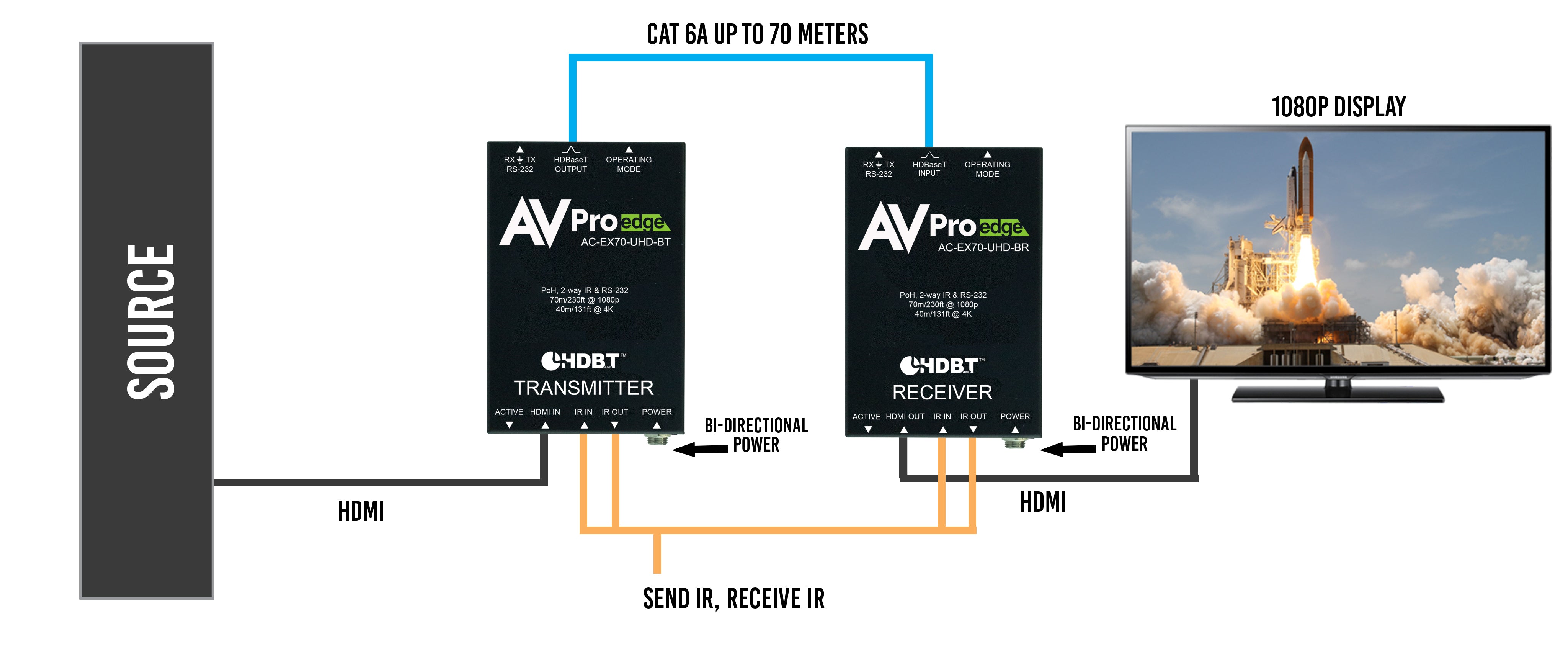

Distance: By using AC-EX70-UHD-BKT, the transmission distance for HD 1080P is up to 70 meters (230’) and UHD 4K resolution the distance reaches an impressive 40 meters (115’).
Control: IR & RS-232 are bi-directional and can control the sources from the sinks or vice versa, this model doesn't carry I-Pass, for that feature check out our AC-EX70-UHD-KIT.
Bi-Directional Power: PoH (Power over HDBaseT) function is intended to power RX from the TX or TX from the RX, this gives the installer many options when a power outlet can be scarce.
LIMITATIONS:
The AC-EX70-UHD-BKT from AVPro Edge is designed to give a very affordable option in HDMI extension. This is our most basic HDMI extender, meaning it doesn’t have the features you would find in our other models. Ethernet, ARC, eARC, USB, Audio Extraction, I-Pass IR, and longer distances with 4K.

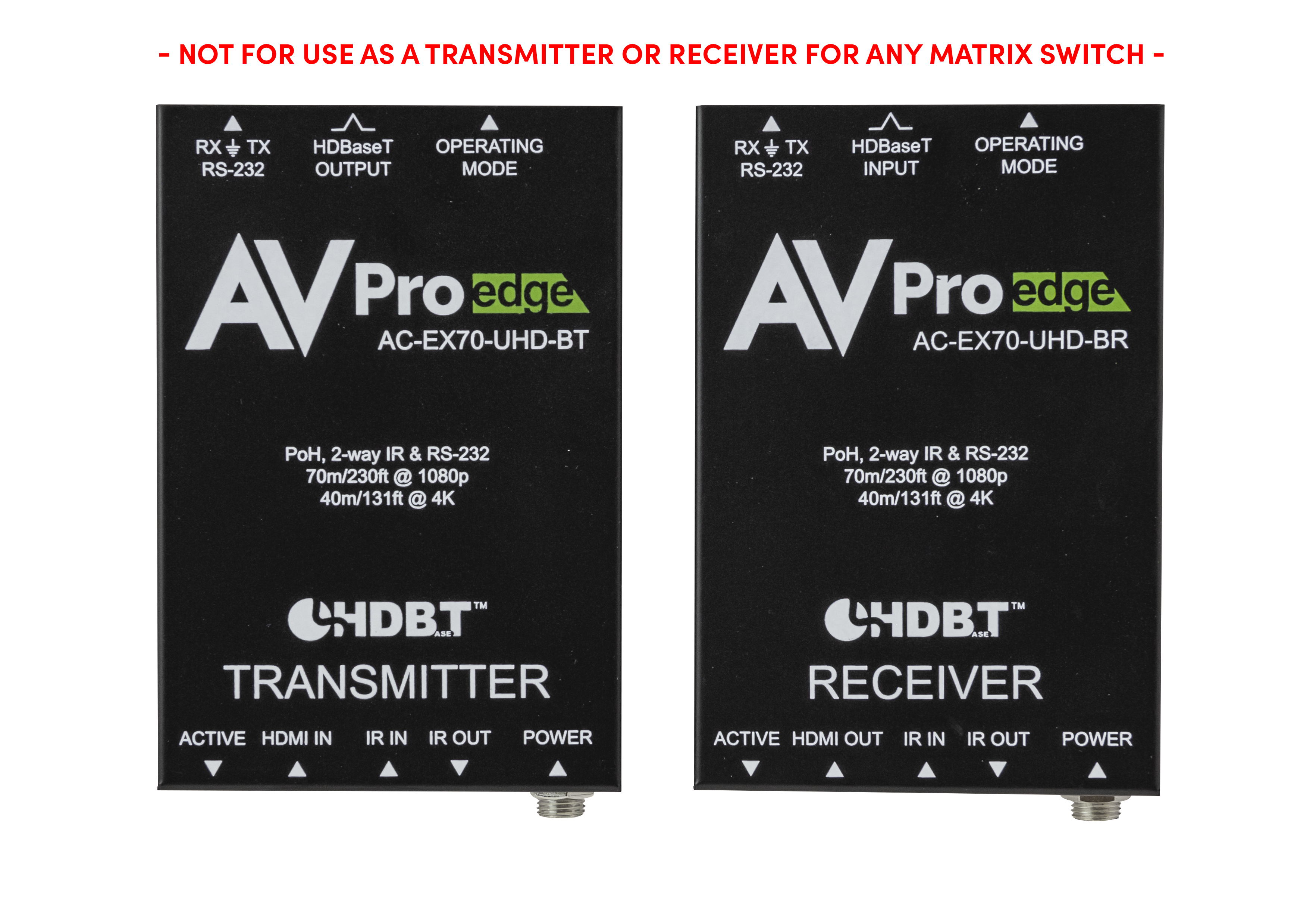

**These extenders MUST be used as a kit (Tx and Rx). They are not for use as a transmitter or receiver for any matrix switch.**
| Video | |
| Video Resolution | Up to 4K 60 Hz 4:2:0 & 4K30 4:4:4 |
| VESA Resolutions | Up to DCI 4K (4096x2160) |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Bit Depth | Up to 16-bit (1080p), up to 12-bit (4K) |
| Audio | |
| Audio Formats Supported HDMI | PCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos |
| Distance | |
| HDBaseT Distance (4K) | HDR: 40 m (131 ft.) (CAT 6A) |
| HDBaseT Distance (1080p) | 70 m (230 ft.) (CAT 6A) |
| HDMI Cable Distance (Passive) | Up to 50 ft. (using Bullet Train HDMI) |
| HDMI Cable Distance (AOC) | Up to 130 ft. (using Bullet Train AOC) |
| Other | |
| Bandwidth | 10.2 Gbps |
| HDCP / Copy Protection | HDCP 2.3 and earlier |
| Ports | |
| HDMI | TX & RX: Type-A |
| HDBaseT | RJ45 w/ PoH for HDBaseT Receivers |
| IR Receive | 3.5 mm Stereo (3 Conductor) |
| RS-232 | 3 Pin Terminal Block |
| Power | TX & RX: Barrel Type |
| Environmental | |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Power | |
| Power Consumption | Total: 9 W max |
| Power Supply | Matrix: Input: AC 100 V to 240 V ~ 50/60 Hz Output: DC 12 V 2 A |
| Physical | |
| Dimensions (Unit) | W × D × H: 25 × 71 × 105 mm (0.98 × 2.82 × 4.14 in.) |
| Dimensions (Packaged) | W × D × H: 87 × 193 × 140 mm (3.4 × 7.6 × 5.5 in.) |
| Weight (Unit) | 0.35 lb. (0.16 kg) |
| Weight (Packaged) | 0.6 lb. (0.27 kg) |
| Notes | *Specifications subject to change without notice. Mass & dimensions are approximate |
