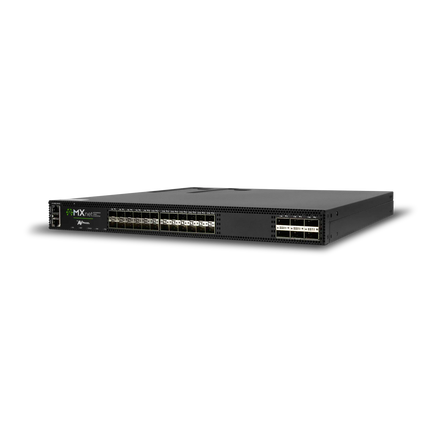

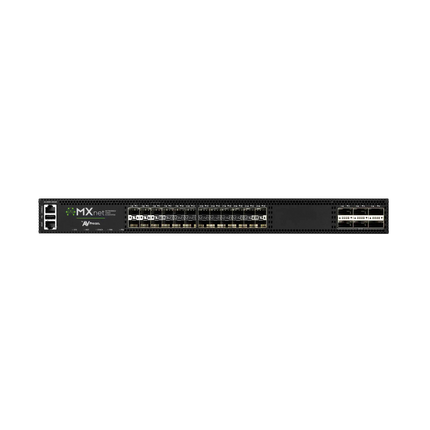

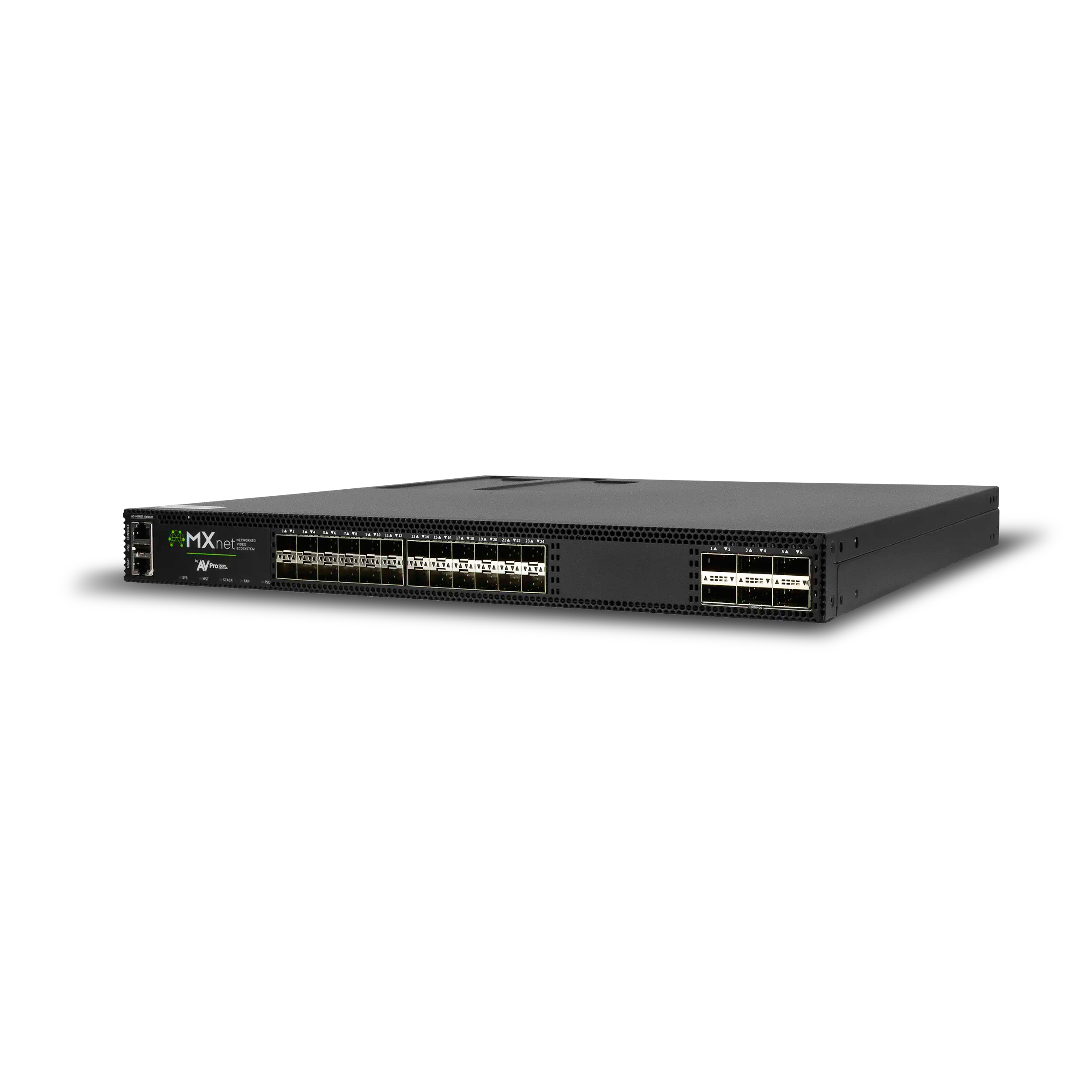

MXnet X-Series 24 Port Fiber Network Switch
- VendorAVPro Edge
MXnet X-Series 24 Port Fiber Network Switch
- VendorAVPro Edge
- Key Benefits
- Specs
- Resources
- In the Box

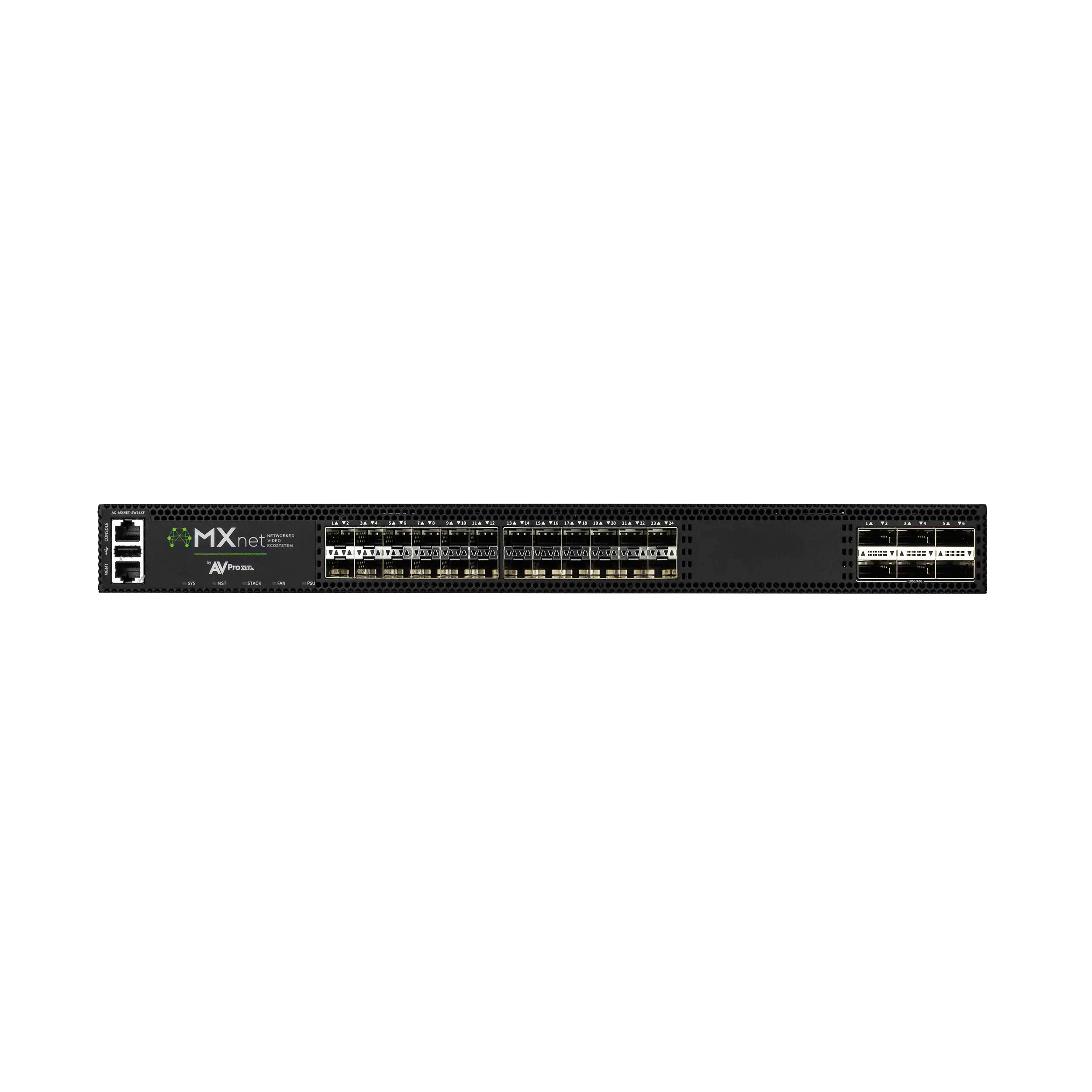

24× 10G SFP+ Ports: Connect MXnet SDVoE encoders, decoders, and control devices across a single non-blocking fiber switching fabric.
6× 100G QSFP28 Ports: Enable high-speed stacking, backbone uplinks, or breakout to 4× 25G / 4× 10G for flexible multi-switch expansion.
Preconfigured for MXnet: Plug-and-play setup with VLAN, QoS, IGMP, and LAG optimized out of the box for SDVoE deployments.
Full L3 Switching Architecture: Delivers enterprise-grade routing with OSPF, BGP, MPLS, and VRF for AV-over-IP and IT network convergence.
Efficient Non-Blocking Stacking: 3× 100G ISL delivers full non-blocking dual-switch stacking (1.25× headroom), with 3 QSFP28 ports left over for additional endpoints or uplinking to another switch.
Edge-to-Core Flexibility: Deploys as a standalone core, distribution switch, or edge switch beneath the SW32HF — no network redesign required.
1RU Rackmount Design: Clean, professional installation in AV racks and network closets with front-to-back airflow.
| Ports | |
| SFP+ Ports | 24 x SFP+ Ports: 10GbE/1GbE, 10GbE by default |
| QSFP28 Ports | 6x QSFP28 Ports: 40G/100GbE, 100GbE by default; supports 4x 25G SFP28 breakout, 4x 10G SFP+ breakout, and 40G backward compatibility |
| Management Port | 1x 10/100/1000BASE-T Management Port (MGMT) |
| Console Port | 1 x RJ45 console port (Out-of-Band) |
| USB | 1 x USB 2.0 Type-A for MXnet Service and storage |
| Switching | |
| Switching Capacity | 1.68 Tbps (1,680 Gbps) |
| Forwarding Rate | 600 Mpps |
| MAC Address Table | 32K |
| ARP Table | 8K |
| Routing Table | 30K |
| Jumbo Frame Support | Up to 10,000 bytes |
| Hardware Queues | 8 per port |
| VLAN Support | Up to 4,096 VLANs |
| ACL Entries | Hardware-accelerated L2/L3/L4 ACLs |
| Hardware | |
| Switch ASIC | Marvell Aldrin2 98DX8548/24 |
| Switch Chip Cache | 6 MB |
| CPU | External ARMv8 Cortex-A72 2.2GHz Quad-core |
| Memory | DDR4 4 GB |
| Storage | SPI Flash 32 MB + MMC 8 GB |
| Power | |
| Power Input | AC 100-240V, 50/60Hz |
| Power Supply | 1+1 Modular Redundant Hot-Swappable AC |
| Maximum Power Consumption | 350W per PSU |
| Switch Power Consumption | TBD — confirm (SW48XF was 109W single-PSU / 120W dual-PSU at full load) |
| Environmental | |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 5-95% non-condensing |

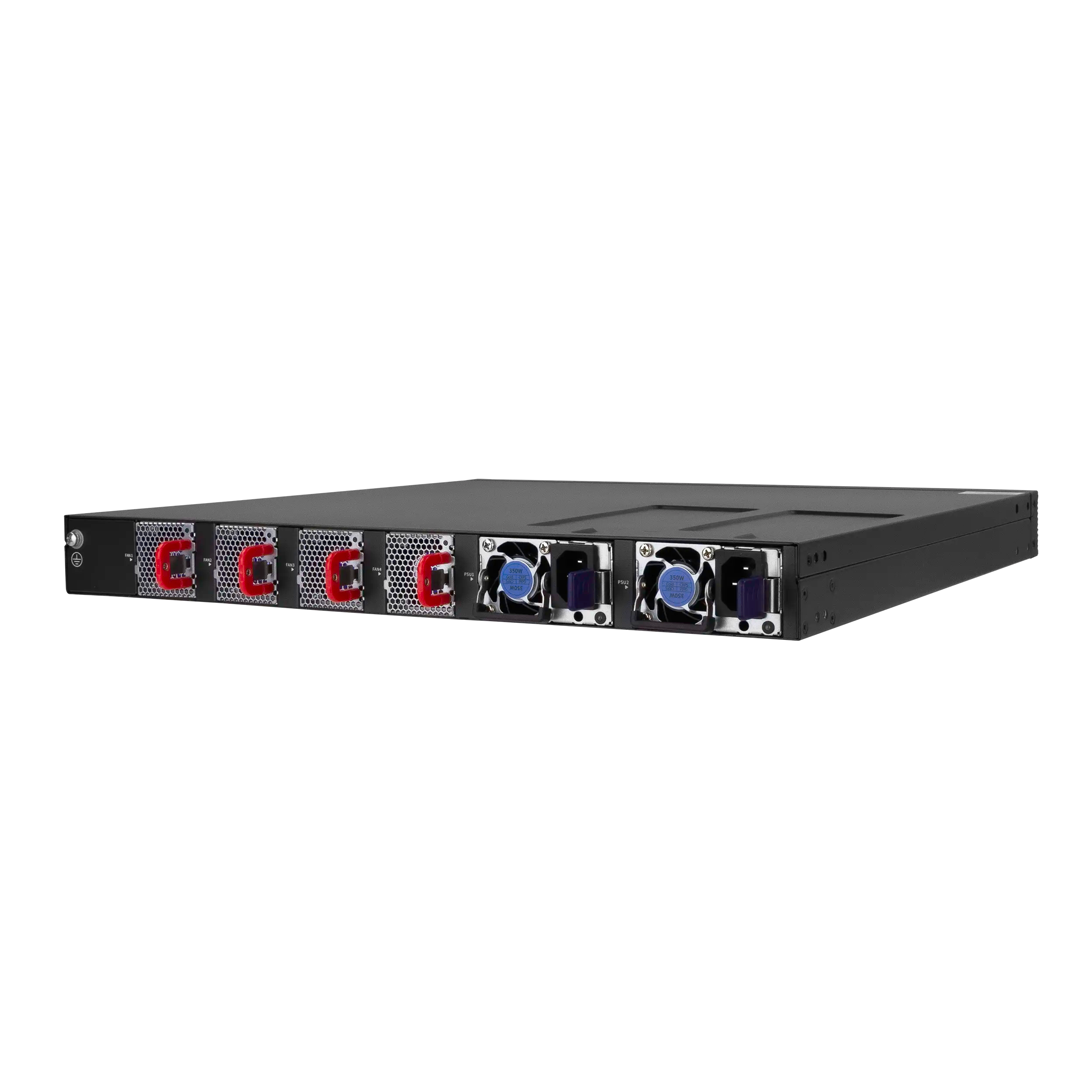

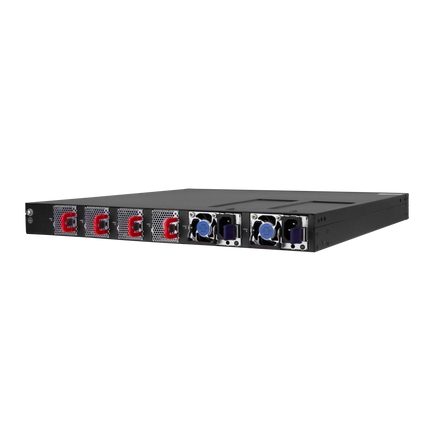

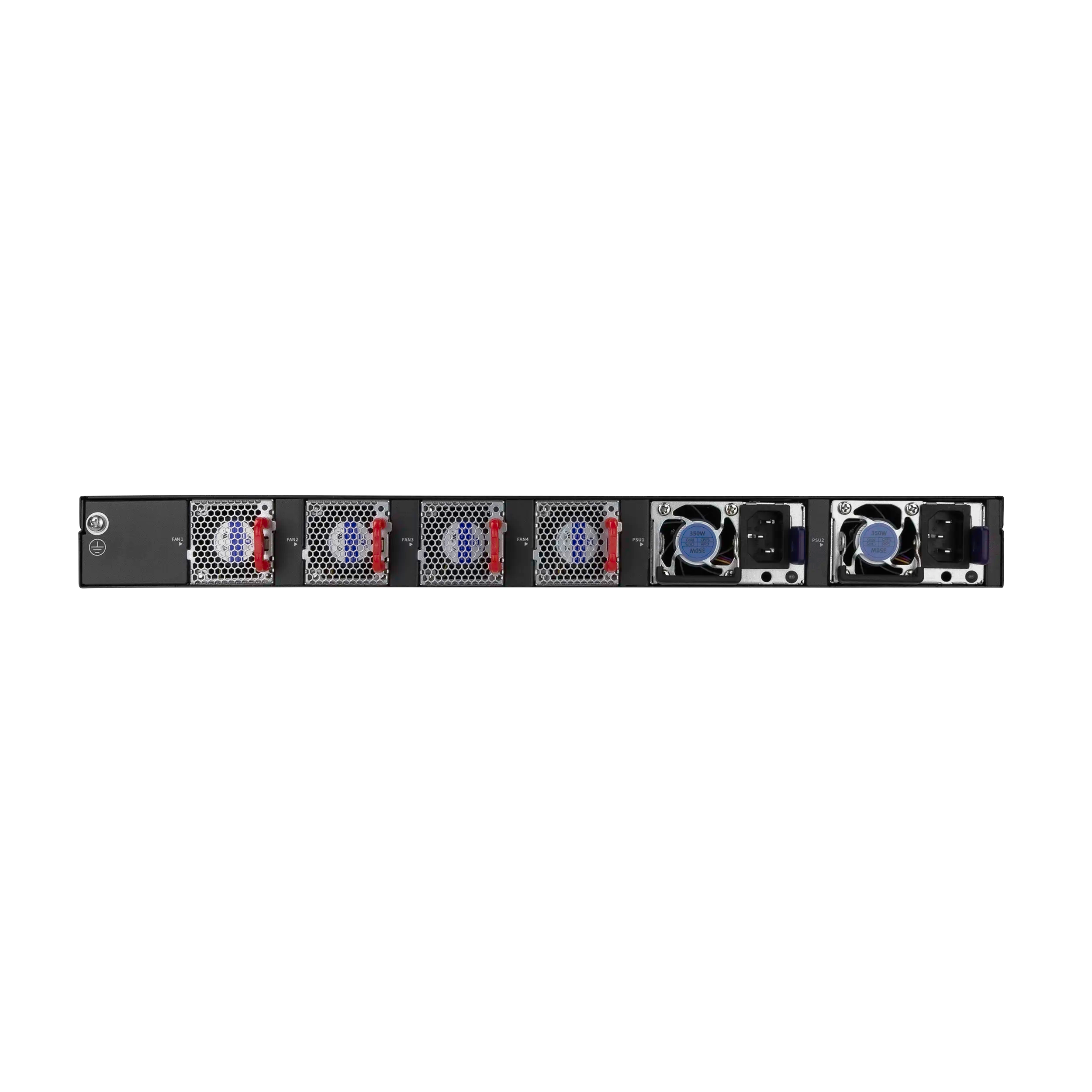

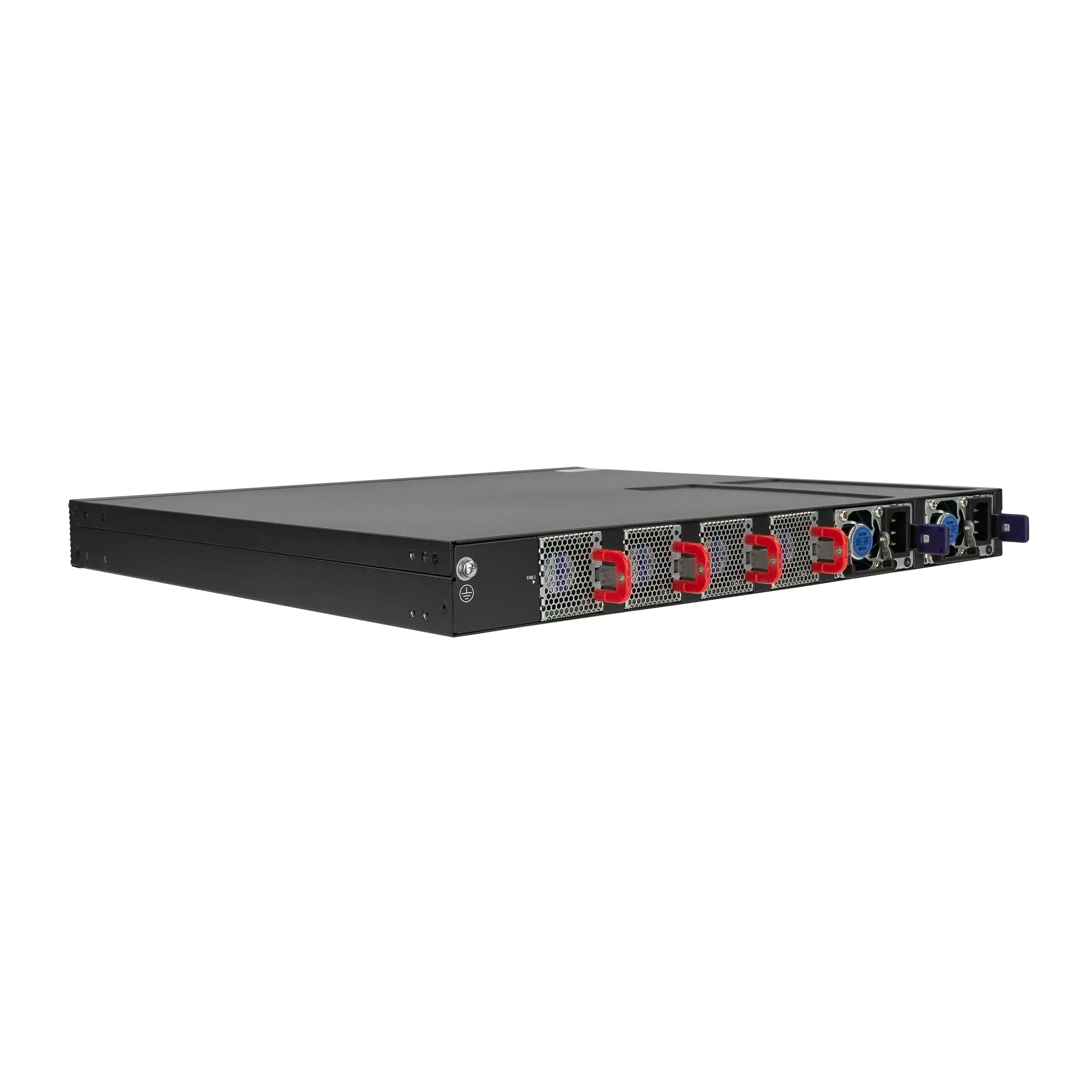

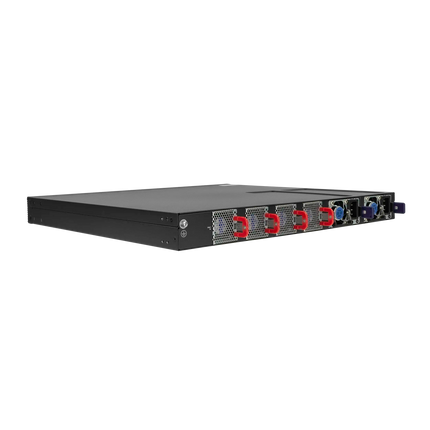

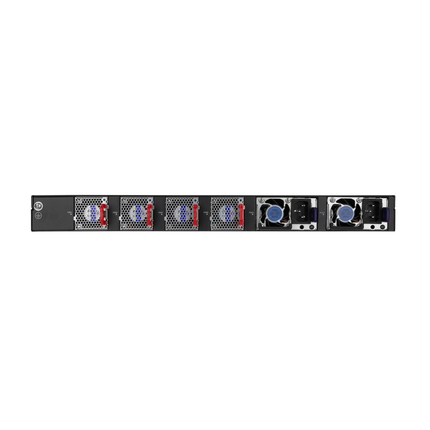

| Cooling | 3+1 Redundant Hot-Swappable Fans with Front-to-Back Airflow |
| Physical | |
| Rack Space | 1RU |
| Mounting Methods | Rackmount |
| Product Material | Metal |
| Dimensions | |
| Dimensions (Unit only Width/Depth/Height) | 17.75” x 17.44” x 1.75” (451mm x 443mm x 44mm) |
| Dimensions (Packaged Width/Depth/Height) | 26.13” x 21.5” x 6.25” (664mm x 546mm x 159mm) |
| Weight (Unit) | 14.61 lbs (6.63 kg) |
| Weight (Packaged) | 20.38 lbs (9.24 kg) |
| Product Warranty | 10 year warranty |
| Specifications subject to change without notice. Mass & dimensions are approximate | |
- AC-MXNET-SW24XF (Network Switch)
- 1 x Grounding cable
- 1 x DP9 to RJ45 connector
- 4 x Mounting Brackets (2x Front ears and 2x Rear brackets)
- 16 x Screws for Mounting Brackets
- 2x Rear bracket positioning screws
