70M 18Gbps HDBaseT Extender Kit

Description

The AC-EX70-444-KIT was one of the first HDMI-over-HDBaseT extension kits on the market to transmit 4K/60fps 4:4:4 video signals. HDR10, plus dynamic metadata formats such as Dolby Vision, HDR10+, and Hybrid Log Gamma, are transported over Cat6A copper cabling at 18Gbps, as image fidelity remains damage-free from source to display. Employing AVPro Edge’s proprietary Invisible Compression Technology algorithm, ICT, 4K/60fps signals containing high dynamic range video enhancements, with high-bitrate audio codecs, remain unaltered and artifact-free from the transport process.

It is not unusual for other products in the marketplace to use algorithms designed for use by applications accustomed to significantly lower data amounts. As a consequence, combined with category cable use, image information must be forfeited to achieve sending the signal to the display. What is typically discarded is color information supporting smooth transitions between colors with very close hues. This results in harsh delineation points, called “banding”, which are readily detectable by even casual viewers. Additional artifacts, not present in the source, are introduced, such as color shifts and motion alterations, which disturb the artistic intent of the content.

The AC-EX70-444-KIT is augmented by resourceful features such as EDID management, resolution downscaling, bidirectional IR and RS-232 signal control, onboard test pattern generation, dual 10/100 ethernet ports for LAN extension, and Left/Right audio extraction from PCM 2-channel input signals.

70M 18Gbps HDBaseT Extender Kit

Product form

  • 100M 4K/60fps 4:4:4 through CAT6A with AVPRo Edge ICT
  • 150M Long Range Mode for 1080p option
  • HDR10 and all Dynamic Metadata video formats supported
  • Full EDID management
  • Compact placement depth (.47 inches / 12mm)

SKU: AC-EX70-444-KIT

  • Shipped today? Order within: Nov 19, 2026 13:00:00 -0600

Description

The AC-EX70-444-KIT was one of the first HDMI-over-HDBaseT extension kits on the market to transmit 4K/60fps 4:4:4 video signals. HDR10, plus dynamic metadata formats such as Dolby Vision, HDR10+, and Hybrid Log Gamma, are transported over Cat6A copper cabling at 18Gbps, as image fidelity remains damage-free from source to display. Employing AVPro Edge’s proprietary Invisible Compression Technology algorithm, ICT, 4K/60fps signals containing high dynamic range video enhancements, with high-bitrate audio codecs, remain unaltered and artifact-free from the transport process.

It is not unusual for other products in the marketplace to use algorithms designed for use by applications accustomed to significantly lower data amounts. As a consequence, combined with category cable use, image information must be forfeited to achieve sending the signal to the display. What is typically discarded is color information supporting smooth transitions between colors with very close hues. This results in harsh delineation points, called “banding”, which are readily detectable by even casual viewers. Additional artifacts, not present in the source, are introduced, such as color shifts and motion alterations, which disturb the artistic intent of the content.

The AC-EX70-444-KIT is augmented by resourceful features such as EDID management, resolution downscaling, bidirectional IR and RS-232 signal control, onboard test pattern generation, dual 10/100 ethernet ports for LAN extension, and Left/Right audio extraction from PCM 2-channel input signals.

  • Key Benefits
  • Specs
  • Resources
  • In the Box

Invisible Compression Technology: ICT revolutionized HDMI extension technology implemented into HDBaseT. Bandwidth limitations with 4K signals sent through copper category 5E, 6, and 6A cabling are overcome by our proprietary algorithm. Compatible with all HDR and high-bitrate audio codec metadata, the highest quality display devices remain artifact-free when accepting ICT signals.



Long-Range Mode – Extend your reach with the AC-EX70-444-KIT. When Long-Range Mode is enabled, the transmitter automatically downscales 4K signals to 1080p, allowing transmission distances of up to 150 meters (492 feet)—perfect for getting to those hard-to-reach displays without compromising reliability.



Downscaling: Scaling circuitry in the transmitter can step down 4K (including HDR metadata) to 1080p for legacy displays, especially useful in mixed resolution systems where native signal resolution is preserved for optimum performance system-wide.



EDID Management: Interoperability issues between displays and problematic AVRs or sources are easily resolved with EDID options available on the kit. EDID bypass and EDID copy simplify troubleshooting.



Test Pattern Generation: Leave your Fox & Hound at the shop? 4K and 1080p test patterns aid in rapidly identifying connectivity or EDID problems. The TX and RX units separately generate patterns to verify infrastructure integrity and system signal pass-through.



IR & RS232 Management: Infrared and RS-232 signals pass through the AC-EX70-444-KIT bidirectionally to effectively enable device control at each point. The Transmitter I-PASS port accepts a mono 3.5mm control system cable providing a secure connection for IR pass-through.



Cascade Mode: Precision HDMI signal amplification and equalization enables “daisy-chaining” two AC-EX70-444-KITs in sequence, to augment transmission distance. Bidirectional power negates the need for a transformer mid-way where the kits join, as power applied to the source-end transmitter and the display-end receiver supplies the full circuit.



Video
Video ResolutionUp to 4K 60 Hz 4:4:4
HDR FormatsResolutions: 420, 422, 444 (10 and 12 deep color) HDR10, HDR10+, Dolby Vision, HLG
Color SpaceYUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
Chroma Subsampling4:4:4, 4:2:2, 4:2:0
Color Bit DepthUp to 16-bit (1080p), up to 12-bit (4K)
Scaling4K to 1080p
Audio
Audio Formats Supported HDMIPCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos
Audio Formats Supported Extracted (2-Ch. Port)PCM 2-Ch.
Distance
HDBaseT Distance (4K)100 m (330 ft.) (CAT 6A)
HDMI Cable Distance (Passive)4K60 4:4:4: Up to 50 ft. (using Bullet Train HDMI)
HDMI Cable Distance (AOC)4K60 4:4:4: Up to 130 ft. (using Bullet Train AOC)
Other
Bandwidth18 Gbps (Uses ICT above 10.2 Gbps signals)
HDCP / Copy ProtectionHDCP 2.3 and earlier
Ports
HDMITX & RX: Type-A
HDBaseTRJ45 w/ PoH for HDBaseT Receivers
Audio (Extracted Analog)TX & RX: 5 PIN Terminal Block (Balanced)
IR TransmitTX & RX: 3.5 mm Mono (2 Conductor)
IR ReceiveTX & RX: 3.5 mm Stereo (3 Conductor)
RS-232TX & RX: 3 Pin Terminal Block Each
PowerTX & RX: 2 Pin Terminal Block Each
Ethernet / LANTX & RX: 2x RJ45 Connections Each (10/100)
Firmware / ISP PortTX & RX: USB C
Environmental
Operating Temperature23 to 125 °F (-5 to 51 °C)
Storage Temperature-4 to 140 °F (-20 to 60 °C)
Operating Humidity5% to 90% RH, non-condensing
Power
Power ConsumptionTotal: 12 W max
Power SupplyInput: AC 100 V to 240 V ~ 50/60 Hz Output: DC 48 V 0.5 A
Physical
Dimensions (Unit)L × W × H: 103 × 157 × 12 mm (4.04 × 6.18 × 0.47 in.)
Dimensions (Packaged)Kit: L × W × H: 165 × 203 × 91 mm (6.5 × 8 × 3.6 in.)
Weight (Unit)0.4 lb. (0.13 kg)
Weight (Packaged)2 lb. (0.90 kg)
Notes*Specifications subject to change without notice. Mass & dimensions are approximate

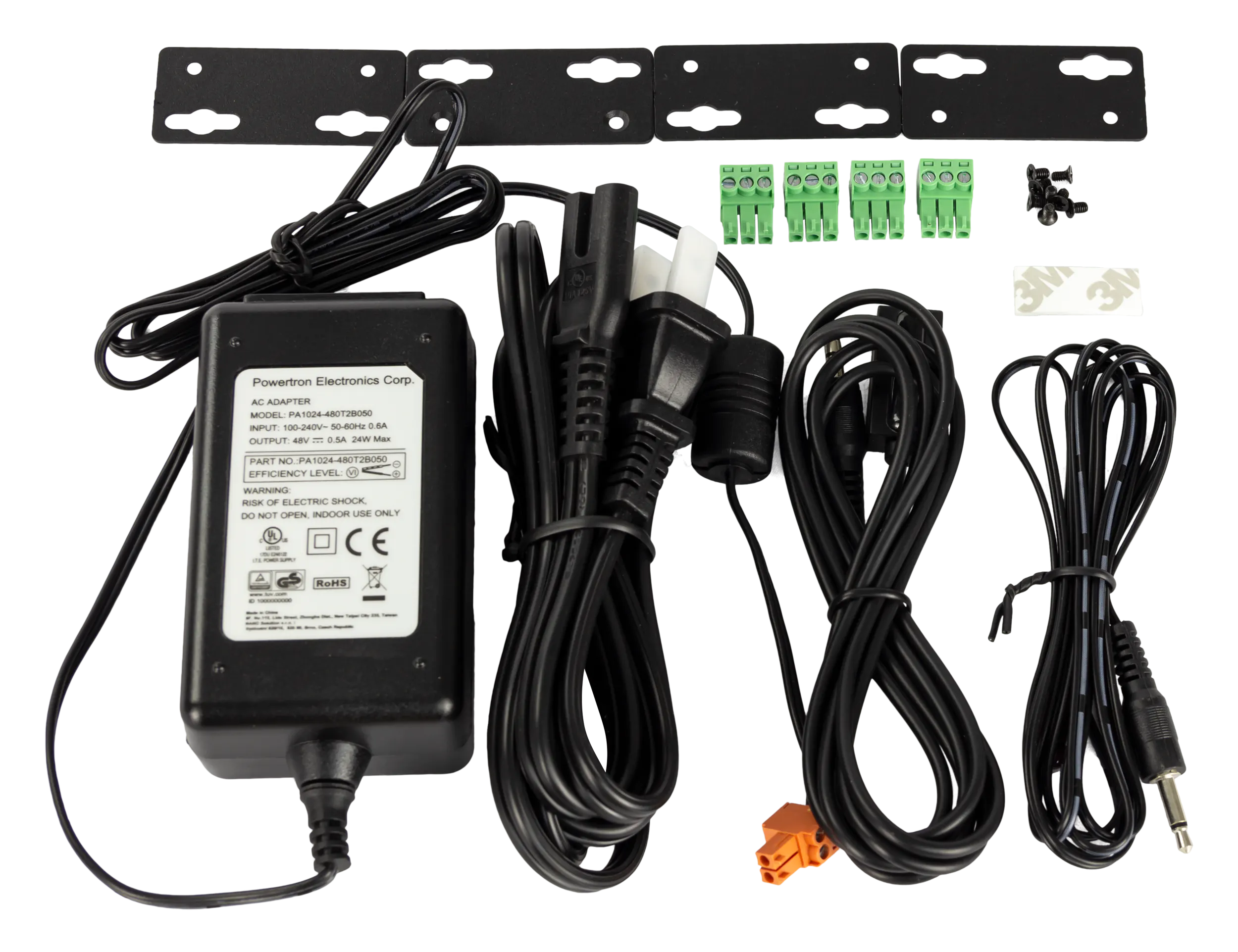

AC-EX70-444-KIT-GEN2:

  • AC-EX70-444-T (Transmitter)
  • AC-EX70-444-R (Receiver)
  • 48V Power Supply (One supplied)
  • 1 x IR Tx Unit
  • 1 x IR Rx Unit
  • 4 x 3 Pin Terminal blocks for Audio and RS232 Ports
  • 4 x Mounting Brackets
  • 8 x Screws for Mounting Brackets

*Optional 3Pin to Stereo Audio Cables available for purchase
