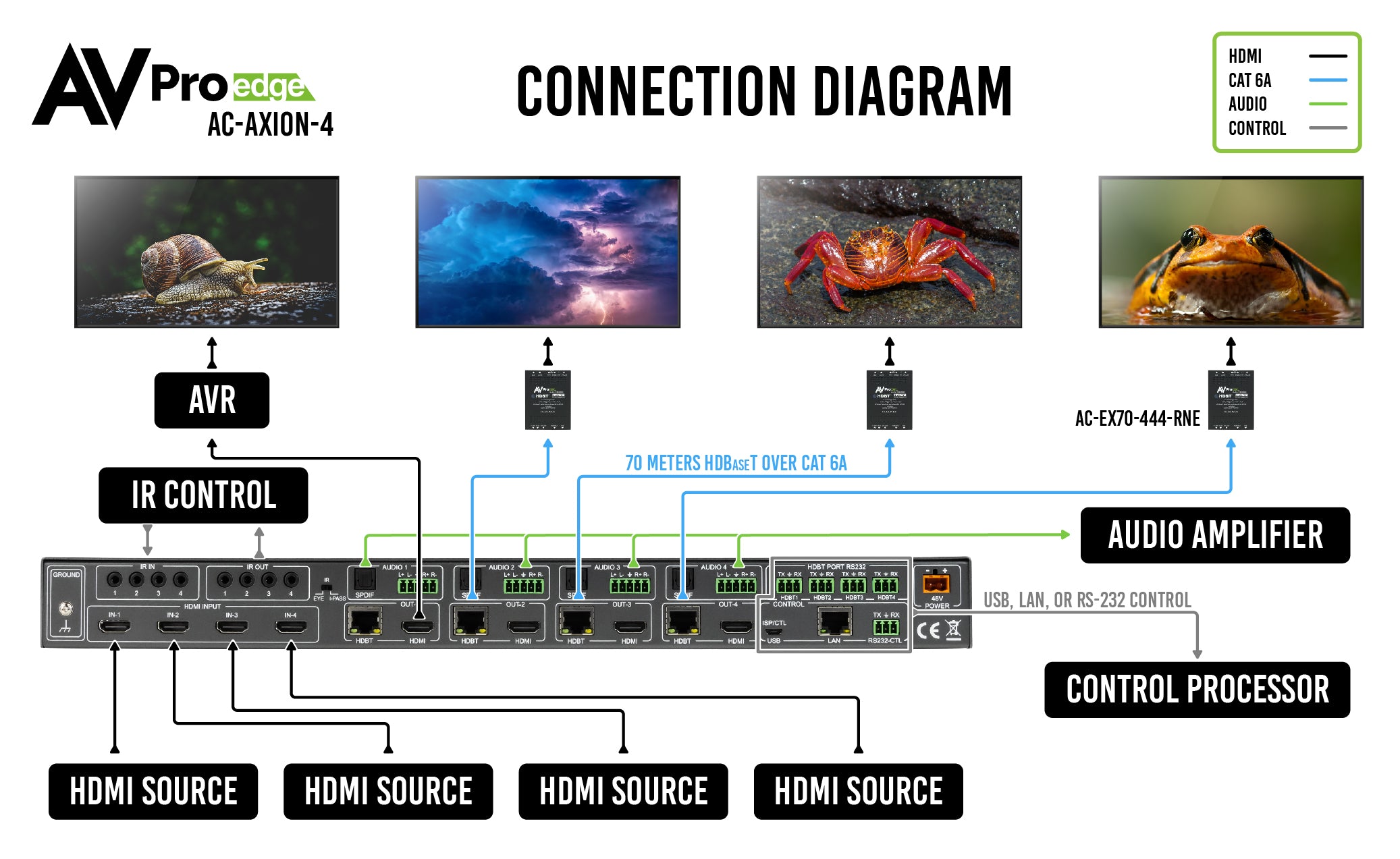

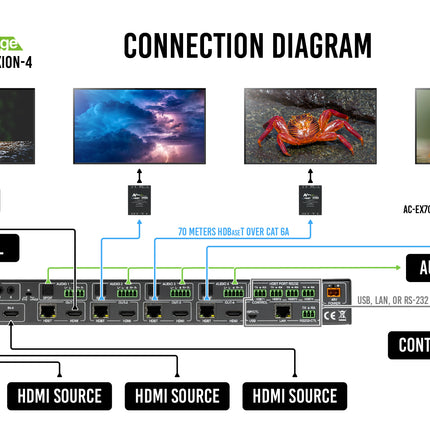

AXION 4 18Gbps 4x4 Matrix Switcher
- VendorAVPro Edge
AXION 4 18Gbps 4x4 Matrix Switcher
- VendorAVPro Edge

Invisible Compression - ICT is a technology we developed to ensure 18Gbps distribution over standard category cable. That means what you put in is what you see on the screen. No need to worry about compression artifacts and banding like you find with other compression methods.
Ultimate HDR Support - This matrix supports all flavors of HDR in all formats. Including HDR, HDR10, HDR10+, Dolby Vision, HLG, BBC, and NHK. All of them are permitted in up to 4K 60Hz and up to 12 Bit Deep Color. All color space compressions are compatible.
Extreme EDID Management - With 29 onboard EDID's, including HDR EDID's, not getting a picture is simply a thing of the past. You can manage the input side of the switch by selecting a preloaded EDID. It also can INSTANTLY read an EDID from any connected display and apply it to the desired input, all with the push of a button. Goodbye, EDID problems...
Front Panel Screen - Make setup a breeze! The front panel allows you to do basic configurations, including; EDID, Audio, Matrixing, and network. All without connecting a PC or hooking anything up. This additional mode of control is a welcome resource on the job site.
AXION Interface - Full matrix control is available on the internal WebOS - Plug the matrix into the network and punch in the default IP (192.168.1.239) or use DHCP to connect to a complete control system! The AXION Interface is scalable for mobile devices, so feel free to use your phone or tablet for real-time control.
Resolution Downscaling - Are you installing a hybrid system with a combination of 4K and 1080p displays? No problem with this unit. The AC-AXION-4 has built-in down scalers throughout each HDBaseT output. You can downscale 4K to 1080p, and this will ensure you never send a 4K signal to a display that isn't able to process the picture.
Audio Downmixing - There is no need to set your source to 2-channel, no matter what kind of audio this matrix switcher receives. Converting audio to 2-channel in the matrix allows you to deliver Dolby Atmos sound to a home theater and 2-channel audio to a bedroom simultaneously.
Dual Audio De-Embedding - Our unique Audio De-Embedding allows:
Volume Control - The ability to manage the sound of an installation is essential. AVPro makes that process easier by allowing you to control the volume of each of the de-embedded audio outputs separately via control commands.
Easier Installation - With the AVPro Edge User Interface, many easily accessible tools are available inside our web-based user interface. Installers of all experience levels can fully deploy large video distribution systems more effortlessly than ever before. Companies will do more jobs and increase profits by finishing installs quicker and saving experienced technicians time and energy to direct towards new installations.
Identify Issues Before Leaving the Job Site - The AVPro Edge User Interface allows integrators to follow up and check each video signal's health. If there is an issue, integrators can use the HDMI and HDBaseT diagnosis tools to narrow down if there is an issue with the cabling, EDID, or resolutions. Integrators can leave a site confident that they won't have to be back while conveying an expert installation to their clients and earning more money. Ensure integrator technicians are working on new installs and not just fixing systems that should already be wrapped up.
Built-In Simple Video Switching Control - With Admin control, integrators can set up a user with limited access to the User Interface. This feature is perfect for smaller bars and restaurants that need to have their staff control straightforward source switching without having access to the entire setup, diagnostics commands, or volume controls. In some instances, this can help integrators work around some clients budget restraints, gaining installations they might not have won without the flexibility AVPro Edge products provide.
| Video | |
| Video Resolution | Up to 4K 60 Hz 4:4:4 |
| VESA Resolutions | Up to DCI 4K (4096x2160) |
| HDR Formats | Resolutions: 420, 422, 444 (10 and 12 Deep Color) HDR10, HDR10+, Dolby Vision, HLG |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 |
| Color Bit Depth | Up to 16-bit (1080p), up to 12-bit (4K) |
| Scaling | HDMI Per OUTPUT Optional: 1080p to 4K Up-Scaling (Resolutions Only, Framerate Stays the same) HDBaseT Per OUTPUT Optional: 4K to 1080p Down-Scaling (Resolutions Only, Framerate Stays the same) |
| Audio | |
| Audio Formats Supported HDMI | PCM 2.0-Ch., LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS:X, Dolby Atmos |
| Audio Formats Supported Extracted (TOSLINK) | Always downmixed to 2-Ch. |
| Audio Formats Supported Extracted (2-Ch. Port) | Always downmixed to 2-Ch. |
| Audio Extraction Location | Bind to INPUT, Bind to OUTPUT, or Matrix (Independent) |
| Audio Delay (Per OUTPUT, Extracted) | Up to 630 ms |
| Distance | |
| HDBaseT Distance (4K) | OUT 60 4:4:4 & HDR W/AC-EX70-444-RNE: 70 m (230 ft.) (CAT 6A) OUT 60 4:2:0 MAX W/AC-EX70-UHD-R: 40 m (131 ft.) (CAT 6A) |
| HDBaseT Distance (1080p) | OUT W/AC-EX70-444-RNE: 100 m (330 ft.) (CAT 6A) OUT W/AC-EX70-UHD-R: 70 m (230 ft.) (CAT 6A) |
| HDMI Cable Distance (Passive) | 4K60 4:4:4: Up to 50 ft. (using Bullet Train HDMI) |
| HDMI Cable Distance (AOC) | 4K60 4:4:4: Up to 130 ft. (using Bullet Train AOC) |
| Other | |
| Bandwidth | HDMI: 18 Gbps Uncompressed HDBaseT: 18 Gbps (Uses ICT Above 10.2 Gbps Signals) |
| HDCP / Copy Protection | HDCP 2.3 and earlier |
| POH For Receivers (No need to power receivers) | Yes, All OUTPUTS |
| Control | |
| Ports | LAN, RS-232, IR |
| Drivers | C4, RTI, ELAN, CRESTRON, URC (For More Information - See Drivers Page on AVProEdge.com/Drivers) |
| Web Interface | Yes |
| Ports | |
| HDMI | Type-A |
| HDBaseT | RJ45 W/ POH for HDBaseT Receivers |
| Ethernet / LAN | RJ45 w/ Web Interface/ Control |
| Audio (Extracted Digital) | TOSLINK |
| Audio (Extracted Analog) | 5 PIN Terminal Block (Balanced) |
| IR | 3.5 mm Stereo (3 Conductor) |
| RS-232 | 3 Pin Terminal Block |
| Environmental | |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Power | |
| Power Consumption | Total: 38 W max |
| Power Supply | Matrix: Input: AC 100 V to 240 V ~ 50/60 Hz Output: DC 48 V 1.5 A |
| Physical | |
| Dimensions (Unit) | W × D × H: 441.33 × 256 × 50.8 mm (17.375 × 10.07 × 2 in.) |
| Dimensions (Packaged) | W × D × H: 495.3 × 393.7 × 88.9 mm (19.5 × 15.5 × 3.5 in.) |
| Rack Space | 1 Unit |
| Weight (Unit) | 7.5 lb. (3.4 kg) |
| Weight (Packaged) | 10 lb. (4.54 kg) |
| Notes | *Specifications subject to change without notice. Mass & dimensions are approximate |
