Designed, Engineered, and Manufactured by AVPro Edge – Vertically integrated manufacturing allows AVPro Edge to deliver the AC-MXNET-SW48XF with enterprise-class performance at a price point typically reserved for aggregation-level switches.

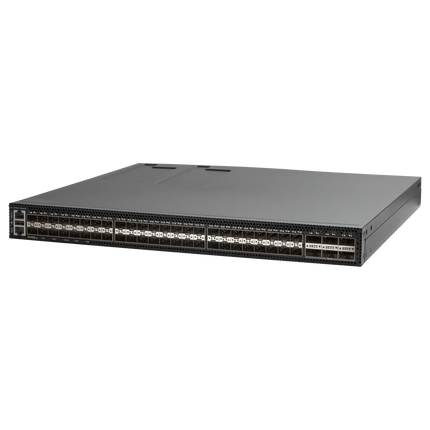

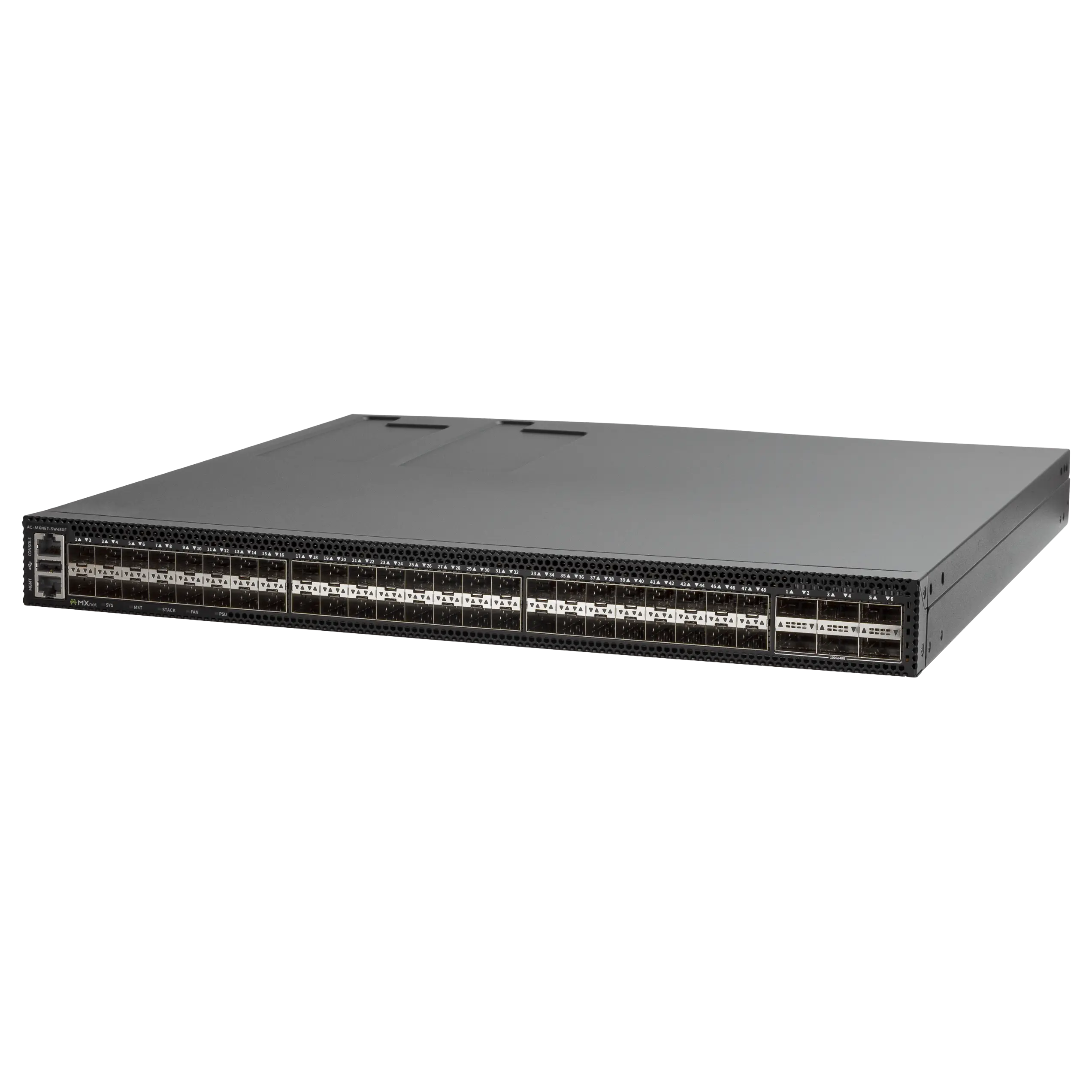

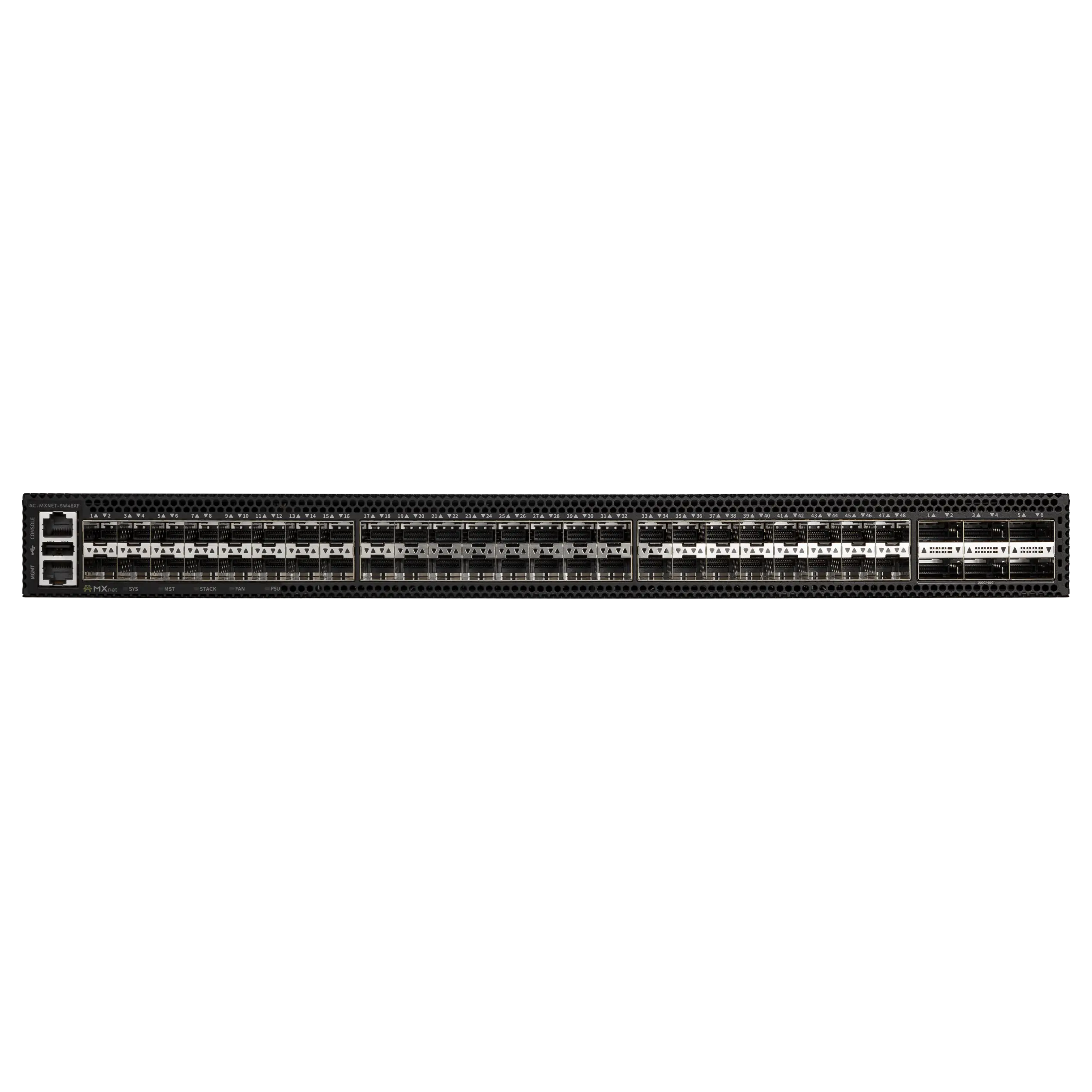

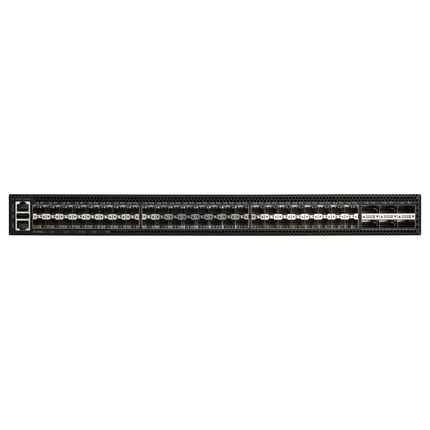

Port Configuration – 48 x 10G SFP+ and 6 × 100G QSFP28 Front-facing Ports

Front-facing Ports – Low profile, 1 RU rack height design with front-to-back airflow.

Port Expansion Capability - QSFP28 Ports enable high-speed stacking, backbone uplinks, or breakout to 4 x 25 Gbps / 4 x 10 Gbps for flexible multi-switch expansion.

2.16 Tbps Total Switch Capacity – Bottleneck-free, low-latency, high data throughput with a 600 Mpps forwarding rate. Full multicast load handling with zero packet loss.

SDVoE Non-Blocking – 600 Gbps stacking bandwidth exceeds SDVoE performance load limits by 1.25 times (SDVoE 480 Gbps maximum).

Preconfigured for MXnet - Plug-and-play setup with VLAN, QoS, IGMP, and LAG optimized out of the box for SDVoE deployments. Quality of Service settings are optimized for Dante and SDVoE streams. MXnet and SDVoE load balancing reduce congestion and optimize network performance by distributing high-volume data transfers and multicast streaming traffic across multiple paths.

High Reliability - Carrier-class enterprise-grade hardware provides 99.999% uptime availability, crucial for applications such as public safety monitoring or medical-related installations.

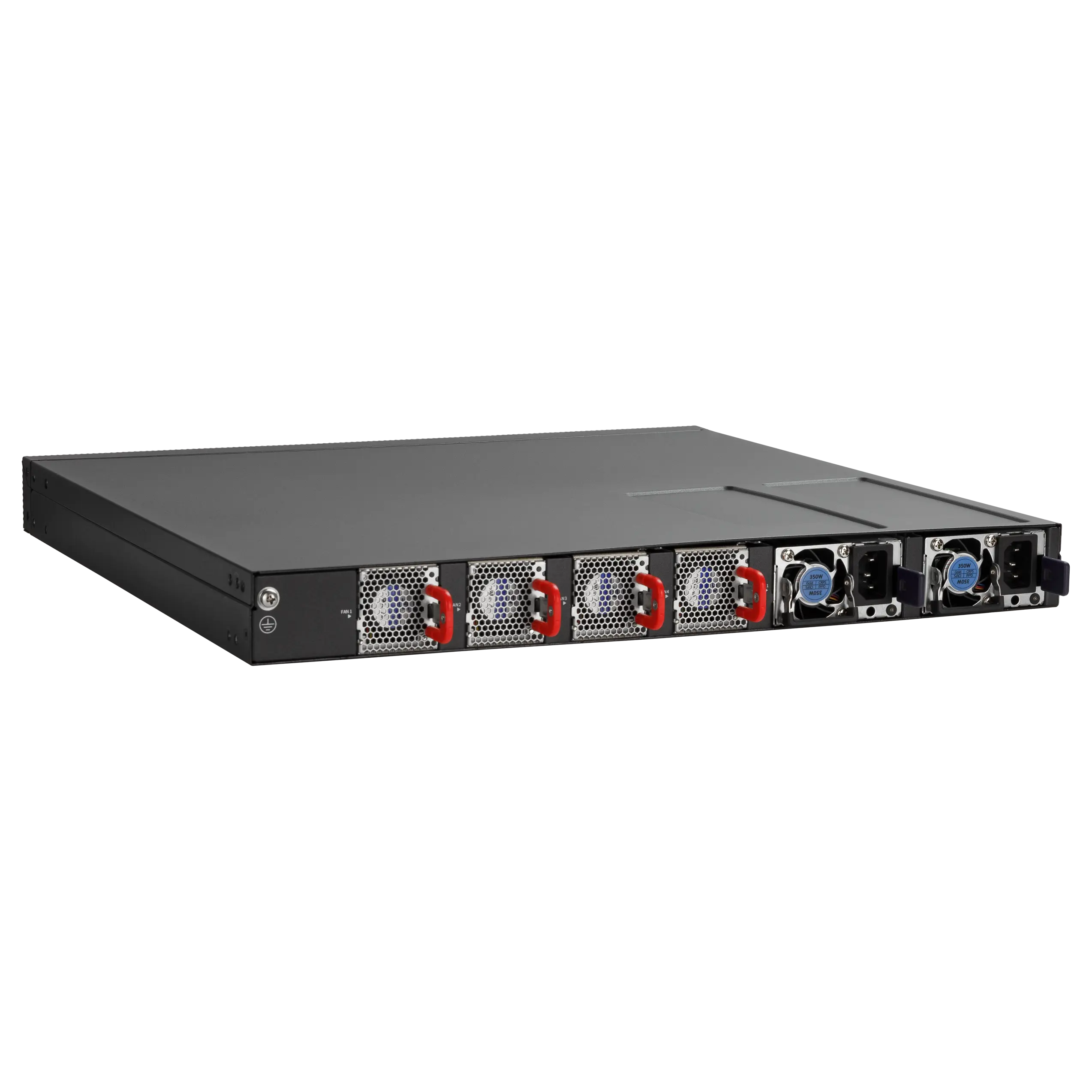

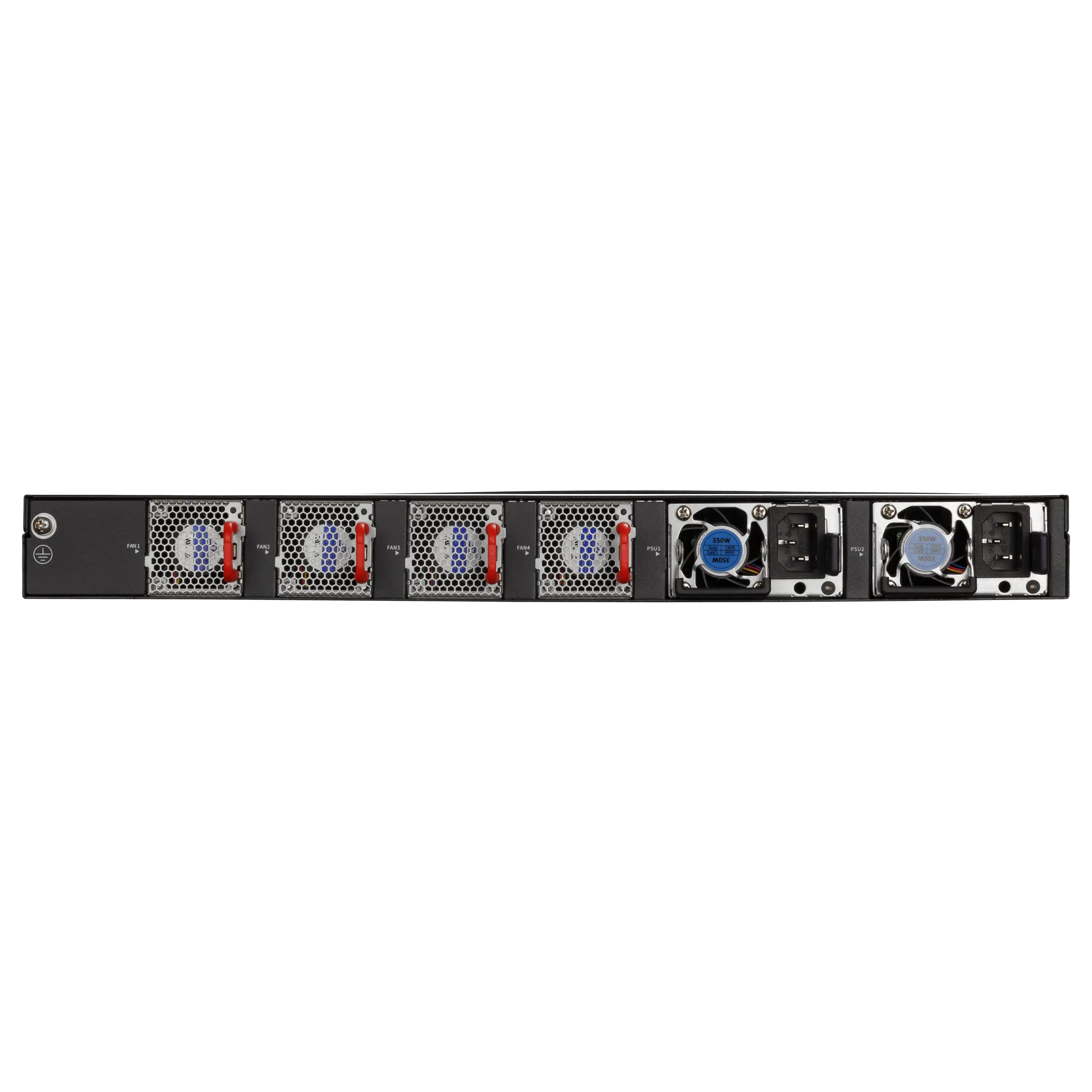

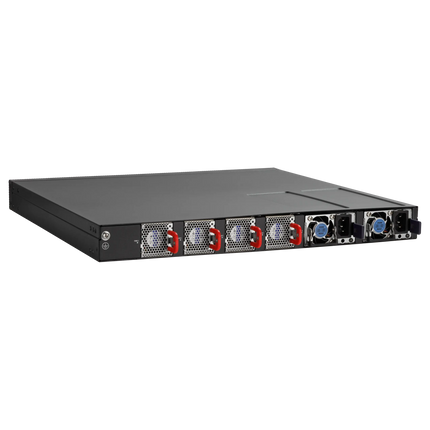

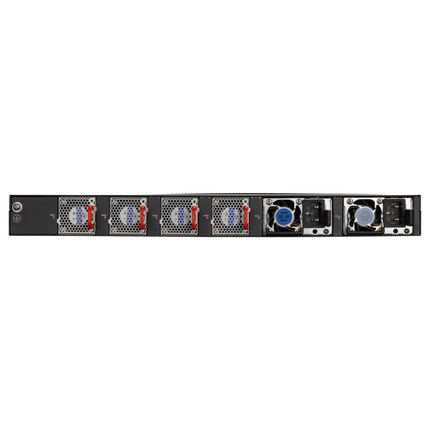

Fail Safe Construction - Dual internal power supplies provide redundant fallback in an unlikely failure event, plus 3+1 redundant fan modules ensure cool, long-term operation.

AVPro Edge Engineered Operating System - AVPro Edge re-engineered the Internet Group Management Protocol (IGMP) for the fastest maximum data multicast throughput with our proprietary onboard Intelligent AV Multicast Processor (iAMP). All internal switch modules are optimized for more demanding audio/video signals and the speed required to maintain image fidelity, plus control signal accuracy.
