Basic HDMI Wall Plate Kit
- VendorAVPro Edge

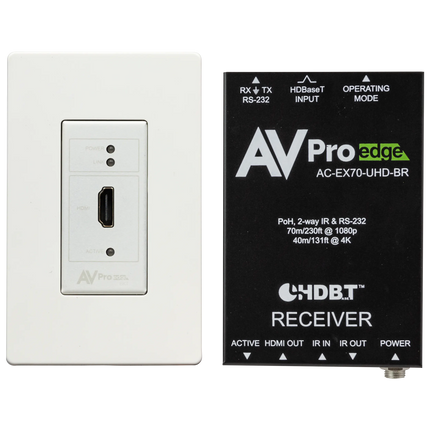

Basic HDMI Wall Plate Kit
- VendorAVPro Edge
- Key Benefits
- Specs
- Resources
- In the Box

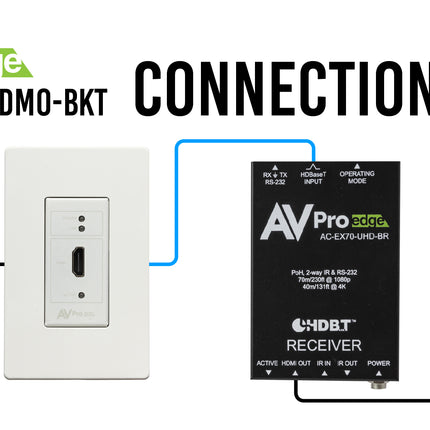

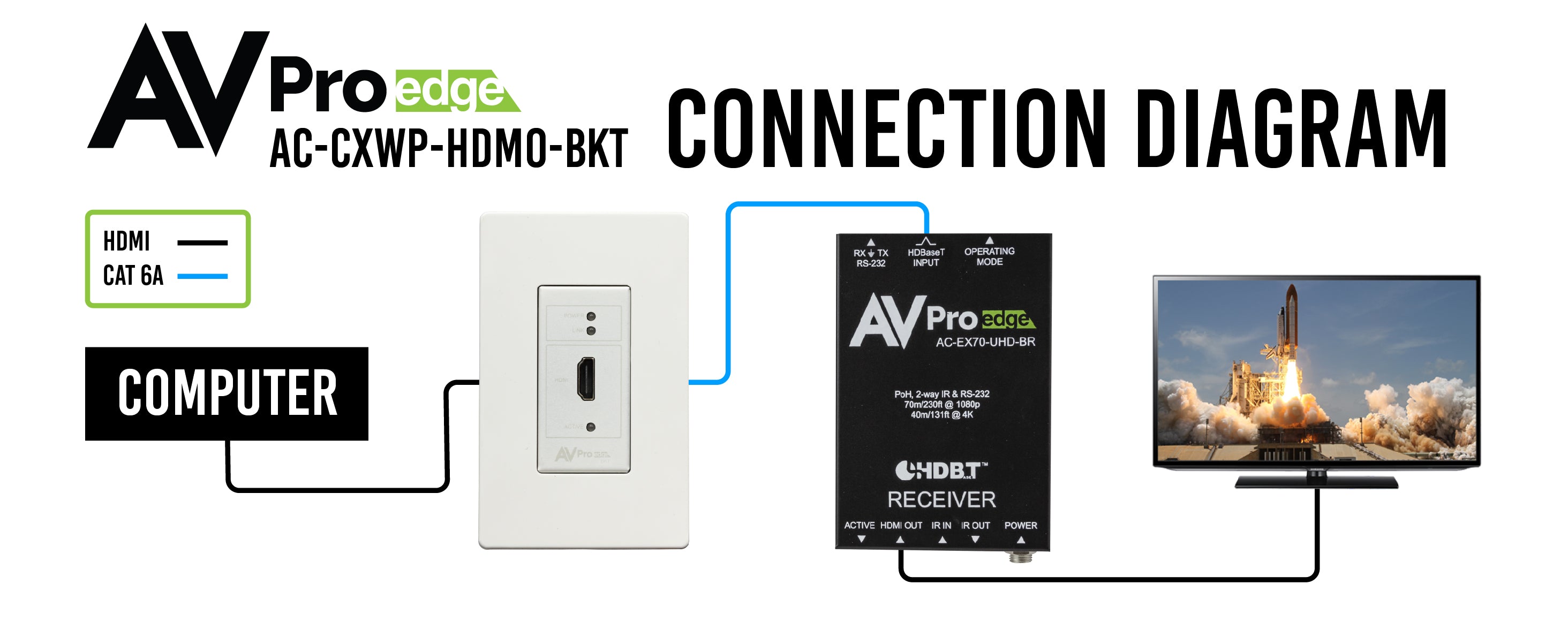

UHD over Category Cable - The length of manufactured HDMI cable is unchangeable after it’s made, and they are unreliable after about 25FT. HDMI connectors can only be terminated in a specialized factory environment due to their extremely high frequencies and high density. This does not allow installers or users to remake or make cables on a DIY basis. On the other hand, CAT-6A cables are available widely and can be reworked easily by the installer or end-user.
Distance - By using AC-CXWP-HDMO-BKT, the transmission distance for HD 1080P is 70 meters & 4K is up to 40 meters

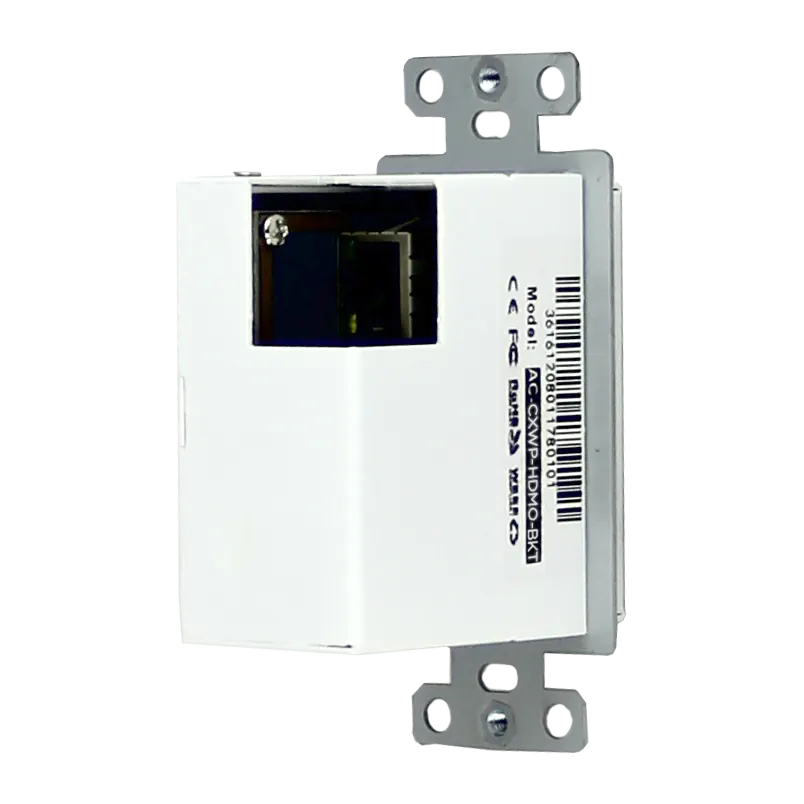

Single Gang - Save space and make a squeaky clean installation with the single gang configuration. This wall plate fits in more places than ever. It’s perfect for mounting in a wall, on a desk or podium top, or any other place where you need a solid and sleek HDMI connection.
Limitations - The AC-CXWP-HDMO-BKT from AVPro Edge is designed to give a very affordable option in HDMI extension. This is our most basic HDMI extender, meaning it doesn’t have the features you would find in our other models - Ethernet, ARC, eARC, USB, Audio Extraction, I-Pass IR, and longer distances with 4K. This product must be used as a transmitter and receiver kit, it will not work as a transmitter and receiver for any matrix switch.

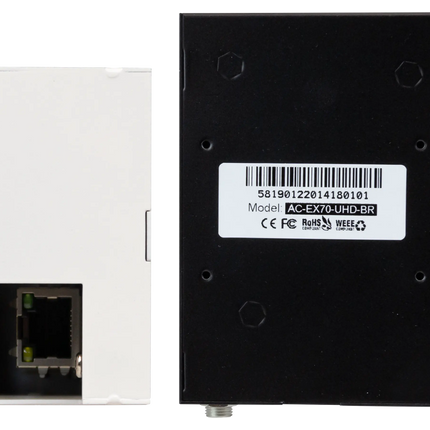

| Video: | |
| Video Resolutions | Up to 4K 60Hz 4:2:0 8bit |
| VESA Resolutions | Up to 2560x2048 (QSXGA) |
| Color Space | YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500) |
| Chroma Subsampling | 4:4:4, 4:2:2, 4:2:0 Supported |
| Deep Color | Up to 16 BIT (1080), Up to 10 bit (4K) |
| Audio: | |
| Audio Formats Supported HDMI | PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos |
| Distance: | |
| Distance 1080p | 70m (230 feet) (with CAT 6a/7) |
| Distance 4K & HDR | 40m (131 feet) (with CAT 6a/7) |
| Other: | |
| Bandwidth | 10.2 Gbps |
| CEC | Yes |
| HDCP | HDCP 2.2 and Earlier |
| Ports: | |
| HDMI (Input) | Type A |
| HDBaseT (Output to Receiver) | RJ45 |
| Environmental: | |
| Operating Temperature | 23 to 125°F (-5 to 51°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Humidity Range | 5-90% RH (No Condensation) |
| Power: | |
| Power Consumption (Total) | 12 watts (16.5 when paired with receiver) |
| Power Supply | Input: AC 100-240V ~ 50/60Hz Output: DC 12V 2a |
| Dimensions: | |
| Dimensions (TX Unit Only) (Length/Width/Height) | mm: 70 x 65 x 31 inch: 2.75 x 2.55 x 1.22 (without wall Decora cover) |
| Wall space | Single-gang |
| compatible box types | mud rings, stud mount, clamp mount, metal & plastic boxes, lv boxes |
| Dimensions (Kit Packaged Length/Width/Height) | mm: 184 x 317.5 x 82.55 inch: 7.25 x 12.5 x 3.25 |
| Weight (Kit Packaged) | 1.5lbs (0.68Kg) |
| *Specifications subject to change without notice. Mass & dimensions are approximate | |

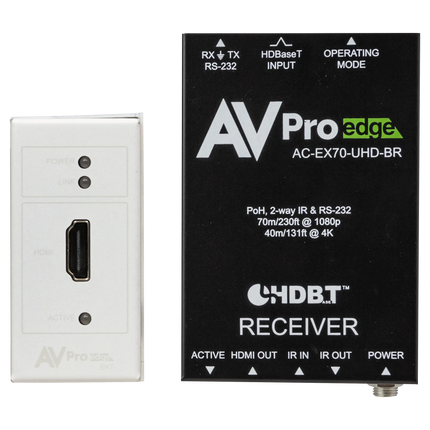

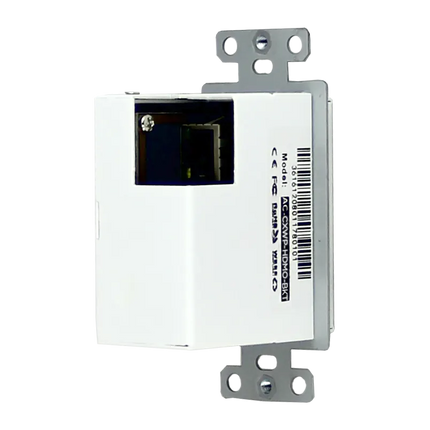

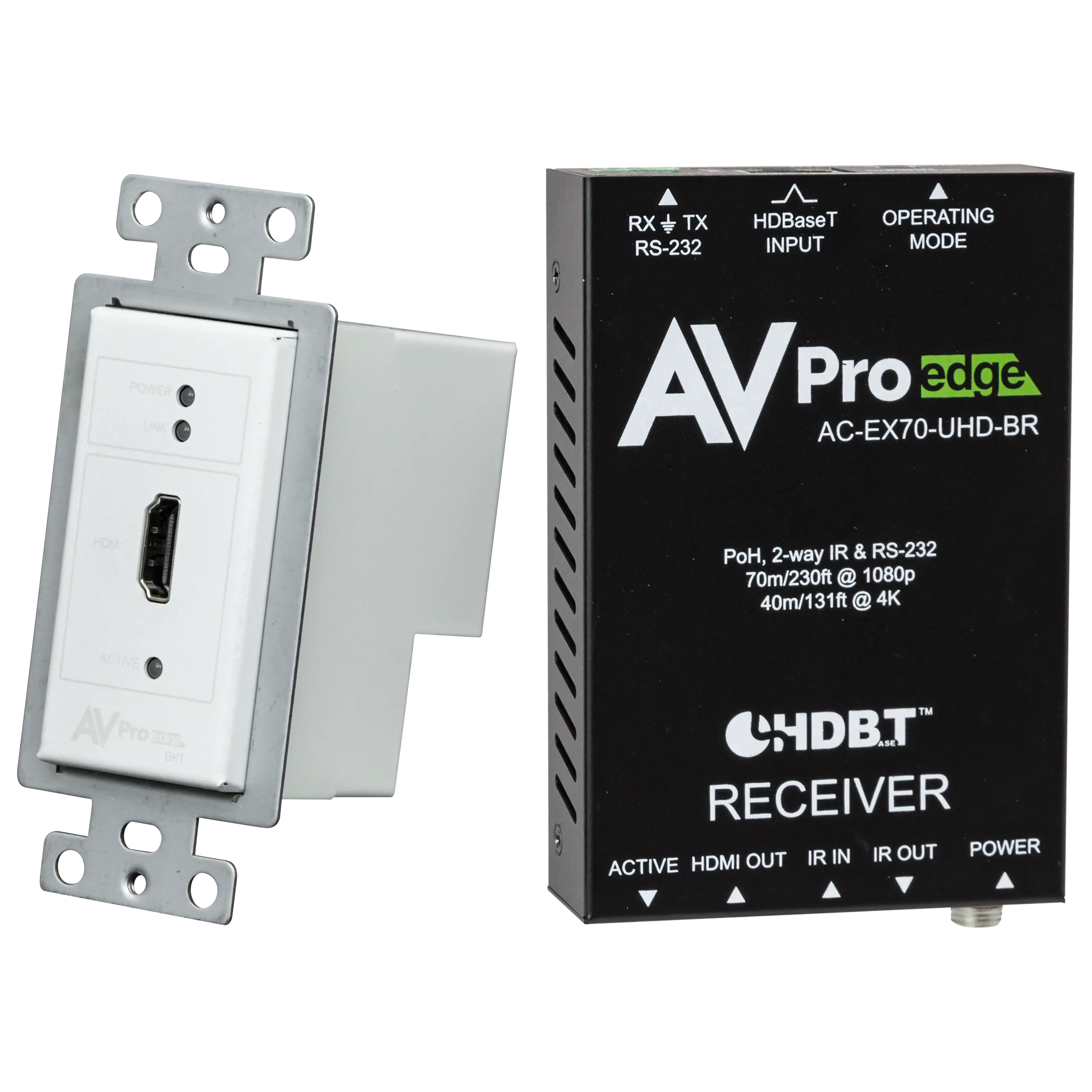

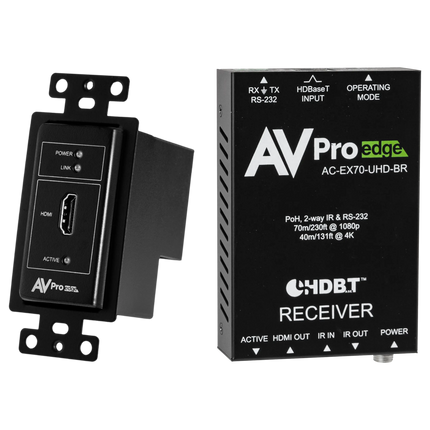

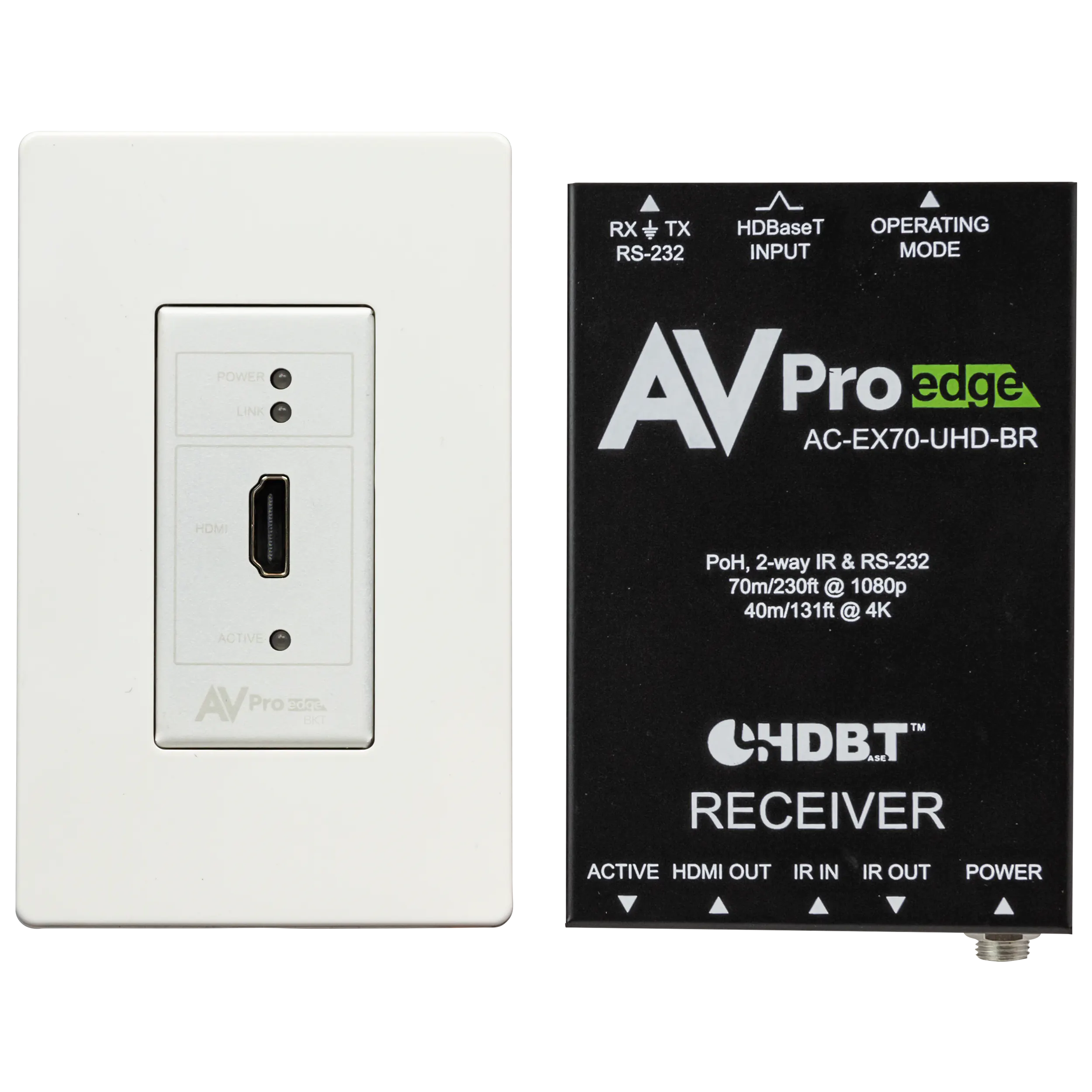

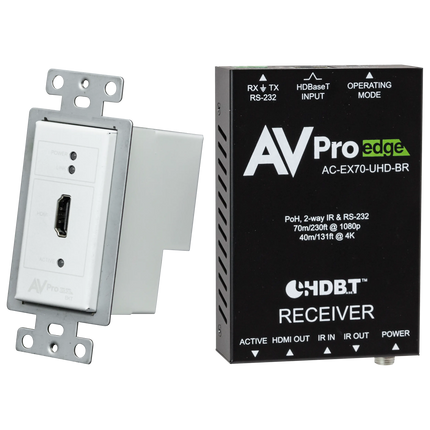

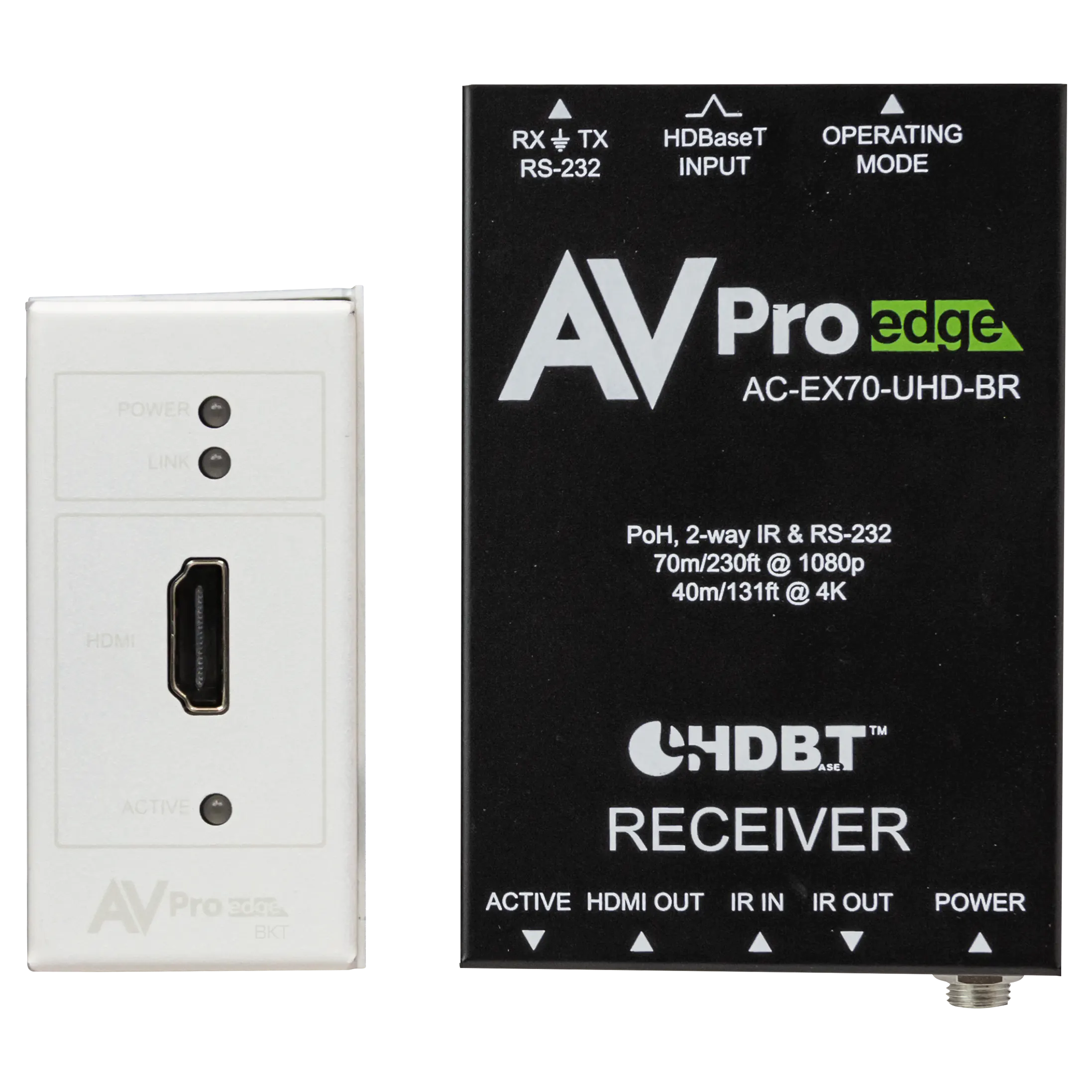

- AC-CXWP-HDMO-T (Transmitter)
- 1 x decora wall plate cover (white)
- 2 x long electrical outlet screws
- AC-EX70-UHD-BR (Receiver)
- 12V 2A Locking Power Supply
- 2 x Mounting Brackets
