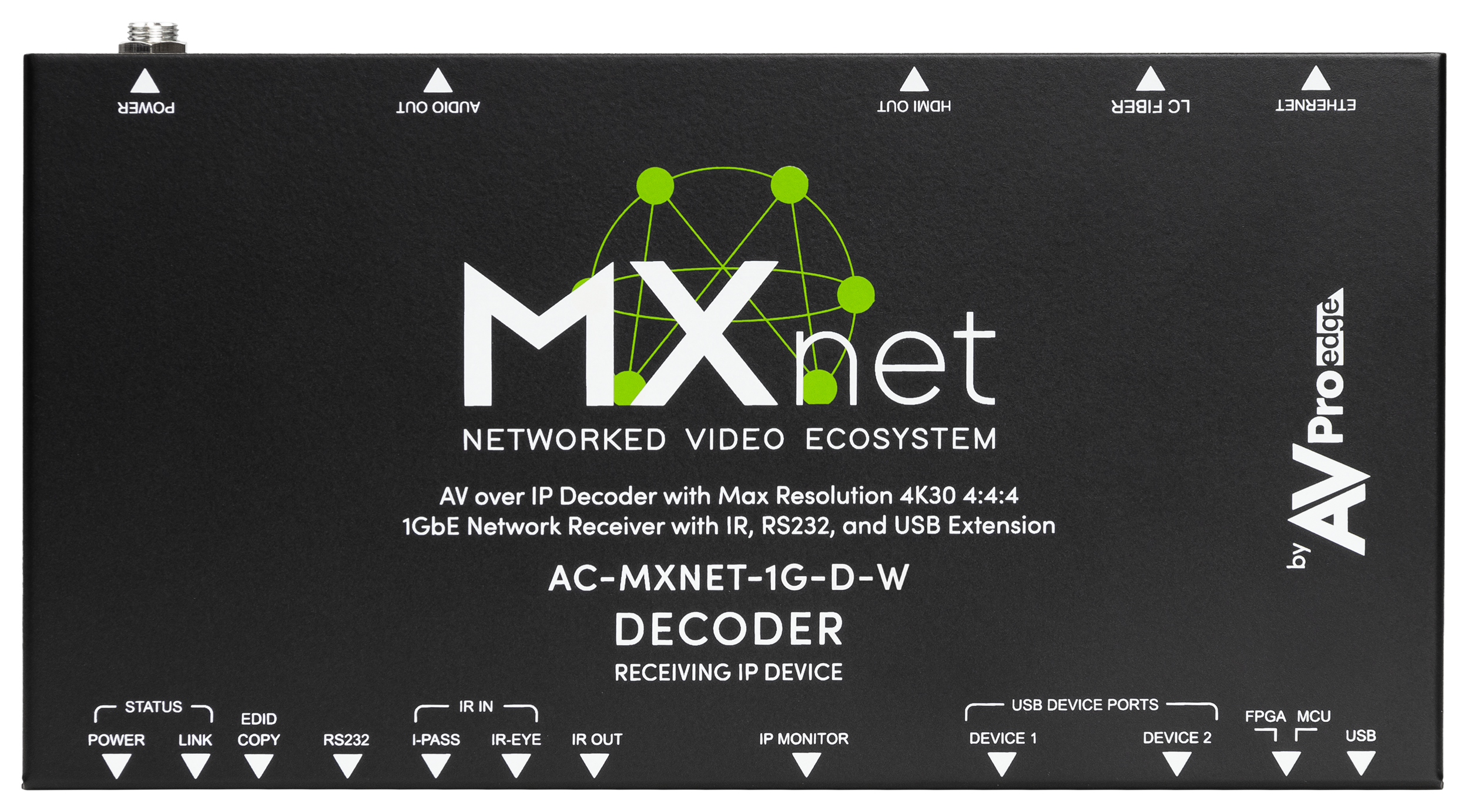

MXnet 1G Weather-Resistant Decoder
- VendorAVPro Edge
MXnet 1G Weather-Resistant Decoder
- VendorAVPro Edge
4K/30fps Decoding - Capable of receiving up to 4K/30fps 4:4:4 8-bit YCbCr or RGB streams from Evolution I encoders. A built-in HDMI scaler ensures maximum capability with sync devices.
Weather Resistance - Coated with a proprietary layer to resist the elements including, rain, salt fog, dust, humidity, heat and some chemicals to better support installations such as patios, outdoor signage or any weather prone areas.
Video Walls - Supports scalable video wall configurations up to 16x16 in size with bezel correction. Perfect for digital signage, command and control, or high-impact presentation spaces. It delivers synchronized, ultra-low latency video across all displays for a seamless and immersive viewing experience.
Low Latency Distribution - Evolution I endpoints have an end-to-end system latency of approximately 1 video frame (16ms) with 60Hz video content. This latency is imperceivable in most application and ideal for mission critical applications.
High Bitrate Multi-Channel Audio - Transmit up to 6 channels of premium bitstream audio formats including Dolby Digital Plus and DTS-HD.
USB & KVM - Create large-scale KVM systems with integrated USB extension and routing capabilities. USB routes can either stay in sync with video content or be discretely switched to create a completely independent USB matrix system.
Control Signal Routing - Evolution I endpoints are equipped with various control signal I/O. Using the powerful MXnet API, you can send control commands over the network to practically any 3rd-party component in a system such as displays and source devices.
| Video | |
| Output | 1x HDMI 2.0 Type-A |
| HDR Formats | Not Supported |
| Codec | JPEG2000 |
| Video Input/Ingestion | |
| Video Resolution | Decoding: 4K/30 4:4:4 8-bit YCbCr or RGB 4K/60 4:2:0 8-bit YCbCr or RGB |
| Encoding | |
| HDCP / Copy Protection | HDCP 2.2 and earlier |
| Streaming Protocols | TCP, UDP, IGMP-V2 |
| Latency | End-to-End: 60 FPS: 16 ms 30 FPS: 33 ms |
| Audio | |
| Output | 1x 3.5 mm Stereo Mini-jack |
| Formats | 2-Ch. PCM | LPCM 5.1 | Up to Dolby Digital Plus | Up to DTS-HD |
| Ports | |
| Ethernet / LAN | 1x 1GbE RJ45 (100 m (328 ft.) 1x SFP Slot Supported SFP Modules: 1000BASE-SX (MMF, 850 nm, 550 m, LC, DOM) 1000BASE-LX/LH (SMF, 1310 nm, 10 km) |
| IR | Control/USB: 1x 3.5 mm IR Receive 1x 3.5 mm IR Transmit 1x 3.5 mm IR Passthrough |
| RS-232 | Control/USB: 1x 3-pin Phoenix |
| USB | Control/USB: 2x USB 1.1 Type-A (Device) 1x Micro USB Type-B (Debug) |
| Network | |
| Bandwidth | Max Bandwidth: 850 Mbps | Average Bandwidth: 4K30: 400 Mbps 1080p60: 200 Mbps |
| Environmental | |
| Operating Temperature | 23 to 125 °F (-5 to 51 °C) |
| Storage Temperature | -4 to 140 °F (-20 to 60 °C) |
| Operating Humidity | 5% to 90% RH, non-condensing |
| Cooling | Fanless Cooling |
| Acoustic Noise Level | 0 dB |
| Power | |
| Power Consumption | Average: 5.6 W |
| PoE | 802.11af PoE (15.4 W) |
| Power Supply | 12 V 2 A DC |
| Physical | |
| Mounting | Rack-mount or surface mount capable. Supported Rack Mounts: AC-MXNET-1G-R15 AC-MXNET-1G-R2 |
| Dimensions (Unit) | Axis order not stated: 199.14 × 103.1 × 13.47 mm (7.84 × 4.06 × 0.53 in.) |
| Dimensions (Packaged) | Axis order not stated: 309.88 × 180.09 × 54.10 mm (12.2 × 7.09 × 2.13 in.) |
| Weight (Unit) | 1.20 lb. (0.54 kg) |
| Weight (Packaged) | 1.65 lb. (0.74 kg) |
| Warranty | 10 years |
| Regulatory / Certifications | CE, FCC, UL; Specifications subject to change without notice. Mass & dimensions are approximate. |
